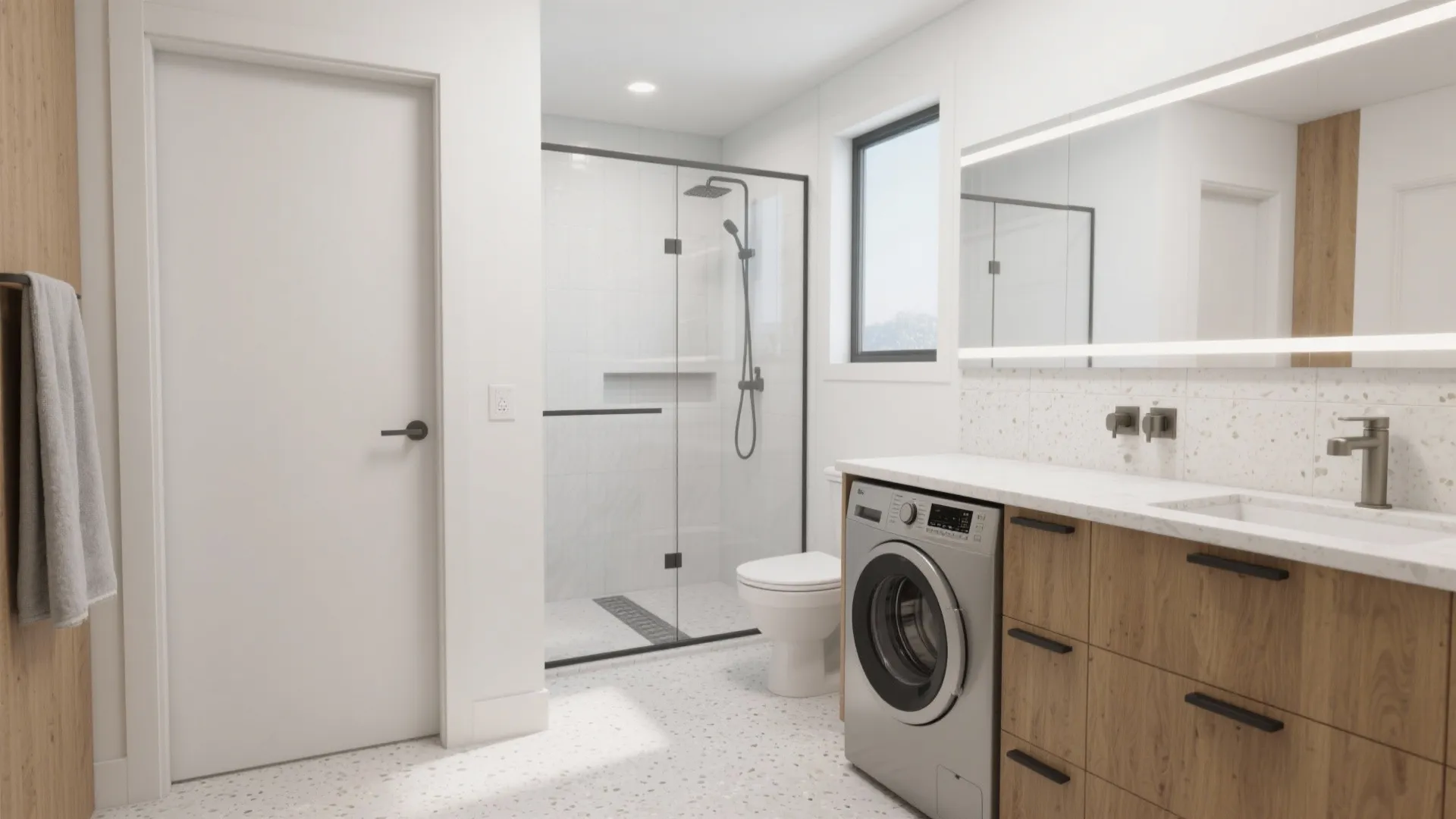

5 Smart Small Bathroom Laundry Room Combo Ideas: How I turn tiny baths into hard‑working laundry hubs with 5 design moves you can actually build

[Section: Introduction]

I’ve redesigned more than a dozen small bathroom laundry room combo spaces in the past few years, and the trend is only growing. Between city living, higher rents, and a push toward multi-functional homes, combining bathing and washing makes a lot of sense. Small spaces really do spark big creativity—when you plan them like a Tetris pro and mind the details.

In this guide, I’ll share 5 design inspirations I use in real projects—what worked, what didn’t, and what I’d do again. I’ll mix personal experience with data and pro guidelines so you can make confident decisions for your own small bathroom laundry room combo.

[Section: Inspiration List]

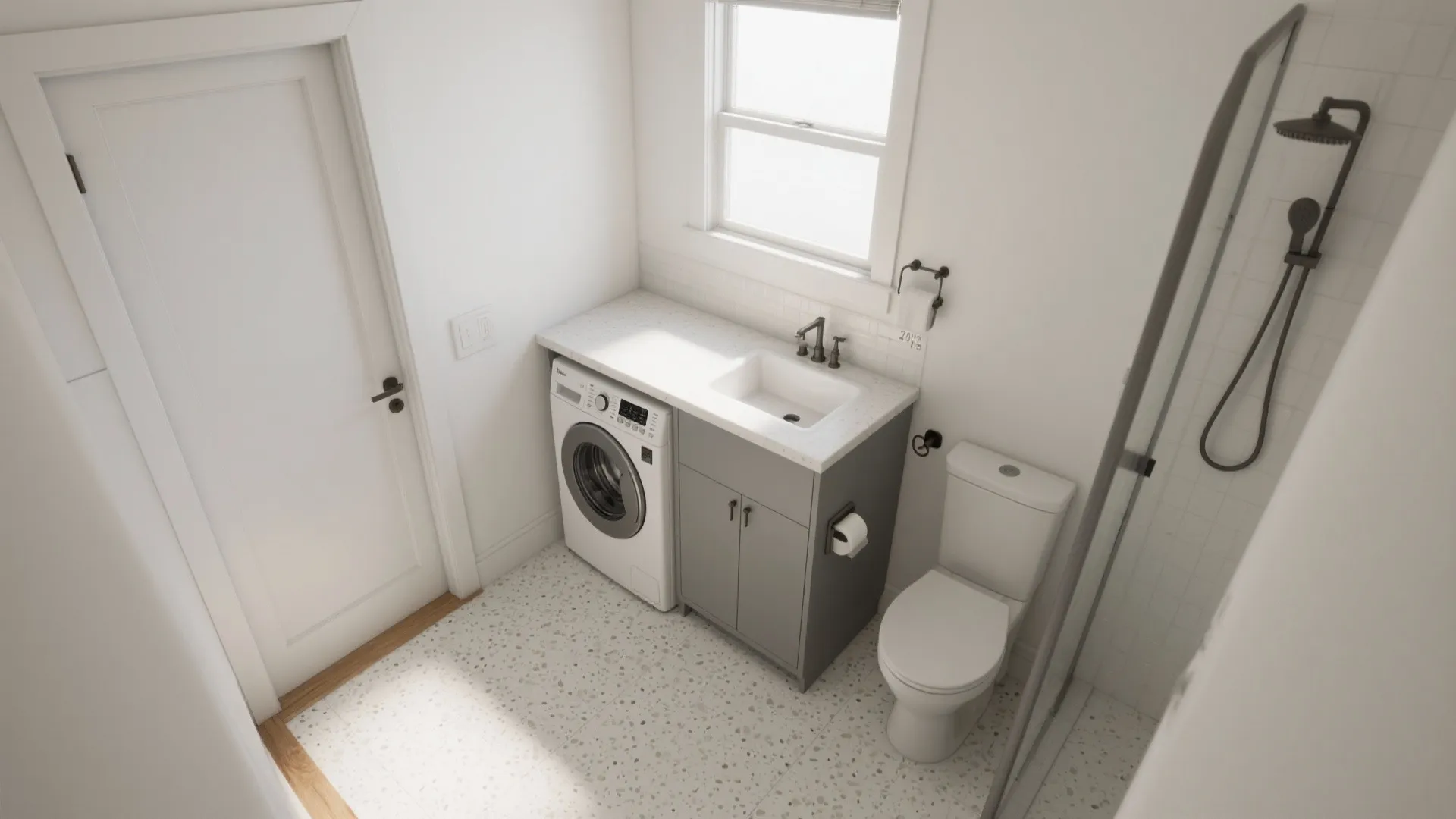

1) L-shaped micro-zoning that tucks laundry under counter

My Take — When space is tight, I start with an L along two walls: vanity and washer/dryer on one leg, shower/toilet on the other. In a recent studio, putting the front-loader under a continuous counter gave my client a fold zone, a vanity, and a landing spot in one run. For layouts like this, I often sketch first, then test clearances with a quick mockup—an L-shaped layout frees more countertop than you think if you commit to 24-inch-depth appliances and a slim sink.

Pros — An L clusters plumbing and shortens hose runs, which is great for a small bathroom laundry room combo where every inch and every pipe counts. A continuous worktop above a front-load washer creates a real laundry surface without adding bulk. The corner becomes a natural “buffer” so steam from the shower and lint from laundry don’t collide.

Cons — Corners hide clutter. If you ignore fittings, that corner can turn into a dust trap—and if your shutoff valves sit there, it’s awkward to access. You’ll also need to watch appliance door swings; a left-hinge washer next to a right-hinge vanity can create a traffic jam on laundry day. Been there, bumped that.

Tips / Case / Cost — If you’re shopping, look for 24-inch front-loaders with reversible hinges and a low vibration rating. Keep at least 30 inches of clear floor in front of the laundry bay; it’s a sweet spot for loading while still letting someone pass. Budget-wise, integrating a counter and L-shaped cabinet run usually adds $1,000–$2,500 in materials versus freestanding units, but it pays back in daily usability.

save pin

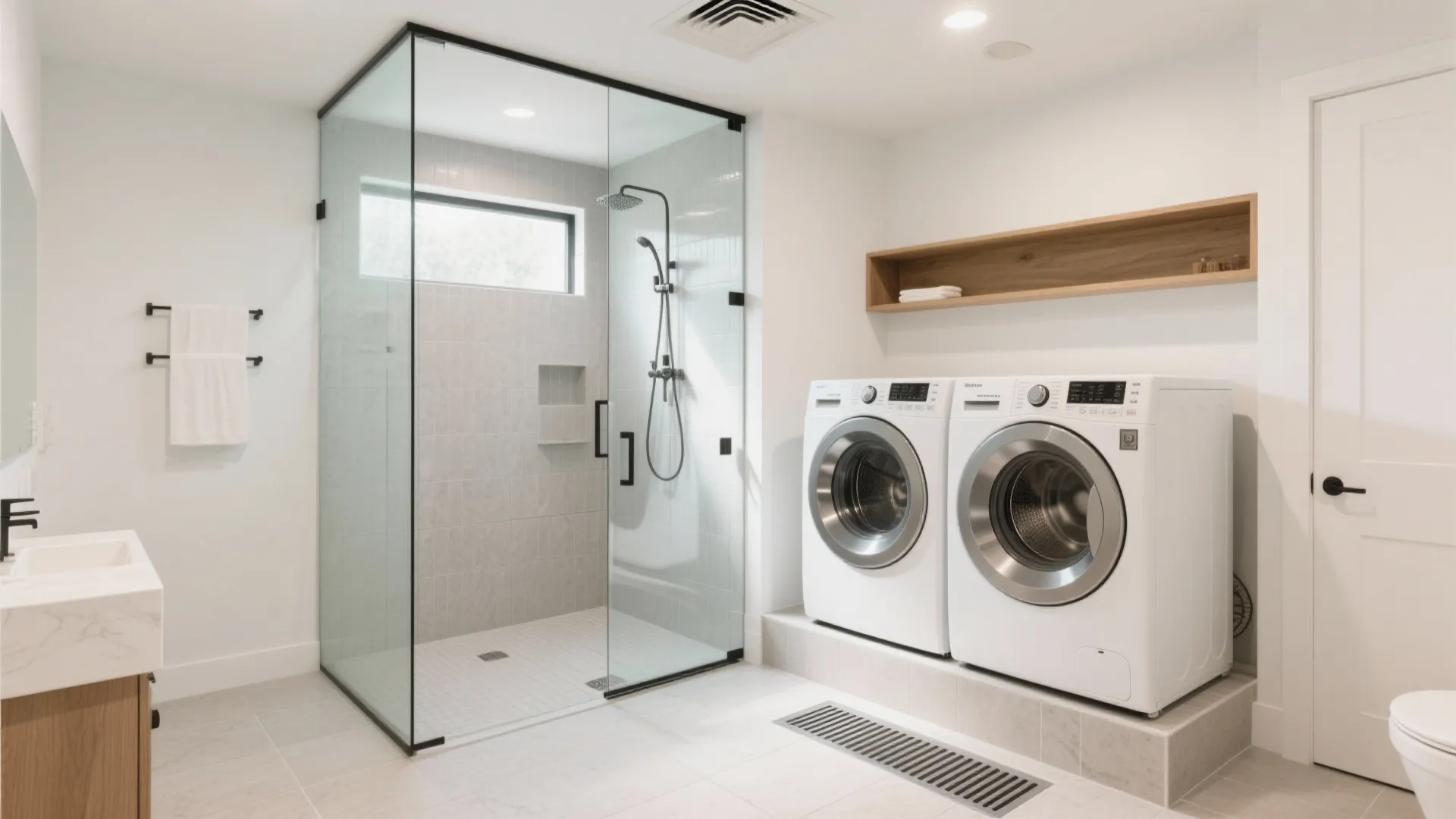

2) Wet room shower with glass to share waterproofing and air

My Take — One of my favorite small bathroom laundry combos turned into a tiled wet room: a single waterproofed zone with a glass panel that kept splashes off the machines. My client thought “wet room” meant forever soggy; the opposite happened—the continuous membrane and raised threshold stopped leaks, and drying got faster with better airflow.

Pros — A wet room consolidates waterproofing, floor slope, and drains into one system. Pairing the shower pan with a wet room with a linear drain allows you to keep the laundry bay level under a slight pitch, so machines sit stable. Ventilation also gets simpler: with one high-quality fan, you can exhaust moist air from both zones. According to ASHRAE 62.2 and EPA guidance, bathrooms need at least 50 CFM intermittent (or 20 CFM continuous) mechanical ventilation; I spec 80–110 CFM for combo rooms to offset dryer and shower moisture in real use.

Cons — Humidity is real. A ventless heat-pump dryer helps, but you’ll still need a dedicated dehumidification strategy in humid climates. Glass needs squeegeeing; if you hate maintenance, a half-height wall or ribbed glass may be a better match than a crystal-clear screen.

Tips / Case / Cost — For slope, target 1/4 inch per foot toward the linear drain and keep the laundry pad out of direct spray. Choose high-porosity slip-resistant floor tile (R10–R11) and consider a hydrophobic grout sealer to reduce staining. Budget for waterproofing and glass: $1,800–$4,000 depending on size and hardware; it’s the most “invisible” line item that prevents the most expensive failures.

save pin

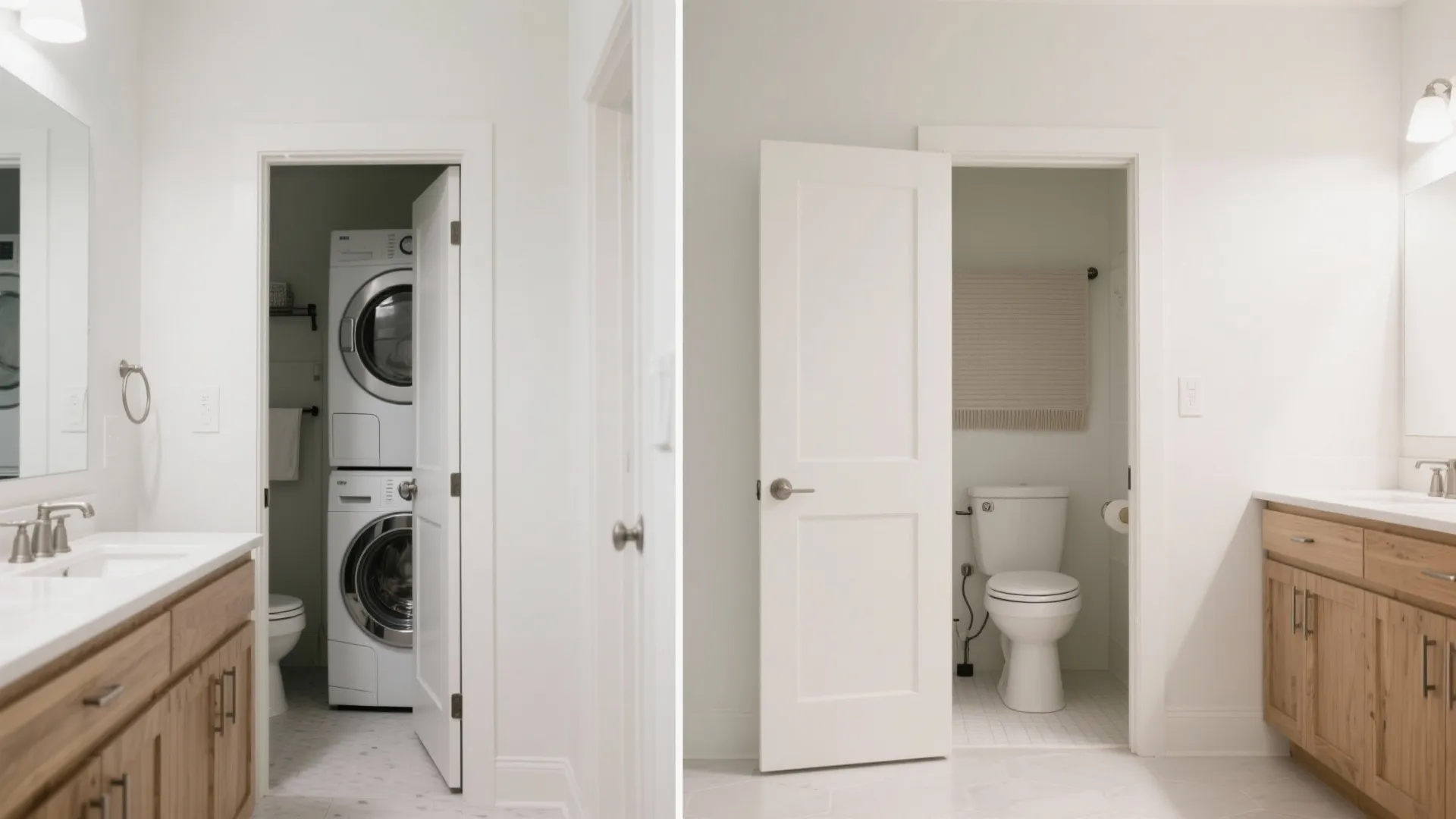

3) Pocket door and zones: privacy without the swing

My Take — Swing doors are space bullies. In my own apartment, switching to a pocket door created a standing zone in front of the stacked washer/dryer and cleared the vanity for a second person. It’s a small move that makes simultaneous use possible in a small bathroom laundry room combo.

Pros — A pocket door eliminates 30–36 inches of swing radius and keeps circulation paths open for loading and folding. The National Kitchen & Bath Association recommends clear floor space in front of fixtures and doors to reduce pinch points; in my layouts, I try to maintain 30 inches in front of the washer and 30 inches in front of the toilet, so traffic doesn’t collide. Add an acoustic brush seal and you’ll cut laundry noise (and arguments) during late-night cycles.

Cons — Pocket doors need clean wall cavities. If your wet wall is full of plumbing, re-routing can be pricey or impossible. Also, they don’t fully seal; for ultra-quiet, a solid-core swing door with soft-close hinges may be better—but then you’re back to dealing with the door arc.

Tips / Case / Cost — Use soft-close pocket hardware rated for at least 150 lbs and choose a 34–36 inch door if possible for better accessibility. For noise, aim for an assembly with an STC of 40+ using insulation and 5/8-inch drywall. Expect $800–$2,200 for a quality pocket system plus finish carpentry; it’s a high-impact upgrade when you can’t enlarge the room.

save pin

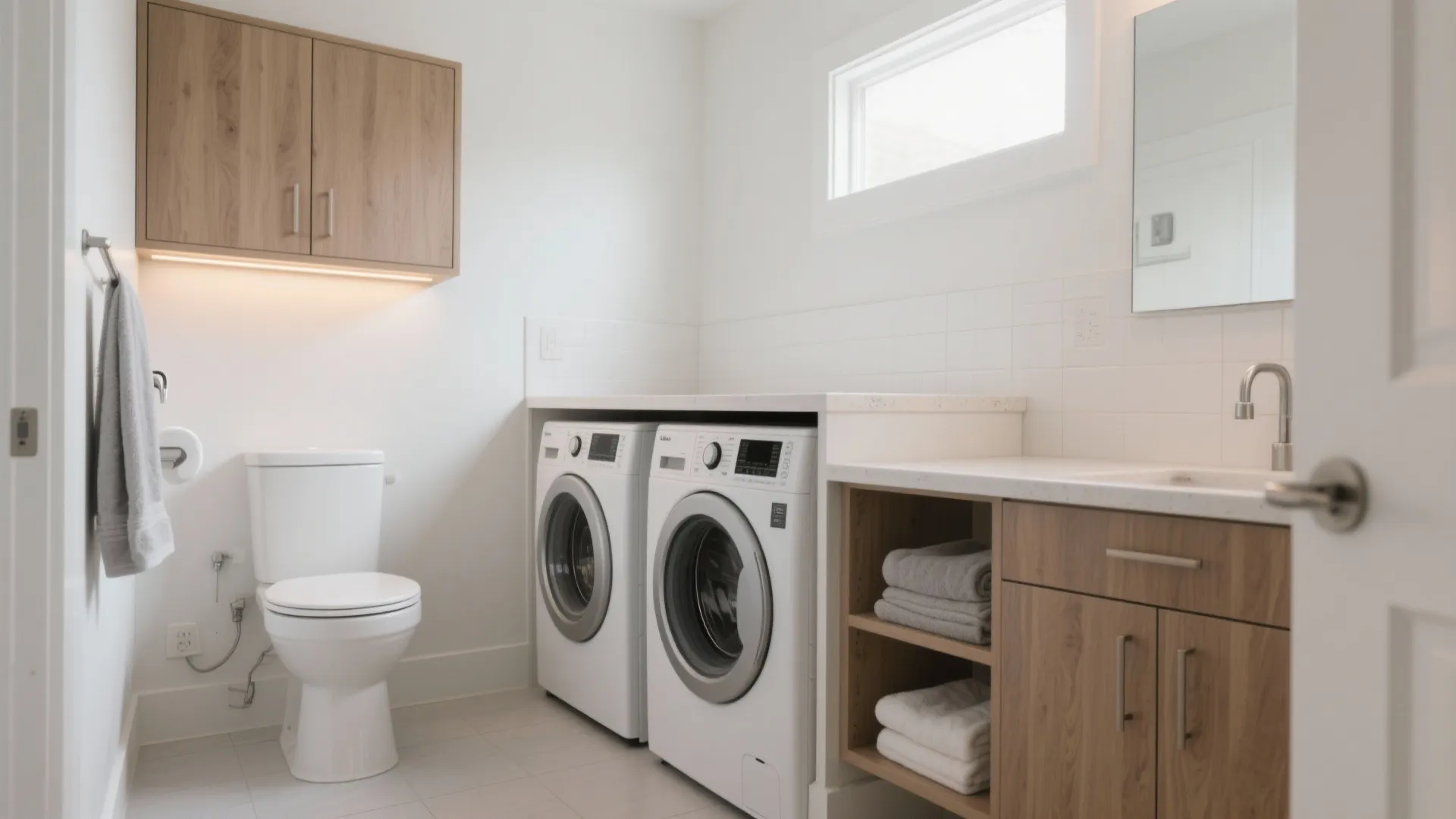

4) Stack smart: vertical laundry, fold-down counter, and over-toilet storage

My Take — Stacking saves footprints; styling saves sanity. In a recent remodel, we stacked a compact heat-pump dryer over a washer, then hinged a fold-down counter beside it. Over the toilet, a 10-inch-deep cabinet swallowed detergent and towels without feeling top-heavy.

Pros — A stacked washer dryer in bathroom layouts can drop the laundry bay to 27–28 inches wide, which is huge for micro baths. Add a fold-down counter and you gain a full folding station that disappears when guests arrive. Tall, shallow cabinets over the toilet use “dead” air space for bulky items and keep the counter clear—a big deal for a small bathroom laundry room combo where surfaces are always at a premium.

Cons — Not everyone can reach the upper controls; mind the total stack height (ideally under 72 inches to the top of the drum). Stacking kits reduce vibration but not entirely; tiled walls can amplify sound if you don’t isolate the machines with pads and a rigid, level base.

Tips / Case / Cost — Pick machines with service-clearance specs that fit your alcove; leave 1 inch on the sides, 1–2 inches behind, and follow the manufacturer’s airflow minimums. A fold-down counter works best at 16–18 inches deep with continuous piano hinges and a wall cleat; in small spaces, 36 inches wide is enough to be useful. Cost range: $200–$450 for the counter, $300–$600 for over-toilet cabinets, plus appliances if you’re upgrading.

save pin

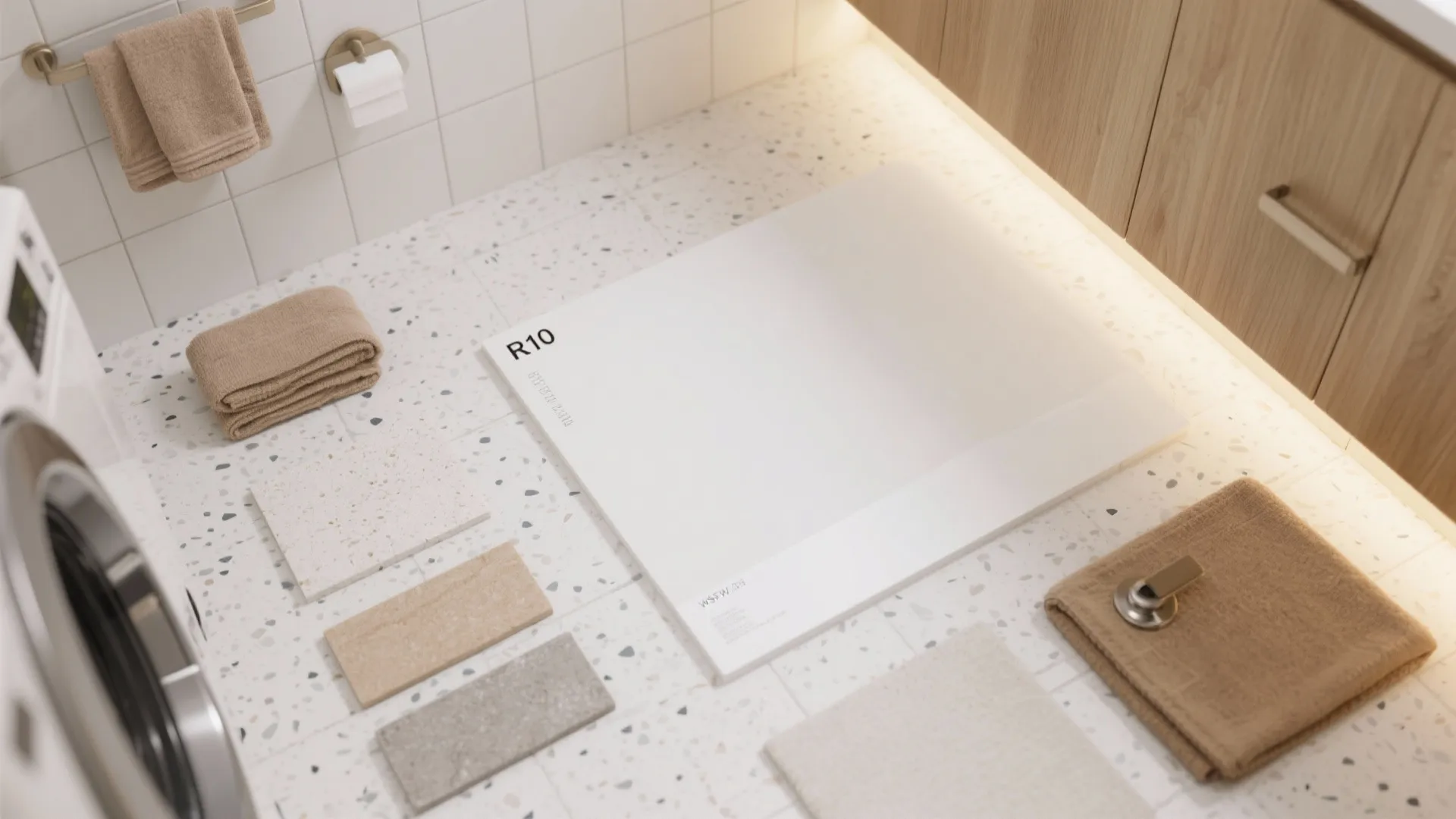

5) Bright, wipeable finishes with warm texture for comfort

My Take — Light bounces, but warmth soothes. I like satin white walls, light terrazzo or pale stone-look porcelain on the floor, and warm wood accents on handles, stool, or niche trim. It keeps the room crisp for cleaning while still feeling like somewhere you’d linger after a shower.

Pros — High-LRV (light reflectance value) surfaces make tight rooms feel larger, especially paired with a frameless mirror and integrated LED. Warm notes—oiled oak-look edges, tan textiles—stop the clinical vibe. Before committing, I often preview the scheme with a quick visualization; seeing how warm wood accents add a calm vibe helps clients trust lighter grout and glass choices.

Cons — Very light grout can show stains; use epoxy or a stain-resistant formula. Natural wood needs caution around splash zones; stick to sealed veneer or wood-look tile near the shower and use real wood in dry niches and accessories.

Tips / Case / Cost — Keep lighting at 2700–3000K for a spa-like warmth; add a high-CRI task strip under the upper cabinet so socks don’t hide in shadows. Consider matte porcelain for floors (R10+) and semi-gloss wall tile you can squeegee. Material costs vary: $4–$12/sq ft for porcelain tile, $60–$120 for a good LED vanity strip, and $100–$300 for wood accents that make the whole room feel curated, not utilitarian.

[Section: Practical Essentials I Insist On]

Ventilation — For a small bathroom laundry room combo, I spec a quiet fan (sone 1.0 or less) in the 80–110 CFM range. ASHRAE 62.2/EPA recommendations set the floor at 50 CFM intermittent, but laundry-plus-shower warrants more capacity and a humidity/condensation sensor.

Dryer venting — Follow your model’s duct length limits and smooth rigid duct wherever possible; many states adopt IRC M1502. If you can’t vent outside, consider a heat-pump dryer and plan for condensate management.

Electrical — GFCI protection for outlets near water, and AFCI where code requires. Label circuits; laundry machines that trip a shared breaker are a common headache in compact apartments.

Sound — Anti-vibration pads, a level base, and rubber grommets on cabinet mounting screws tame resonance on tiled walls. If you share walls, mineral wool in partitions adds a lot for little cost.

[Section: Summary]

Done right, a small bathroom laundry room combo doesn’t feel like a compromise—it feels smarter. Compact appliances, right-sized clearances, honest waterproofing, and a calm material palette turn a utility corner into a daily luxury. NKBA’s planning approach—prioritize clearances and sequences—translates perfectly here: map the steps you take on laundry and shower days and design for those motions.

Which of these five ideas are you most excited to try in your own space?

[Section: FAQ]

save pin

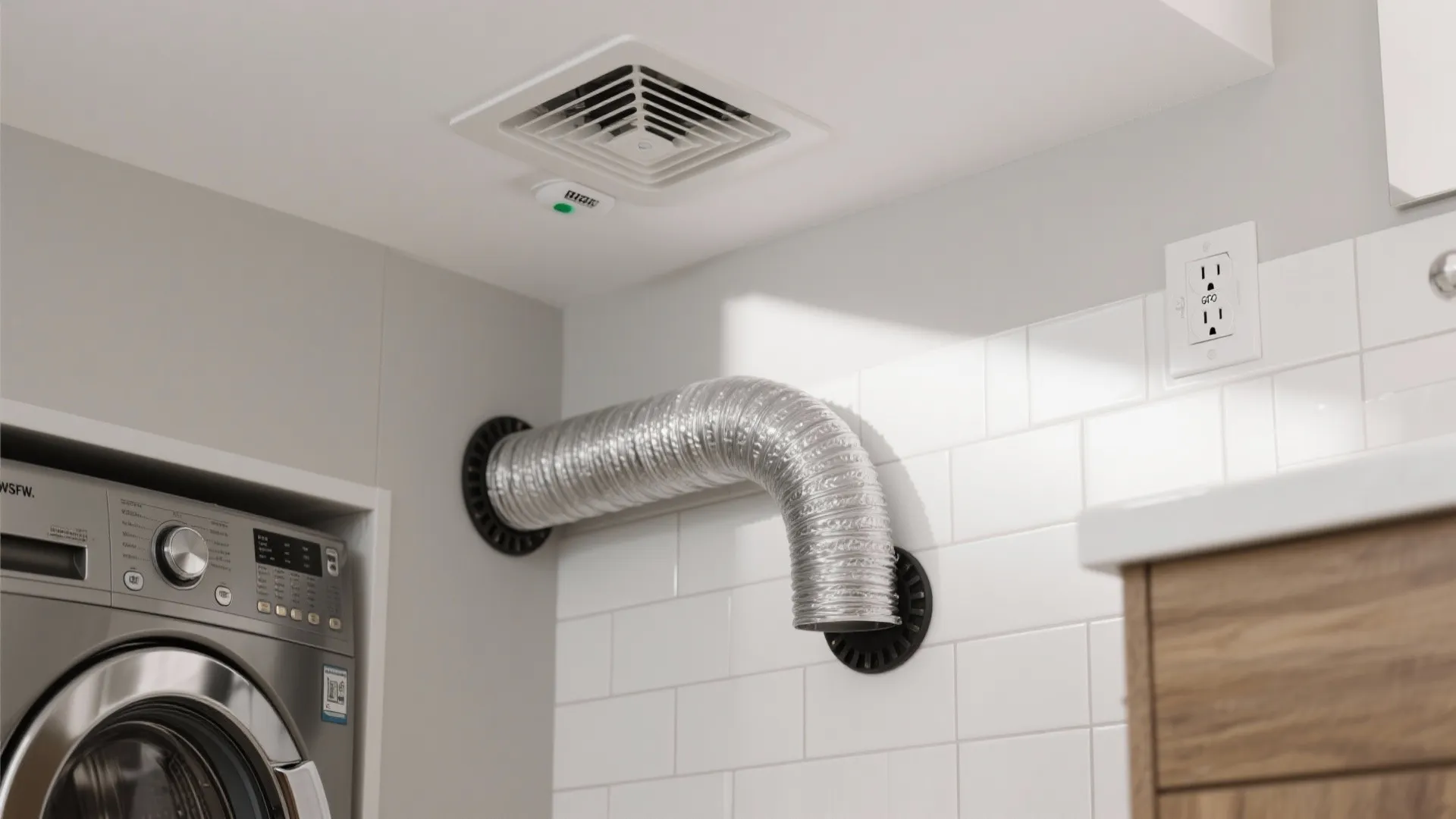

FAQ

1) What’s the best layout for a small bathroom laundry room combo?

For most apartments, an L or single-wall run with the washer/dryer under a continuous counter works best. Keep 30 inches of clear floor in front of the laundry and don’t block the main path to the toilet or shower.

2) Can I use a ventless dryer in a bathroom-laundry combo?

Yes—heat-pump dryers are efficient and avoid exterior venting, but they add humidity and heat. Plan for robust ventilation and, if needed, a condensate drain so the unit doesn’t overwhelm the small space.

3) How much ventilation do I need?

Per ASHRAE 62.2/EPA guidance, bathrooms need at least 50 CFM intermittent or 20 CFM continuous. In practice, I spec 80–110 CFM with a humidity sensor for combos to handle both shower steam and laundry moisture.

4) Are stacked units better than side-by-side in tiny rooms?

Stacked units save floor area and open space for a fold-down counter or larger vanity. Side-by-side works when you want a long counter for folding or a sink-laundry combo, but it needs more width.

5) What door type saves the most space?

A pocket door removes the swing radius and clears circulation paths, which is ideal in small bathroom laundry room combo layouts. If you can’t do a pocket, a narrow-swing or outward-swing door can still help.

6) Will a wet room make my laundry damp?

Not if you zone it: use a glass panel, slope water toward a linear drain, and run a strong, quiet fan. Keep the laundry plinth out of the direct spray arc and use moisture-resistant cabinetry finishes.

7) What’s a realistic budget to convert a bath into a combo?

For a modest remodel with compact appliances, expect $7,000–$15,000 depending on tile, waterproofing, electrical, and doors. Glass, waterproofing, and ventilation are high-value spends that prevent costly issues later.

8) Any code concerns I should know?

Plan for GFCI/AFCI where required, maintain working clearances in front of machines, and follow dryer venting rules (often per IRC M1502) if using a vented unit. Local codes vary, so check with your building department early.
