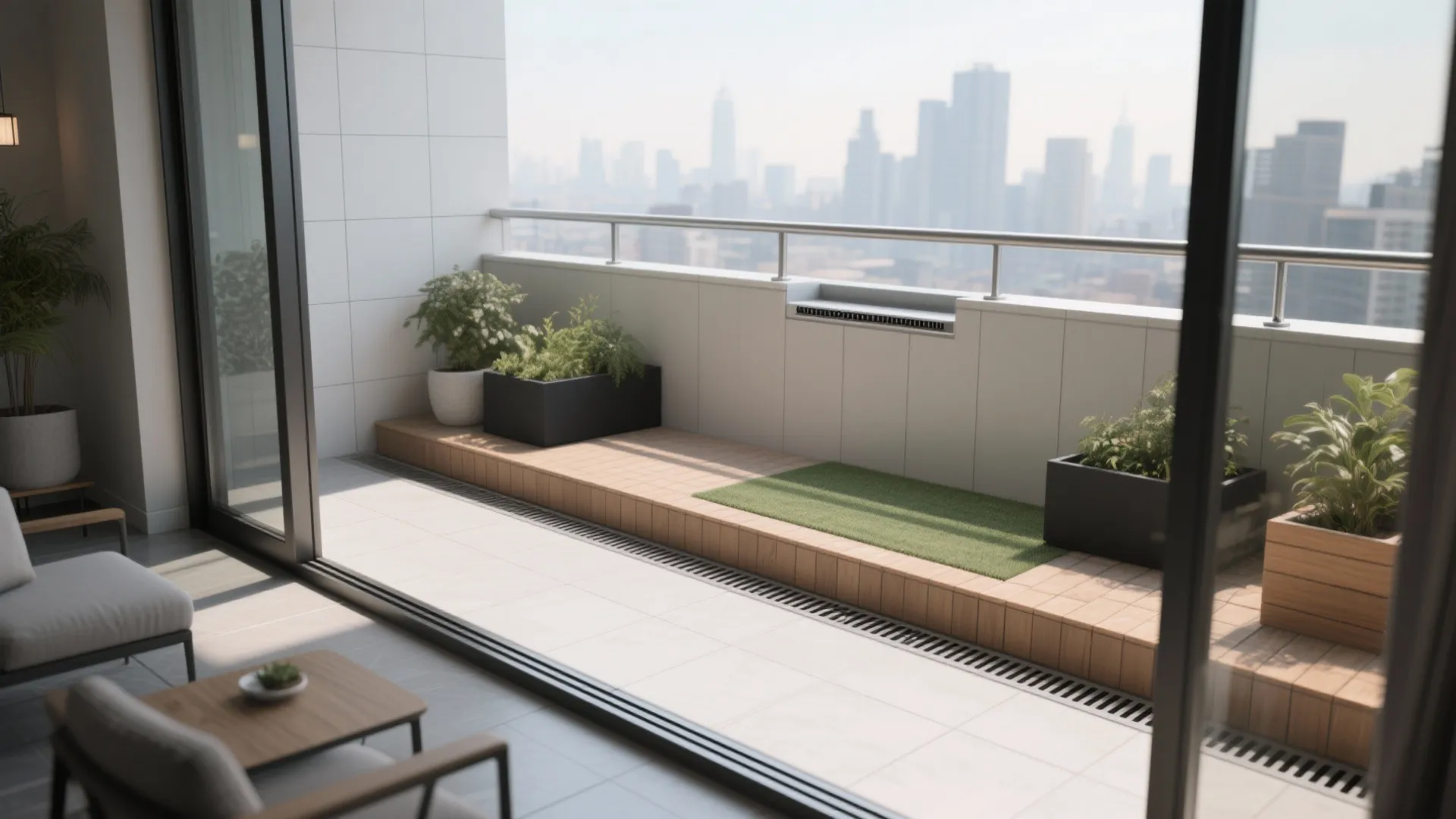

Balcony Drainage Design: 5 Smart, Proven Ideas: Practical, code-aware strategies I use to keep small balconies dry and beautiful

[Section: 引言]

Indoor–outdoor living is still surging, and I keep seeing clients ask for thinner edges and flush transitions. In that context, balcony drainage design becomes the quiet hero of comfort and durability. On compact balconies, small spaces trigger big creativity—something as simple as flush-threshold balcony detailing can change daily use dramatically. In this guide, I’m sharing 5 design inspirations grounded in my projects and backed by expert data.

Over the past decade, I’ve rebuilt balconies from humid coastal cities to wind-swept high-rises. The constants? Water always wins unless we plan pathways, slopes, and safe overflows. I’ll show you what’s worked for me, why it works, and where the trade-offs hide.

Expect real talk on slope-to-drain screeds, scuppers, linear drains, thresholds, and planter strategies. I’ll mix on-site lessons with authoritative references, so you can decide what fits your space, budget, and climate. Let’s get into the five ideas I rely on again and again.

[Section: 灵感列表]

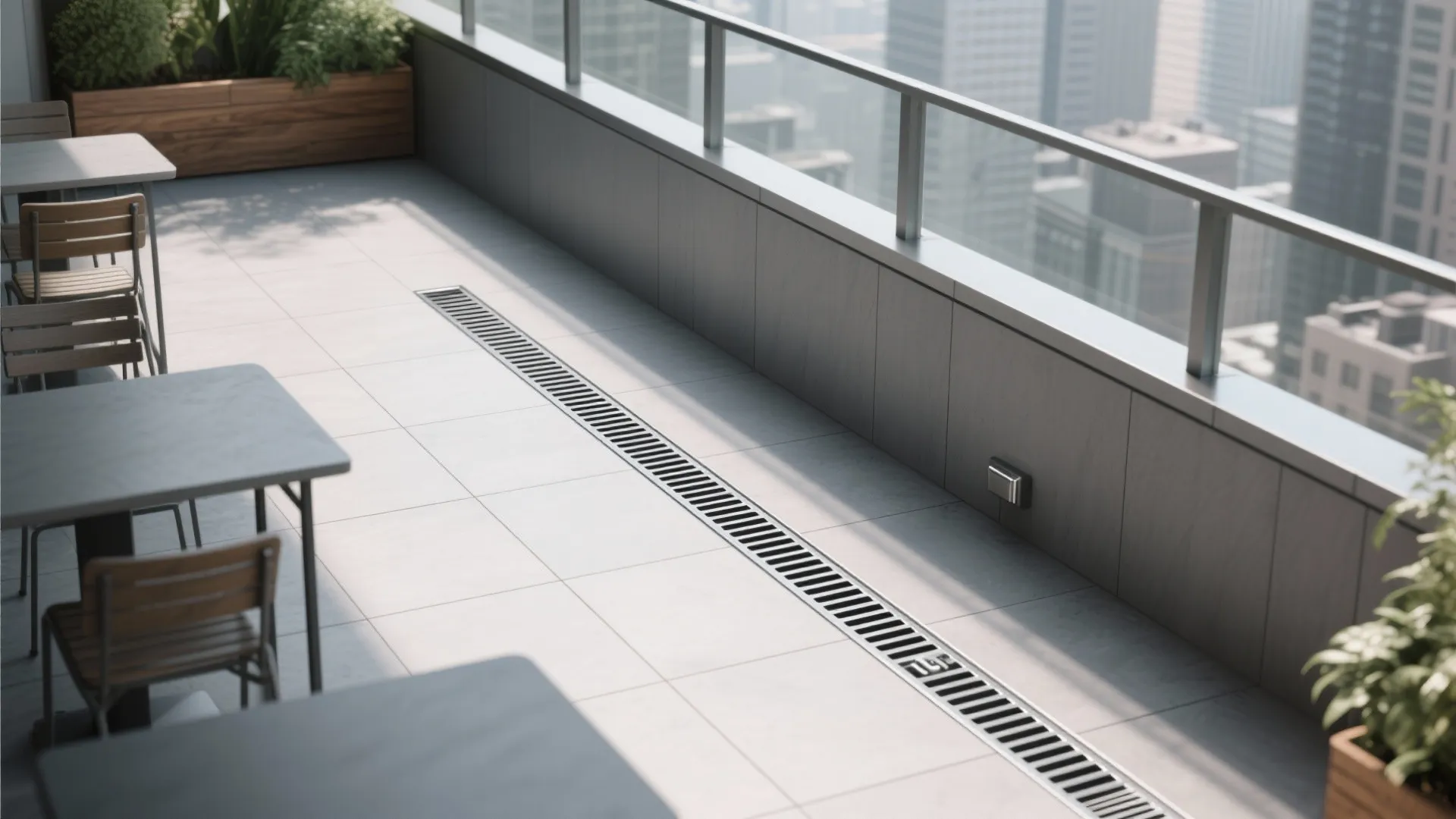

1) Minimal linear drain at the edge

My Take: When a client wants a clean, minimalist line, I often tuck a linear balcony drain along the outer edge. On a 1.1 m deep city balcony, that single, continuous channel kept the tile plane simple and avoided multiple drain points. It also made furniture placement easier—no awkward grates underfoot.

Pros: A linear balcony drain simplifies slope—everything pitches one way, which improves the balcony drain slope and reduces ponding. It also pairs well with large-format tile, avoiding fussy cuts around round drains. When installed with proper waterproofing and weep protection, it can extend the life of exterior finishes by moving water off the slab quickly.

Cons: The drain body, end caps, and grate can add cost versus a single point drain. Long runs require dead-level installation of the channel itself, and any warping telegraphs into performance. In salty or polluted environments, cheaper grates may discolor, so stainless 316 or powder-coated aluminum is usually worth it.

Tips/Case/Cost: On budgets under mid-range, I’ll shorten the channel to the wettest third of the edge and keep a slight pitch to the rest—saves on materials without sacrificing flow. In freeze–thaw regions, I always specify a removable grate for seasonal maintenance. Expect materials and labor to come in at 1.5–2.5× a basic point drain depending on brand and site access.

save pin

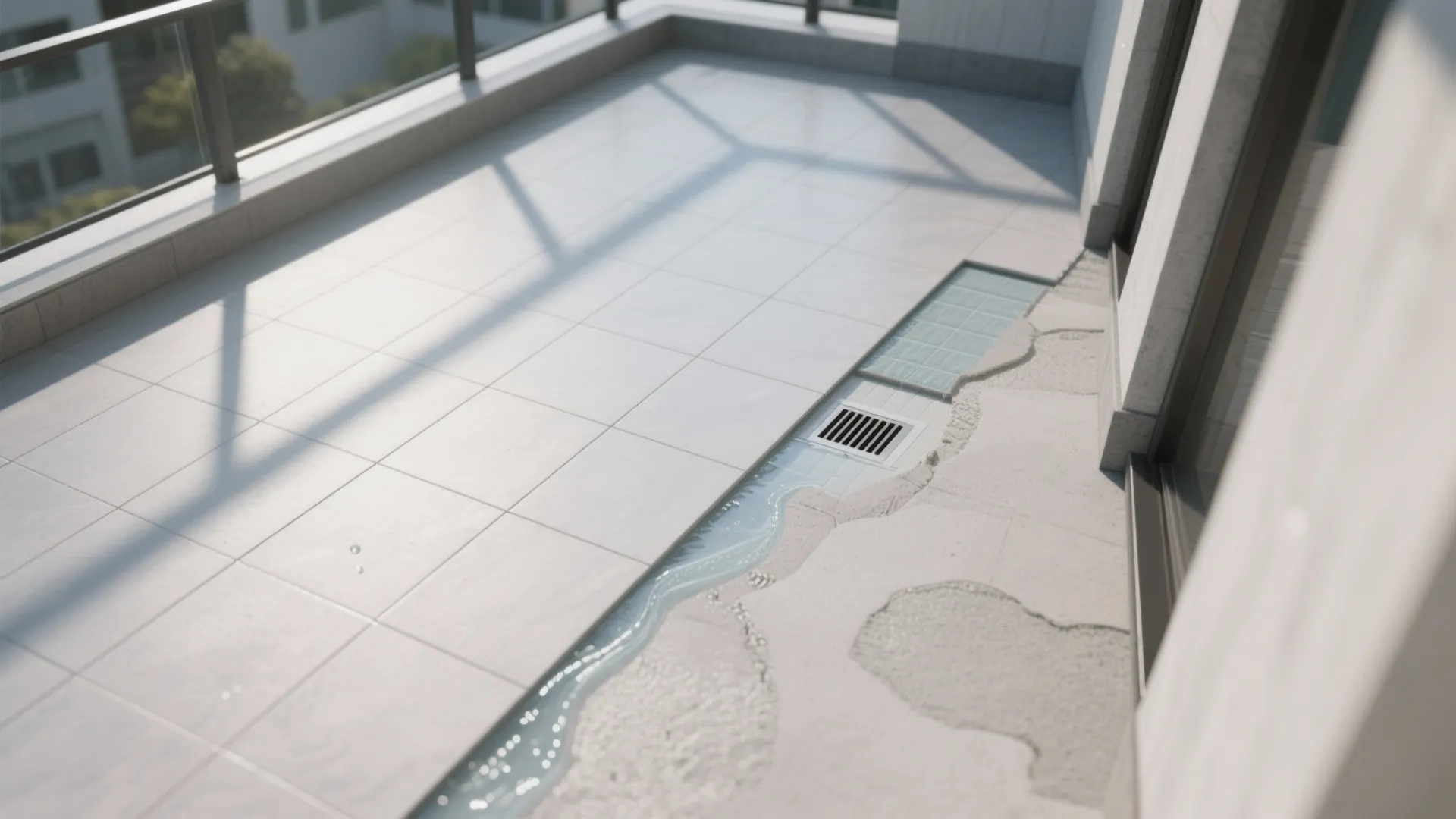

2) Slope-to-drain screed with movement joints

My Take: If you like traditional tile or stone, a dedicated screed layer is the backbone of good balcony drainage design. I learned this the hard way early in my career—one balcony had beautiful tile, zero movement joints, and just 1:150 slope. By spring, hairline cracks showed up right where the ponding did.

Pros: A bonded or unbonded screed lets you set a consistent 1.5–2% pitch, aligning perfectly with long-tile grout lines for cleaner looks and better water shedding. On tiled balconies, a proper slope-to-drain screed plus waterproof membrane helps prevent efflorescence and substrate saturation. The Tile Council of North America (TCNA) Handbook recommends about 1/4 inch per foot (≈2%) slope for exterior tile decks and balconies to avoid standing water—a practical benchmark I follow on site (TCNA, 2023).

Cons: Screeds add weight and height, which can compromise door clearance or railing codes if not planned early. They take time to cure; rushing the schedule invites shrinkage cracks or trapped moisture. And yes, you’ll need expansion and perimeter joints—clients sometimes dislike the look, but they’re insurance you can’t see when everything goes right.

Tips/Case/Cost: I typically place soft joints every 8–12 feet and at transitions, then mirror them in the waterproofing. In hot-sun balconies, light-toned tile stays cooler and reduces thermal stress. Pricing varies, but plan for waterproofing + screed + tile to be one of the higher-cost pathways; the payback is fewer callbacks and a longer-lived balcony.

save pin

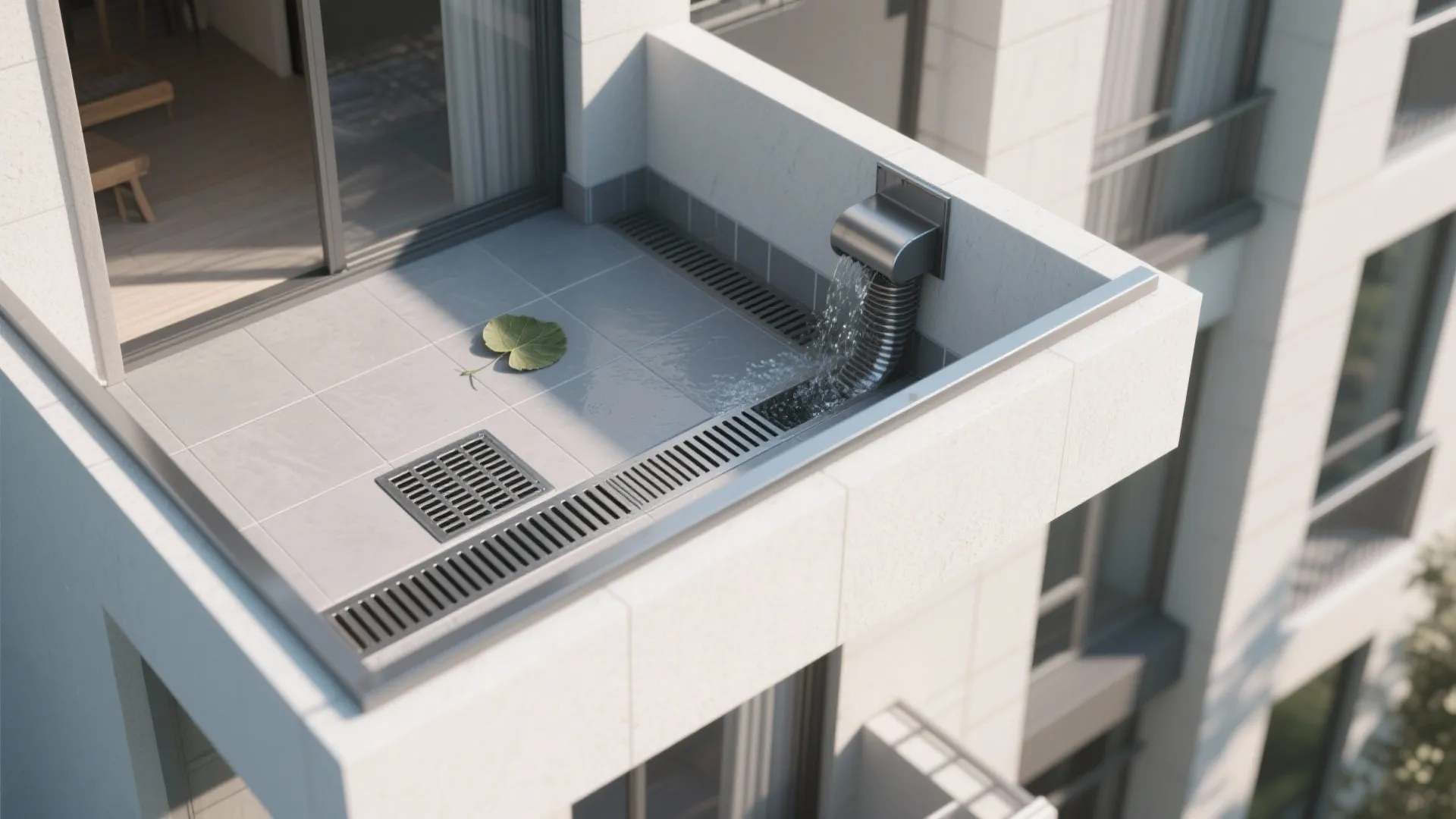

3) Dual-path safety: overflow scuppers and secondary drains

My Take: On any balcony with a parapet or where leaves tend to collect, I add a secondary path for storm events. After one memorable summer cloudburst clogged a primary drain with a single maple leaf, the overflow scupper saved a client’s interior wood floor from disaster. It’s cheap insurance that works silently until the day you need it.

Pros: Overflow scuppers or secondary drains prevent water from backing up at doors during extreme rain. The International Building Code (IBC 2021) Section 1503.4 requires roof drainage with overflow provisions where drainage is impeded—balconies with parapets or enclosed edges often fall into similar risk profiles; coordinate with your local code official. This approach also supports better scupper sizing and maintenance planning, especially in leaf-heavy neighborhoods.

Cons: Cutting a scupper through a parapet raises detailing complexity—flashings, drip edges, and exterior finish coordination take time. Visible outlets aren’t everyone’s favorite aesthetic, and some HOAs want them concealed. You’ll also need to be deliberate about where the overflow discharges so you don’t stain the facade or splash neighbors below.

Tips/Case/Cost: I typically set overflow elevation about 1 inch below door thresholds, and include a drip edge or a small spout to project water clear of the wall. For areas with heavy storm intensity, consult local rainfall data for scupper width and frequency. In multi-family buildings, involve the HOA early on that perimeter scupper placement strategy so elevations and facade alignments don’t fight each other.

save pin

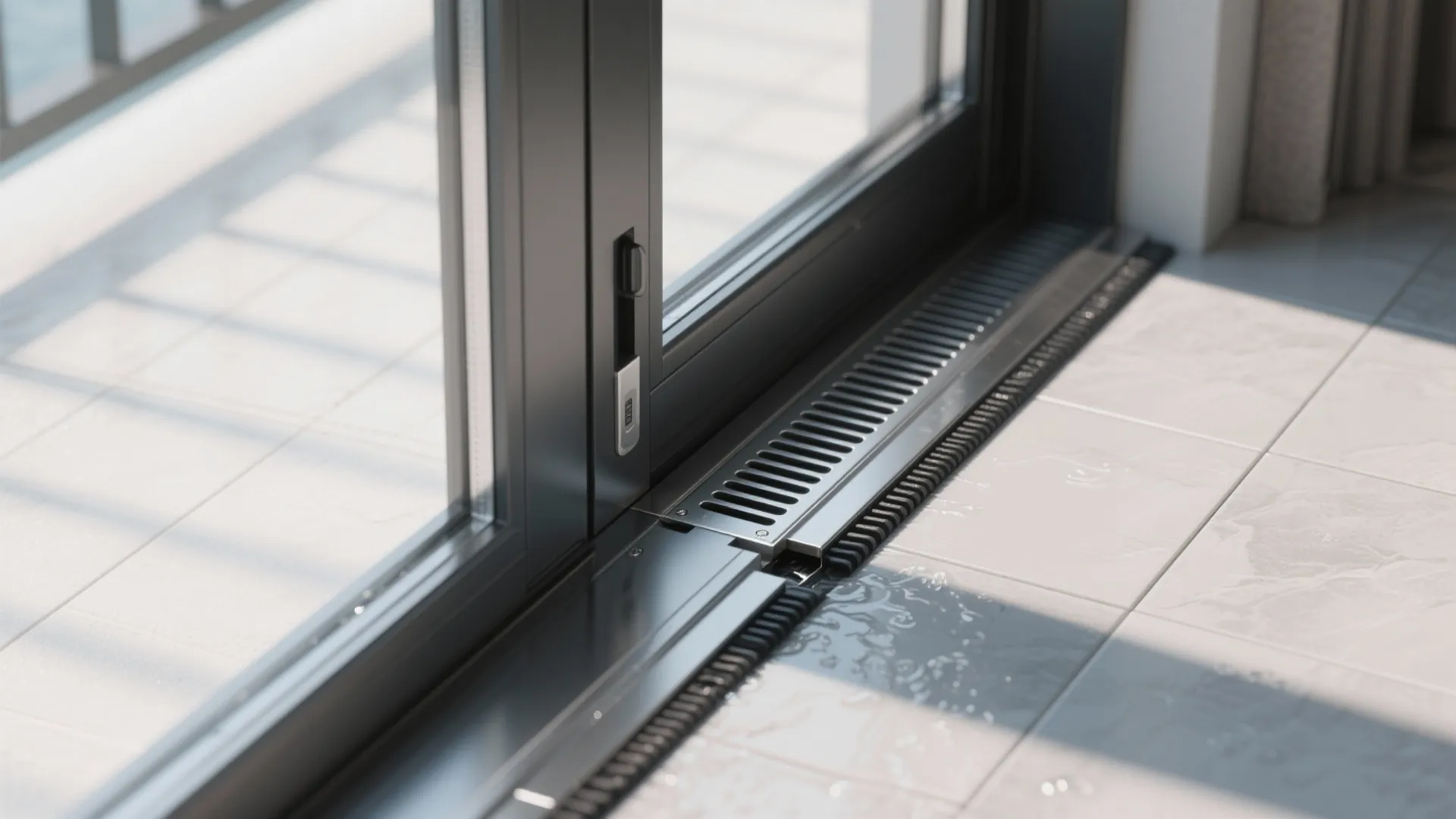

4) Threshold-first thinking: flush access without the floods

My Take: Clients love a no-step transition to the balcony—me too. But that means designing the threshold like a tiny rooftop, with layered defenses. The combination I trust most is a sill pan, sloped substrate, and either a mini linear drain or a recessed grate tight to the door.

Pros: A flush threshold supports universal design and wheelchair access while keeping the interior safe. With threshold flashing, end dams, and a dedicated drain at the door line, you control splash-back and wind-driven rain. In windy exposures, I’ll add a low-profile threshold baffle or a second gasket, plus a tighter tile pitch in the first 12 inches to accelerate runoff.

Cons: It’s a detail-heavy area; one missed corner bead or reversed shingle can undo a lot of good work. Some systems add cost or require special doors with taller sills—hard for pure minimalists. And if you have a strong crosswind corridor, you may still need a small upstand or drip bar even with a drain.

Tips/Case/Cost: Where budgets are tight, a shallow recessed tray for a short grate works wonders; you don’t need a full-length channel. I pre-plan threshold heights at schematic design—fixing this late is expensive. Expect a modest premium for the drain and pan, but far less than the cost of redoing interior flooring after one storm.

save pin

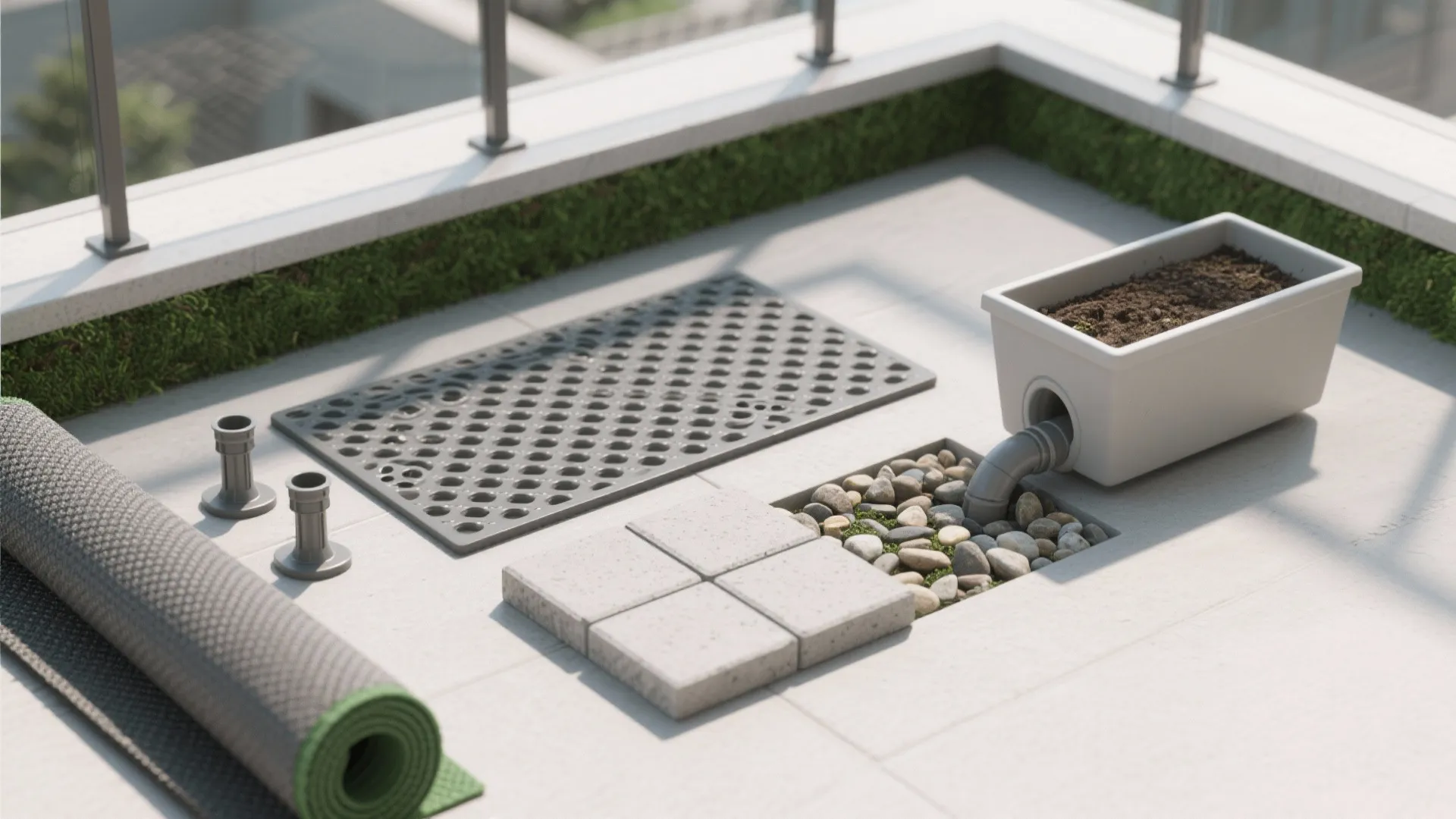

5) Planters and green edges with smart drainage mats

My Take: Many small balconies want greenery, but planters can be secret water traps. I’ve had success using lightweight planters with integrated drainage and a thin drainage mat under pavers or tile to create a capillary break. It keeps roots happy and surfaces dry.

Pros: A drainage mat (or dimple sheet) beneath pavers/tiles forms channels that move water to a drain without saturating the setting bed. Integrating planters with dedicated outlets and an absorbent layer reduces accidental overflows and efflorescence on the facade. The FLL Guidelines (2018) for green roof systems, widely referenced for lightweight vegetated assemblies, underscore root-friendly drainage layers and controlled outflow—principles that translate well to balcony planters.

Cons: Added layers increase build-up and weight—always verify structural capacity for saturated loads. Mats and pedestals can click or feel hollow under thin pavers if the substrate isn’t even. And yes, more layers mean more coordination, which can stretch timelines.

Tips/Case/Cost: I like to run a gentle pitch beneath the mat and pavers, then daylight at the edge or into a hidden drain. Pair planters with a discreet overflow tube that directs water away from the facade. If you’re retrofitting, map out the slope-to-drain screed layout first so planter outlets don’t fight gravity—this saves time and messy improvisation.

[Section: 总结]

A small balcony isn’t a limitation—it’s a prompt to design smarter. The right balcony drainage design means setting the pitch, protecting the threshold, and giving heavy storms a safe backup route. From code-aligned overflows to planter-friendly mats, these ideas keep small spaces usable all year—and they look good doing it. If you like the specifics, the TCNA Handbook (2023) and your local building/plumbing codes remain rock-solid references for slope, waterproofing, and overflow strategy.

Which of these five ideas would you try first on your balcony?

[Section: FAQ 常见问题]

save pin

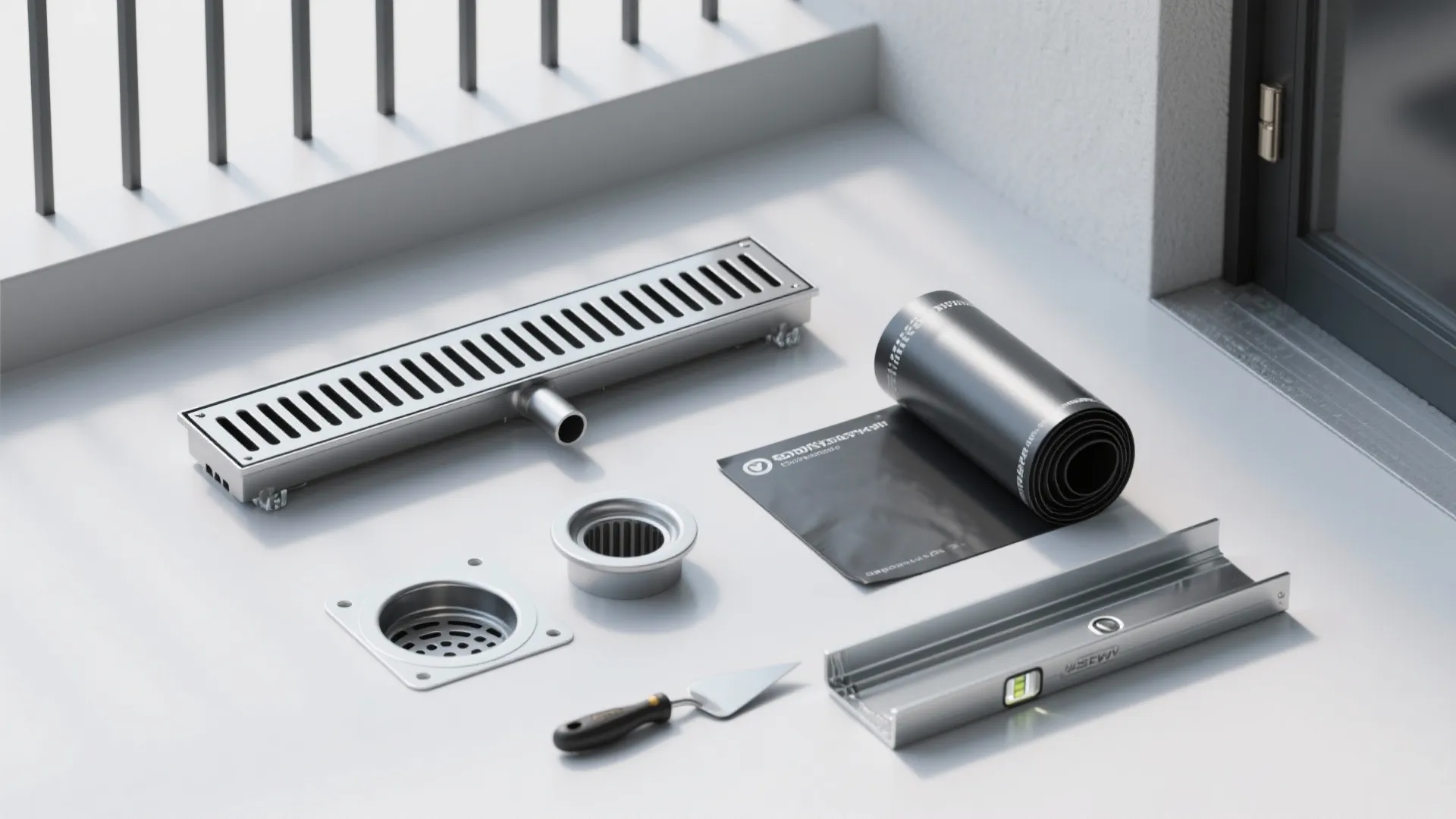

FAQ

1) What is the best slope for balcony drainage?

For tiled balconies, I target around 2% (about 1/4 inch per foot) to keep water moving without feeling tilted. This aligns with exterior tile guidance commonly cited in the TCNA Handbook (2023) and helps prevent ponding and efflorescence.

2) Do I need an overflow scupper on a small balcony?

If you have a parapet, enclosed edges, or lots of leaf debris, a secondary path is smart. Many jurisdictions reference IBC/IRC principles for roof drainage and overflow; check with your local authority for balcony-specific requirements.

3) Are linear drains better than point drains?

Linear balcony drains simplify slope and suit large-format tile. Point drains are cheaper and fine for smaller spaces, but they require more complex slope geometry and careful layout to avoid low spots.

4) How do I keep water out at a flush threshold?

Use a layered approach: sloped substrate, pan flashing with end dams, and a drain or recessed grate at the door line. In windy zones, add an extra gasket or small baffle to contain wind-driven rain.

5) What waterproofing goes under balcony tile?

Typically a compatible membrane (liquid-applied or sheet) over a properly sloped screed, tied into drains with weep protection. Follow manufacturer systems and include movement joints to handle thermal cycling.

6) Will a drainage mat raise my balcony floor too much?

Drainage mats are thin, but they do add build-up with pavers or tile. Plan heights early—especially door thresholds and railing codes—so layers fit without compromising accessibility or safety.

7) Can planters damage balcony finishes?

Yes, if water has nowhere to go. Choose planters with integrated outlets and place a drainage mat or drip tray beneath; route overflow toward drains to prevent staining and saturation.

8) Who decides scupper size and placement?

Designers and engineers coordinate scupper sizing with rainfall data and local codes; installers then execute the detail. The IBC 2021 Section 1503.4 and local amendments guide roof/overflow principles; apply them appropriately to balcony conditions.
