Bathroom Under Stairs Design: 5 Space-Savvy Ideas: How I squeeze style, storage, and code-smart planning into the most overlooked nook at home

A client once asked me to fit a clawfoot tub under their stairs. I smiled, then gently explained head height and drain slope—two villains in tiny bathrooms. That project taught me to sketch multiple under-stairs layout options before swinging a hammer.

Small spaces spark big creativity, especially under a staircase where angles play tricks on you. Today I’m sharing 5 real-world ideas I use to turn that cavity into a stylish, code-smart powder room.

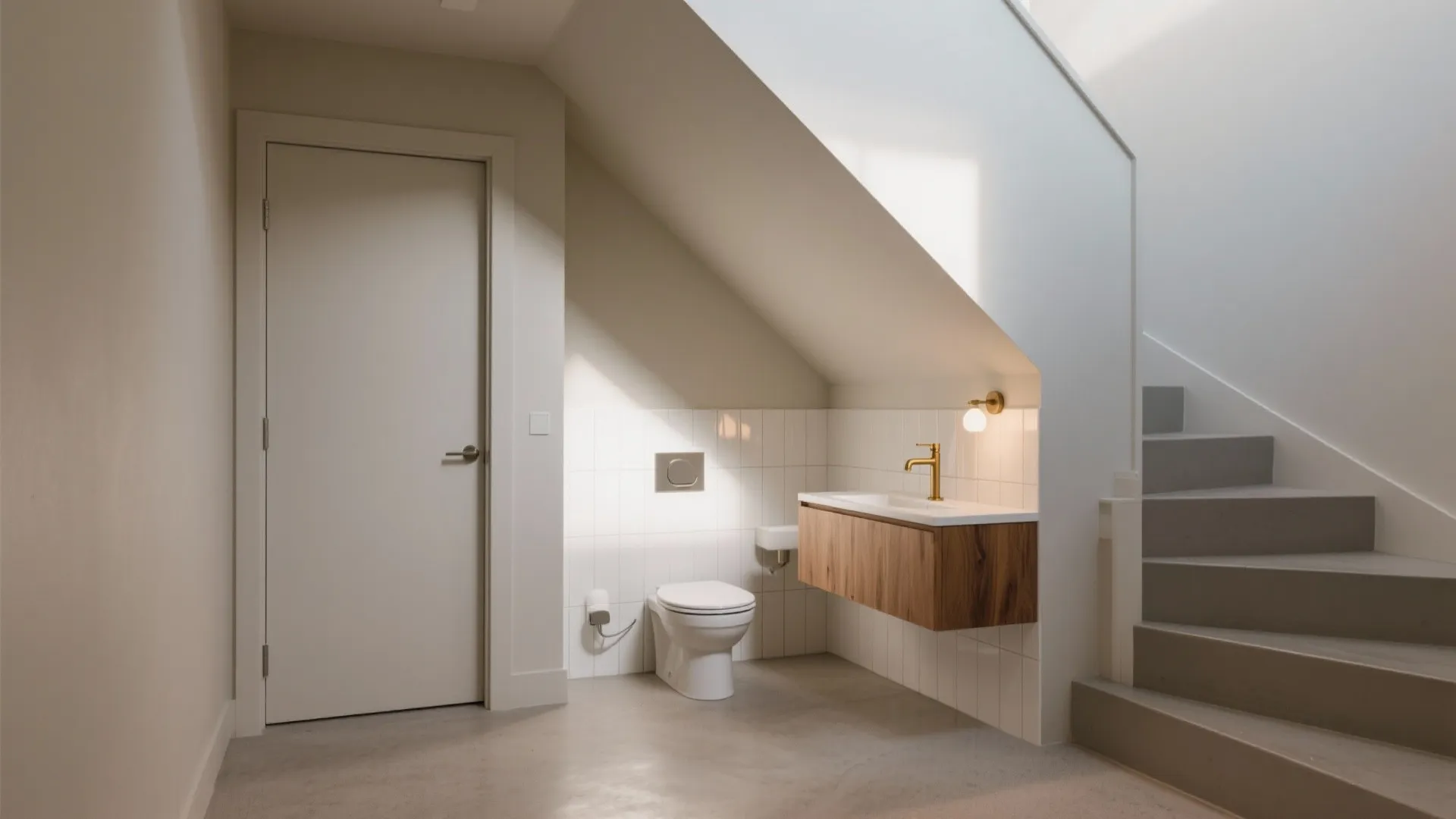

1) Pocket Door + Powder-Only Plan

When space is tight, I default to a powder room: toilet and small sink, no shower. A pocket door saves about 8–10 square feet of swing clearance, which is huge in a triangular footprint. I place the toilet in the tallest zone and the handwash basin at the slope—your head won’t care while you wash hands.

The upside is cost control and fewer code hurdles. The trade-off? No shower, and pocket doors require a clean wall cavity (no major plumbing or electrical in that run). If the wall is load-bearing, budget for proper framing.

save pin

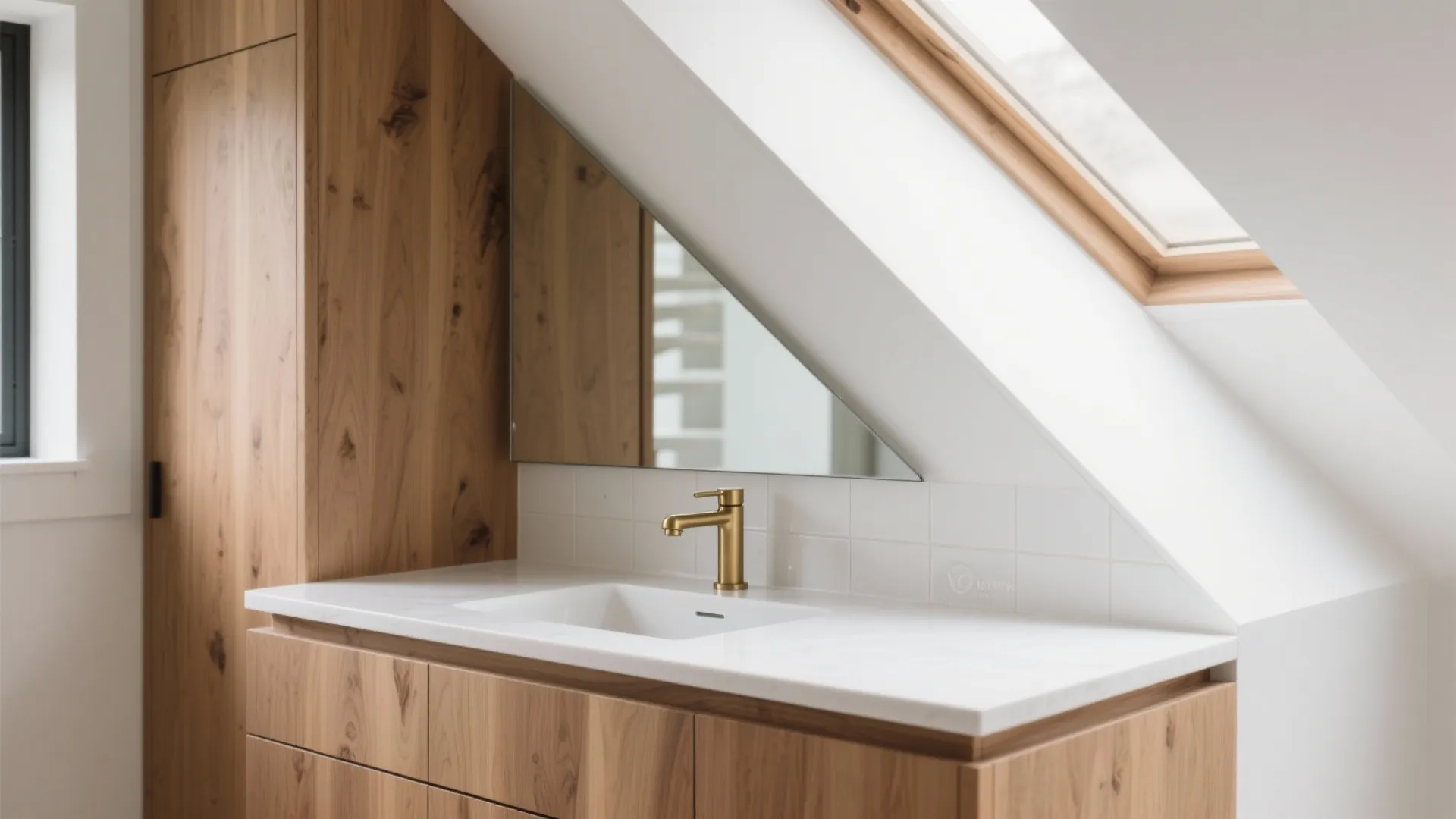

2) Triangular Vanity + Sloped Ceiling Tricks

Custom doesn’t always mean expensive: a triangular or trapezoid vanity keeps circulation clear while giving you legit counter space. I’ve built vanities only 11–13 inches deep with a compact sink, plus a mirrored cabinet that follows the stair angle.

Pro move: align the faucet to the side where the ceiling height is highest, so taller guests don’t feel cramped. Expect a bit of custom millwork cost, but you’ll gain ergonomics and visual calm.

save pin

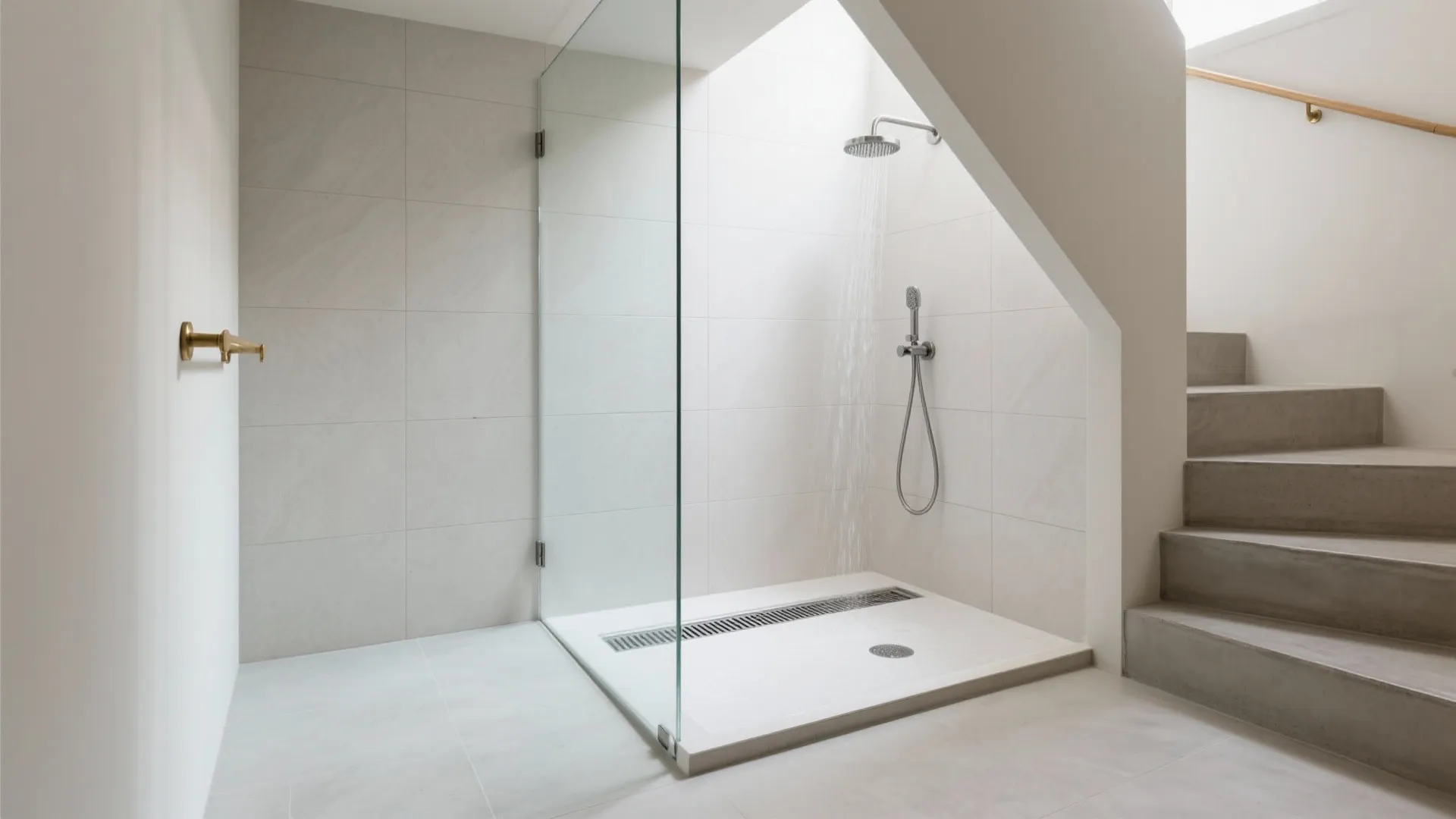

3) Micro Wet-Zone with Linear Drain

If you must have a shower, go “wet room” style: floor-to-ceiling tile in the low zone, a linear drain, and a single glass panel. I keep the shower head and controls on the taller side, and I use a simple threshold to stop splash migration.

Model the slope and splash radius before you commit—I’ll often build a compact bathroom mockup to test door positions and towel reach. It’s magic when it works, but do plan for waterproofing layers, proper ventilation, and a slightly higher tile budget.

save pin

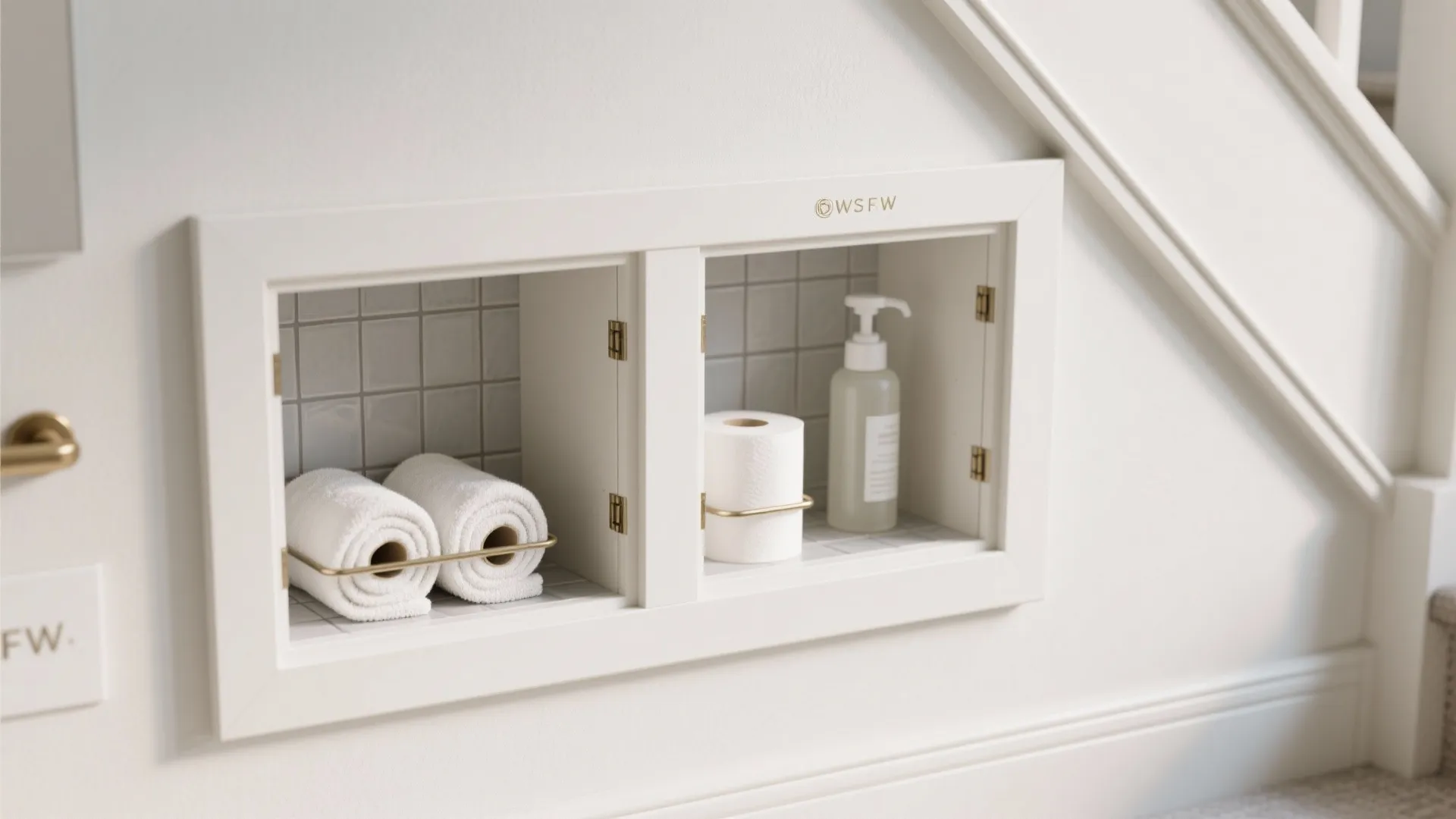

4) Storage Where Studs Allow

Under-stair walls love recessed storage. I frame 4-inch-deep niches for extra rolls, hand towels, and a slim cleaning kit—way nicer than a bulky cabinet. If the stair stringer intrudes, I split the niche into two smaller “windows” so it still looks intentional.

The catch is utilities: many stairs hide wiring. I use an inspection camera before cutting and always add a tiled niche in splash zones to keep things dry. Soft-close hardware elevates the tiny-luxury vibe for pennies.

save pin

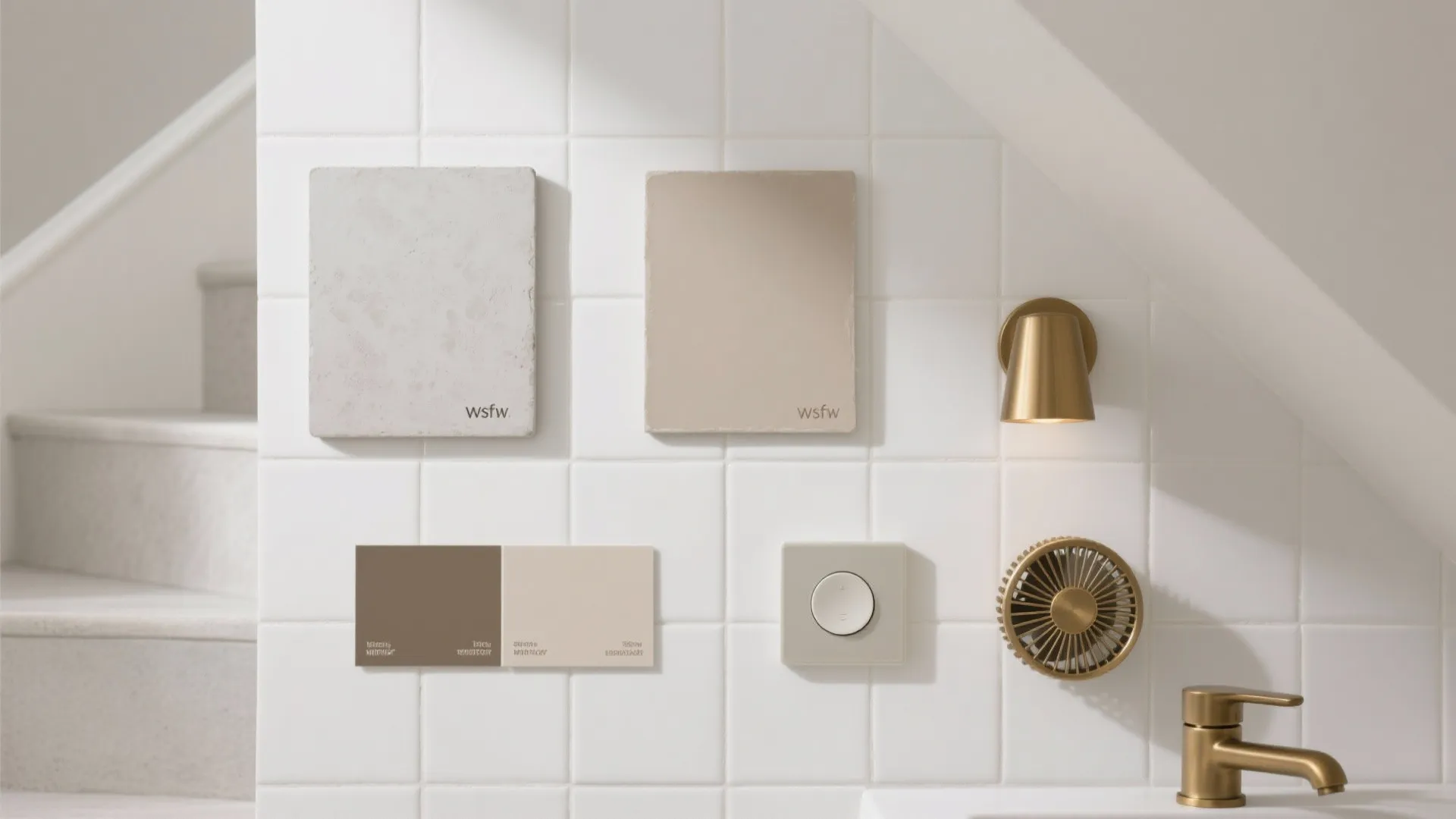

5) Light, Ventilation, and Materials That Lift

Light is your best friend. I layer a small ceiling light, a wall sconce at face height, and a dimmer for evening glow. Glossy tile or microcement on the lower half plus matte paint above keeps the space bright without glare.

Ventilation matters more here: a quiet, code-rated fan on a timer will save you from humidity traps. Before final sign-off, I love doing a quick 3D walkthrough to check sightlines, headroom over the toilet, and how the mirror reflects light. Tiny space, big polish.

save pin

FAQ

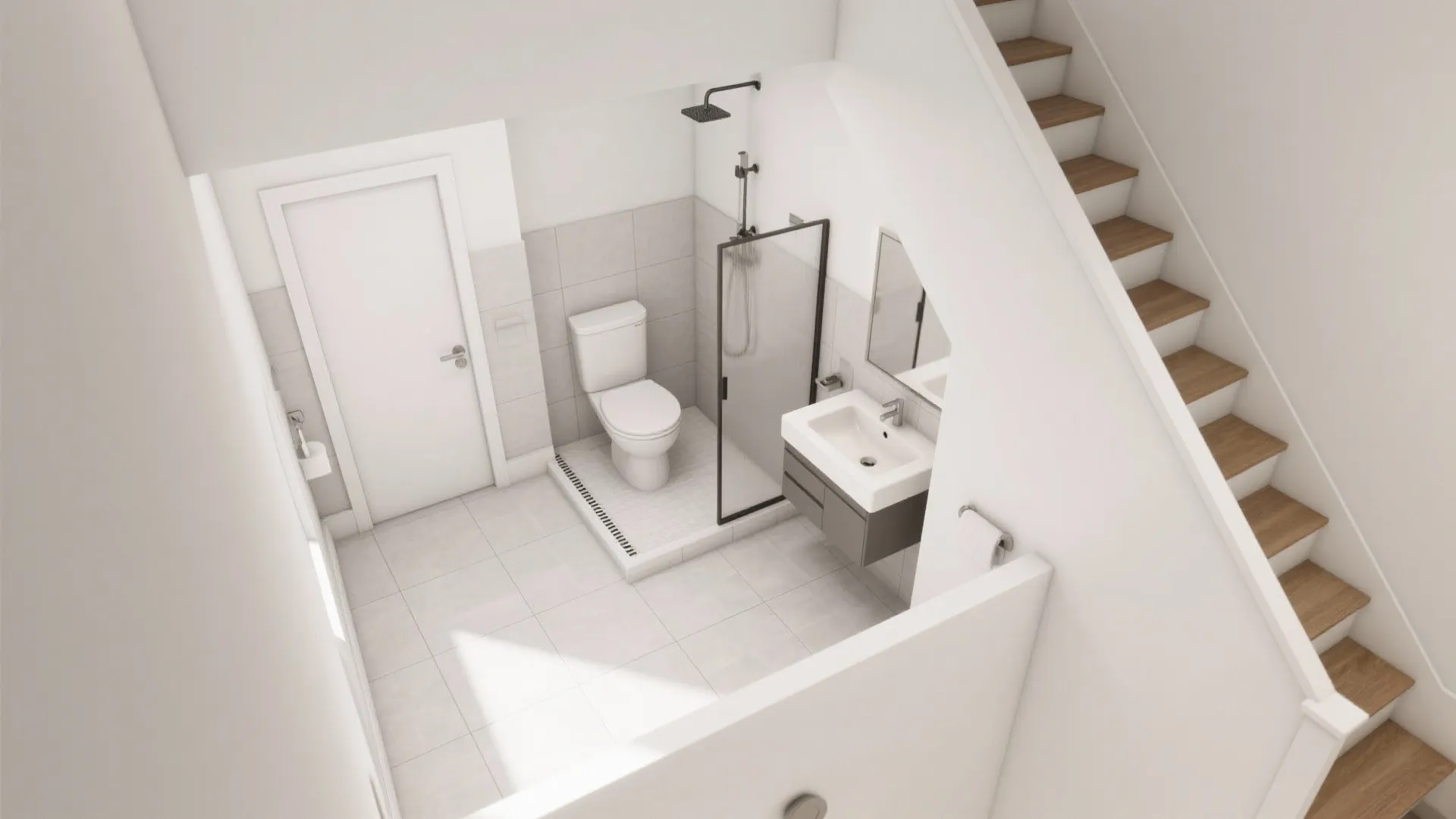

1) What’s the minimum size for an under-stairs bathroom?

For a powder room, aim for about 30–36 inches clear width and 5–6 feet length, but local codes rule. Plan 21 inches clearance in front of the toilet and 15 inches from toilet centerline to side obstruction.

2) Can I put a shower under the stairs?

Yes, with careful headroom planning and waterproofing. A linear drain, a single glass panel, and placing the shower head on the taller side make it viable.

3) What are the key code clearances I should know?

Typical guidelines include 21 inches clear in front of a toilet and at least 15 inches from centerline to side walls, plus minimum shower dimensions. The International Residential Code (IRC 2021, Sections R307 and R305) outlines clearances; always verify locally.

4) How do I handle ventilation in such a small space?

Use a quiet exhaust fan vented outdoors, ideally with a timer or humidity sensor. It prevents odor and moisture buildup, which is critical under stairs where air can stagnate.

5) What door type works best?

A pocket door saves space and avoids clashing with stair traffic. If walls can’t host a pocket, consider a high-quality sliding barn door with a floor guide and privacy latch.

6) How much does an under-stairs bathroom typically cost?

For a powder room, I see ranges from $4,000–$12,000 depending on finishes and plumbing proximity. Adding a shower and waterproofing can push it to $12,000–$20,000+ in many markets.

7) Do I need special plumbing considerations?

Yes—drain slope, venting, and access are crucial. If you’re on a slab or far from the main stack, a macerating/upflush toilet can be a smart workaround.

8) Is there an official source for bathroom clearances?

Yes. See the International Residential Code (IRC 2021): R307 for toilet/bath/shower spaces, R305 for ceiling height, and R303 for ventilation. Your local amendments may vary, so confirm with your building department.
