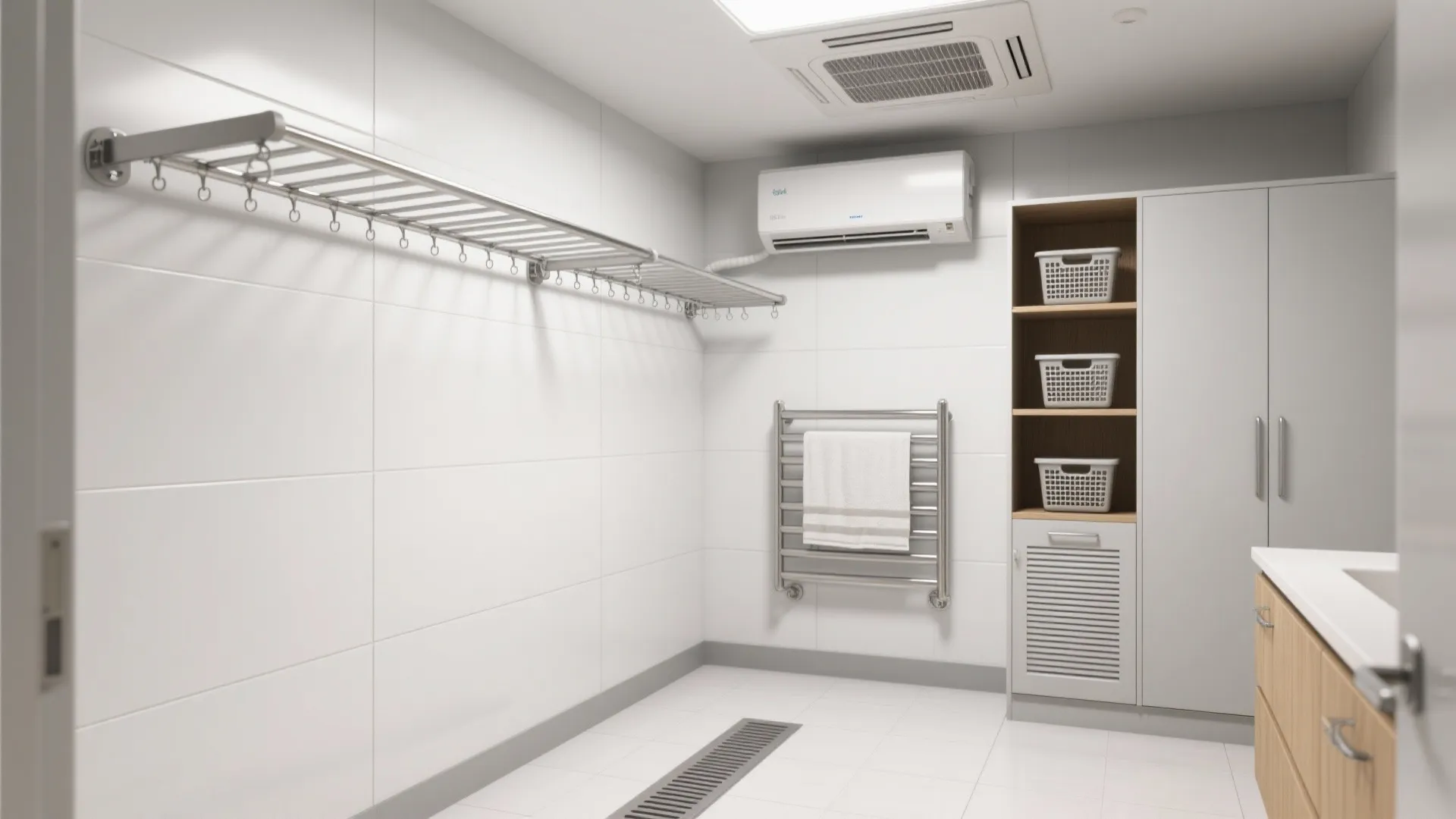

Drying Room Design: 5 Smart Space-Saving Ideas: Real-world tips from a decade of small-space makeovers to build a quiet, fast, and mold-safe drying room at home

I once designed a drying room so efficient it fogged my glasses the second I opened the door—definitely not the flex I imagined. To convince a skeptical client that airflow beats brute heat, I pulled up some quick 3D test renderings and we watched the layout basically fix itself. That day I learned a drying room is a tiny climate machine, not a closet.

Small spaces spark big creativity, especially when fabric, humidity, and heat need to share just a few square meters. Drawing on years of utility-room projects, I’m sharing five drying room design ideas that actually work—and save you from steamy windows and musty towels.

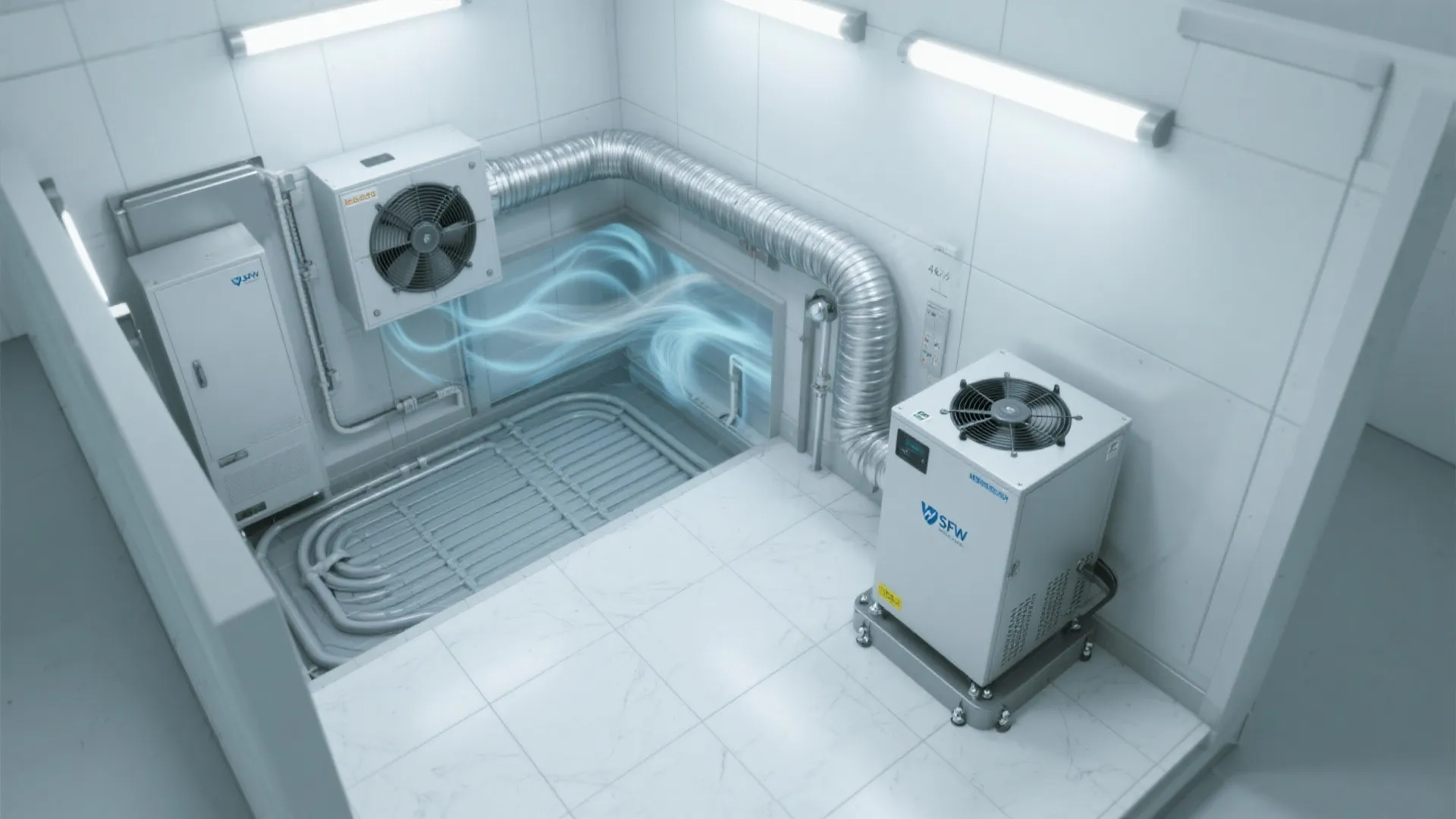

1) Engineer the air: balance heat, ventilation, and dehumidification

The fastest, safest drying happens with mild heat (radiant panel or low-temp underfloor), steady ventilation, and a high-efficiency dehumidifier working together. Aim for 40–55% relative humidity and about 18–24°C; if you like rules of thumb, target roughly 4–8 air changes per hour in a small room.

The trade-off is noise and energy. I use variable-speed fans on timers, a quiet dehumidifier (look for low dBA ratings), and vibration mounts so the room hums instead of roars.

save pin

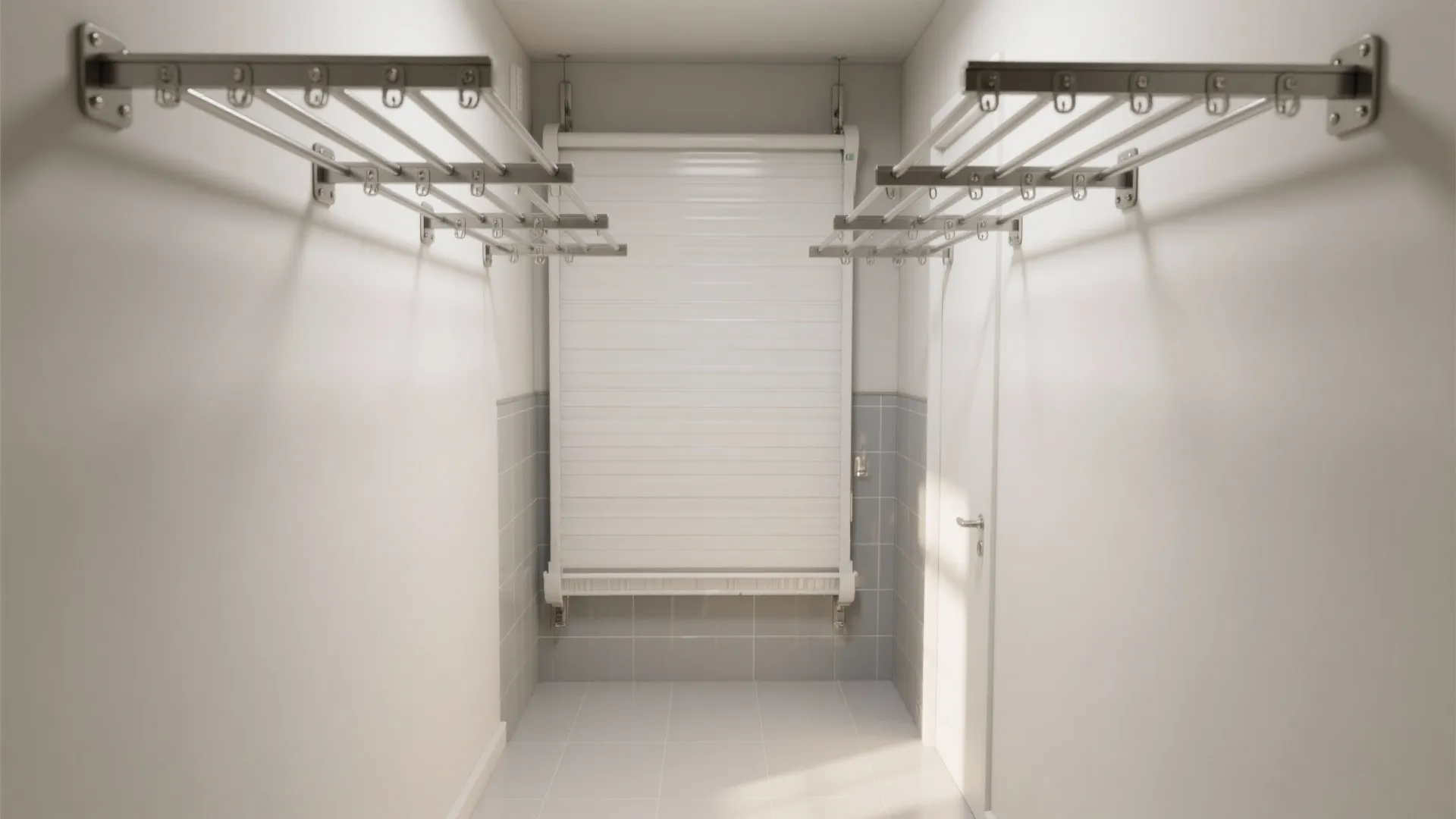

2) Go vertical with a retractable drying wall

Ceiling pulley racks, fold-flat rails, and retractable lines turn a wall into a drying engine without eating floor space. I space rails 50–70 mm apart for airflow, use stainless hardware, and keep top rails a comfortable reach from the floor so nobody needs a step stool.

Mounting is the only fiddly part—find studs or use proper masonry anchors, and add a washable splash zone (tile or PVC panel) behind the drip line. A slim drip tray under the lowest rail saves your floor and your patience.

save pin

3) Create zones: fast-dry corner, gentle-rail queue, and breathable storage

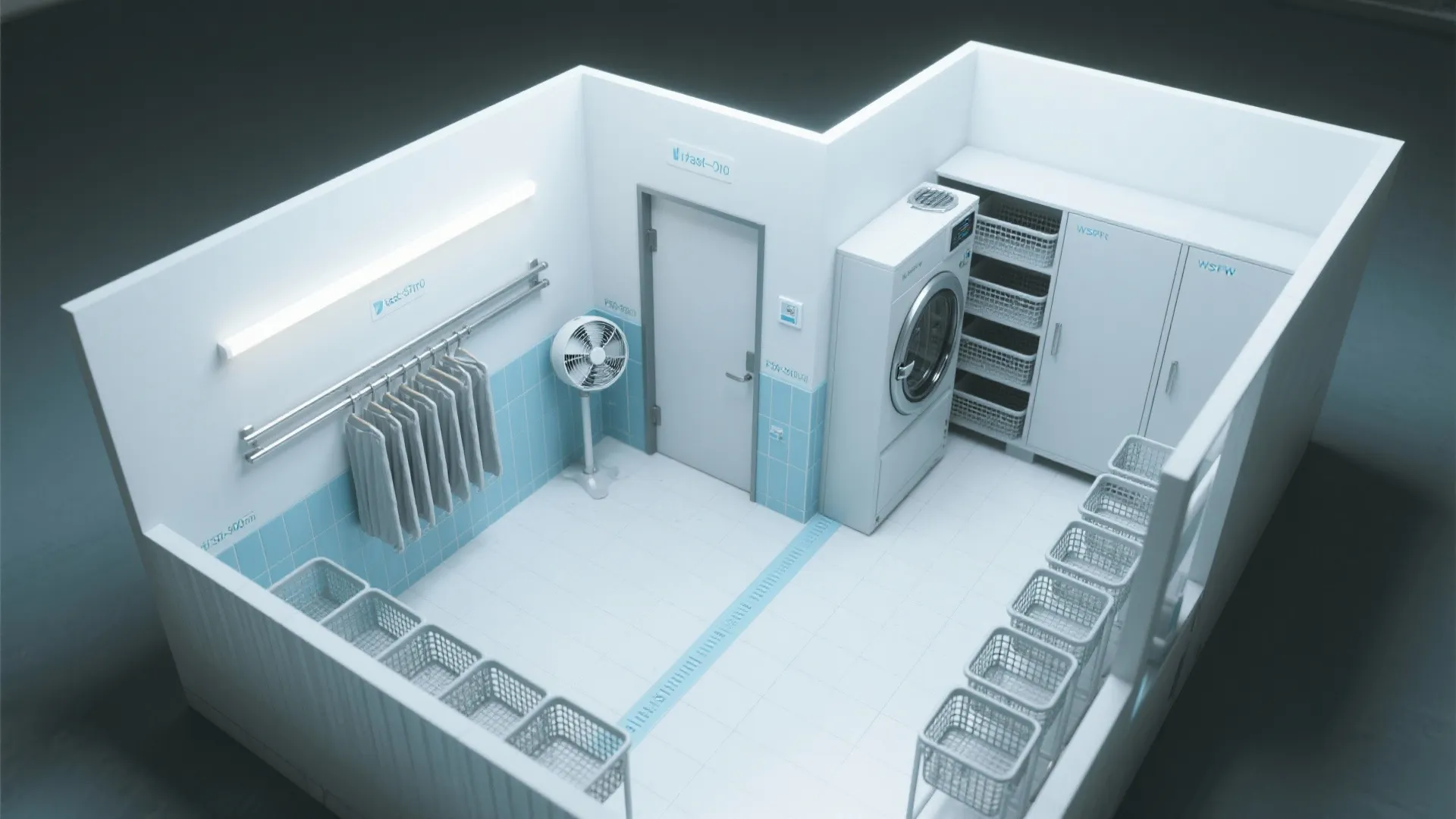

I break tiny rooms into three jobs: a fast-dry corner (towel warmer or heated rail plus targeted fan), a gentle queue (unheated rail with good crossflow), and storage that breathes (mesh baskets, open bases, and vented cabinet doors). That way delicates don’t cook while gym gear gets the turbo lane.

When space is tight, I sketch a quick room layout walk-through to check clearances—keep a 750–900 mm walkway and leave 300 mm off walls for cross-venting. If you use a heat-pump or condenser dryer, add make-up air and don’t block intakes.

save pin

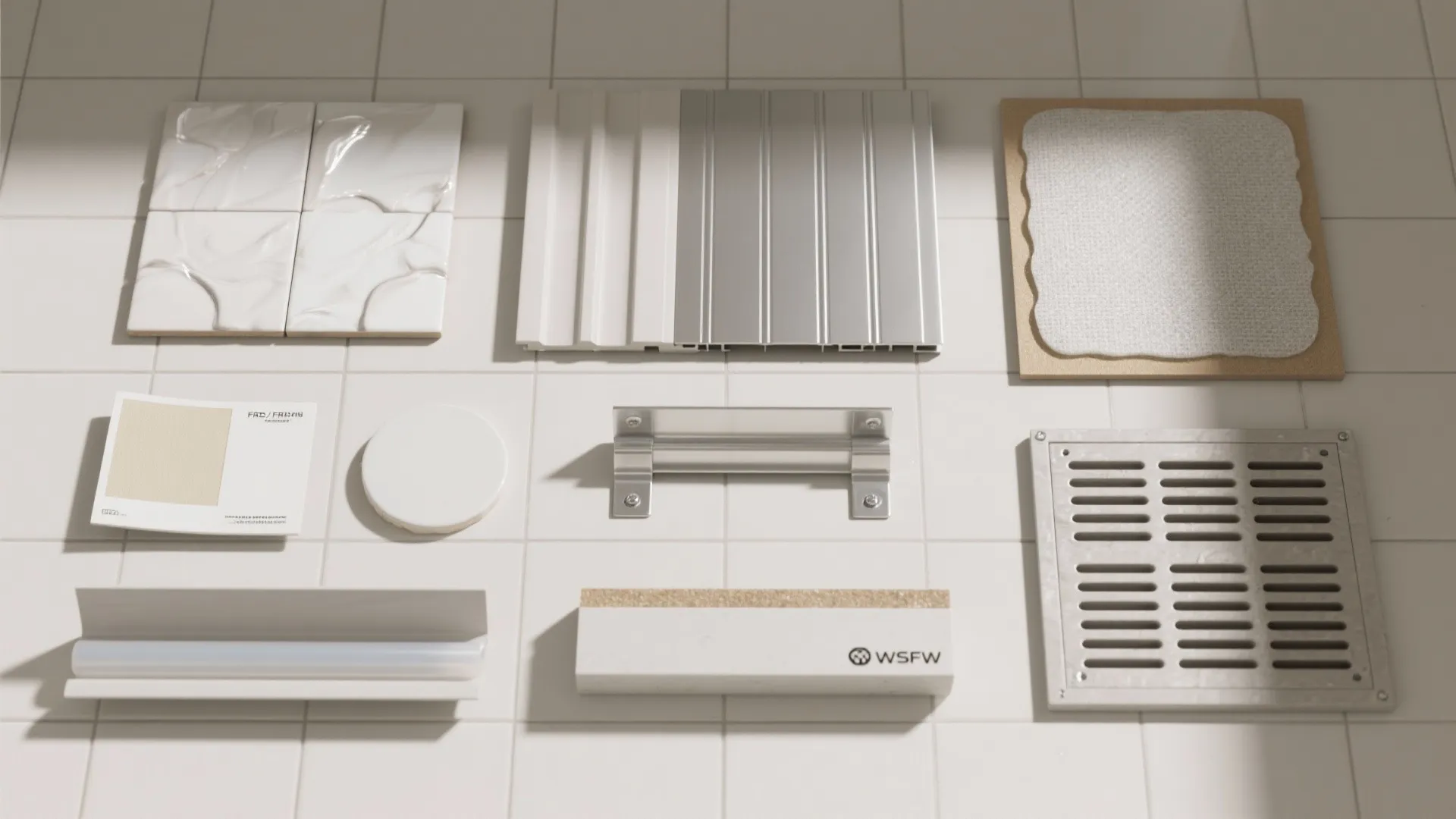

4) Finish smart: surfaces that shrug off splashes and speed evaporation

Floors: porcelain tile or epoxy with a slight slope to a discreet linear drain or a removable drip pan. Walls: fiberglass-reinforced panels, PVC cladding, or scrubbable, mold-resistant paint; add rounded corners and silicone where racks drip so cleanup is a wipe, not a weekend.

Cold surfaces breed condensation, so insulate exterior walls and ducts, and consider a thermal break under metal brackets. A tiny "micro-gutter" under the lowest rail (even a slim aluminum angle) keeps water off the baseboard.

save pin

5) Make it quiet, healthy, and easy to run

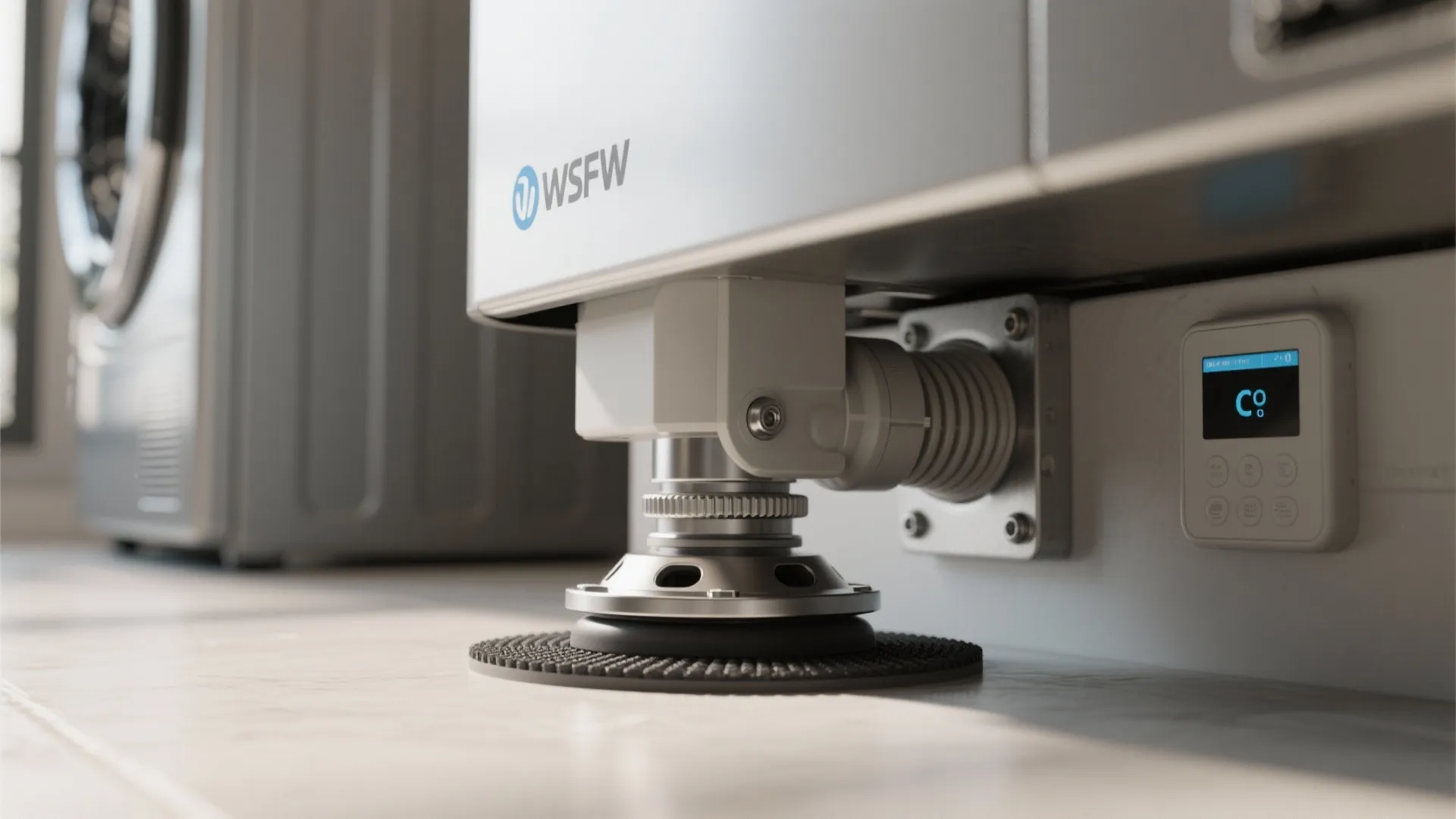

Your ears will thank you for anti-vibration pads, decoupled fan mounts, and soft-close hardware; I try to keep the room under 50 dBA. If you have fuel-fired appliances nearby, add CO monitoring and ensure code-compliant ventilation; skip ozone gadgets and be cautious with UV—effective when engineered, finicky when DIY.

I love simple controls: a plug-in humidity controller set to 50% that toggles the dehumidifier, and a fan timer that runs 20–30 minutes after you leave. Before drilling anything permanent, do a quick 3D dry-run of the layout to confirm door swings, drip lines, and reach heights.

save pin

FAQ

What size do I need for a home drying room? You can make magic in 2–4 m² if you go vertical and keep a clear 750–900 mm walkway. Prioritize ceiling height for pulley racks and leave space for a dehumidifier and fan service access.

What humidity and temperature work best for drying clothes? Target 40–55% RH and 18–24°C for happy fabrics and fast evaporation. According to ASHRAE Standard 160-2016 (Section 4.1), keeping indoor RH below 60% for most of the time reduces mold risk.

Do I need ventilation if I already have a dehumidifier? Both help different things: ventilation removes moist air and odors; a dehumidifier squeezes moisture out of the air efficiently. In small rooms I aim for 4–8 ACH plus a quiet dehumidifier controlled by a 50% RH setpoint.

Can I put a gas dryer in a small drying room? Only if local code and manufacturer specs allow, with proper make-up air and exhaust. Combustion appliances need clearances and ventilation—this is not the place to improvise.

What finishes are best for walls and floors? Porcelain or epoxy for floors, and washable, moisture-resistant wall surfaces like FRP or tile. Use mold-resistant paint on ceilings and seal all penetrations to keep moisture out of cavities.

How do I cut noise in a tiny drying room? Decouple machines from walls, add anti-vibration pads, and use flexible connectors on fans. Soft materials (acoustic panels or even cork-backed pegboard) help tame reflections.

How much does a drying room cost? DIY upgrades (rails, dehumidifier, fan) can start around $600–$1,500; mid-range with new finishes and heat typically runs $3,000–$8,000. Full builds with drainage, insulation, and custom storage may land in the $10k–$20k range, depending on region.

Is underfloor heating worth it? Low-temp radiant floors feel great, dry puddles, and add gentle background heat that speeds evaporation. They’re not a substitute for ventilation or dehumidification, but they reduce cold surfaces that cause condensation.
