How to Set Up a Small Restaurant Kitchen Efficiently: A practical layout, equipment, and workflow guide from a designer who has planned dozens of compact commercial kitchens

Direct Answer

To set up a small restaurant kitchen, focus on a tight workflow layout, multifunction equipment, efficient storage, and clear prep‑to‑service movement. The goal is to minimize steps between stations while maximizing every square foot.

Most successful small kitchens use a line or galley layout, compact commercial equipment, vertical storage, and clearly defined zones for prep, cooking, plating, and cleaning.

Quick Takeaways

1. Line and galley layouts work best for kitchens under 500 square feet.
2. Multifunction equipment saves both space and energy costs.
3. Workflow design matters more than total square footage.
4. Vertical storage is the most overlooked space optimization.
5. Early layout planning prevents expensive plumbing and ventilation mistakes.

Introduction

When people ask me how to set up a small restaurant kitchen, they usually assume the biggest problem is space. After working on dozens of restaurant interiors across Los Angeles and San Diego, I can tell you the real problem is workflow.

I've walked into 350‑square‑foot kitchens that operate smoothly during peak dinner service, and I've seen 900‑square‑foot kitchens where staff constantly collide. The difference almost always comes down to layout decisions made before the first piece of equipment is installed.

One of the most effective ways to avoid costly mistakes is mapping your workflow visually before construction starts. Many operators now start with tools that help them visualize kitchen layouts and traffic flow before buying equipment, which dramatically reduces redesign costs.

In this guide, I'll break down the exact layout strategies, equipment choices, and workflow principles I recommend when designing a compact commercial kitchen that actually performs under pressure.

save pin

What Layout Works Best for a Small Restaurant Kitchen?

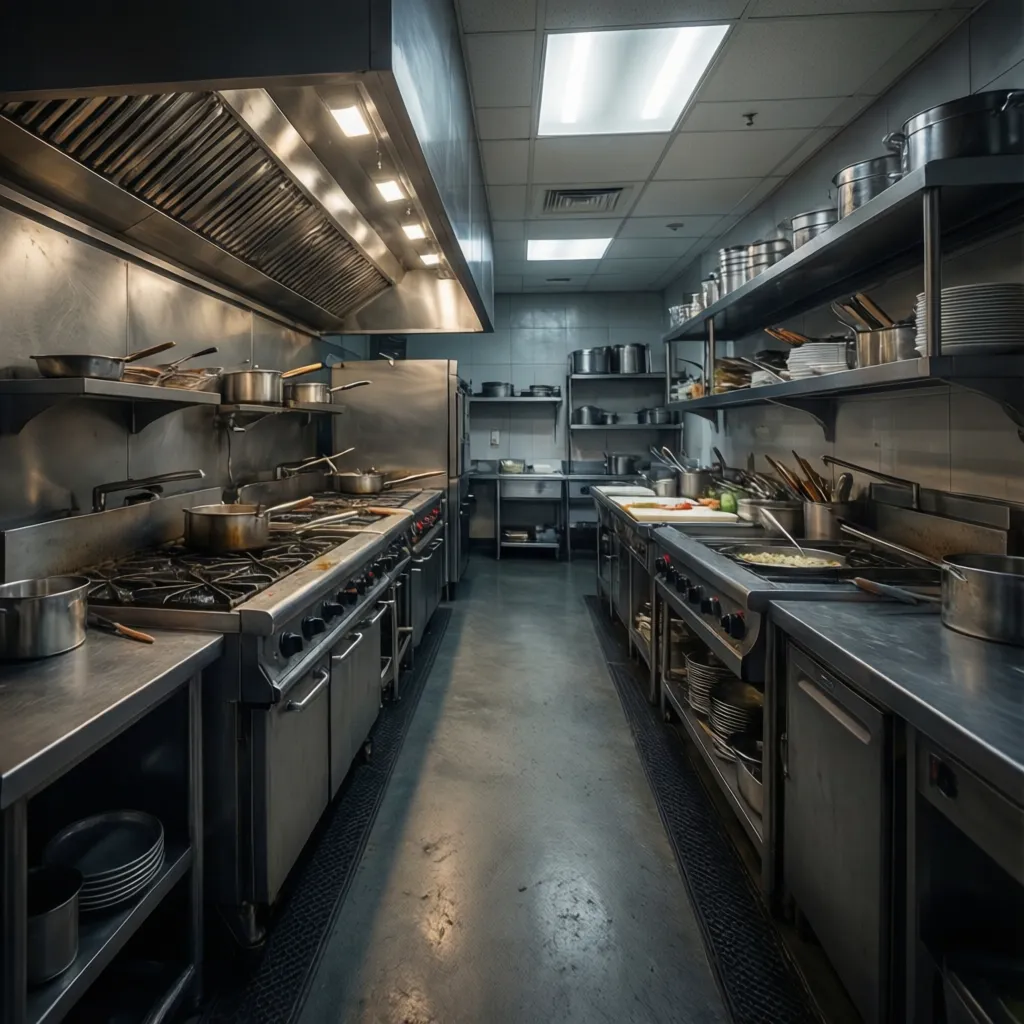

Key Insight: The most reliable layout for small restaurant kitchens is a straight-line or galley configuration because it minimizes cross‑traffic and keeps cooking stations within reach.

In my experience, complicated layouts are the fastest way to slow down a small kitchen. When space is tight, every extra step matters. That's why professional kitchen designers often default to linear workflows.

Common layouts that work well in small kitchens include:

1. Assembly Line Layout – Prep → Cook → Plate in one direction.
2. Galley Layout – Two parallel workstations with a central aisle.
3. Zone Layout – Separate mini‑areas for prep, hot line, and plating.

The assembly line model is especially effective for fast‑casual concepts, pizza kitchens, and sandwich shops.

Industry guidance from the National Restaurant Association emphasizes that reducing staff movement directly improves ticket times and kitchen safety. In tight spaces, the layout itself becomes part of the operational strategy.

save pin

How Much Space Do You Actually Need for Each Kitchen Station?

Key Insight: A functional small restaurant kitchen typically allocates 4–6 feet of linear workspace per major station.

Restaurant owners often underestimate how much room each function needs. Equipment might fit on paper, but staff still need space to work safely.

Typical space guidelines I use when planning compact kitchens:

1. Prep station: 4–5 ft counter space
2. Cooking line: 6–8 ft equipment run
3. Plating area: 3–4 ft
4. Dishwashing: 4–6 ft
5. Walkway clearance: minimum 36 inches

Health departments in many U.S. cities also require clear separation between raw food prep and ready‑to‑serve areas, which can influence layout decisions.

This is why planning your equipment positions before purchasing anything is critical.

Which Equipment Is Essential in a Small Restaurant Kitchen?

Key Insight: The best equipment strategy for small kitchens is choosing multifunction commercial appliances instead of single‑purpose machines.

In compact kitchens, every appliance has to justify the floor space it occupies.

Equipment combinations I frequently recommend include:

1. Combi oven instead of separate steamer and convection oven
2. Induction cooktops instead of large gas ranges
3. Undercounter refrigeration instead of large reach‑ins
4. Prep tables with built‑in refrigerated drawers

Energy efficiency is another hidden factor. ENERGY STAR reports that commercial kitchen equipment accounts for roughly 35% of restaurant energy use, which means efficient appliances can significantly lower operating costs.

How Do You Design a Smooth Kitchen Workflow?

Key Insight: The most efficient small kitchens follow a one‑direction workflow: storage → prep → cook → plate → service.

When kitchens break this sequence, chaos happens. Staff cross paths, food waits longer, and mistakes increase.

A simple workflow framework:

1. Ingredients move from storage to prep
2. Prep feeds directly into the cooking line
3. Cooked food moves forward to plating
4. Servers pick up finished dishes at the pass

Visualizing this movement before construction is extremely helpful. Many designers now use digital layout tools that allow you to experiment with different commercial kitchen layouts before installation.

Even a small adjustment—like rotating a prep table—can remove several unnecessary steps from every order.

save pin

What Storage Solutions Work Best in Small Kitchens?

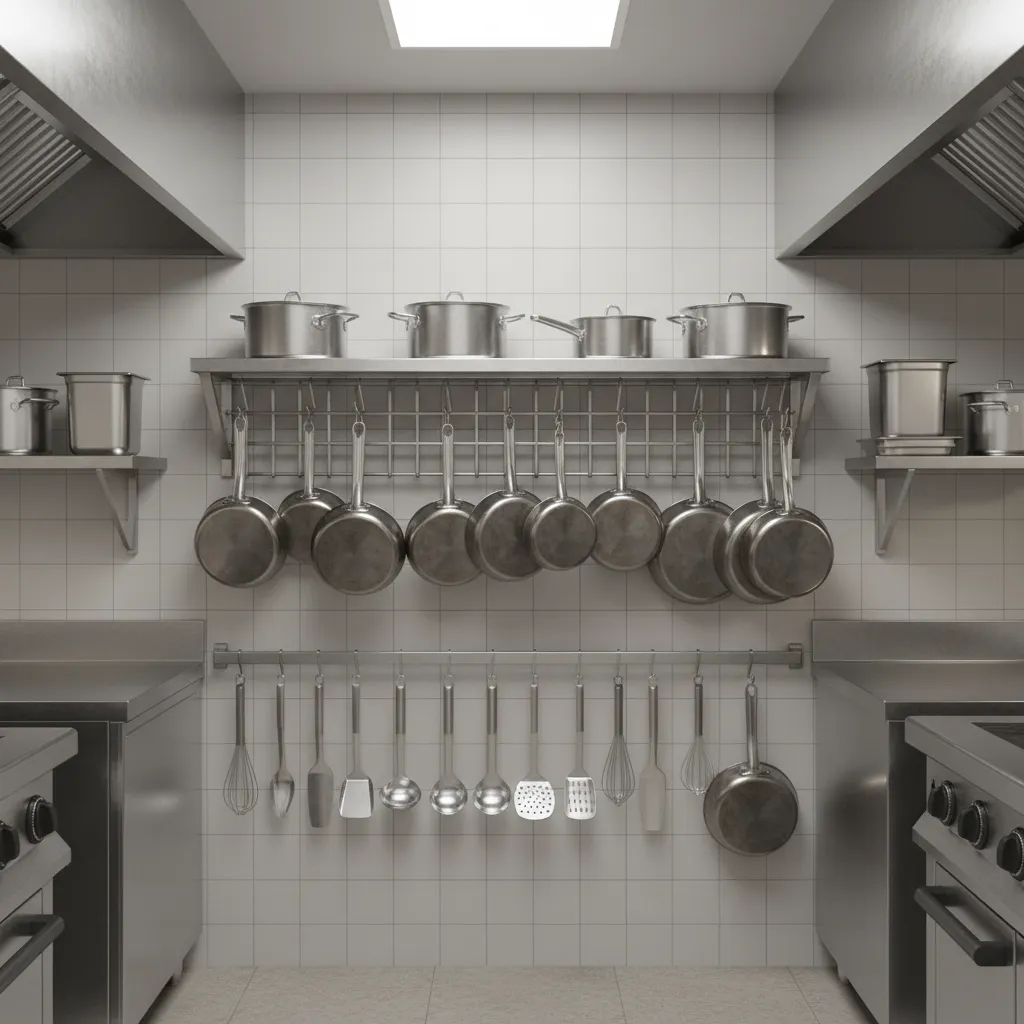

Key Insight: Vertical storage and mobile shelving dramatically increase usable space without expanding the kitchen footprint.

One mistake I see constantly is kitchens relying only on base cabinets. In tight kitchens, walls should work as hard as floors.

Effective storage solutions include:

1. Wall‑mounted ingredient racks
2. Ceiling pot racks
3. Magnetic knife strips
4. Mobile ingredient bins
5. Under‑counter refrigerated drawers

Restaurant consultants often call vertical storage the "hidden square footage" of a kitchen. Using wall space properly can increase usable storage capacity by 30–40%.

Answer Box

The most efficient small restaurant kitchens rely on three principles: linear workflow, multifunction equipment, and vertical storage. When layout and movement are optimized, even a 300‑square‑foot kitchen can support high‑volume service.

Hidden Costs Most Restaurant Owners Overlook

Key Insight: Ventilation, plumbing routing, and electrical upgrades often cost more than the kitchen equipment itself.

When planning a small restaurant kitchen, equipment budgets are usually the focus. But infrastructure frequently becomes the expensive surprise.

Common hidden costs include:

1. Commercial hood and ventilation installation
2. Grease trap requirements
3. Floor drainage systems
4. Electrical upgrades for high‑load appliances
5. Fire suppression systems

In California projects I've worked on, ventilation systems alone sometimes represent 25–35% of the total kitchen construction cost.

Can AI Tools Help Plan a Small Restaurant Kitchen?

Key Insight: Modern visualization tools help restaurant owners test layouts and identify workflow problems before construction begins.

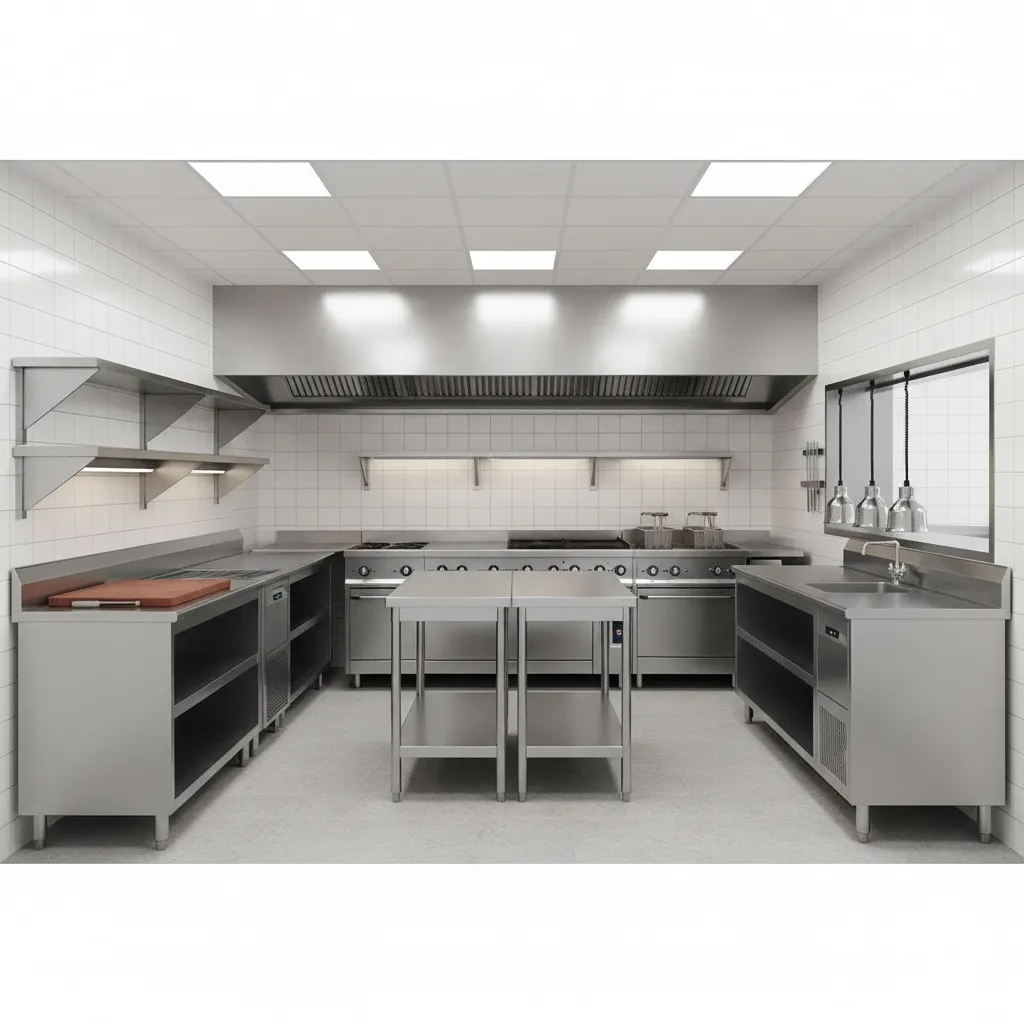

Ten years ago, kitchen planning relied heavily on 2D drawings. Today, 3D visualization allows owners to experience their kitchen layout before it exists.

Benefits of using digital planning tools:

1. Spot workflow conflicts early
2. Test multiple equipment arrangements
3. Improve staff movement planning
4. Visualize storage capacity

Many restaurant startups now use visualization platforms that allow them to preview realistic kitchen environments before construction begins, which helps avoid layout mistakes that are expensive to fix later.

save pin

Final Summary

1. Small restaurant kitchens succeed when workflow is prioritized over square footage.
2. Line or galley layouts minimize staff movement.
3. Multifunction equipment saves both space and energy.
4. Vertical storage unlocks unused wall space.
5. Planning with 3D layouts prevents costly construction changes.

FAQ

1. What is the minimum size for a small restaurant kitchen?

Many small restaurants operate efficiently with 200–400 square feet if the layout is optimized and equipment is compact.

2. How much space should a commercial kitchen allocate per worker?

Most designers aim for about 40–60 square feet per kitchen employee during peak operations.

3. What is the best layout for a small restaurant kitchen?

The line or galley layout is usually the most efficient for a small restaurant kitchen because it reduces cross‑traffic and improves workflow.

4. Can a small restaurant kitchen handle high volume?

Yes. Many fast‑casual restaurants operate high‑volume kitchens under 400 square feet with optimized workflows.

5. What equipment should I buy first?

Start with core cooking equipment, refrigeration, and prep surfaces. Specialty appliances can be added after workflow is tested.

6. Is ventilation required in every restaurant kitchen?

Most commercial cooking equipment requires a ventilation hood and fire suppression system to meet building and fire codes.

7. How do I reduce clutter in a small restaurant kitchen?

Use vertical shelving, mobile storage bins, and under‑counter refrigeration to maximize space.

8. How do I design a small restaurant kitchen layout?

Start by mapping ingredient flow and workstation order. A well‑planned small restaurant kitchen layout minimizes backtracking and cross traffic.
