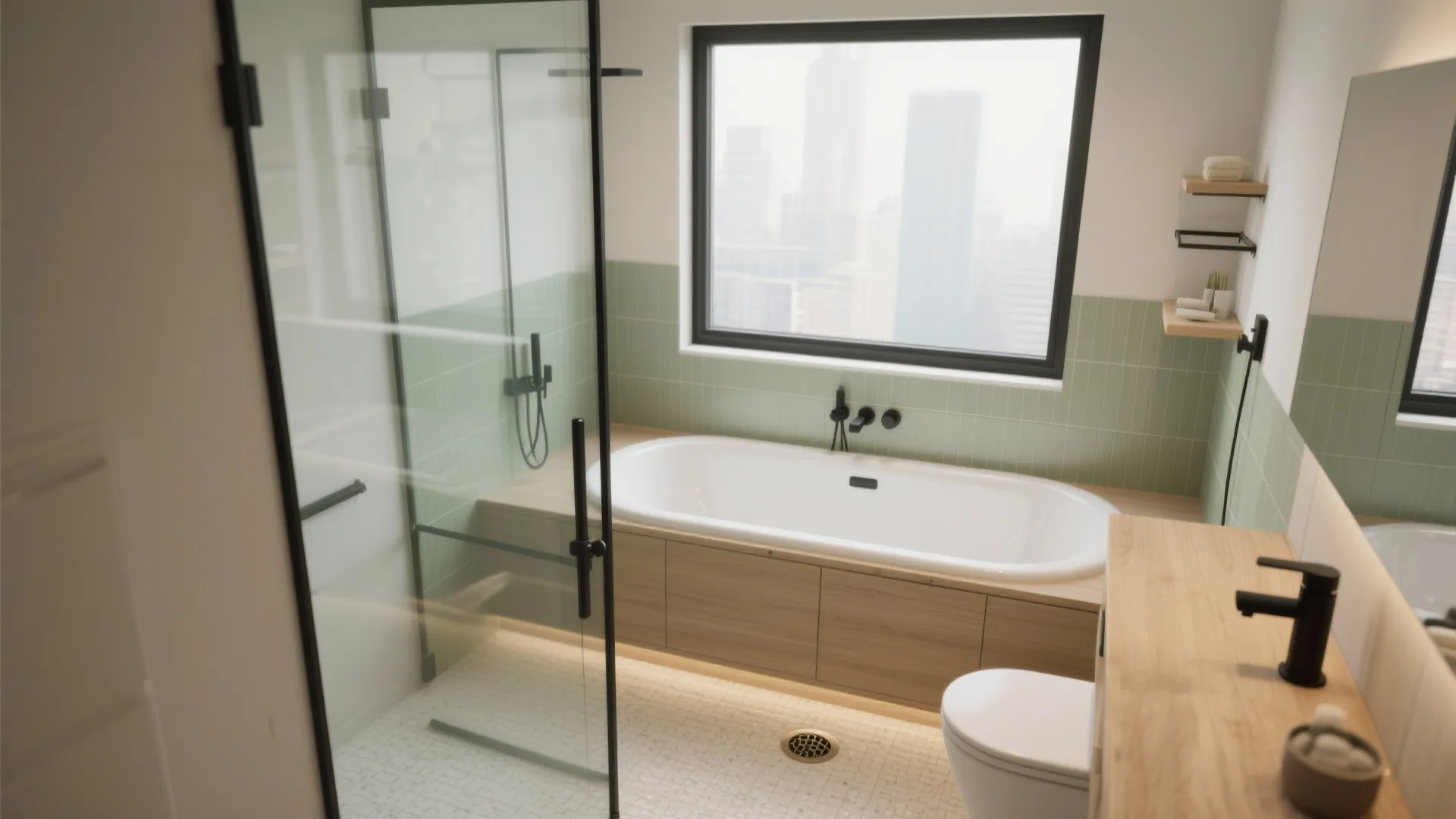

Jacuzzi in Bathroom Design: 5 Smart Ideas: How I fit spa-level jacuzzis into small bathrooms—without breaking the floor or the budget

A client once asked me to fit a jacuzzi into a bathroom so tight the door kissed the towel hook. I laughed, then fired up a tool to visualize the layout, and we magically found five inches we didn't know existed. Small spaces really do spark big creativity—so let me share five ideas I use in real projects.

I’ll keep it practical: space-savvy tub shapes, smart structure, wet-room thinking, mood lighting, and maintenance tricks. You’ll see where the magic happens—and where the mess can, too.

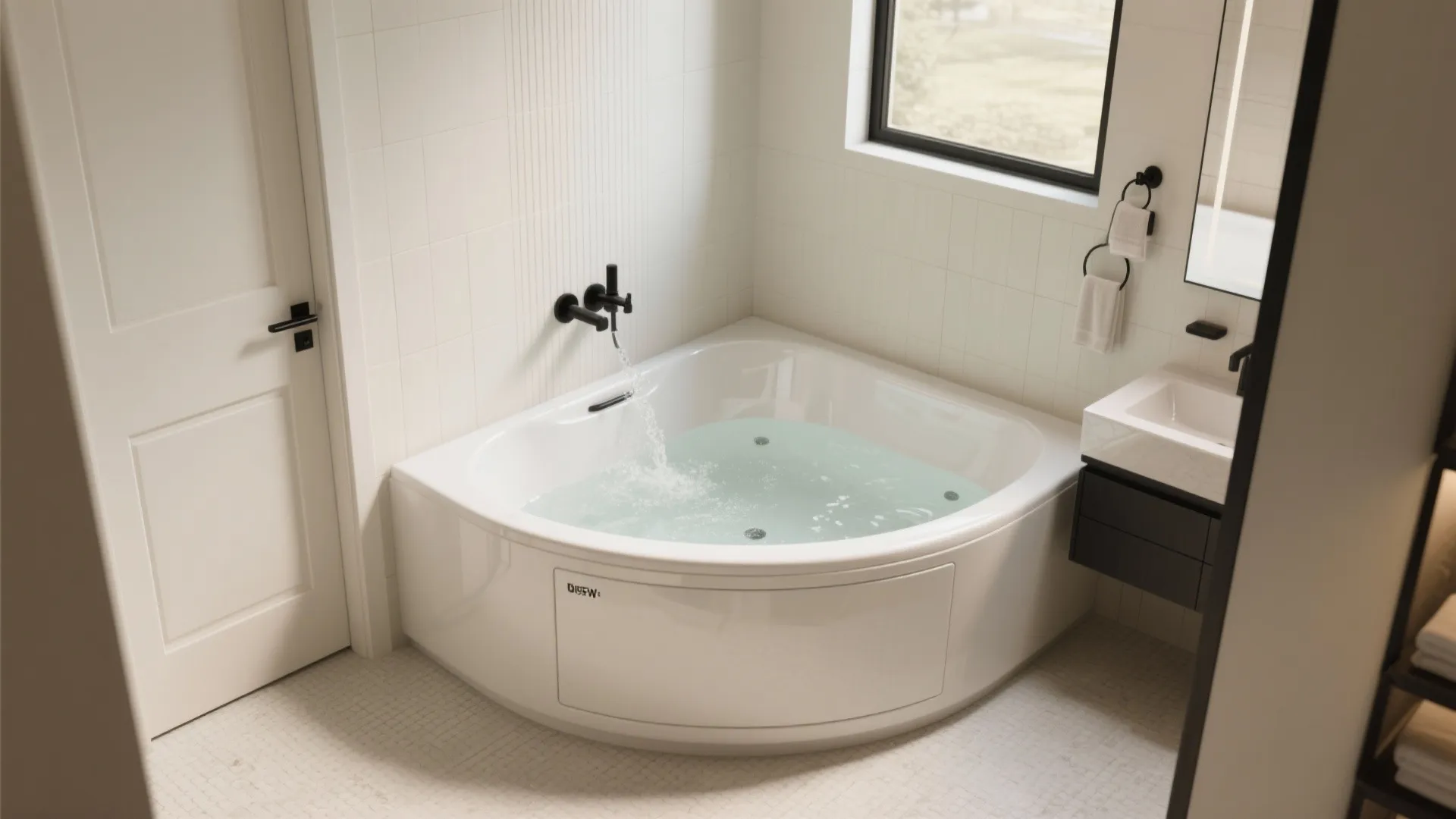

Idea 1: Corner or soft-oval jacuzzi to free floor space

Corner tubs can open circulation in tight rooms, especially when paired with a curved front that softens traffic. They’re kinder to hips and doors, but mind the access panel and splash zone; your plumber will thank you later. Acrylic keeps costs lighter than stone, and a slim deck edge avoids that bulky “boat in a pond” look.

save pin

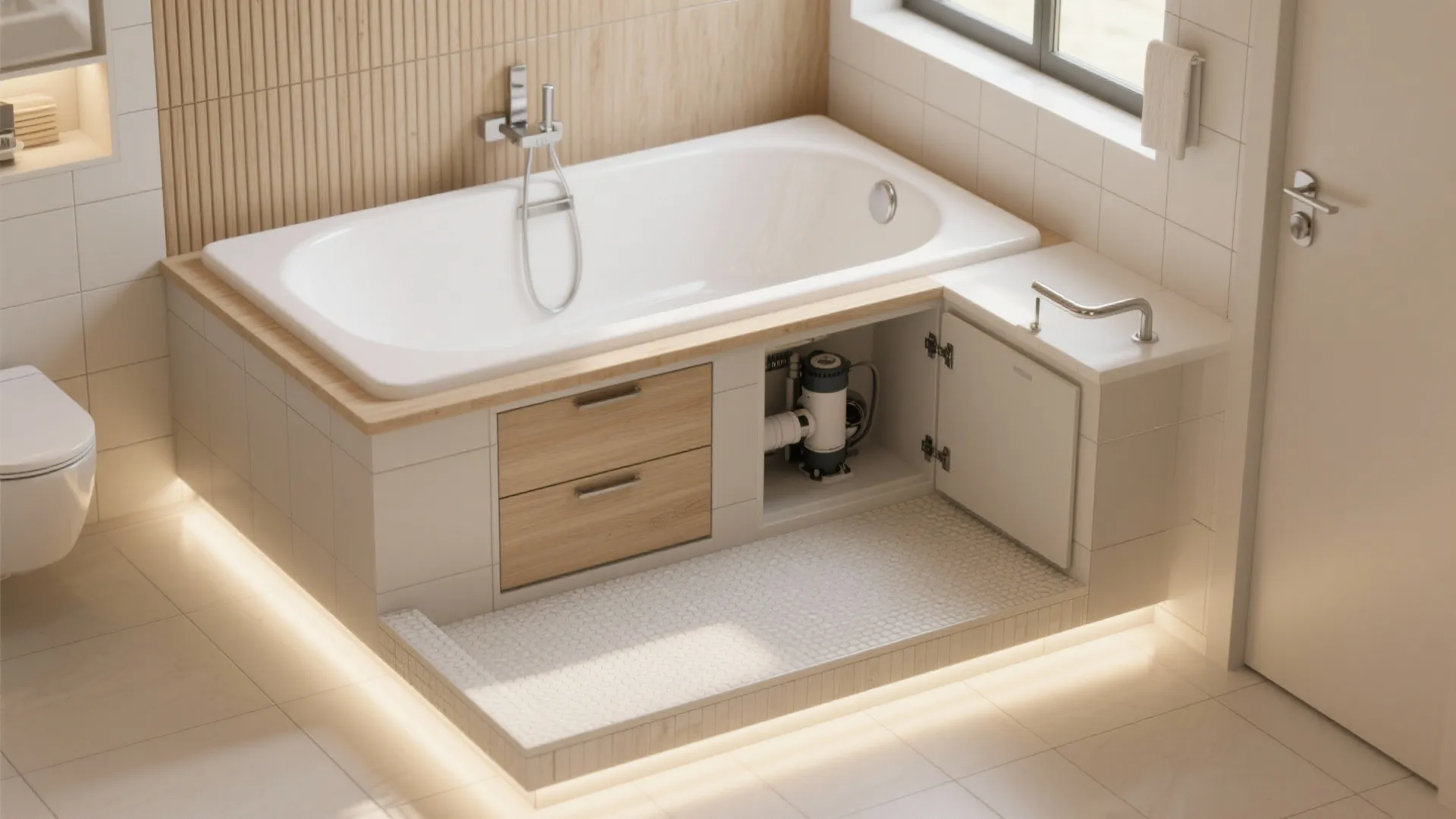

Idea 2: Elevated deck with hidden storage and access

Building a low platform around the tub lets you tuck in towels, filters, and the pump access while making the jacuzzi feel integrated—not dropped in. Just watch step height and slip risk; I like textured porcelain and a discreet handhold. I once misread a spec and stole knee clearance—lesson learned: mock up heights with painter’s tape before you commit.

save pin

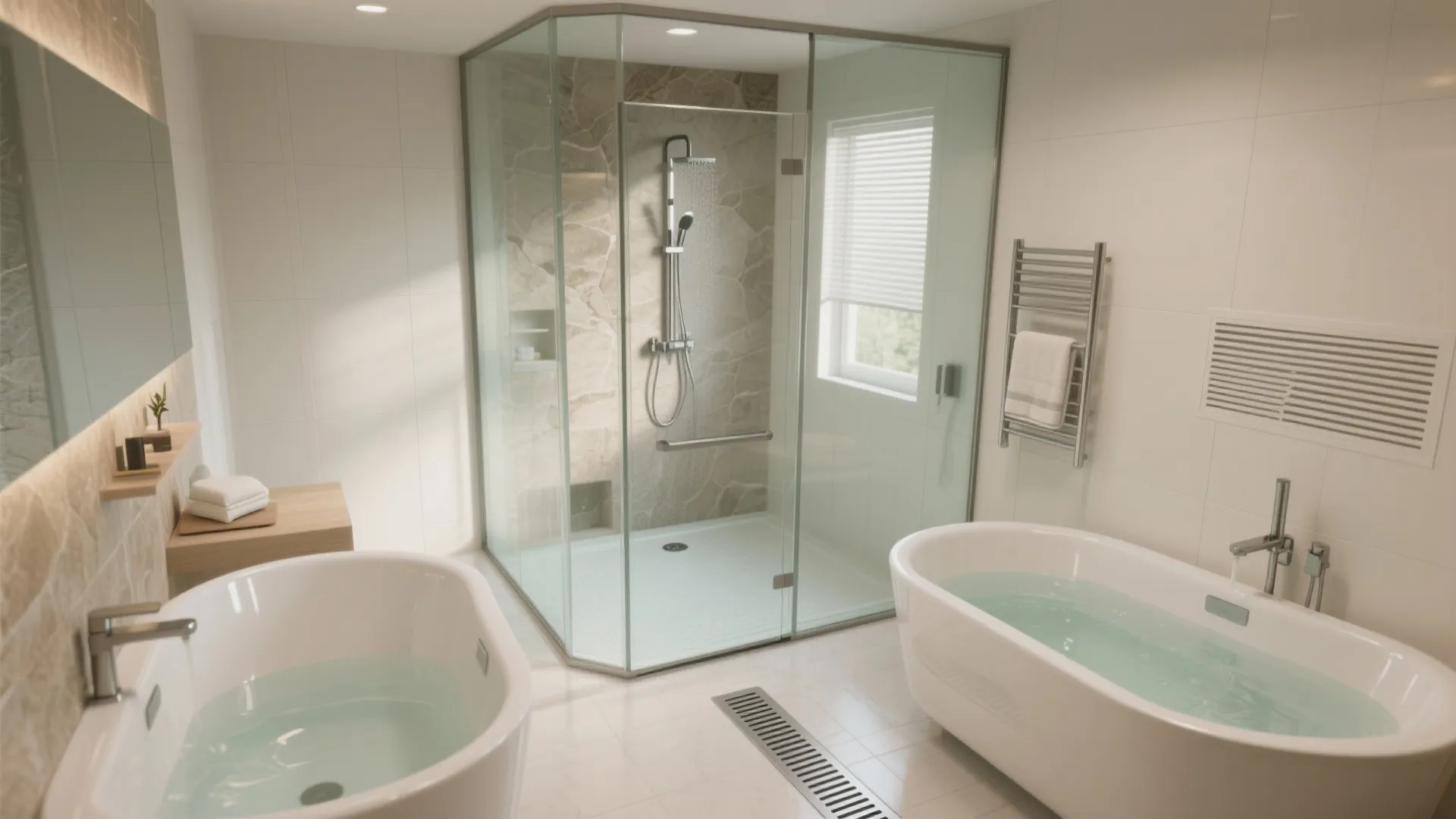

Idea 3: Wet room + clear glass for one drain zone

Turn the tub and shower into a single wet zone with a gentle floor slope and frameless glass; it simplifies drains and makes the room feel bigger. Before committing, I like to test a two-person tub footprint to see where elbows and shampoo niches actually land. Ventilation matters more here—aim for quiet, strong extraction and a heated towel rail to keep humidity in check.

save pin

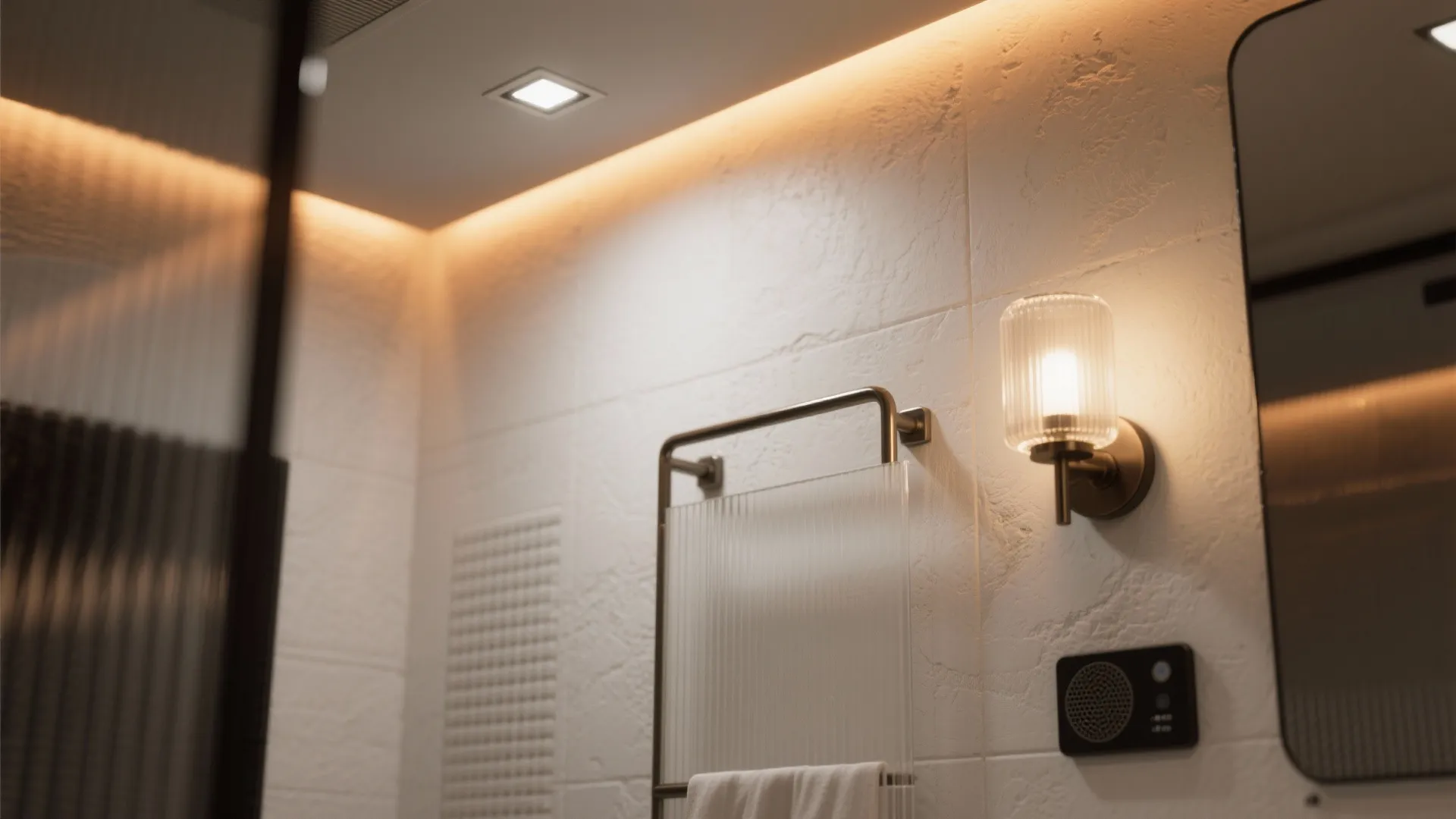

Idea 4: Layered lighting, sound, and small luxuries

Nothing kills the spa vibe like a single harsh ceiling light. I pair dimmable sconces with low-glare downlights and a warm LED cove; if music is your thing, add a moisture-rated speaker. Quick 3D renderings of tile and tub help clients choose warmth, reflection, and mood before anyone lifts a hammer.

save pin

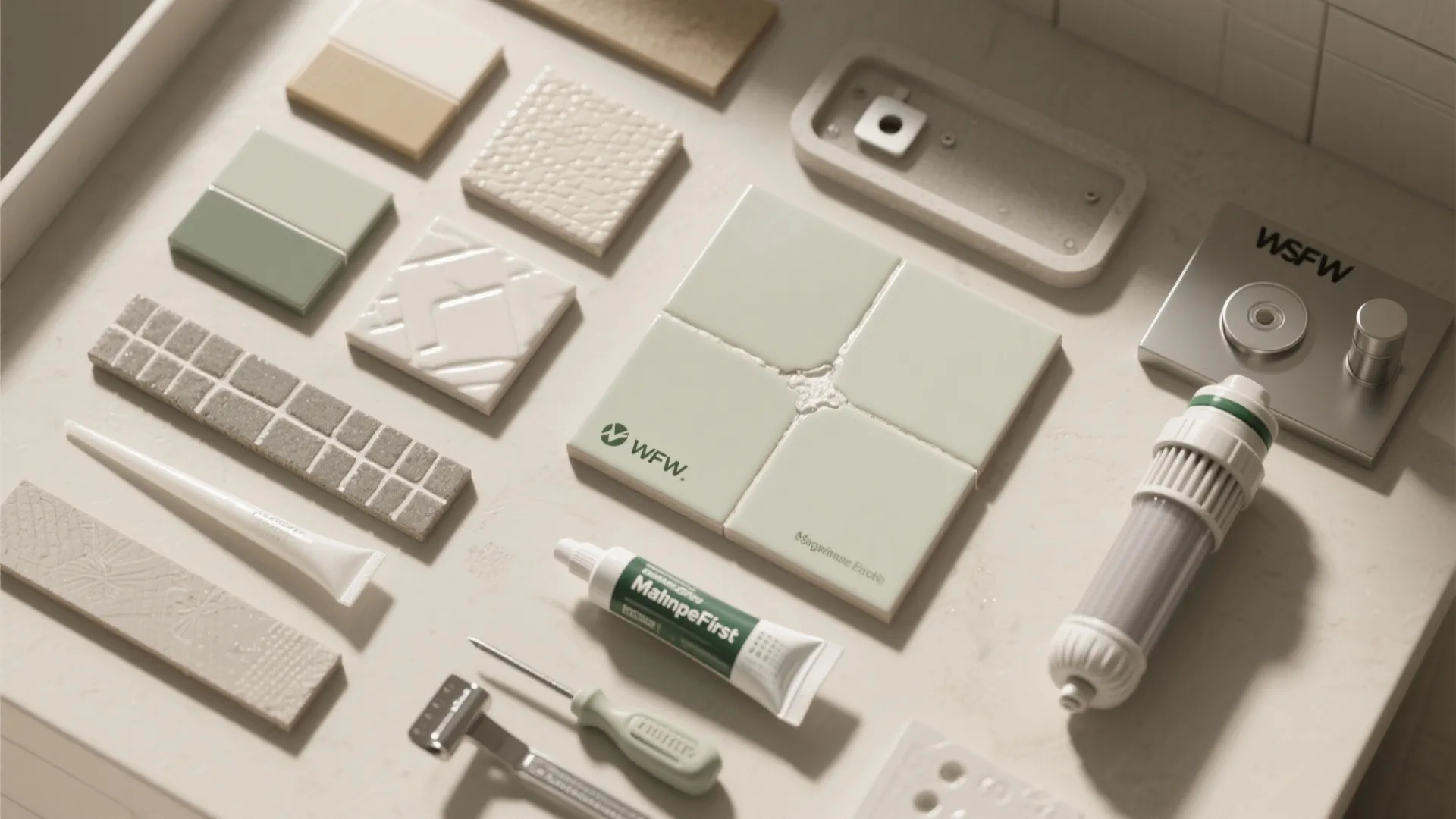

Idea 5: Maintenance-first materials and accessible panels

Choose grout with stain resistance, tile with subtle texture, and fixtures you can actually reach. Plan a removable skirt or tile-on-magnetic panel for pump servicing—no one wants to smash a wall for a stuck impeller. Hard water? Budget for a scale filter and a regular flush routine, and your jets will stay as happy as you are.

save pin

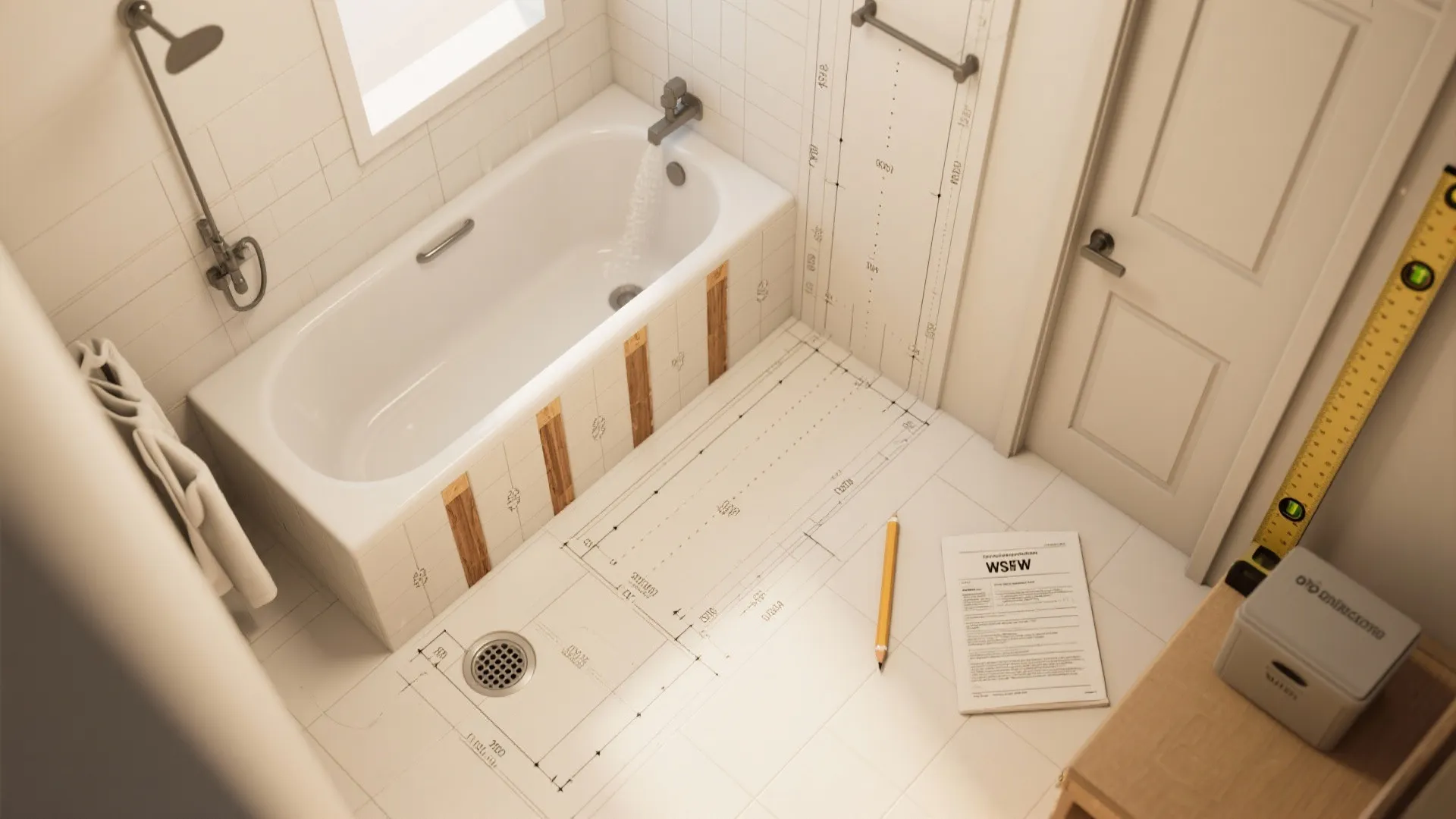

FAQ

1) Can a small bathroom really fit a jacuzzi?

Yes—if you plan shape, clearances, and access up front. Corner or compact oval models, smart glass, and an integrated deck make the footprint feel lighter.

2) What size should I target?

Many small jacuzzis sit around 60–66 inches long and 30–36 inches wide. Measure doorways, turning circles, and the path to the bathroom; delivery is half the battle.

3) How heavy is a jacuzzi, and will my floor cope?

Water weighs about 8.34 lb per gallon; a 100–120 gallon fill plus tub and people can exceed 1,000 lb. Consult a structural pro; the International Residential Code (IRC) Table R301.5 sets typical live loads (40 psf), but concentrated loads may need reinforcement.

4) What are the plumbing must-haves?

You’ll need a dedicated circuit for the pump, an accessible shut-off, and a drain with an overflow that’s easy to service. Keep supply lines insulated to reduce noise and temperature swings.

5) What about electrical safety around water?

Jacuzzi pumps and nearby receptacles must be on GFCI protection; the National Electrical Code (NEC) 210.8(A) requires GFCI in bathrooms. Use a licensed electrician and ensure proper bonding and access to the disconnect.

6) How do I control humidity and condensation?

Use a quiet, high-cfm exhaust fan, and consider heated floors or a towel rail to dry surfaces faster. Clear glass and warm lighting help the room feel airy even after a long soak.

7) What’s a realistic budget range?

Expect the tub unit plus pump to be the small part; structure, electrical, glass, and finishes add up. I tell clients to plan for installation costs equal to—or exceeding—the tub price.

8) Is a jacuzzi compatible with accessibility needs?

With grab bars, a transfer edge, and careful controls, some setups can work. For public or commercial compliance, reference the 2010 ADA Standards for Accessible Design, Section 607 (Bathtubs), and consult local requirements.
