Jacuzzi Tub Bathroom Design: 5 Smart Ideas: How I squeeze a spa-worthy whirlpool into tight bathrooms without losing storage or safety

A client once asked me to fit a champagne cubby into the tub deck—right next to the whirlpool pump. I laughed, then promptly remembered the time I mis-measured a pocket door and left only 20 inches of clearance to the tub. That near-miss taught me to sketch the layout fast before demo. Small spaces really do spark big creativity, and today I’m sharing five Jacuzzi tub bathroom design ideas I use in real projects.

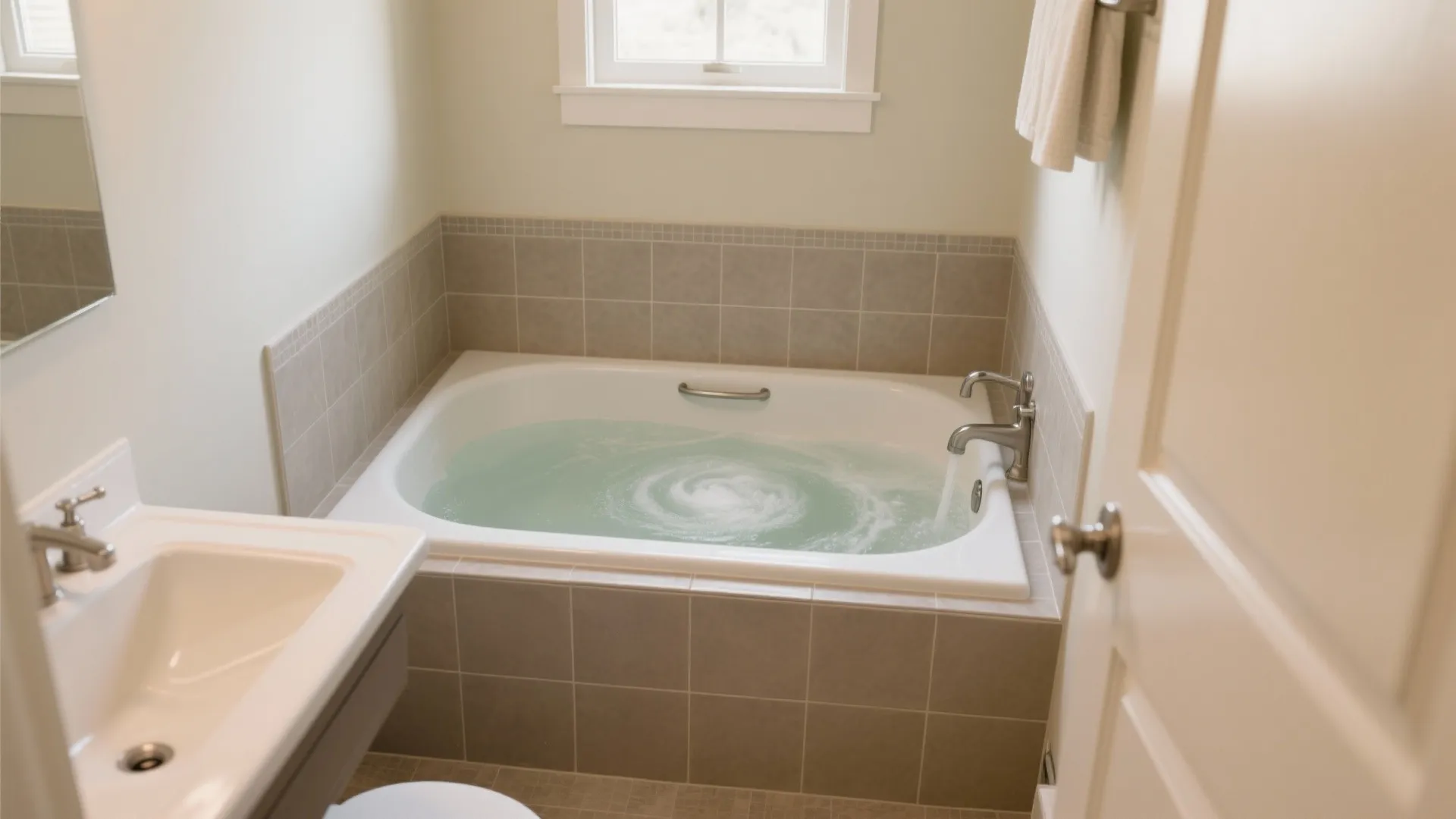

Idea 1: Right-size the tub—shape matters as much as inches

In tight bathrooms, I aim for compact air tubs or slim-profile whirlpools (think 60x32 to 66x36) and match the shape to the room: alcove for rectangular footprints, corner tubs for odd angles, and oval drop-ins when I need softer edges. The win is better circulation space and safer entry; the trade-off is learning the tub’s real footprint once you add tile, apron, and hardware.

I always check water volume and weight—80 gallons can add 660+ pounds with a bather—and confirm the floor structure can handle it. Apartment slabs usually pass; older wood joists sometimes need reinforcement. It’s not glamorous planning, but it beats hearing the pump hum under a flexing floor.

save pin

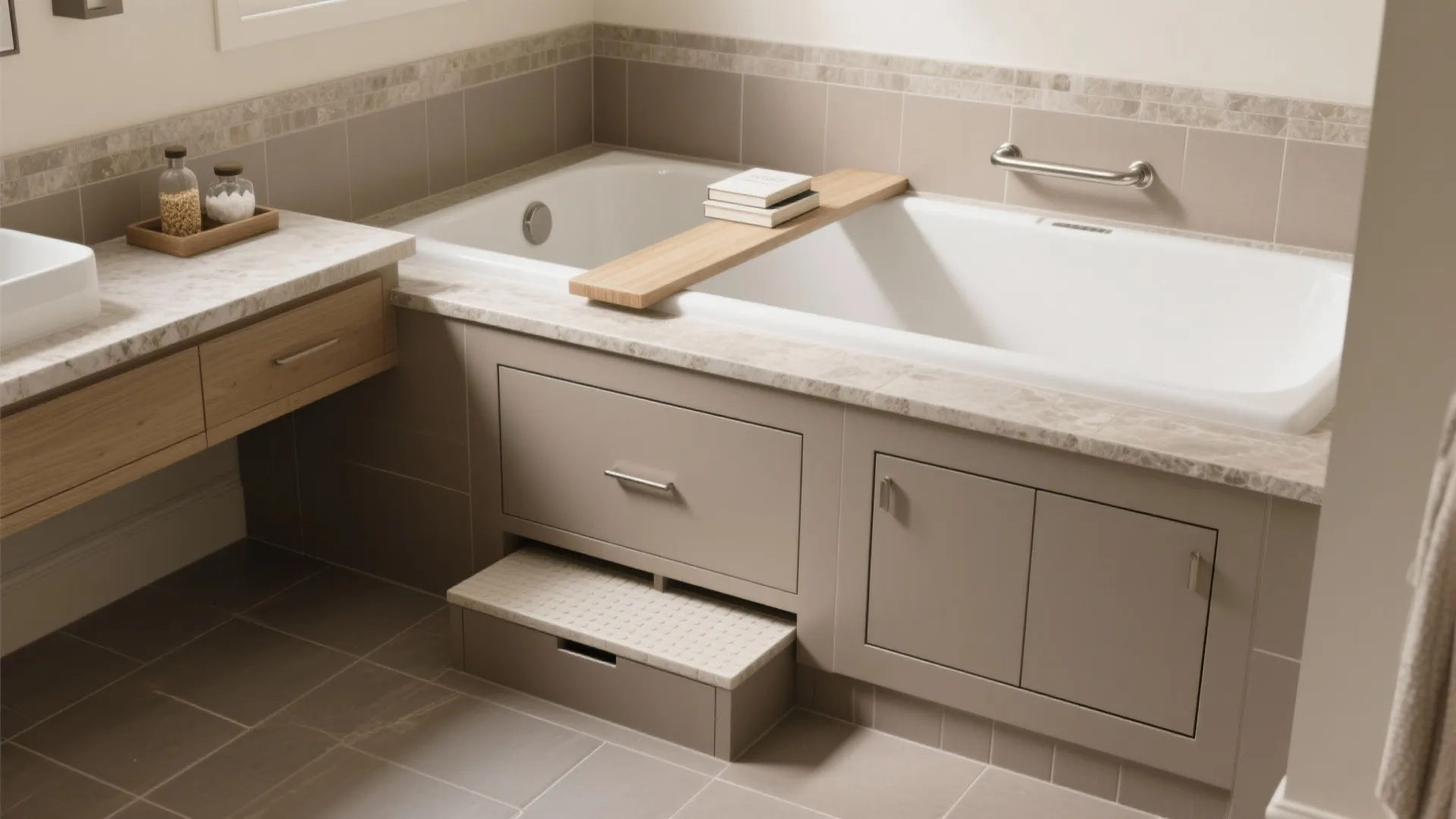

Idea 2: Build a smart deck with ledges, steps, and hidden storage

A 10–14 inch deck gives you a place for salts, a book, and a safe knee when you step in. I’ll sneak toe-kick drawers into the tub skirt or a flip-down panel for maintenance access. Stone looks luxe but heats slowly; porcelain tile is friendlier to budgets and cleans easier. Just respect waterproofing—cement board, proper membranes, and a tub flange detail you’d be proud to show your future self.

One caution: steps must be non-slip and shallow. I aim for a single riser, 6–7 inches, and a grab bar that actually feels natural to use. If you’ve ever watched a toddler beeline for a glossy step, you’ll understand my obsession with traction and clear edges.

save pin

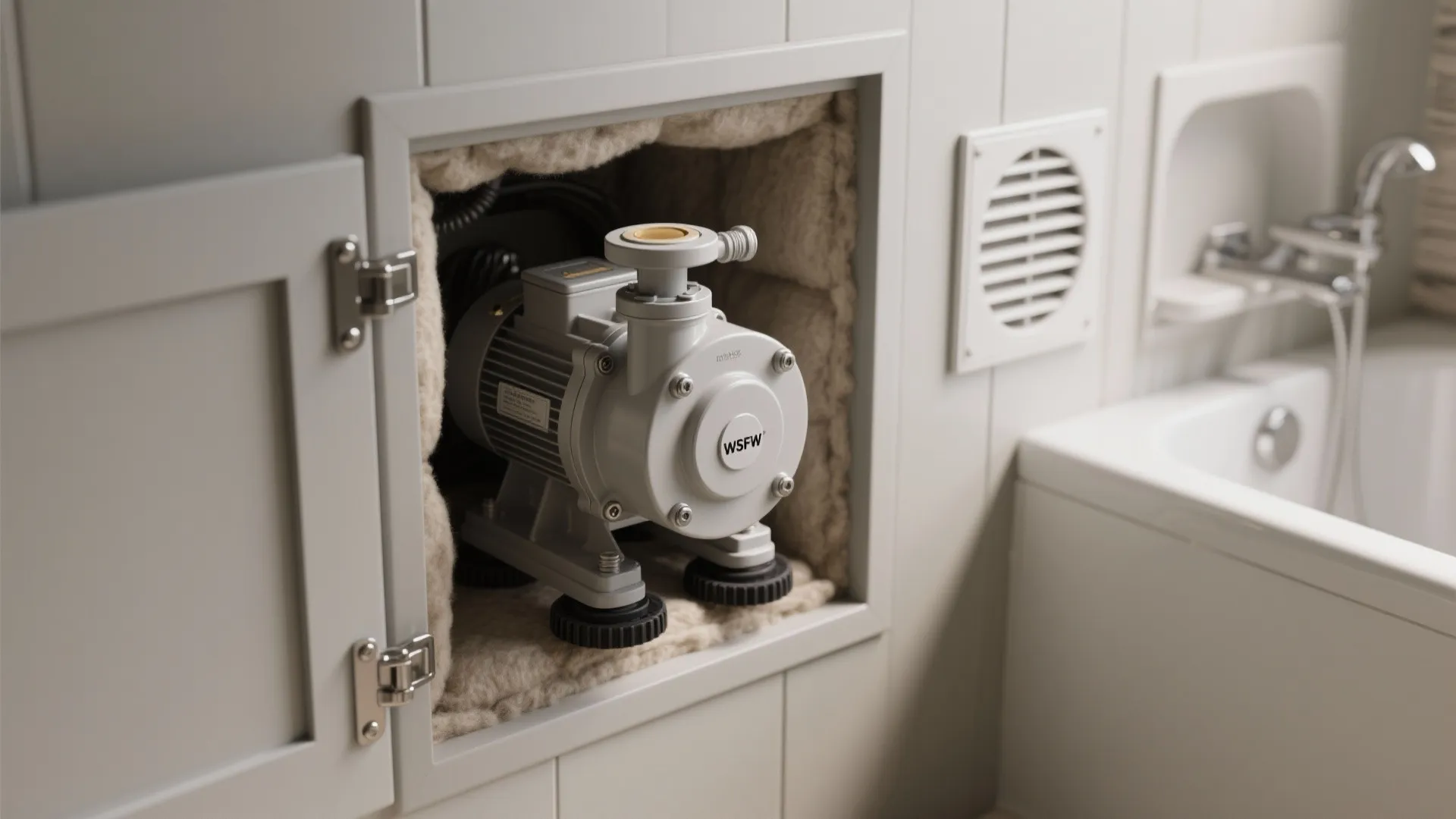

Idea 3: Quiet ventilation and pump acoustics make the spa feel real

The mood dies fast if your fan roars louder than the jets. I spec a quiet exhaust (≤1.0 sone) and follow ASHRAE 62.2 rates—50 cfm intermittent or 20 cfm continuous—then isolate the pump on vibration pads. Insulating the tub surround and using a tighter access panel cuts mechanical chatter to a gentle whirr.

Lighting and finishes also affect perceived calm. I’ll mock up reflections and gloss levels so nothing glares when water’s moving; it helps to see quick 3D previews before you commit to mirror placement or high-sheen tile. Small tweak, big upgrade in the way your brain reads the space.

save pin

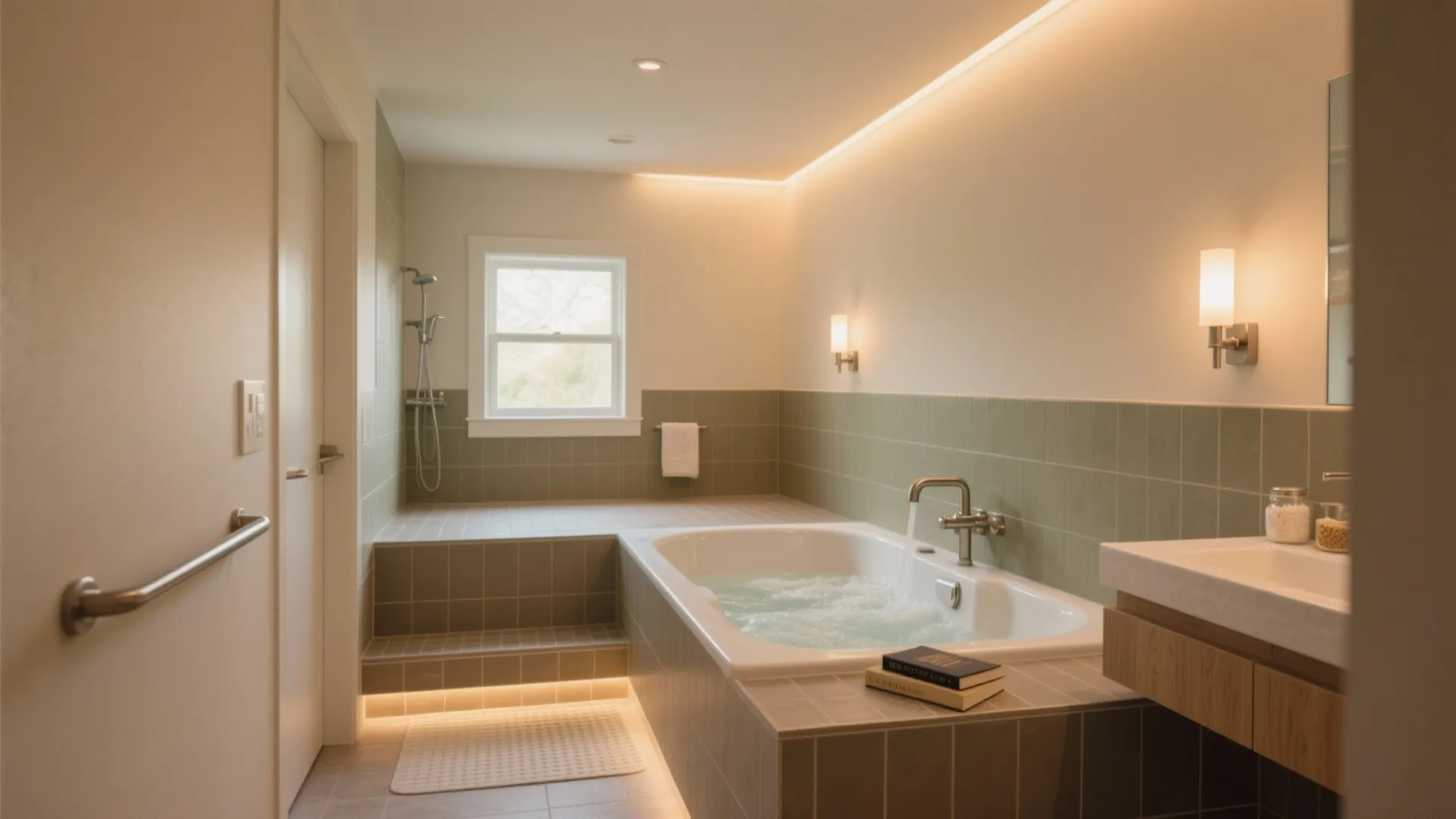

Idea 4: Layer warm, dimmable light like a nighttime ritual

I love a warm 2700K dimmable scene: a low-glow cove or toe-kick, a pair of shielded sconces, and one wet-rated downlight on a separate circuit. Keep switches where you can reach them before stepping in, and use a timer for the fan so you don’t forget it after your soak. If you’ve ever tried to relax under a single bright ceiling can, you know why this matters.

Electrical rules in wet zones aren’t a suggestion—use GFCI protection for the tub equipment and respect clearance requirements for fixtures and receptacles. Your future self will thank you for separating loads and labeling the disconnect; your electrician will thank you for an accessible pump service cutout.

save pin

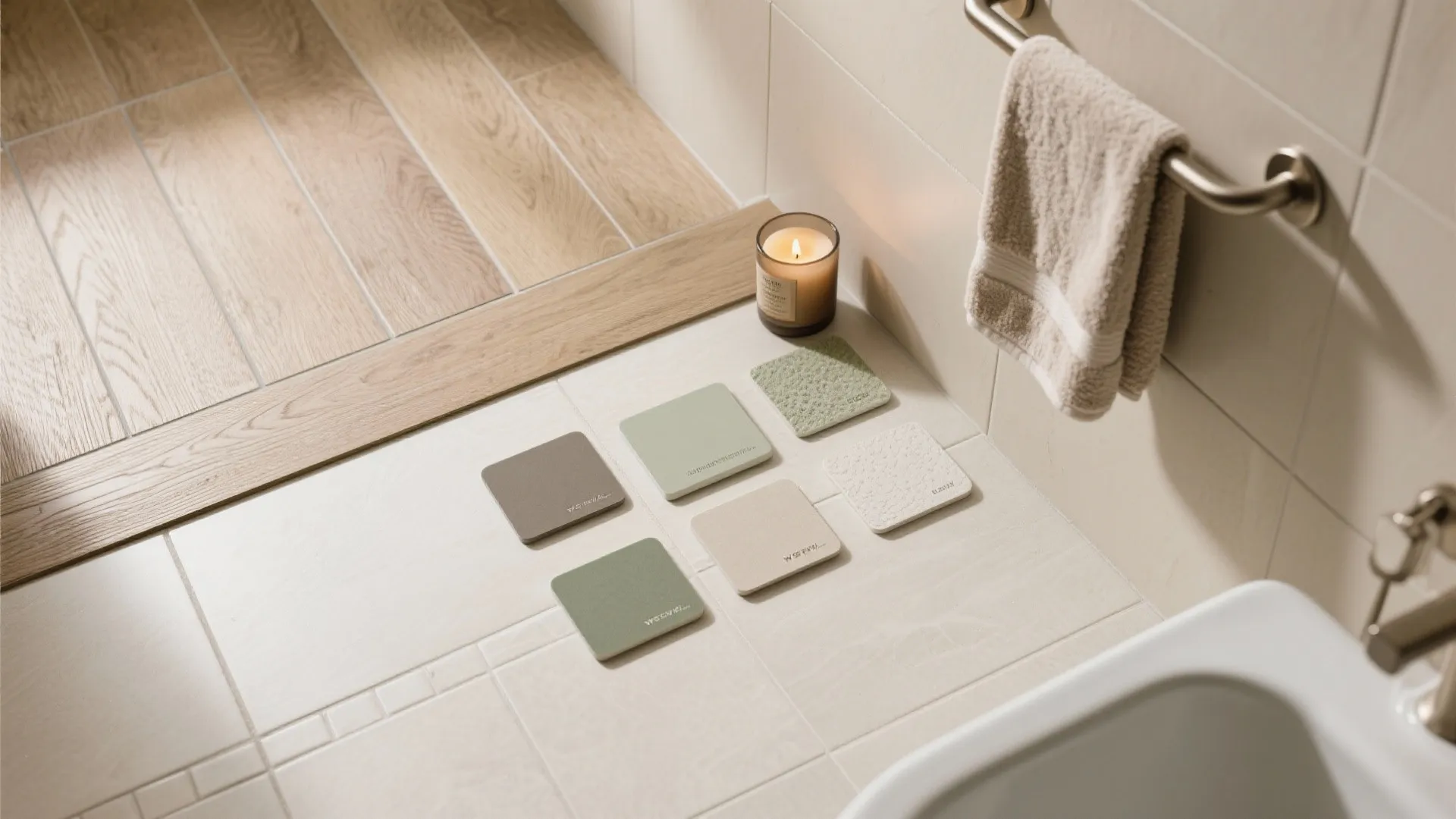

Idea 5: Choose textures that feel secure, clean easily, and age well

Matte or micro-textured porcelain on the floor is my go-to—grip without grit, and it hides water spots. On vertical surfaces, I keep grout lines tight (epoxy if budget allows) and add a ledge that’s wide enough for elbows and candles but not so deep that it hoards clutter. If you crave wood warmth, try porcelain planks; if you want drama, balance a darker tub with lighter walls so the room doesn’t feel smaller.

Finishes that photograph beautifully can be slippery in real life—test a sample with wet hands. And before you finalize the layout, it’s smart to test drive a spa layout to check reach zones, towel hook placement, and how the door swing meets the tub edge. The little choreography details make daily use feel like a ritual instead of a routine.

save pin

FAQ

1) What size bathroom do I need for a Jacuzzi-style tub?

Most homes can fit a 60x32 or 60x36 unit with 24–30 inches of clear space at the tub front. Larger 72x42 tubs often need a 7x9 foot room or smart corner placement to keep circulation comfortable.

2) Do I need special electrical for a whirlpool tub?

Yes—hydromassage bathtubs require GFCI protection and an accessible equipment disconnect. NFPA 70 (NEC) 680.71 specifically addresses hydromassage bathtubs and associated equipment; your electrician should verify local adoption.

3) How should I ventilate a bathroom with a whirlpool?

Follow ASHRAE 62.2: at least 50 cfm intermittent (or 20 cfm continuous) with a timer or control that encourages use. A quiet fan (≤1.0 sone) helps you actually run it during and after a soak.

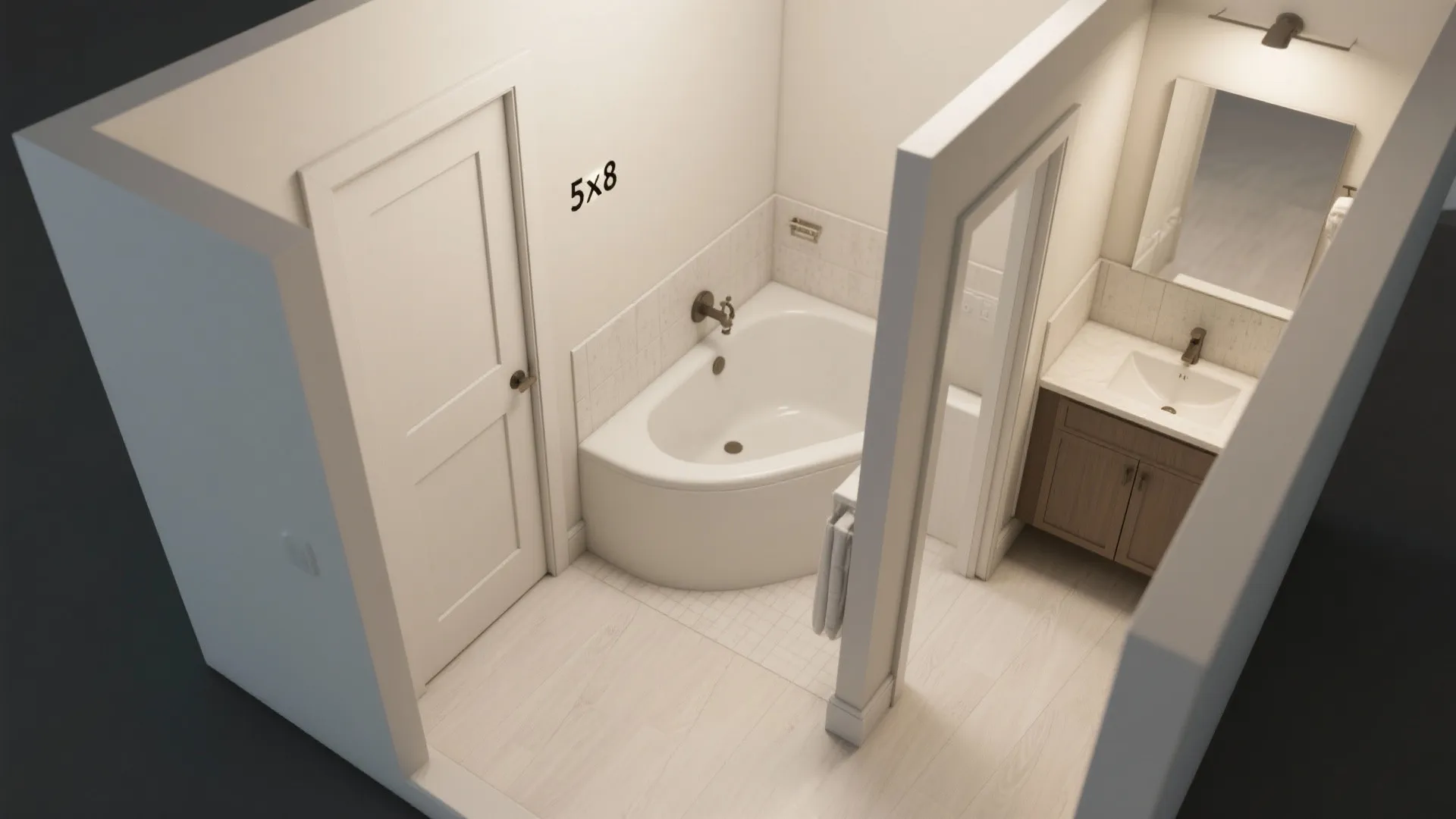

4) Can a small bathroom realistically fit a Jacuzzi tub?

Yes—compact air tubs or corner units can work in 5x8 layouts if you manage door swings and clearances. I often swap a hinged door for a pocket door and tighten vanity depth to earn the needed inches.

5) Do I need to reinforce the floor?

Possibly. A filled tub plus bather can exceed several hundred pounds on a small footprint; older joists may need reinforcement. Consult a structural pro and local code based on IRC loading requirements before you commit.

6) Freestanding vs drop-in: which is better?

Freestanding looks sculptural and is easier to clean around, but it often sacrifices ledge space. Drop-ins on a deck offer storage and safer ingress with a step; the trade-off is more waterproofing detail.

7) Are Jacuzzi tubs high-maintenance?

Not if you keep a routine: monthly purge with manufacturer-recommended cleaner, hot rinse, and run the jets to clear lines. Wipe the tub dry after use to minimize biofilm and water spots.

8) How do I make it safer for kids or older adults?

Use slip-resistant flooring, a low step or transfer ledge, and sturdy grab bars. The 2010 ADA Standards recommend grab bar height at 33–36 inches above the finished floor; a thermostatic valve also helps prevent scalding.
