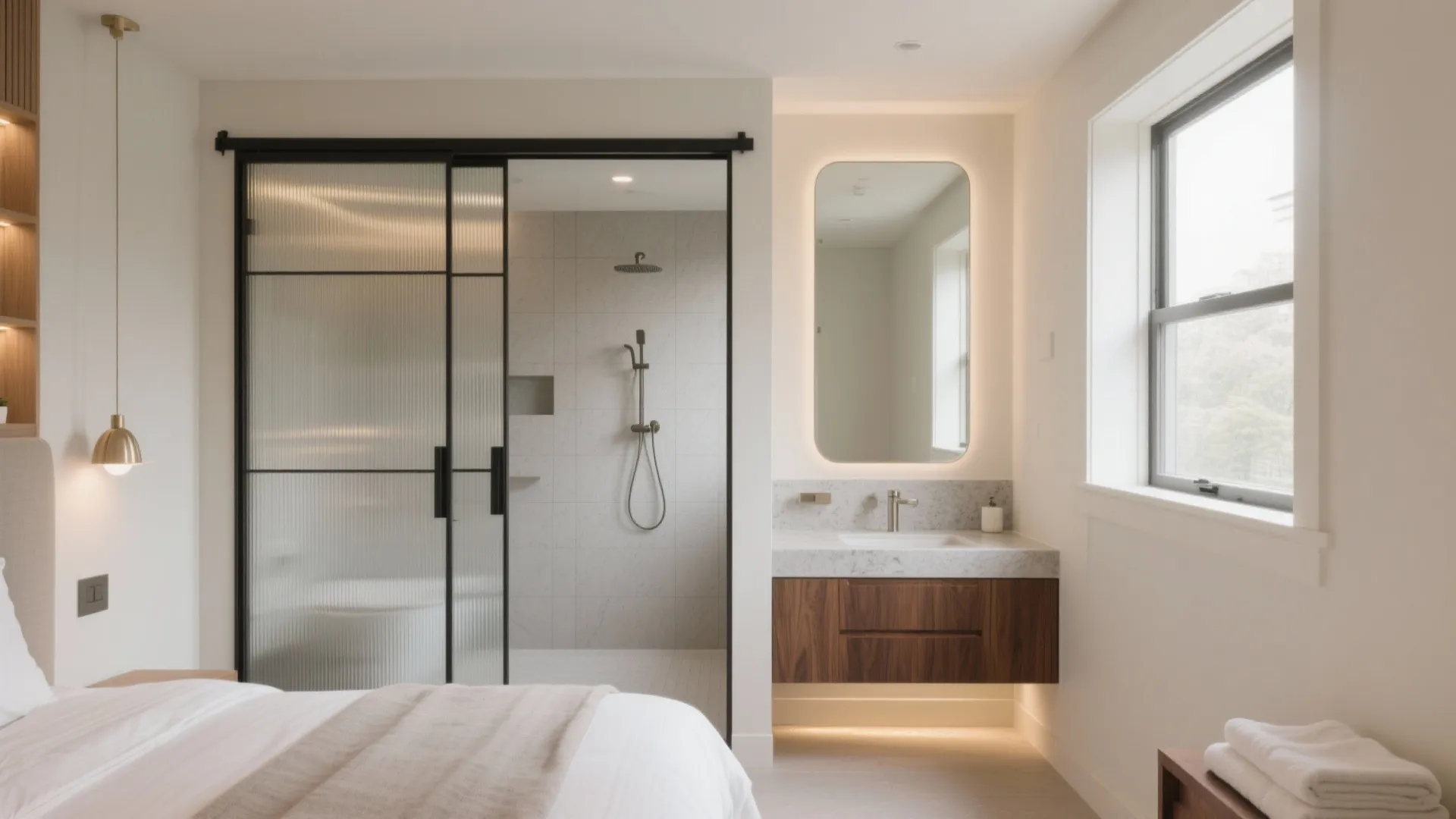

Master Bedroom Bathroom Design: 5 Smart Ideas: My go-to playbook for serene, space-savvy ensuites that actually work day and night

A client once begged me to “float a freestanding tub in the bedroom—right by the window.” Romantic, sure, but also one leaky nightmare from disaster. I smiled, then asked for one weekend to sketch the ensuite on screen and prove we could get the mood without soaking the duvet.

That project reminded me: small spaces spark big creativity. When the master bedroom and bathroom share tight square footage, every inch needs a job and a backup job.

So, from a decade of real-world remodels (and a few near-misses), here are five ideas I return to whenever I’m designing a master bedroom bathroom that’s calm, clever, and future-proof.

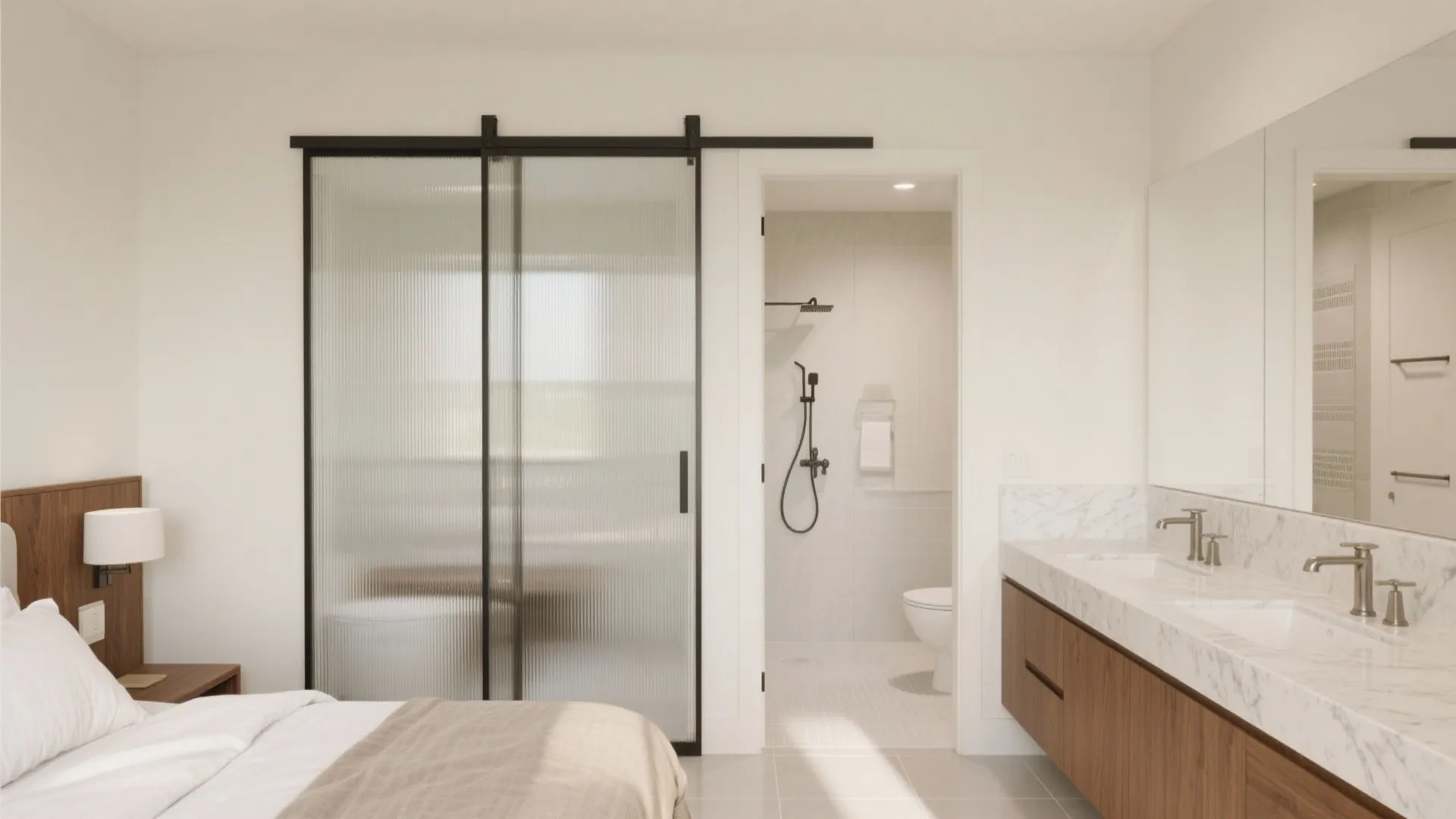

1. Slide-and-Zone: Pocket doors and soft partitions

I love using a pocket door or a frameless slider to save the 3 ft swing a hinged door eats. Pair it with a half wall or reeded-glass screen to keep lines open while quietly zoning the vanity, shower, and sleep area.

The beauty is visual calm and better circulation; the catch is planning. Pocket doors need clean framing and a solid header, and you’ll want a soft-close kit plus a brush seal to tame sound and steam.

save pin

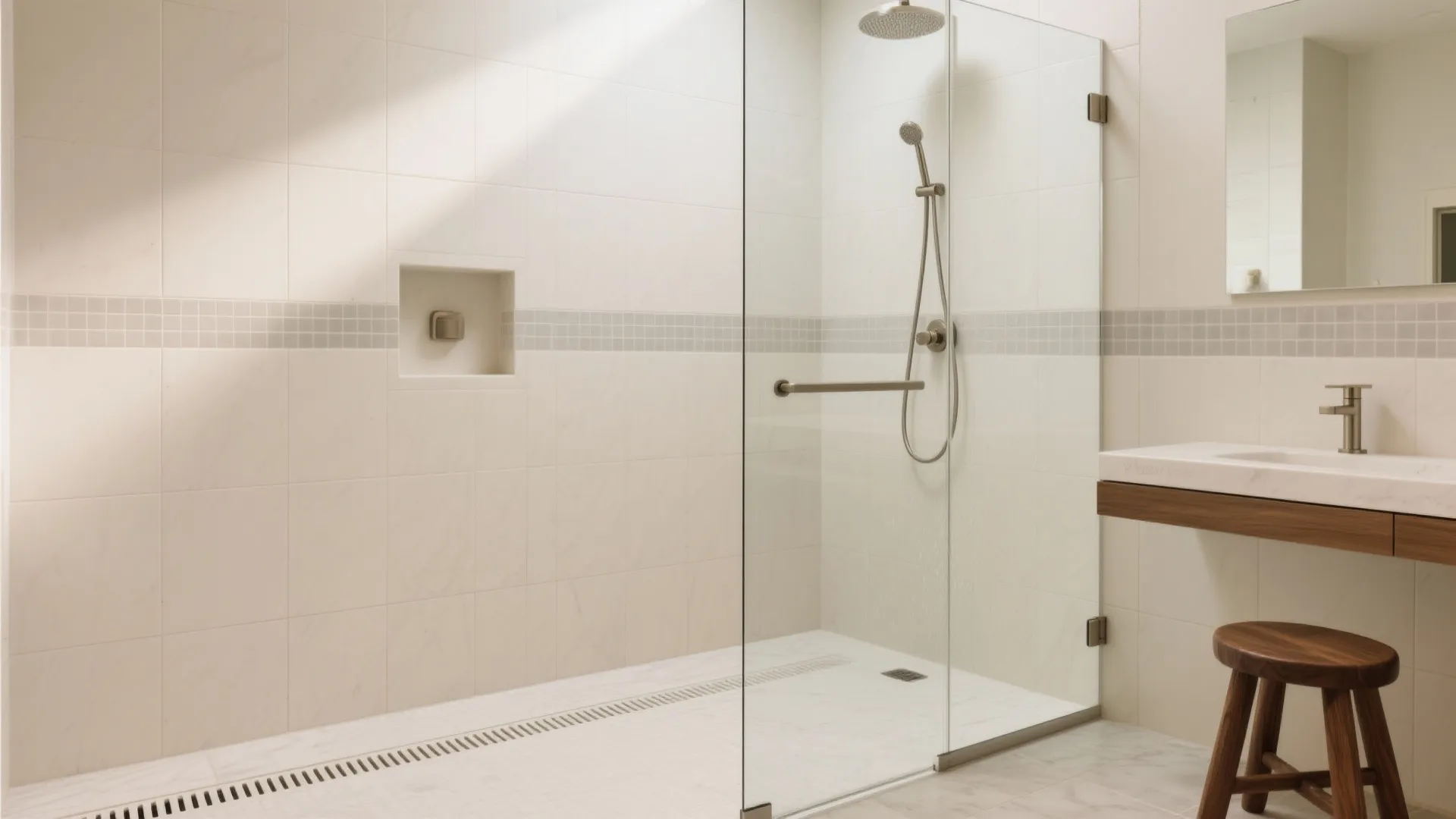

2. Wet room shower that works hard

When space is tight, a wet room—continuous floor tile, a linear drain, a single pane of glass—can make the room feel twice as big. I’ll run the same large-format tile through the shower to erase visual breaks and slightly slope the floor (about 1/4 in per foot) to that drain.

It’s spa-simple and easy to squeegee, but waterproofing must be meticulous. Budget for a membrane system, a pro installer, and a good exhaust fan to keep humidity in check.

save pin

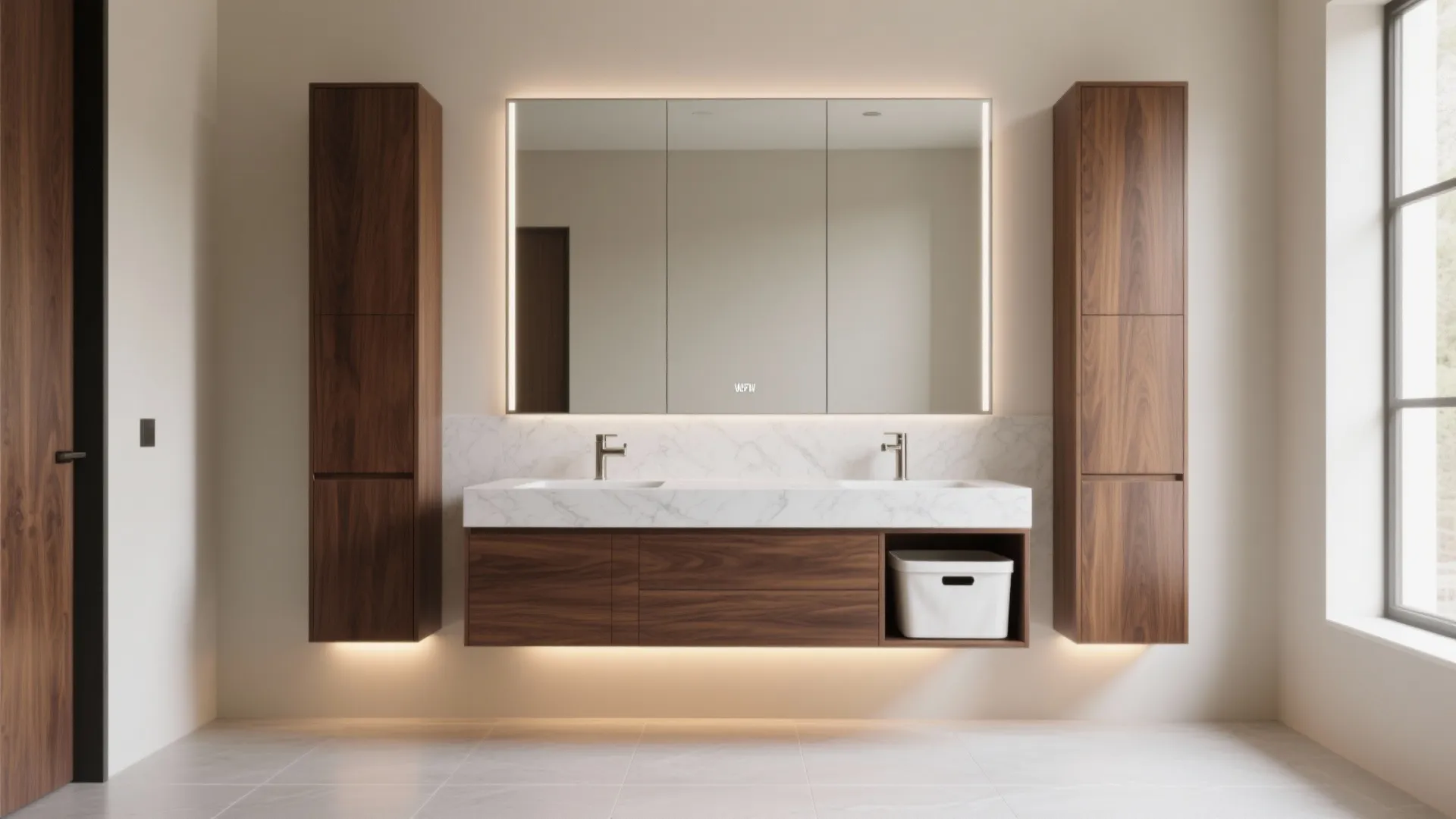

3. A vanity that multitasks like you

Wall-hung vanities buy you airiness and an easy-mop floor, while tall side towers swallow skincare, towels, and the hair dryer. I’ve even tucked a slim pull-out hamper beside the sink to keep floors clear.

Before I finalize drawer sizes and clearances, I’ll build a quick layout to test different traffic flows. The upside is zero guesswork; the downside is resisting the urge to cram storage where knee space and toe-kicks should live.

save pin

4. Light, color, and reflections do the heavy lifting

Layer your light: soft sconces at eye level for grooming, a dimmable overhead for cleaning, and a low-glow night path so midnight trips don’t jolt you awake. Keep color warm and grounded—think creamy off-whites, brushed nickel, or walnut—to bridge bedroom coziness and bath utility.

Mirrors with thin frames expand the room; under-vanity and toe-kick LEDs float the cabinet. I’ll mock up finishes and render the lighting mood first, because flattering skin tones beat hospital-bright any day.

save pin

5. Quiet, storage, and the 2 a.m. reality check

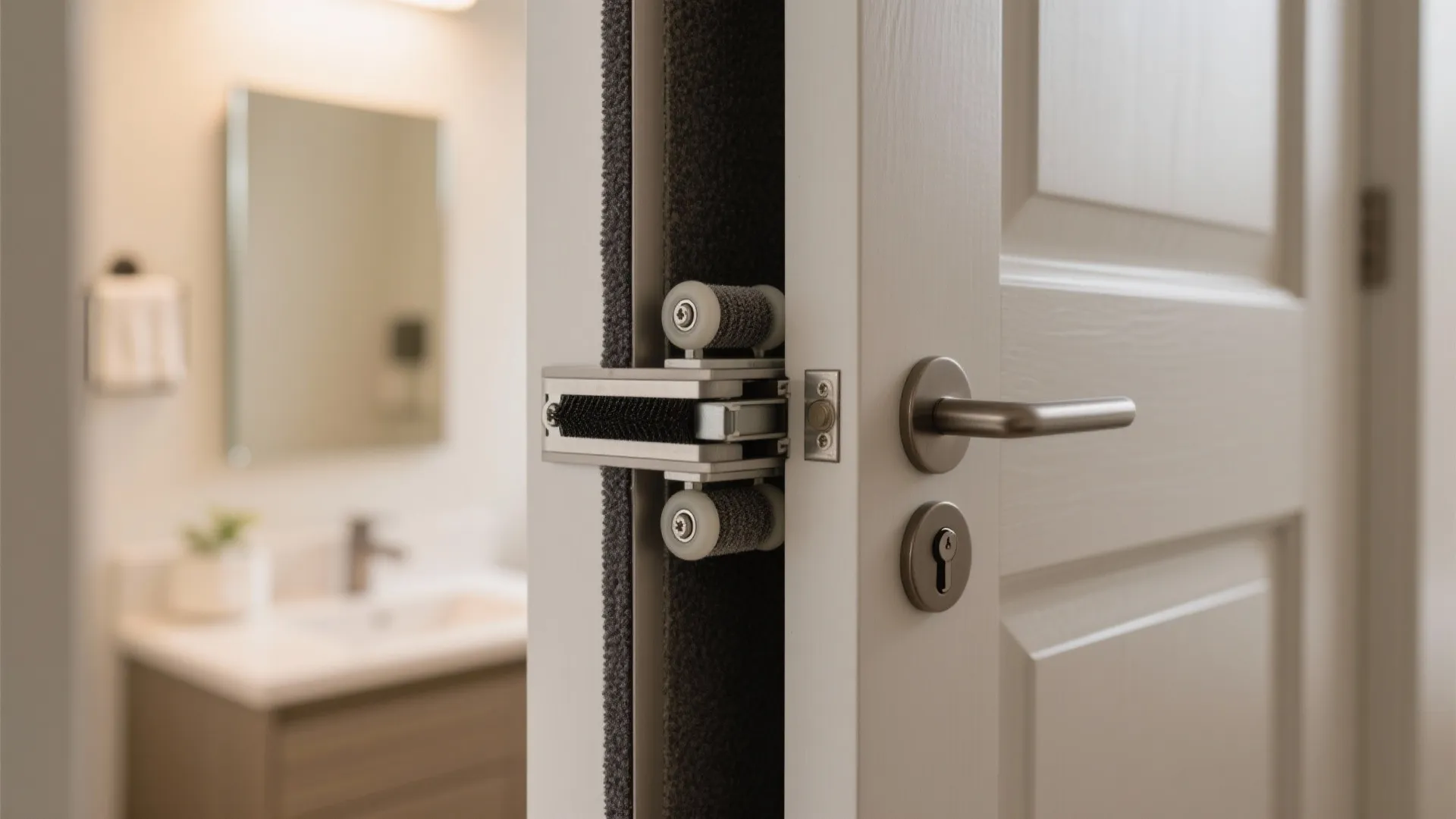

Sound is everything when the bath shares a wall with the bed. Go solid-core on doors, add insulation or a resilient channel in that partition, and choose a low-sone exhaust fan. If you can, enclose the toilet in a mini water closet; even a 30 in width can feel civilized.

Recessed medicine cabinets keep counters clear, while shower niches prevent bottle clutter. I tell clients: test the nighttime routine mentally—where the robe hangs, where the phone charges, how soft the latches click—because real luxury is the quiet stuff you don’t notice.

save pin

FAQ

1) What’s the minimum size for a master bedroom bathroom design?

For a compact ensuite, 5 ft by 8 ft can work if you plan tightly. Aim for at least 30 in by 30 in shower (36 in preferred) and 30 in clear space in front of fixtures.

2) Should the master bath have a door?

Yes, if privacy and sound matter. A pocket or sliding door saves space and, with brush seals and soft-close hardware, keeps night noises down.

3) How do I control humidity and odors in an open ensuite?

Choose a quiet, properly sized exhaust fan (target roughly 1 CFM per square foot) and let it run a few minutes after showers. Add a door sweep, and consider a small makeup air gap to help circulation.

4) What’s the best lighting plan?

Use three layers: task (eye-level sconces), ambient (ceiling), and night lighting (toe-kick or strip). Warm-white 2700–3000K with dimmers makes mornings crisp and evenings calm.

5) Which materials are safest and easiest to clean?

Matte or honed porcelain tile offers grip and low maintenance. Go quartz or porcelain slab for counters, and choose epoxy or stain-resistant grout for longevity.

6) Any code or guideline references for clearances?

The National Kitchen & Bath Association (NKBA) recommends 30 in by 30 in minimum shower (36 in preferred) and at least 21 in clear space in front of toilets and vanities. See NKBA Bath Planning Guidelines: https://nkba.org/learn/guidelines/

7) Can I fit a tub in a small master bath?

Often, yes—a 60 in alcove tub or a compact soaking tub can work if the shower stays efficient. Check floor structure for weight and plan a handheld for easy cleaning.

8) How much does a master ensuite remodel cost?

Ranges vary by region, but expect roughly $12k–$40k+ for quality finishes and pro waterproofing. Waterproofing, ventilation, and good lighting are the non-negotiables I budget first.
