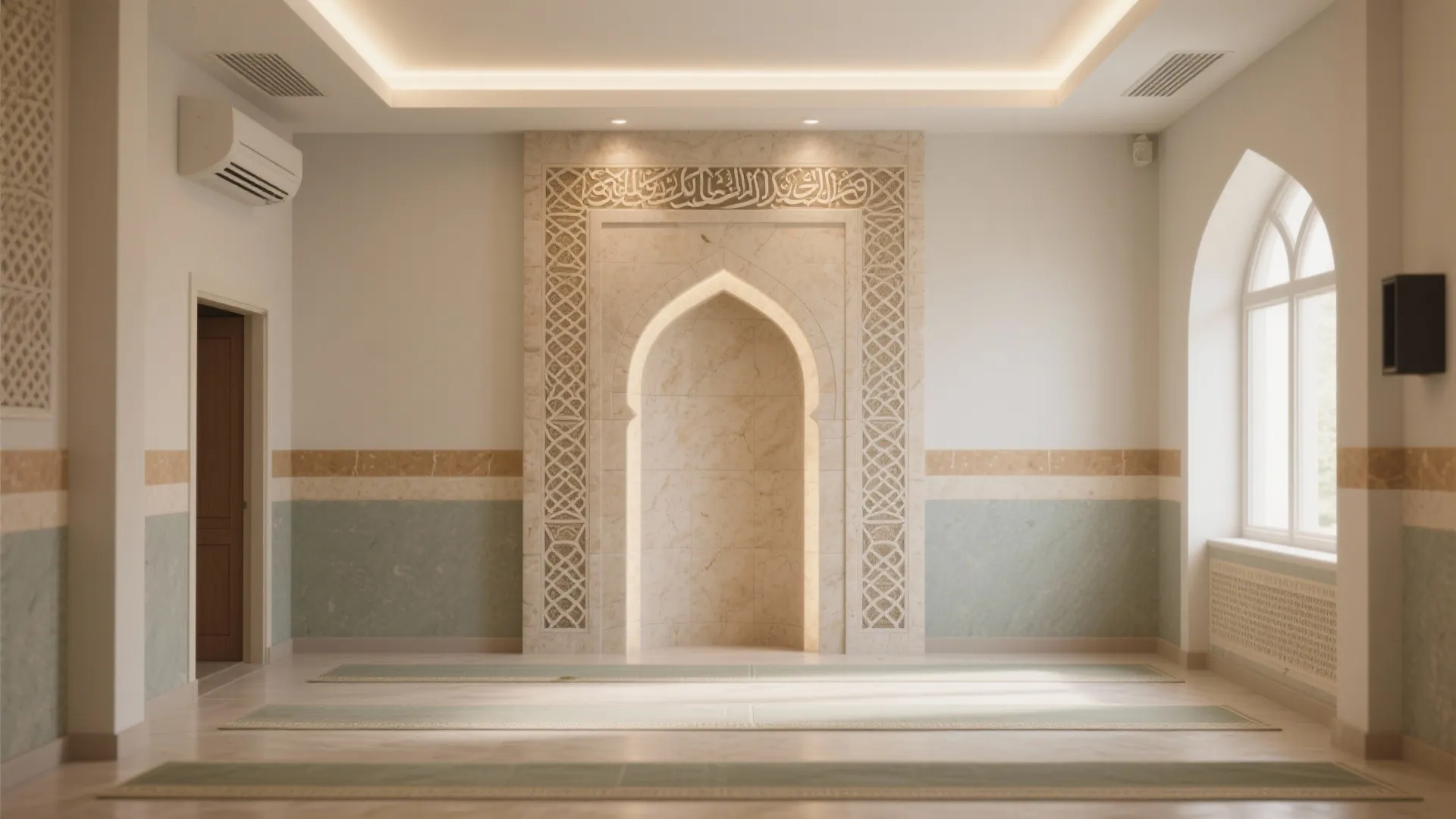

Masjid Wall Design: 5 Inspired Ideas: Small spaces, big creativity—my practical guide to masjid wall design with five ideas that blend tradition, modern comfort, and community needs.

[Section: Introduction]

Masjid wall design has been shifting toward calmer palettes, sustainable materials, and subtle tech—think integrated lighting and acoustics that honor tradition. In my recent projects, I’ve found geometric arabesques still resonate, especially when paired with warm stone and gentle illumination; here’s a geometric arabesque wall study I often reference for form and proportion. Small spaces really do spark big creativity, whether it’s a neighborhood prayer hall or a compact musalla tucked into a community center.

In this guide, I’ll walk you through five masjid wall design inspirations. I’ll blend my hands-on experience with expert data—like acoustics standards and conservation principles—so you can plan confidently and avoid costly do-overs.

[Section: Inspiration List]

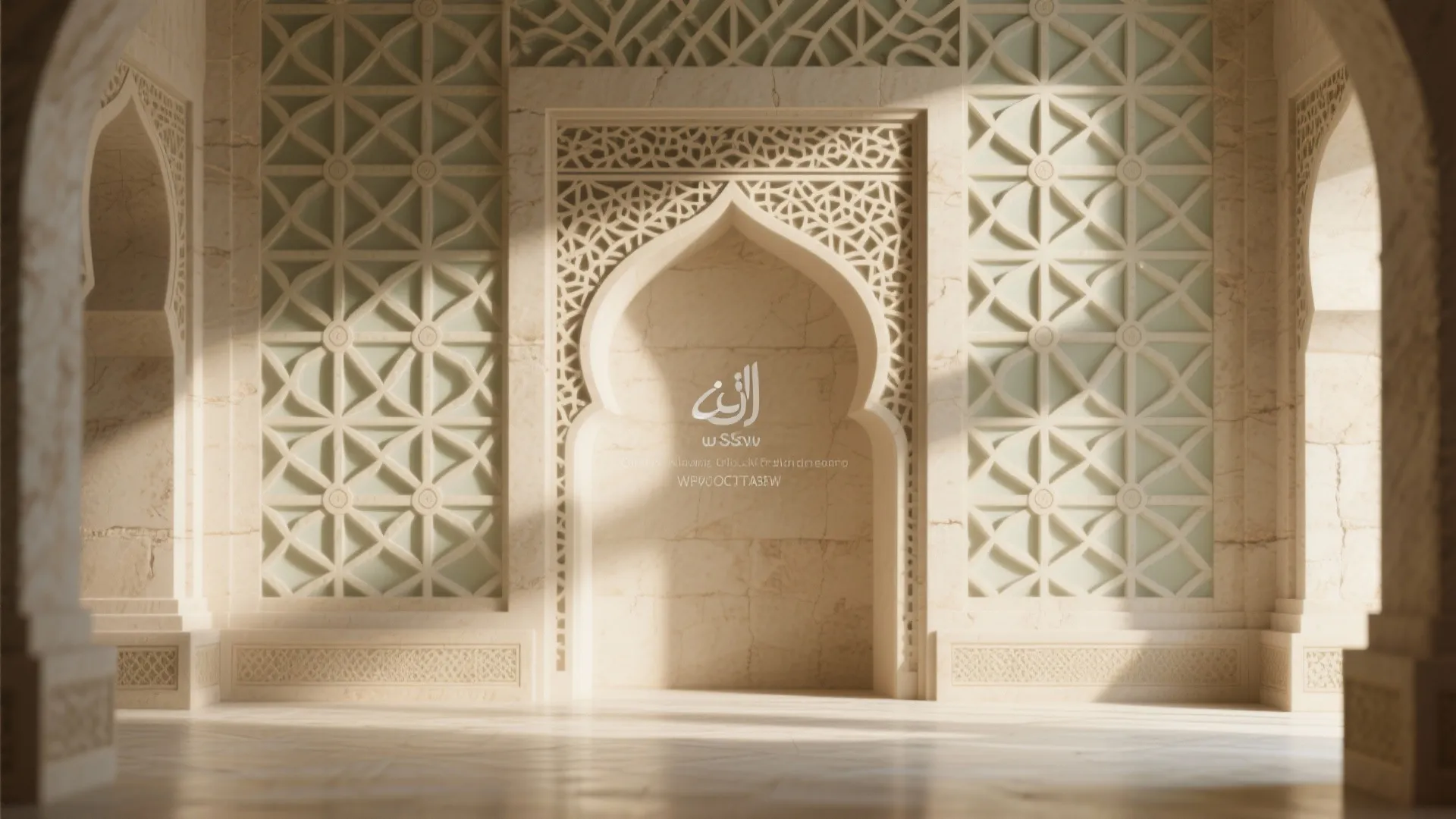

Geometric Arabesque Relief Walls

My Take

Geometric arabesque relief patterns ground a space with visual rhythm and a sense of timeless order. I love how a shallow relief—5–10 mm—creates gentle shadow without trapping dust. In a small masjid, a single feature wall behind the mihrab can carry the whole aesthetic.

Pros

Classic Islamic geometric wall patterns instantly communicate heritage while working with modern masjid wall design. Shallow reliefs are easier to clean and can be CNC-routed in moisture-resistant MDF or cast in gypsum, cutting lead time. With matte finishes, glare is minimized, supporting focus during prayer.

Cons

Deep relief is dramatic but tougher to maintain—dust loves those little pockets. Precision installation takes time; misaligned tessellation is painfully obvious (and I’ve been there!). Budget can creep if you opt for custom molds or artisanal hand-carving.

Tips / Case / Cost

Use a modular template (e.g., 600×600 mm panels) to manage costs and control alignment. For durability, I specify mineral-based paints with low VOCs; they age gracefully and clean well. In tight foyers, limit relief to a single band at eye level to keep circulation smooth.

save pin

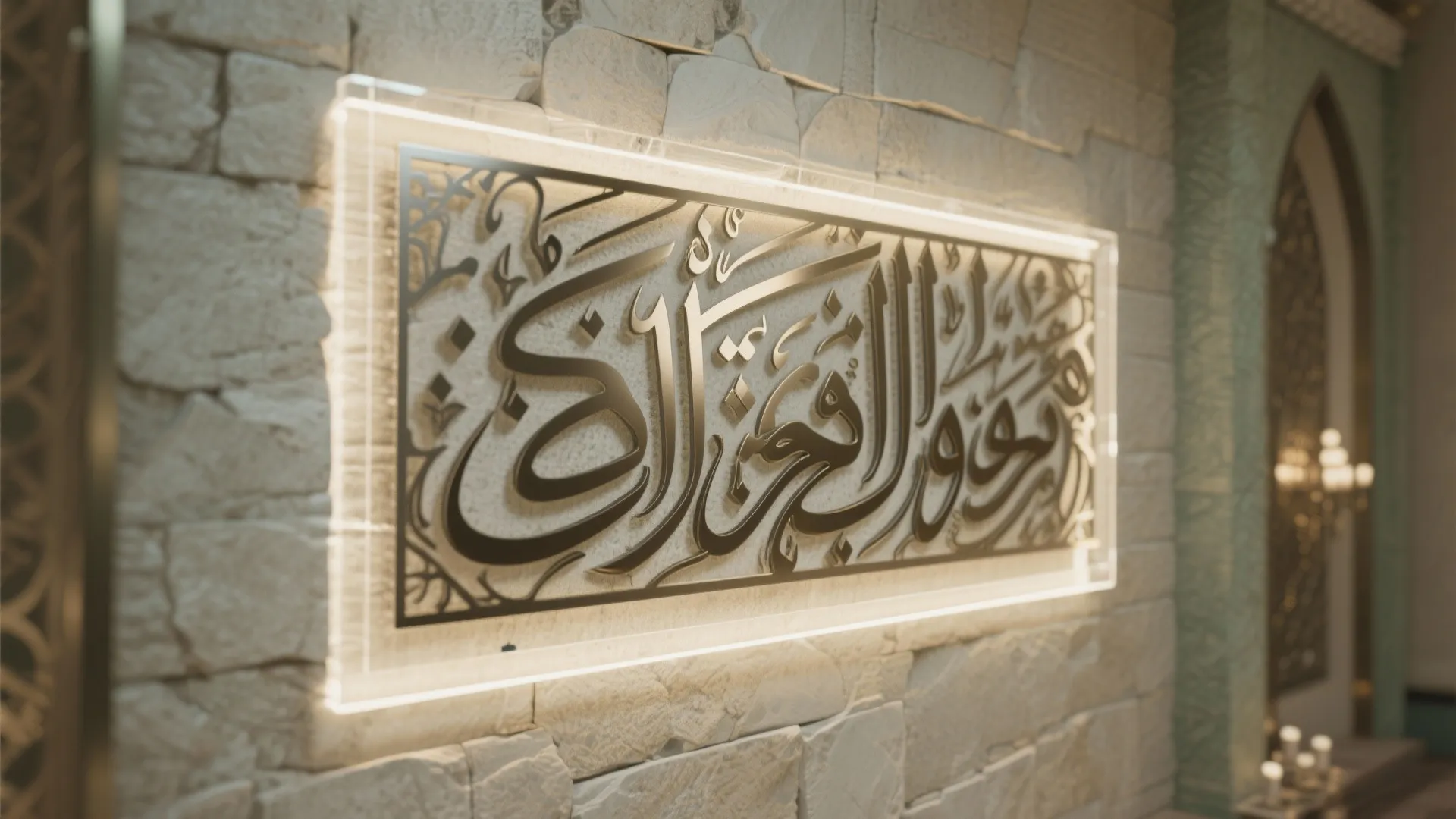

Calligraphy Feature Wall with Backlighting

My Take

A calligraphy wall pairs devotion with design. One of my favorite builds used laser-cut metal calligraphy over a softly lit stone backdrop, and the glow felt more like dawn light than décor.

Pros

Arabic calligraphy wall panels, especially with LED backlighting, add spiritual depth without overwhelming small rooms. Tunable white LEDs (2700–3500K for evening, 3500–4000K for day) align with good practice from the IES Lighting Handbook on layered lighting and glare control. Dimmable drivers let you shift mood for Tahajjud or community lectures.

Cons

Backlighting can create hot spots if LED strips aren’t diffused or spaced correctly; I always do a mock-up. Fingerprints and smudges show up fast on brushed metal, so place panels out of reach in high-traffic corridors. If you over-scale the calligraphy, the wall can dominate rather than guide.

Tips / Case / Cost

Use acrylic diffusers offset 30–50 mm from the light source for smoother glow. Consider a single ayah or a minimal Bismillah to reduce visual clutter in narrow prayer rooms. Smart dimmers are worth the extra cost for flexible control across events.

save pin

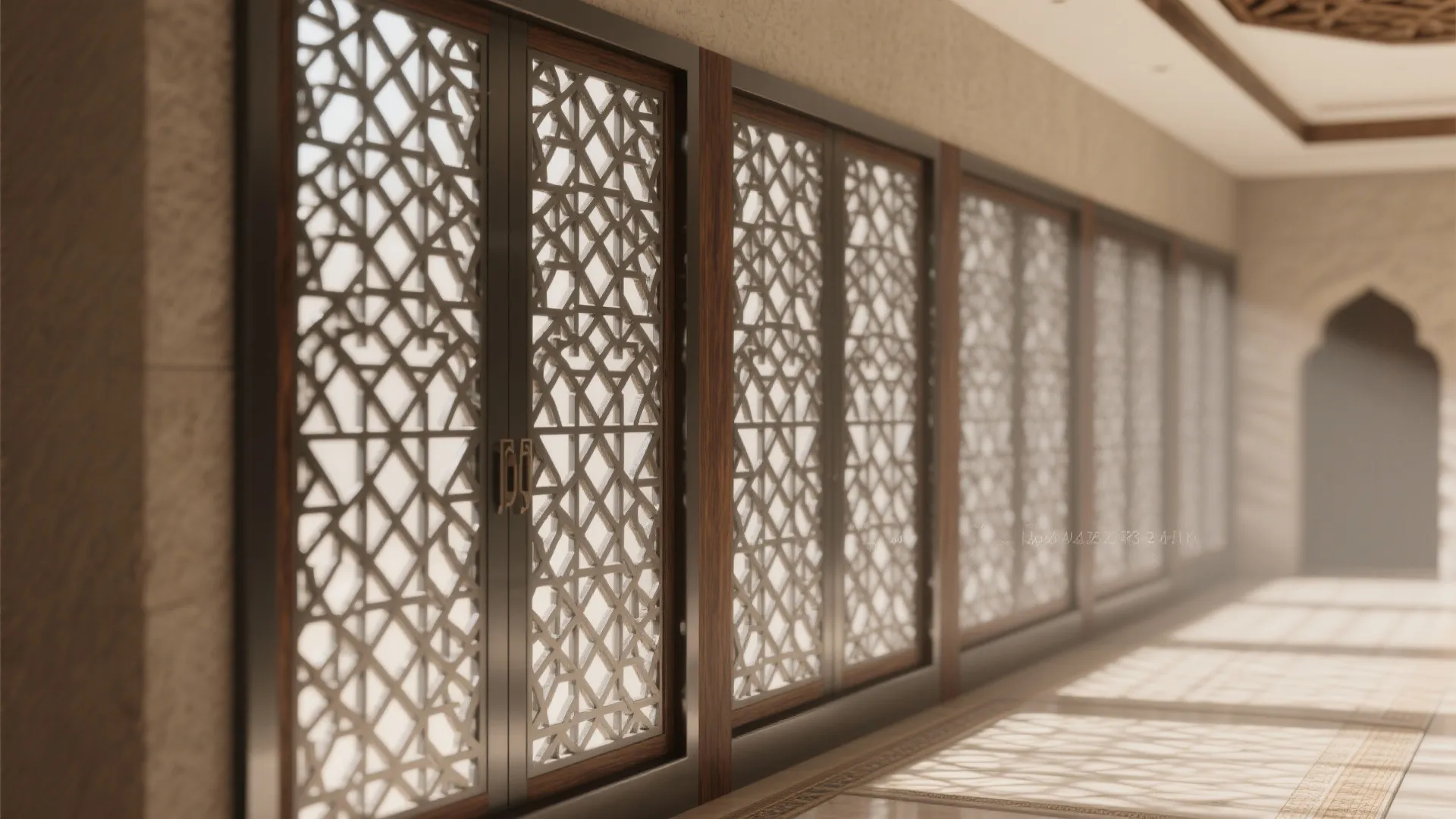

Mashrabiya Screens and Light Play

My Take

Timber or metal mashrabiya adds privacy and poetic light. In a compact masjid, a partial screen along a side wall can filter daylight while preserving a calm, contemplative mood, especially for women’s prayer areas.

Pros

Mashrabiya-inspired wall screens blend tradition with modern airflow and privacy—ideal for modern masjid wall design focused on comfort. Perforation density can be tuned to reduce glare while maintaining daylight, aligning with daylighting best practices for places of worship from IES. A darker wood stain or powder-coated metal keeps maintenance manageable.

Cons

Intricate screens can be dust magnets; I specify smooth interior edges for quick wipe-downs. Poorly placed screen shadows may be distracting during recitation. If the pattern scale is too fine, it can feel visually busy in tight rooms.

Tips / Case / Cost

Use a layered approach: an opaque base wall, then a 25–40% open-area screen for balanced light and privacy. For durability, aluminum mashrabiya with a textured finish resists fingerprints better than mirror-polished metals. To visualize light and shadow options, I often review mashrabiya light patterns before finalizing perforation ratios.

save pin

Natural Stone and Earthy Plaster Textures

My Take

Stone and lime plaster calm the palette and add weight. In one small urban masjid, we used warm limestone bands along the qibla wall and a soft limewash—worshipers kept touching the surface because it felt real and grounded.

Pros

Natural stone feature walls deliver durability and a timeless look, while lime or clay plasters regulate humidity—excellent for easy-clean masjid wall materials. Mineral surfaces diffuse light beautifully, reducing glare and enhancing focus. They age gracefully, which matters for high-traffic, long-lived community spaces.

Cons

Stone is heavy and can strain budgets; transport and substrate prep add cost. Some plasters need periodic re-limewashing, which means planning maintenance windows. In very small rooms, too much stone can feel monolithic; use bands or panels instead of full-height cladding.

Tips / Case / Cost

Blend materials—stone at hand-touch zones, breathable plaster above—to balance tactile warmth and cost. Use honed rather than polished finishes to minimize reflections. For layout references and scale checks, I bookmark textured stone feature wall scenarios that help test proportion in tight spaces.

save pin

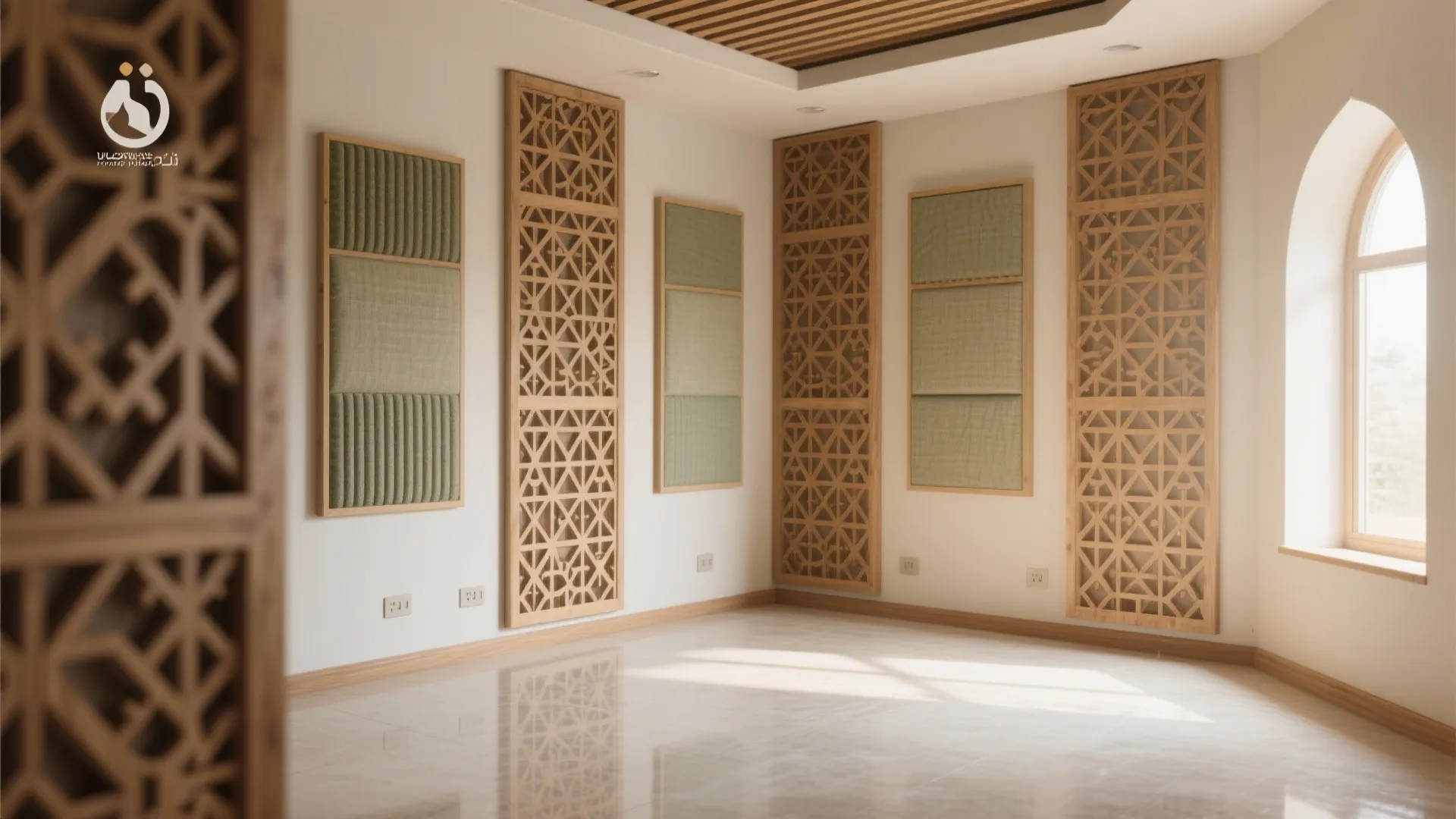

Acoustic Art Panels for Serenity

My Take

Acoustic needs in a masjid can be subtle: clear recitation without the space feeling “dead.” I often use artful acoustic panels—fabric-wrapped or perforated wood—with geometric patterns that echo the design language.

Pros

Acoustic wall treatment for prayer halls can balance clarity and warmth. Acousticians frequently target speech-focused RT60 values around 1.3–1.8 seconds depending on volume, measured per ISO 3382-1; this supports intelligibility for khutbah and daily recitations. Panels can double as décor, with laser-cut motifs over absorptive cores.

Cons

Cheaper panels may fade or warp; always check fire rating and fabric durability. Over-absorption can dull the room—no one wants a recording studio feel in a masjid. If panels sit too low, they’ll collect scuffs; I set the bottom edge at least 300 mm above floor level in busy corridors.

Tips / Case / Cost

Mix mid-frequency absorption on walls with minimal reflective bands to preserve liveliness. If budget is tight, prioritize the qibla wall and first reflection points near loudspeakers. Coordinate with sound system installers early so panels and speaker placements don’t fight each other.

[Section: Details, Materials, and Practical Notes]

Durability & Care

For high-touch zones, I lean toward mineral paint on plaster and honed stone; both clean well and resist everyday scuffs. In humid climates, moisture-resistant substrates (cement board, MR MDF) behind decorative layers prevent warping, especially for mashrabiya or relief panels.

Color and Calm

Pastels and earthy tones—warm beige, soft grey, muted sage—keep attention on prayer. Accents can be disciplined: a narrow calligraphy band in gold leaf, a stone plinth along the base of the wall, or a single patterned panel; minimal moves have maximal impact in small rooms.

Lighting Integration

Combine indirect cove lighting with carefully aimed wall washers to reveal textures without glare. For LED backlit calligraphy, keep flux low (about 150–250 lm per linear foot) and prioritize uniformity with diffusers and proper spacing. The IES Lighting Handbook emphasizes layered lighting and glare control—both are essential to avoid visual fatigue.

Ventilation and Hygiene

Vent grilles can be concealed within geometric patterns or mashrabiya bands to maintain continuity. Choose finishes rated for frequent cleaning; in multi-use community rooms, washable, low-odor coatings make maintenance less disruptive.

Budget Planning

On tighter budgets, prioritize one hero wall—qibla or entry—then keep supporting walls simple. CNC-cut reliefs and laser-cut calligraphy provide custom looks at semi-standard costs, especially when you repeat modules.

Conservation and Respect

When working in historic masjids, ICOMOS guidance on conservation emphasizes minimal intervention and reversibility. That means designing overlays—screens, panels, lighting—that can be removed without damaging original stone or plaster, and clearly differentiating new work from old.

[Section: Summary]

Masjid wall design in small spaces is about smarter choices, not limits. A single well-composed wall—geometric relief, calligraphy glow, or textured stone—can anchor the experience while staying practical for cleaning, lighting, and acoustics. ICOMOS encourages respectful, reversible upgrades in heritage contexts; pairing that mindset with ISO-based acoustic targets keeps design grounded in real-world performance.

Which of these five ideas would you try first—relief patterns, backlit calligraphy, mashrabiya, stone textures, or acoustic art panels?

[Section: FAQ]

save pin

FAQ

1) What is the best material for modern masjid wall design?

Natural stone and mineral plasters are durable, breathable, and glare-friendly. For decorative elements, moisture-resistant MDF or aluminum works well for geometric and mashrabiya patterns in small prayer rooms.

2) How can I improve acoustics without losing visual beauty?

Use acoustic wall panels with geometric perforations or fabric-wrapped frames that match the design language. Aim for clear speech with balanced reverberation; measurements and tuning follow ISO 3382-1 methods.

3) Are LED backlit Arabic calligraphy wall panels suitable for small masjids?

Yes—keep color temperature and brightness moderate, and use diffusers to prevent hot spots. Layered lighting follows IES best practices, helping you maintain a calm, glare-free environment.

4) What’s a budget-friendly way to add Islamic geometric wall patterns?

Modular CNC-cut panels in gypsum or MR MDF offer a custom look at lower cost. Limit relief depth to 5–10 mm to reduce material and cleaning effort while preserving shadow play.

5) How do I choose colors for a compact prayer hall?

Use earthy neutrals and soft pastels to keep the space composed. Reserve bold accents for one focal wall—like a calligraphy feature—to prevent visual clutter.

6) Can mashrabiya screens work on interior walls?

Absolutely, especially for privacy and filtered daylight. Test perforation ratios using renderings—resources like daylight and shadow previews help tune scale and openness.

7) What maintenance considerations matter most?

Choose washable, low-VOC coatings and finishes that hide fingerprints, like honed stone and matte paint. Keep intricate patterns above reach in high-traffic areas to reduce cleaning time.

8) How do I respect heritage when updating masjid walls?

Follow conservation principles of minimal intervention and reversibility, as outlined by ICOMOS. Use overlays and lighting that can be removed without harming original surfaces, and document changes clearly.
