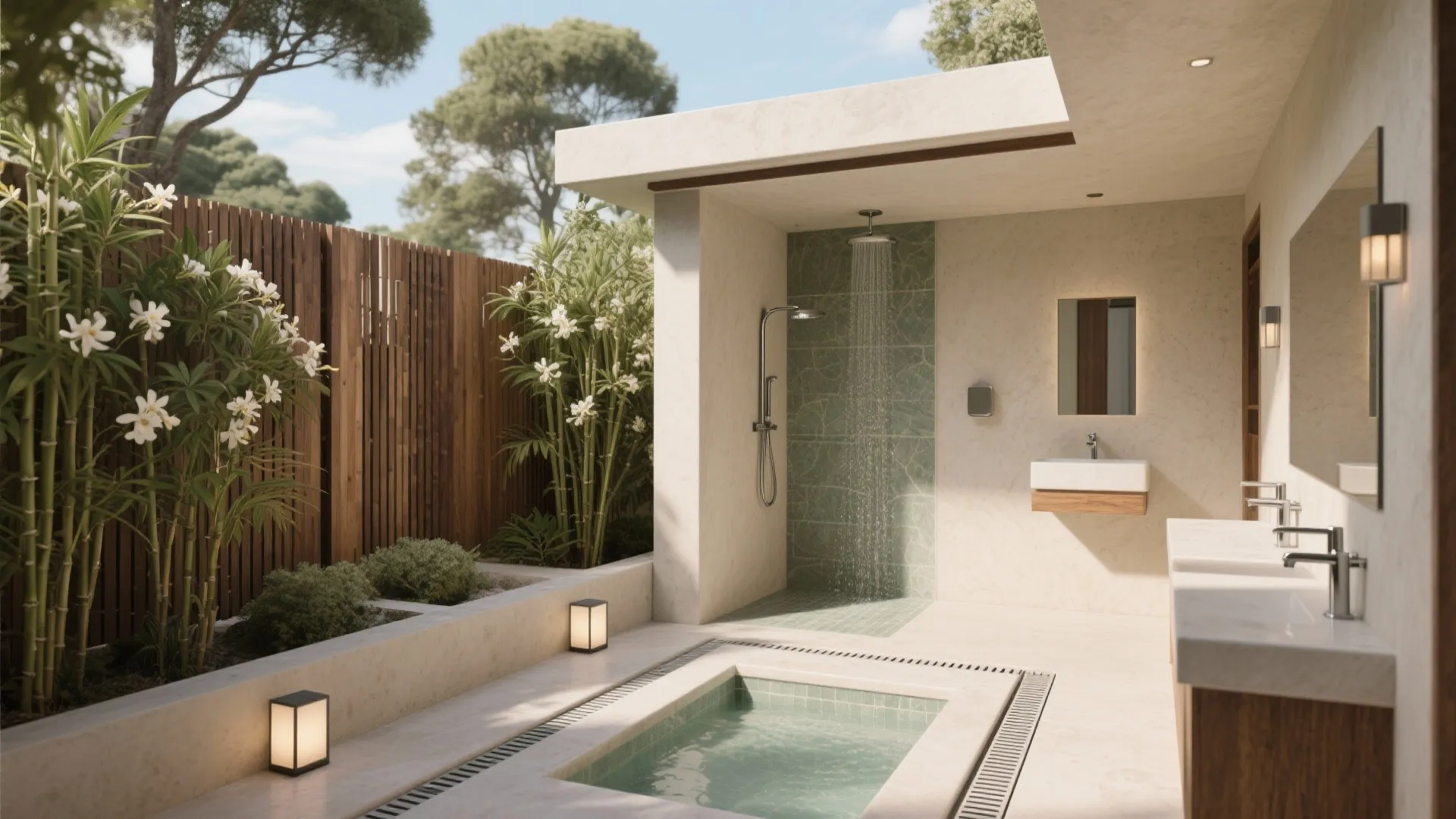

Outdoor Bathroom Designs: 5 Smart Ideas: How I turn tight patios into spa-level outdoor baths without blowing the budget

Two summers ago, a client asked for an outdoor loo that felt “less camping, more boutique hotel.” I rushed a sketch, forgot where the wind usually came from, and watched a towel kamikaze into the pool. Since then, I start with a microclimate check and a quick 3D render of the patio bath so I can spot drafts, glare, and privacy gaps before a single tile is laid.

Small spaces are my favorite sandbox—edges force choices, and choices make character. In this guide, I’ll pull from real projects to share five outdoor bathroom designs that turn tight corners into serene rituals.

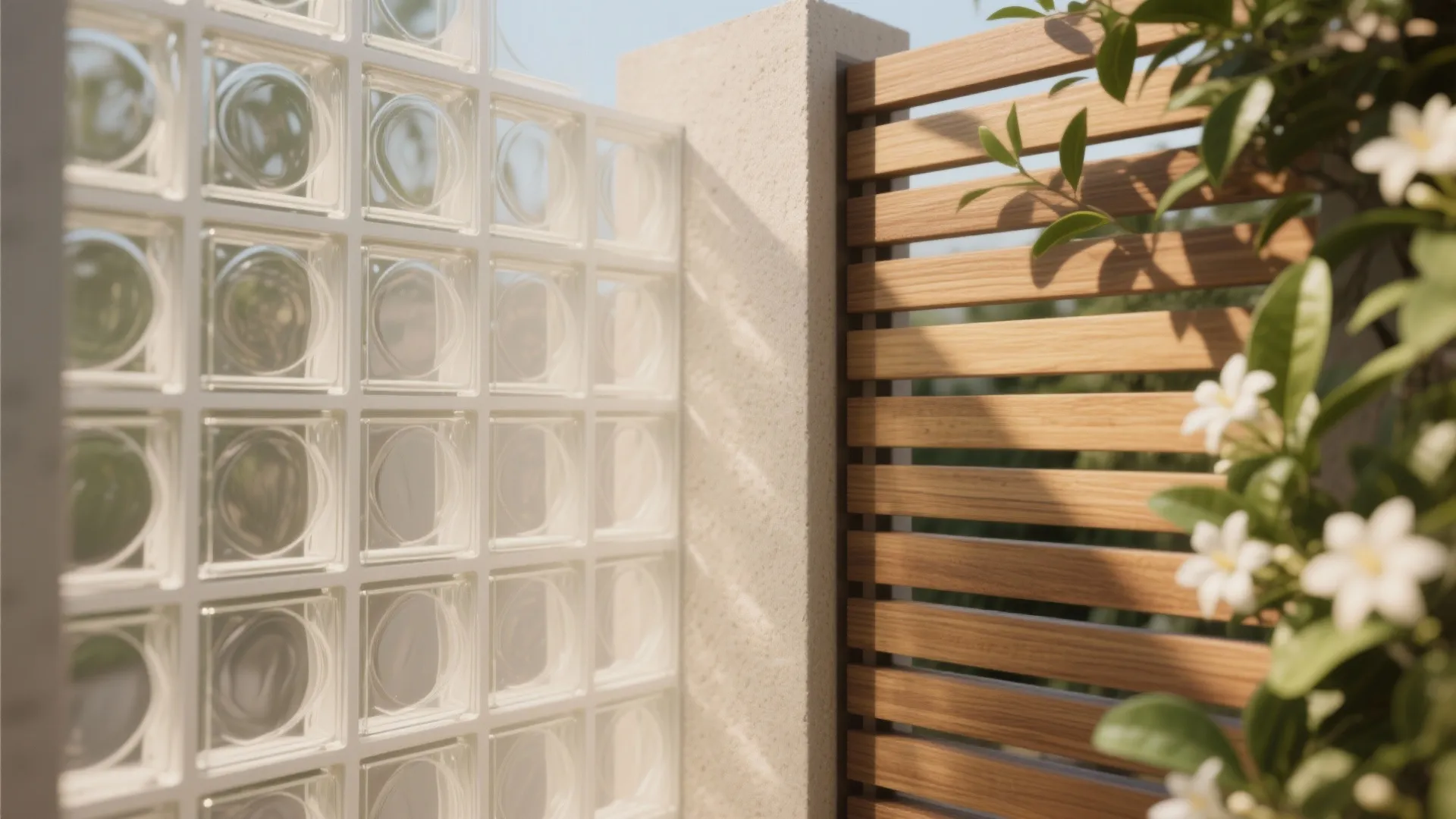

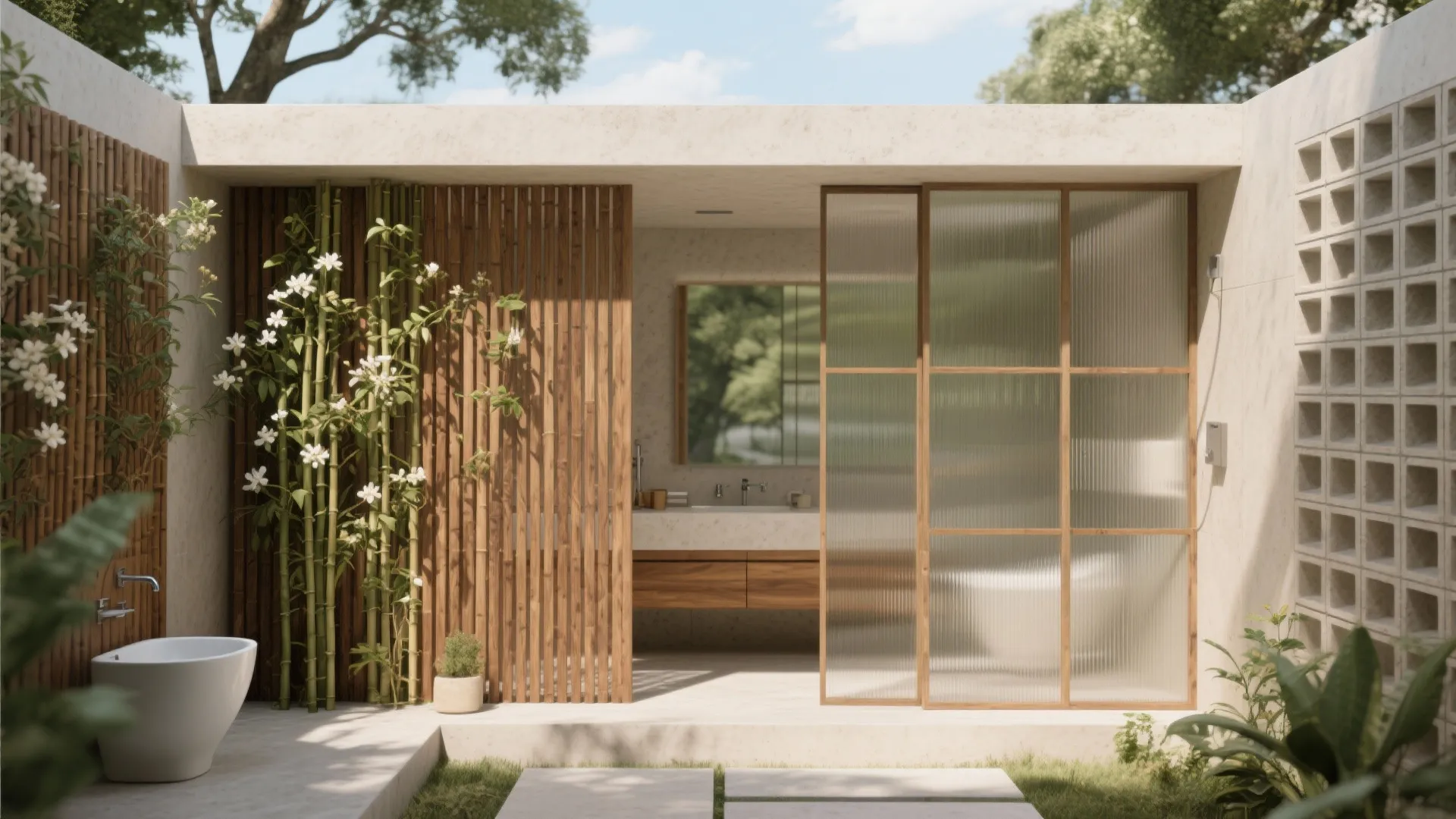

1. Layered Privacy Without Losing the Sky

I pair slatted timber screens with greenery—think bamboo or jasmine—so the view feels soft and the airflow stays honest. Breeze blocks or translucent polycarbonate panels add texture while blurring silhouettes; it’s privacy that plays well with sunlight.

The trick is to choreograph sightlines: keep knees-to-shoulders sheltered, but leave a high band open for sky and trees. The only snag? Neighbors and code. Measure setbacks, test vantage points from upstairs windows, and budget for taller sections where sightlines get tricky.

save pin

save pin

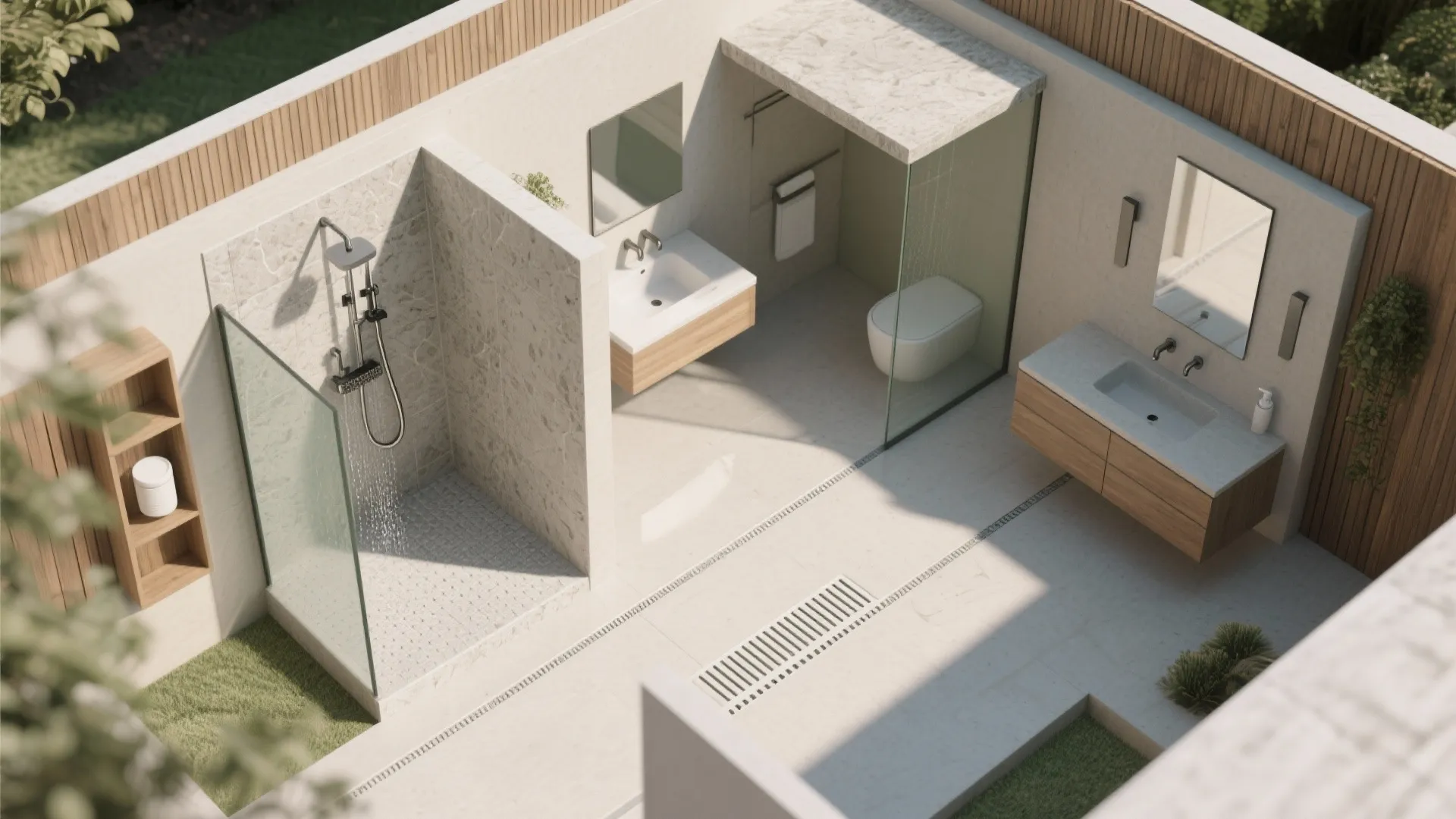

2. Wet Zone + Dry Zone: Split the Footprint

Outdoors, water travels fast. I corral it by separating a spray-friendly shower corner (with grippy porcelain or flamed stone) from a covered powder nook. A subtle 1–2% slope with a linear drain keeps puddles from migrating to the loo.

It’s gloriously simple and saves towels, but the detail work matters: waterproof membranes, UV-stable sealants, and a drain you can clean without gymnastics. If you’re squeezing into a balcony, choose slim fixtures and wall-mounted taps to keep the floor clear.

save pin

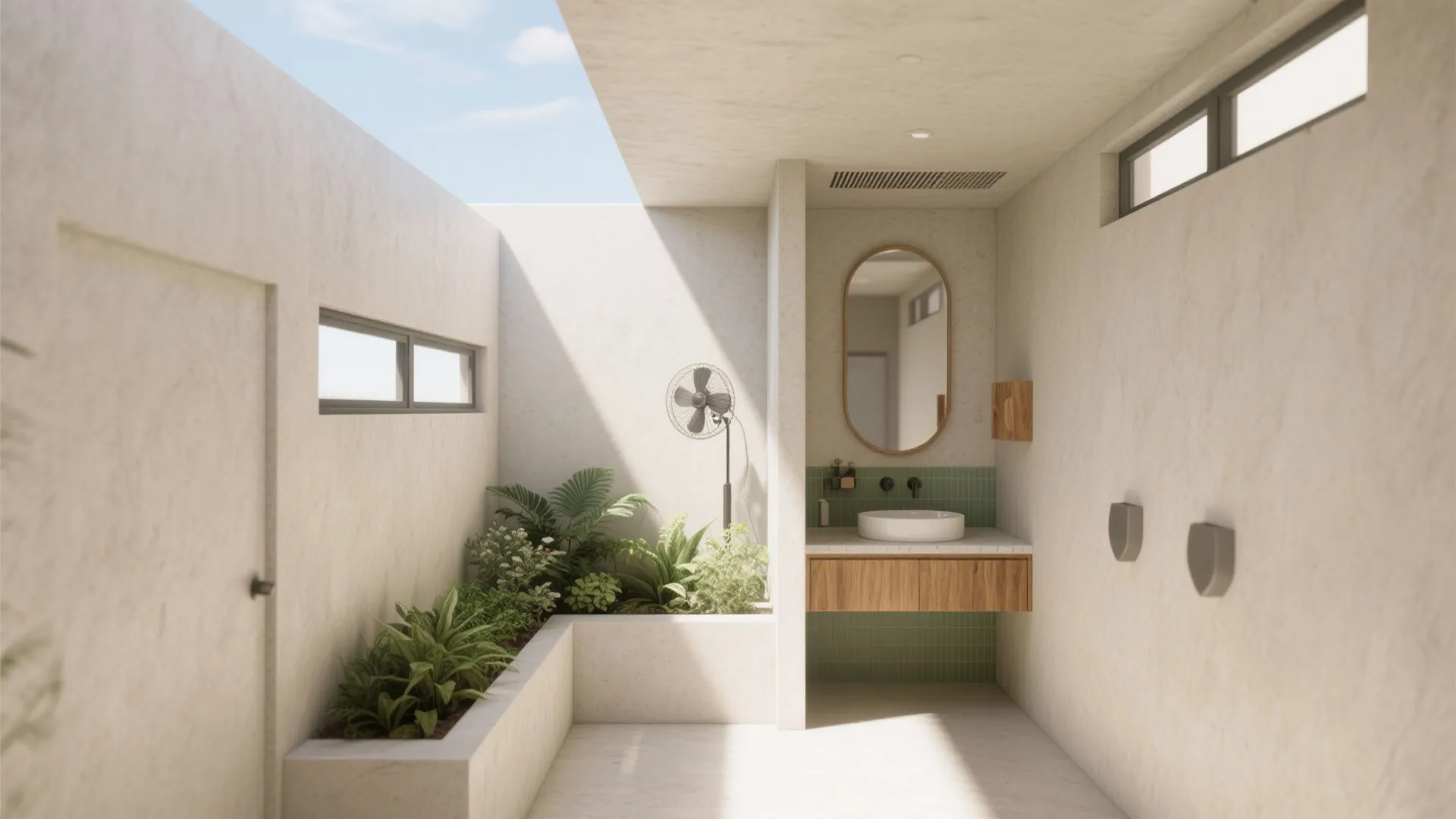

3. The Courtyard Powder Nook

When clients want elegance in a tiny footprint, I build a U-shaped wall around the toilet with a ceiling sliver left open—an airy “courtyard” with a planter ledge and a mirror to bounce daylight. It feels cozy but fresh, and guests don’t feel exposed.

I usually test proportions with a compact garden washroom mock-up, tweaking wall heights until you can sit comfortably without feeling boxed in. Venting can be a minor headache outdoors; clerestory gaps and a discreet fan keep humidity from lingering.

save pin

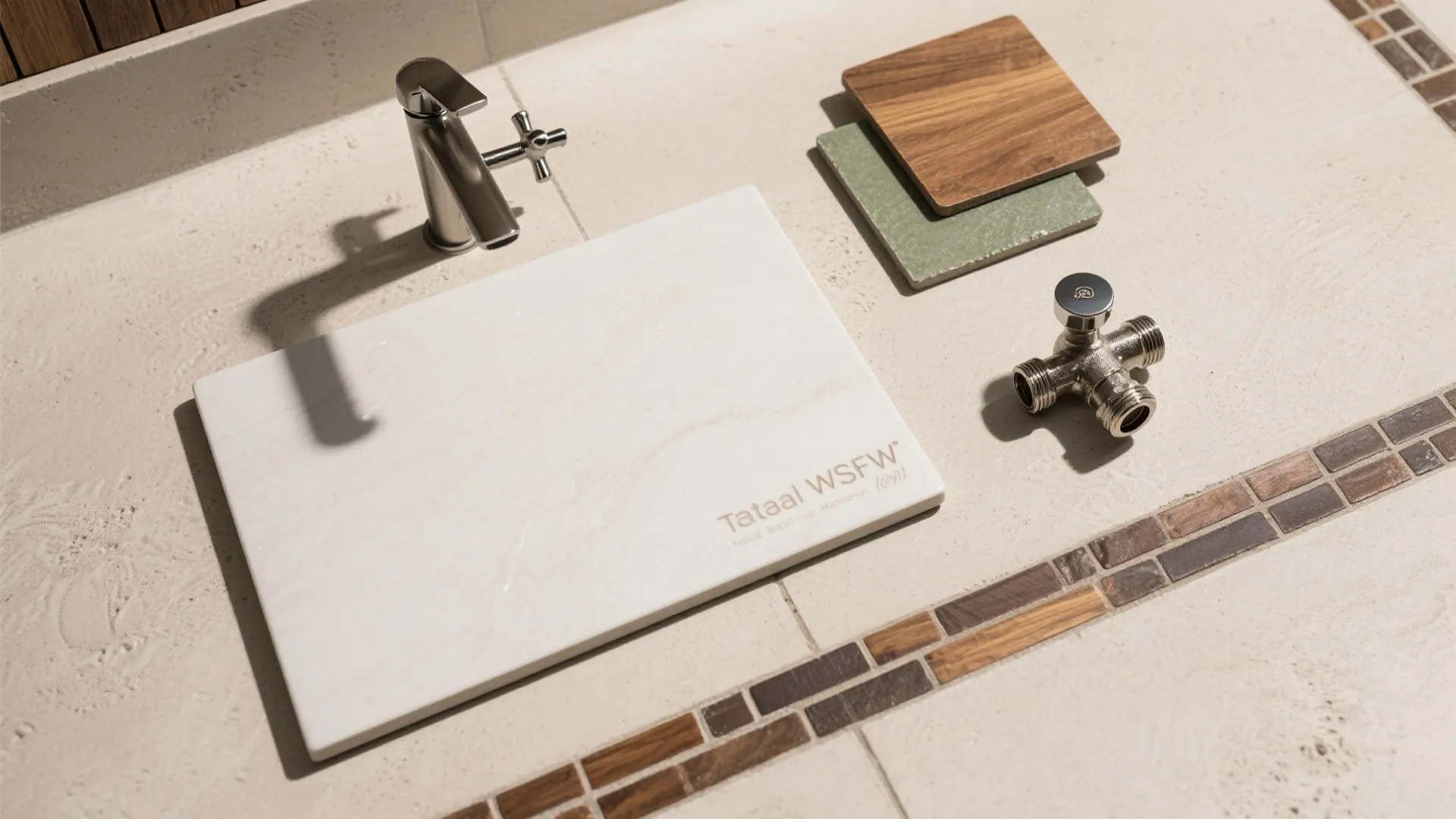

4. Materials That Love Weather

Porcelain slabs, tadelakt or microcement, marine-grade stainless, and teak are my go-tos. They shrug off sun, salt, and soap, and they clean up without drama. Matte textures prevent glare, and darker grout hides the life that happens outside.

Yes, some of these cost more up front, but they sidestep long-term maintenance. Pair them with WaterSense fixtures to curb outdoor water use, and consider a thermostatic valve so you’re not guessing at the temperature with cold hands.

save pin

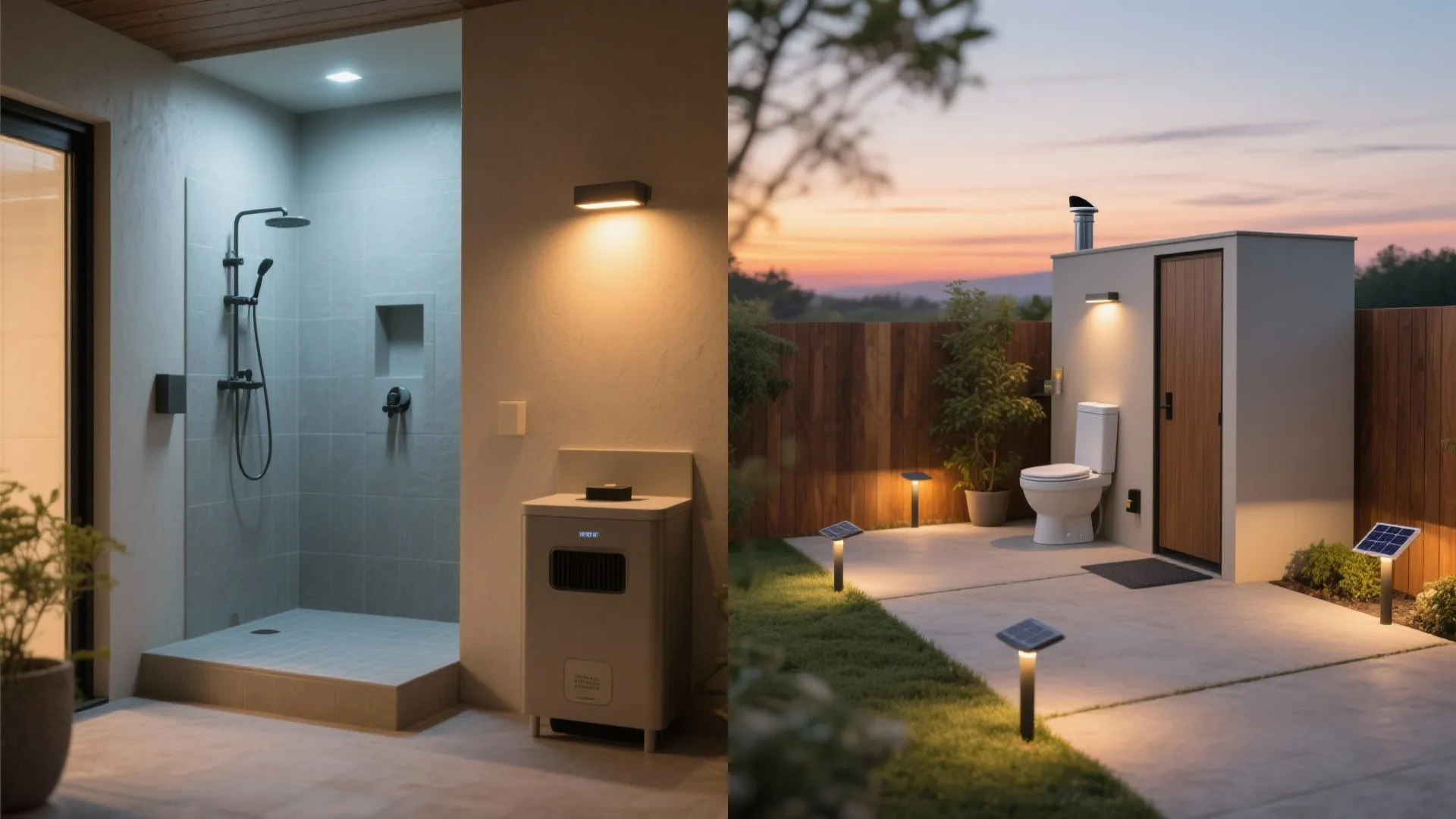

5. Light, Heat, and Off-Grid Smarts

Solar path lights and a low-glare sconce give you safe, warm illumination; keep color temps around 2700–3000K so skin tones look human. If winters bite, radiant mats under a shower platform are a subtle luxury, and a compact on-demand heater keeps runtimes short.

Going off-grid? A composting toilet and graywater reuse can be brilliant—just check local rules first. I like doing an outdoor layout test run to check clearance for bins, vent stacks, and maintenance access before committing to anything permanent.

save pin

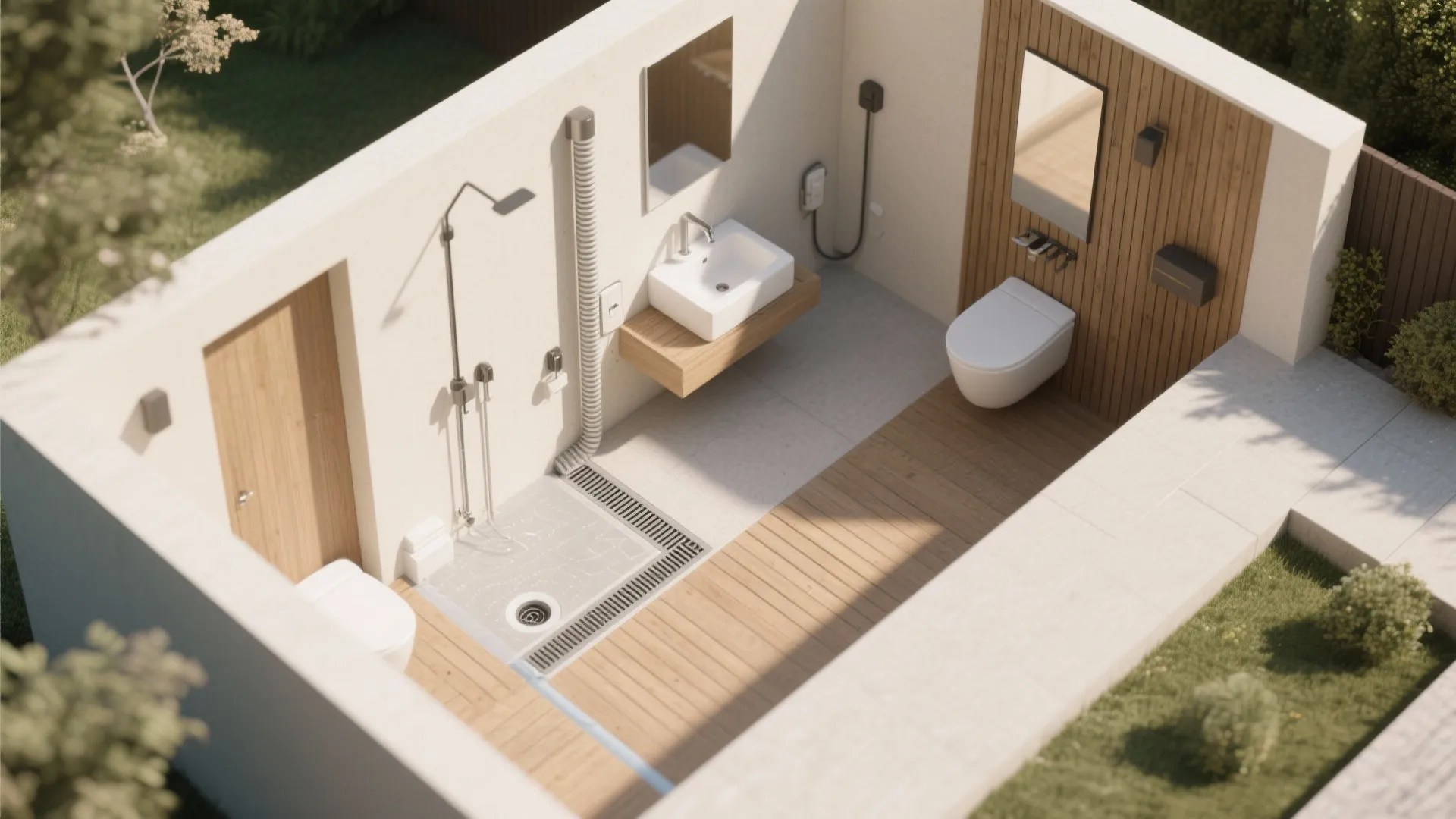

FAQ

1) Do I need a permit for an outdoor bathroom?

Most jurisdictions require permits for plumbing, drainage, and electrical work. Start with your local building department; it’s faster than fixing red tags later.

2) How do I handle drainage and waterproofing outdoors?

Use a sloped substrate (1–2%), a continuous waterproof membrane, and a clean-out-friendly linear drain. Choose UV-stable sealants and keep expansion joints where sun hits hardest.

3) What materials hold up best in outdoor bathroom designs?

Porcelain tile, microcement, tadelakt, teak, and marine-grade stainless perform reliably. Avoid porous stone unless you’re ready to seal regularly and accept patina.

4) How can I ensure privacy without making it feel claustrophobic?

Layer plants with screens, keep a high open band for sky, and choreograph sightlines from neighboring windows. Mirrors and light-toned finishes expand the feel without exposing you.

5) Can I add an outdoor bathroom to a very small patio?

Yes—split wet/dry zones, go wall-mounted, and use pocket or bifold partitions. A 90–100 cm clear path usually keeps the space usable without elbows knocking.

6) What about code compliance and venting?

According to the International Residential Code (IRC, 2021, Chapter 27), fixtures must connect to an approved sanitary system and be properly trapped and vented; always confirm details with your local authority having jurisdiction (AHJ).

7) How do I heat an outdoor bathroom in colder climates?

Combine radiant mats in the shower platform, a thermostatic mixer, and a sheltered nook to block wind. Portable infrared heaters help but need clearances and outdoor-rated wiring.

8) What’s a realistic budget?

Expect a basic outdoor shower and loo to start around $6,000–$12,000, rising with premium materials, off-grid systems, and custom carpentry. Good drainage and waterproofing are worth every penny.
