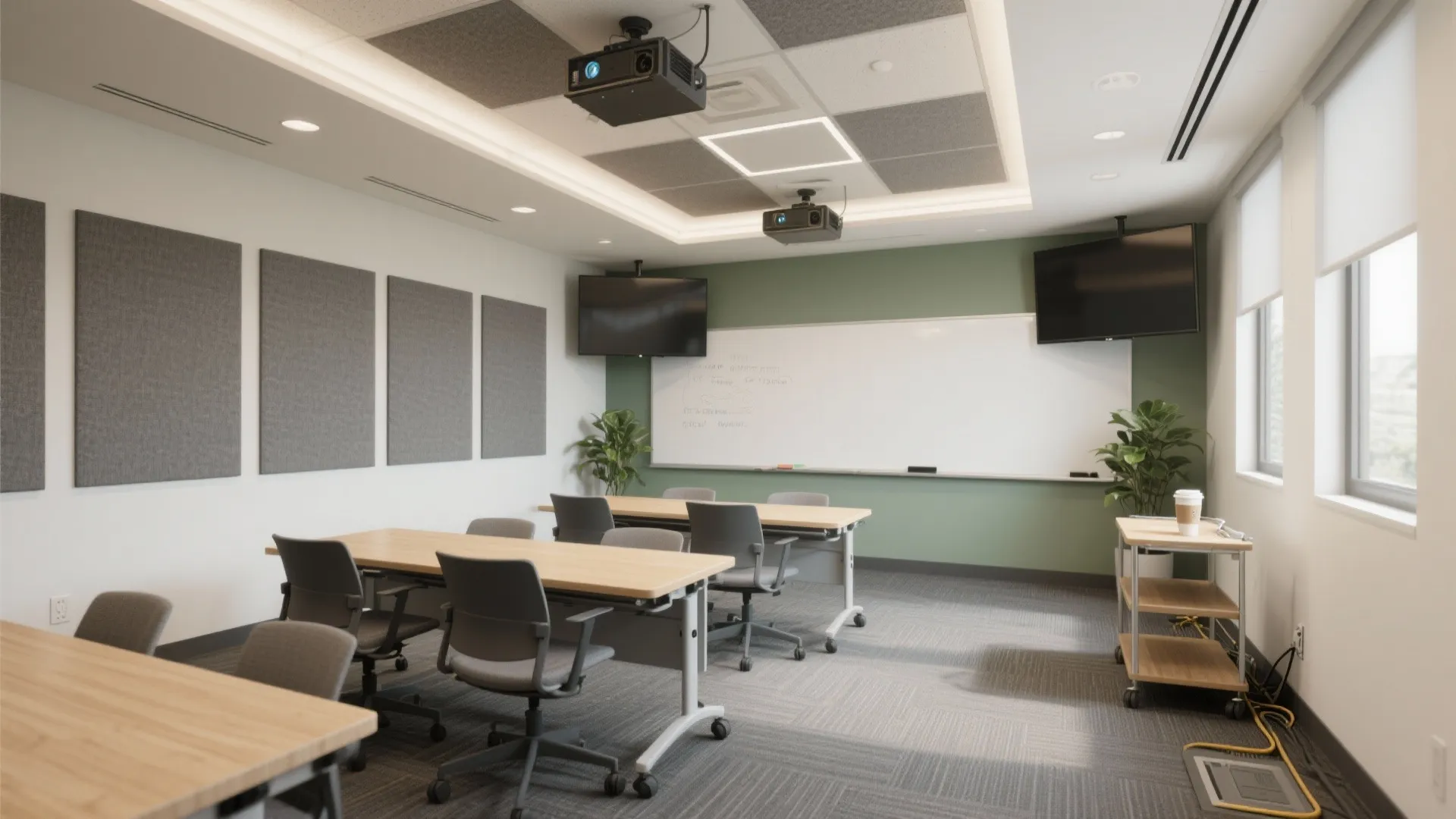

Training Room Design: 5 Space‑Savvy Ideas: Real tips I use to plan flexible seating, lighting, acoustics, and AV—so your training room works hard no matter its size

Two years ago, a client asked me to squeeze 28 trainees, two projectors, and a coffee cart into a room barely bigger than a studio apartment. I grabbed painter’s tape, mocked up options, and had them try different seating layouts before we spent a cent. That little exercise reminded me that small spaces can spark big creativity. Today I’m sharing five training room design ideas I actually use on real projects.

1) Shape-shifting seating beats fixed rows

I swear by nesting chairs and flip-top tables on locking casters. In 10 minutes we can move from lecture rows to U-shape to four-person clusters—no drama, no bruised shins.

The upside is obvious: one room supports multiple teaching styles. The trade-off is storage and durability—cheap casters rattle, and you’ll need a closet to park extra tables. I budget for quiet casters and label the legs so reconfigures are foolproof.

save pin

2) Light in layers, protect sightlines

Ambient light keeps the room even, task light helps note-taking, and vertical light on whiteboards prevents that “dim wall” effect. I aim for 300–500 lux at the desk, dimmable circuits, and 3500–4000K LEDs so faces look natural on camera.

Mount displays so the bottom edge sits near seated eye level, and avoid placing chairs within 1.5 screen heights of the front row to reduce neck craning. Glare is the silent saboteur—use matte screens, soft indirect lighting, and blackout shades on any sun-blast windows.

save pin

3) Tame noise so voices carry, not echo

Hard rooms get loud fast. I mix acoustic ceiling tiles (NRC ≥ 0.80), a ribbon of wall panels at first reflection points, and carpet tiles to knock down slap-back. For multi-purpose spaces, freestanding panels double as pin-up boards for workshops.

Keep RT60 around 0.5–0.7 seconds and watch your partitions—thin walls leak. When sessions split into breakouts, mobile dividers help you optimize team zones without permanent walls. Add gentle sound masking if your corridor chatter keeps creeping in.

save pin

4) Power, data, and AV that just work

If people can’t plug in, they won’t engage. I plan a power strategy with floor boxes every 2–2.5 meters, under-table cable trays, and a few rails along walls for overflow. Aim for at least one outlet per seat and sprinkle USB‑C PD (65W) where laptops gather.

For screens, a simple rule: screen height about one-sixth of the farthest viewer distance (or two displays flanking the instructor). Ceiling mics plus directional speaker zones cut feedback. Label everything and create a one-page reset checklist—your future self will hug you.

save pin

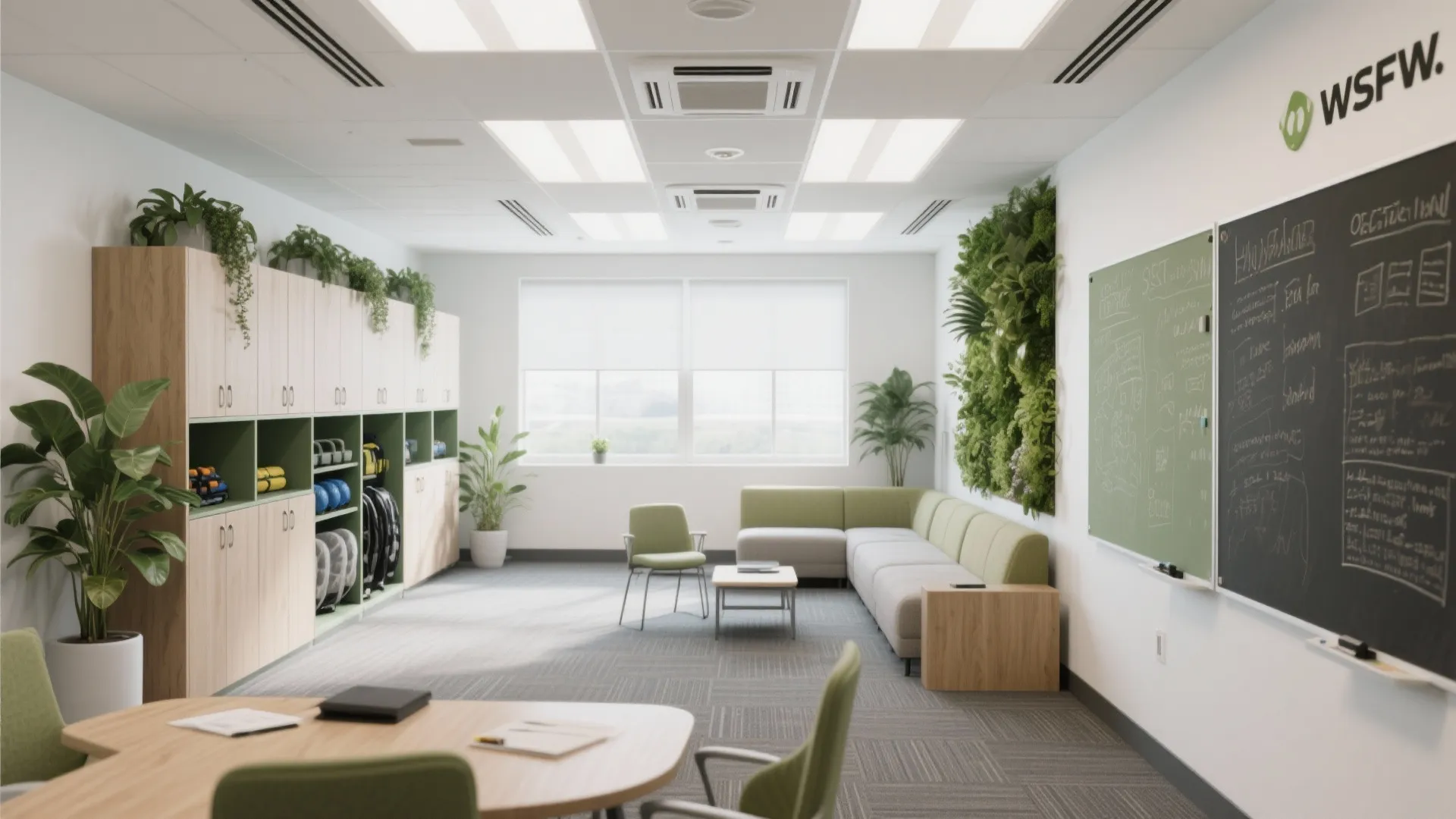

5) Fresh air, smart storage, tiny reset corners

CO2 under 800 ppm keeps minds sharp, so I ask for balanced ventilation and quiet fans (no roaring HVAC during videos). A living wall or a few hardy plants softens the vibe and improves perceived air quality.

Mobile storage walls swallow markers, headsets, and extra chairs, then become writable surfaces. If space allows, carve a small “reset” corner with soft seating for coaching or quick decompression. To sell the vision to stakeholders, I lean on fast 3D renders so everyone sees flow, sightlines, and storage in context.

Every training room has a personality, but these moves make them flexible, clear, and comfortable. Start with flow, listen for the room’s acoustics, and let the lighting do quiet, reliable work.

save pin

FAQ

1) How much space do I need per person in a training room?

For tables and chairs, I plan roughly 1.8–2.2 square meters per learner; for lecture-style seating, 1.0–1.2 square meters can work. Add extra space for aisles, presenter zone, and storage.

2) What lighting levels are best for training rooms?

Target 300–500 lux on the workplane, with dimming for screen-based sessions. According to ANSI/IES RP‑5‑22 (Lighting of Educational Facilities), these ranges support reading and instruction while controlling glare.

3) What seating works best—fixed, mobile, or mixed?

Mobile tables and nesting chairs give you maximal flexibility for lectures, workshops, and group work. If your program is 90% lecture, partial fixed seating can be fine, but leave some mobile zones for breakouts.

4) How do I control acoustics in a small room?

Combine absorptive ceiling tiles, a band of wall panels around ear height, and carpet tiles. Aim for RT60 around 0.5–0.7 seconds and seal door undercuts to reduce hallway noise bleed.

5) Any quick rules for screens and sightlines?

Place the front row no closer than 1.5 times the screen height; ensure clear diagonals from every seat to the instructor and displays. Avoid placing seats directly behind big columns or cameras.

6) What power and data should I plan?

Provide at least one outlet per person, plus shared USB‑C PD. Space floor boxes about every 2–2.5 meters, and route cables in trays so you’re not tripping during group work.

7) What color temperature and CRI should I pick?

Neutral-white LEDs around 3500–4000K keep people alert without feeling cold. Choose CRI 90+ so skin tones and printed materials look natural, especially on camera.

8) What accessibility rules apply to training rooms?

Keep clear aisles at least 36 inches wide with a 60-inch turning circle somewhere for wheelchairs. The 2010 ADA Standards for Accessible Design specify the 36-inch minimum route width and turning requirements; follow them from day one.
