How to Measure a Room for Furniture: You Can Measure It, or You Can See It. I Wanted Both.

How to measure a room for furniture sounds straightforward: measure the walls, check the furniture dimensions, and make sure the numbers fit.

That is exactly what I did before buying an 84-inch sofa for a 108-inch wall. I had measured every surface, but I had never used a room planner with real dimensions to see what the sofa would do to the space around it.

I checked the doorway and the hallway. The sofa arrived without a problem and sat exactly where I had planned. Then I tried to walk between it and the coffee table. The gap was so tight that I had to turn sideways.

None of my measurements were wrong. I had simply measured the empty room instead of the room I would have after the furniture was inside it.

The Quick Answer to Measuring a Room for Furniture

Start with a rough sketch of the room and work around it in one direction. Measure every wall separately, then add the position and size of each door, window, column, radiator, fireplace, vent, and built-in.

For the furniture, record its full width, depth, and height, plus the extra space it needs when drawers, doors, chairs, or recliners are in use.

Finally, measure the complete delivery route—not only the room’s doorway.

Once the measurements are collected, put them into a scaled room layout planner. That is where you can see whether the furniture fits without blocking a walkway, window, door swing, or outlet.

A tape measure gives you the numbers. The plan shows what those numbers do to the room.

Why the numbers weren't enough

To know whether a piece works in a room, you need two things: accurate numbers, and a picture. Everything I'd been using gave me one and not the other.

Almost every guide online ends with painter's tape: tape the footprint onto your floor, stand back, walk around it.

Look at what that advice actually is. It has nothing to do with measuring — you already have the numbers by then. Its entire purpose is turning them into something your eyes can read. People aren't asking for better measurements. They're asking for a picture, and the best tool anyone has offered them is a roll of tape.

Tape gives you floor area. Not how tall the back sits against your window, not what the room feels like when you walk in. And to try a second layout, you peel it all up.

The measuring checklist

If you're only buying a sofa, wall length and door width will do. If you want to rebuild the room somewhere and trust what you see, you need all of this — and you want it in one trip.

Take it with you. The 11-item list as a one-page printable, with a blank for every number and a box to tick off the delivery-route photos. Download the measuring sheet.

Items 6 to 9 are the ones no retail guide covers. They aren't shopping details — they're what makes the model real.

Two habits worth keeping: pick one unit and stay in it, and measure in a continuous run along each wall rather than jumping around. Corner to window edge, window width including the casing, edge to the next feature, on to the far corner. Running totals catch your own mistakes. Isolated numbers don't.

And photograph everything. You will not be able to read your own notes in three days. I never can.

Where it usually goes wrong

These are the ones where every number was correct and it still failed. All six happened to me or to someone I was helping.

Number 6 is the one that surprises people. A 93″ wardrobe under a 96″ ceiling sounds safe. But it's assembled flat and tipped upright, and if it's 24″ deep, √(93² + 24²) = 96.1″. An inch of headroom you don't have.

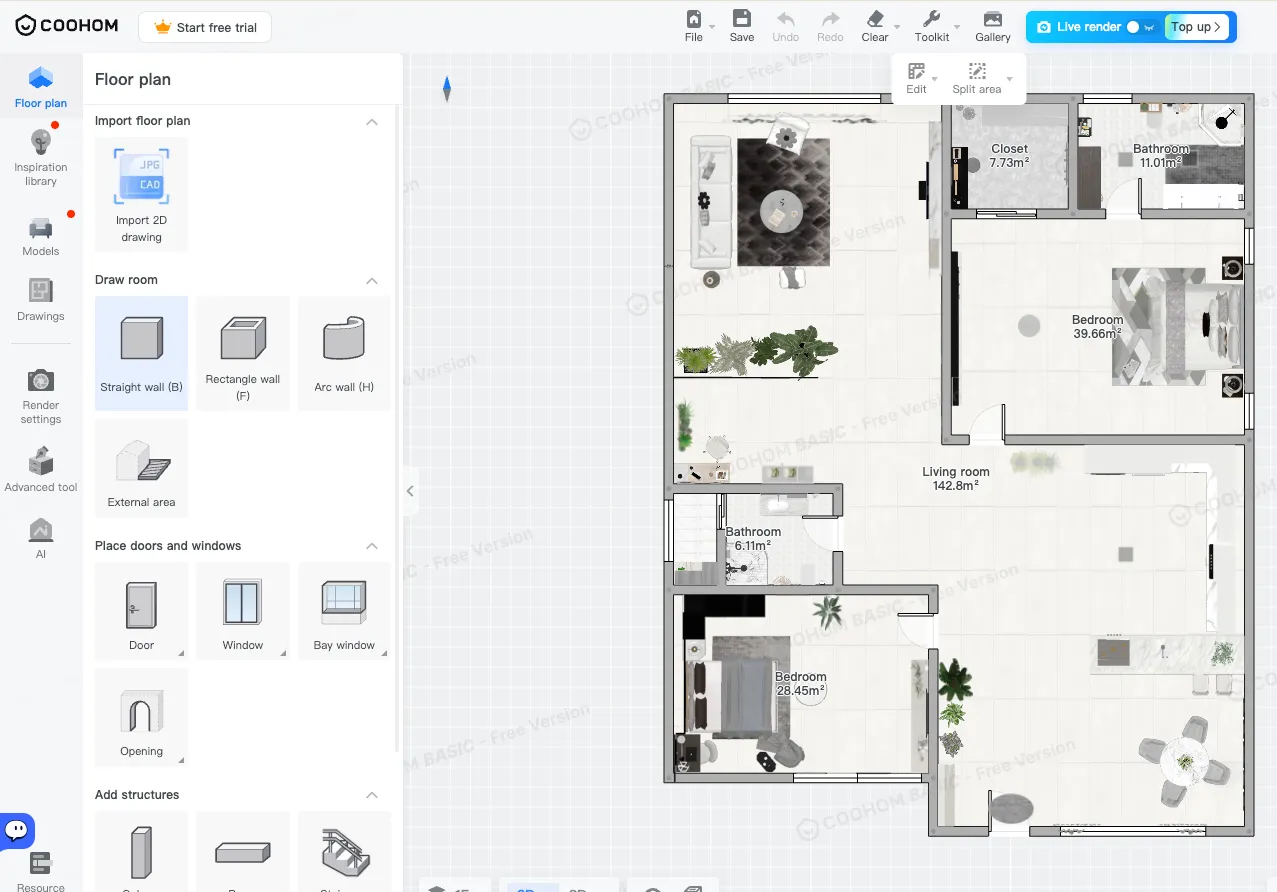

2D: measure inside the plan

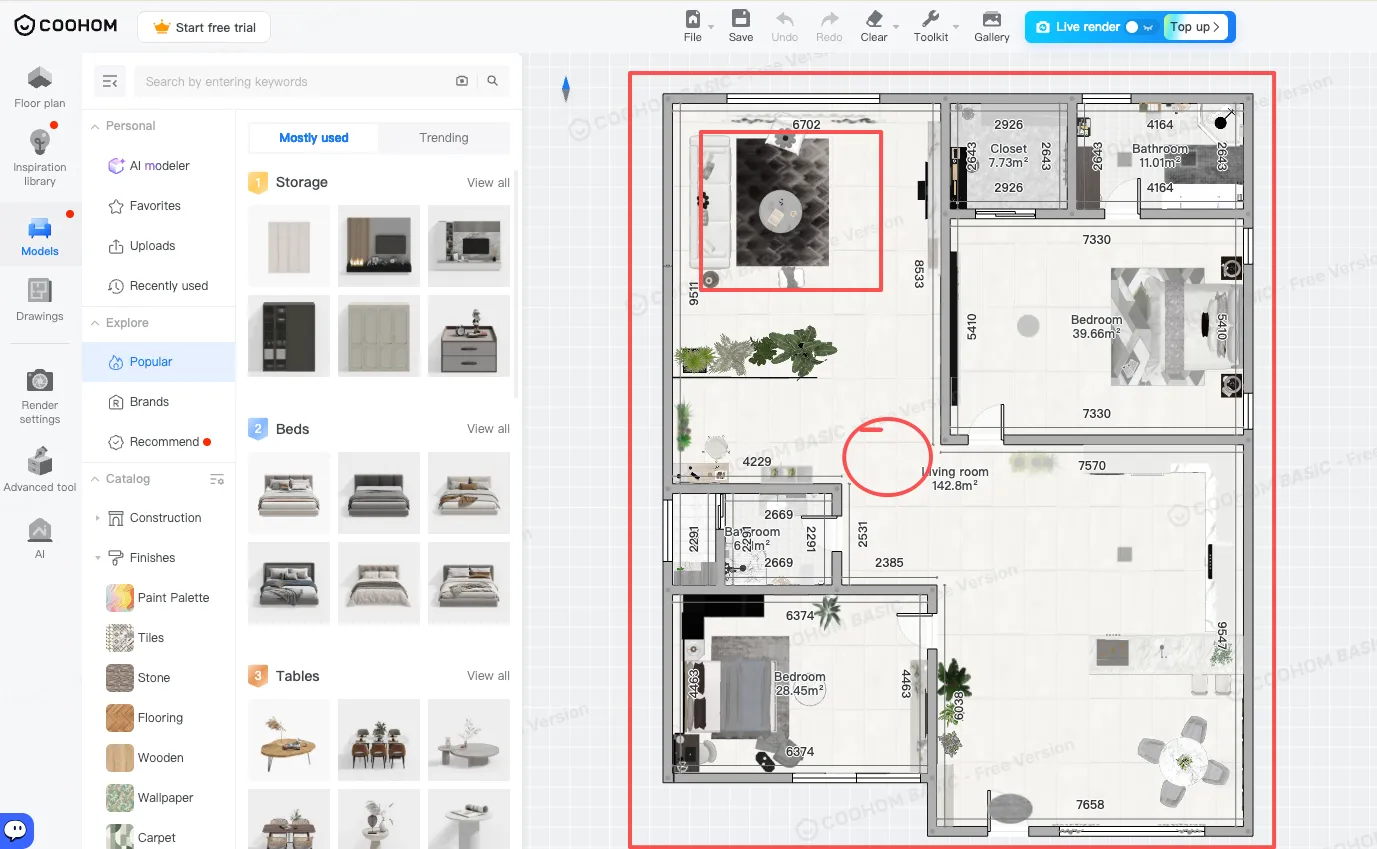

Put the wall lengths into a room planner with dimensions and the plan closes on real proportions instead of on your eye. The first useful thing shows up immediately: how much of each wall you can actually use. A 2D floor planner will show you that a 12-foot wall with a door swing at one end and a radiator at the other might have seven feet of usable run. On a sketch it still looks like twelve.

Then measure inside it. I was always bad at memorising clearances. Drawing a line between the sofa and the table and reading the number is easier. You don't need to remember 36 inches — you need to see the path is currently 28.

One rule I do keep in my head: a sofa shouldn't take more than 75% of the wall it sits against.

Put your wall lengths in and see the usable run. Start a free plan.

save pin

3D: why this picture is different

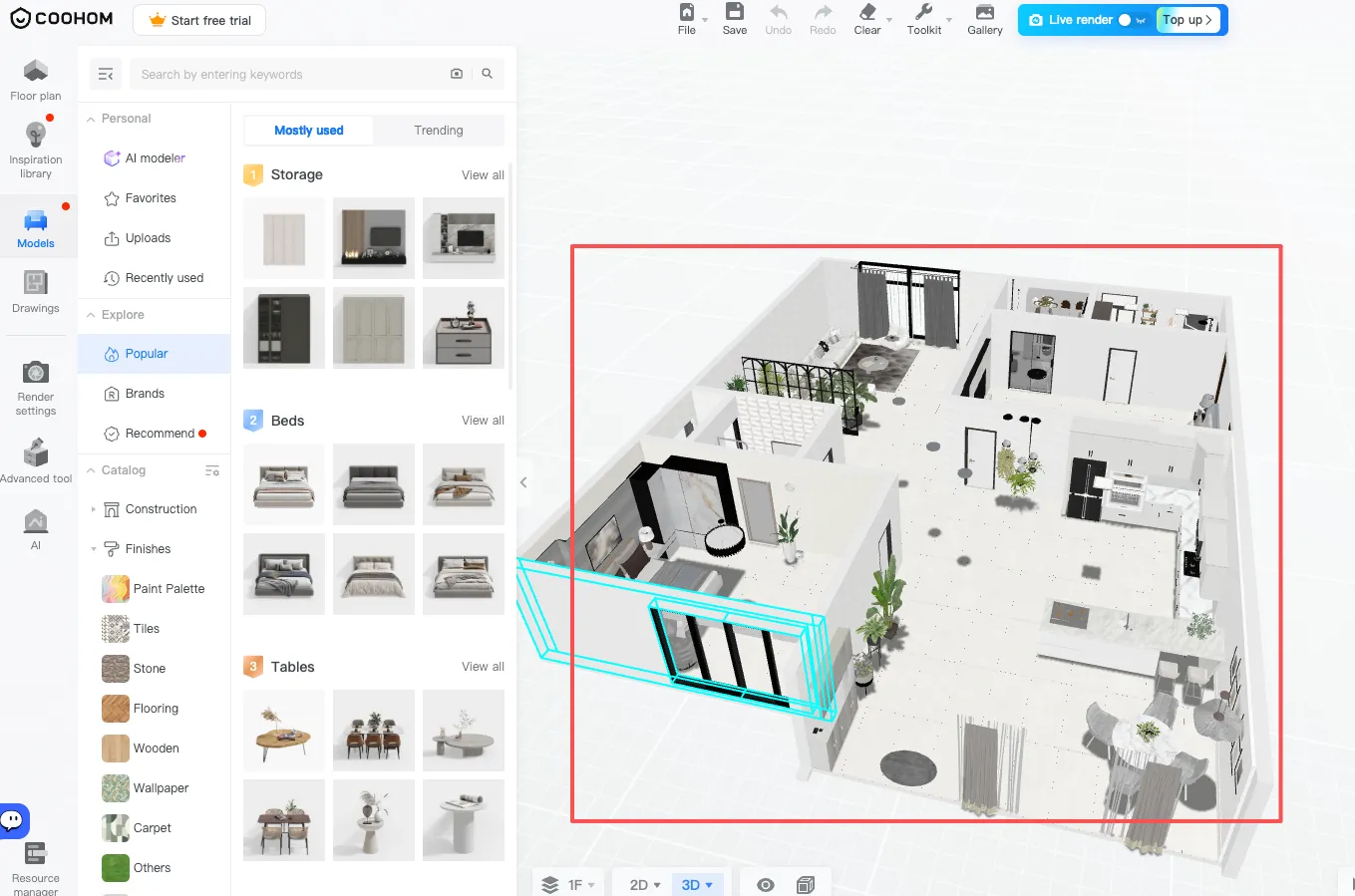

A 2D plan tells you it fits. It doesn't tell you what it's like to live with. An 84″ sofa in a 12-foot room and the same sofa in a 16-foot room look nearly identical on a floor plan. Switch to a 3D floor planner, stand where the door is, and you know in a second.

Here's why you can trust that view: it isn't a rendering somebody made to look good. It's the same file as the plan — your walls, your ceiling height, your window in your position. An 84″ sofa is 84 inches in it. Not "about right."

Same file, different view. Stand where the door is. Switch to 3D free.

save pin

Switching between 2D and 3D

What actually changed things for me was flipping back and forth.

Something feels tight in 3D, I switch to the 2D plan and measure it — 28 inches. The feeling gets confirmed by a number. Or every clearance passes on the plan, I switch to 3D, and the sofa back is sitting across the bottom of the window. Nothing on the plan was going to tell me that.

Seeing it and measuring it stopped being a choice.

Will it get in?

Diagonal depth is the one almost everyone skips, and usually the one that decides it — the straight line from the sofa's bottom front corner to its top back corner.

√(height² + depth²)

If the opening beats the piece's depth, its height, or its diagonal depth — any one of the three — it goes in at an angle. Sofa diagonal depth usually runs 36–40″.

Short by an inch? Take the handle off, lift the door off its hinges, take the feet off, compress the cushions with pallet wrap. That buys you an inch — but only if you know in advance how short you are. I'd rather change a model number than pay a return fee.

The stairwell turn

A straight hallway is easy. A turn is where it stops.

For a piece going around a 90-degree corner, what matters is the hallway width on both sides of the turn plus the piece's length. Rough check: if hallway A plus hallway B is less than the piece's length, it won't swing round — you'll need to tip it or take it apart. A low ceiling over the landing makes it worse, because tipping it up is exactly what you were relying on.

Measure both hallway widths, the landing depth, and the ceiling height over the landing. Four numbers. They decide more purchases than the room does.

Measure once, then measure from the plan

Here's the part I wish I'd understood earlier: you only have to do the tape-measure trip once.

Once the plan is built and closed on real proportions, it is the room. Every question after that gets answered from the plan instead of from the floor. Can a 60″ console go under the window? Draw it. Will a king bed leave enough on both sides? Draw it. Client wants one more cabinet along that wall — is there room? Draw it, and you have the answer before the conversation ends.

I used to go back with a tape measure every time something changed. Now I go back to the file. That's the part that changed how I work — the plan stays, so the measuring only happens once.

It also works before you have the keys. If you're moving, all you need is the floor plan from the listing — put the dimensions in, drop your existing furniture into it, and you know which pieces are coming with you and which ones aren't worth the move. That's measuring a room you've never stood in.

The tape measure gets you the room once. The plan lets you measure it whenever you want, from wherever you are.

FAQ

What should I measure before buying furniture?

Measure every wall, ceiling height, doors, windows, permanent obstacles, outlets, vents, and the complete delivery route. For the furniture, record its width, depth, height, working dimensions, and diagonal depth when available.

Should I measure from wall to wall or from baseboard to baseboard?

Record the finished wall-to-wall dimension and note the baseboard depth separately. If the furniture must fit tightly between two baseboards, also measure the smaller baseboard-to-baseboard distance.

How much space should I leave between furniture?

A useful starting point is about 36 inches for a main walkway, 30 inches for a secondary path, and 14 to 18 inches between a sofa and coffee table. Adjust those dimensions for the room and the people using it.

Will a sofa fit through a 32-inch door?

The stated door size is not enough to answer that. Measure the actual clear opening, then compare it with the sofa’s height, depth, width, and diagonal depth. The surrounding pivot space also affects whether it can pass through.

What is furniture diagonal depth?

For a sofa or chair, diagonal depth is generally measured between the highest point at the back and the lowest point at the front. Manufacturers use it to help assess whether the piece can be angled through a doorway.

Do I need to measure windows?

Yes. Record the width, height, sill height, and distance from each side of the window to the nearest corner. This helps prevent furniture from blocking the glass, curtains, handles, or natural light.

Is painter’s tape enough to test a furniture layout?

Painter’s tape is helpful for showing the floor footprint, but it does not show height, volume, window obstruction, or how the room looks from the entrance. It is best used as a final physical check rather than the entire planning method.

Do I need to measure the room again whenever I change the furniture layout?

No. If the original measurements are accurate and the room has not changed, update the furniture inside the existing plan. You can save an editable room plan and reuse it whenever the layout changes.
