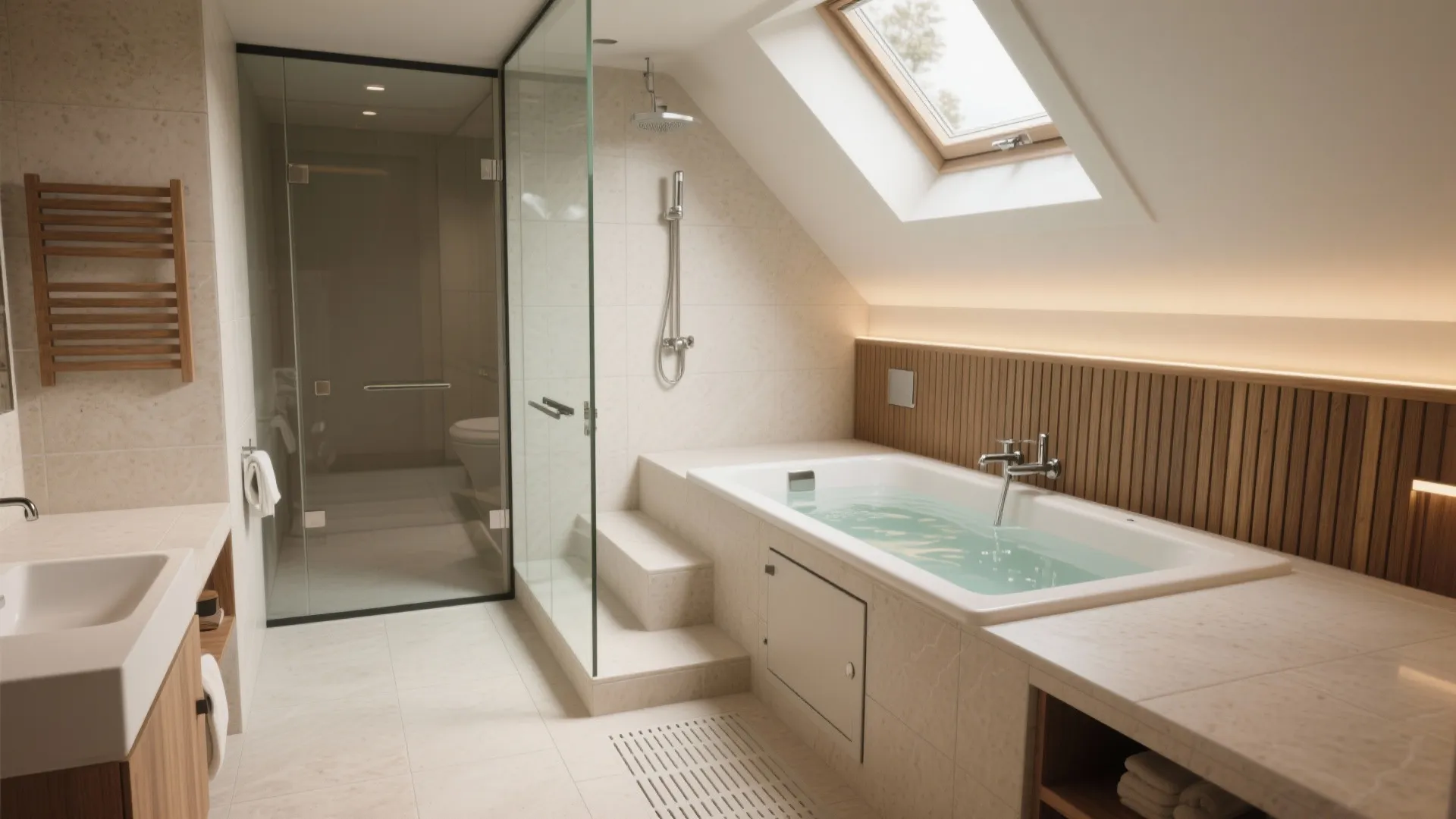

5 Bathroom Jacuzzi Designs for Small Spaces: I’m sharing five space-smart jacuzzi ideas I use in tight bathrooms—real tips, budget notes, and what can go wrong (so you avoid it).

Confession time: years ago, I okayed a jacuzzi for a downtown micro-loft and only later noticed the bathroom door stole two crucial inches. The plumber’s look said it all. I saved the day by building a quick 3D mock-up to test clearances, rotated the tub six degrees, and snuck in a slimmer door stop—crisis averted.

Small spaces will absolutely roast your ego—and then spark big creativity. If you’re dreaming of bubbles in a compact bath, I’ve got you. Based on projects I’ve led, here are five bathroom jacuzzi designs that balance comfort, code, and everyday life.

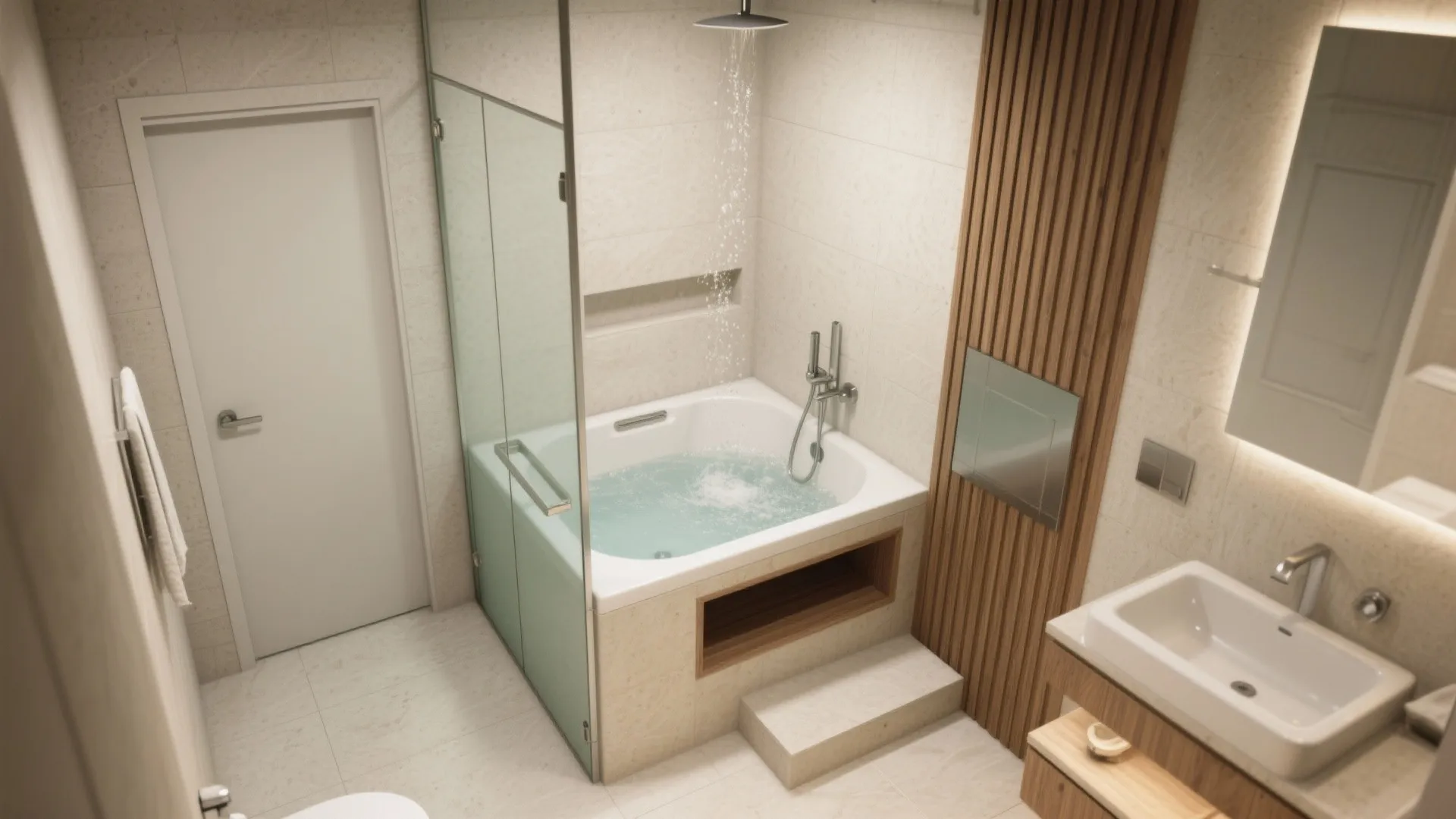

Tip 1: Corner Jacuzzi That Actually Fits

When every inch matters, a corner unit (often an asymmetric oval or triangle) frees up a walkway and keeps the room feeling open. I like drop-in models with a custom apron and integrated step; it doubles as storage for bath salts and spare towels.

The catch? Access to the pump and plumbing must be planned up front—make a removable panel part of the millwork. And watch splash zones; a slim glass screen can block spray without boxing in the space.

save pin

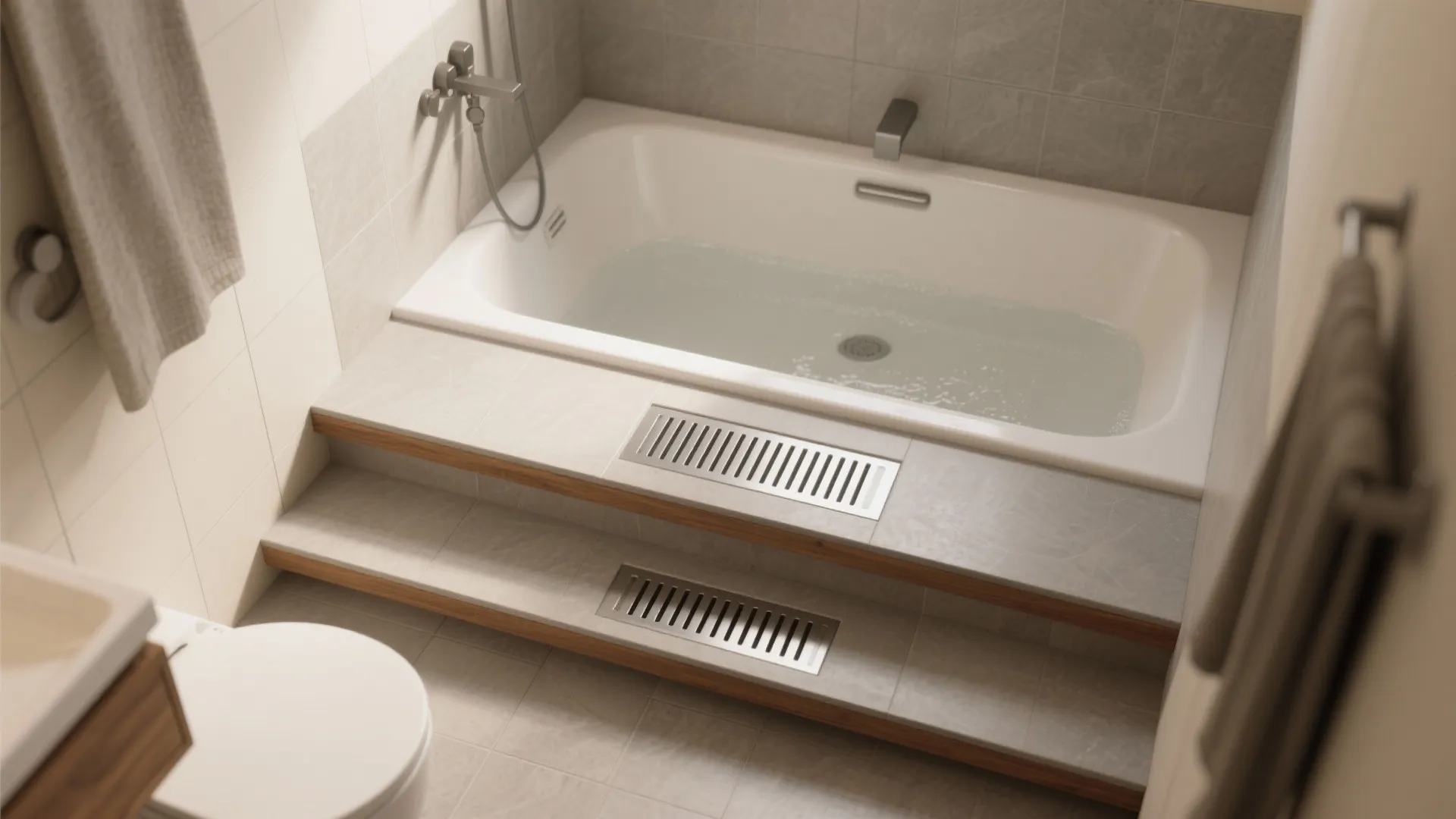

Tip 2: Low-Profile, Sunken Deck

A shallow platform raises the deck 8–12 inches so you step down into the tub—safer than climbing over a tall rim, and it visually lowers the tub profile. I run a hidden channel drain along the back edge in case an enthusiastic soak turns into a mini tidal wave.

The challenge is structure. In apartments, you usually can’t recess into the slab; in houses, confirm joist capacity and waterproof the entire deck with a membrane. It’s sleek, but not a DIY weekend unless you love surprises.

save pin

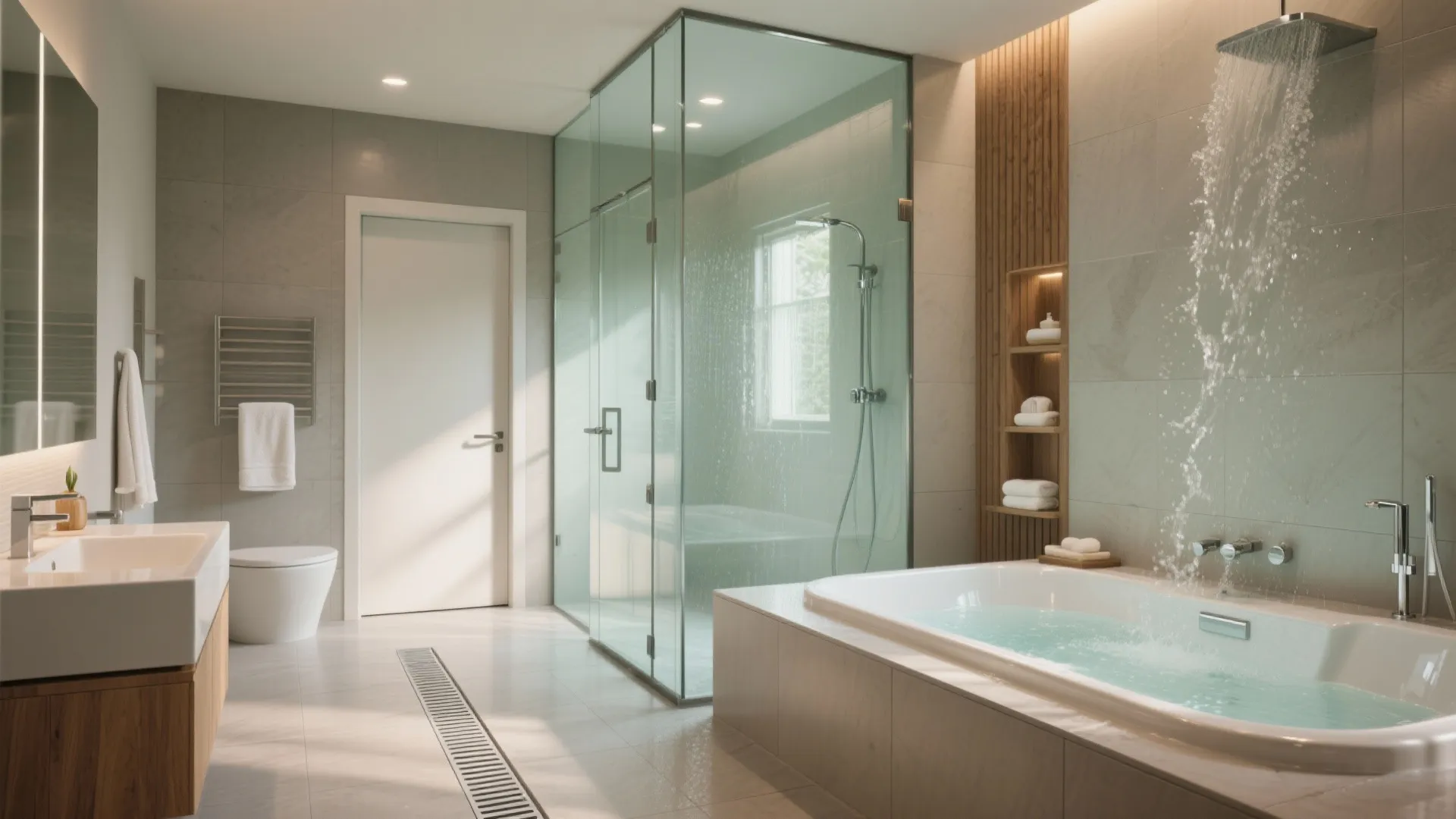

Tip 3: Wet Room With Glass and a Linear Drain

Turning the whole bathroom into a wet room offers breathing space: a frameless glass panel keeps splashes in check while the floor slopes to a linear drain. The jacuzzi sits slightly raised so you still get that “spa throne” feel without hogging floor area.

I always prototype a compact soaking layout before committing to tile, especially to visualize door swings, towel reach, and ventilation paths. Humidity management is key—pair the fan with a timer and run it post-bath for 30 minutes.

save pin

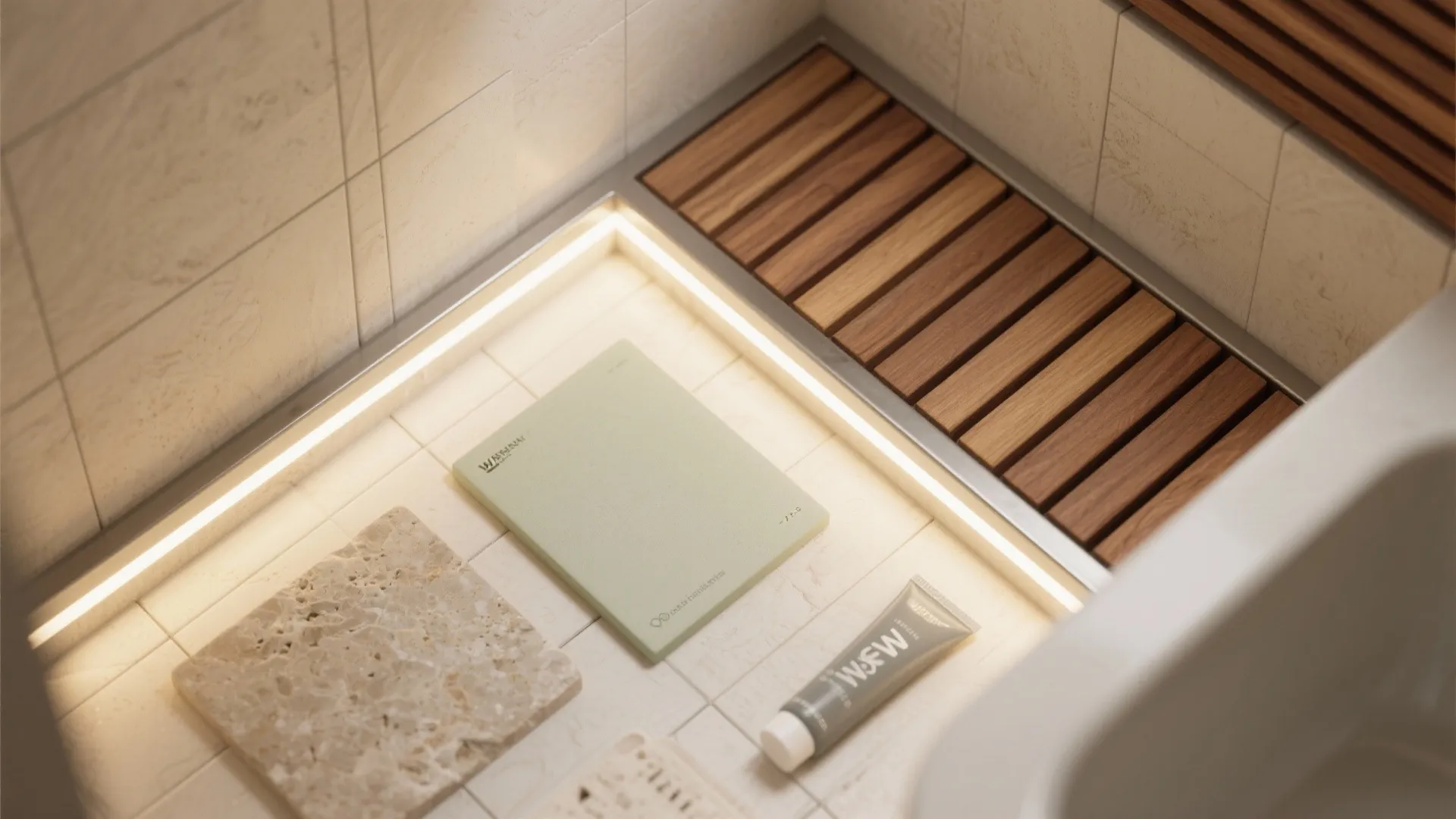

Tip 4: Material Calm—Warm Woods, Matte Stone, and Soft Light

Even tiny spas can feel luxe with the right palette: matte porcelain that mimics limestone, marine-grade wood slats, and indirect LEDs under the tub step. I’ve used a warm 2700K strip with a dimmer so clients can choose “zen dusk” or “wake-up glow.”

Maintenance matters: seal porous surfaces and add a removable teak mat instead of full timber floors if you’re not ready for vigilance. Keep switches outside the splash zone and choose damp-rated fixtures so the romance doesn’t short out.

save pin

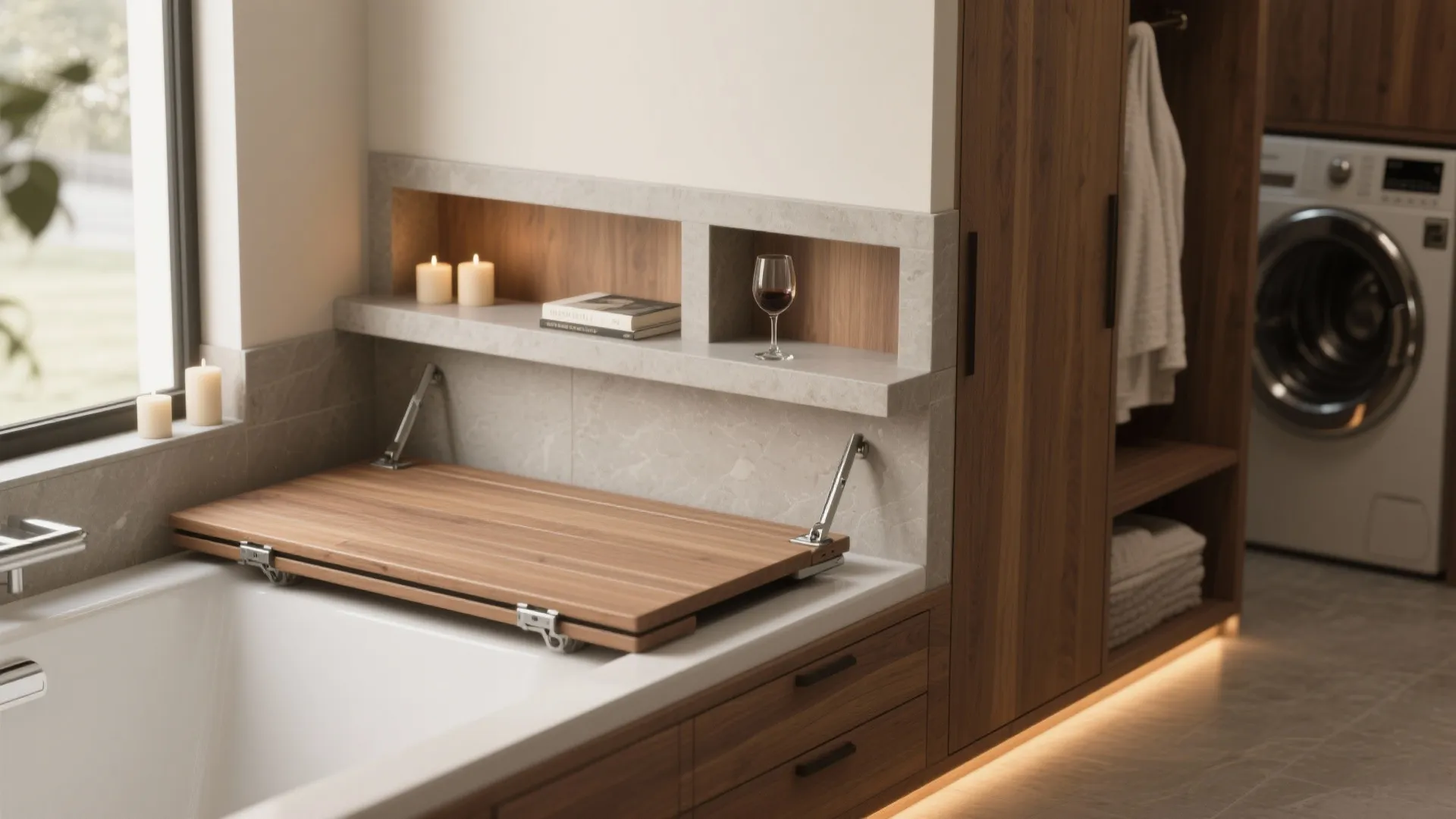

Tip 5: Multi-Tasking Deck—Benches, Niches, and Hidden Storage

Build the tub deck to work overtime: a flip-up bench for bath toys and salts, recessed niches for candles, and a slim ledge that doubles as a wine perch (or book stand, if you’re sensible). I’ve wrapped a tight laundry closet with the same millwork so the bathroom reads as one calm volume.

Waterproof the hinges and use stainless hardware; moisture is merciless. For clients who struggle to pick finishes, I run AI-powered mood testing to preview wood-and-stone combos before we order a single tile—cheaper than buyer’s remorse.

save pin

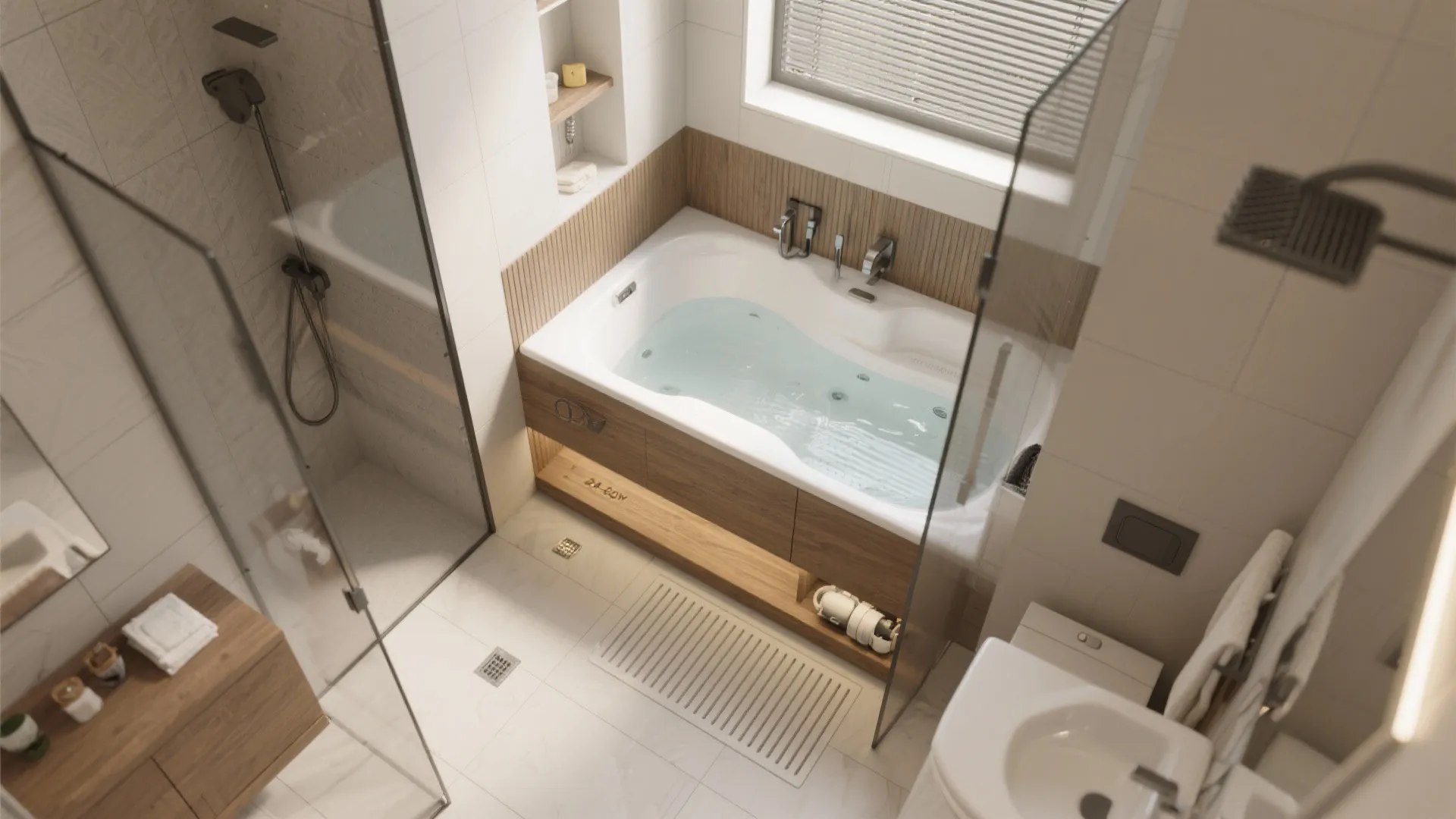

FAQ

Q1: What’s the minimum space I need for a jacuzzi in a small bathroom?

A compact corner or oval unit can start around 60–66 inches long by 32–36 inches wide. Plan at least 24–30 inches for clear access and maintenance panels—don’t squeeze the pump area.

Q2: Do I need structural reinforcement for a jacuzzi?

Often, yes. A filled tub plus a person can exceed typical floor loads. In houses, check joists and add blocking; in condos, talk to building management and a structural engineer before cutting or adding mass.

Q3: How do I handle ventilation in a wet-room jacuzzi setup?

Target robust exhaust. Per ASHRAE Standard 62.2, bathrooms should provide 50 cfm continuous or 100 cfm intermittent. Pair with a timer and keep doors slightly ajar after bathing to purge humidity.

Q4: Are air jets or water jets better for small bathrooms?

Air jets tend to be gentler and simpler to clean; water jets can feel stronger but need vigilant maintenance to avoid biofilm. I specify air systems when clients want lower noise and easier upkeep.

Q5: Can I put a jacuzzi under a window?

Absolutely, but use tempered or laminated glass and plan for privacy. Waterproof the sill, slope it to shed water, and keep the faucet offset so splashes don’t constantly soak the frame.

Q6: What materials are easiest to maintain around a jacuzzi?

Porcelain tile (matte for slip resistance) and solid-surface tops are workhorses. If you love wood, keep it limited to removable pieces (like a teak mat) or use marine-grade finishes and accept periodic resealing.

Q7: How noisy are jacuzzi pumps?

Modern pumps are quieter, but framing insulation and rubber isolation pads help a lot. If the bathroom shares a wall with a bedroom, I add a sound-absorbing backer behind the pump access panel.

Q8: What’s a realistic budget for a small-space jacuzzi install?

For a compact unit with basic tile, expect $5,000–$12,000 installed; custom decks, glazing, and waterproofing can push it to $15,000–$25,000. Always reserve 10–15% contingency for surprises behind walls.
