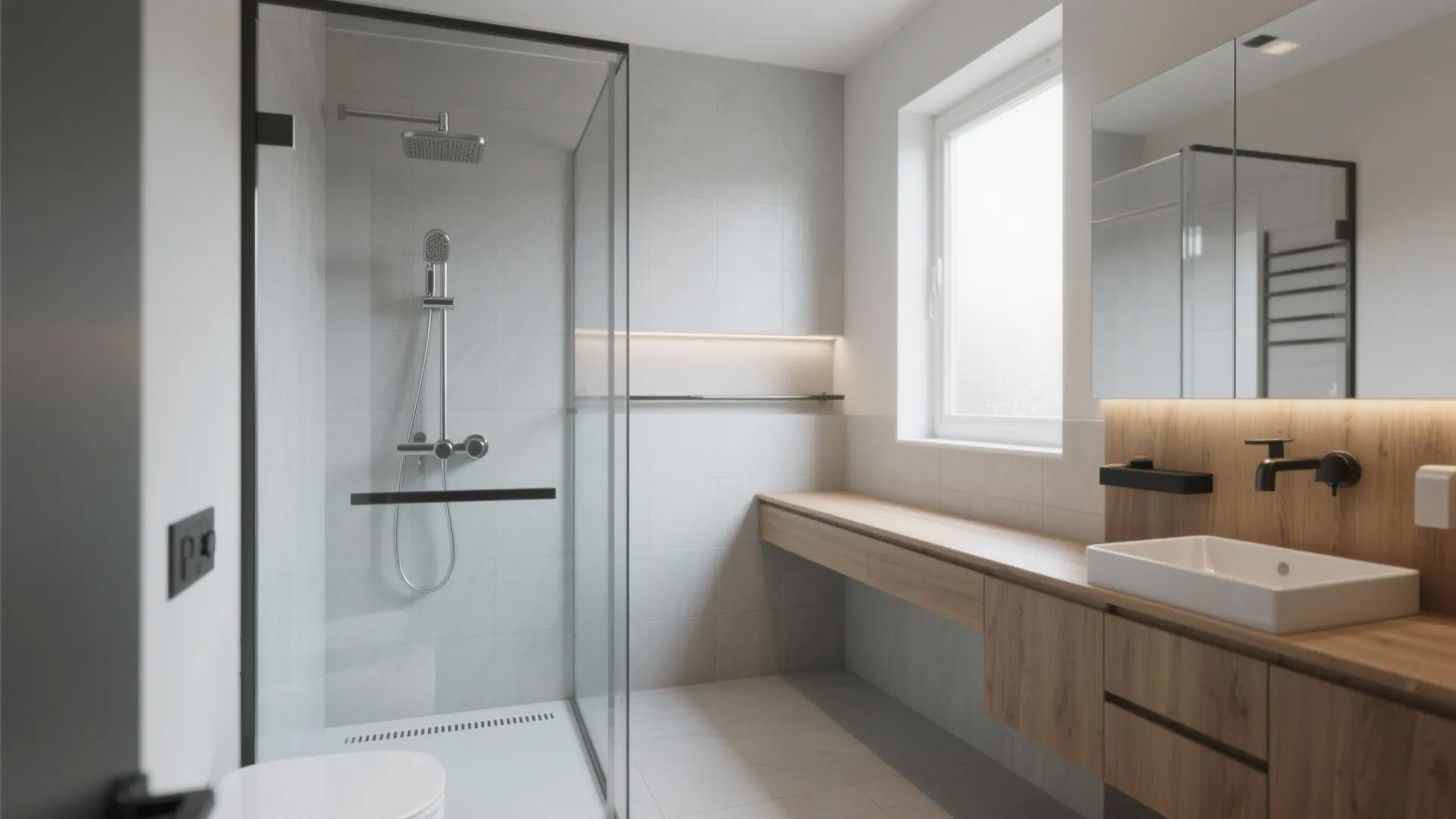

5 Bathroom Shower Set Designs That Really Fit: Small-space tested combos for safety, style, and easy maintenance

A client once asked me for a “car‑wash shower” in a 3.5 m² bath—two heads, body jets, the whole drama. We toned it down (a lot), but the exercise taught me how far thoughtful hardware and layout can go. If you’re hunting for small-space bathroom ideas, let me show you how I keep splash zones tame and mornings blissfully efficient.

Small spaces spark big creativity, especially in the shower. I’ll walk you through five shower set designs I’ve used in real homes—what they do well, where they can bite back, and the tweaks that make them sing.

Frameless Glass + Thermostatic Rail Set

When a room feels cramped, frameless glass is my go‑to—no visual chop, just clean lines. Pair it with a thermostatic rail set (slim bar, handheld, and a stable temp valve) so nobody gets scalded mid‑rinse.

It’s airy and safe, but you’ll fight water spots if your water’s hard; I keep a squeegee on a magnetic hook and spec low‑iron glass for better clarity. Thermostatic valves cost more than pressure‑balance ones, yet they pay for themselves in comfort and fewer arguments.

save pin

Ceiling‑Mounted Rain + Handheld Combo

A small rain head (200–250 mm) with a handheld and a simple diverter delivers that spa vibe without overwhelming the space. I mount the controls away from the spray so you can warm the water before stepping in.

Watch ceiling height and pressure—low ceilings call for a slim rain arm and fewer body jets. If layout’s tricky, I sketch layout sketches in 3D to check clearances and sightlines before anyone swings a hammer.

save pin

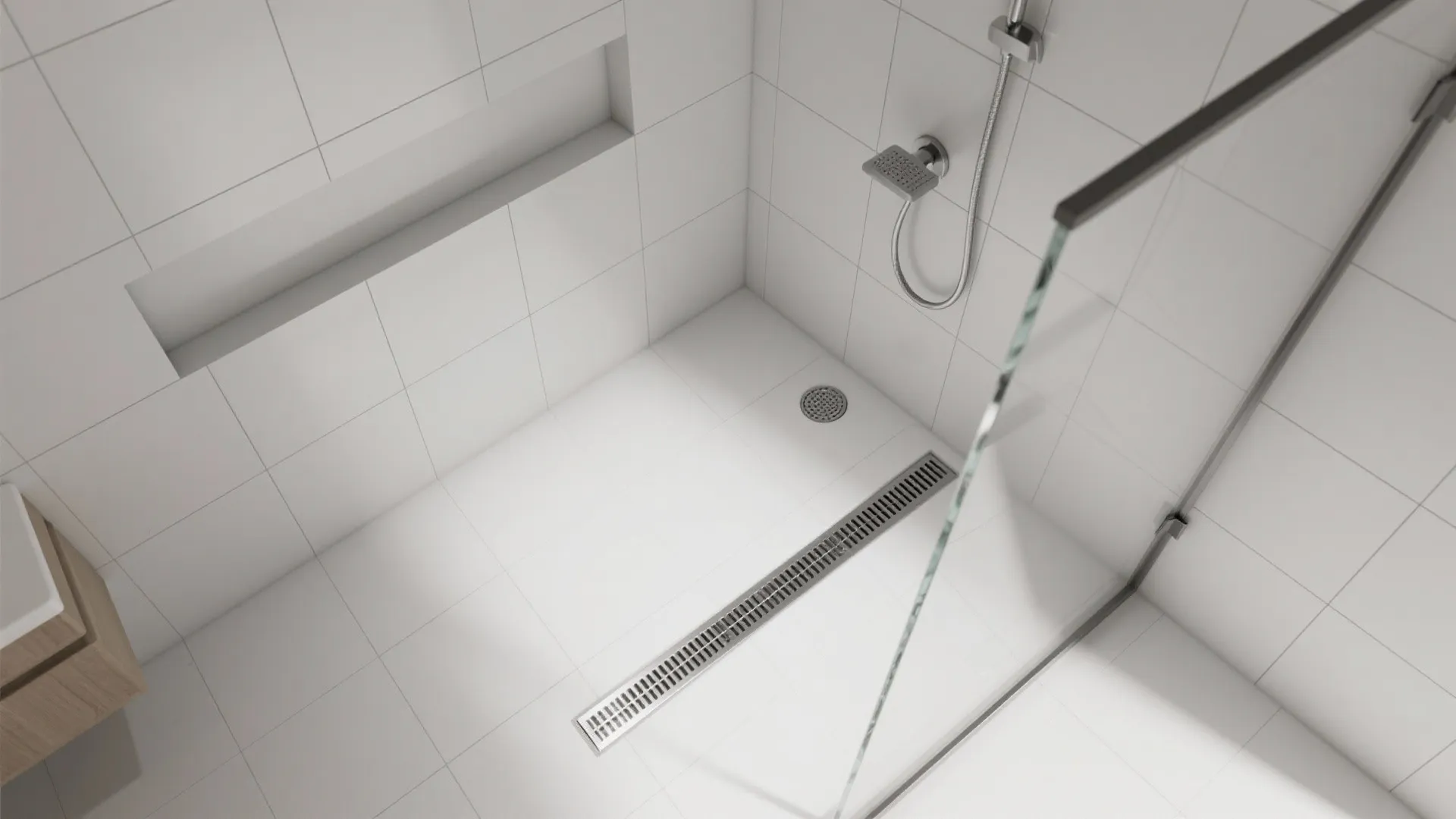

One‑Slope Walk‑In With Linear Drain

For tight rooms and accessibility, a linear drain on the far wall lets the floor slope in one direction—no toe‑stubbing pyramids. I like a long niche opposite the shower head so bottles live out of the spray.

This feels expensive (and sometimes is), because slope and waterproofing must be spot‑on. Large‑format tiles help the room read bigger, but they demand a careful install to avoid lippage.

save pin

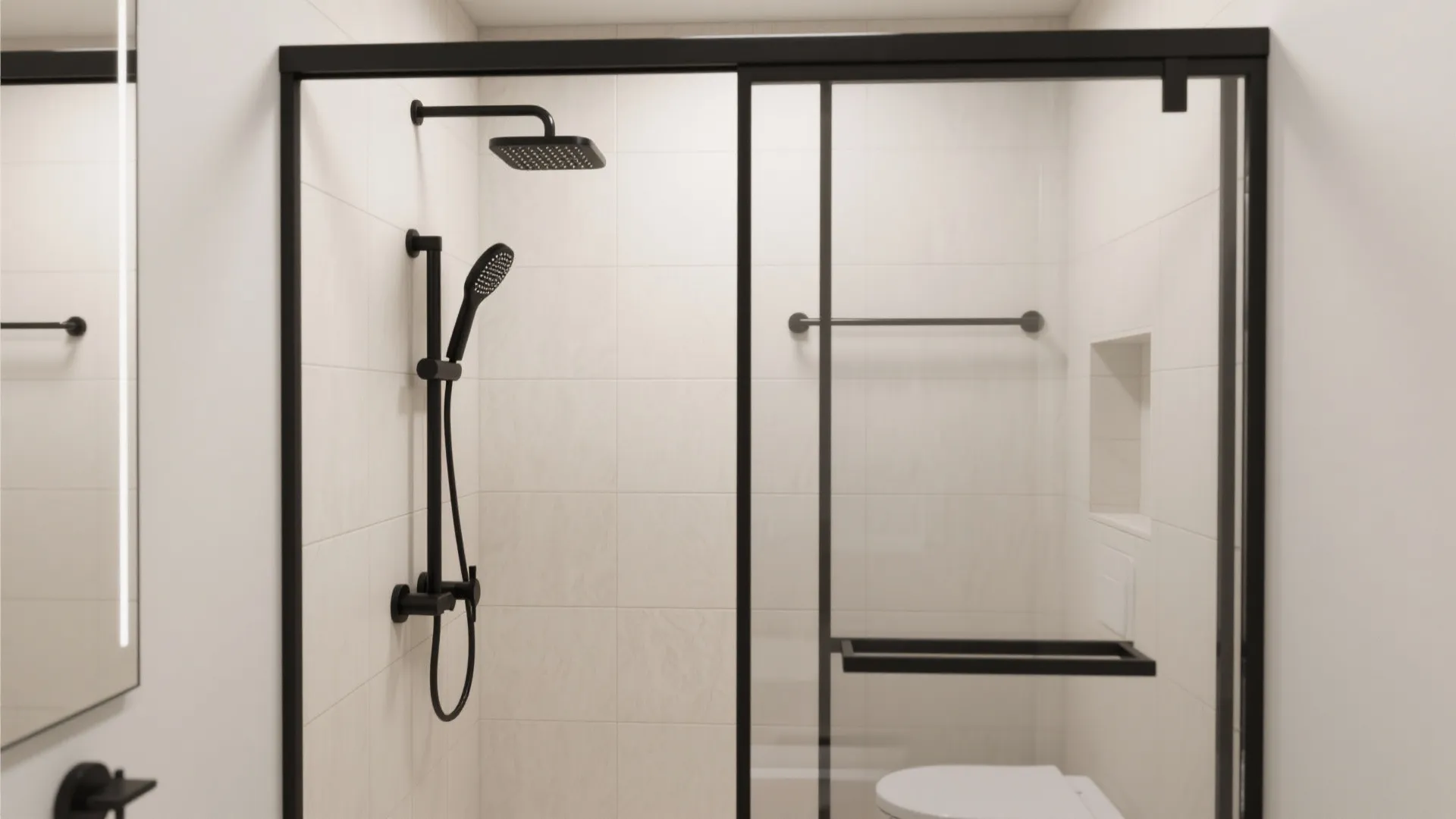

Sliding Glass Door + Matte Black Fixtures

When swing clearance is limited, a sliding door is a lifesaver. Matte black fixtures add crisp contrast to pale tile, and a slim thermostatic mixer keeps the profile tidy.

They look chic but show soap and mineral build‑up sooner—wipe after steam and choose a cartridge you can service from the front. I often build an AI-driven mood board to audition finishes side by side; it’s wild how handles and grout color change the read.

save pin

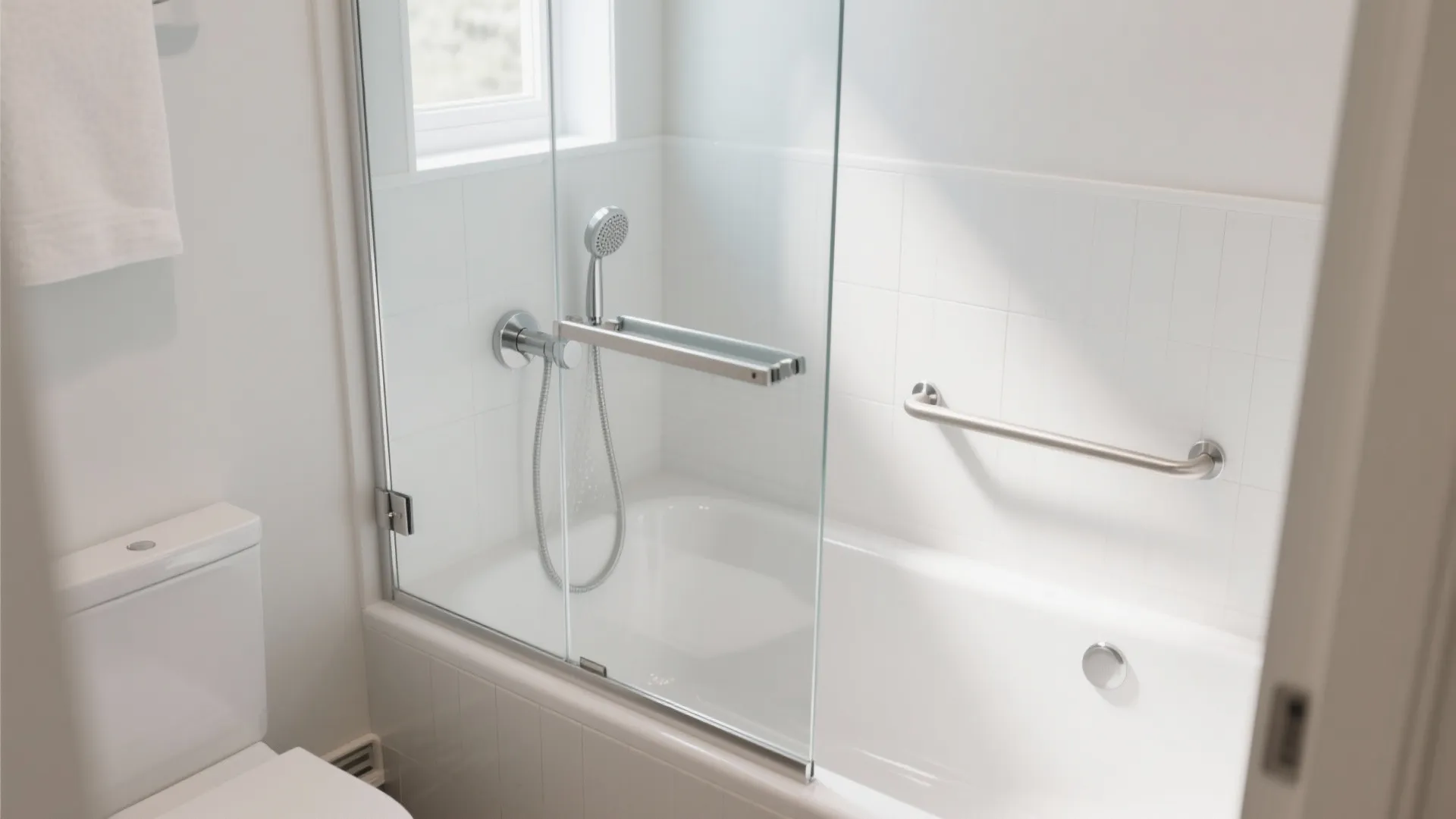

Foldable Screen Over Tub + Compact Valve

If you need a tub for kids or soaking, a hinged or foldable glass screen can turn it into a splash‑proof shower zone. Combine a compact thermostatic valve with a handheld on a short rail so you can rinse the tub easily.

Mind the hinge quality and the sweep seal—cheap ones yellow fast and leak. Budget for an extra grab bar at the tub’s edge; it’s subtle safety that ages gracefully with the space.

save pin

FAQ

What’s the best shower set for a small bathroom?

A slim thermostatic rail set with a handheld is hard to beat—safe temperature control, compact hardware, and flexible rinsing. Combine it with frameless glass to keep the room feeling open.

Do I need a thermostatic valve?

If your home has fluctuating pressure or kids, yes. It holds your set temperature and reacts faster to changes than pressure‑balance valves, reducing scald risk.

How high should a rain shower head be?

Typically 80–84 inches from the finished floor works, but adjust for user height and head size. Low ceilings benefit from a thin arm and a smaller diameter rain head.

What’s the minimum size for a comfortable walk‑in?

For accessibility, ADA transfer showers must be at least 36" x 36" and roll‑in showers 60" x 30" per the 2010 ADA Standards (official PDF). For non‑ADA residential, I still aim for 36" x 36" as a workable minimum.

Linear drain vs. center drain—which should I choose?

Linear drains allow a single‑plane slope and big tile, great for modern looks and accessibility. Center drains are more budget‑friendly but need a multi‑slope floor and smaller tiles.

What glass thickness is best for shower panels?

In most homes, 3/8" (10 mm) tempered glass balances rigidity and weight. Go 1/2" for frameless doors with wide spans, but make sure the wall anchors can take it.

Can a rain head work with low water pressure?

Pick a smaller diameter head and avoid air‑induction styles that need higher pressure. A quality valve, clean filters, and balanced supply lines make a noticeable difference.

How do I prevent leaks in a walk‑in shower?

Proper waterproofing layers (membrane, corners, and niche detailing) are non‑negotiable. Test the pan before tiling, and use a pro who follows manufacturer systems end‑to‑end.
