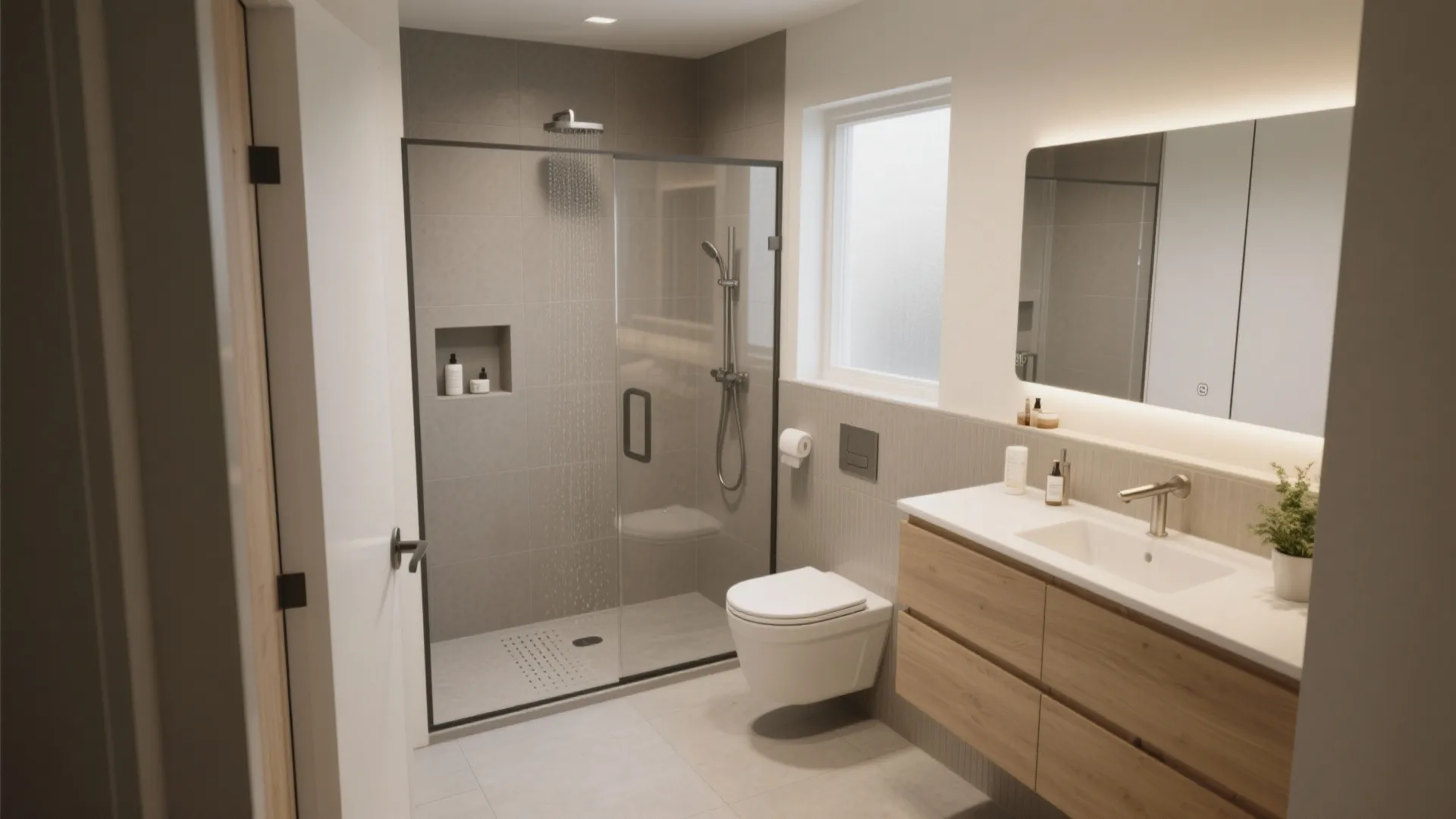

5x5 Bathroom Design: 5 Smart Ideas: Tiny footprint, big impact—my favorite 5x5 bathroom design tricks, layouts, and fixture picks from real remodels

I once measured a 5x5 bath and swore the door would clear the toilet by an inch. It didn’t—the hinge kissed the tank on install day, and my contractor gave me the slow clap. I jumped back to a quick mockup of layouts, pivoted to a pocket door, and saved the project (and my pride).

Small spaces spark big creativity, especially in a 5x5. I’ve redesigned more of these than I can count, so I’ll share five ideas I lean on—real tricks from real jobs, with the gotchas I’ve learned the hard way.

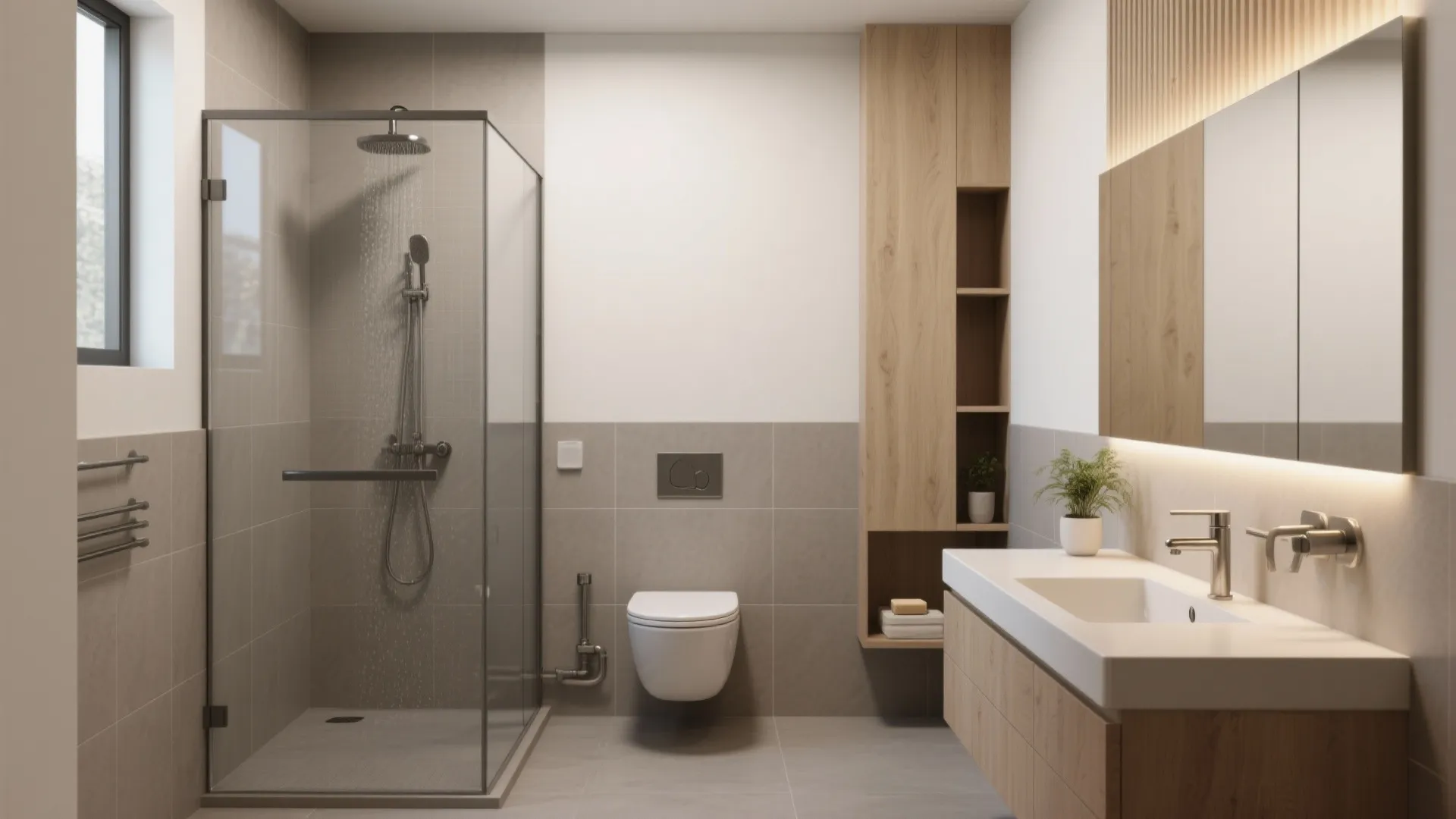

1) Line everything up on one wet wall

In 5x5 bathrooms, put the shower, toilet, and sink along a single wall to simplify plumbing and preserve floor area. It cuts costs, makes waterproofing cleaner, and leaves the opposite wall open for a narrow vanity or towel storage.

The trade-off? You’ll make choices about fixture sizes so the clearances work—think 18–20 inch deep vanity and a compact or wall-hung toilet. I usually run a shallow ledge over the wet wall to hide lines and add a spot for soap, plants, or your phone (we know how it goes).

save pin

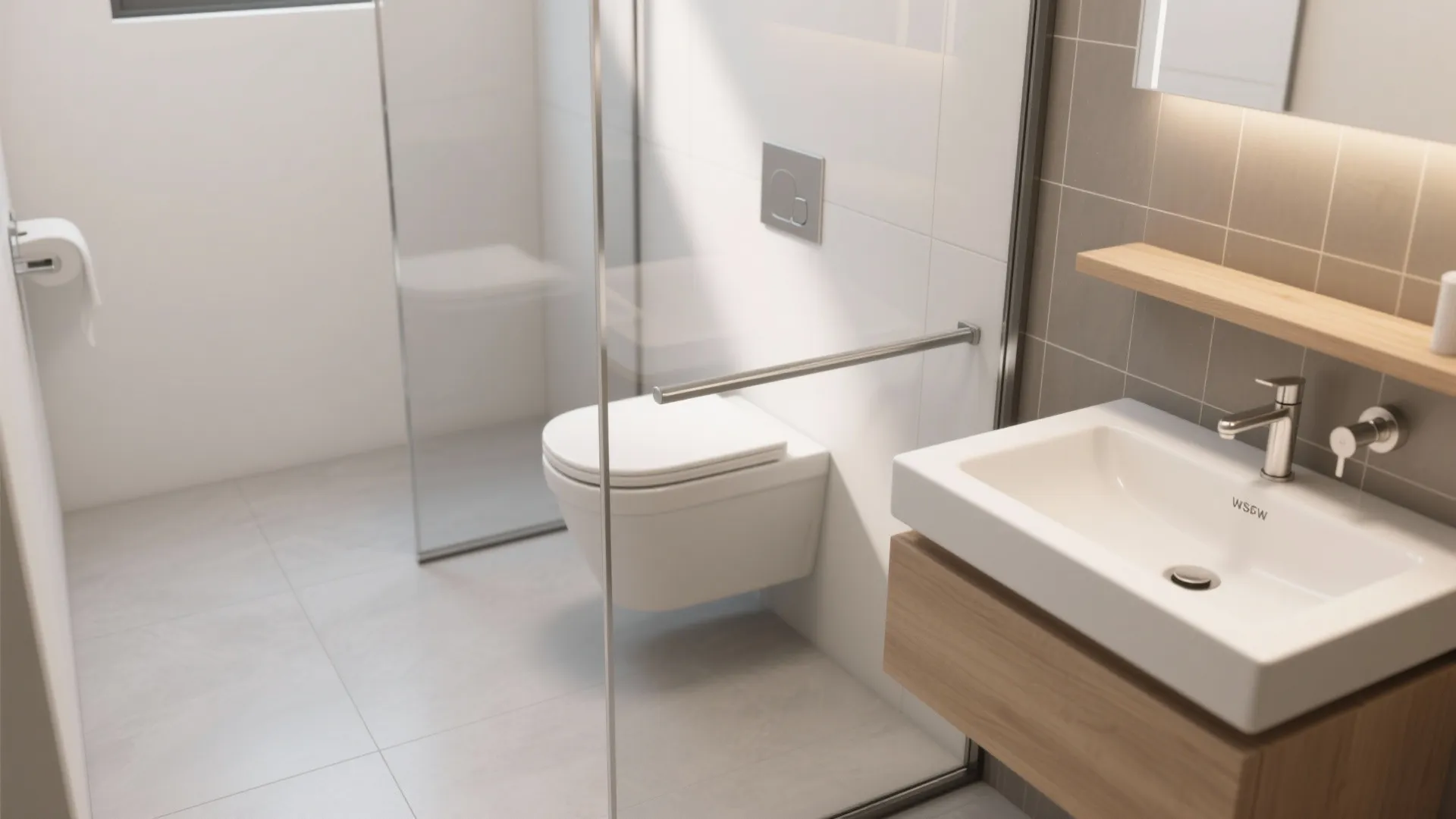

2) Go glass and slim with fixtures

Use a frameless glass panel instead of a full swing door, a wall-hung toilet, and a 16–18 inch projection sink. The floor feels continuous, and cleaning is faster—no clunky bases collecting grime.

The catch: wall-hung gear needs sturdy blocking and a good installer. Budget a little more for hardware, and pick a sink with a small apron so you’re not bruising shins every morning.

save pin

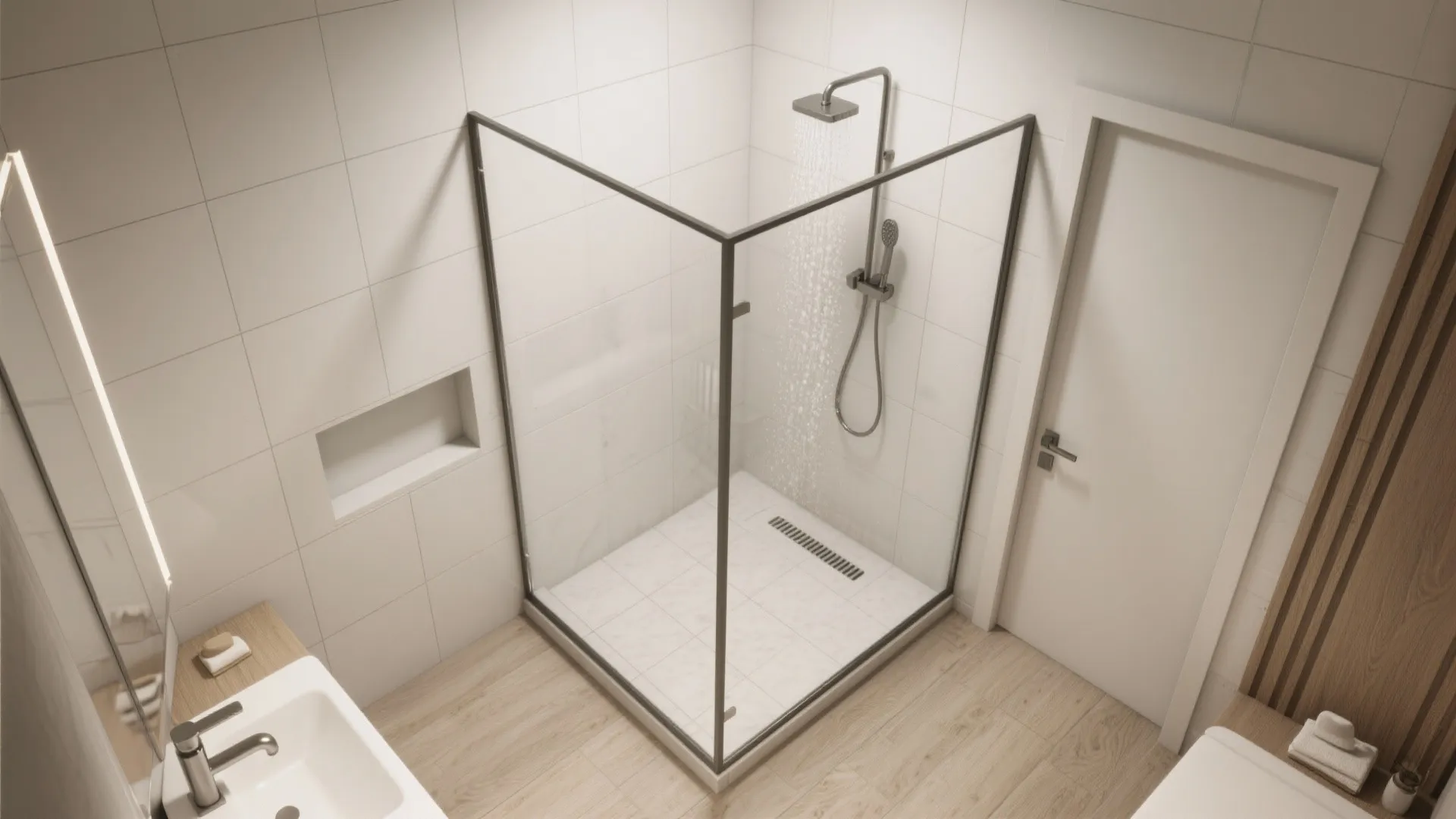

3) Treat it like a micro wet room

If a shower door gobbles space, slope the entire floor slightly toward a linear drain and let a single fixed glass screen contain the spray. Large-format tile (24x24) reduces grout lines, and a recessed niche keeps bottles off the floor.

Nervous about splashes or tight clearances? Before committing, test different door swings and glass panel widths; I’ve avoided many “oops” moments by simulating circulation and towel reach on screen first.

save pin

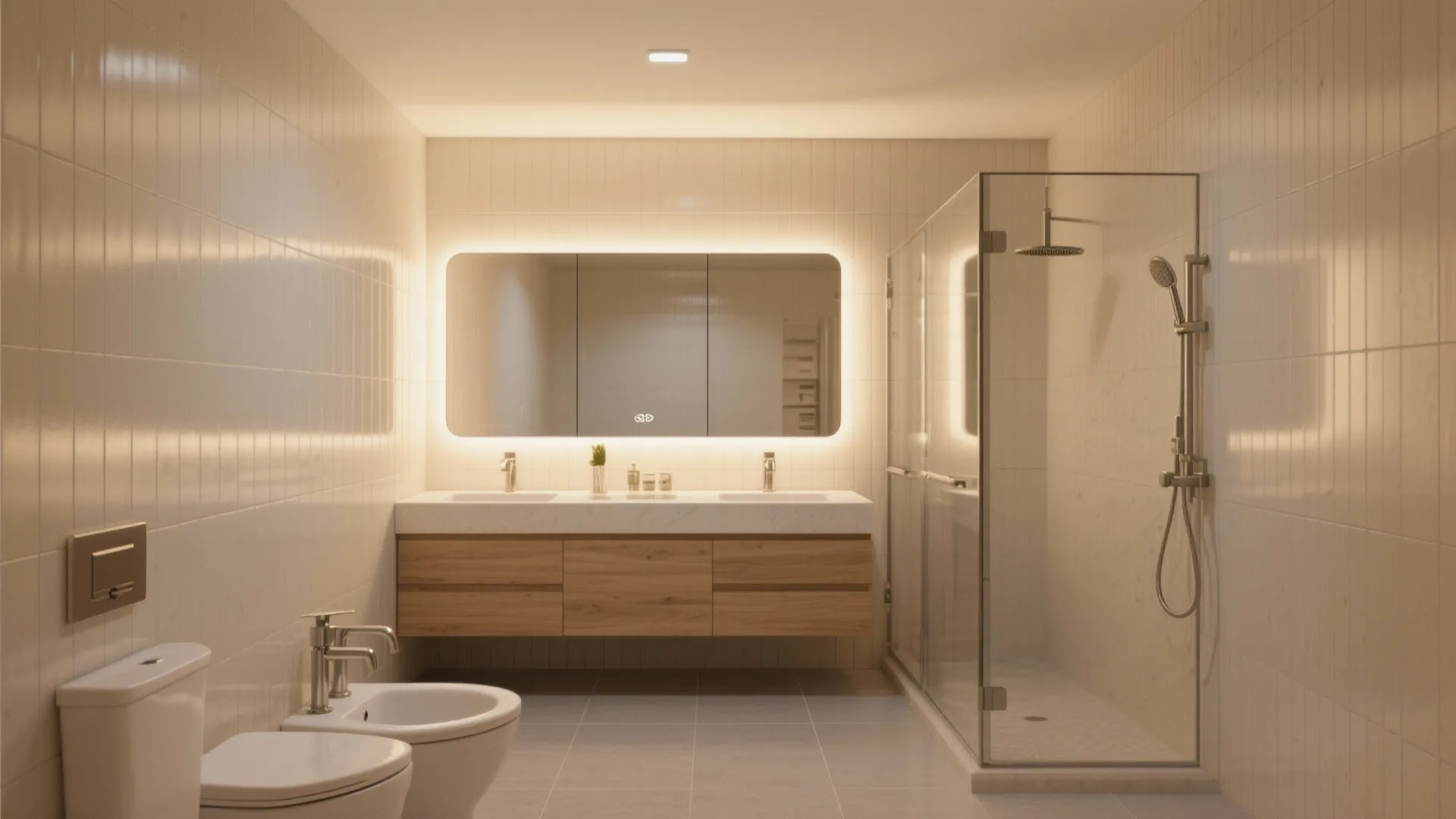

4) Stretch the room with light, mirrors, and lines

Run vertical tile or beadboard to draw the eye up, and backlight your mirror with warm LEDs (around 3000K) so faces look natural. I love a ceiling cove or a slim wall wash—soft light erases corners and visually widens the room.

Pro tip from a past project: a full-height mirror beside the vanity plus a clear glass shower panel creates one long reflection line. It’s basically optical cheating, and guests always ask why the bathroom feels bigger than it is.

save pin

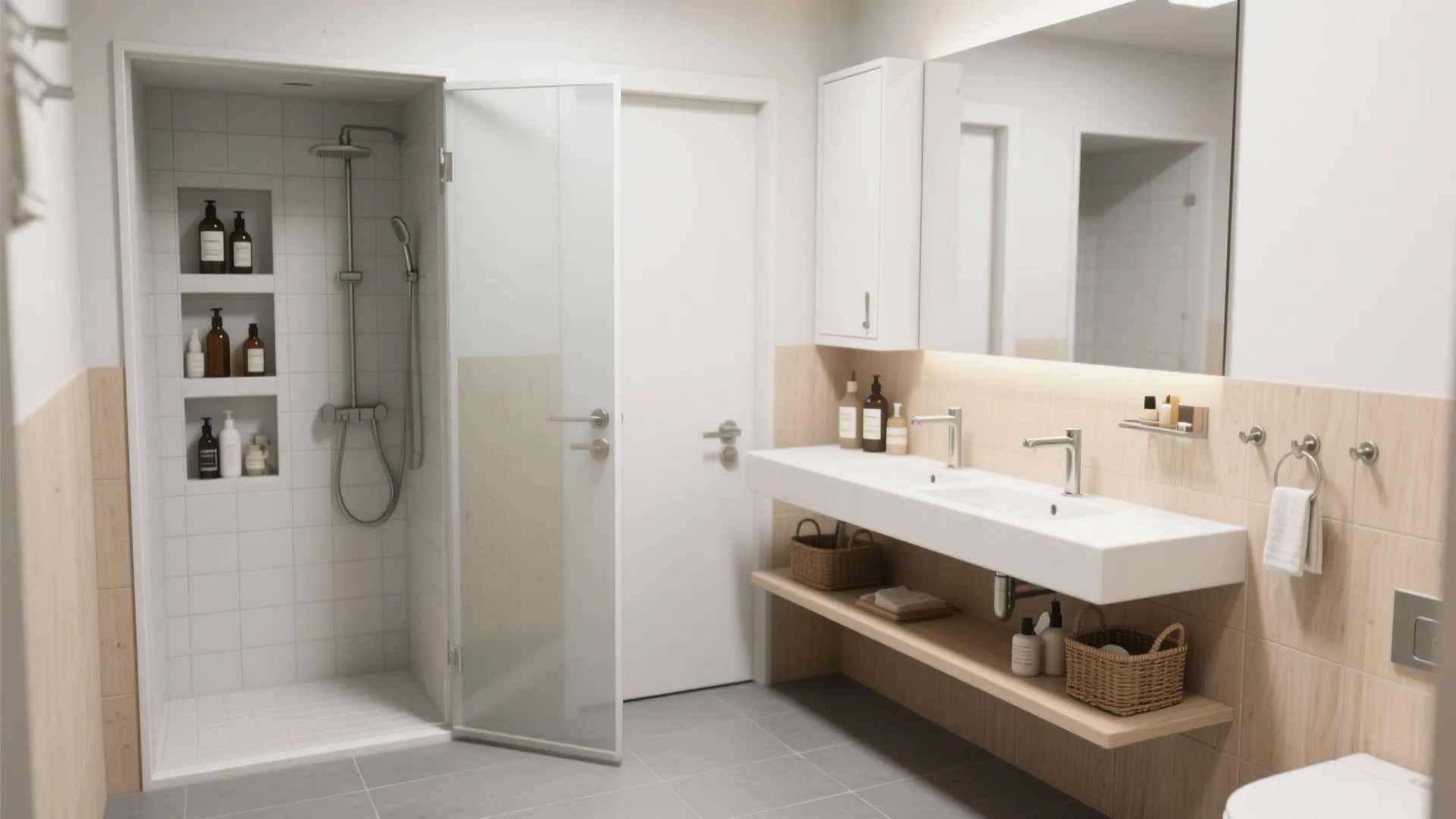

5) Hide storage in the walls and over the door

Recess medicine cabinets, niches, and even a slim cabinet above the door for spare towels and paper. A shallow shelf under a wall-hung vanity handles daily items; hooks beat bars for tight, busy households.

Finishes matter: pick matte tile on the floor and a soft-sheen wall tile so light scatters rather than glares. If you’re unsure about pairings, see material textures in 3D first—I’ve dodged many “green-on-green” mishaps that looked fine in photos but weird in real light.

save pin

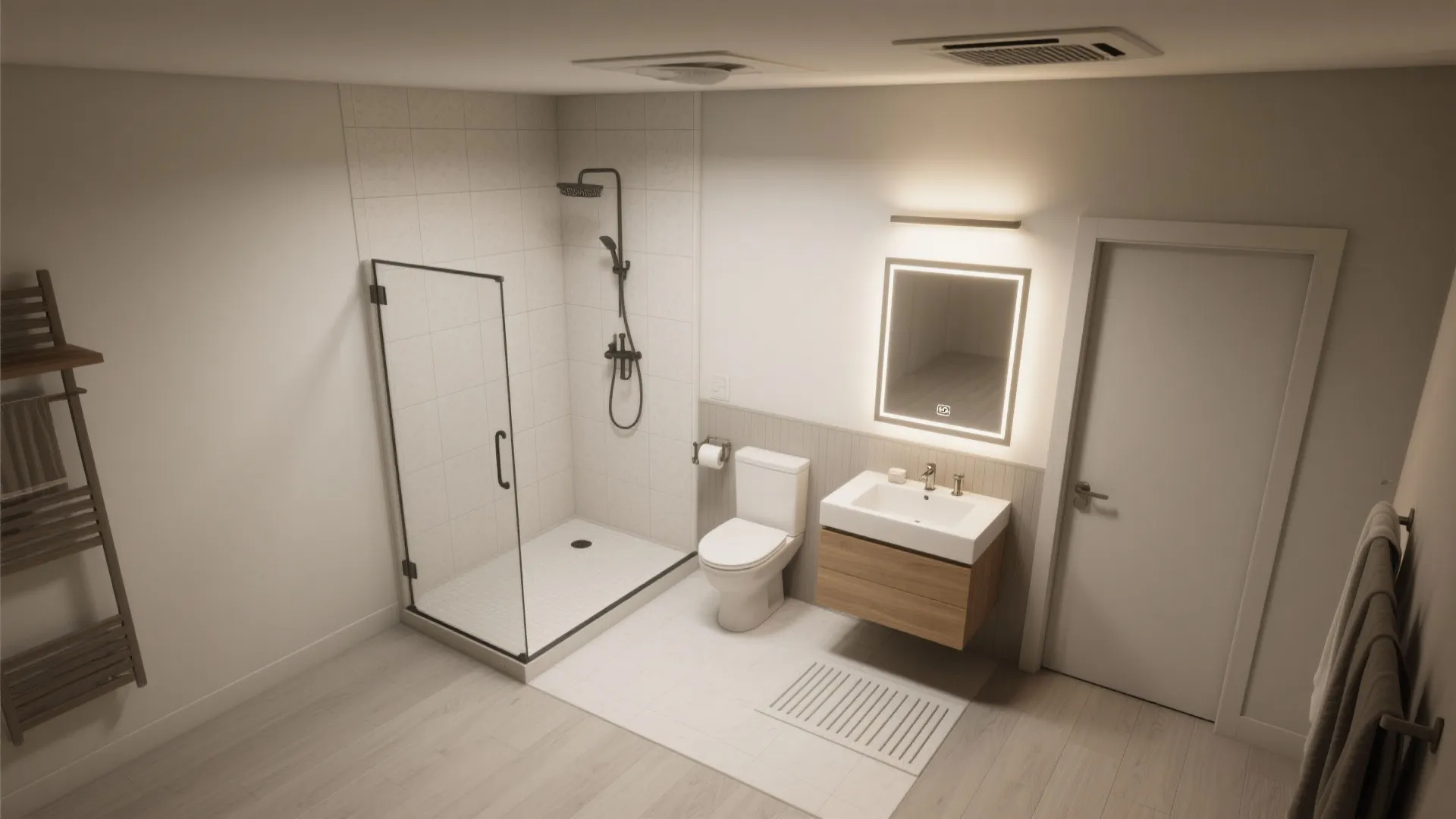

FAQ

What’s the best layout for a 5x5 bathroom? Usually a single wet wall with the shower at one end, toilet in the middle, and a shallow vanity opposite. It keeps pathways clear and plumbing compact.

Can a 5x5 fit a proper shower? Yes—use a 30x30 inch minimum inside the shower area. The 2021 International Residential Code (IRC) requires shower compartments to have at least 900 square inches and no dimension under 30 inches (see IRC P2708.1 at the International Code Council: https://codes.iccsafe.org).

Should I use a pocket door or a standard swing? Pocket doors are magic in tiny baths because they remove the swing clearance. If walls can’t accept pockets, consider an outswing or barn-style slider with soft-close hardware.

What toilet works best in 5x5 spaces? A wall-hung toilet with an in-wall tank saves 6–8 inches of projection and makes mopping easier. If budget’s tight, pick a compact elongated model with 26–27 inch projection.

How do I prevent water everywhere in a wet room? Use a linear drain, slightly increase floor slope near the shower, and add a fixed glass screen. Keep the shower head oriented away from the opening and seal the niche edges well.

What lighting makes a tiny bath feel bigger? Layer it: ambient (ceiling), task (mirror), and soft accent (wall wash or cove). Warm, even light reduces harsh shadows that make small rooms feel cramped.

How much storage can I get without bulk? Go recessed—medicine cabinet, shower niche, and a slim over-door cabinet. Hooks and small baskets beat deep shelves in tight footprints.

What ventilation do I need? Aim for a quiet fan rated for at least 80 CFM intermittent (or 50 CFM continuous) per ASHRAE 62.2 guidelines. Run it during showers and for 20 minutes after to keep moisture under control.
