Bathroom Design with Bathtub and Shower: 5 Smart Ideas: A senior interior designer’s friendly guide to fitting both a tub and a shower into real-life bathrooms—small footprints, big comfort, zero compromise.

I once squeezed a tub and shower into a 4'11" × 7'2" rental and still left knee-room for the toilet—barely. The save came after I sketched three layouts on a napkin and spun up some bath remodel mockups so my client could see it before we opened a single box. It taught me that small spaces force big creativity, and honestly, I live for that puzzle.

Today I’m sharing five ideas I use again and again for a bathroom design with bathtub and shower. I’ll show you where the space hides, what to prioritize, and a few traps to dodge—from splash zones to doors that bonk your shins.

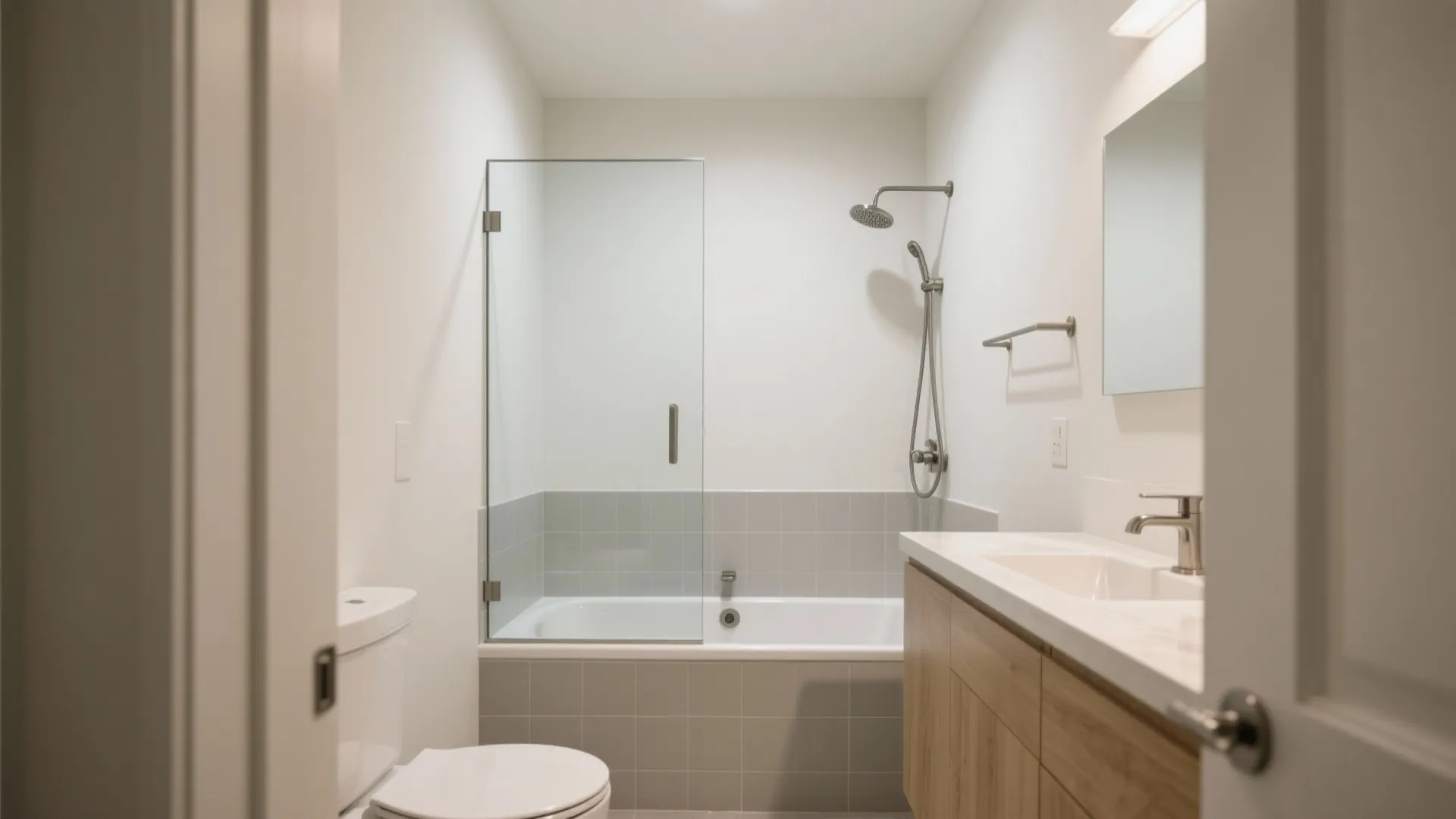

Idea 1: One-wall tub–shower combo with a fixed glass panel

If your room is long and narrow, run the tub along the short end and mount the shower on the same wall. A 60" alcove tub with a 24–30" fixed glass screen keeps water in without the visual heaviness of a full slider.

I like a slim-profile tub apron, wall-mounted faucet, and a hand shower that can moonlight as a tub filler. It’s simple, budget-friendly, and easy to clean—just mind that you’ll step over the tub to shower, which isn’t ideal for accessibility.

save pin

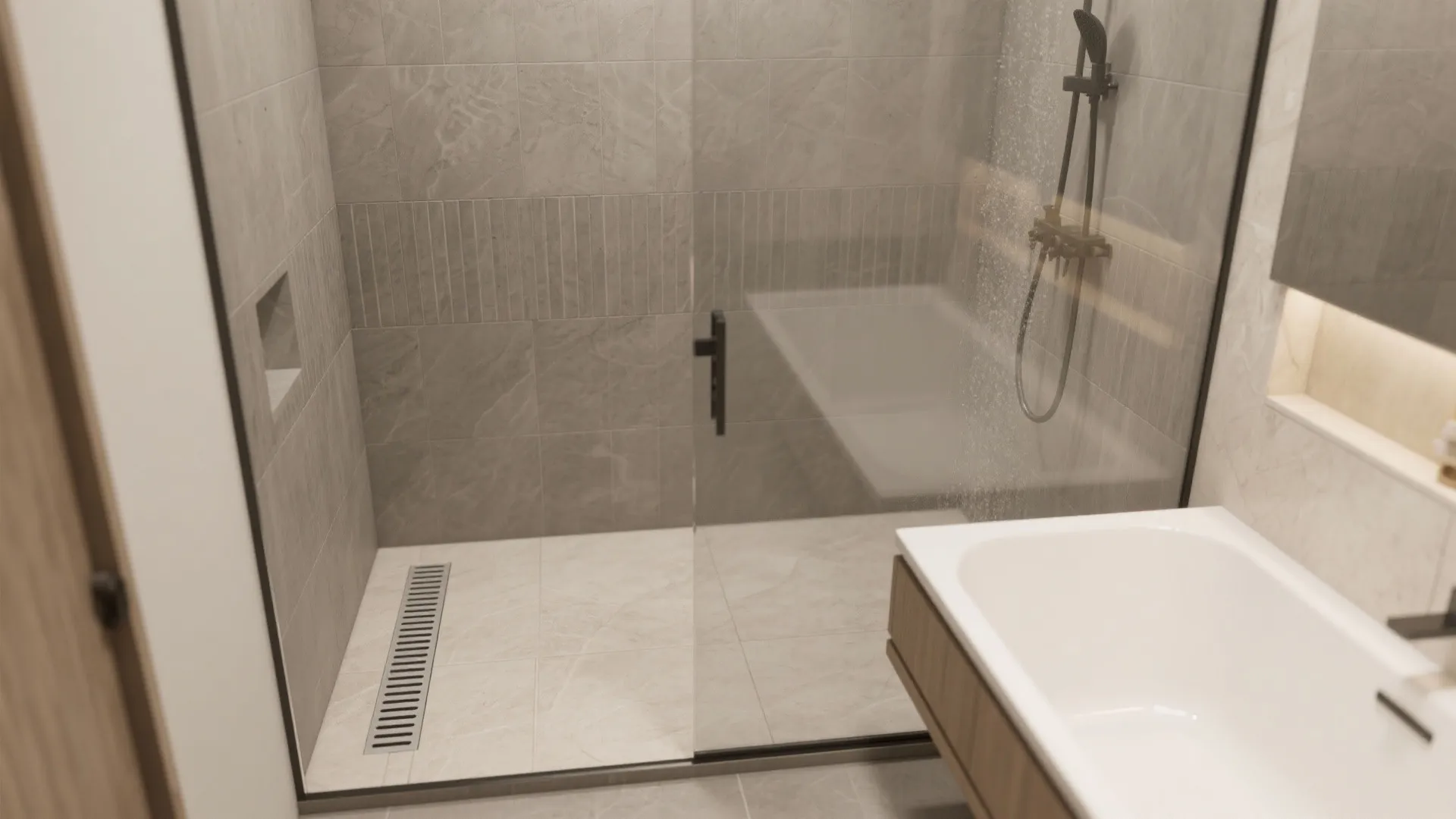

Idea 2: Mini wet-room vibe with a linear drain

When the room is truly tight, I’ll waterproof the whole shower end and use a partial-height glass panel or full-height glass with no door. A low-profile tub (or compact back-to-wall model) sits just beyond the shower zone so the whole area reads as one seamless surface.

The magic is the floor: pitch 1/4" per foot toward a linear drain and run large-format tiles right into the shower. Before committing, I often generate quick 3D floor renderings to check sightlines and splash risk; wet rooms look effortless, but ventilation, waterproofing, and thresholds need discipline.

save pin

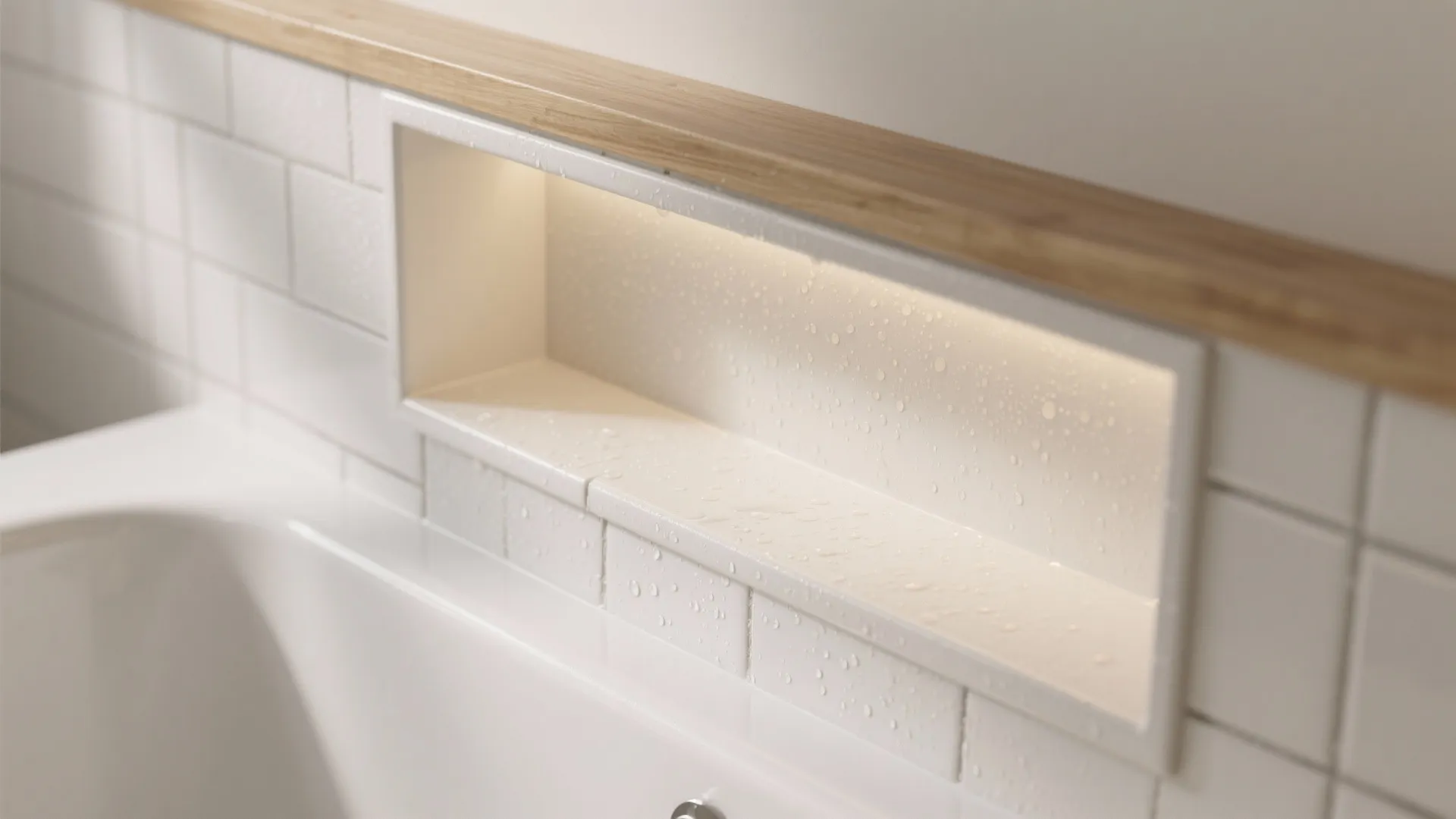

Idea 3: Build-in ledges and niches that work double-duty

A 4–6" deep tiled ledge along the tub wall is shampoo storage, a perch for shaving, and a visual “shelf” that makes narrow rooms feel intentional. I slope the bottom of niches slightly (about 1/16" per inch) so water doesn’t pool, and I avoid placing them on exterior walls in cold climates.

If the plumbing wall is tight, consider a tub deck return at one end—great for a book, candles, or just not dropping your phone in the abyss. The trade-off is a few inches of footprint, but the calm it adds is priceless.

save pin

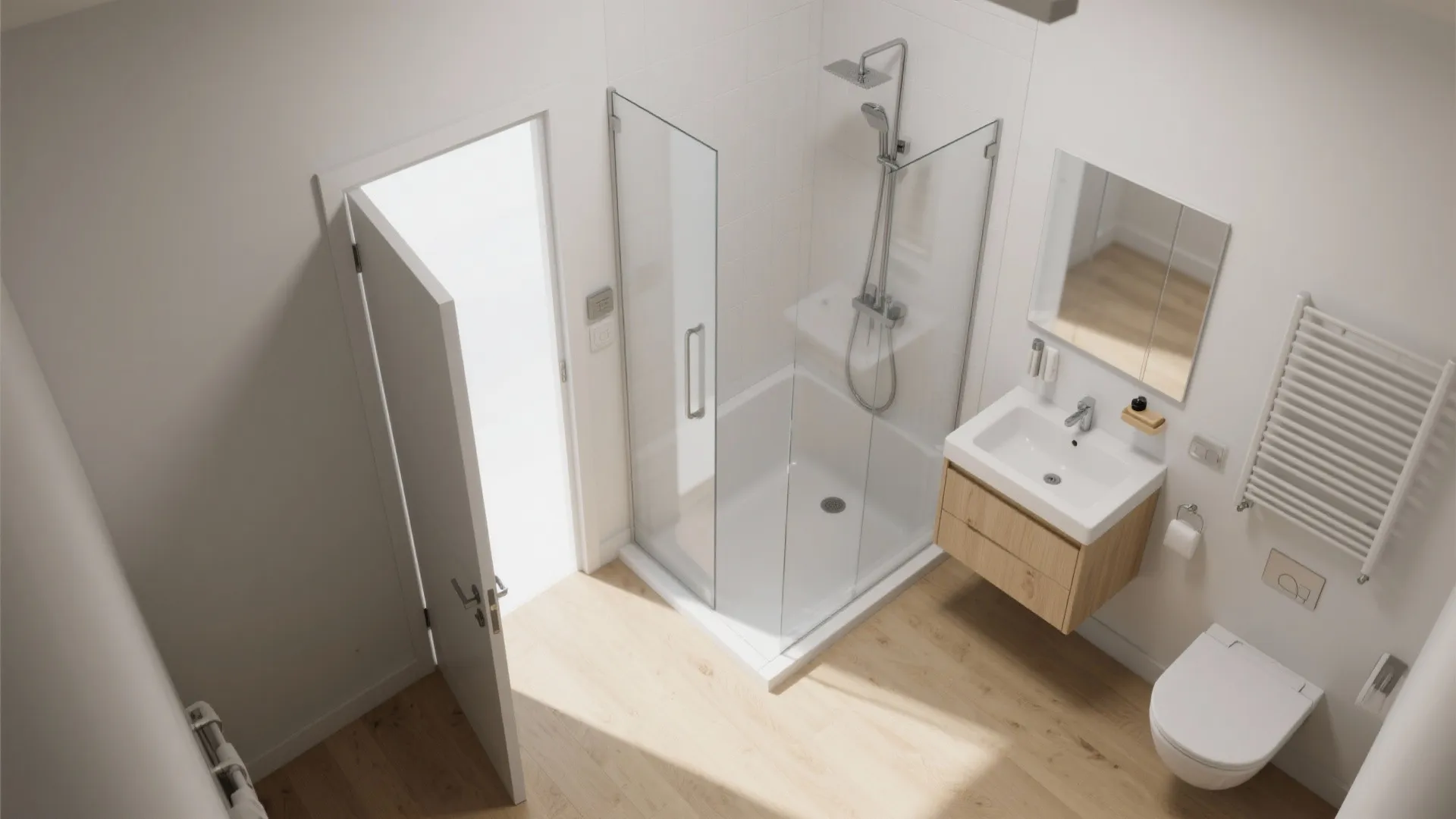

Idea 4: Control door swings and circulation like a hawk

The fastest way to break a small bath is an inward-swing door smacking the tub. I prefer a pocket door or an outward swing, plus at least 30–32" clear in front of the tub-shower so drying off isn’t a wrestling match with the towel bar.

Go wall-mounted where you can—vanity, toilet brush, even the radiator—to free up floor space and sightlines. Just budget for blocking in the walls, and check your local code for required clearances around fixtures.

save pin

Idea 5: Light, finish, and steam management for comfort

Layer your lighting: one dimmable overhead, a moisture-rated sconce at the mirror, and a small LED over the shower zone. Matte or honed tiles with good slip resistance underfoot, plus a soft mosaic on the shower floor, keep things safe and spa-like.

Use a quiet, right-sized exhaust fan and, if you take steamy baths, consider a heated towel rail to dry the room faster. When I’m balancing materials and mood, I’ll run quick AI interior previews to compare warm stone looks versus crisp porcelain—both are lovely, but one will suit your light and style better.

save pin

FAQ

1) What’s the minimum bathroom size for a tub and shower?

A: For a combined tub–shower, I can make it work in about 5' × 7'. For a separate tub and shower, 5' × 8' is a safer start, but 5' × 9' feels notably better for circulation.

2) Is a wet-room approach risky for leaks?

A: It’s only risky if waterproofing is sloppy. Use a full-tank waterproofing system, pre-slope the pan, and wrap membranes up the walls/curb; meticulous detailing beats fear every time.

3) What glass works best over a tub?

A: A 24–30" fixed panel is clean and easy to clean; hinged panels feel airy but need swing clearance. Full sliders contain splash best but add tracks to maintain.

4) How high should the shower head be above a tub?

A: I set the shower arm at about 78–80" above finished floor so tall folks aren’t ducking. If you love a rain head, add an adjustable hand shower for everyday practicality.

5) What are the code basics for shower size?

A: The IRC requires a shower to accommodate a 30" diameter circle (≈900 sq in) at minimum; bigger is nicer. Source: 2018 International Residential Code, P2708.

6) Do I need a special exhaust fan for a bath–shower combo?

A: Aim for at least 80–110 CFM in small baths and run it for 20–30 minutes after bathing. A humidity-sensing model saves you from remembering the timer.

7) Are freestanding tubs practical in small bathrooms?

A: They can be, but you’ll need 3–4" of cleanable space around them for access. A back-to-wall freestanding tub is a great middle ground that saves inches and simplifies cleaning.

8) What safety upgrades should I prioritize?

A: A thermostatic mixing valve, slip-resistant floor tile (check the DCOF rating), and a grab bar anchored to blocking. Even one well-placed grab bar turns a slick spot into a safe one.
