Common Problems When Converting Floor Plans into 3D Models and How to Fix Them: A practical troubleshooting guide to fix scaling, alignment, and layout errors when turning 2D floor plans into realistic 3D house models.

Direct Answer

The most common floor plan to 3D conversion problems come from incorrect scale, misaligned walls, missing architectural elements, and misinterpreted multi-level layouts. These issues usually happen when 2D drawings lack structural detail or when modeling tools guess dimensions automatically. Fixing them requires verifying measurements, rebuilding wall geometry, and manually confirming doors, windows, and levels.

Quick Takeaways

1. Most 3D modeling errors start with incorrect scale imported from the original floor plan.
2. Wall alignment problems usually come from inconsistent line thickness or overlapping walls.
3. Missing doors and windows often result from unclear symbols in the 2D plan.
4. Multi‑level homes fail during conversion when floor heights are not defined early.
5. Manual verification is often faster than trying to auto-correct a broken 3D model.

Introduction

In theory, converting a floor plan into a 3D model should be straightforward. In reality, it rarely is.

After working on residential design projects for more than a decade, I’ve seen how small mistakes in 2D drawings quickly become major problems once they’re translated into 3D space. A wall that’s two inches off in the plan suddenly blocks a hallway. A missing window turns an otherwise bright room into a dark box.

This is why many designers and homeowners run into frustrating floor plan to 3D conversion problems even when they’re using modern software. The tools are powerful, but they still depend heavily on the quality of the original drawing.

If you're currently building a model and something feels off, the issue is rarely random. There are a few patterns I see over and over again.

Before troubleshooting deeper modeling errors, it helps to understand how reliable tools interpret architectural drawings. A good example is how modern systems automatically translate measurements and wall structures when generating layouts like those shown in this interactive 3D floor planning workflow.

In this guide, I’ll walk through the most common mistakes I encounter when turning 2D plans into 3D house models—and more importantly, how to fix them quickly.

save pin

Why Floor Plan to 3D Conversions Often Go Wrong

Key Insight: Most conversion failures happen because 2D drawings lack the structural clarity that 3D modeling requires.

A floor plan is essentially a symbolic language. Architects use line weights, symbols, and annotations that humans understand instantly—but software doesn’t always interpret them correctly.

For example, thick lines may represent structural walls, but if the file is imported as a simple image or PDF, the modeling tool might treat every line as the same object.

Common causes I see in real projects include:

1. Non‑uniform scale between different rooms
2. Overlapping or double wall lines
3. Unclear door swing symbols
4. Missing wall thickness information
5. Furniture mistaken for structural elements

Industry modeling tools rely heavily on geometry detection. When the input plan lacks clean geometry, the software essentially guesses—and guesses often lead to broken models.

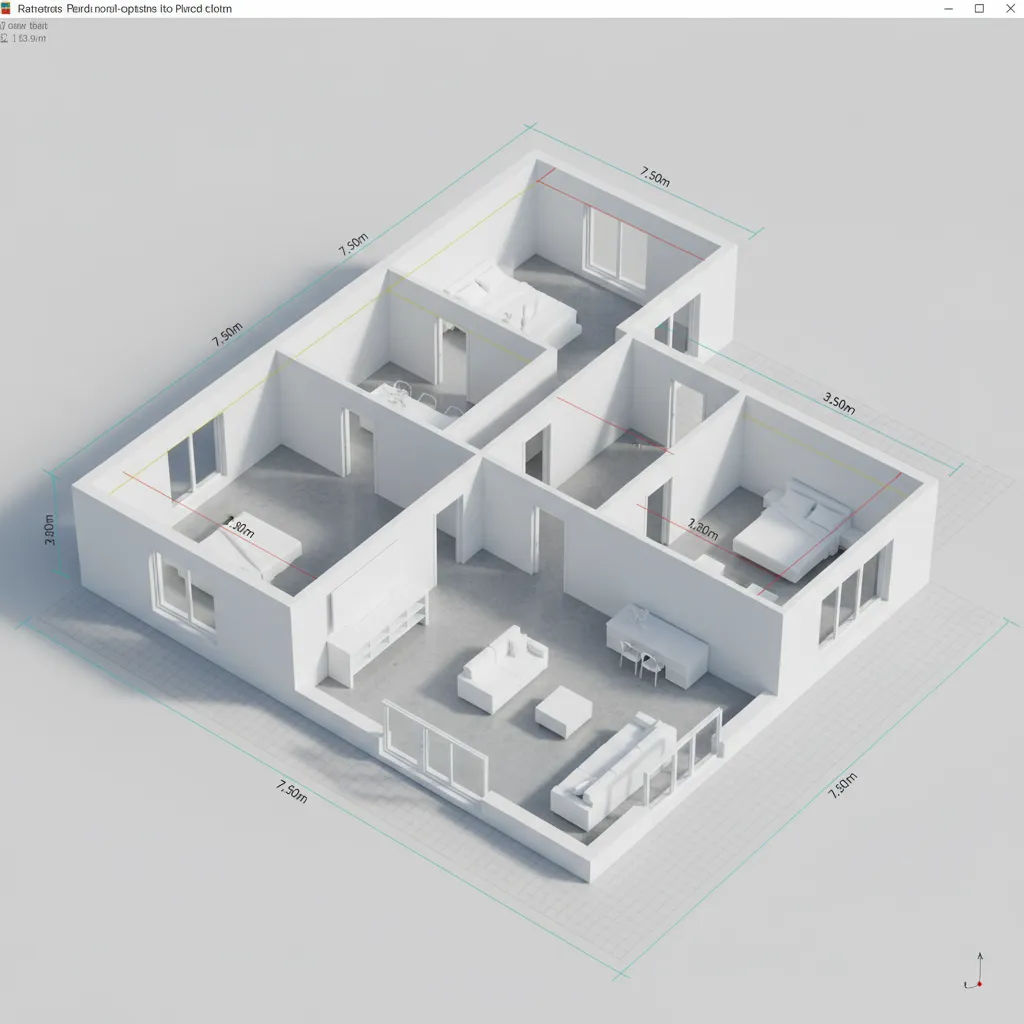

Fixing Scale and Dimension Errors in 3D House Models

Key Insight: If a 3D house model feels "off," incorrect scale is almost always the root problem.

I’ve reviewed dozens of projects where rooms looked distorted in 3D, and nearly every time the problem traced back to one missing measurement reference.

Before converting any floor plan, I recommend validating three anchor dimensions:

1. Total building width
2. Main hallway length
3. One verified room dimension

Steps to correct scaling issues:

1. Import the floor plan as a reference layer.
2. Set one confirmed measurement as the scale baseline.
3. Lock the drawing scale before adding walls.
4. Rebuild walls using exact numeric inputs instead of dragging.

Design software has improved a lot in automated scaling. Some modern solutions—like the workflow shown in this AI-assisted floor plan conversion example—can detect dimensions automatically, but even then I always double-check two rooms manually.

save pin

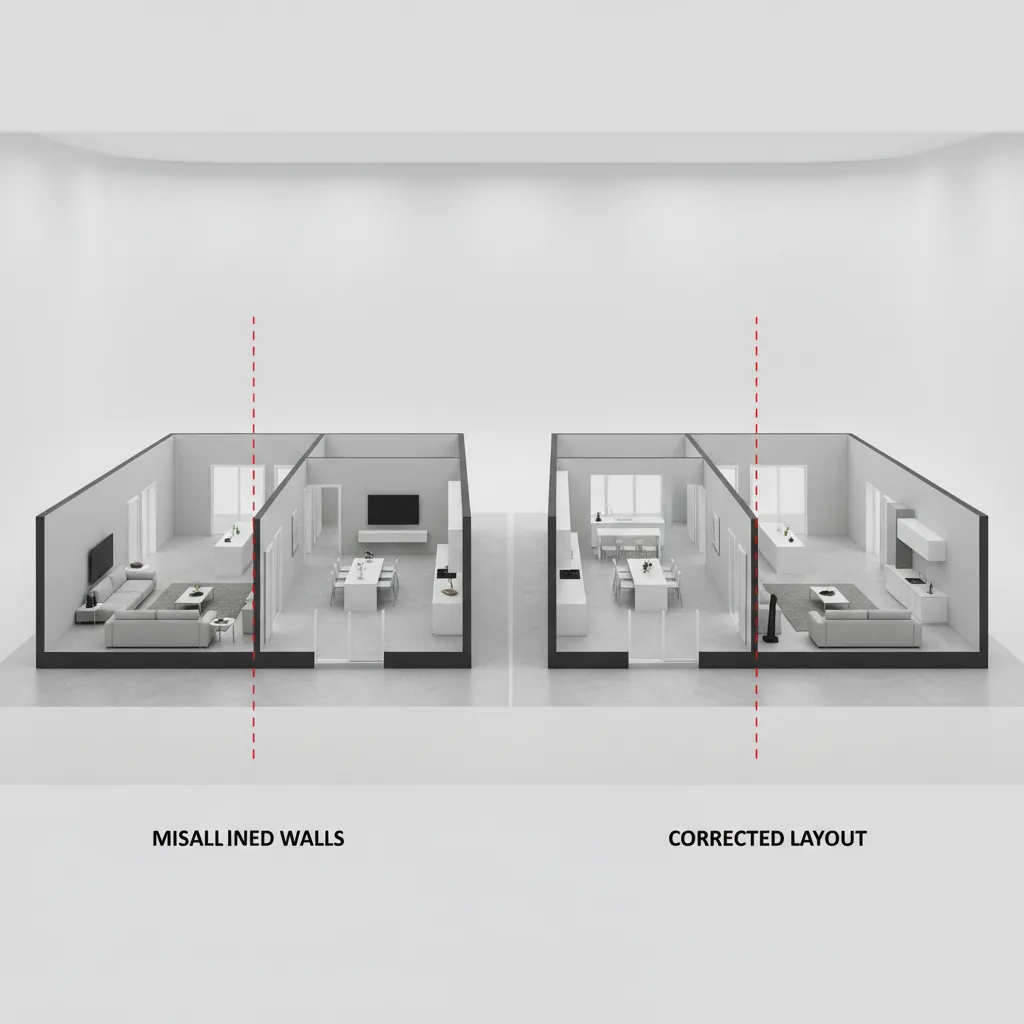

Correcting Wall Alignment and Structural Issues

Key Insight: Misaligned walls usually come from duplicated line layers or inconsistent wall thickness during conversion.

When software detects two parallel lines, it assumes they represent a wall. But if those lines are slightly offset or duplicated, the system may create overlapping walls or irregular geometry.

Signs of wall alignment problems include:

1. Corners that don’t connect cleanly
2. Walls that extend past intersections
3. Strange gaps appearing in 3D views

Fixing these issues often requires rebuilding geometry rather than adjusting it.

My typical repair workflow:

1. Delete auto‑generated wall segments.
2. Trace structural walls manually using snapping tools.
3. Set a consistent wall thickness across the entire model.
4. Verify intersections in plan view before switching to 3D.

This might sound slower, but rebuilding a clean structure is often faster than fixing dozens of micro‑errors later.

Solving Missing Elements Like Doors and Windows

Key Insight: Doors and windows disappear during conversion because their symbols vary widely between architectural drawings.

Unlike walls, which are relatively standardized, door and window symbols change from architect to architect.

Common interpretation failures include:

1. Door arcs interpreted as walls
2. Sliding doors ignored completely
3. Windows mistaken for wall gaps

The solution is simple but often overlooked: treat openings as a second modeling step.

Instead of relying on automatic detection:

1. Place structural walls first
2. Add doors and windows manually afterward
3. Verify sill heights and swing directions

This two‑step approach significantly reduces troubleshooting later.

save pin

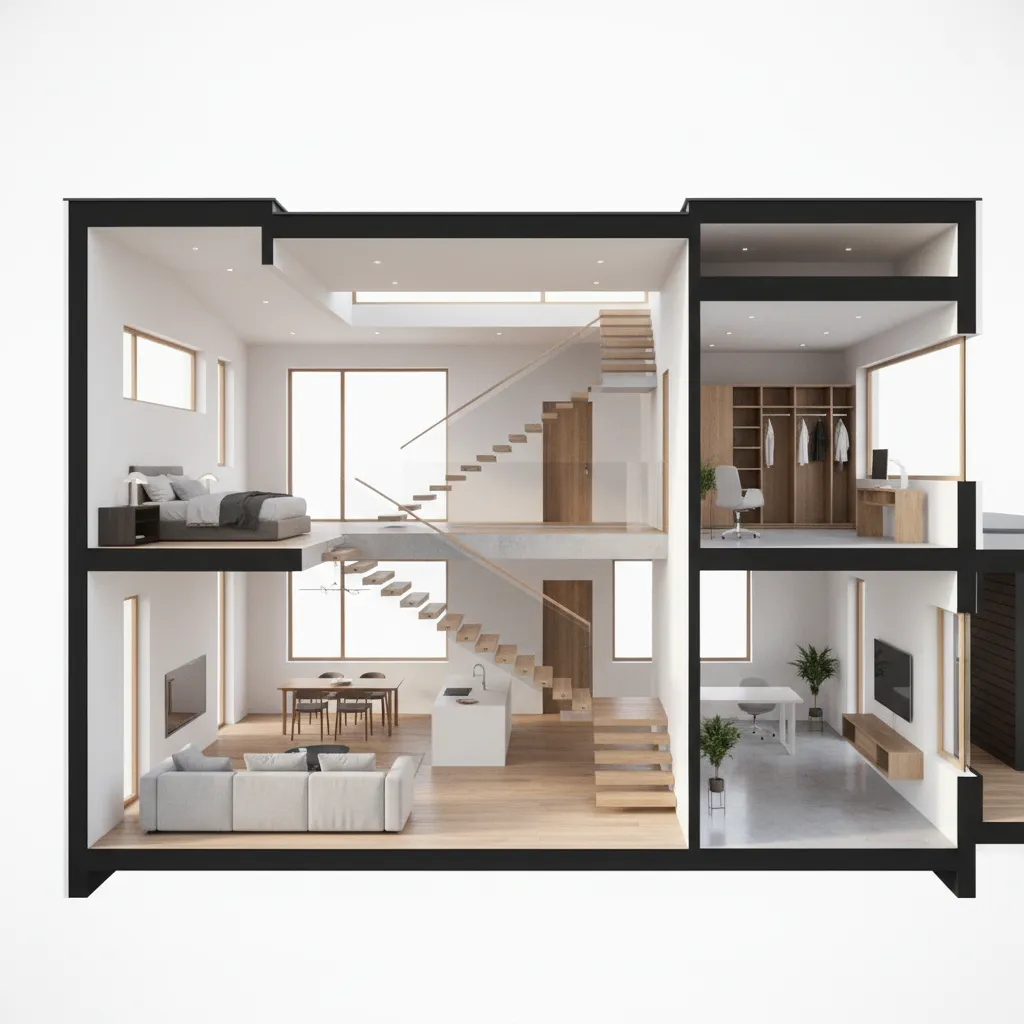

Handling Complex Layouts and Multi-Level Homes

Key Insight: Multi-level homes fail in 3D modeling when floor heights and stair alignments are not defined early.

Two‑story houses introduce a layer of complexity many beginners underestimate.

The biggest mistakes I see include:

1. Building the entire structure on one floor level
2. Incorrect ceiling height assumptions
3. Stairs that don’t align with upper floor openings

To avoid these issues, establish vertical structure first:

1. Create separate levels for each floor.
2. Set floor-to-floor heights immediately.
3. Place staircases before adding upper walls.
4. Align stair openings between floors.

Many beginners skip this step because 2D plans rarely show vertical information clearly.

save pin

Answer Box

The fastest way to fix floor plan to 3D conversion problems is to verify scale first, rebuild wall geometry second, and add doors, windows, and levels last. Clean structural geometry prevents most modeling errors before they appear.

Best Practices to Avoid Conversion Errors

Key Insight: Prevention is easier than repair when converting floor plans into 3D models.

Over the years, I’ve noticed that experienced designers follow a consistent workflow that dramatically reduces modeling mistakes.

1. Start with verified dimensions
2. Build structural walls first
3. Define floor levels early
4. Add openings and fixtures later
5. Validate the model in both 2D and 3D views

If you want to see how clean workflows prevent most errors, this example of a step-by-step digital floor plan creation process shows how structured modeling dramatically improves final results.

Final Summary

1. Incorrect scale is the most common reason a 3D house model looks wrong.
2. Wall alignment errors usually originate from messy floor plan geometry.
3. Doors and windows should be added after walls are finalized.
4. Multi-level homes require early vertical planning.
5. Clean modeling workflows prevent most conversion problems.

FAQ

Why does my 3D house model look distorted?

The most common cause is incorrect scaling during import. Always verify at least one real-world dimension before building walls.

What are the most common floor plan to 3D conversion problems?

Scale mismatches, misaligned walls, missing doors or windows, and incorrect floor heights are the most frequent issues.

Can software automatically convert floor plans to 3D?

Yes, but automation still requires clean input drawings and manual verification of measurements.

Why are my walls overlapping in 3D?

This usually happens when duplicate or offset wall lines exist in the original floor plan.

How do I fix scaling issues in 3D floor plan models?

Set a verified dimension as a scaling reference and rebuild walls using numeric measurements.

Why are doors missing after conversion?

Door symbols vary widely across architectural plans, so automatic detection often fails.

How do I model multi-story houses correctly?

Create separate floor levels first, define ceiling heights, and align stairs between floors.

What’s the fastest way to troubleshoot 3D house modeling from blueprints?

Check scale, rebuild wall geometry, then reinsert doors and windows manually.
