カスタムモデリングツールの一連の主要機能は、あなたの強力なアシスタントになります!ワンクリックでの3Dテキスト生成、モデルのサイズや位置の柔軟な調整、反転や配列機能を使用したクリエイティブなレイアウトの作成、そして面取りやブーリアン機能によるモデルへの独自ディテールの追加にいたるまで、これらの実用的かつ強力な機能があなたをサポートします。次に、これらの各機能を詳しく見て、モデリング体験をどのように向上させるかを発見してみましょう。
すべてのユーザー
1. ワークスペースに入り、右上で新しい3Dプロジェクトを選択します。
2. 3Dデザインに入り、カスタムデザイン - カスタムモデリングを選択します。

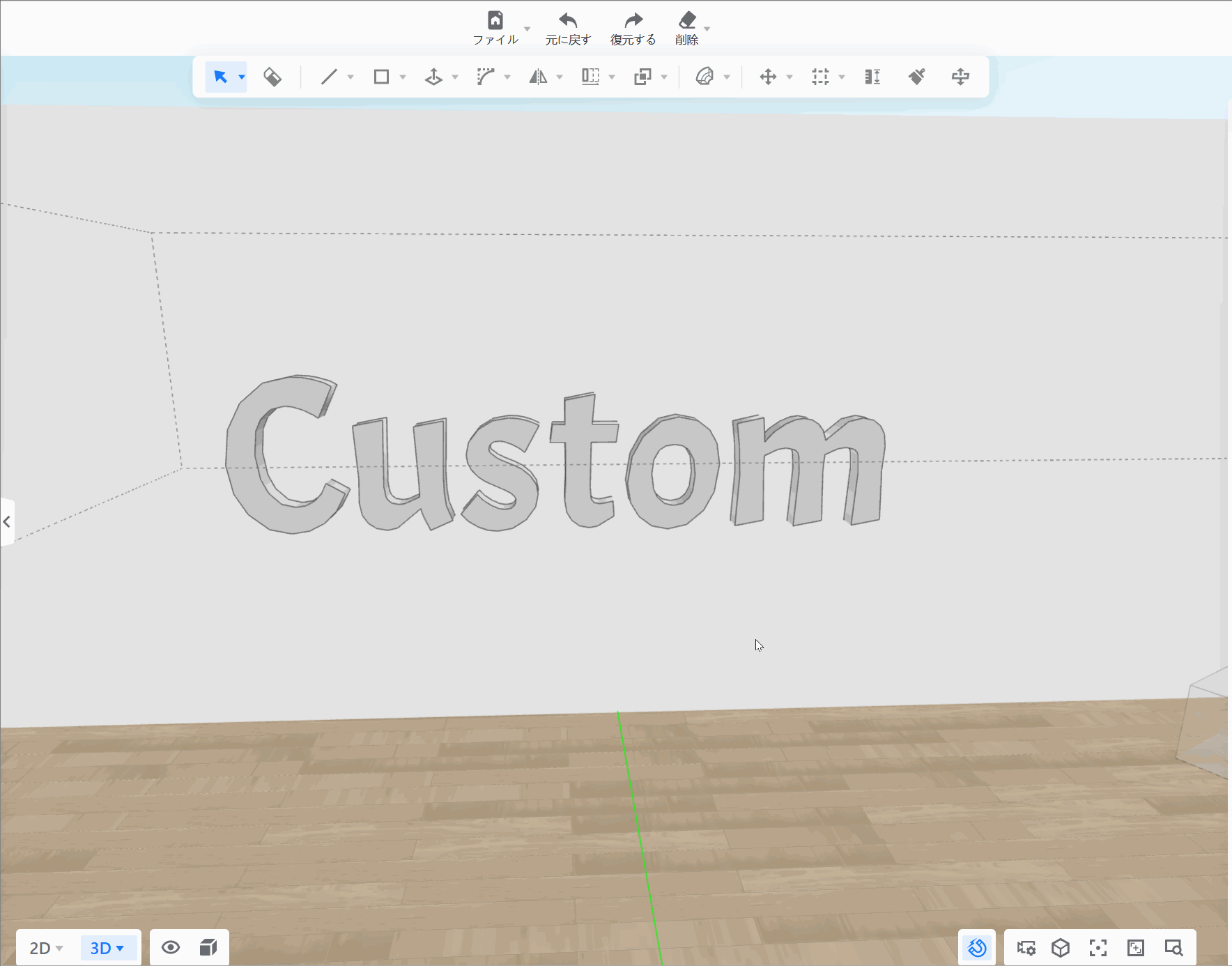

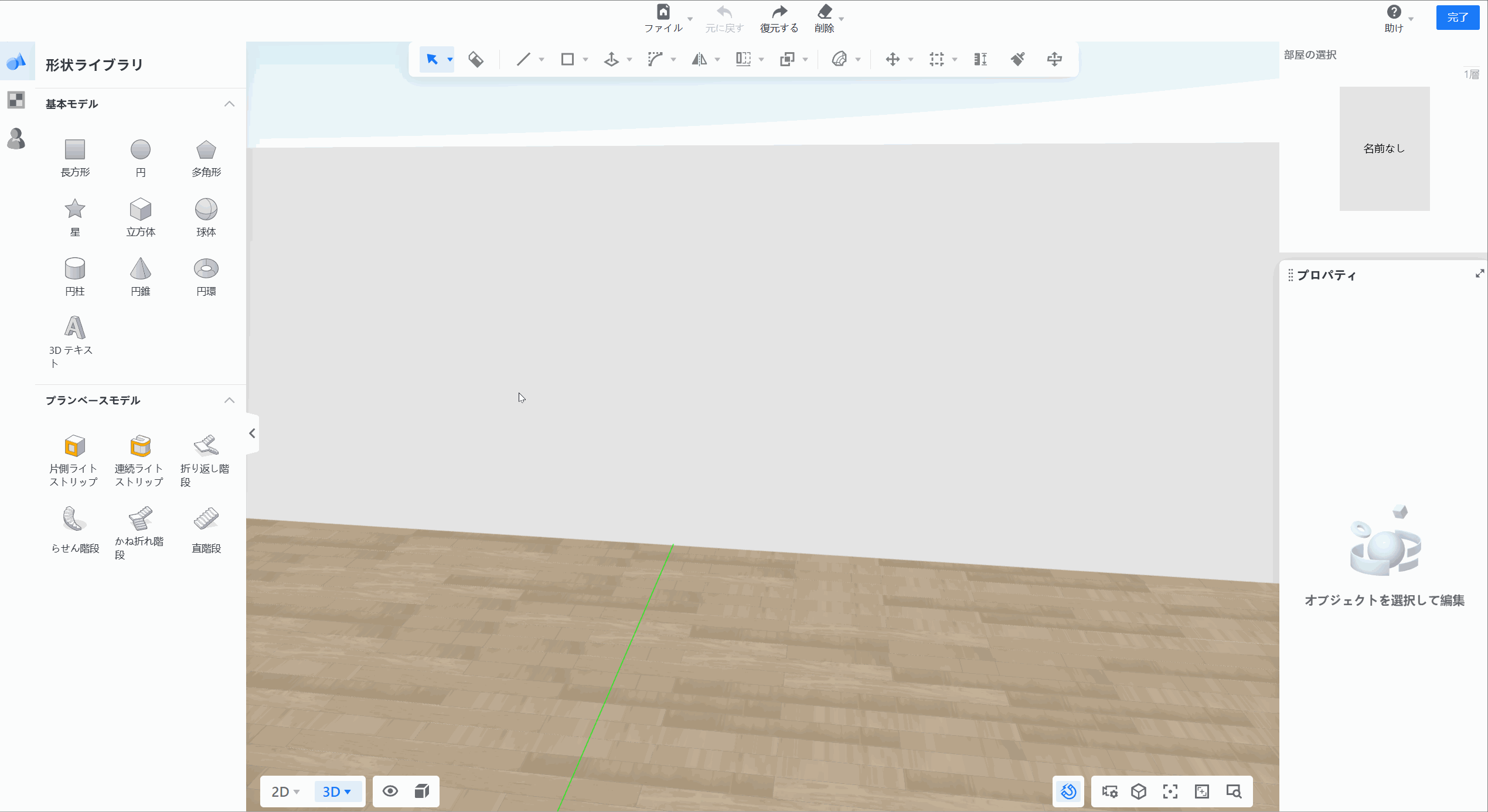

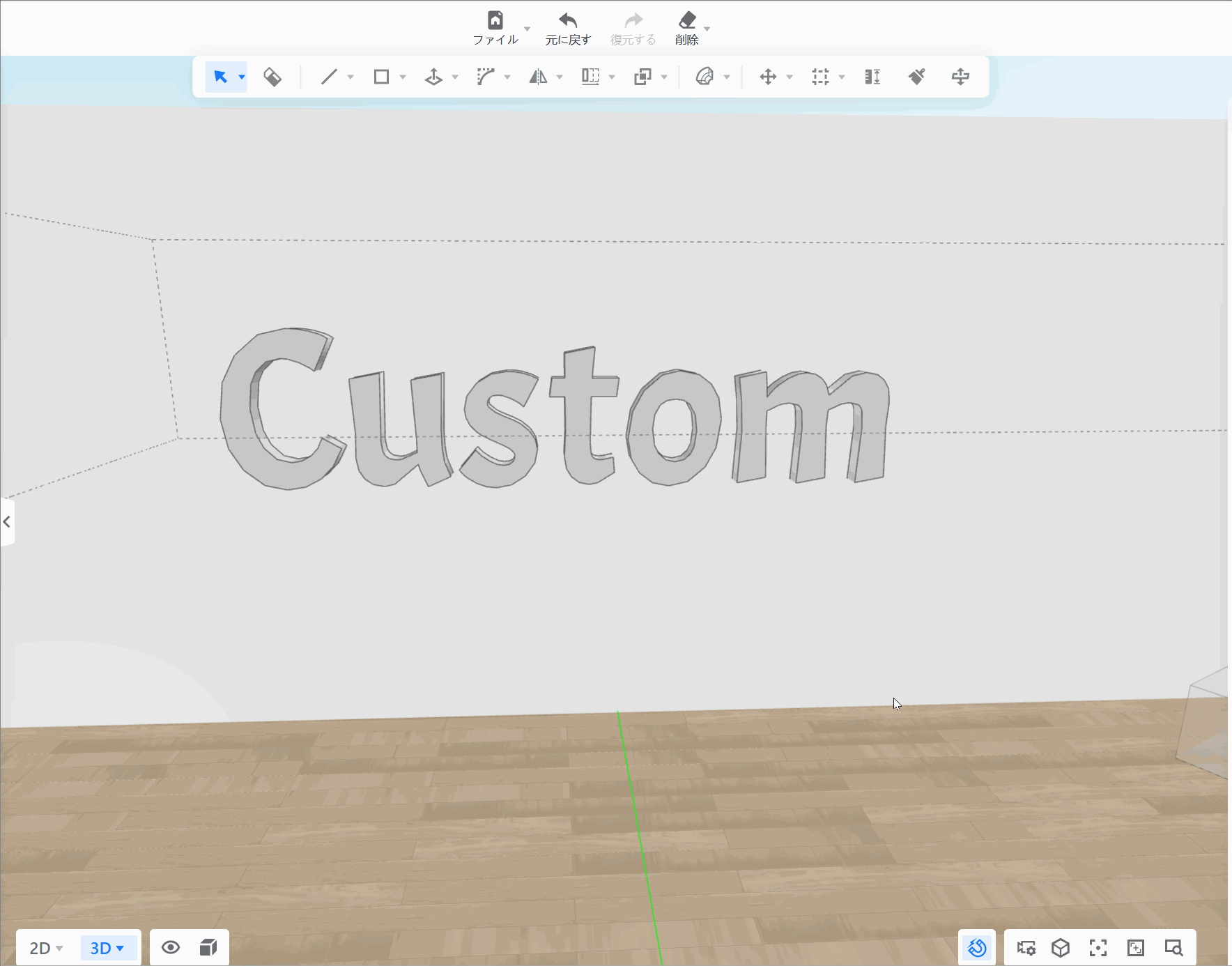

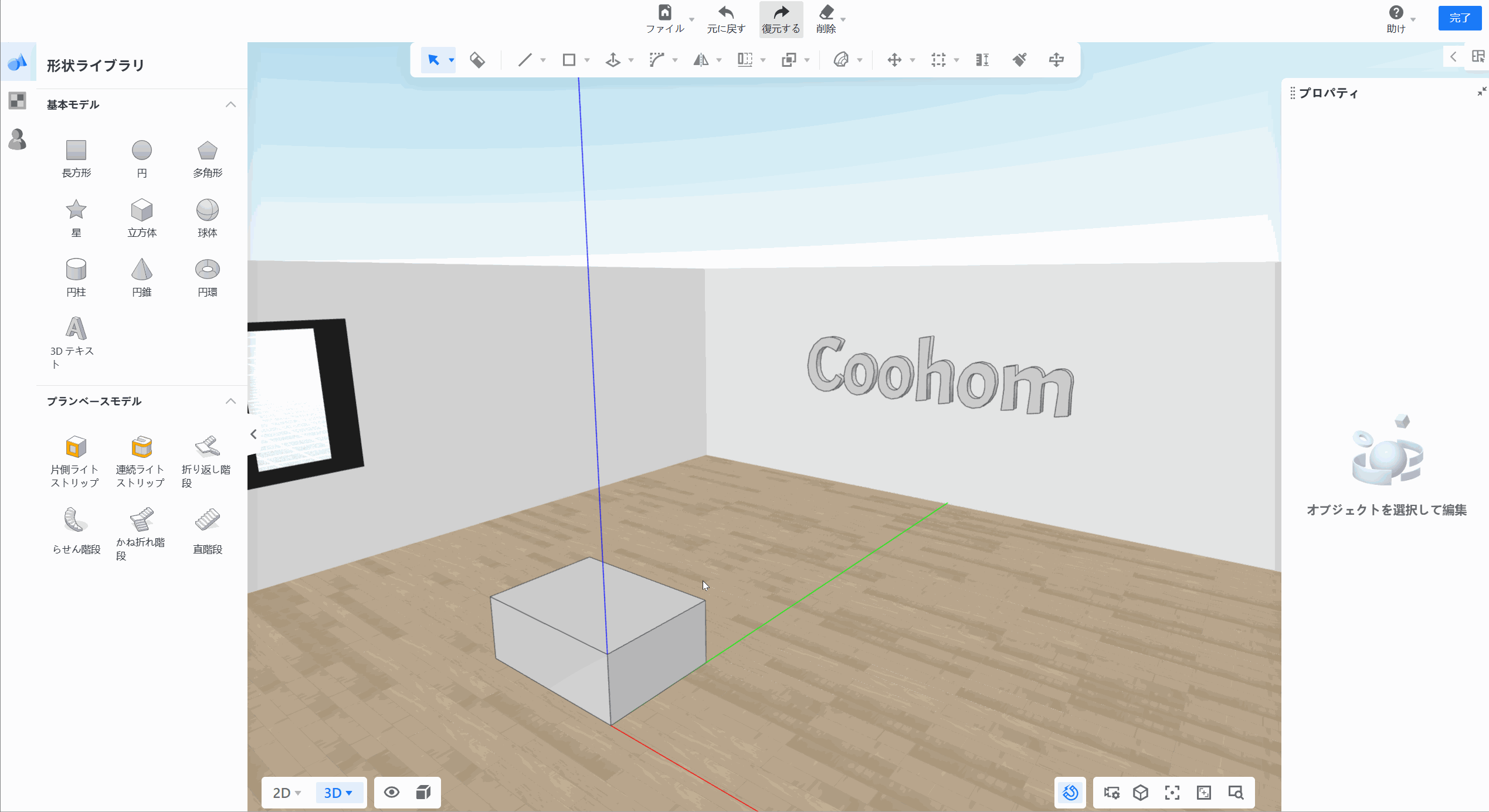

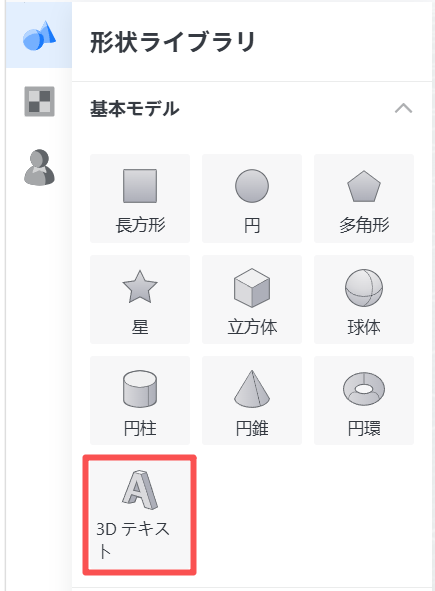

3Dテキスト機能を使用して、希望する内容を入力するだけで3Dテキストを速やかに生成できます。テキストのサイズや位置など、特定のパラメーターを調整することも可能です。

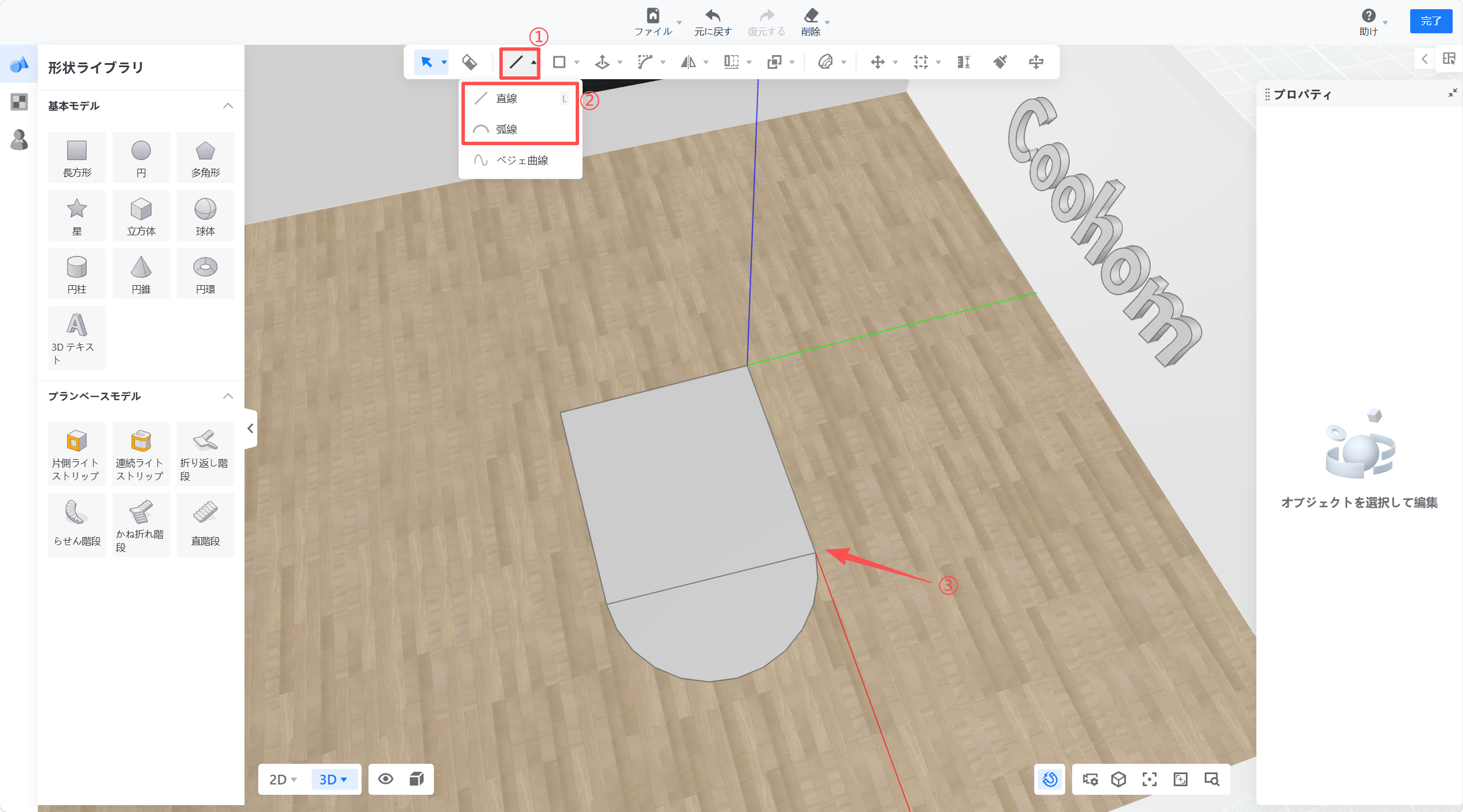

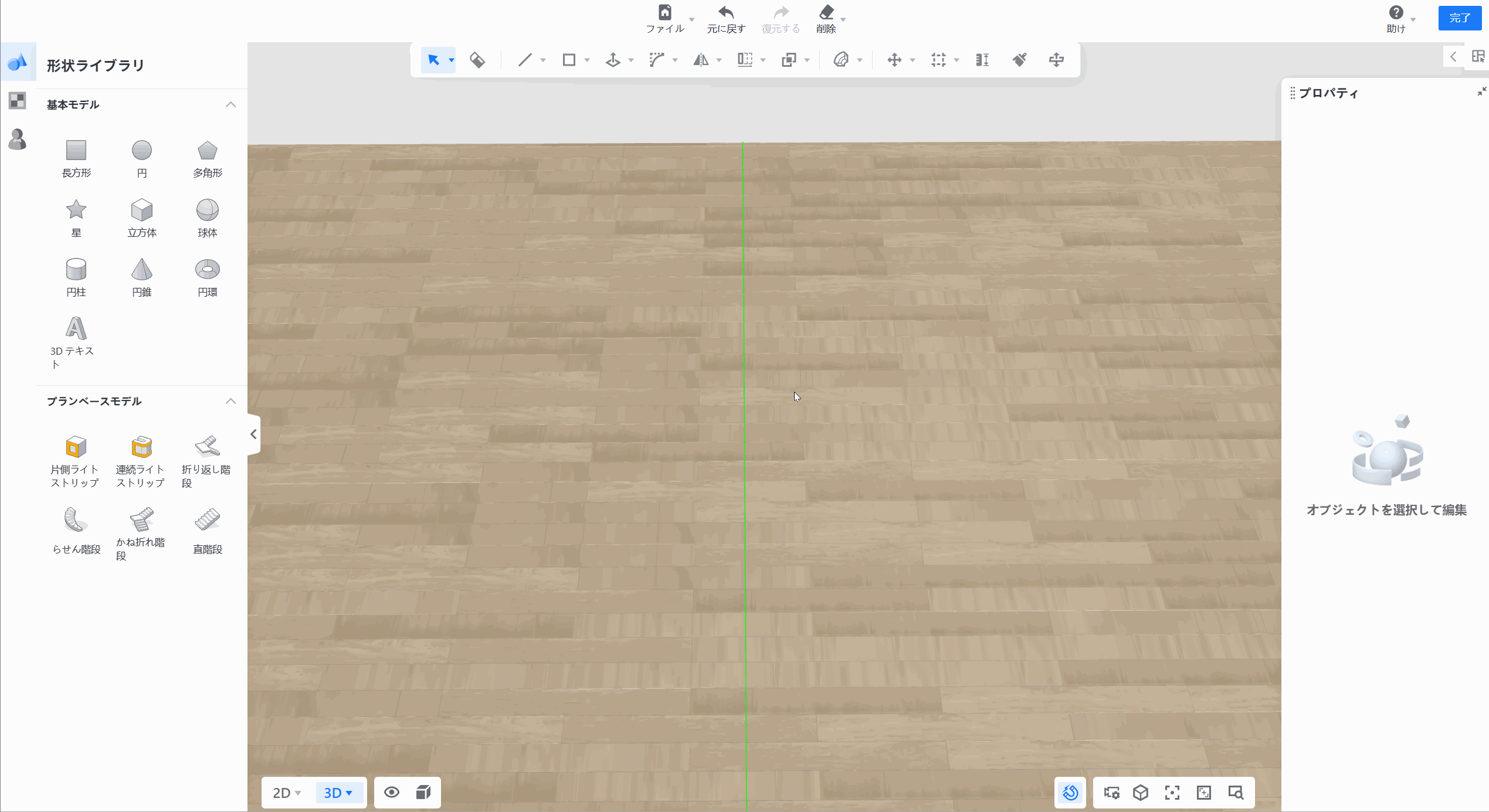

1. 上部ツールバーの直線または弧線ツールをクリックして、描きたい形状を作成します。

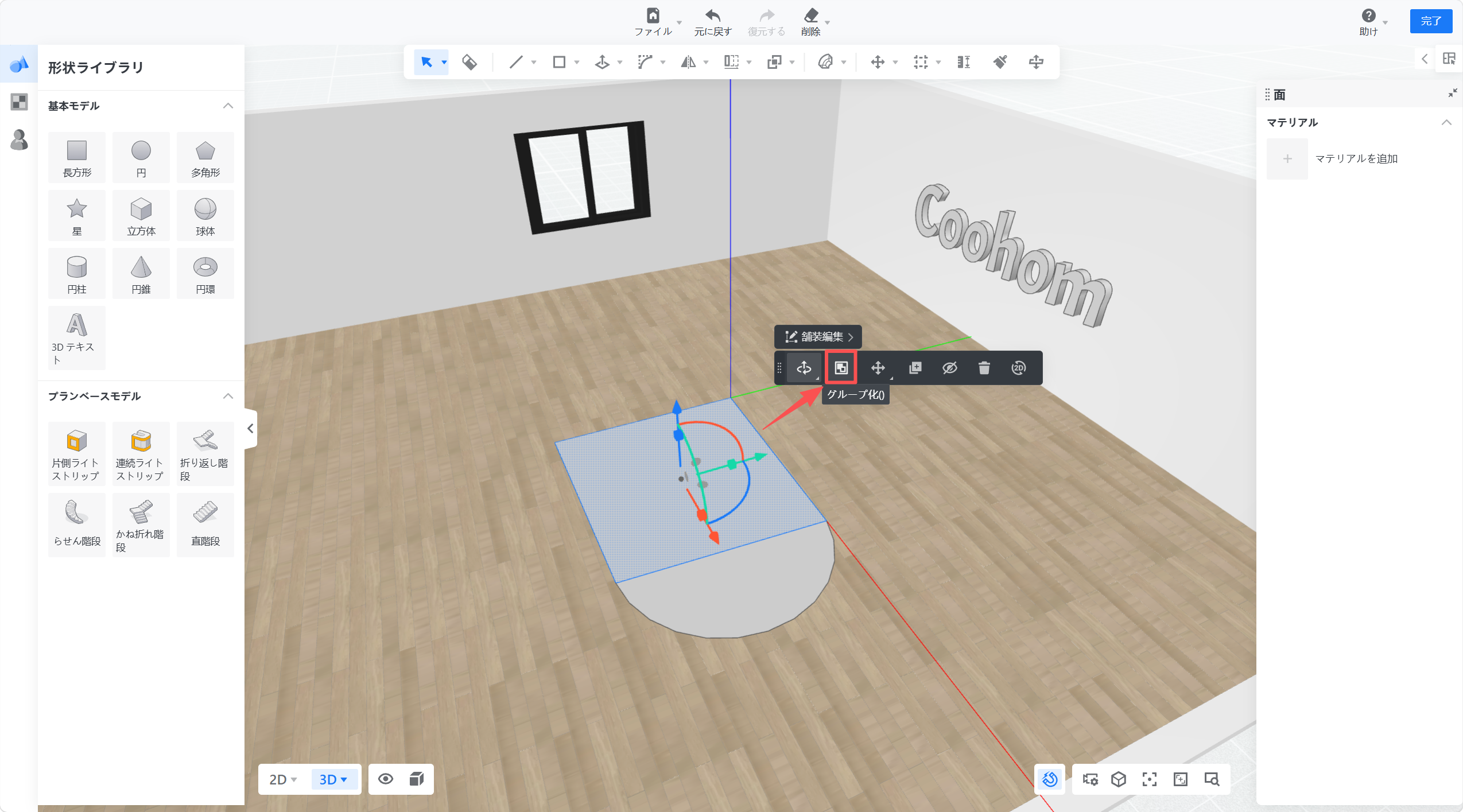

2. 次に、この面を選択して、フローティングウィンドウ内のグループ化をクリックします。グループ化後は、移動や回転、編集が簡単に行えます。
3. 厚みを持たせたい場合は、グループをダブルクリックして入り、上部の押す&引くボタンをクリックします。次に、伸ばしたい面を選択し、右パネルでストレッチ距離を設定します。設定が完了したらEnterキーをクリックして確定します。

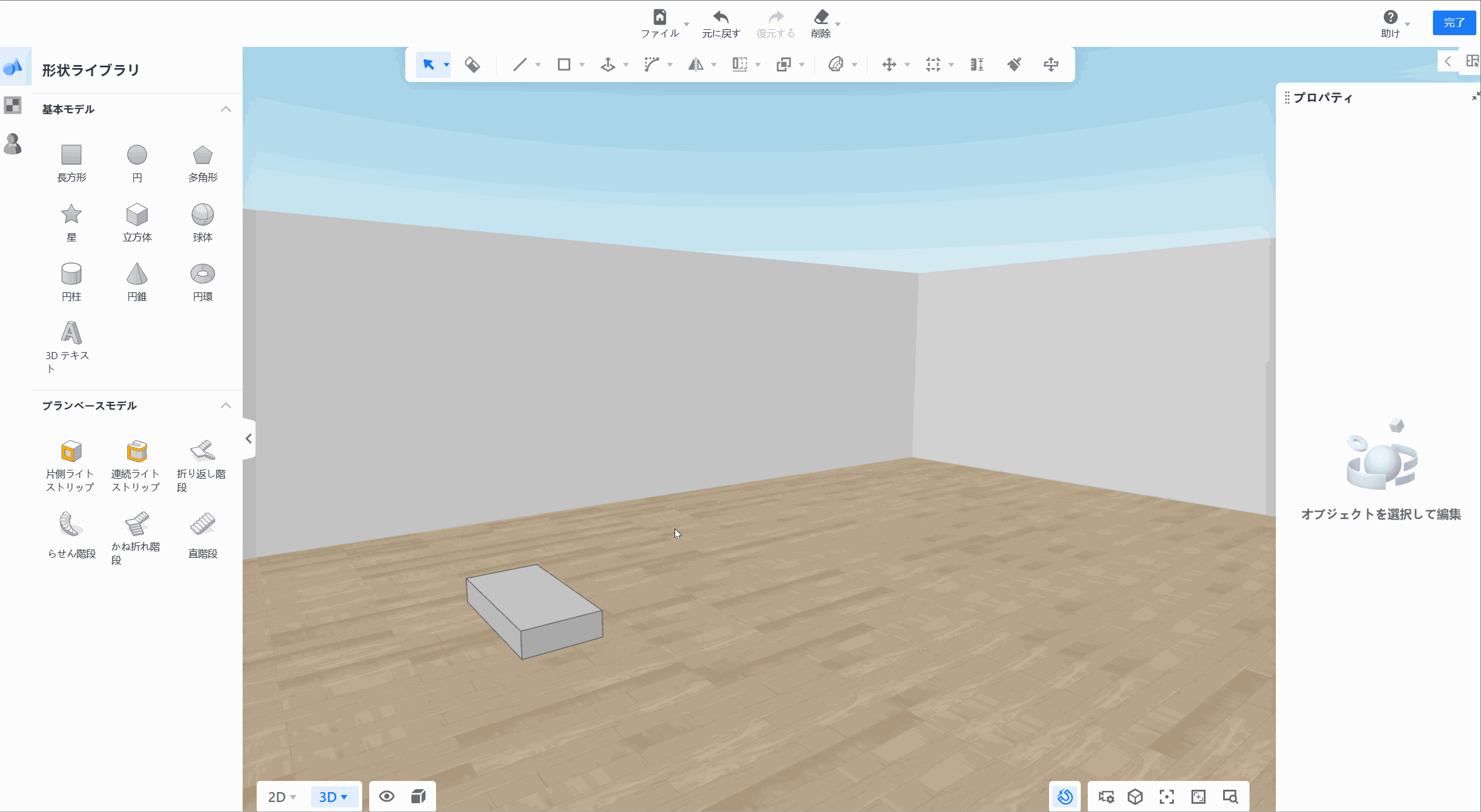

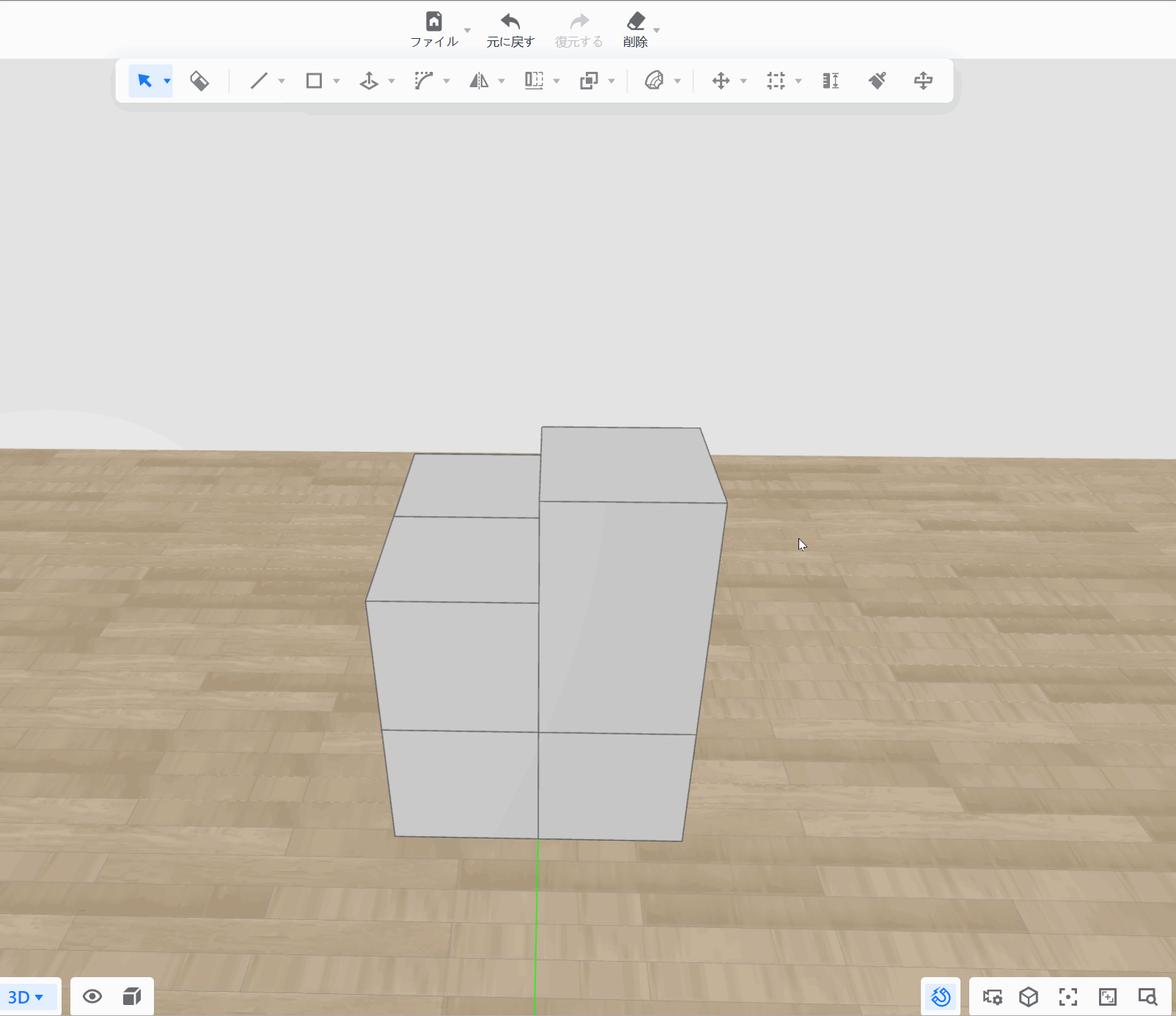

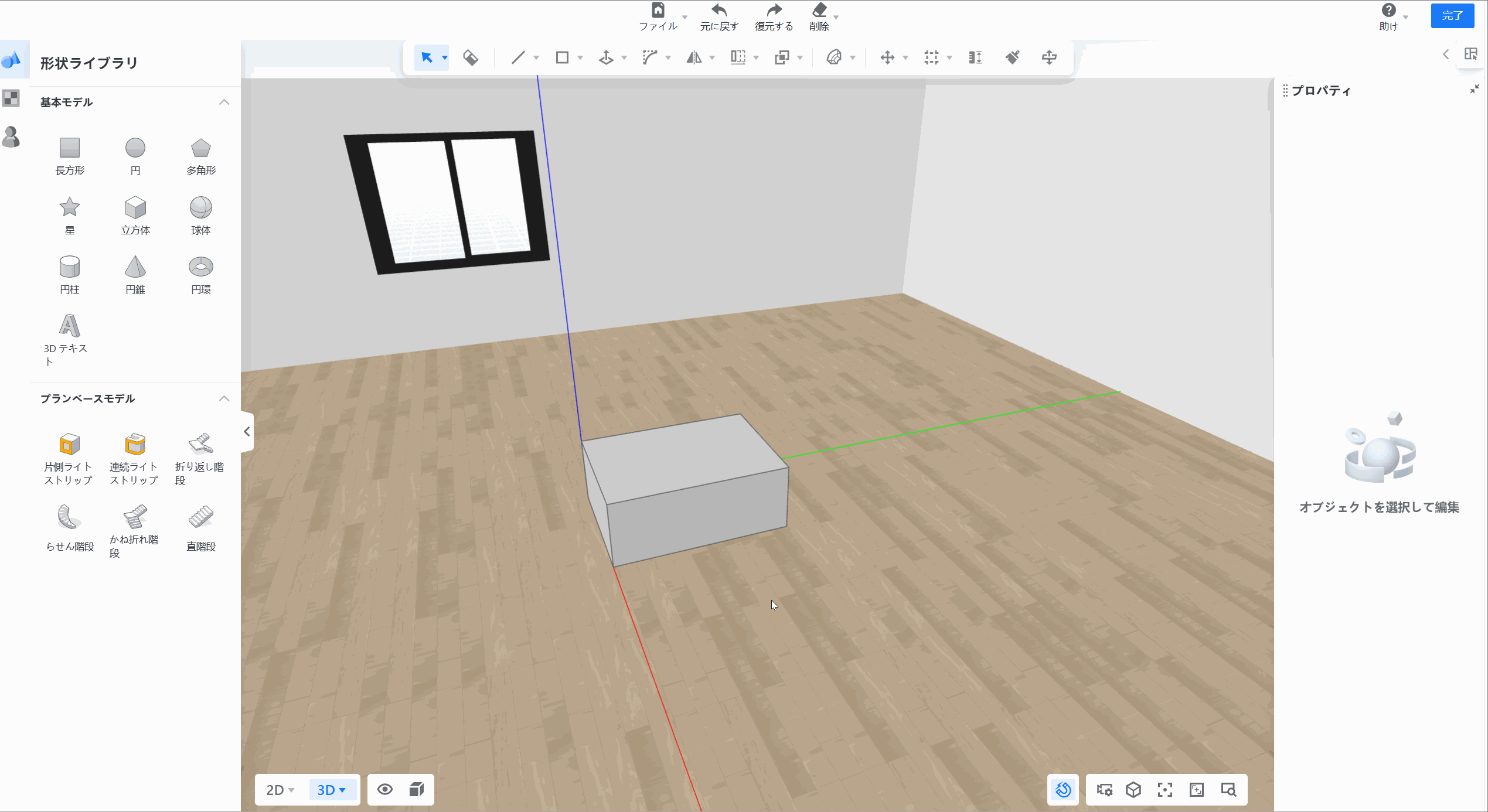

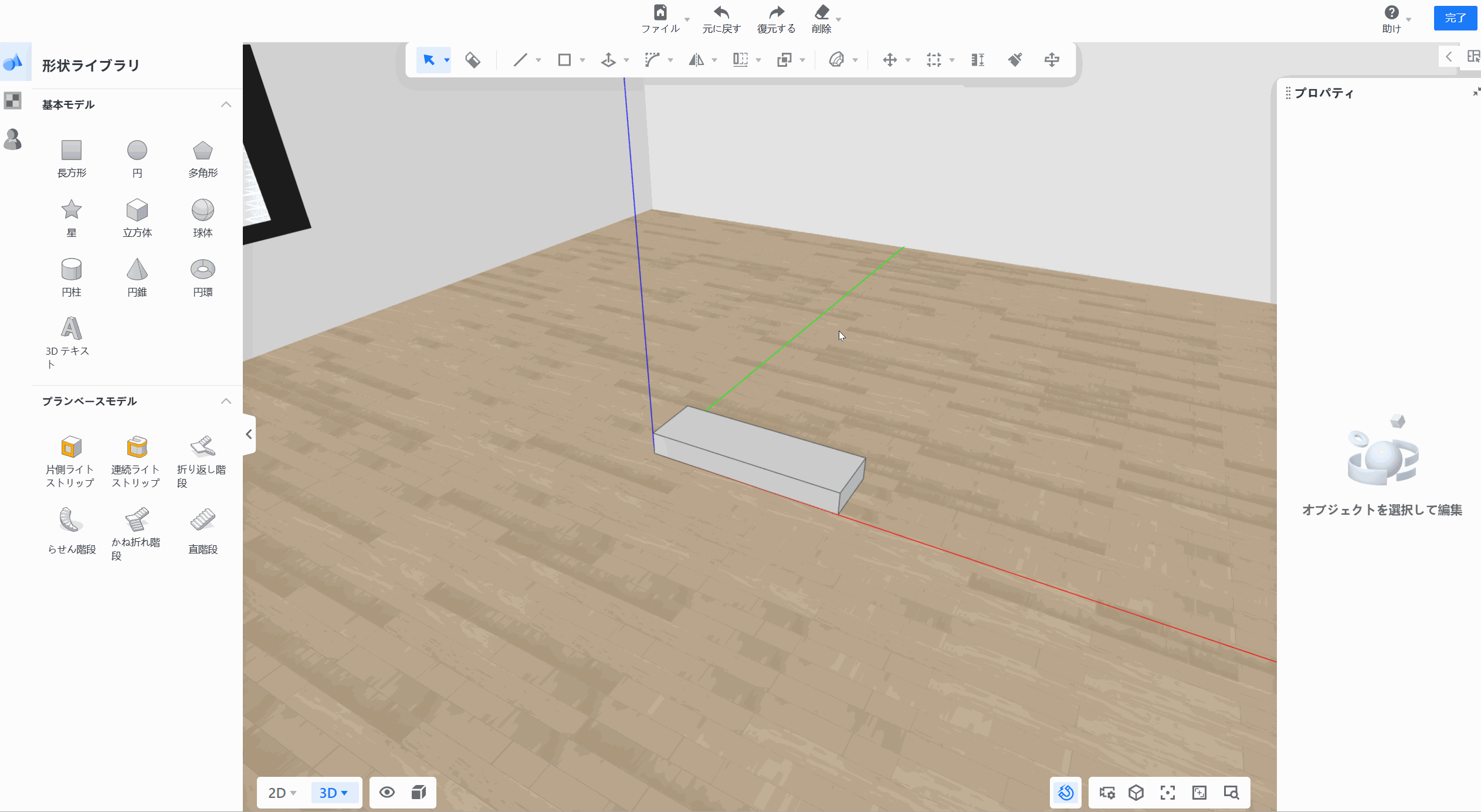

1. モデルを選択した後、モデル上の任意の軸をクリックして移動します。

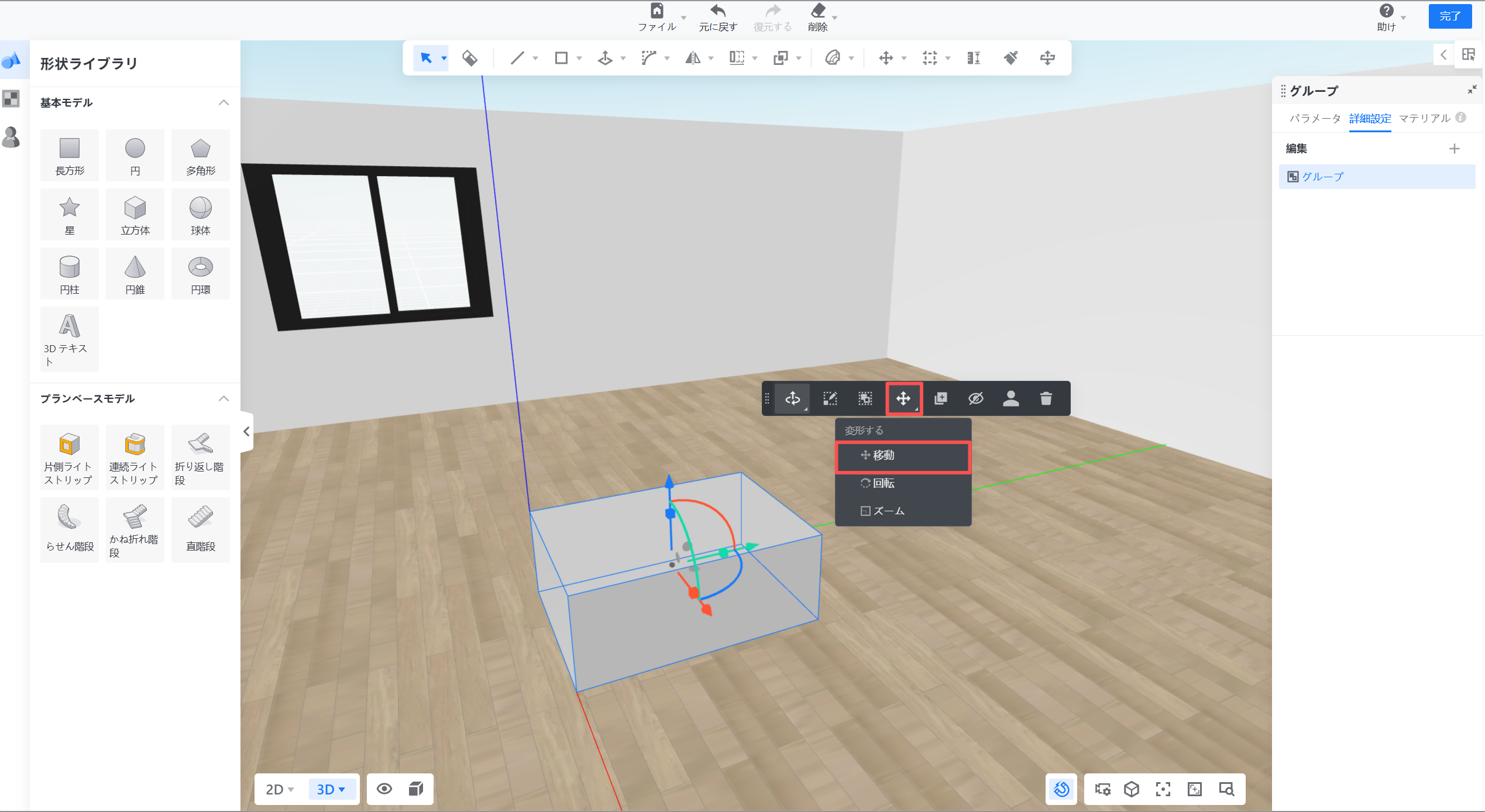

2. フローティングウィンドウの移動ボタンをクリックし、移動したい方向を選択して、上部に移動距離を入力し、Enterキーを押して確定します。

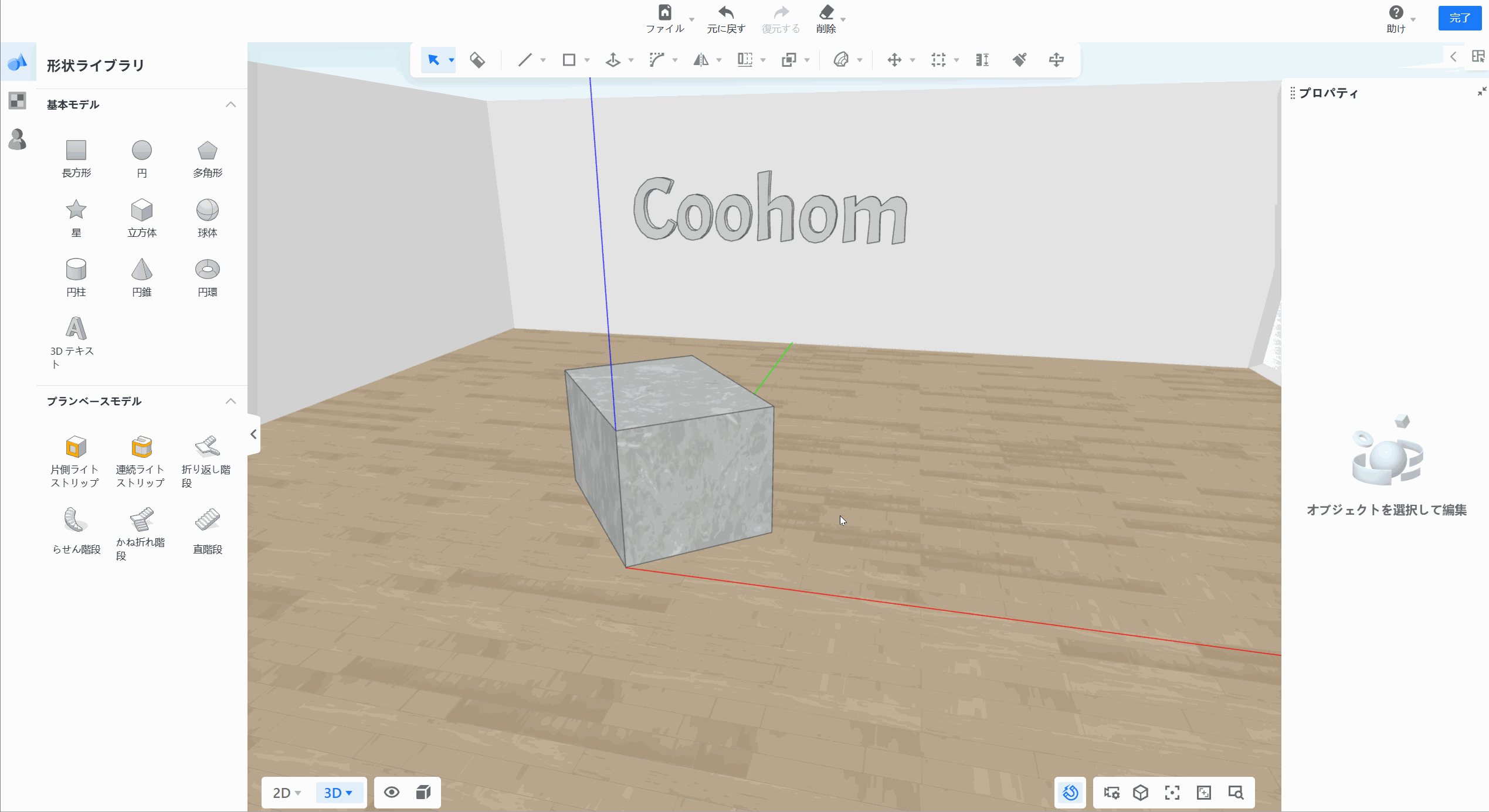

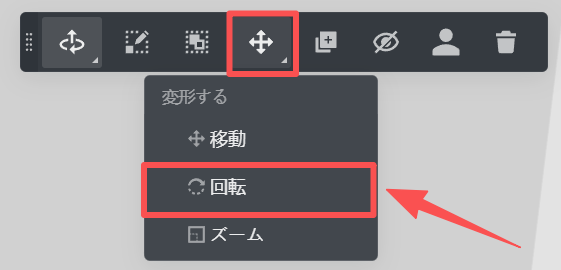

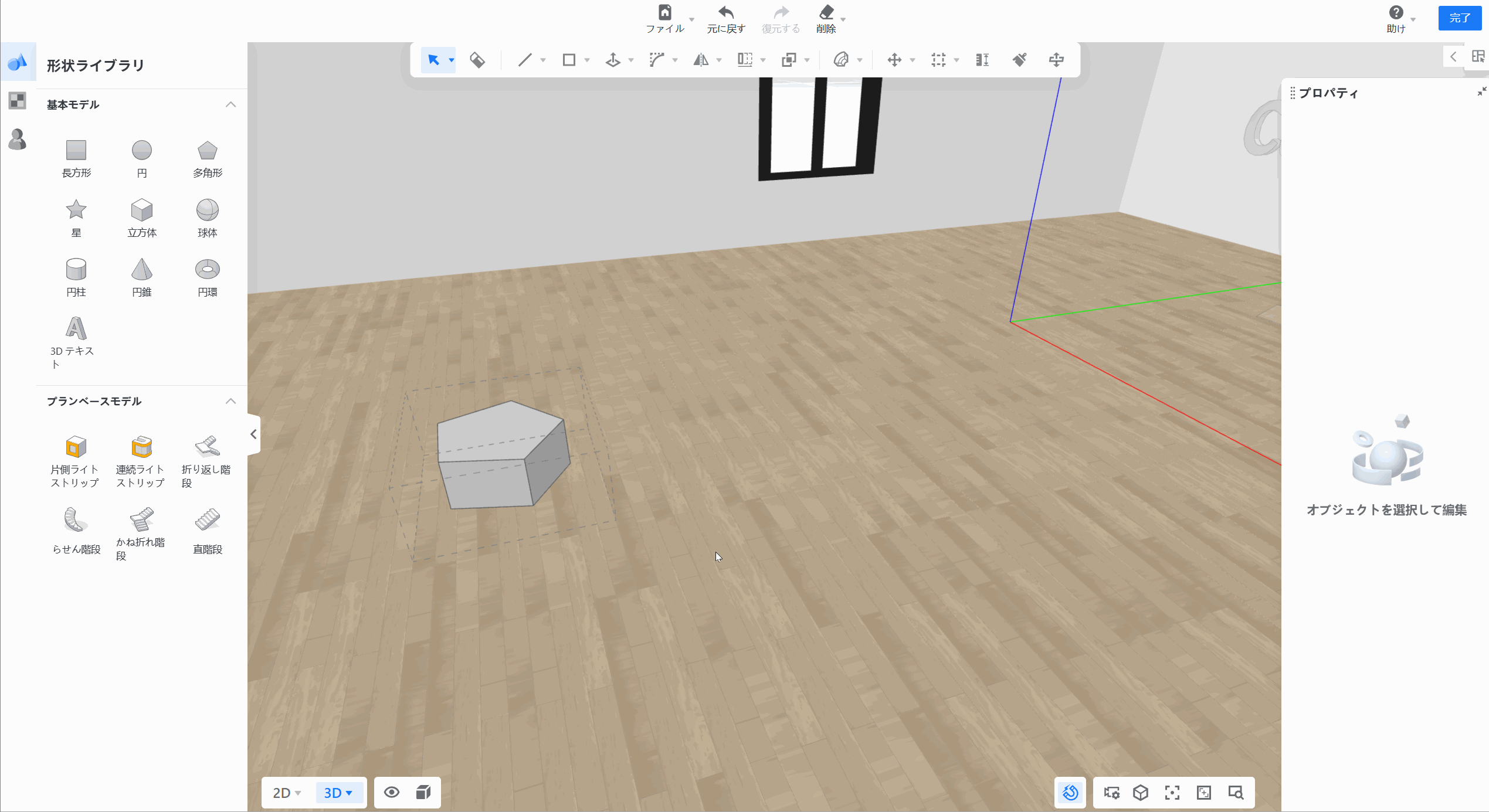

回転機能を使用すれば、異なる軸に沿ってモデルを自在に回転させ、さまざまな角度から細部を観察したり、モデルを変更または最適化したりできます。

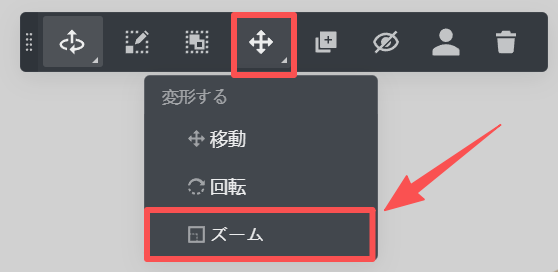

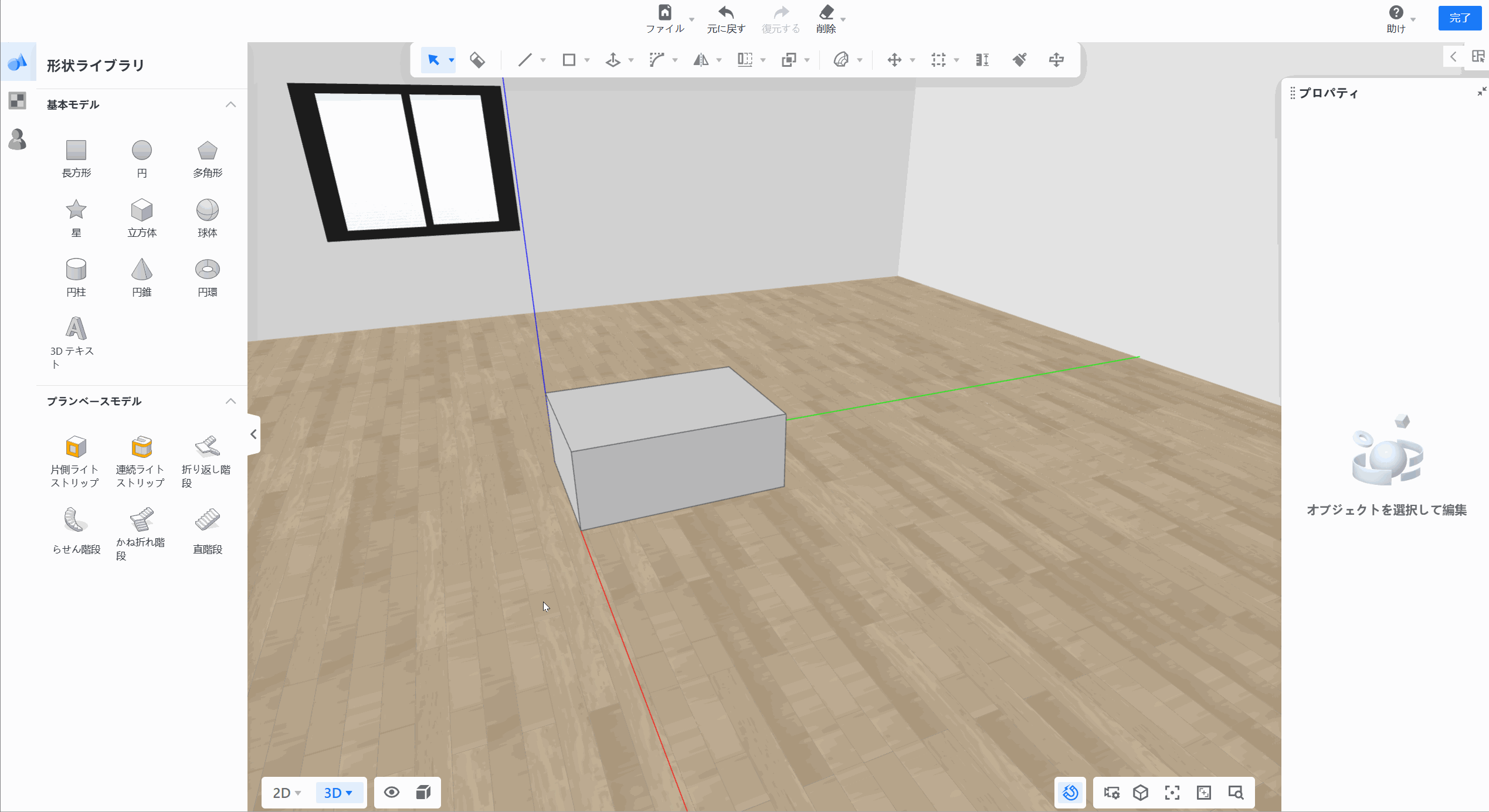

サイズが合わない場合でも、最初からやり直す必要はありません。ズーム機能を使って、モデル全体の比率を保ったまま拡大または縮小するだけです。

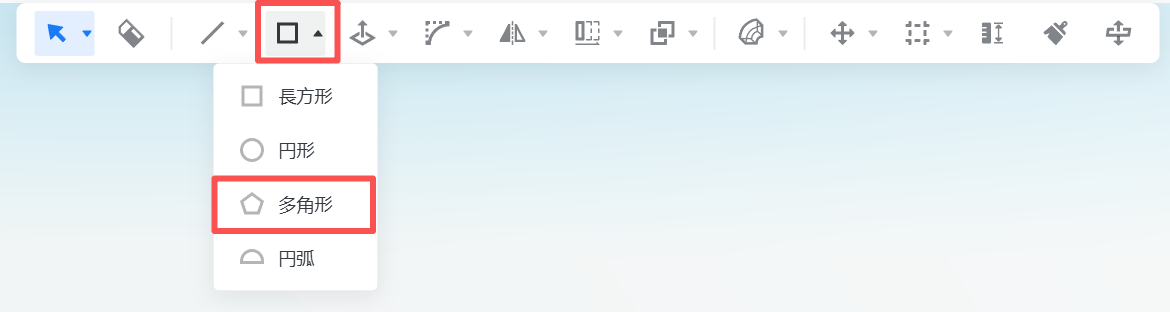

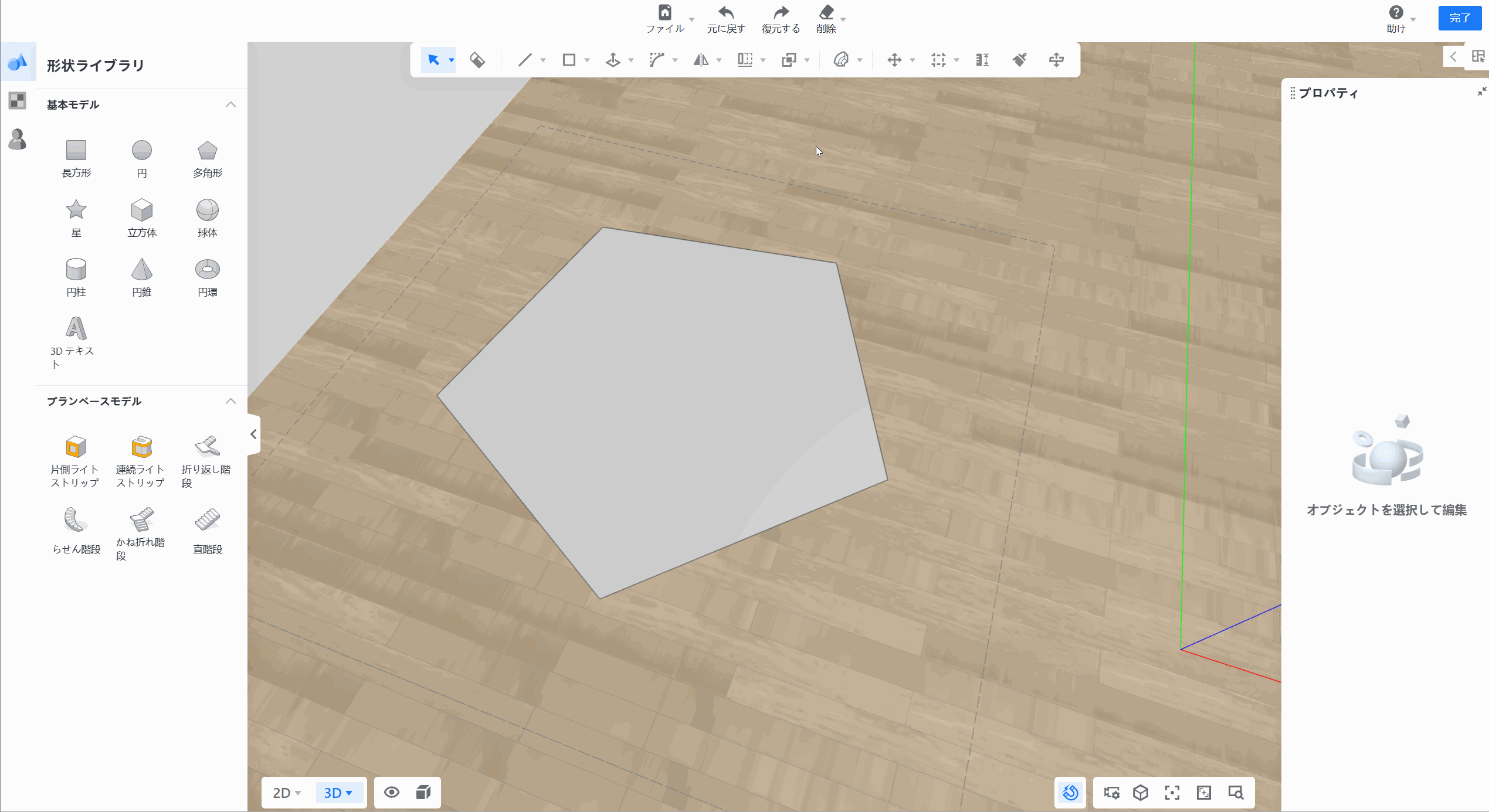

カスタムモデリングツールで、多角形を速やかに作成できます。

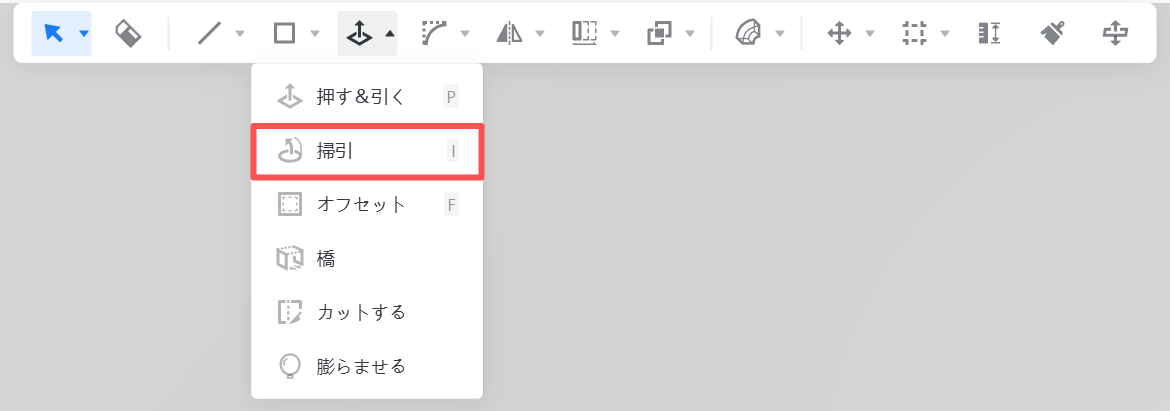

掃引機能は、カスタムモデリングツールの中で最もクリエイティブなモデリング機能の一つです。この機能を使うと、単純な形状を複雑な3Dモデルへ素早く変換できます。パスを指定し、断面形状を選択することで、掃引機能がパスに沿って断面を押し出し、特定の形状を持つ3Dモデルを自動生成します。

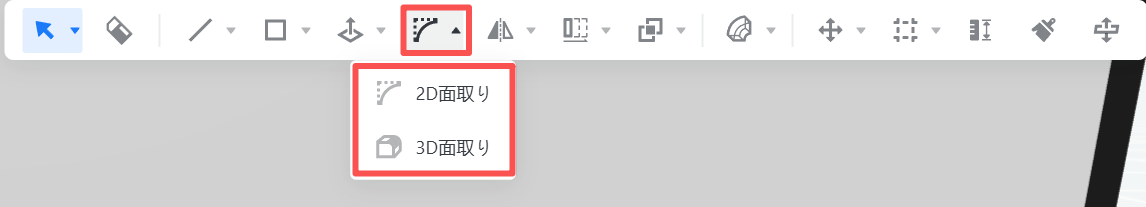

面取りツールには2D面取りと3D面取りがあり、2Dおよび3Dモデルの角を丸めることができます。
a. 2D面取り

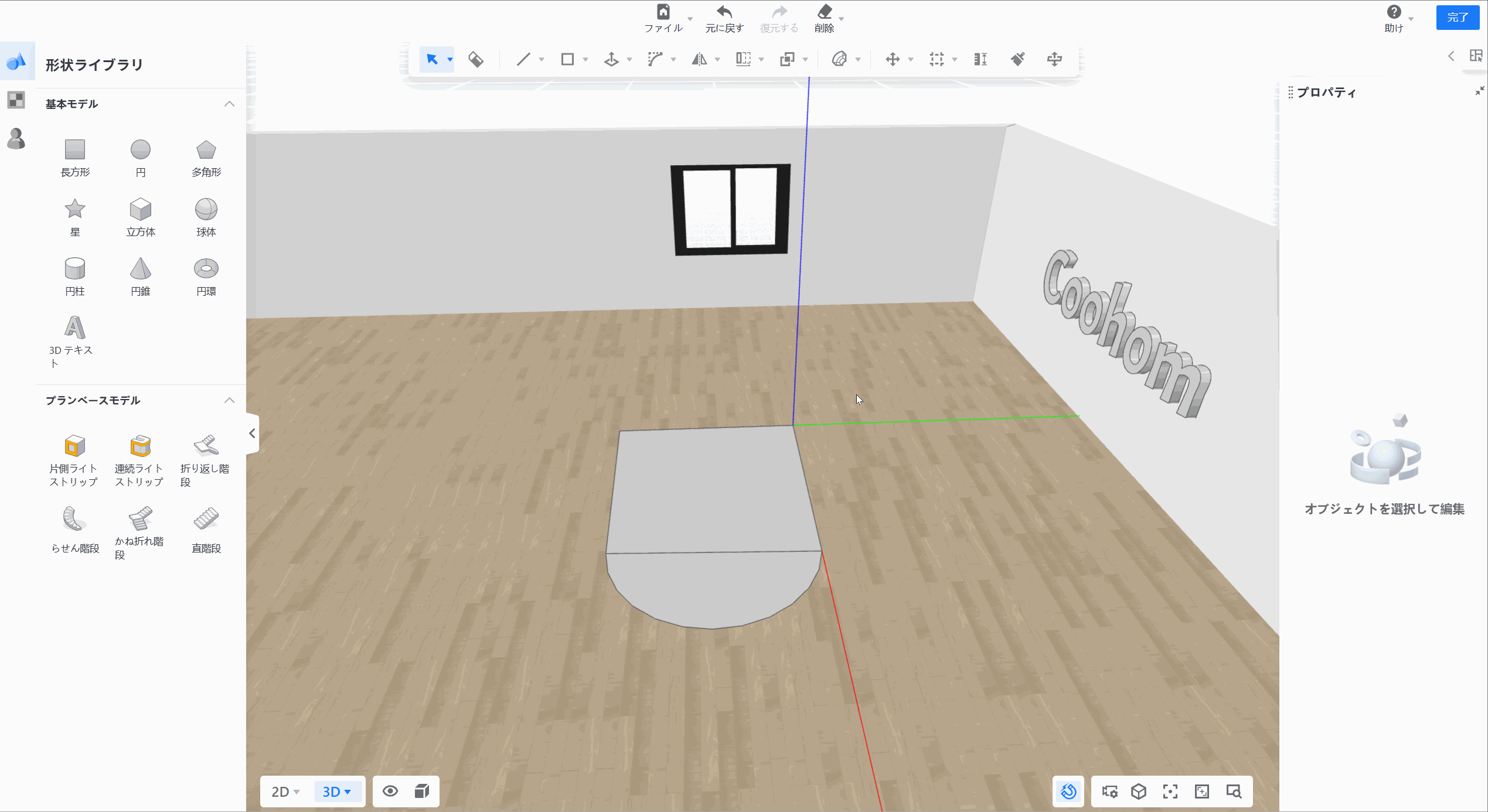

2D面取りを使用すると、直線の角を丸めることができます。平面全体を選択した場合、すべての角を一度に丸めることができます。
b. 3D面取り

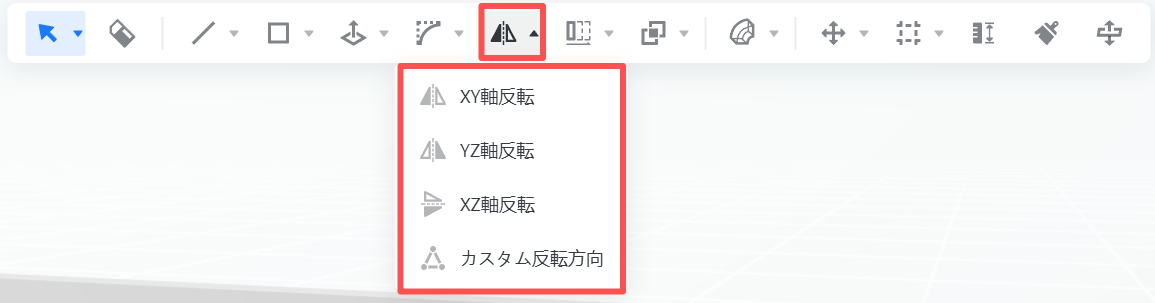

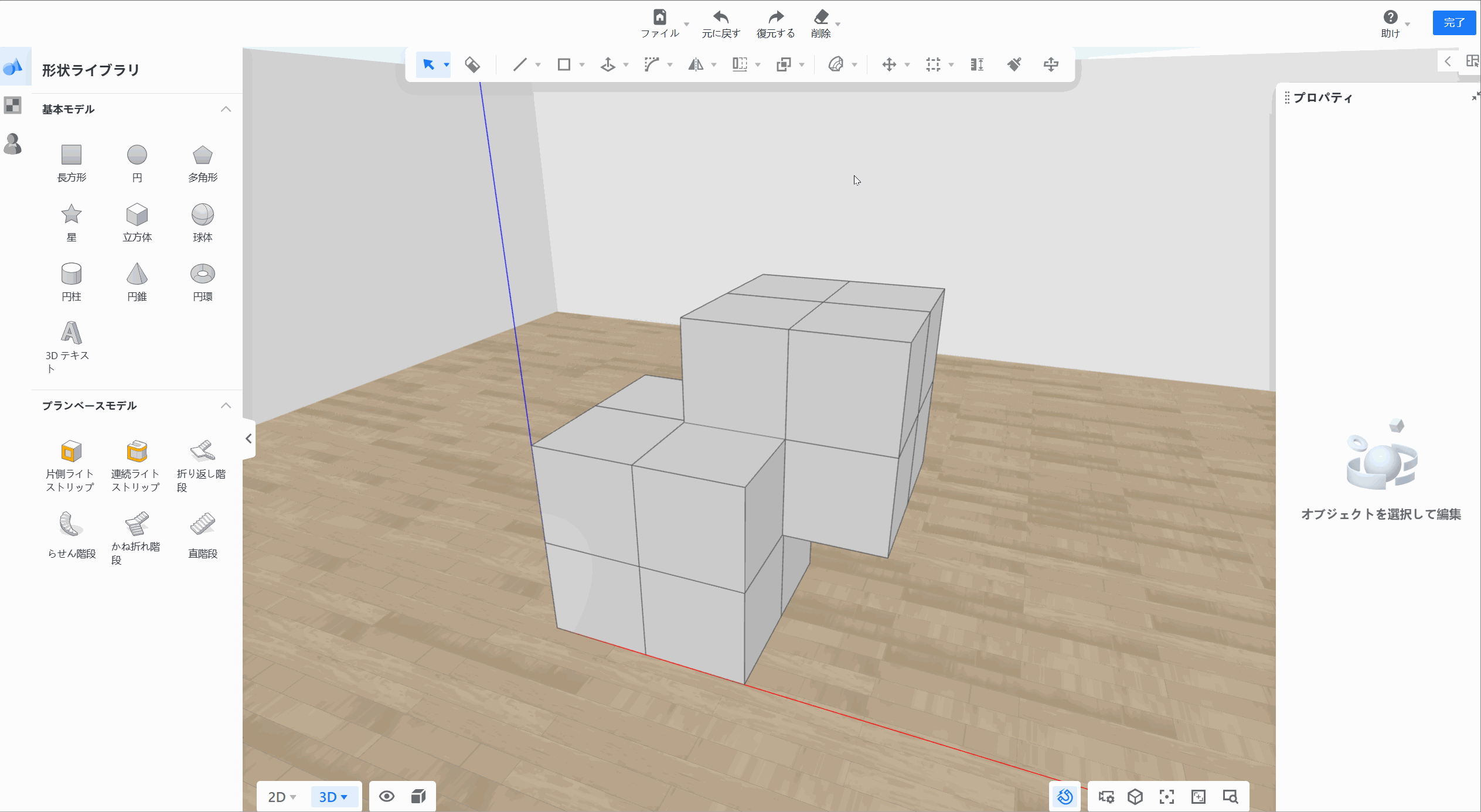

モデルをXY、YZ、XZ軸に沿って反転することができます。また、カスタム軸による反転することもサポートしています。

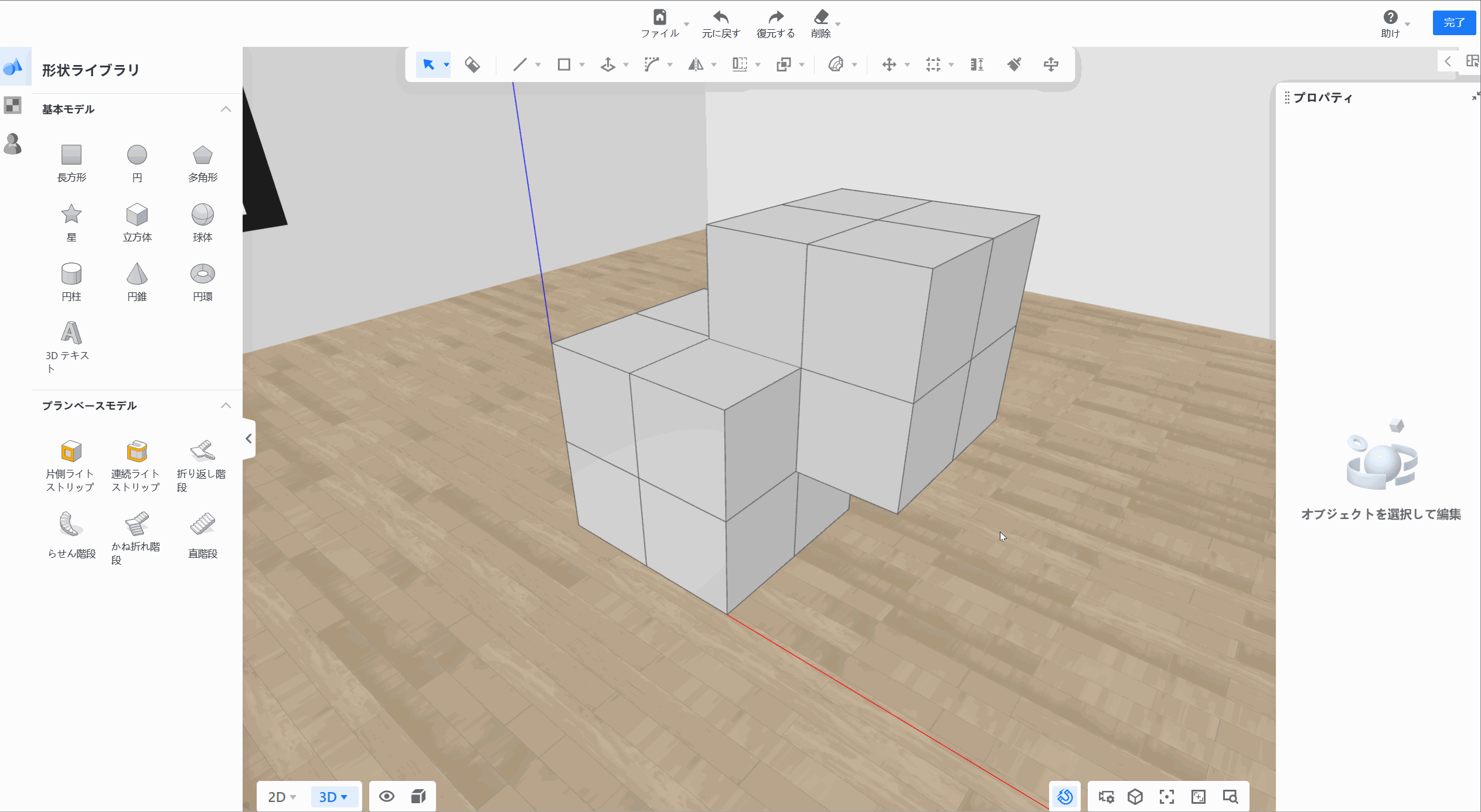

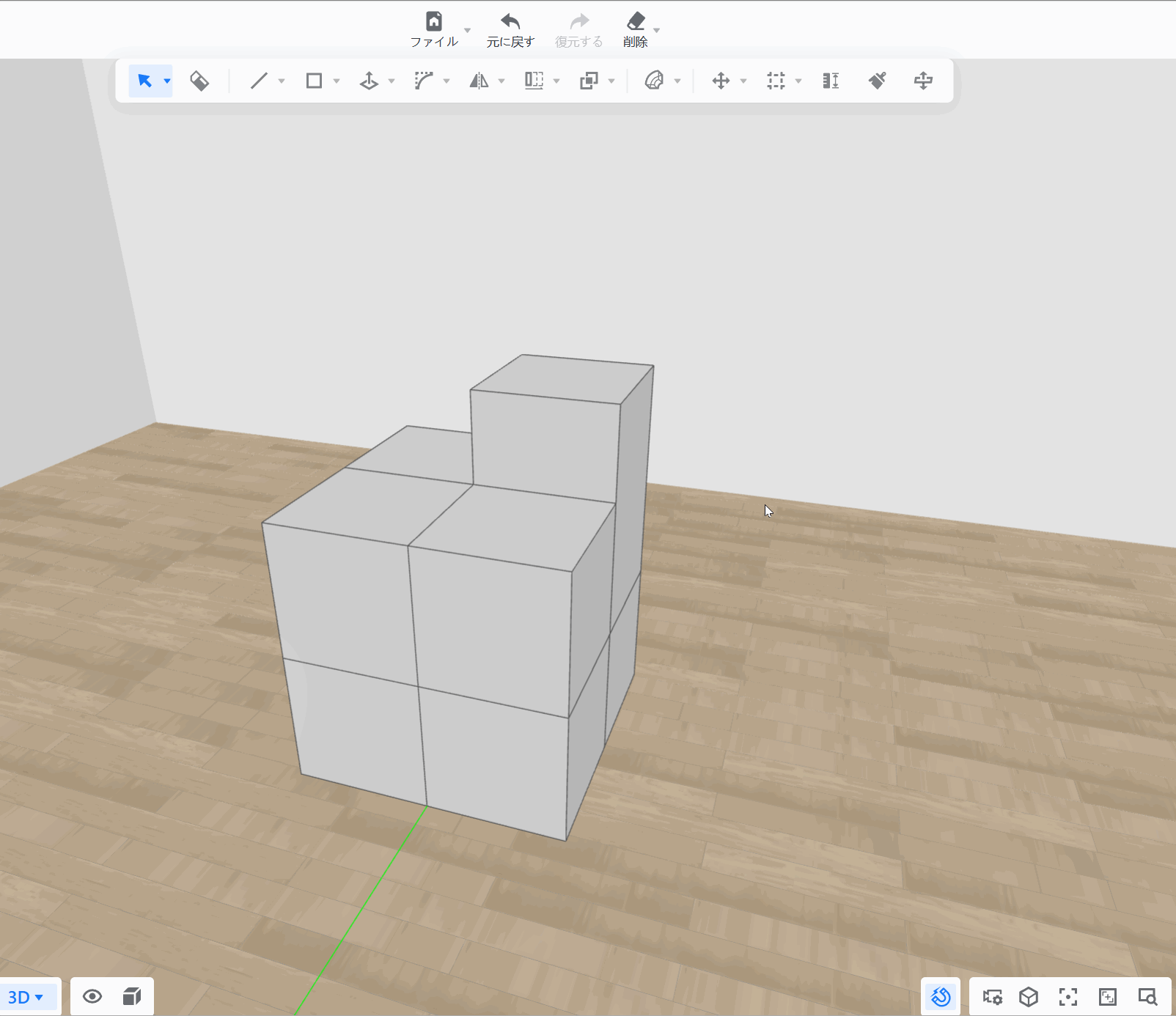

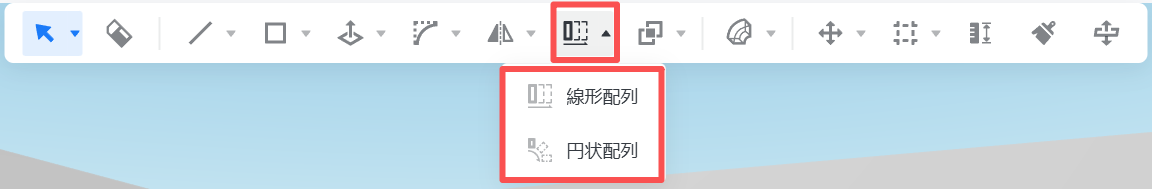

配列ツールには線形配列と円状配列があります。以下のデモンストレーションで具体的な効果をご覧いただけます:
a. 線形配列
b. 円状配列

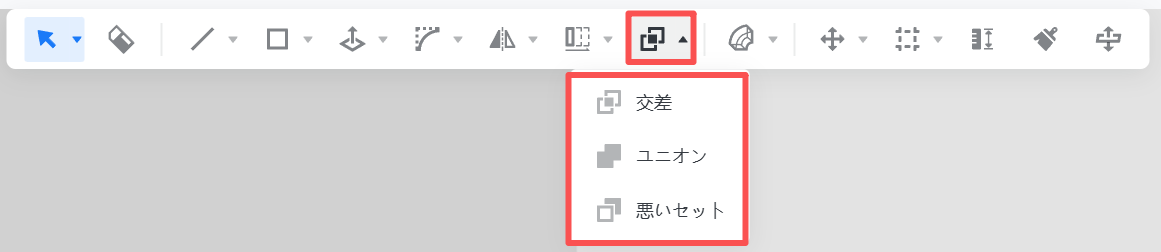

ブーリアンツールには交差、ユニオン、悪いセットがあり、以下のような具体的な効果が見られます:
a. 交差
b. ユニオン
c. 悪いセット

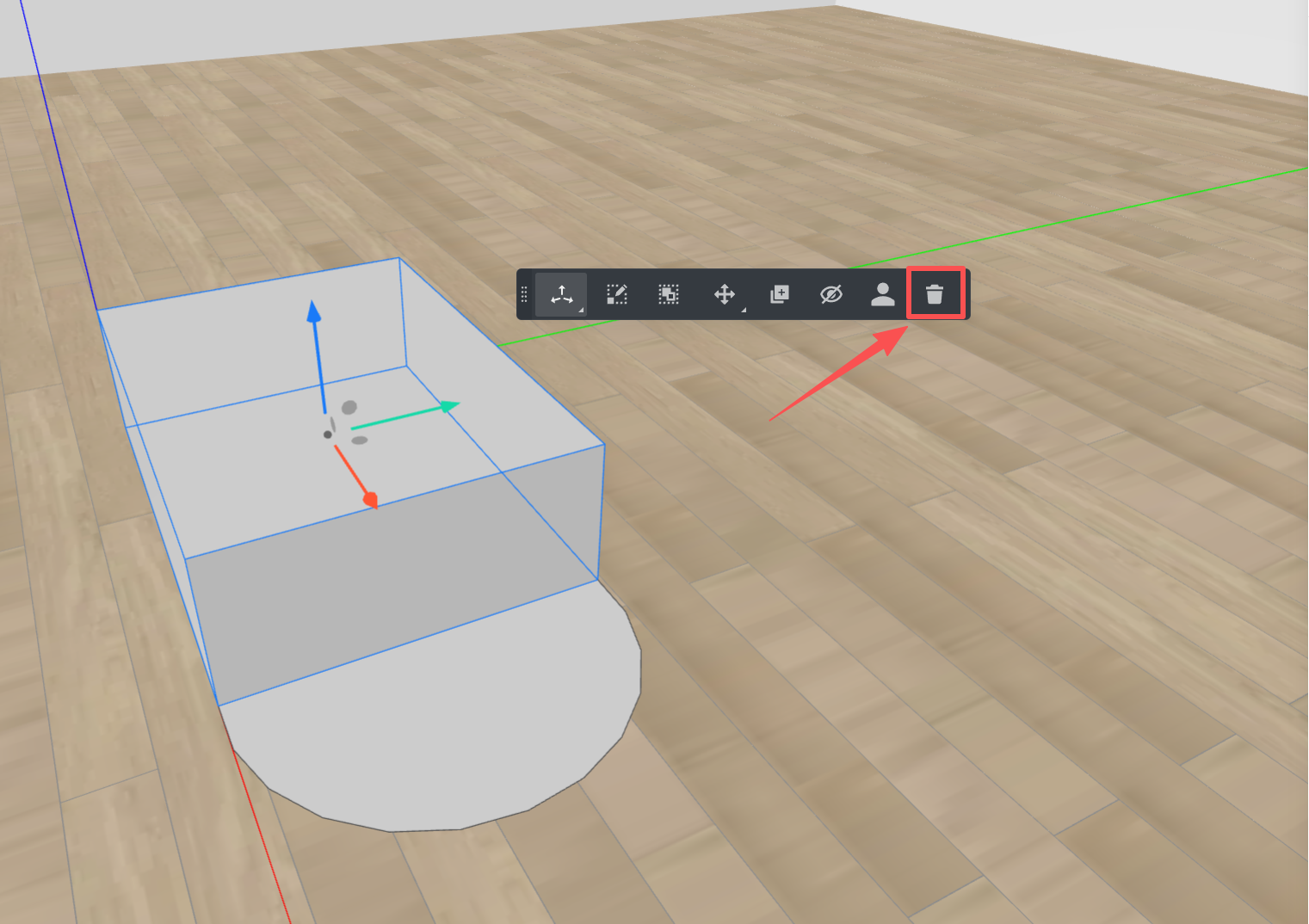

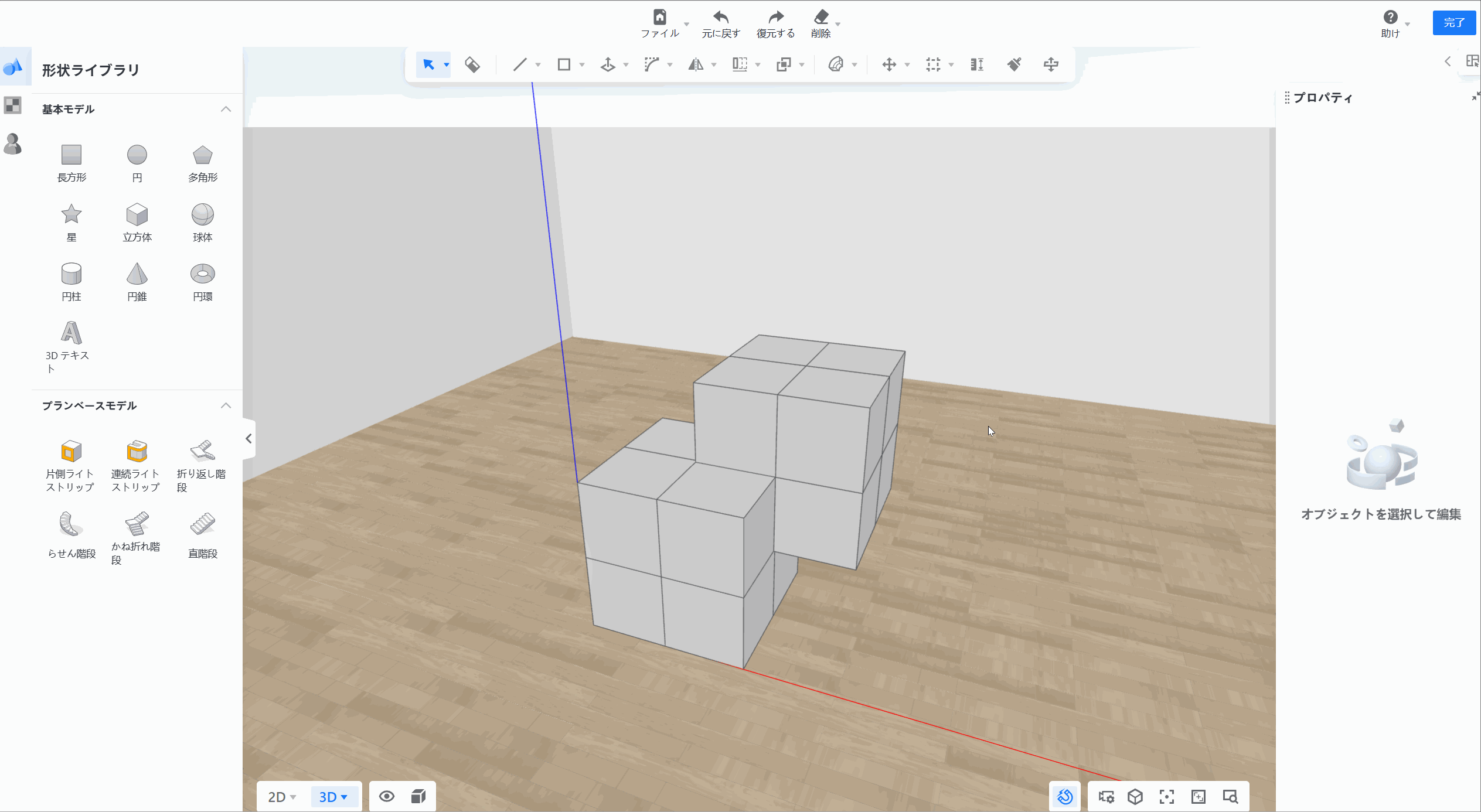

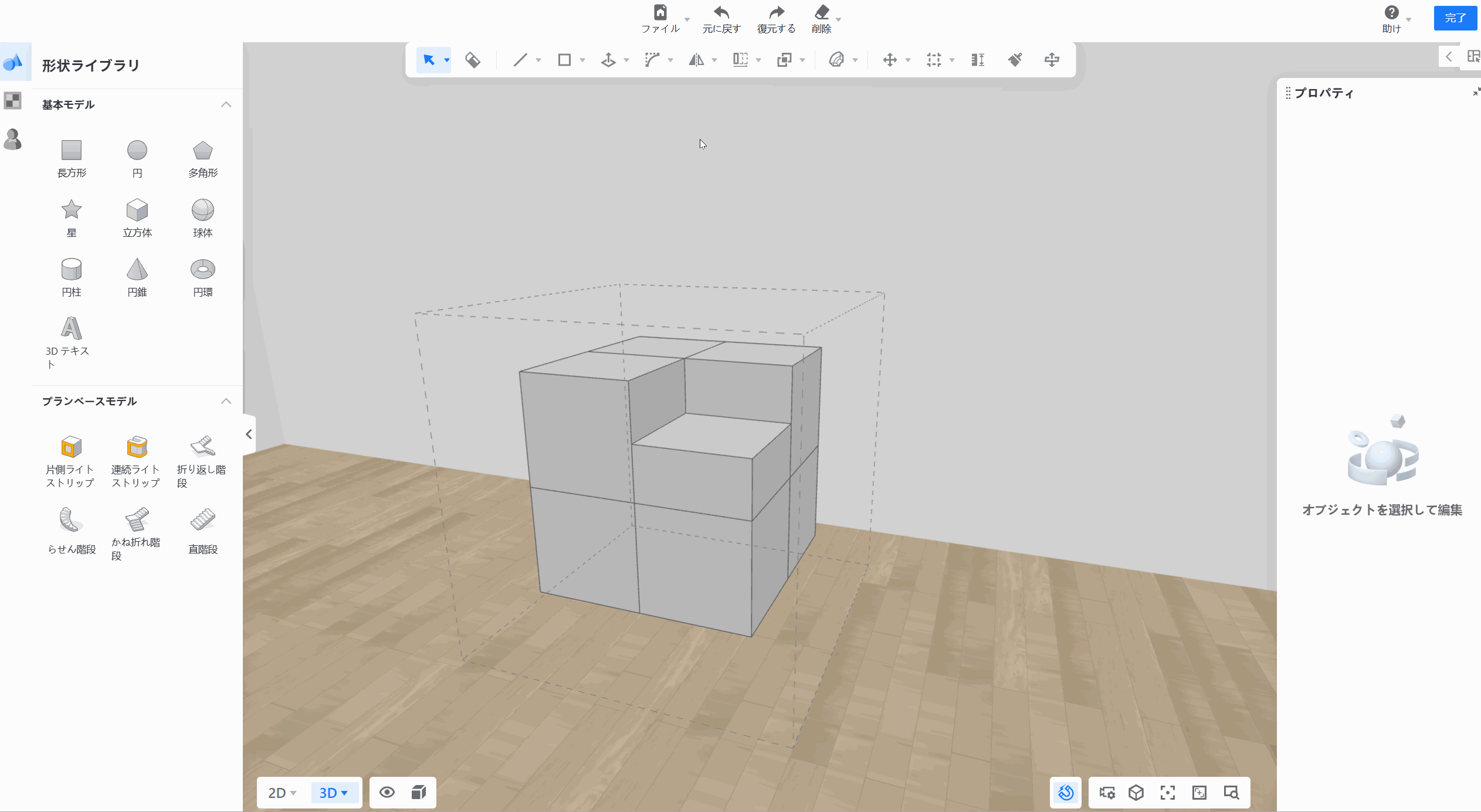

1. 削除したいモデルを選択して、フローティングウィンドウの削除ボタンをクリックすると、ワンクリックで削除できます。

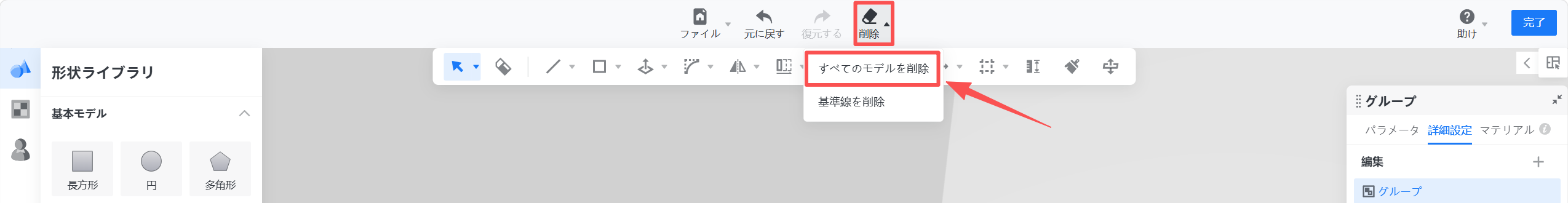

2. すべてのモデルを一括で削除したい場合は、マウスを「削除 - すべてのモデルを削除」に移動させれば、ワンクリックですべて削除できます。
