モデル距離寸法線を使用すると、モデル間の距離を正確に表示、測定、調整することができます。この記事では、2D/3Dでの寸法表示、数値編集、傾斜壁の測定などの実用的な機能について詳しく解説し、デザイン作業の利便性と精度を大幅に向上させる方法を紹介します。
⭐この記事を読む前に、ビデオチュートリアルを先に視聴することをお勧めします。早く始められますよ~
すべてのユーザー

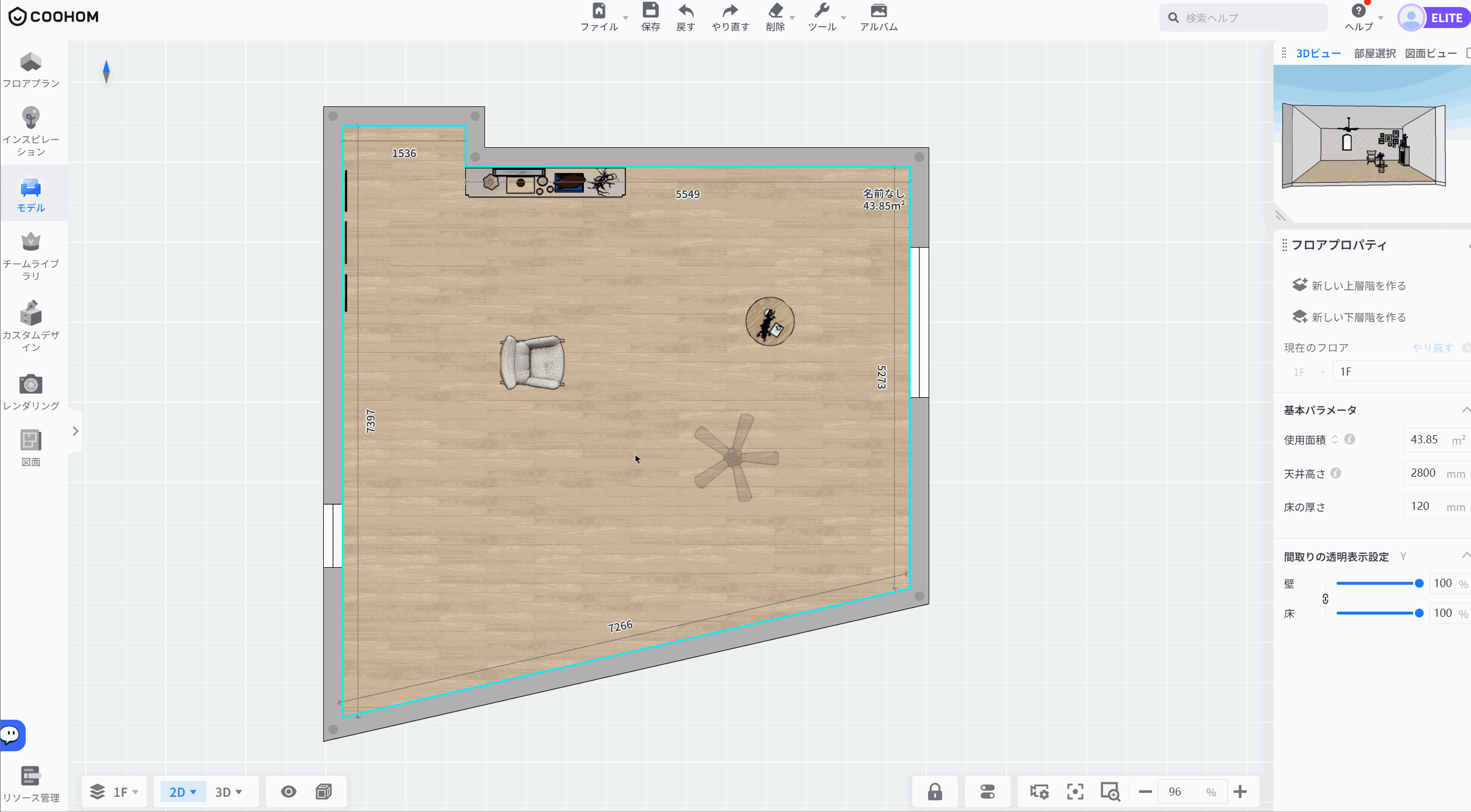

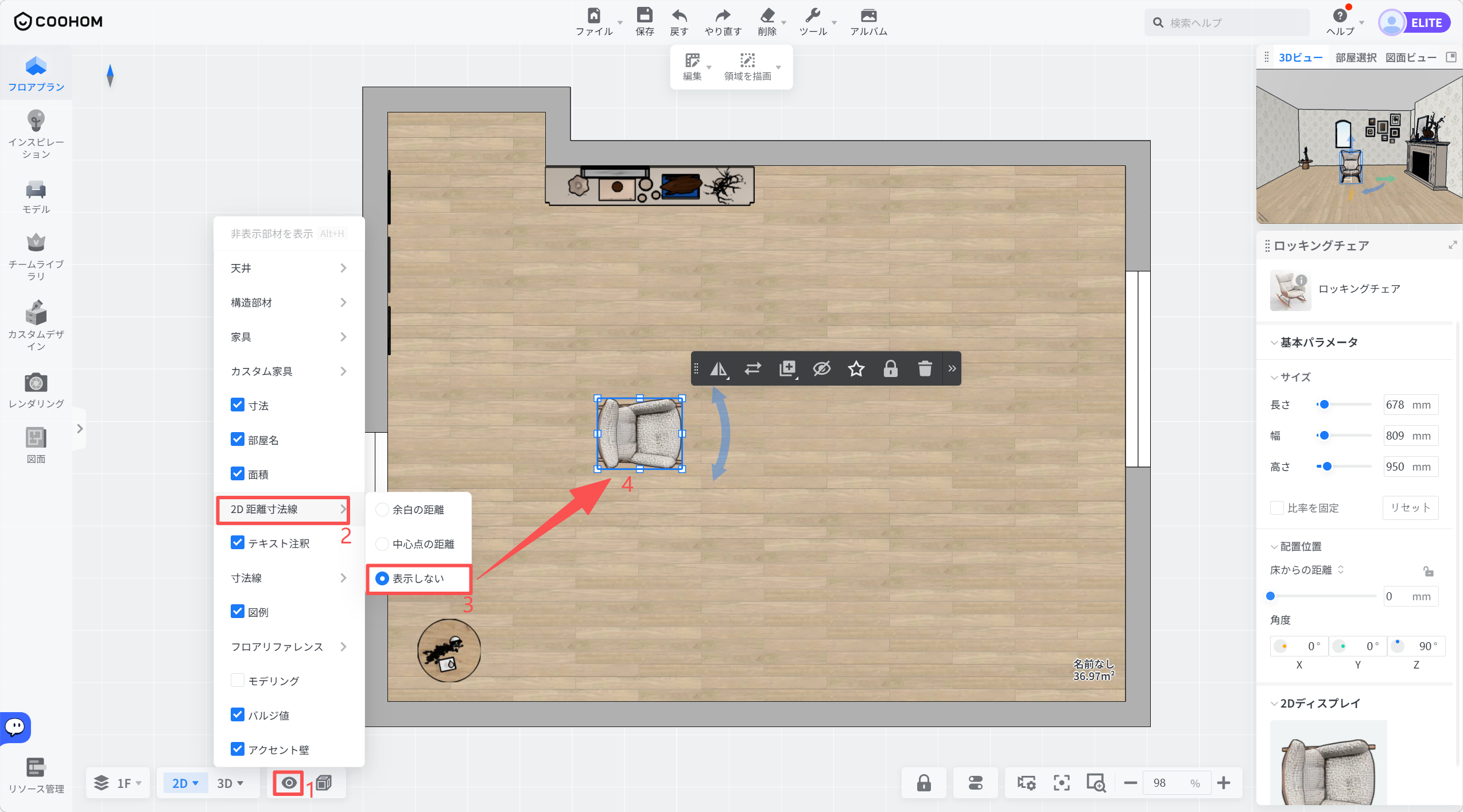

1. 2Dビューで、下部ツールバーの表示/非表示アイコンをクリックし、2D距離寸法線を選択します。

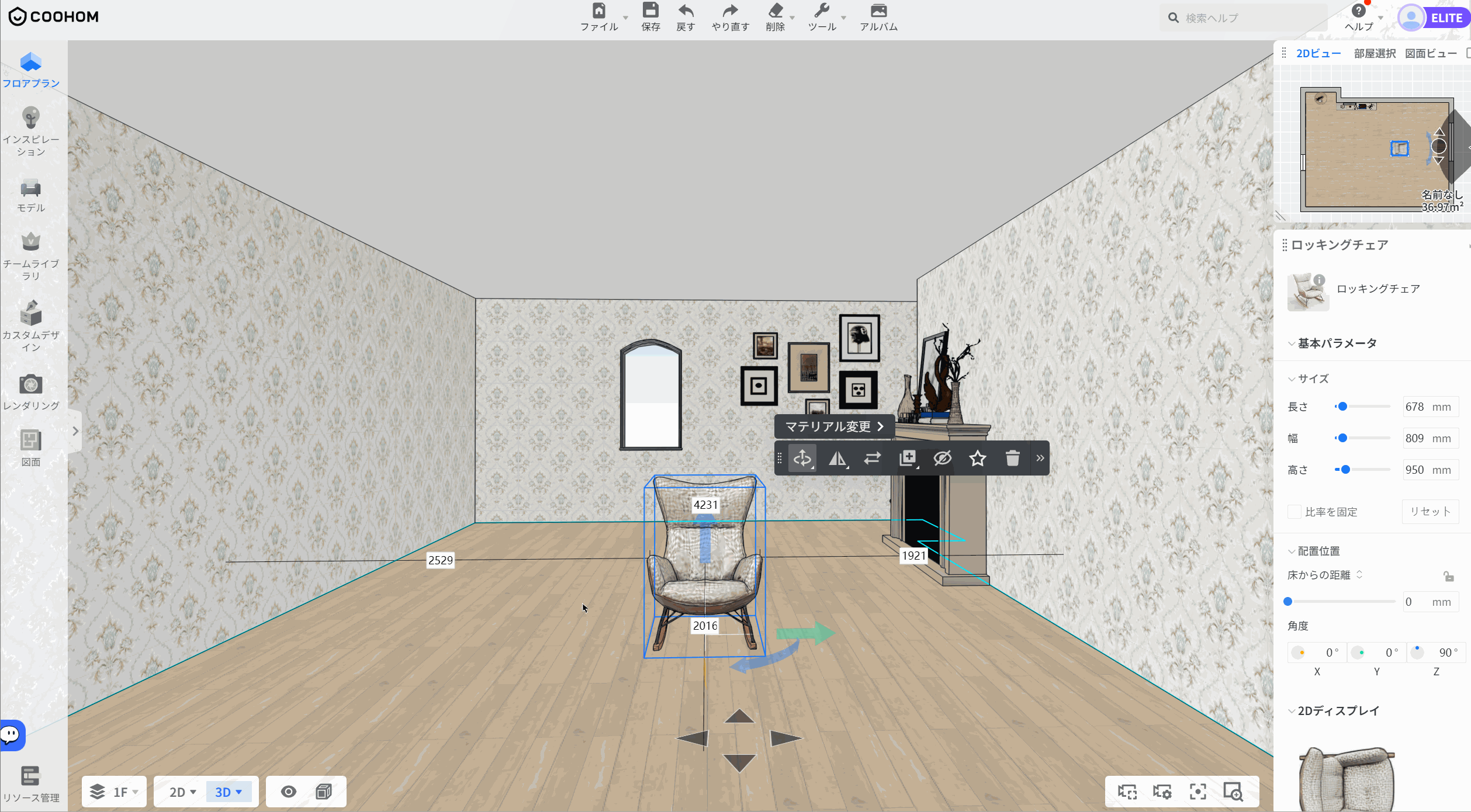

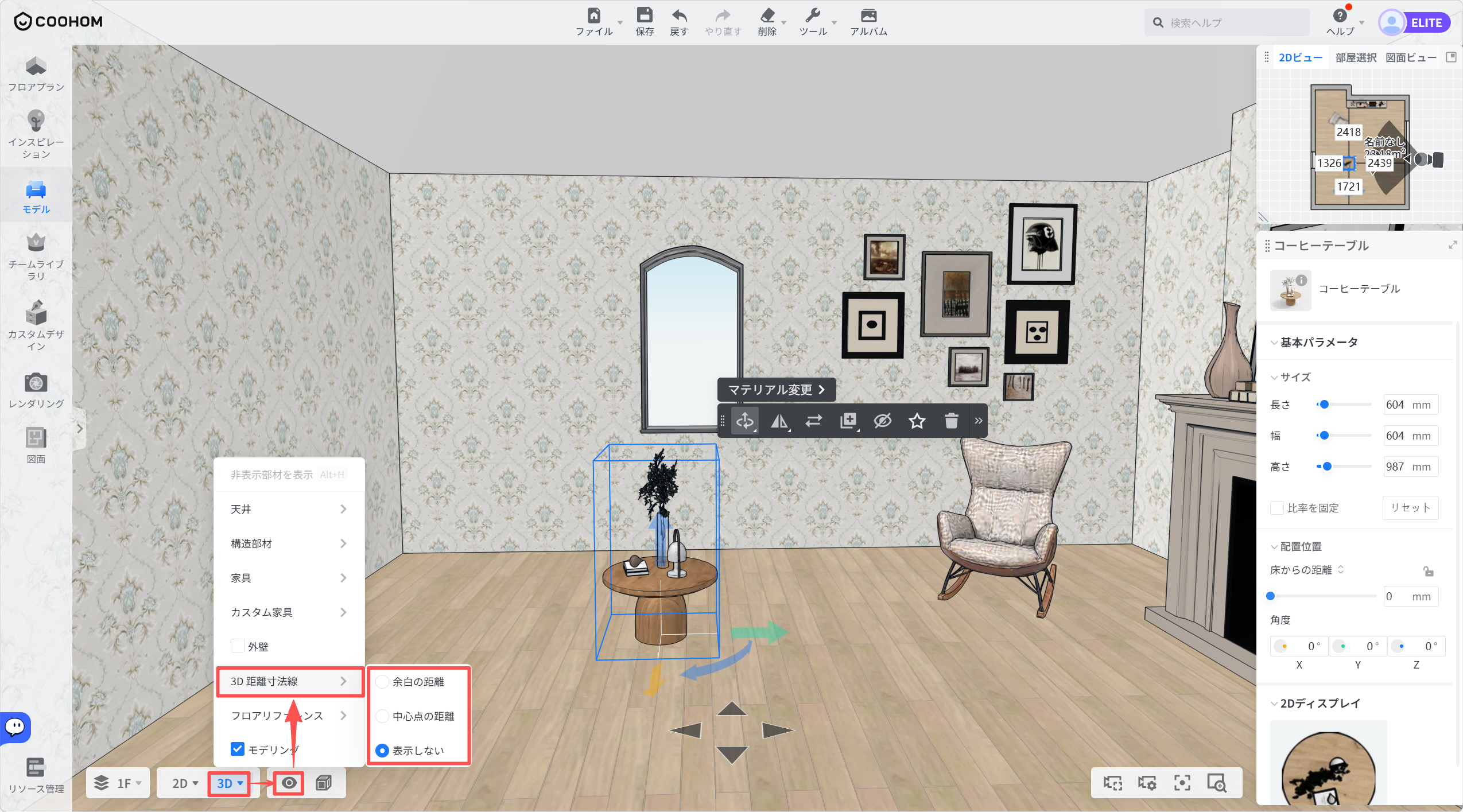

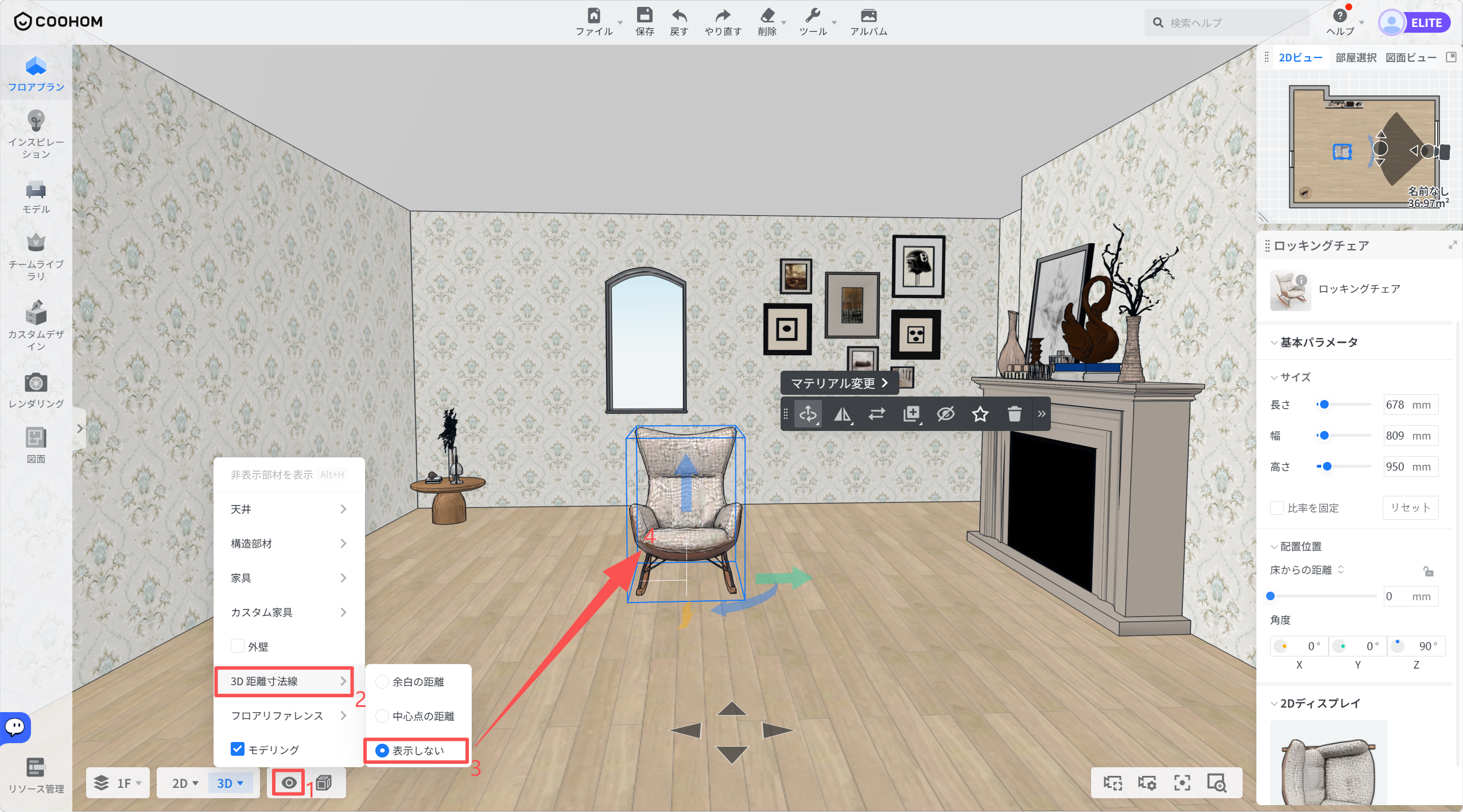

2. 3Dビューで、下部ツールバーの表示/非表示アイコンをクリックし、3D距離寸法線を選択します。
モデルを選択して余白の距離を選択した場合、表示される寸法は選択したオブジェクトの境界から最も近いオブジェクトまでの距離です。

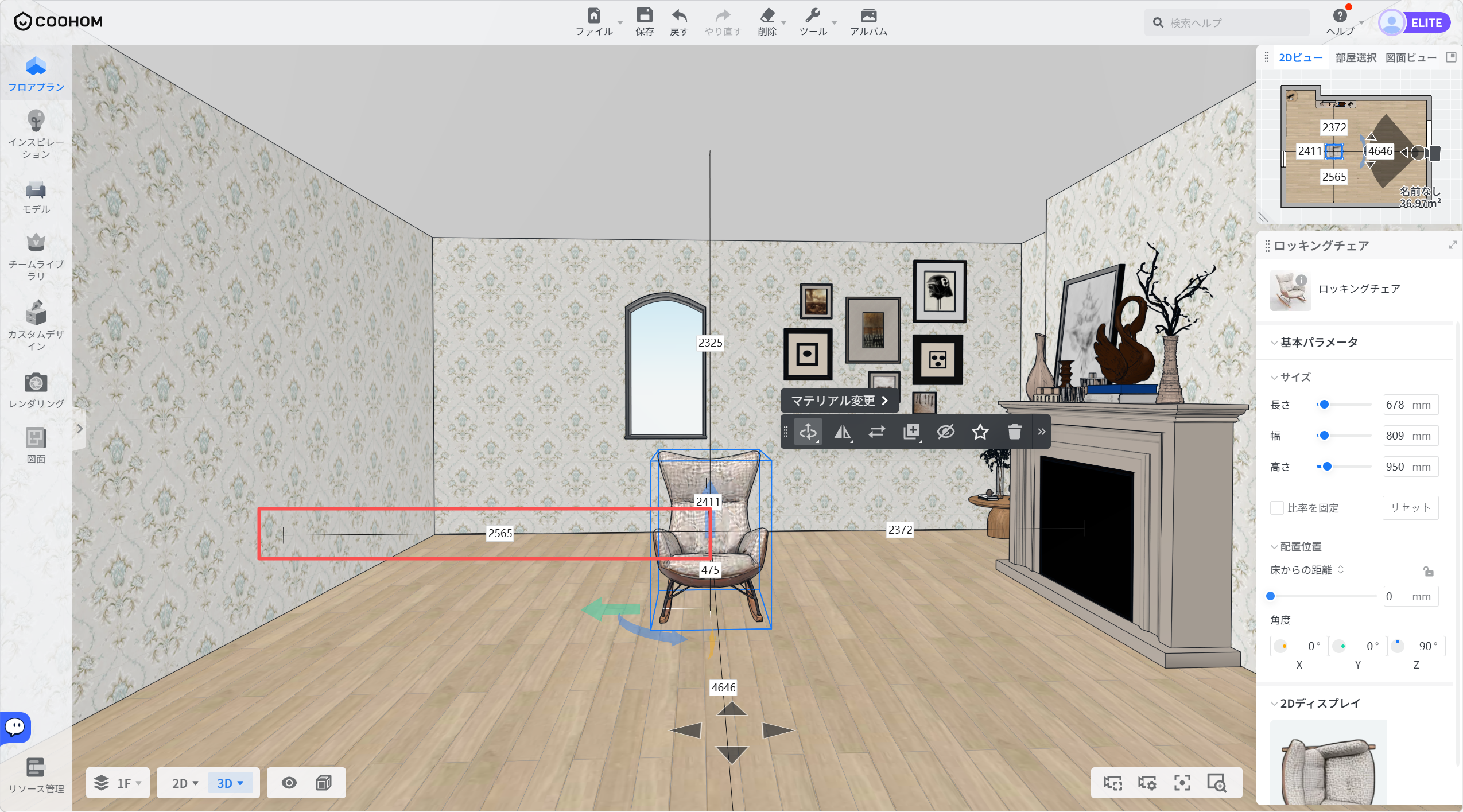

モデルを選択して中心点の距離を選択した場合、表示される寸法は選択したオブジェクトの中心点から最も近いオブジェクトまでの距離です。
1. 2D距離寸法線を選択して表示しないをクリックすると、そのツールは距離寸法線を表示しなくなります。
2. 3D距離寸法線を選択して表示しないをクリックすると、そのツールは距離寸法線を表示しなくなります。

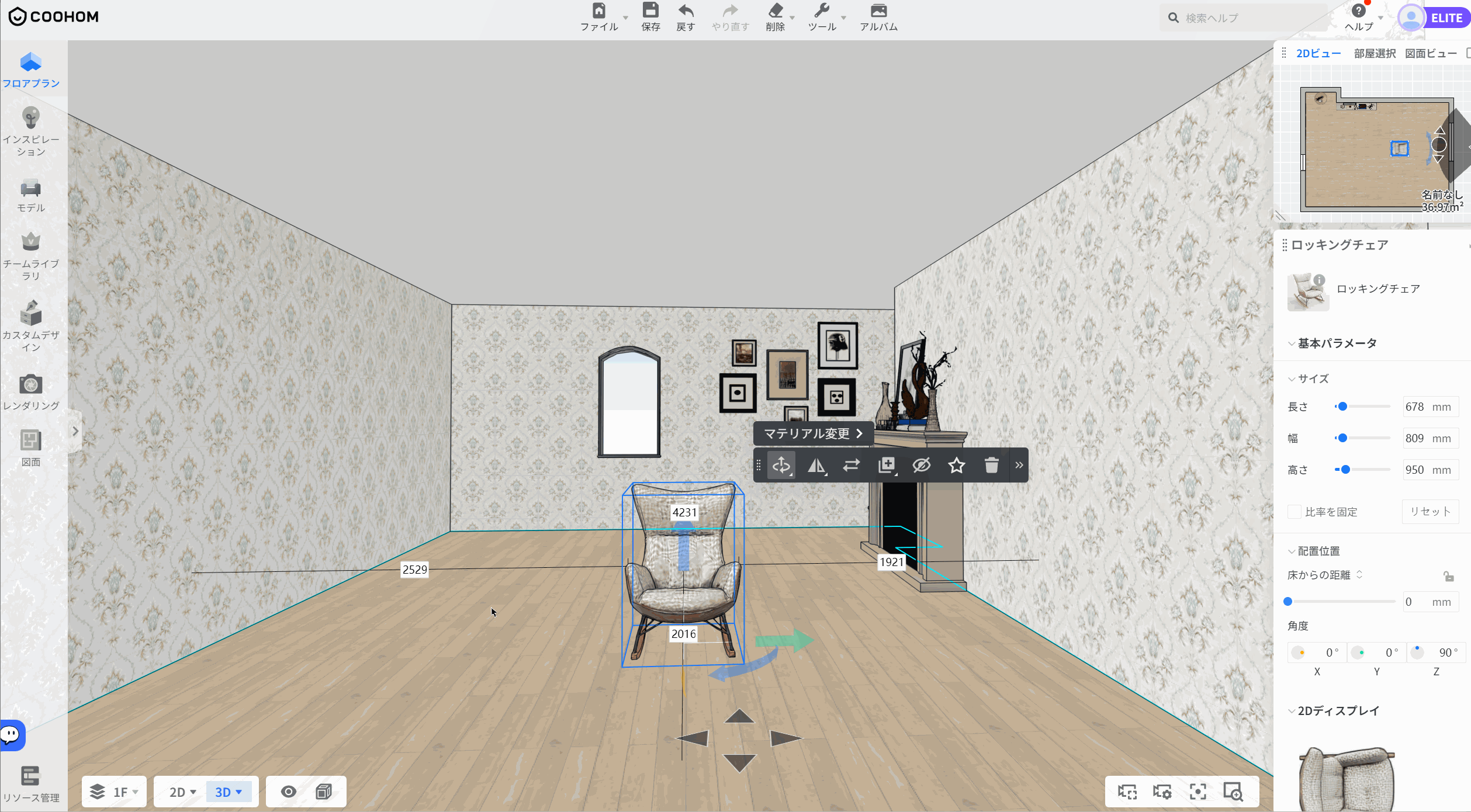

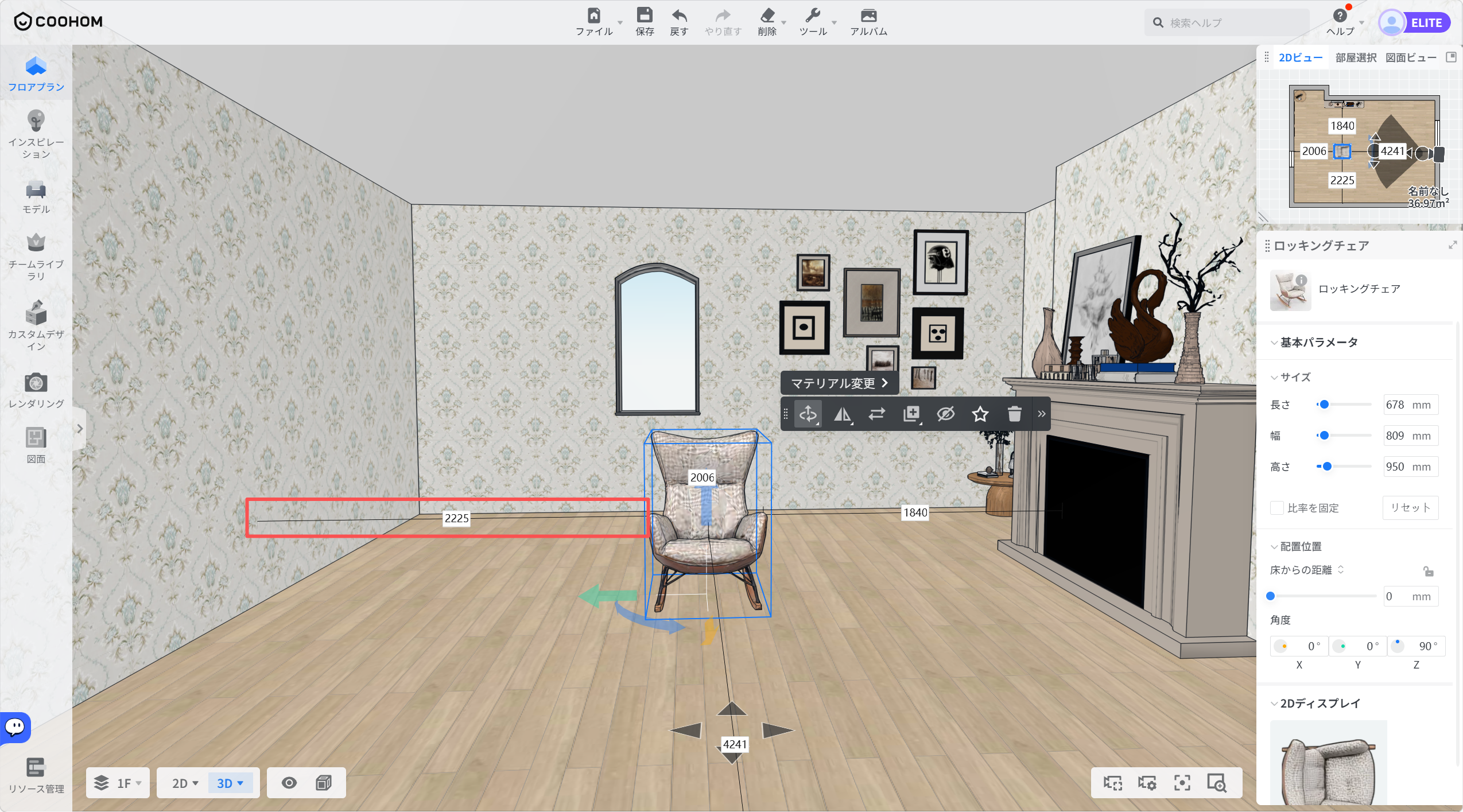

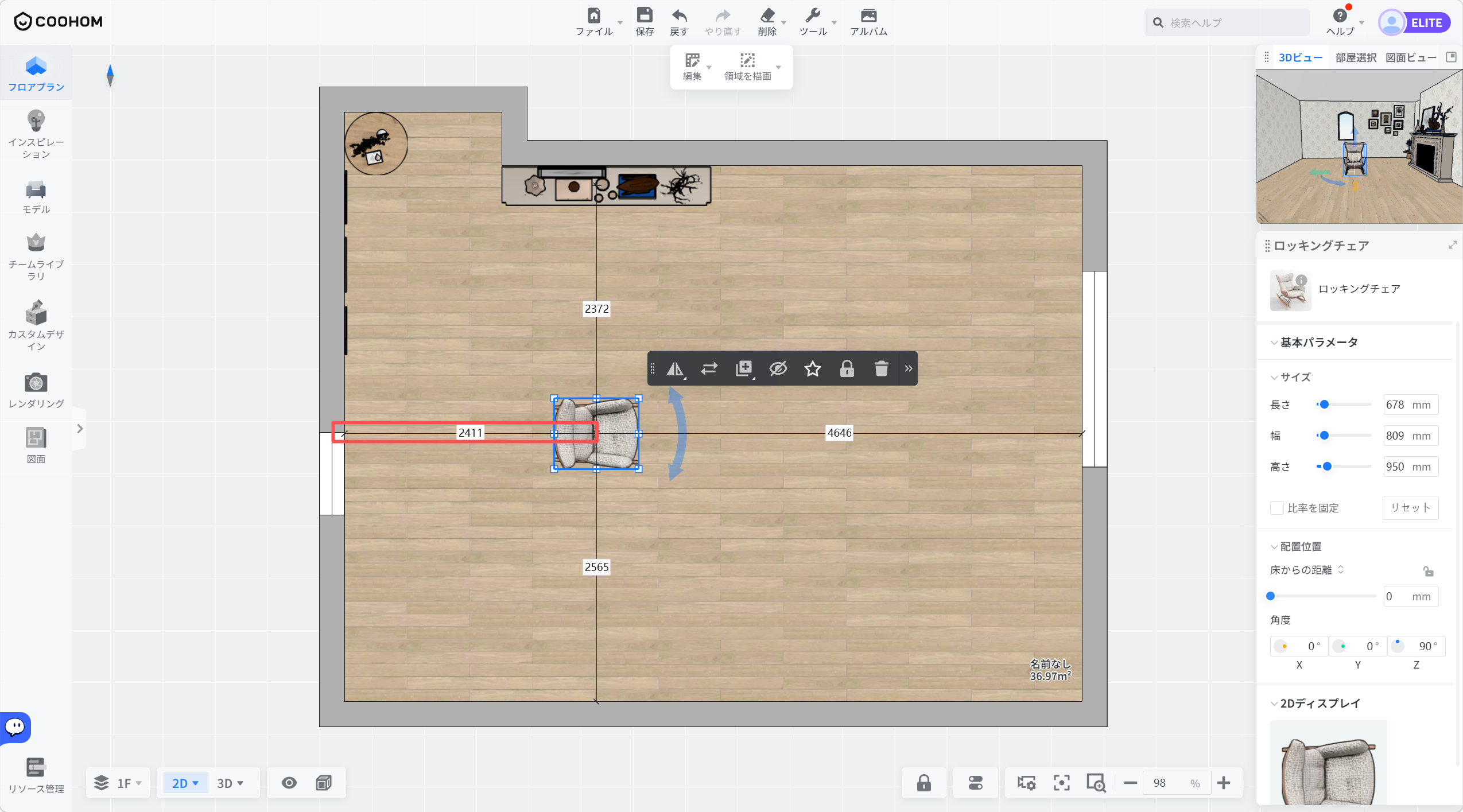

1. 基本入力: オブジェクトを選択すると、寸法線と入力ボックスが表示されます。ボックスに正確な数値を直接入力することで、オブジェクトを指定した位置へ正確に移動できます。
2. 基本算術: 基本入力に基づき、加算(+)、減算(-)、乗算(*)、除算(/)の算術操作に対応し、迅速な計算とオブジェクト移動が可能です。
ここでは2つの方法があり、詳細の内容は以下の通りです:
方法1

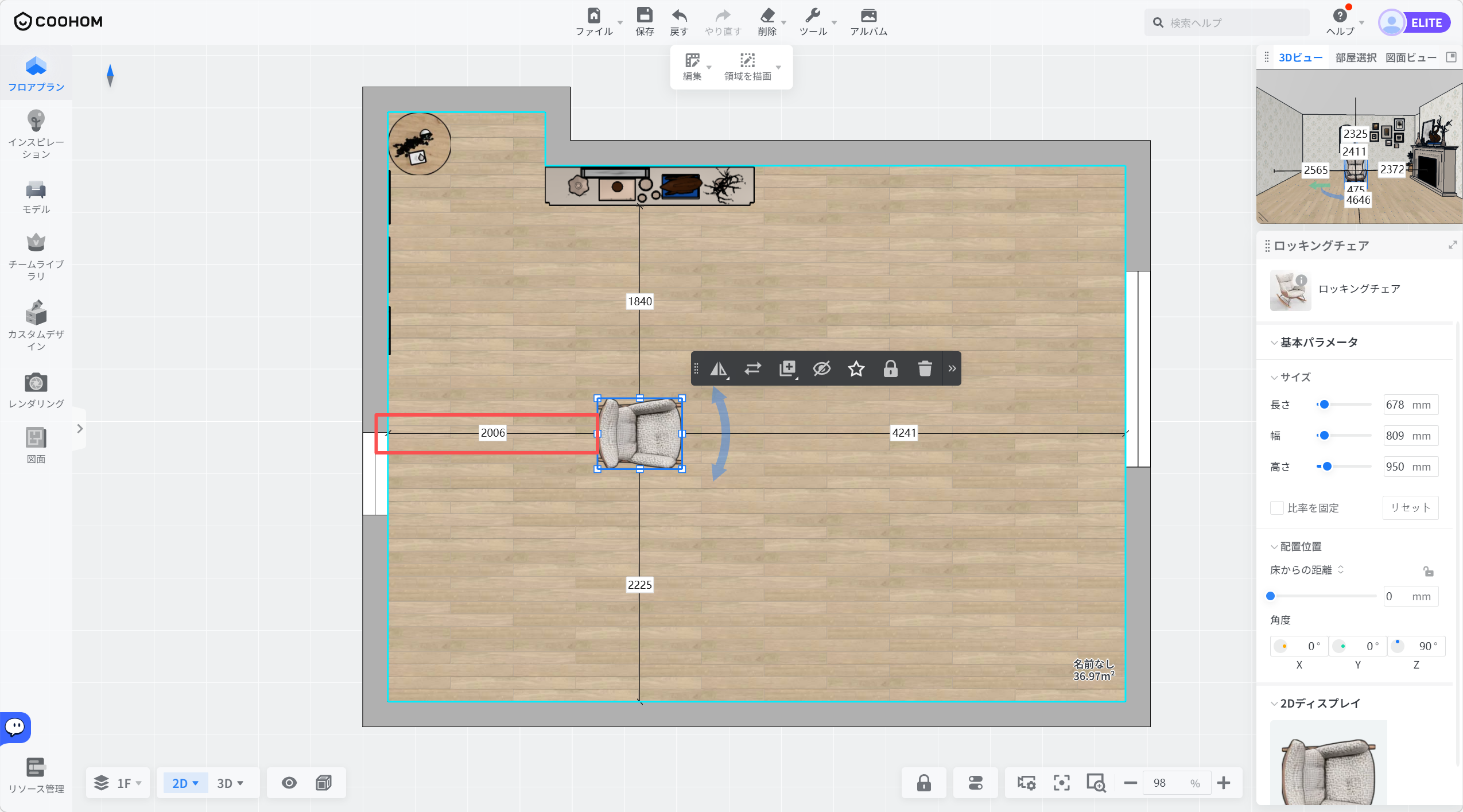

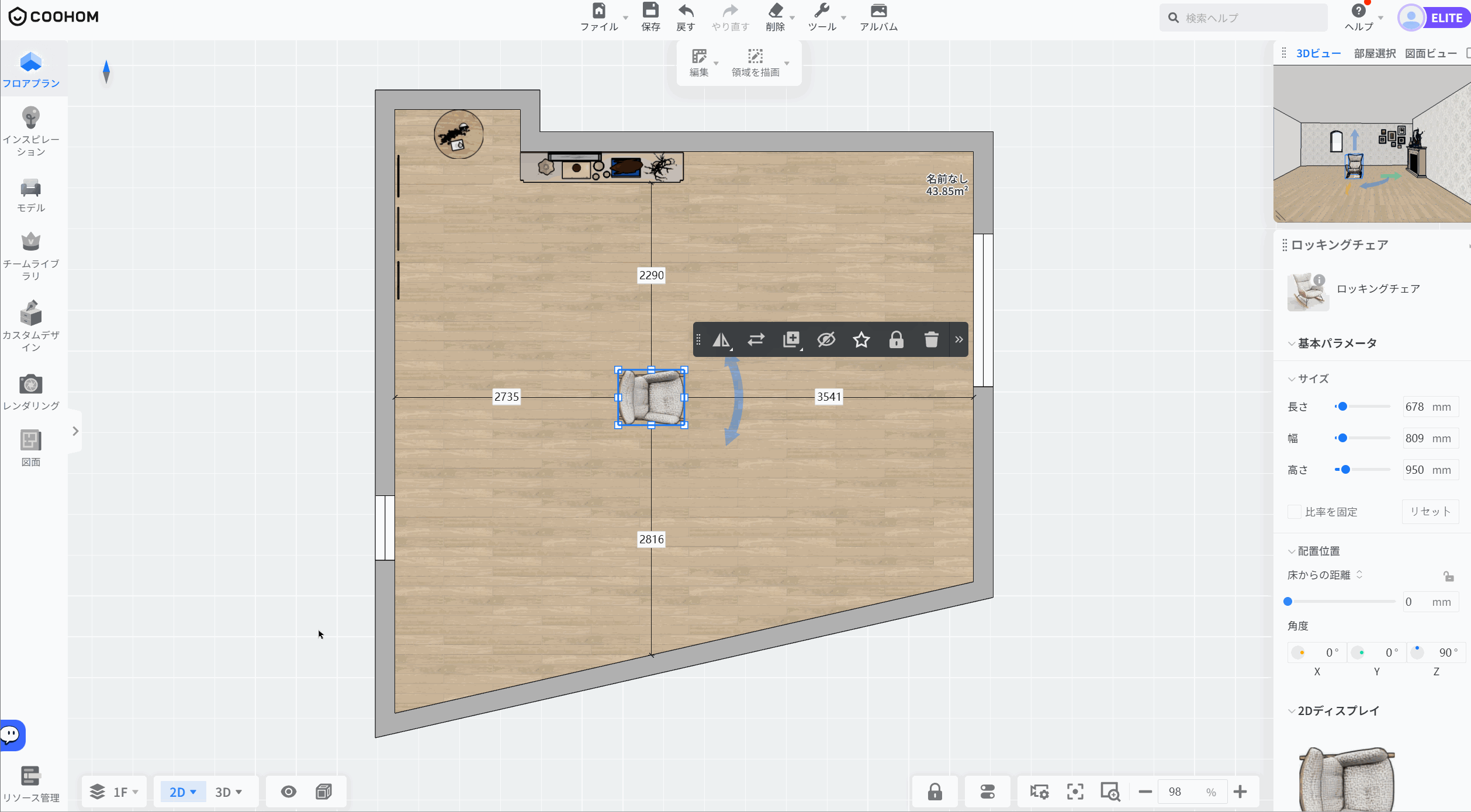

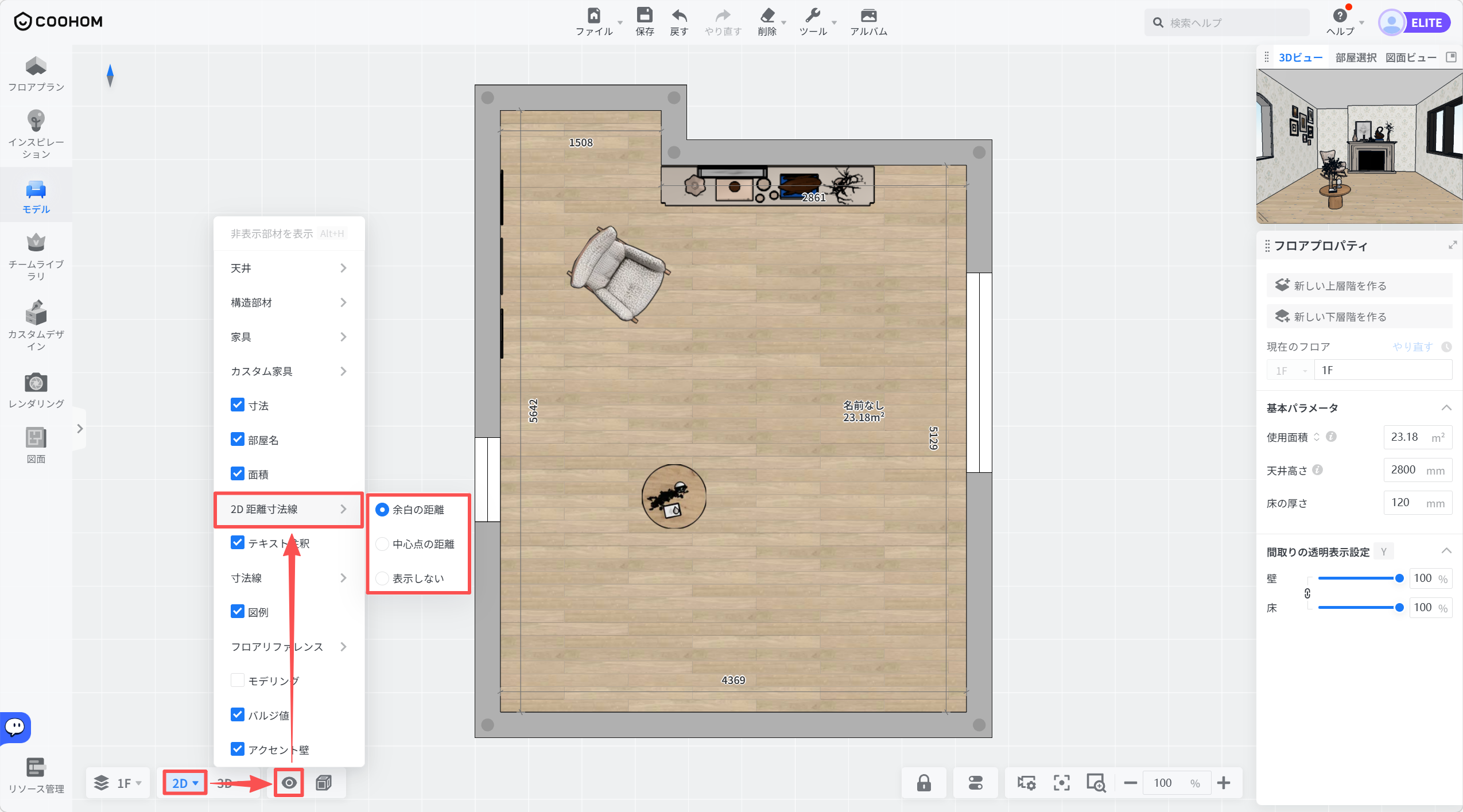

2Dビューで、下部の表示/非表示アイコンをクリックして2D距離寸法線を選択し、中心点の距離をクリックしてモデルを選択すると、モデルから壁までの垂直距離が表示されます。
方法2

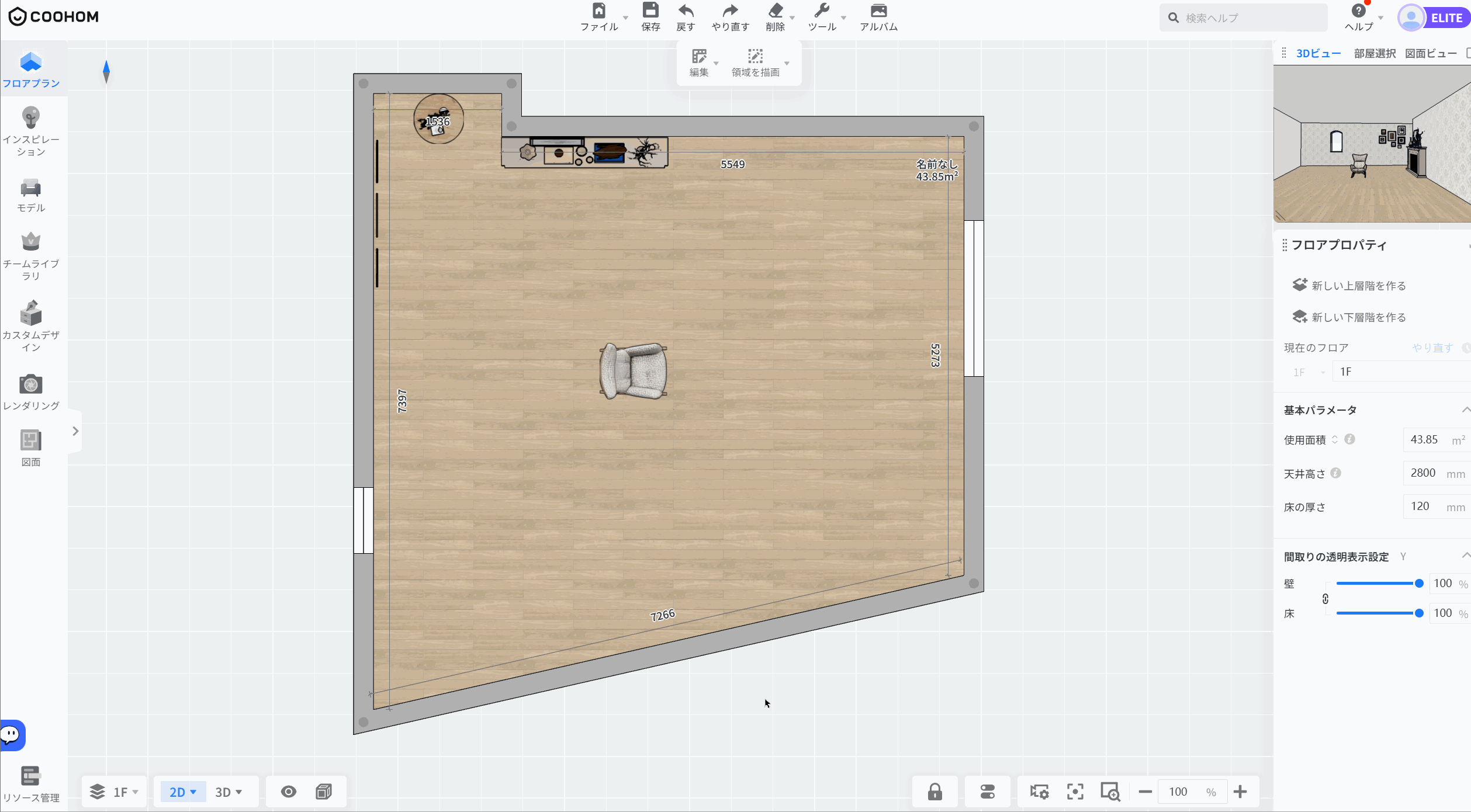

2Dビューで、ショートカットキーShift/⇧+Spaceを直接使用して余白の距離モードから中心点の距離モードに切り替え、モデルから壁までの垂直距離を測定できます。

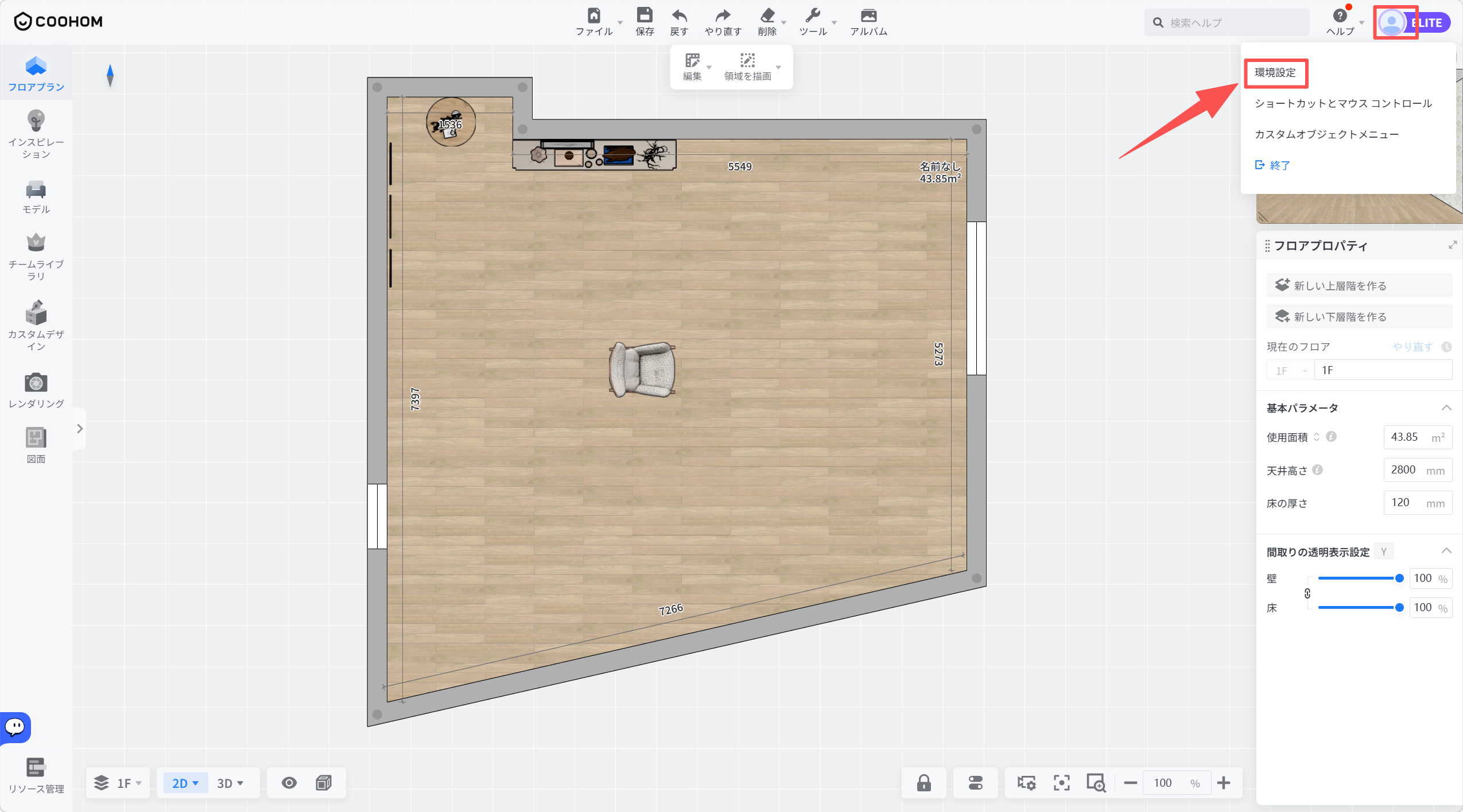

1. マウスを画面右上のアバターに移動し、環境設定を選択します。

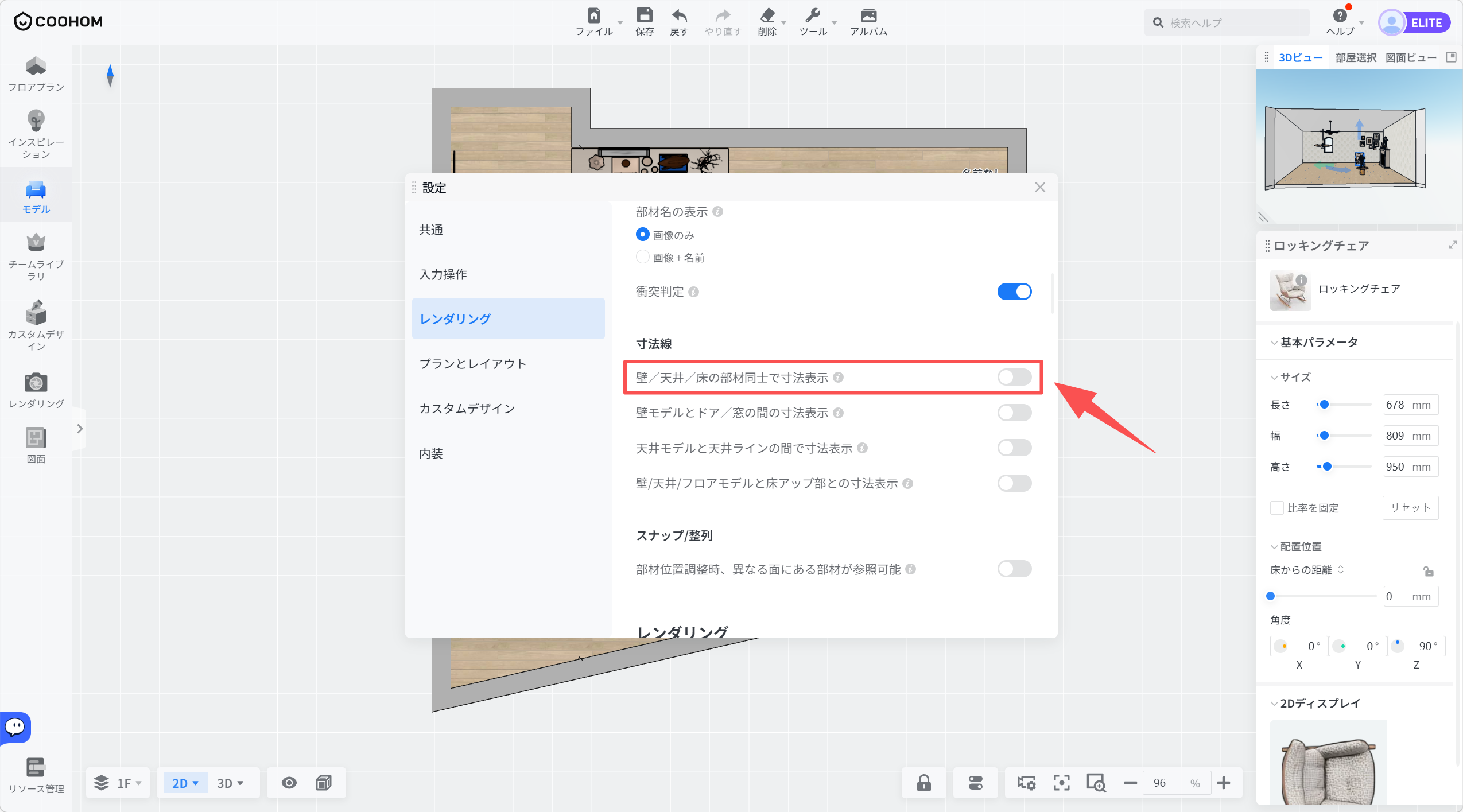

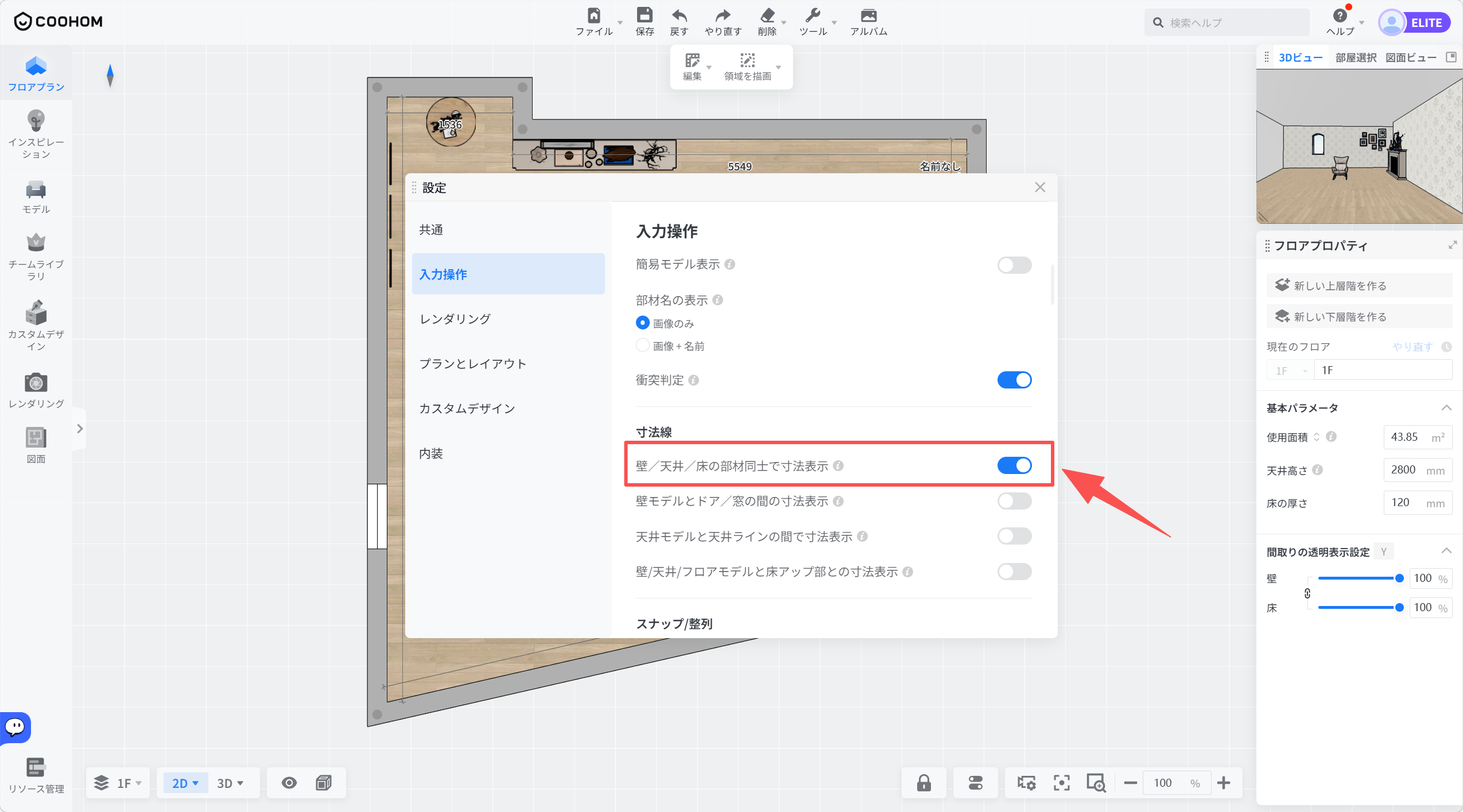

2. ポップアップパネルで、壁/天井/床の部材同士で寸法表示をチェックします。2Dビュー(床ビュー/天井ビュー)では、壁モデル、表面モデル、および床モデルが互いの距離寸法線を認識し、例えば天井モデルが壁、表面、または床モデルとの距離寸法線を認識できるようになります。
3. 壁/天井/床の部材同士で寸法表示がチェックされていない場合、2Dビュー(床ビュー/天井ビュー)の壁モデル、表面モデル、および床モデルは同じカテゴリ内での寸法線のみを認識します。例えば、天井モデルは他の天井モデルとの寸法線のみを認識し、床モデルは他の床モデルとの寸法線のみを認識し、壁モデルは他の壁モデルとの寸法線のみを認識します。
