「天井エディタ」ツールでは、「曲線」ツールと「オフセット」ツールを活用して、自由な天井形状を作成できます。作成した形状に発光マテリアルを適用することで、発光天井を簡単に構築できます。
⭐本記事を読む前に、まず動画チュートリアルをご視聴いただくことをお勧めします。スムーズに使い始めることができます。
すべてのユーザー

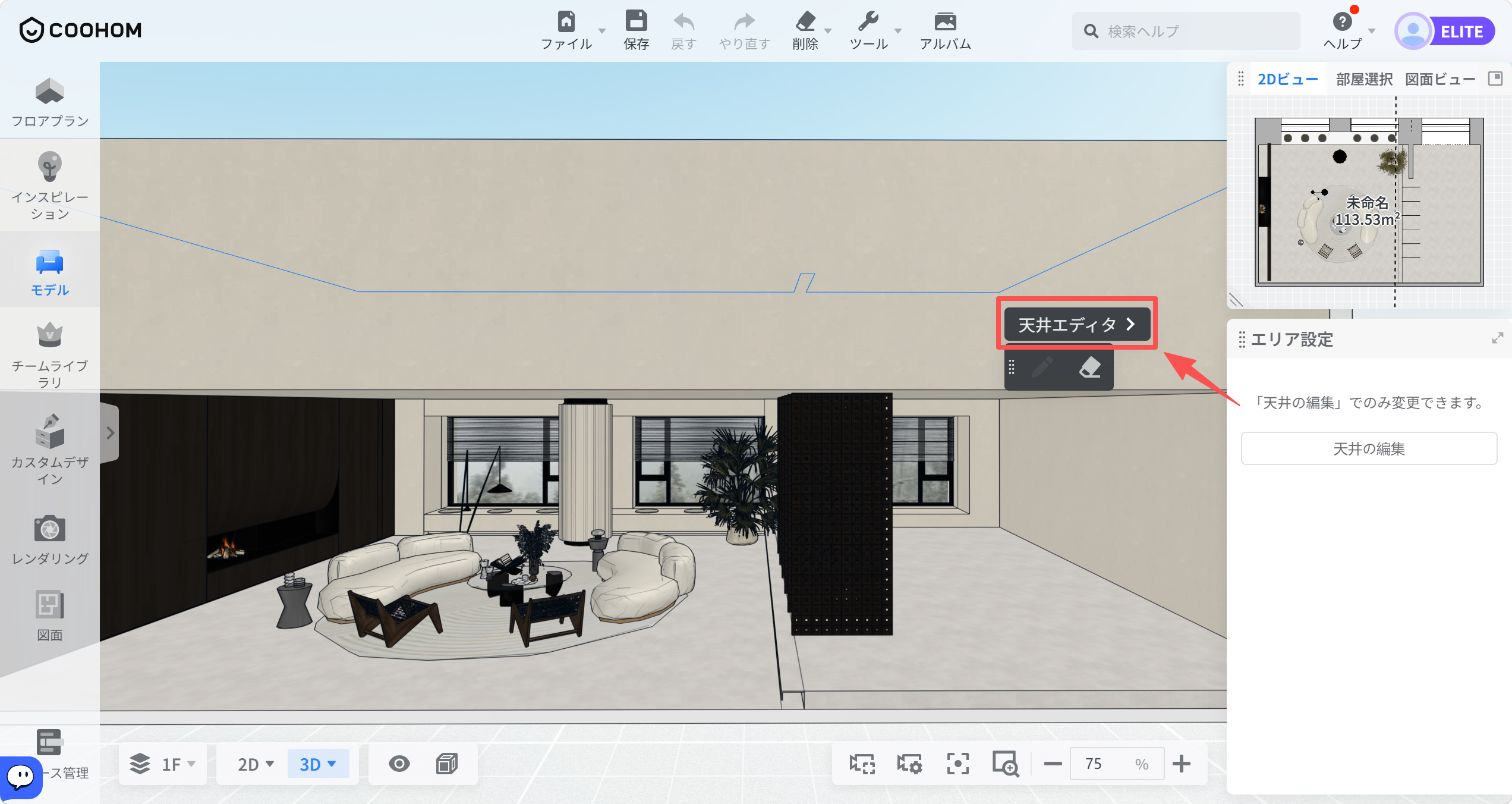

天井面を選択し、「天井エディタ」をクリックして開きます。

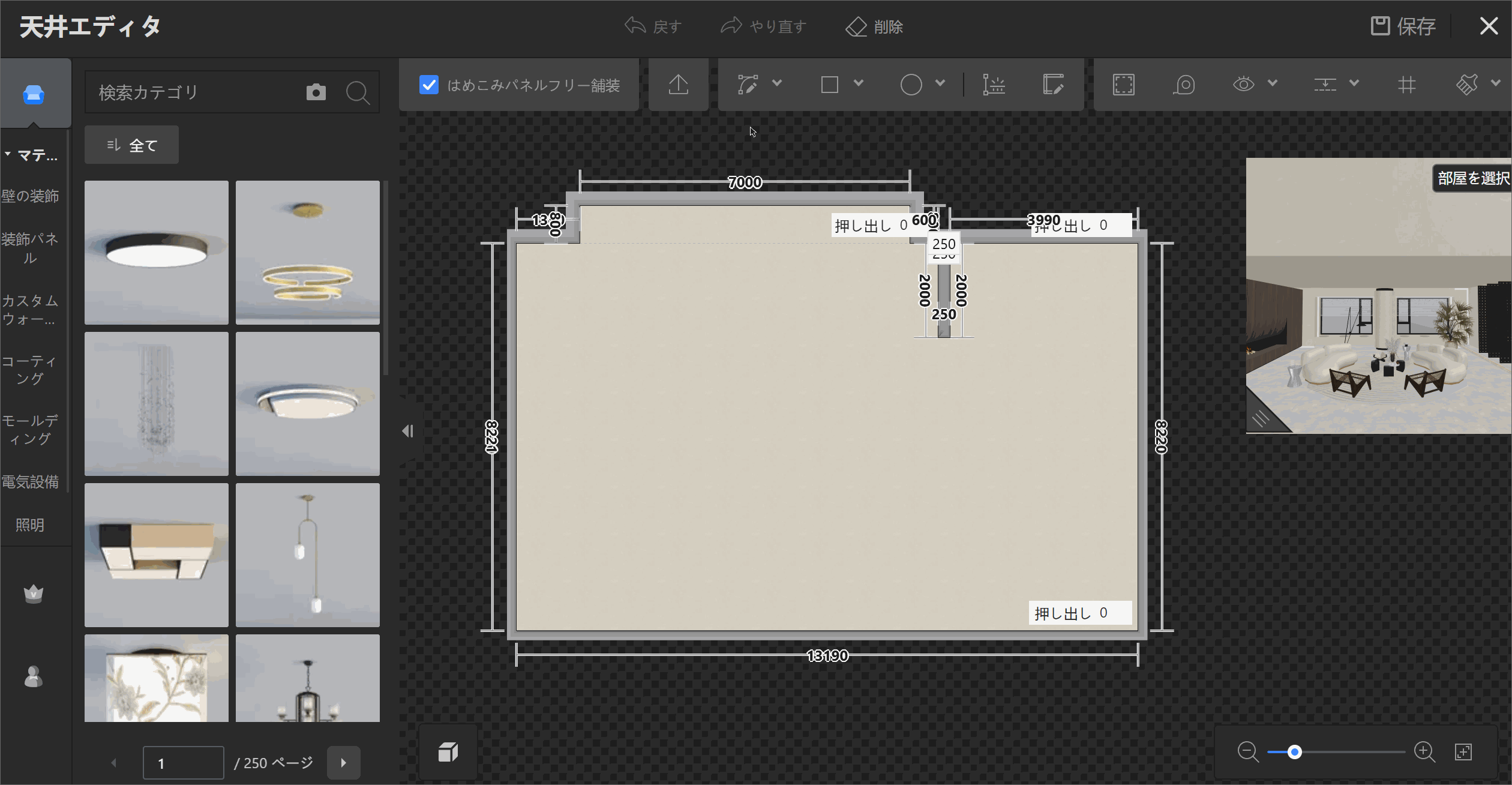

1. 「天井エディタ」ツールで、上部の「曲線」ツールをクリックし、任意の形状を作成します。
2. 描画後は、必要に応じて形状を調整します。線を選択して曲線の形状を調整し、希望する形状になるまで繰り返し調整してください。

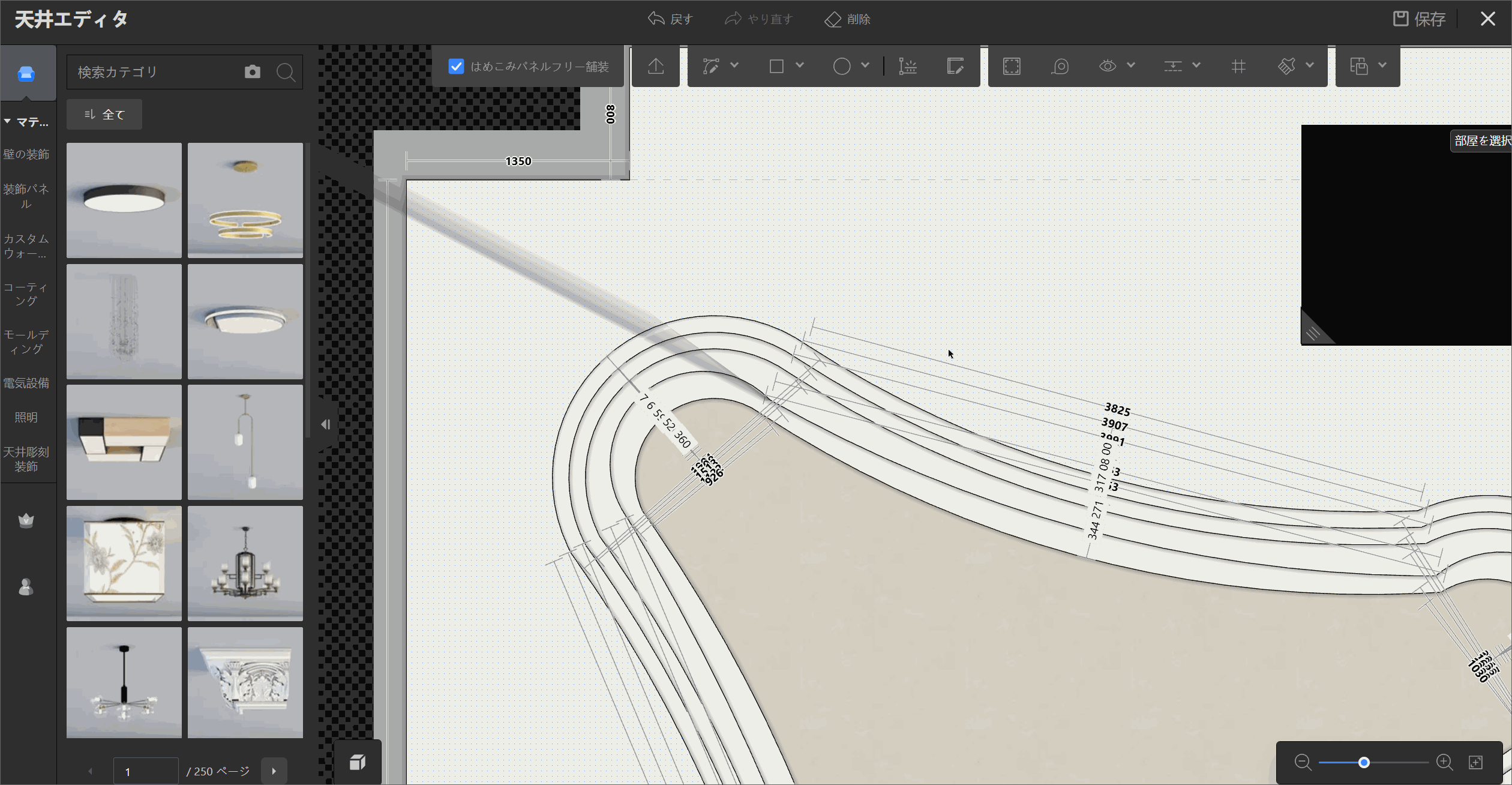

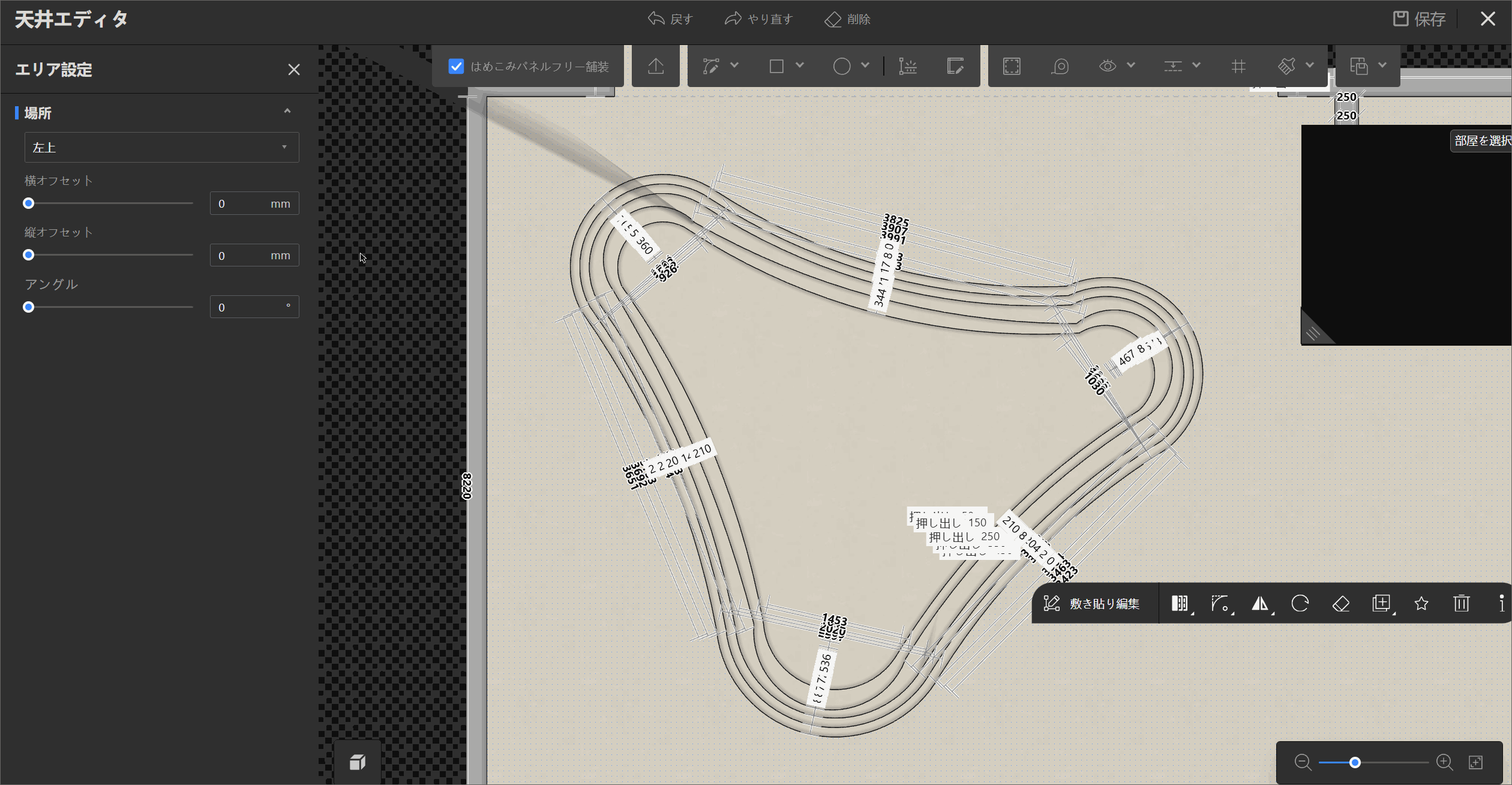

3. 調整が完了したら、上部の「オフセット」ツールをクリックし、輪郭線をオフセットします。その後、デザインに合わせて形状を整えます。

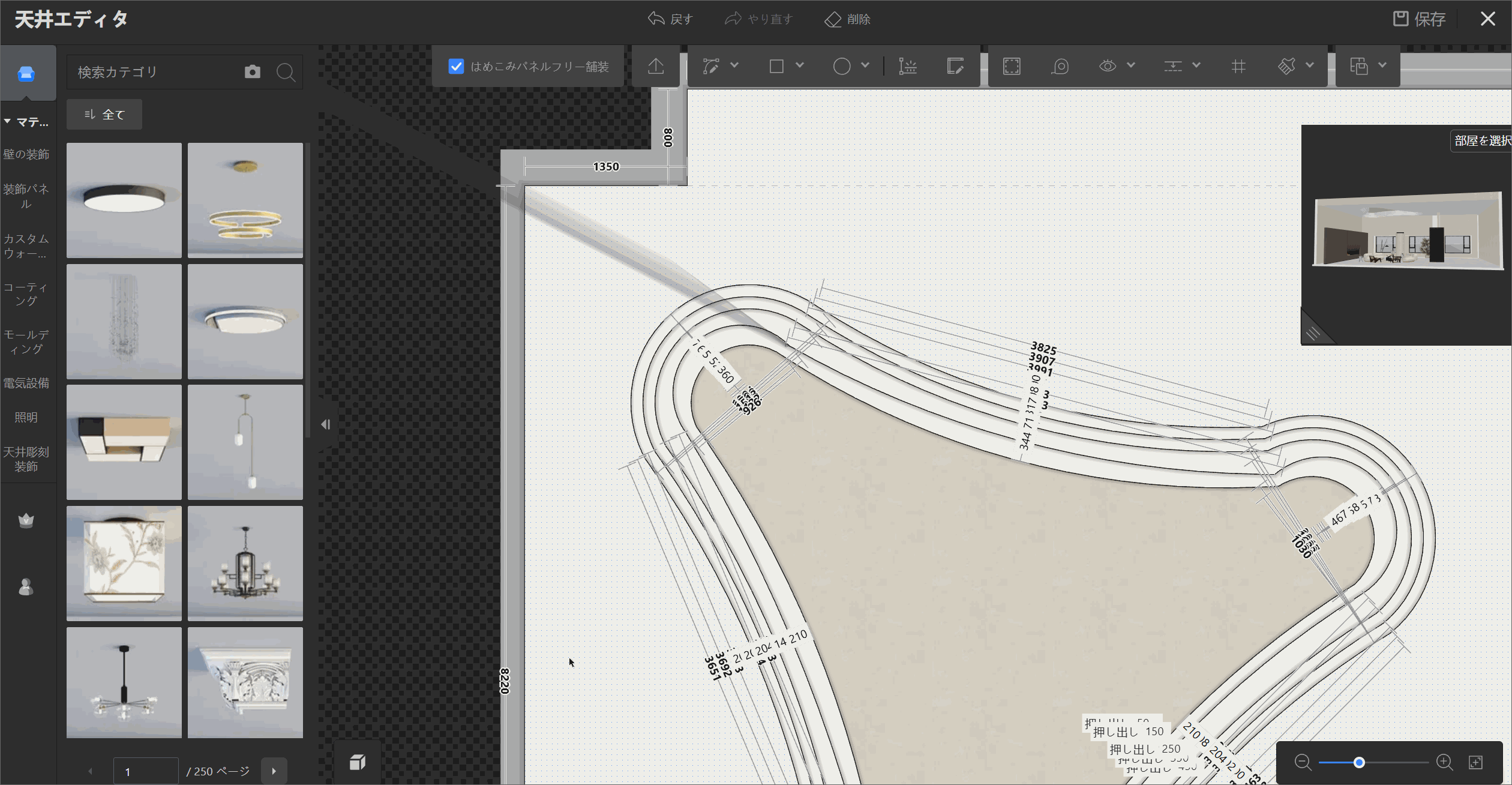

4. 次に、複数の面に異なる押し出し値を設定し、複雑な空間のレイヤー構造を作成します。
5. 左側のメニューで「壁の装飾」をクリックします。上部で「塗装・コーディング」を選択し、適用するマテリアルを選択します。「舗装貼り」ツールを使用して目的のテクスチャを選択し、他の領域に適用します。

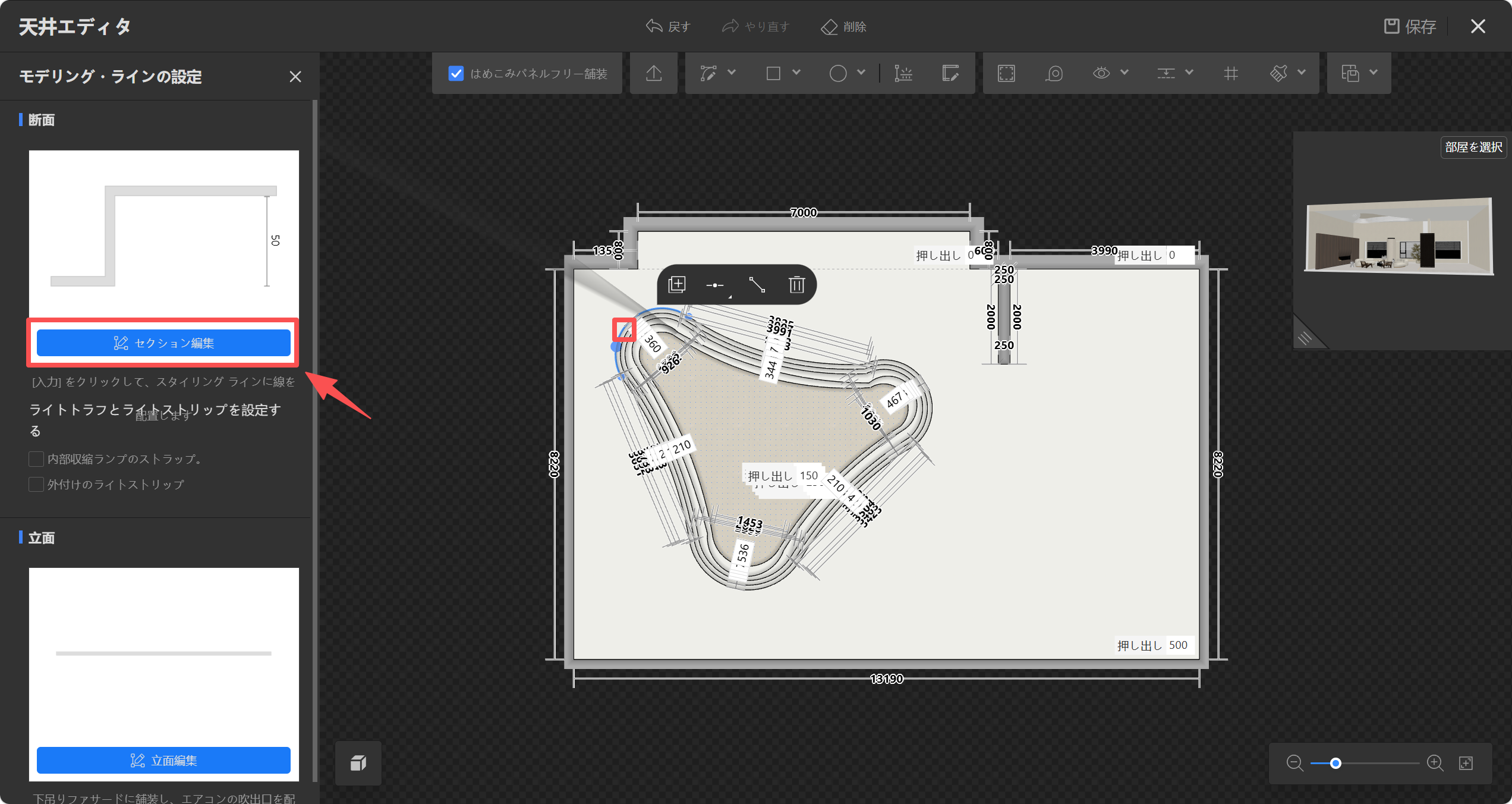

6. モデリングラインを選択し、「セクション編集」をクリックします。その後、適用する領域にマテリアルを配置します。

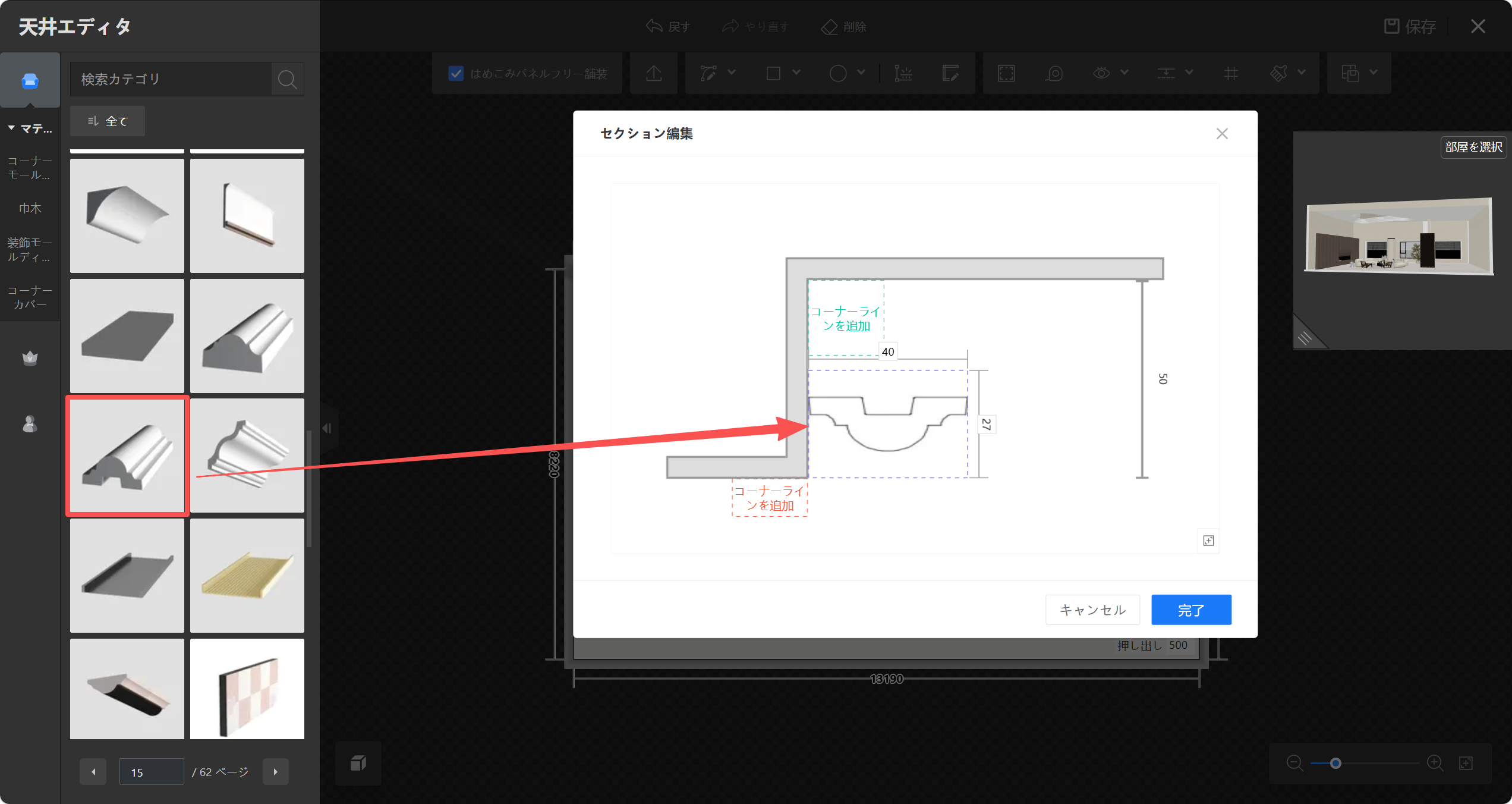

7.「セクション編集」ウィンドウで寸法を調整し、調整が完了したら「完了」をクリックします。
8. 上部の「モールディング貼り」をクリックし、天井のマテリアルを選択して装飾ラインに適用します。
9. セットされたモデリングラインを選択し、パネルで「コピー」をクリックした後、現在の編集エリアに貼り付けます。

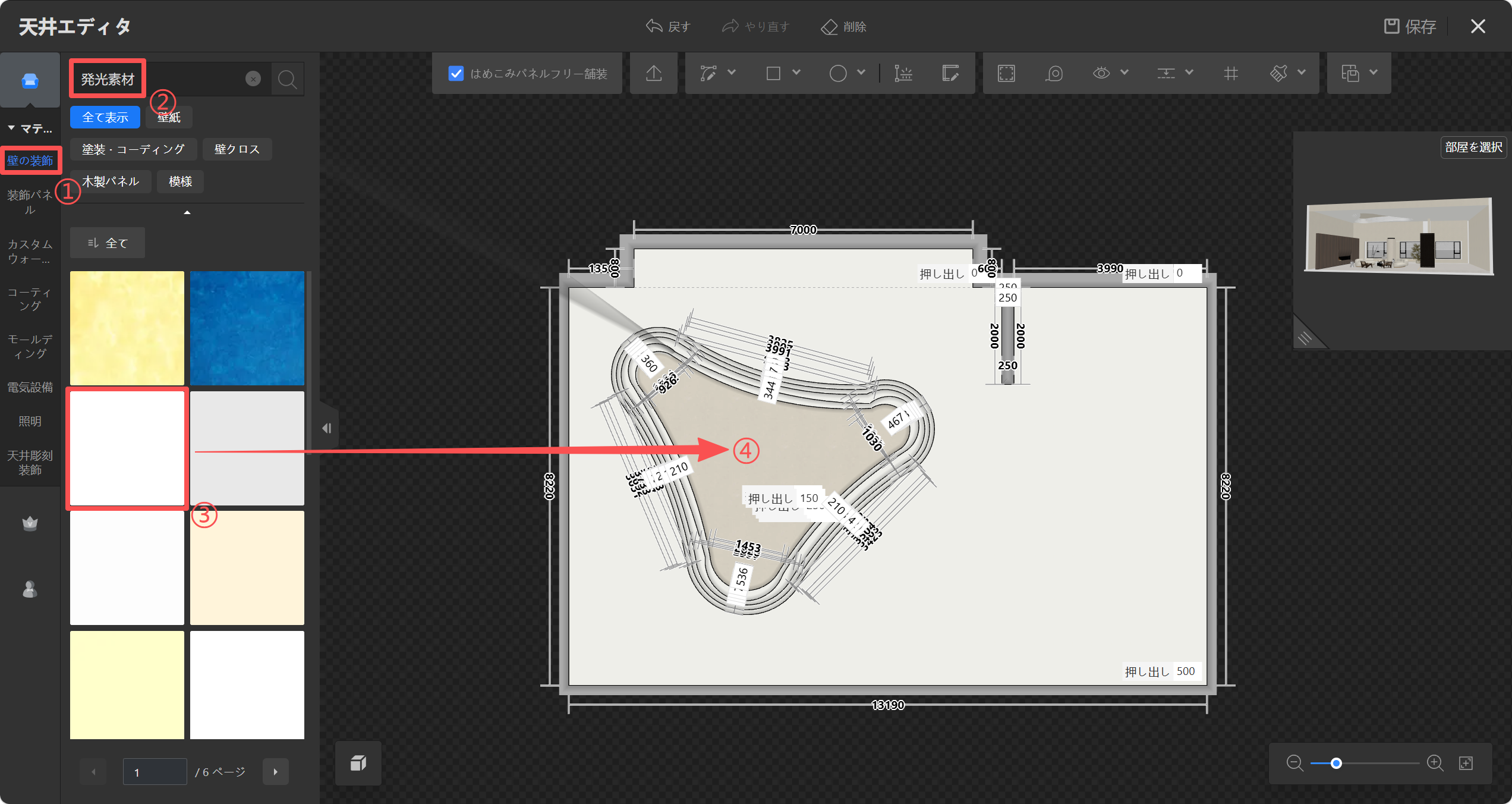

10. 左側のメニューで「壁の装飾」をクリックします。上部で「発光素材」を検索し、適切なマテリアルを選択して、対象エリアに適用します。

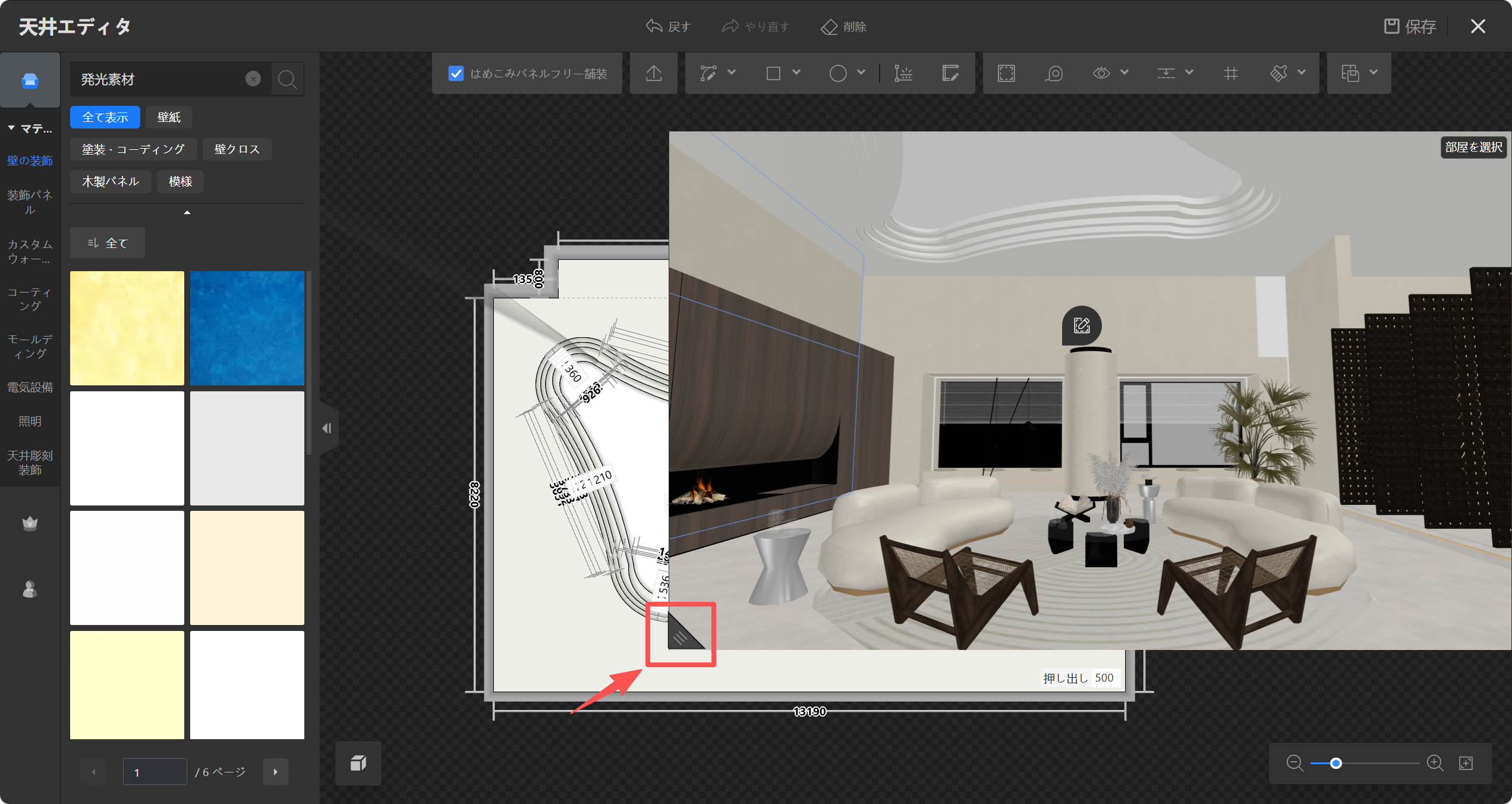

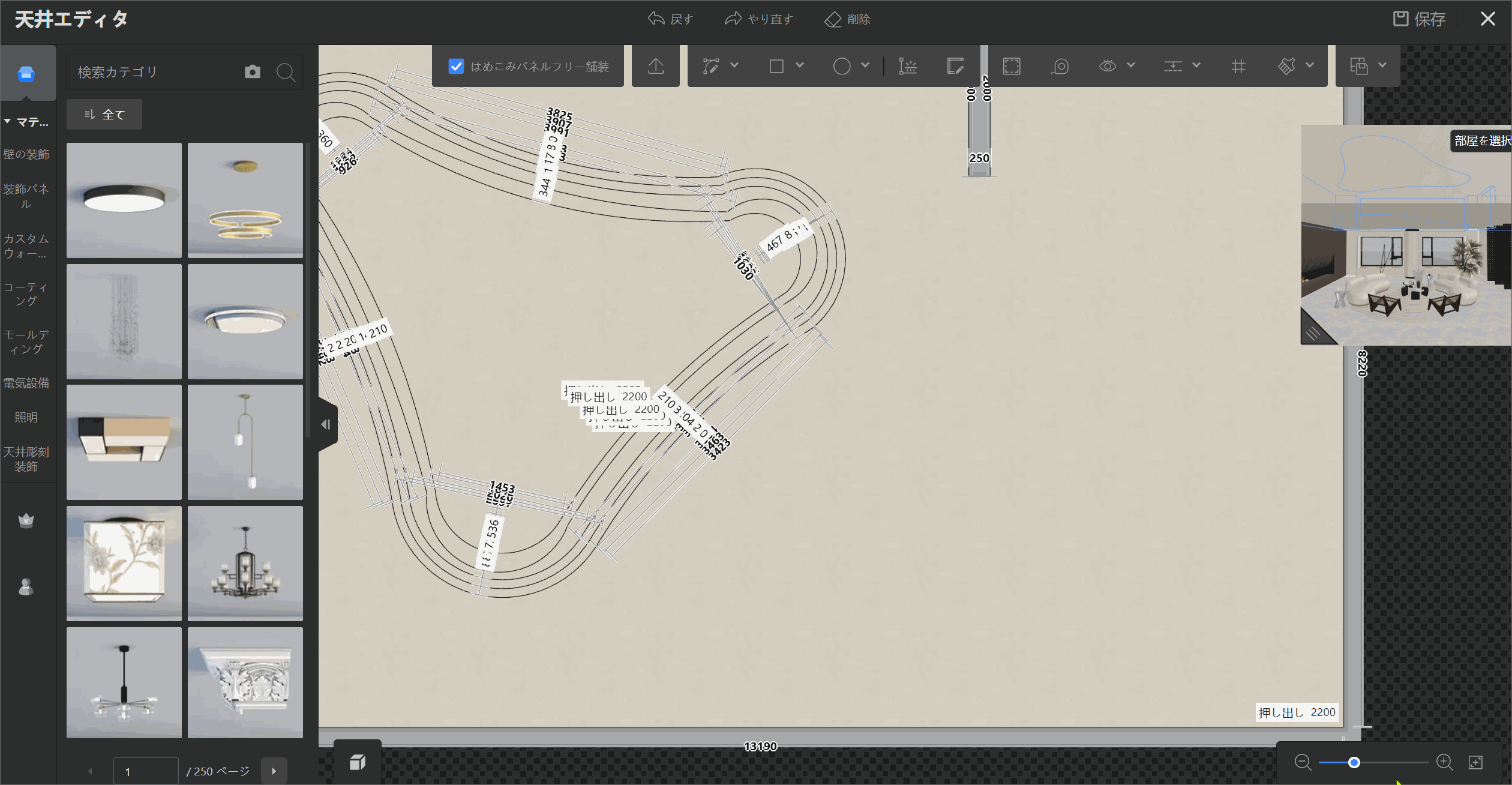

11. 設定が完了したら、右上のビューポートを操作して拡大表示し、効果を確認して必要に応じて調整します。

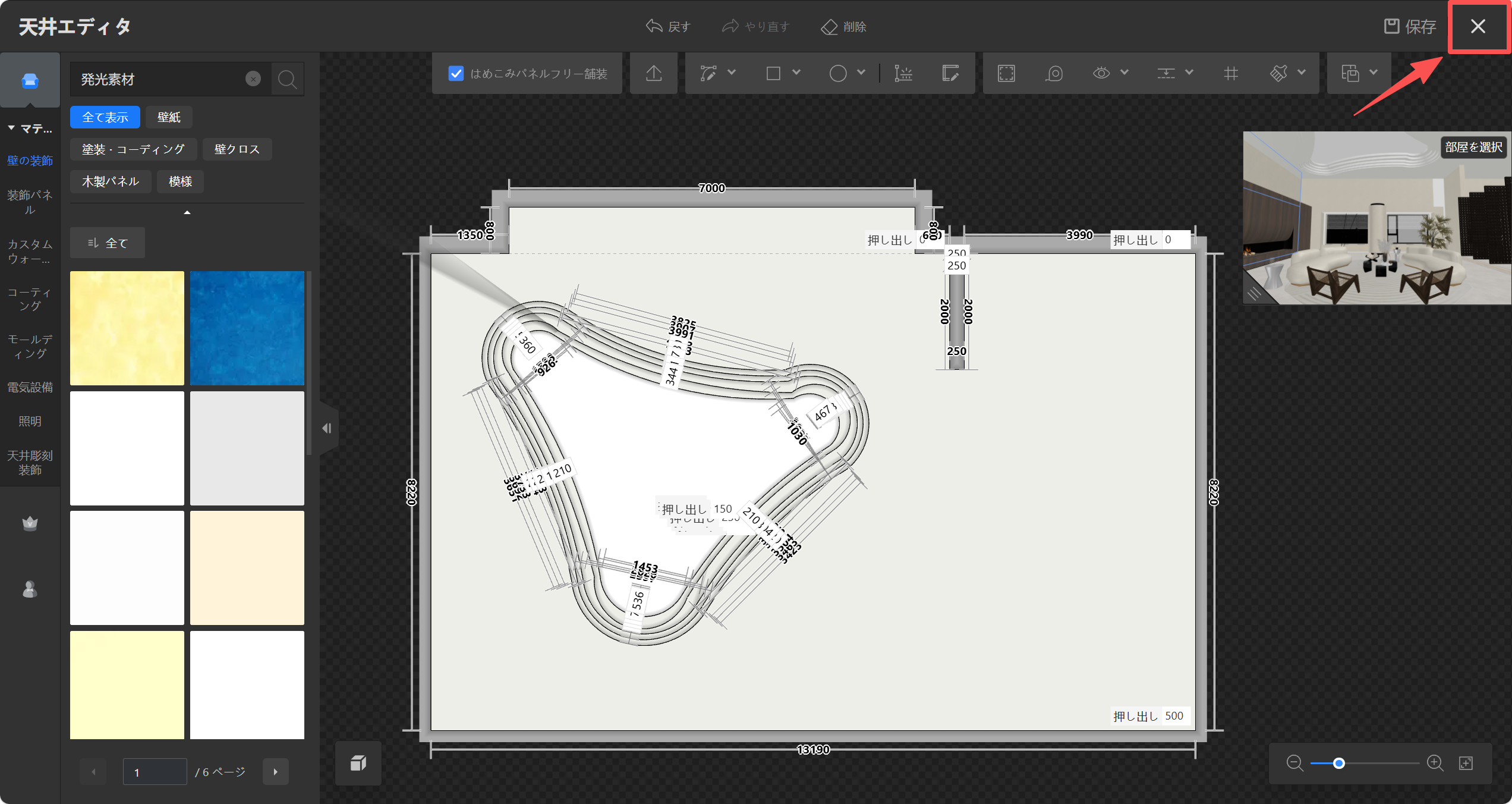

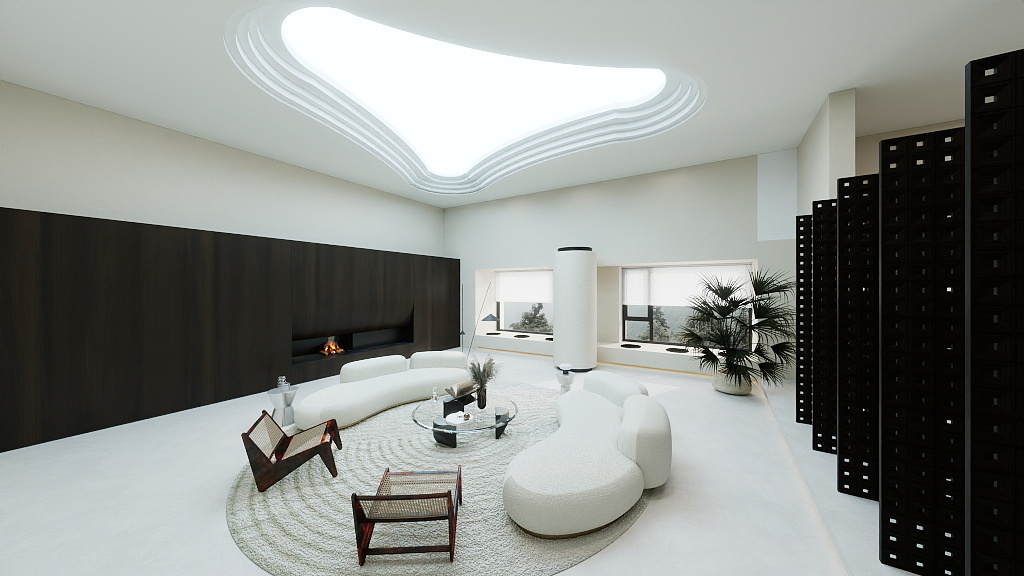

12. 調整が不要な場合は、右上の「保存して終了」をクリックします。レンダリング後、満足のいく画像を取得できます。
