下部フィラー作成ツールを使用すると、キャビネットに下部フィラーをすばやく生成できます。
⭐本記事を読む前に、まず動画チュートリアルをご視聴いただくことをお勧めします。スムーズに使い始めることができます。
すべてのユーザー
「設備カスタム」を選択して、カスタマイズ画面に入ります。

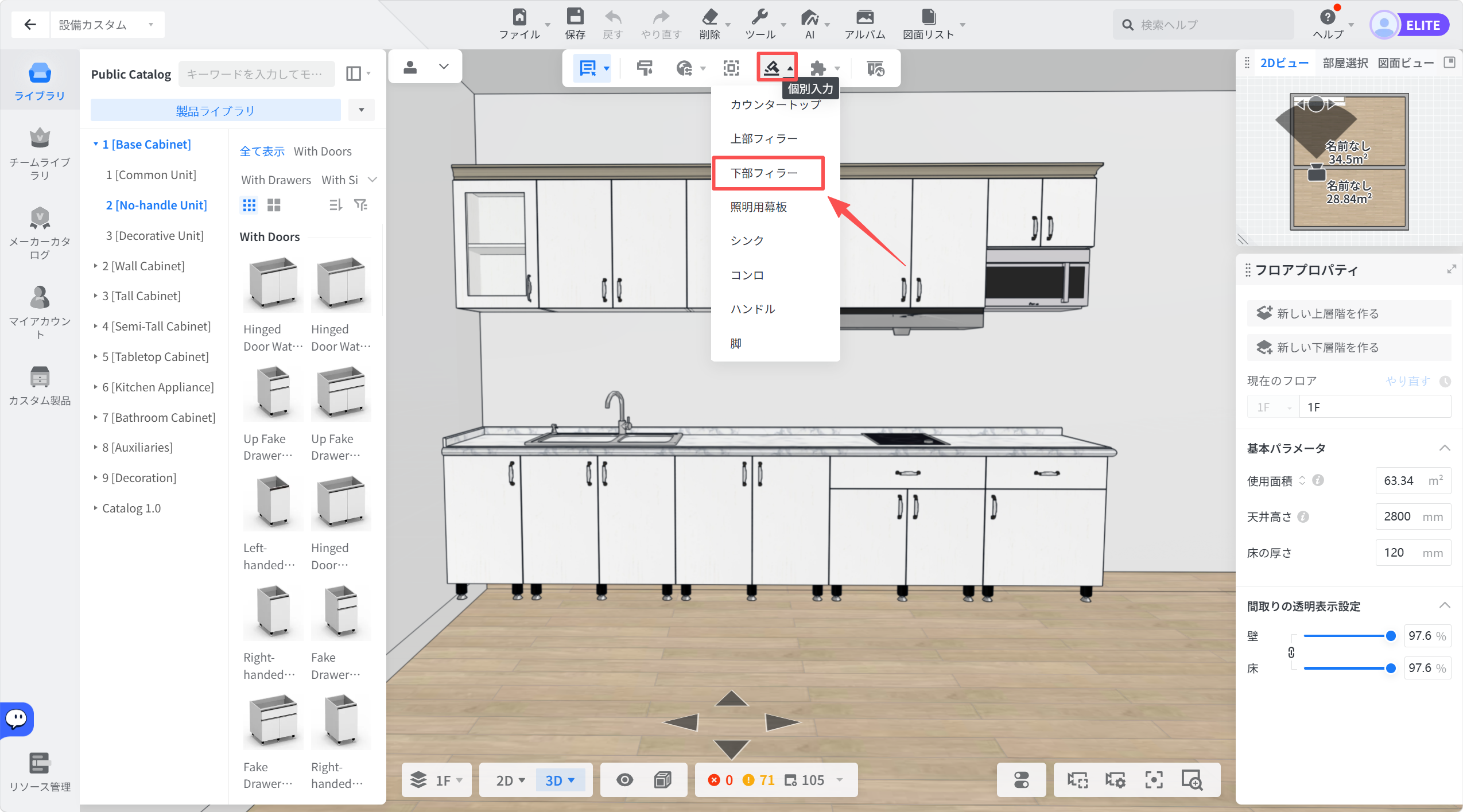

入口1: 上部ツールバーから「個別入力 - 下部フィラー」を選択します。

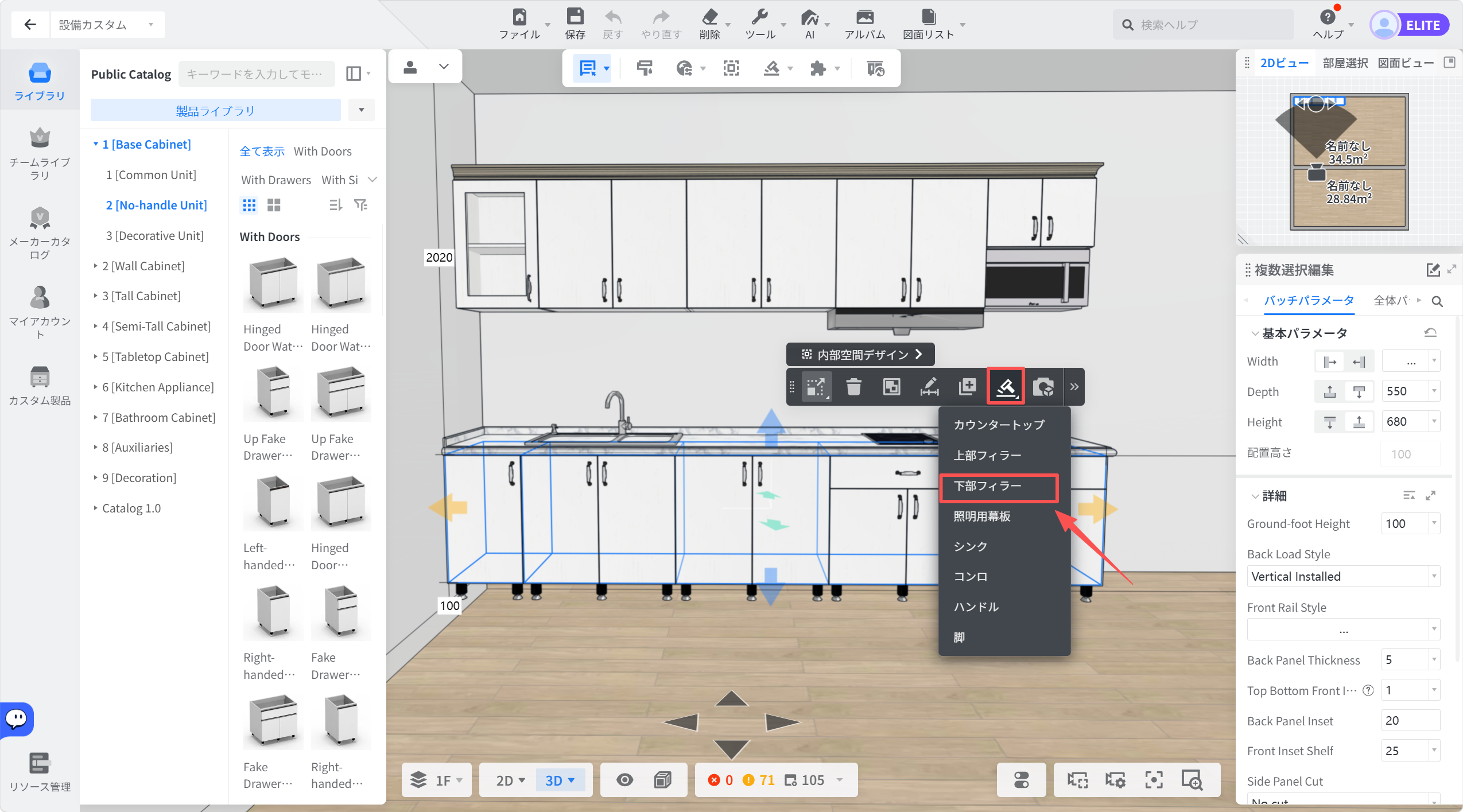

入口2: キャビネットを選択し、フローティングツールバーから「個別入力 - 下部フィラー」を選択します。

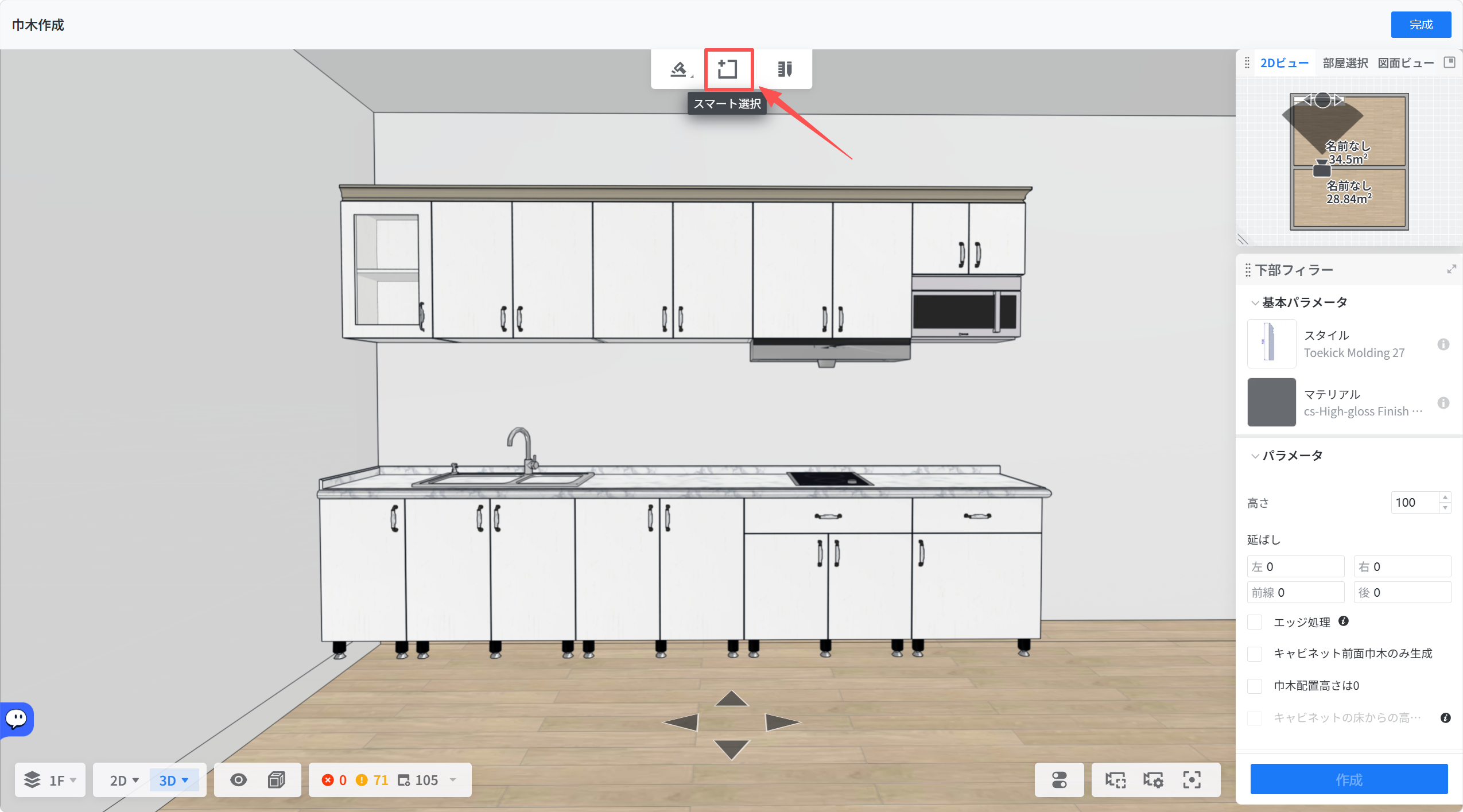

1. キャビネットを選択すると、ツールが自動的に下部フィラーを生成する必要があるキャビネットを識別します。また、Shiftキーを押しながら複数のキャビネットを選択して生成することもできます。すべてのキャビネットを識別する必要がある場合は、「スマート選択」をクリックします。

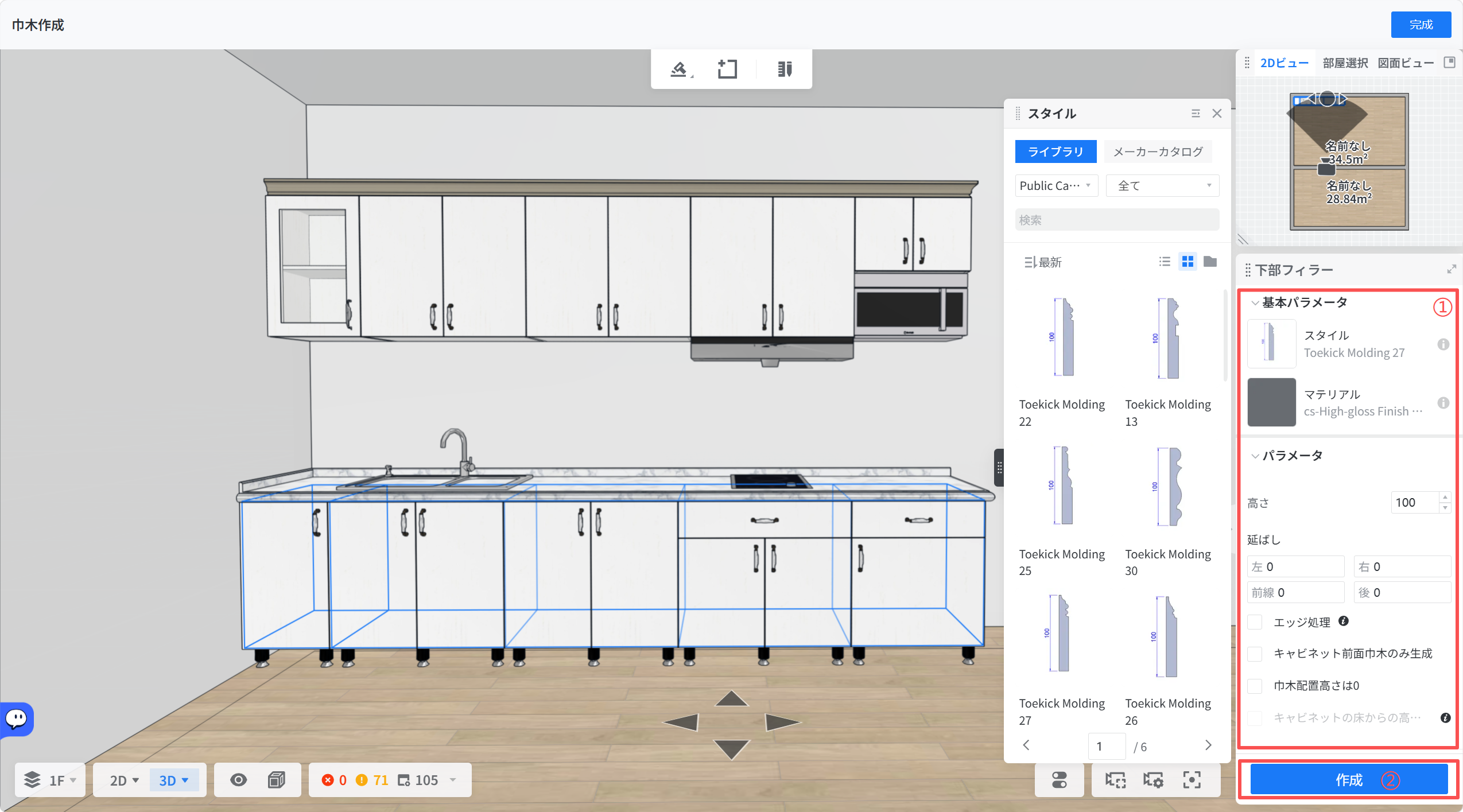

2. 右側の基本パラメータで、追加する下部フィラーの「スタイル」と「マテリアル」を選択します。具体的なパラメータを調整した後、「作成」をクリックします。

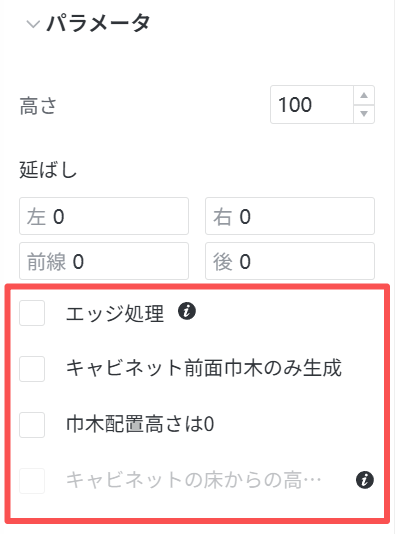

必要に応じて異なるパラメータオプションを同時にチェックすることで、異なる種類の下部フィラーを生成できます。

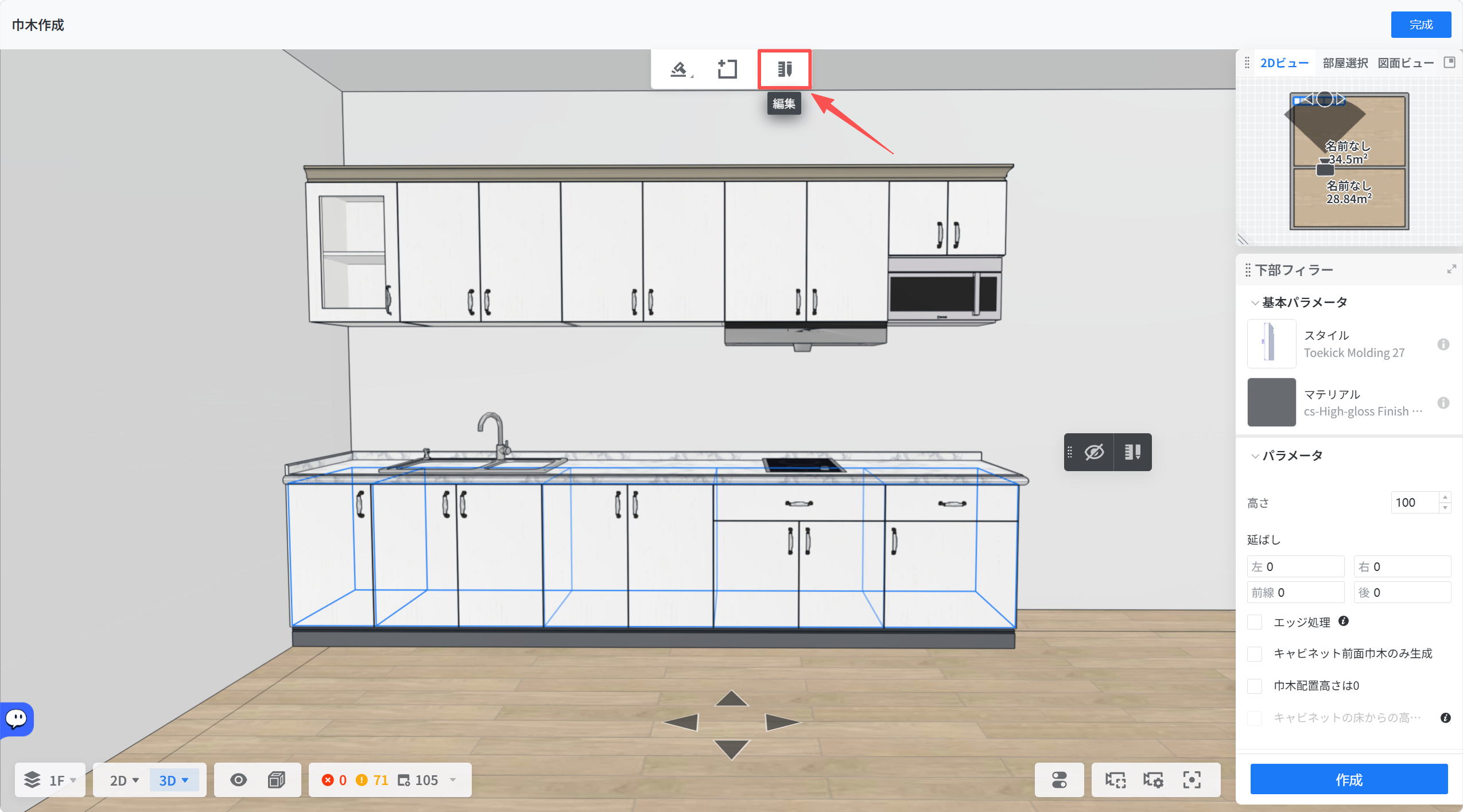

3. 下部フィラー作成範囲を自由に調整する必要がある場合は、上部バーの「編集」をクリックして手動モードに入ります。

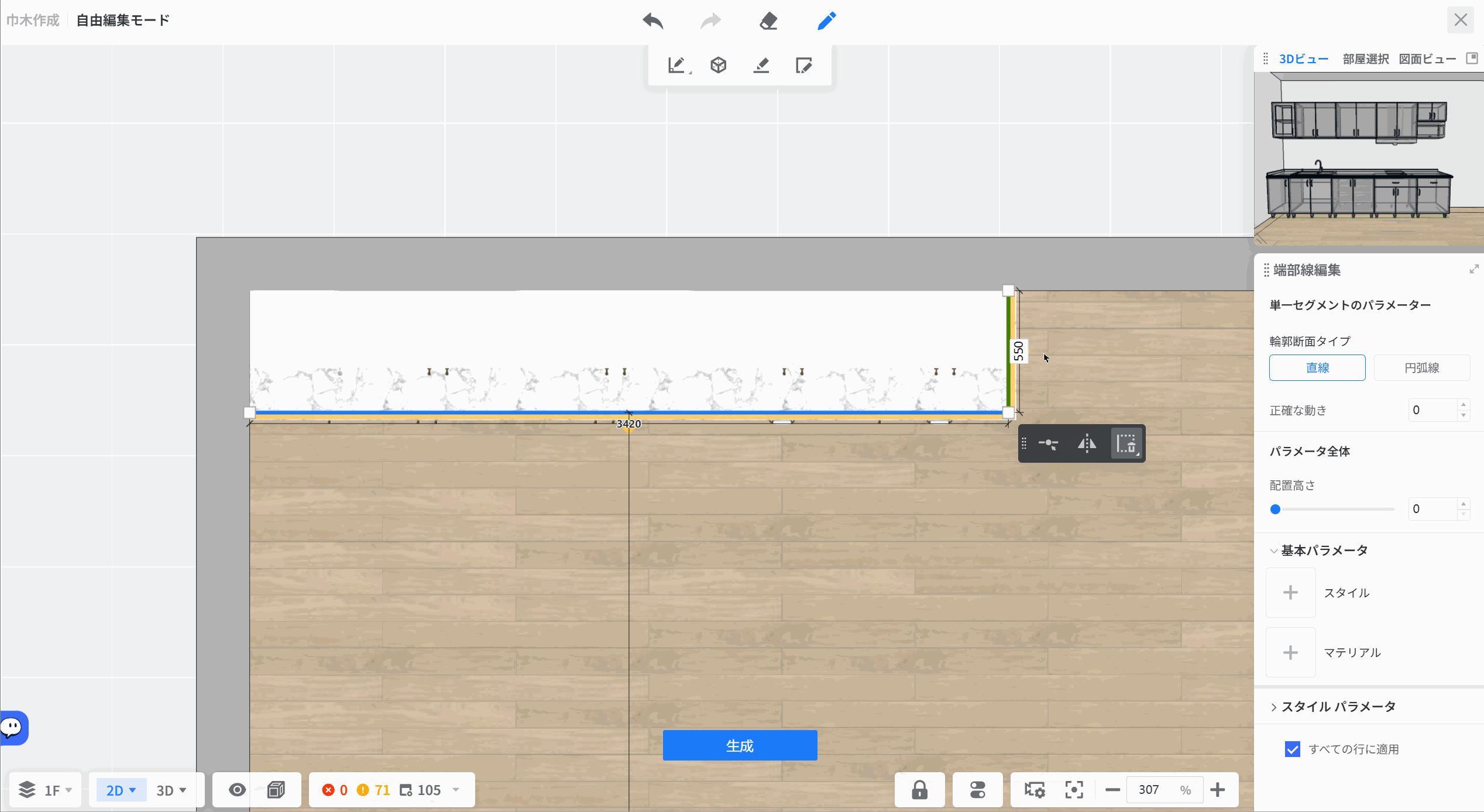

4. 自由編集モード画面では、上部バーの描画ツールを使用して、線を引いたり、長方形を描いたりします。

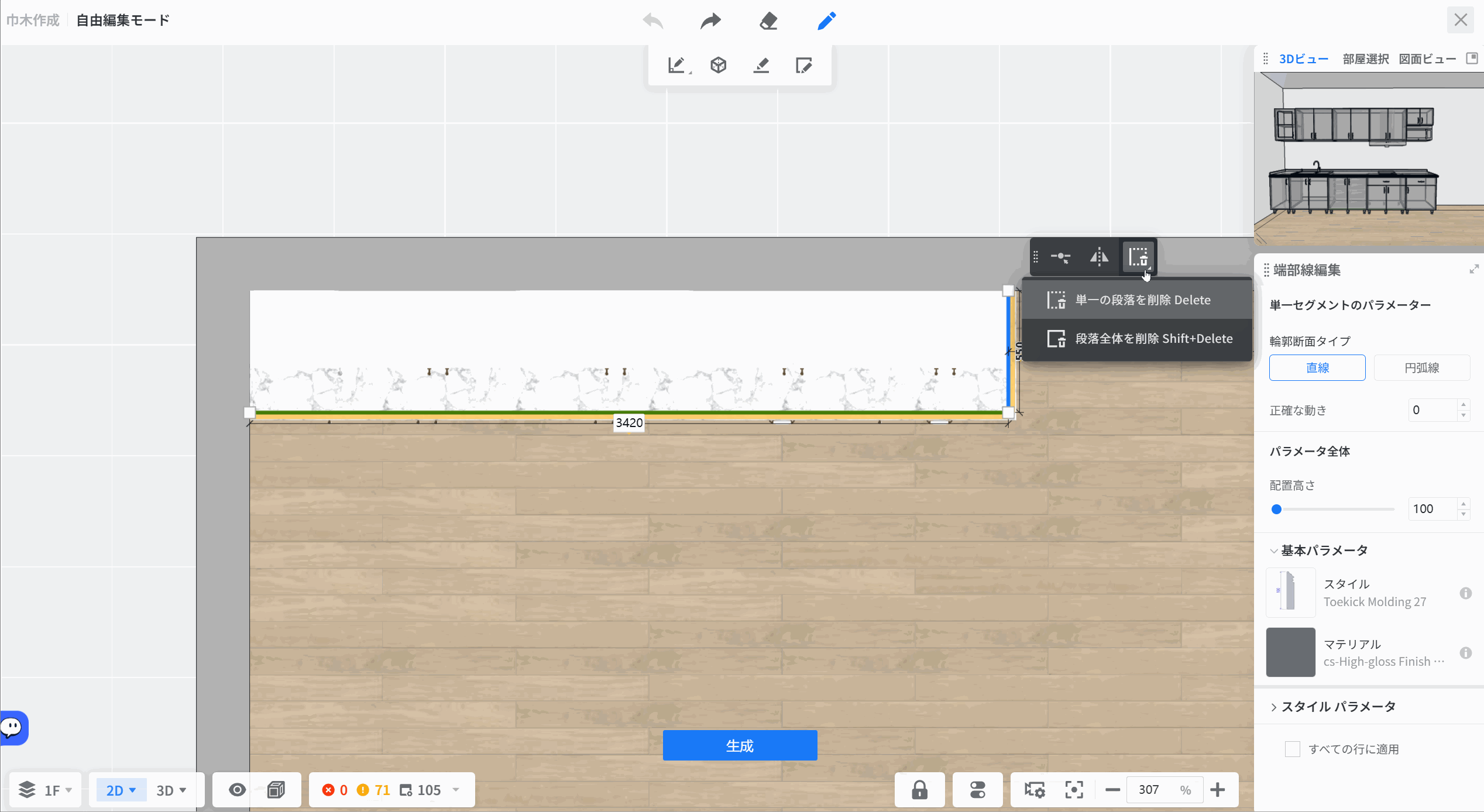

5. 点や線を手動で編集するか、値を入力して正確な調整を行います。調整が完了したら、「生成」をクリックします。

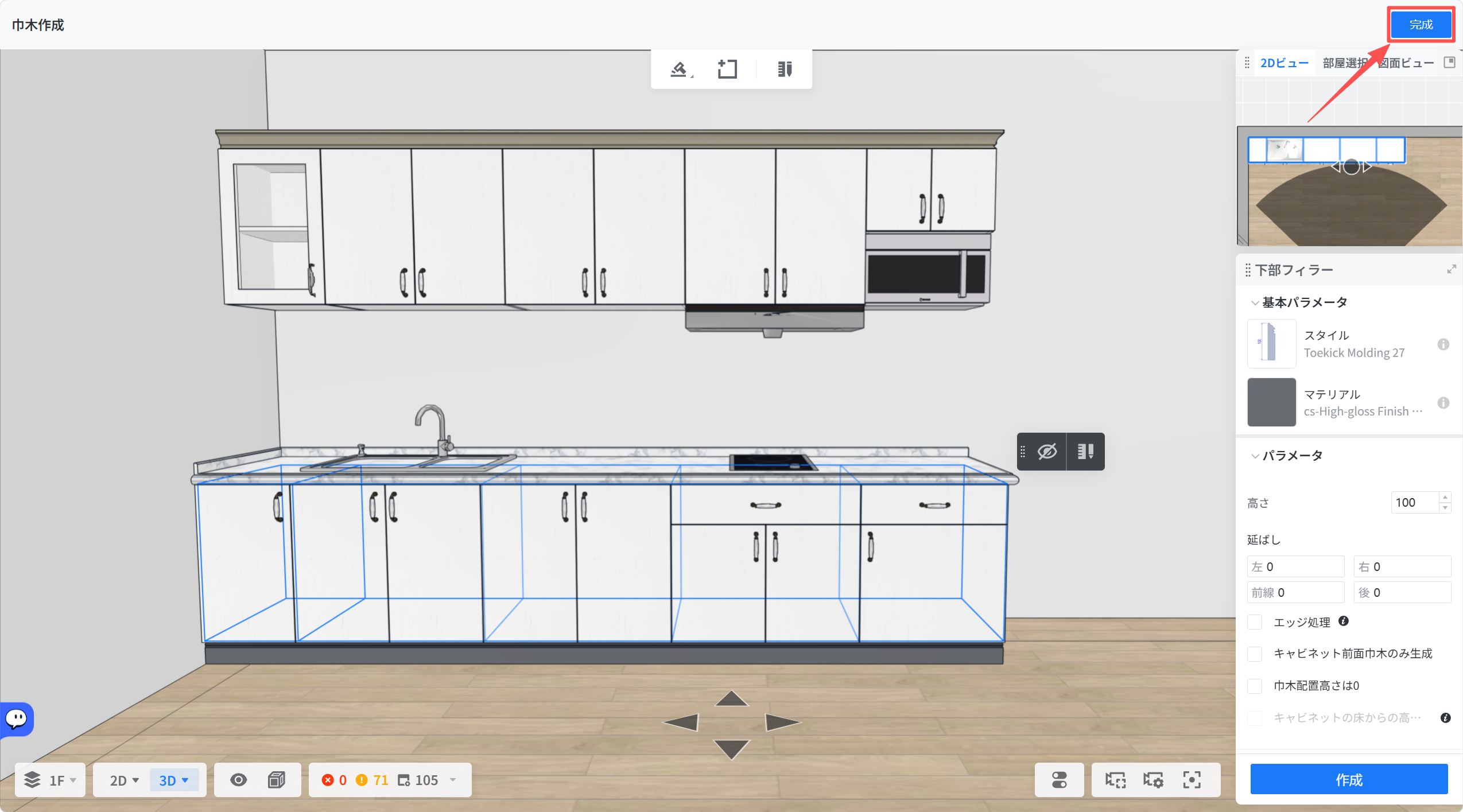

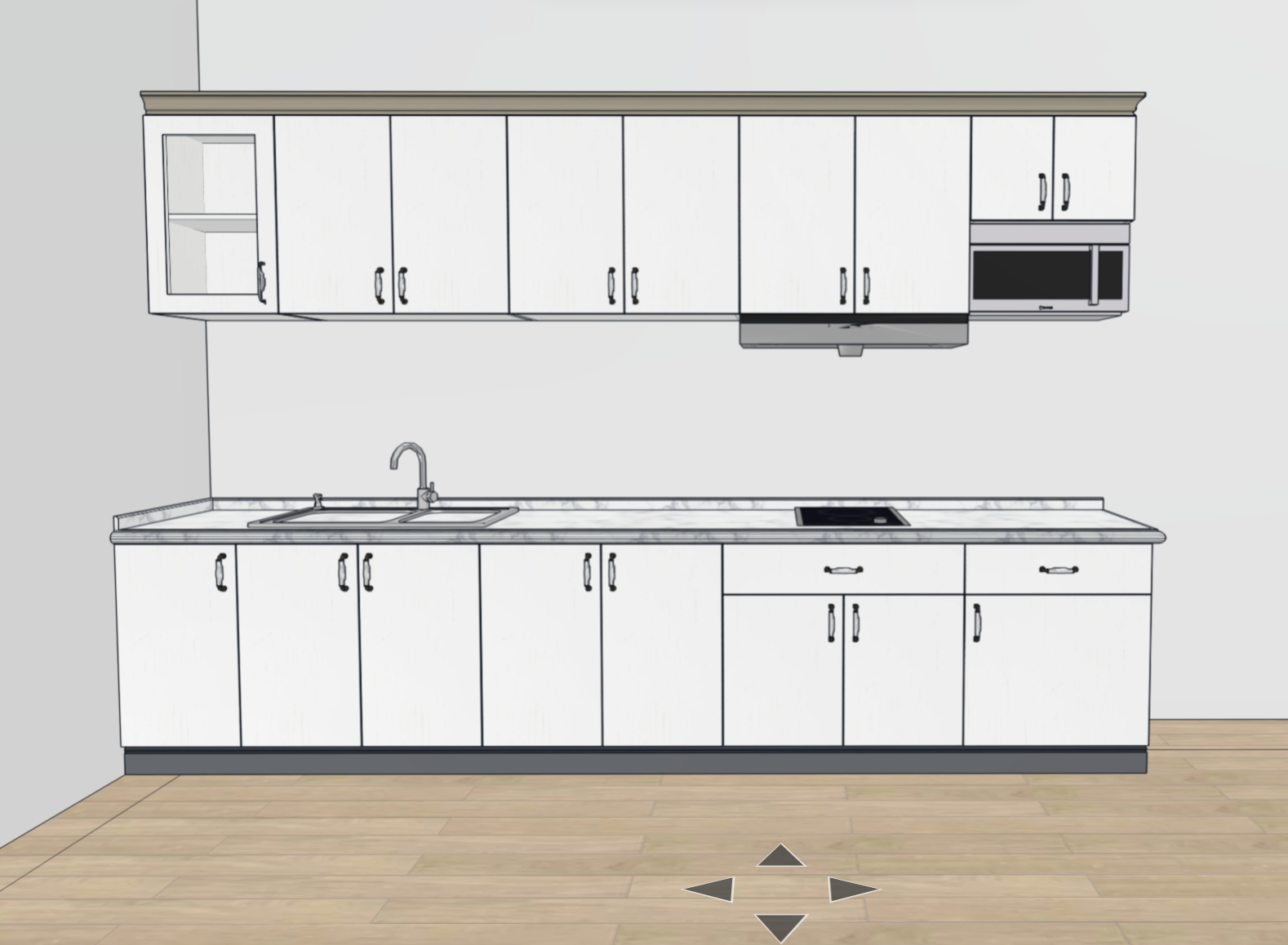

6. 下部フィラーを生成した後、「完成」をクリックして下部フィラー作成画面を終了します。
