フロアスラブや天井スラブに開口部を描画し、吹き抜けや階段開口部などを作成できます。開口部の輪郭は編集可能で、デザインに合わせて自由に調整できます。
⭐本記事を読む前に、まず動画チュートリアルをご視聴いただくことをお勧めします。スムーズに使い始めることができます。
すべてのユーザー

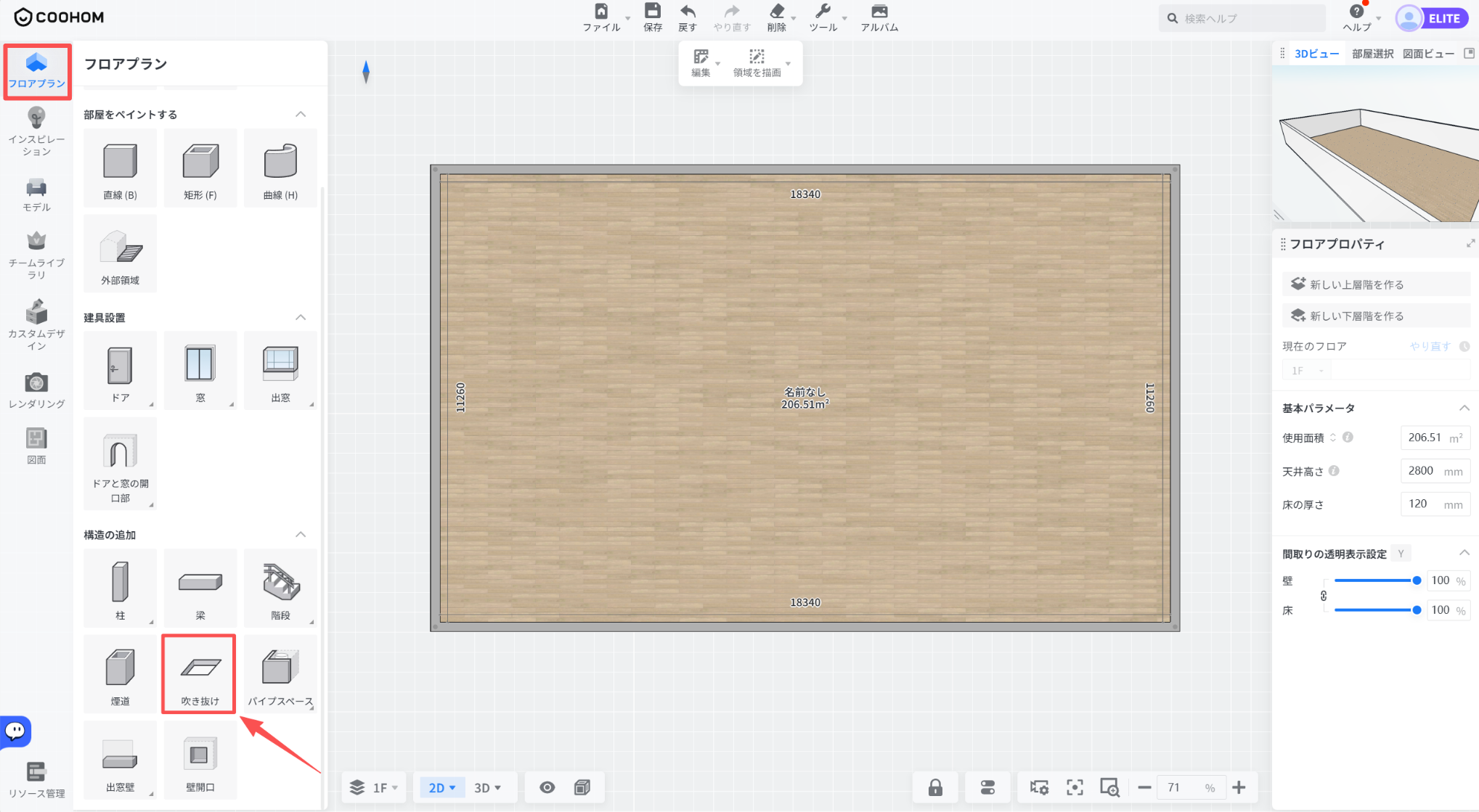

フロアプランのページで、左ツールバーの「吹き抜け」をクリックします。

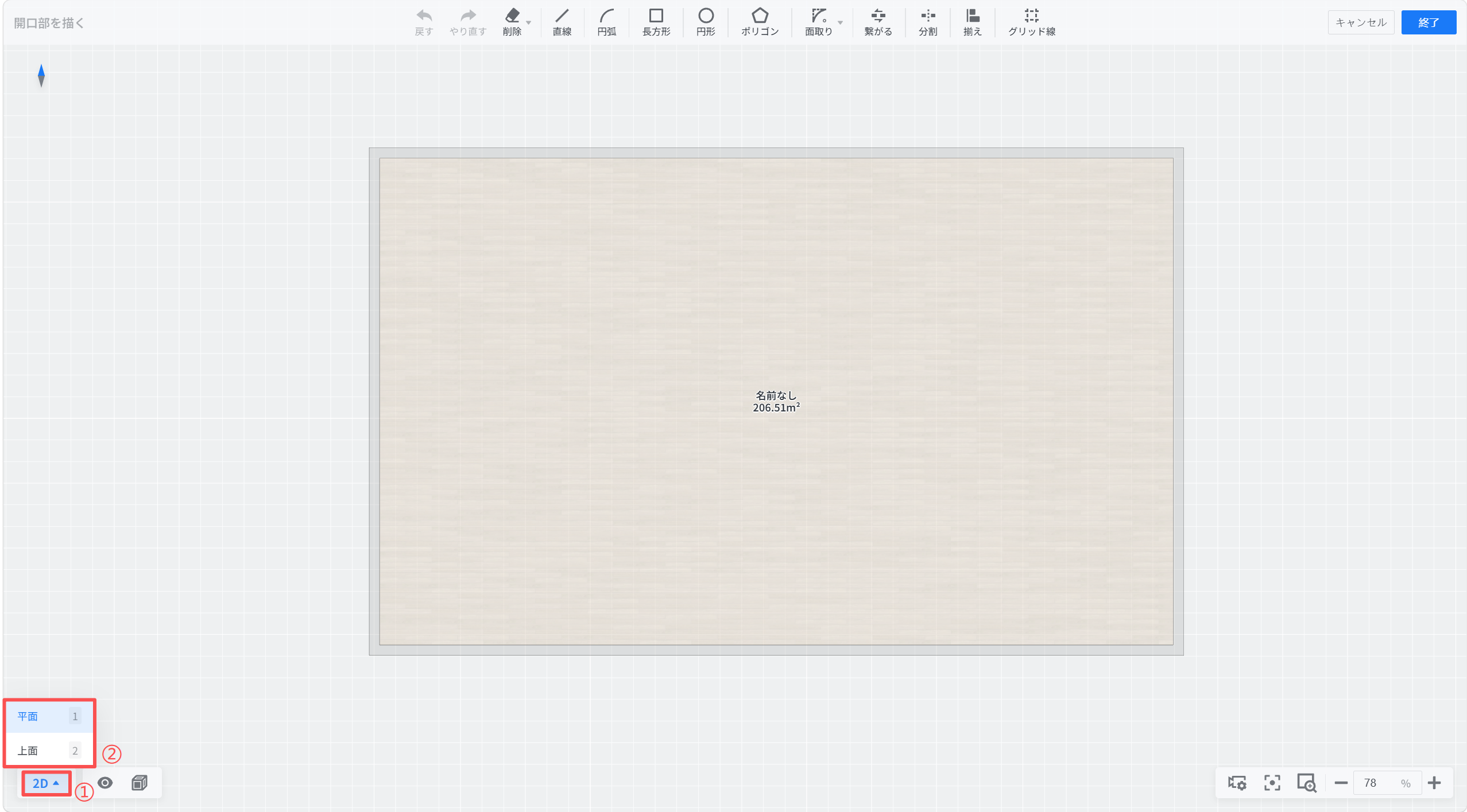

1. 開口部を描くページに入り、左下の「2D」をクリックして開口部の位置を選択します。「平面」を選択するとフロアスラブに開口部を作成し、「上面」を選択すると天井スラブに開口部を作成します。

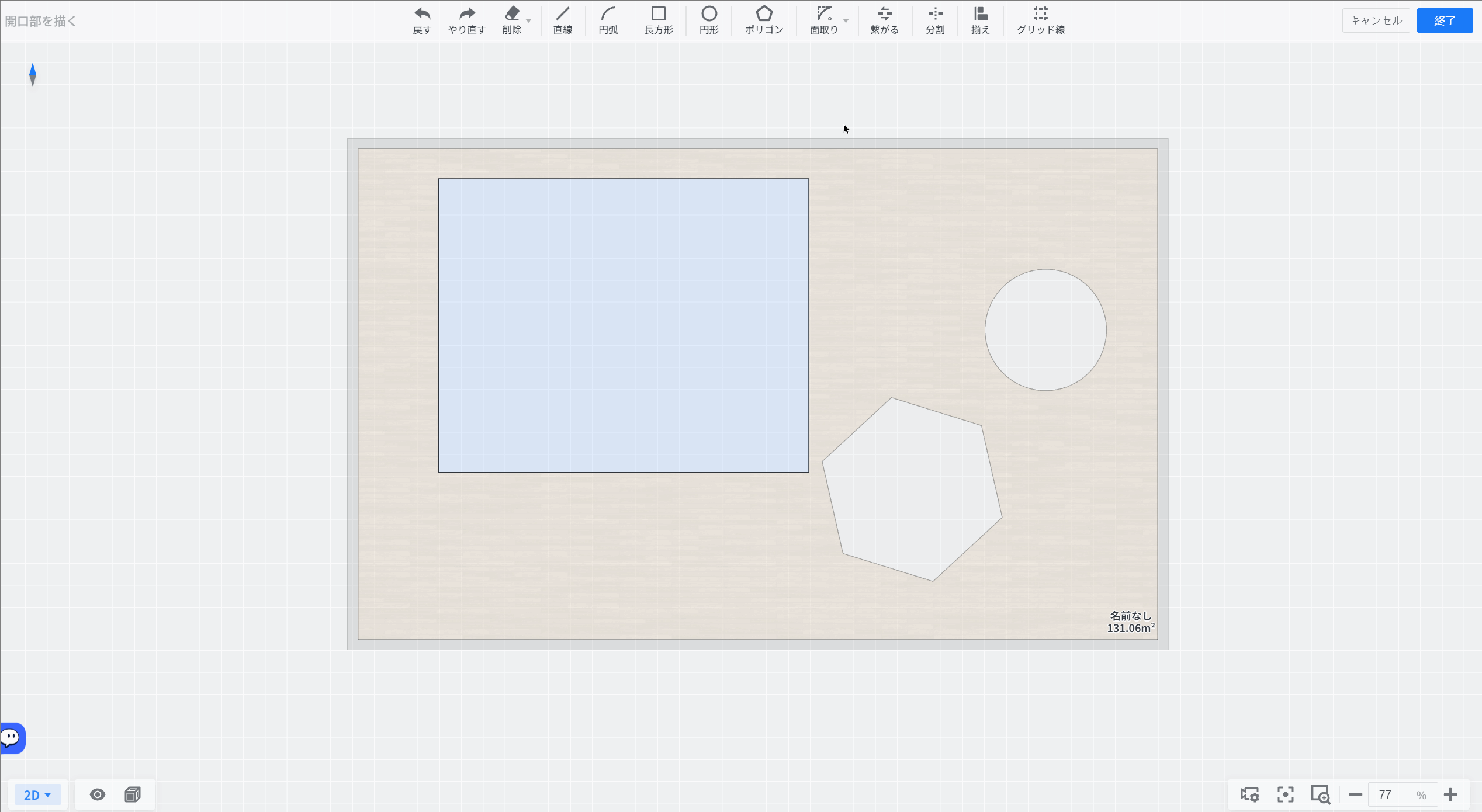

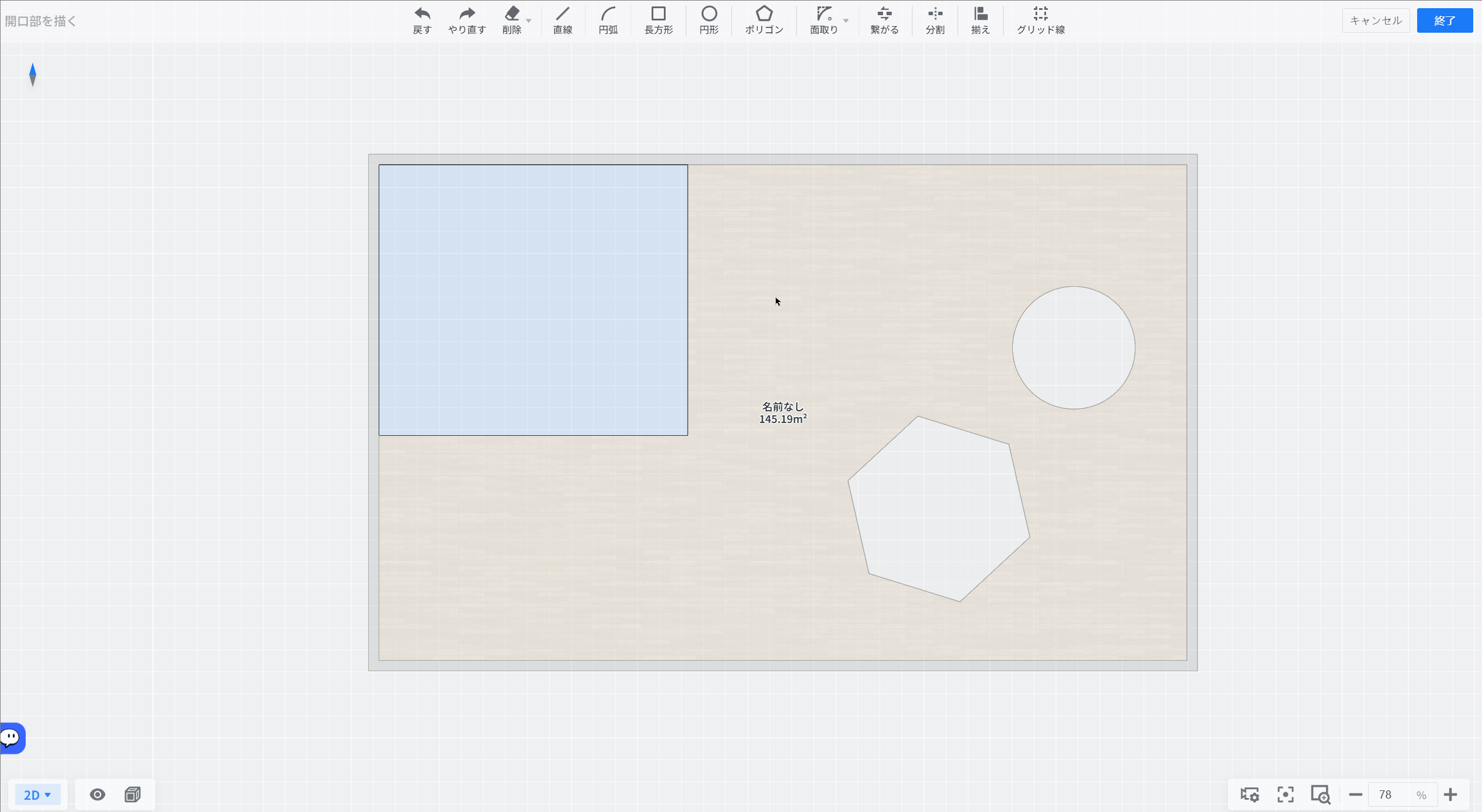

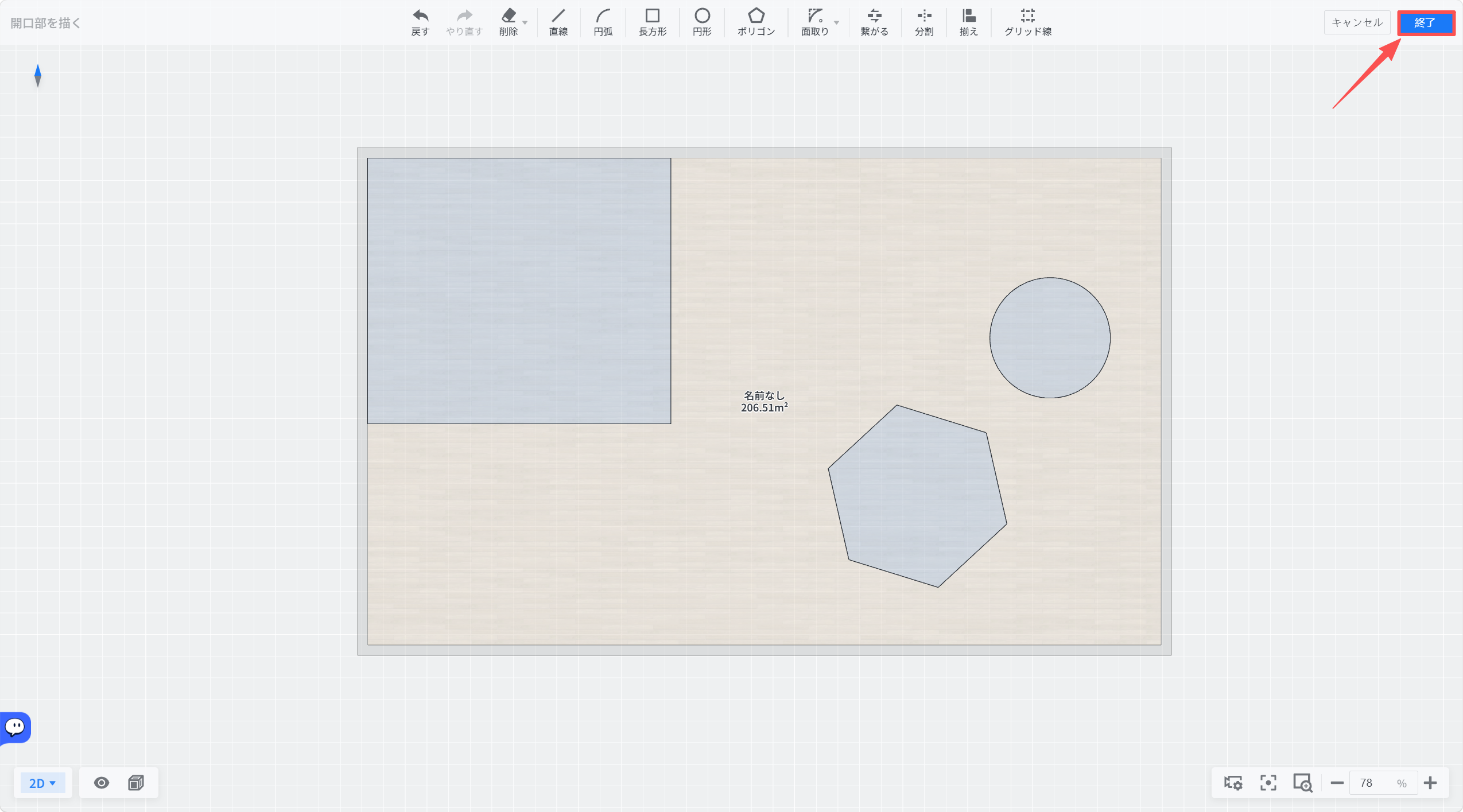

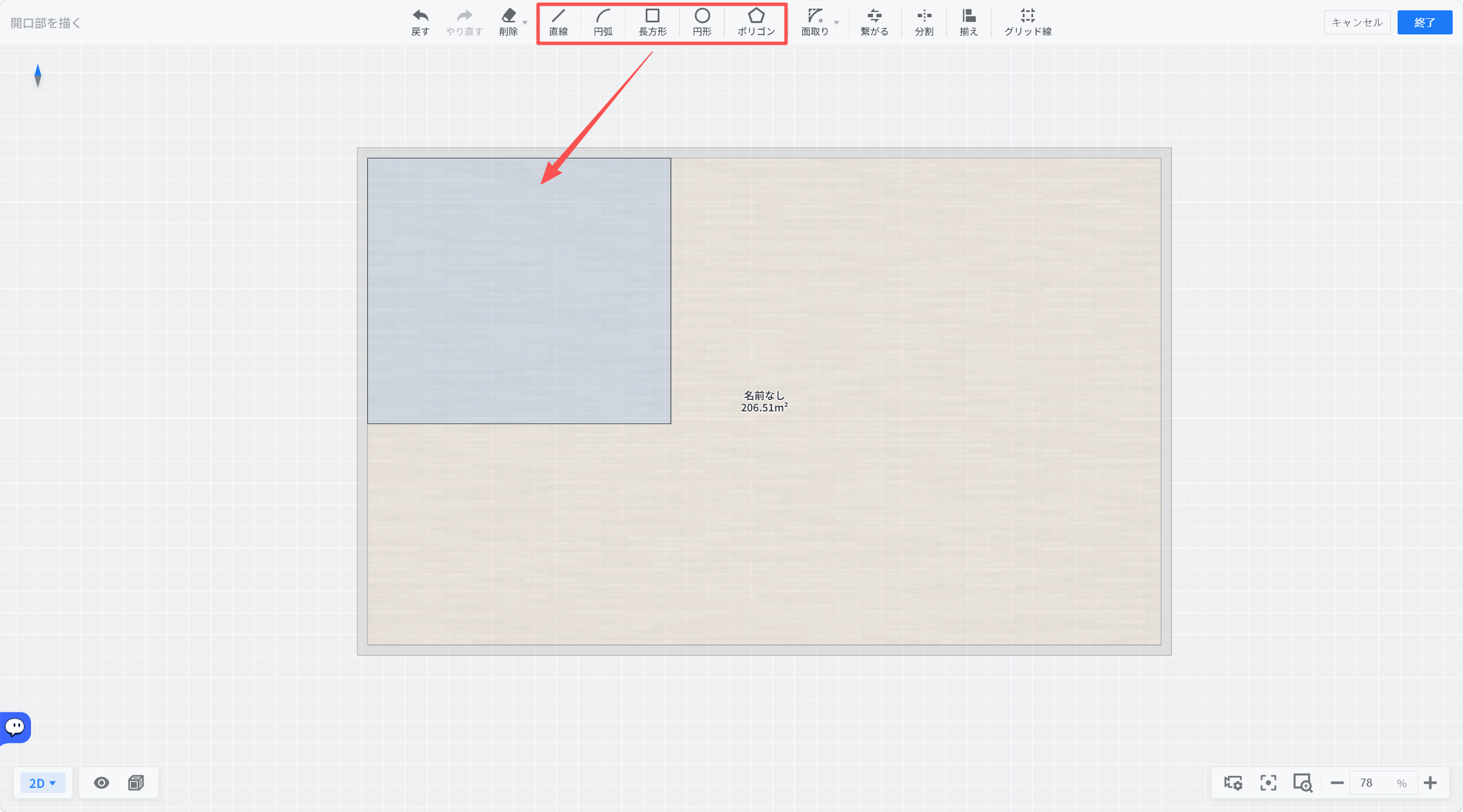

2.上部にある直線、円弧、長方形などの形状ツールを使用して開口部を描画します。複数の開口部を一度に作ることが可能です。描画が完了したら、右上の「終了」をクリックして、開口部を作成します。

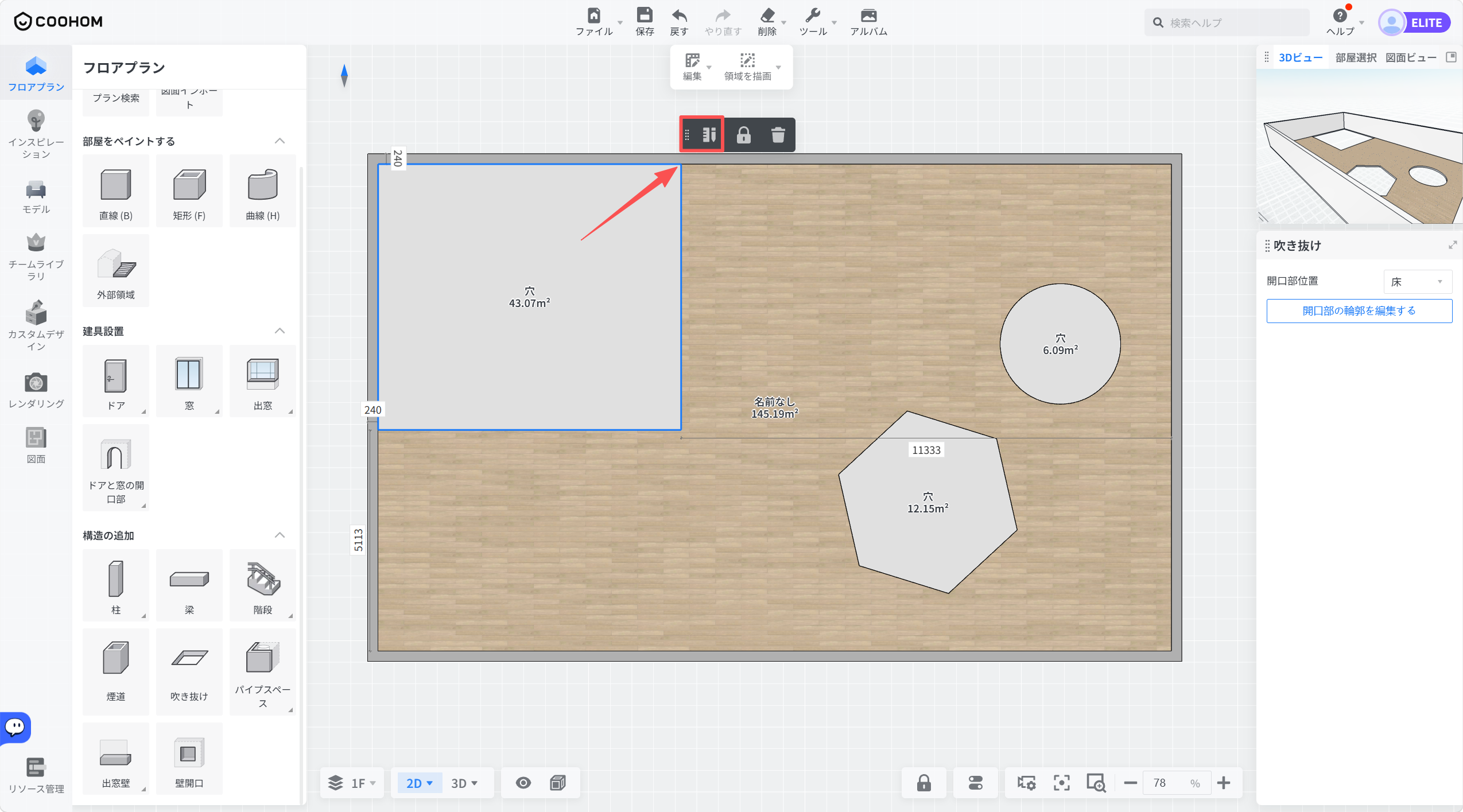

1. 編集したい開口部を選択し、フローティングウィンドウ内の「編集」をクリックして編集画面に入ります。

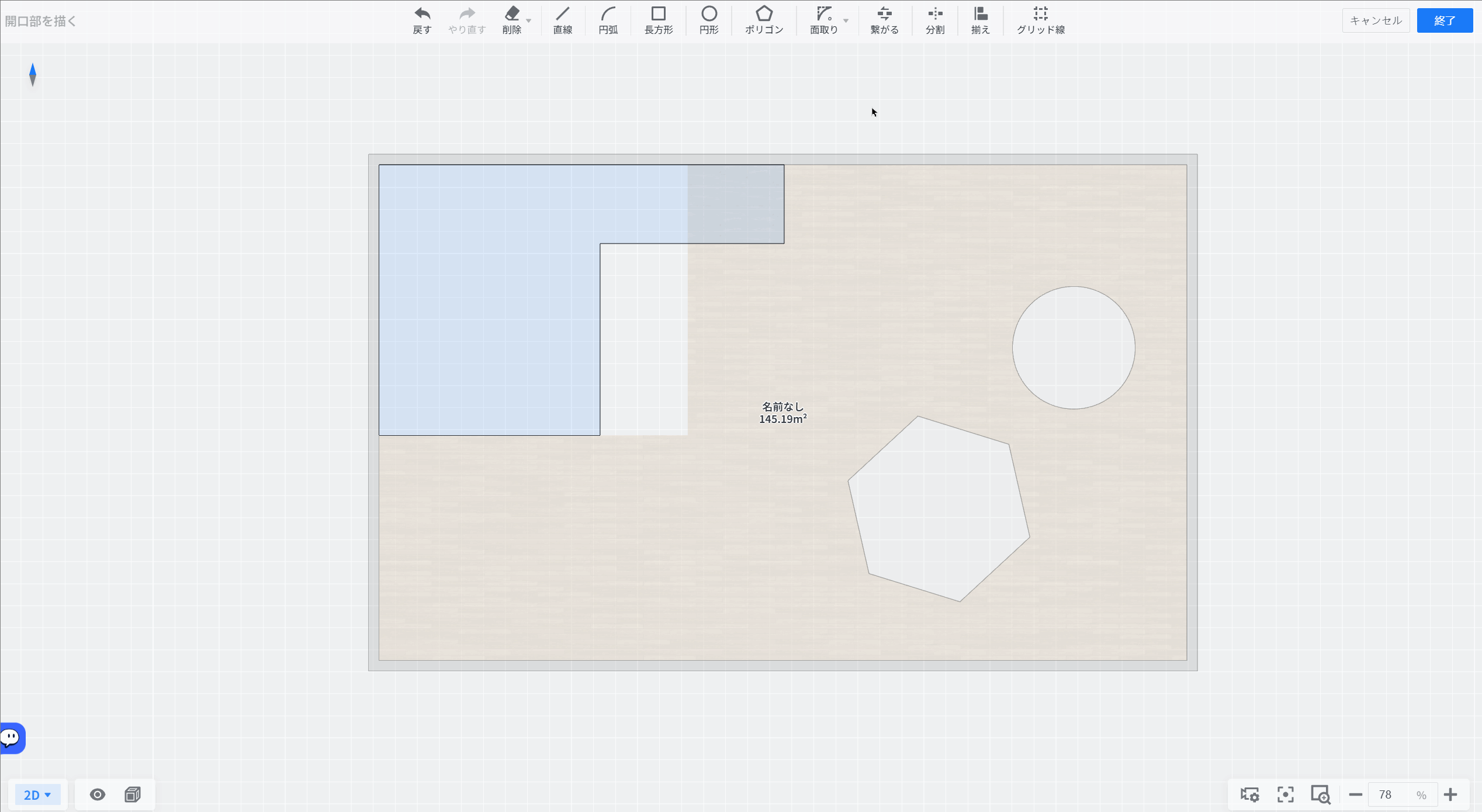

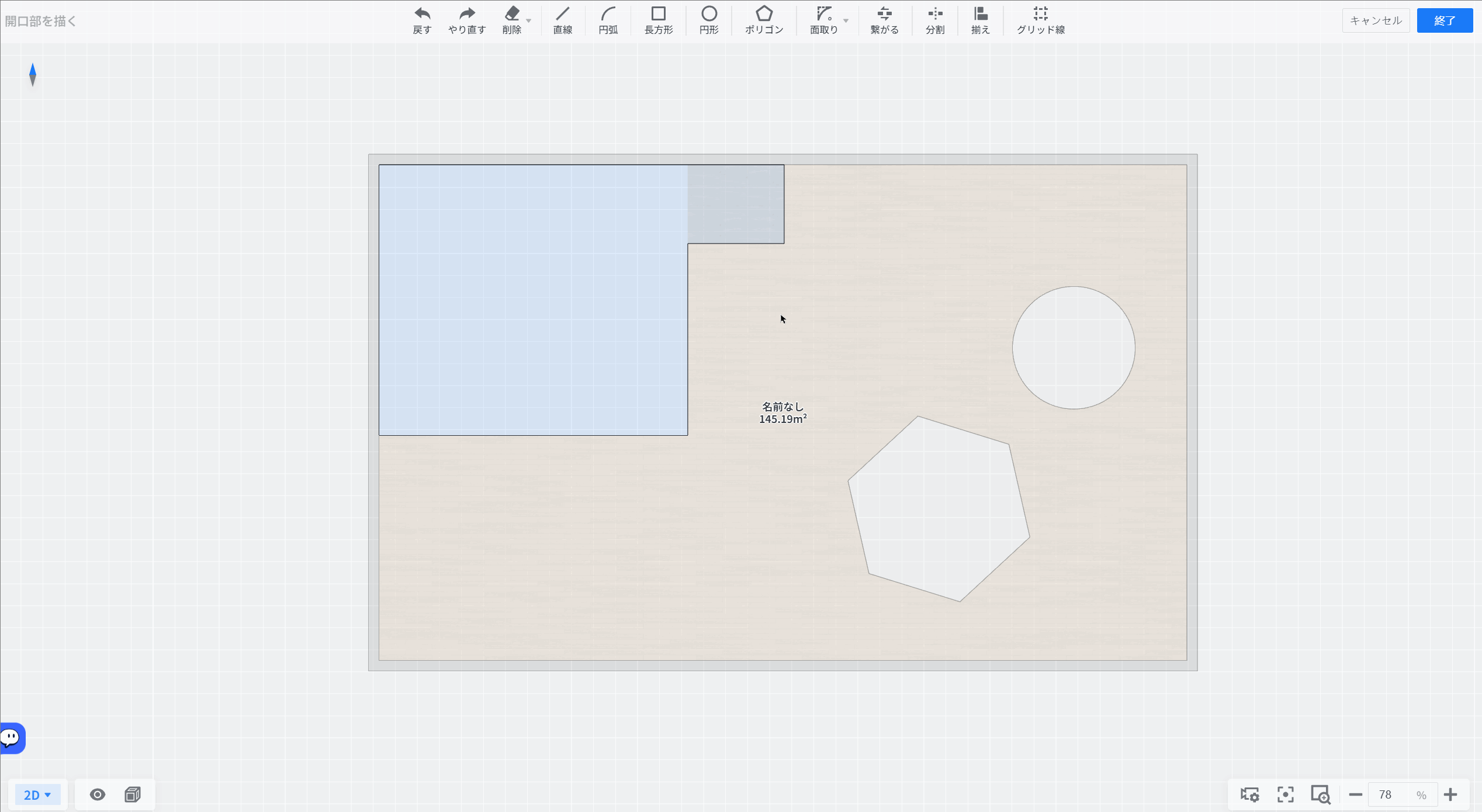

2. 上部ツールバーで様々なツールを選択して開口部の輪郭を編集できます。
3. また面取りを使用して輪郭形状を調整でき、外側R面取りや内側R面取り、内側直角取り、C面取りなどのモードをサポートしています。以下は二つの面取り方法です:

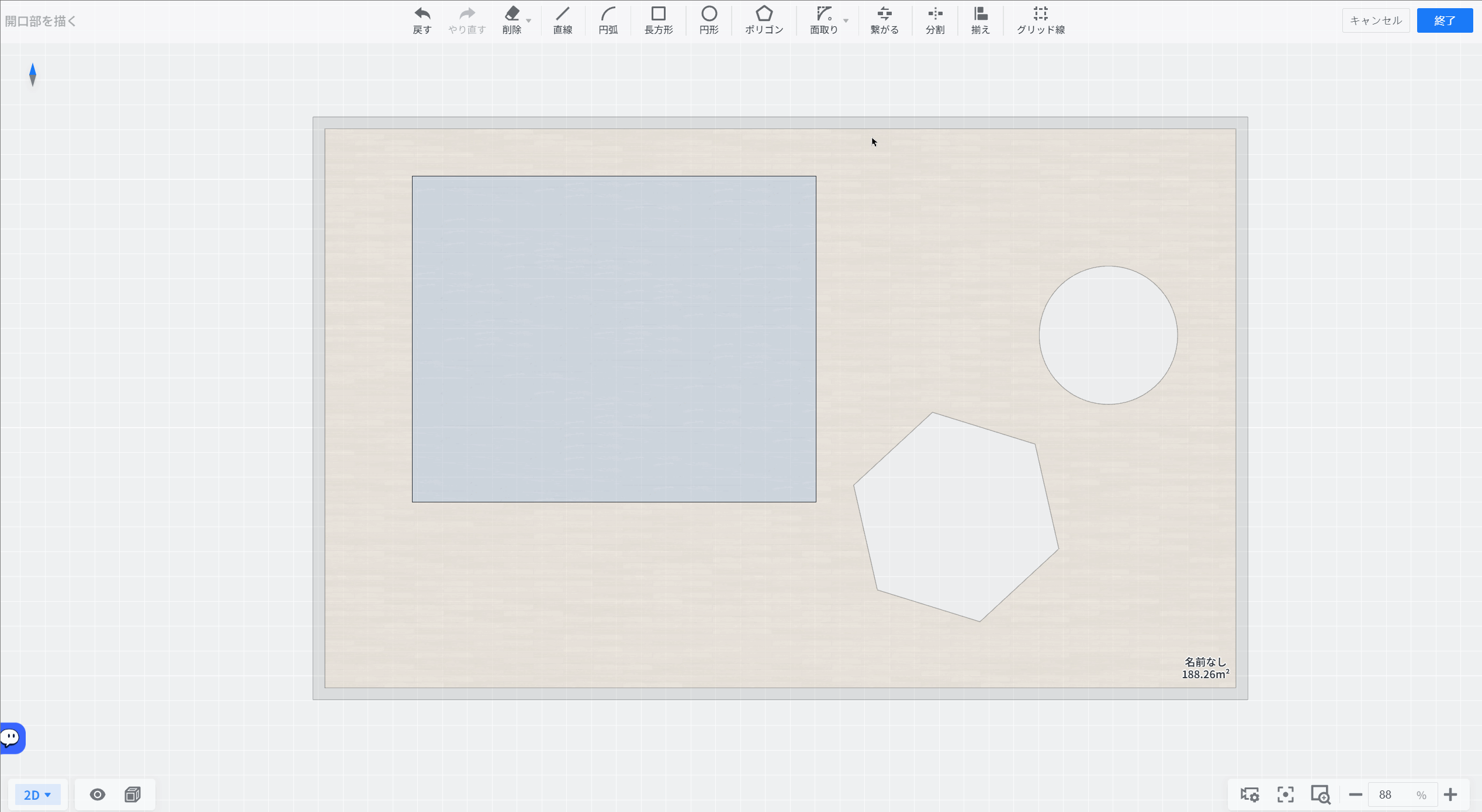

方法1: エリアを直接選択して面取りを適用
上部ツールバーで「面取り」をクリックし、希望するモードを選択してエリアを直接選択します。マウスを移動して面取りを編集できます。適切な位置までマウスを移動したら、左クリックで確定します。

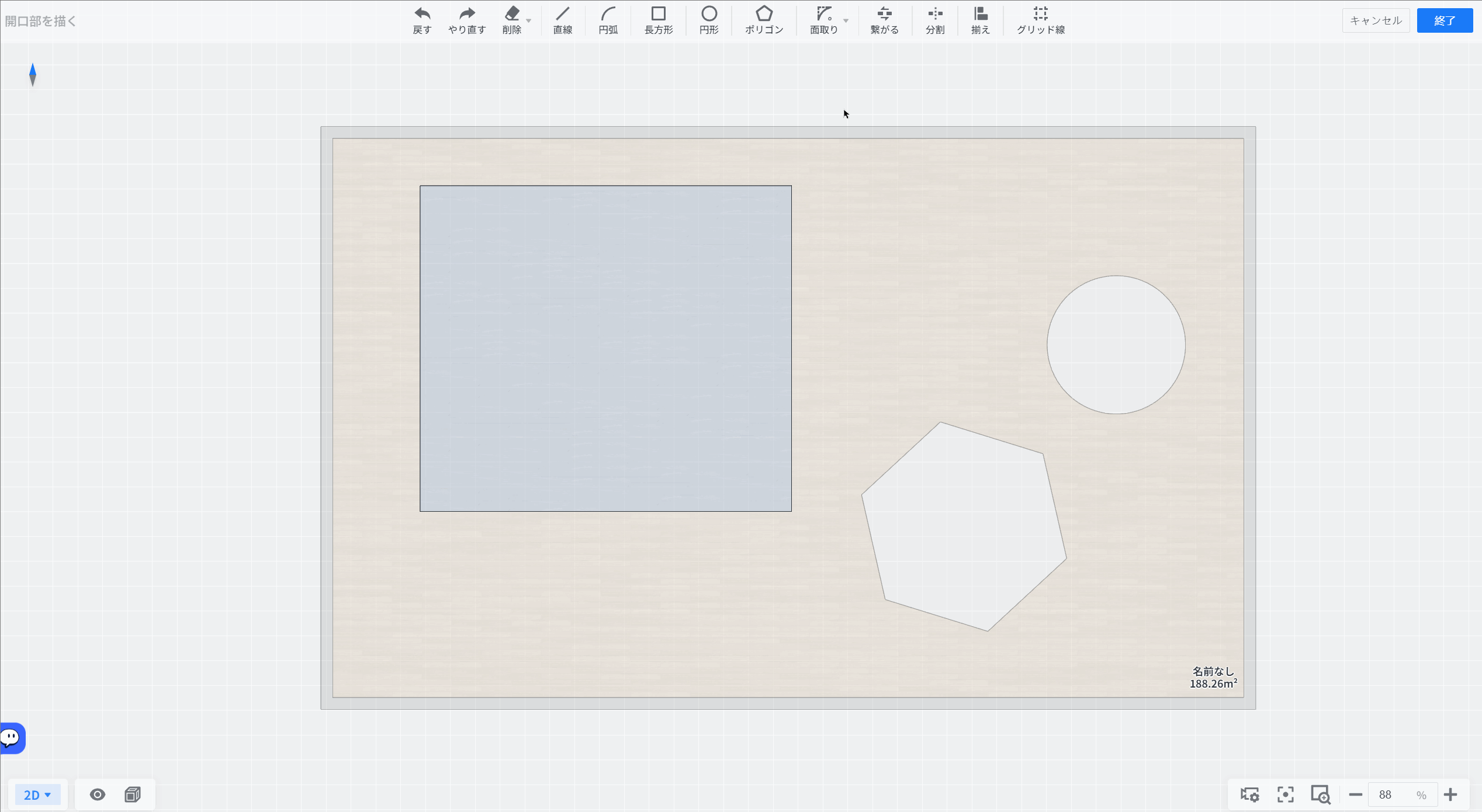

方法2: 二本の接続された直線を選択して角度を面取り
上部ツールバーで「面取り」をクリックし、希望するモードを選択してから隣接する二本の直線を選択します。マウスを移動して面取りを編集できます。適切な位置までマウスを移動したら左クリックで確定します。

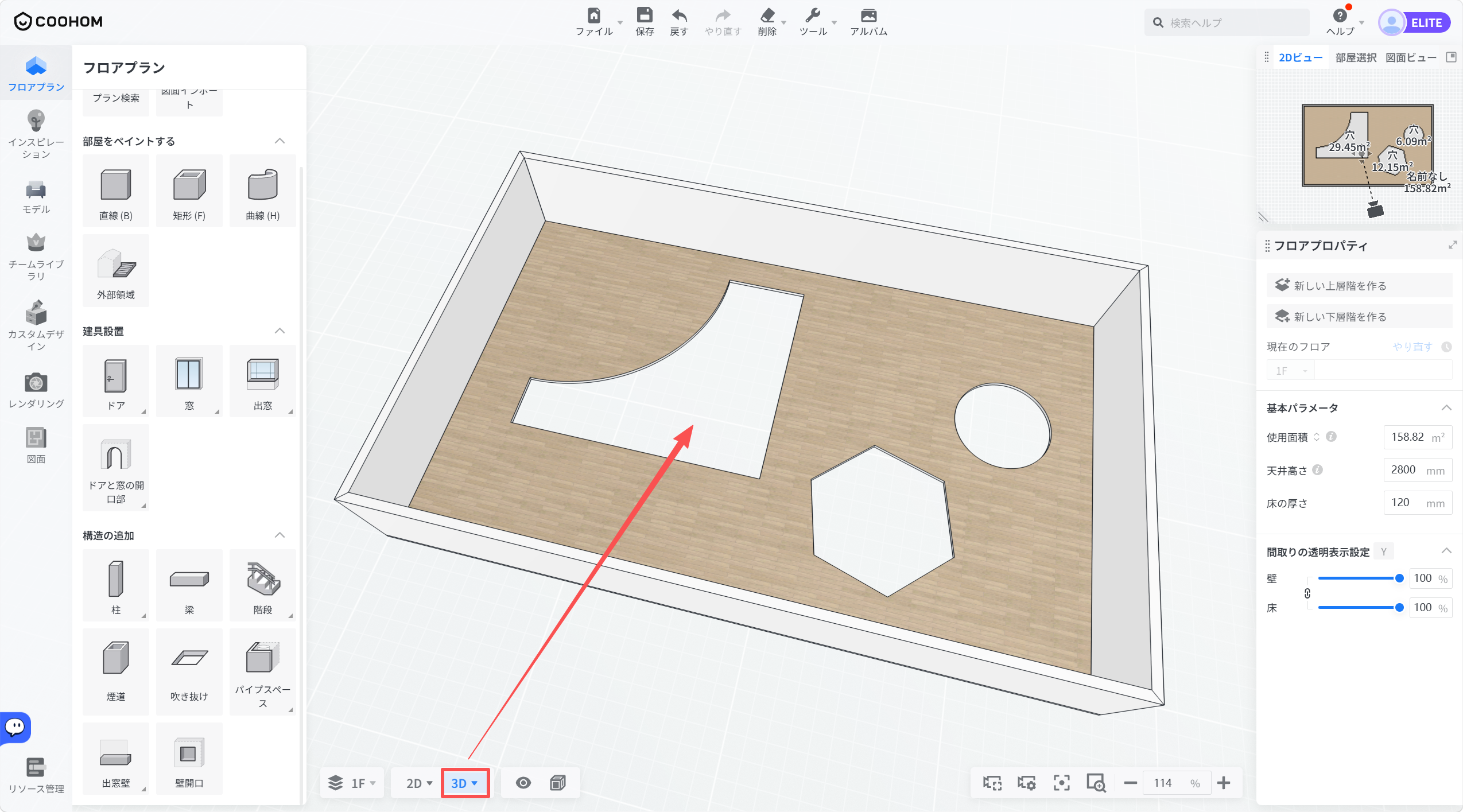

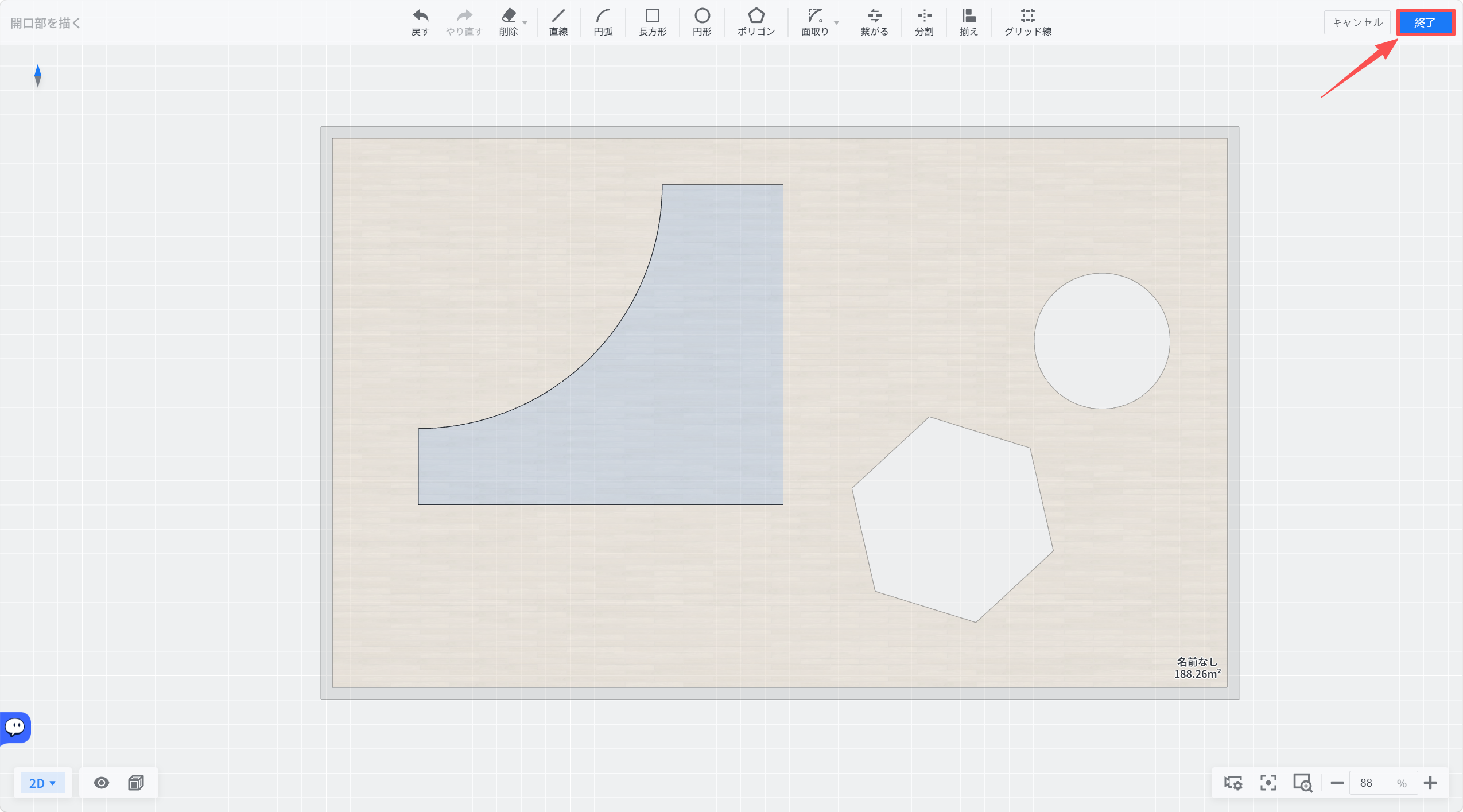

4. 編集が完了したら、右上の「終了」をクリックし、3Dビューに切り替えて効果を確認します。
開口部を削除する方法は二つあります:

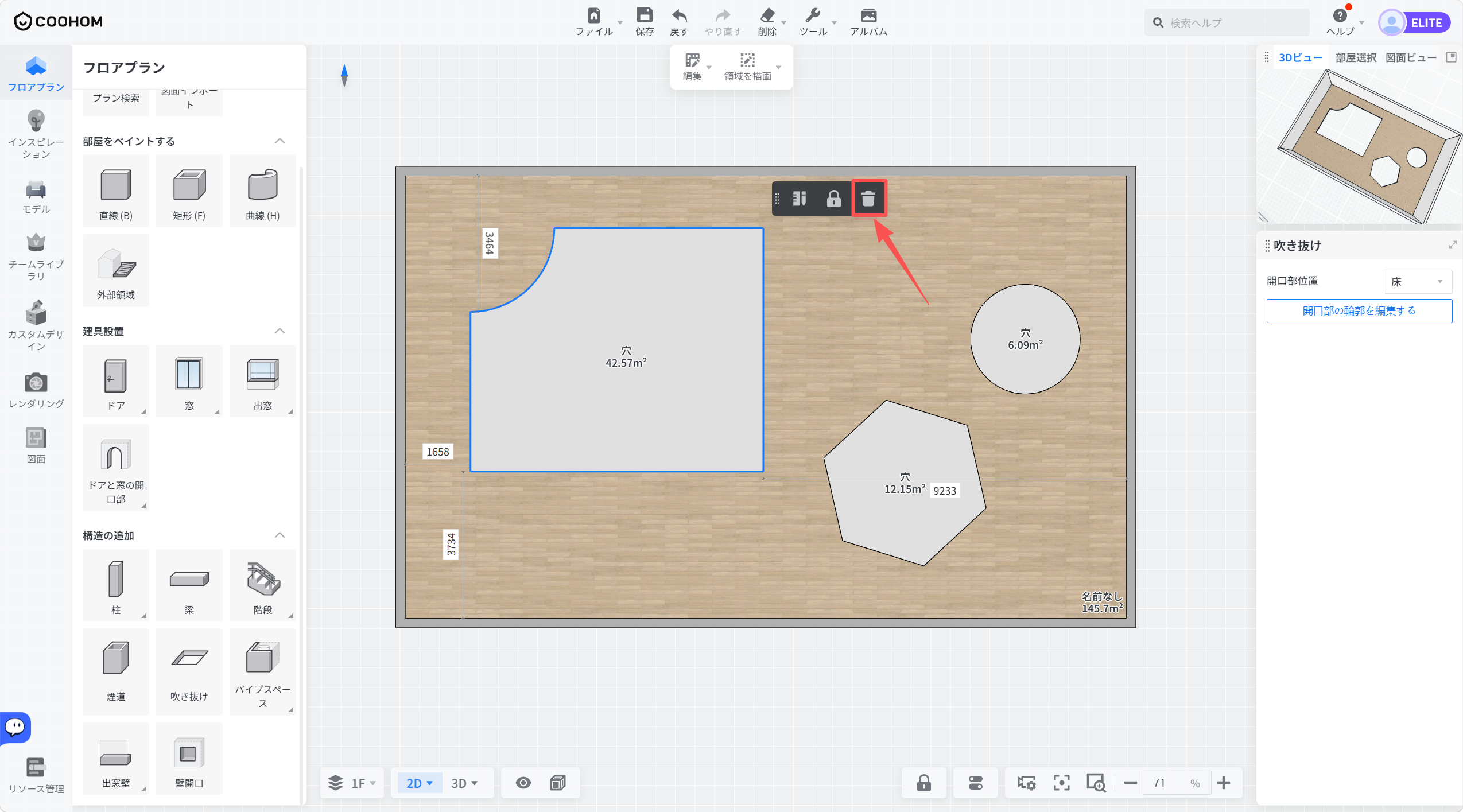

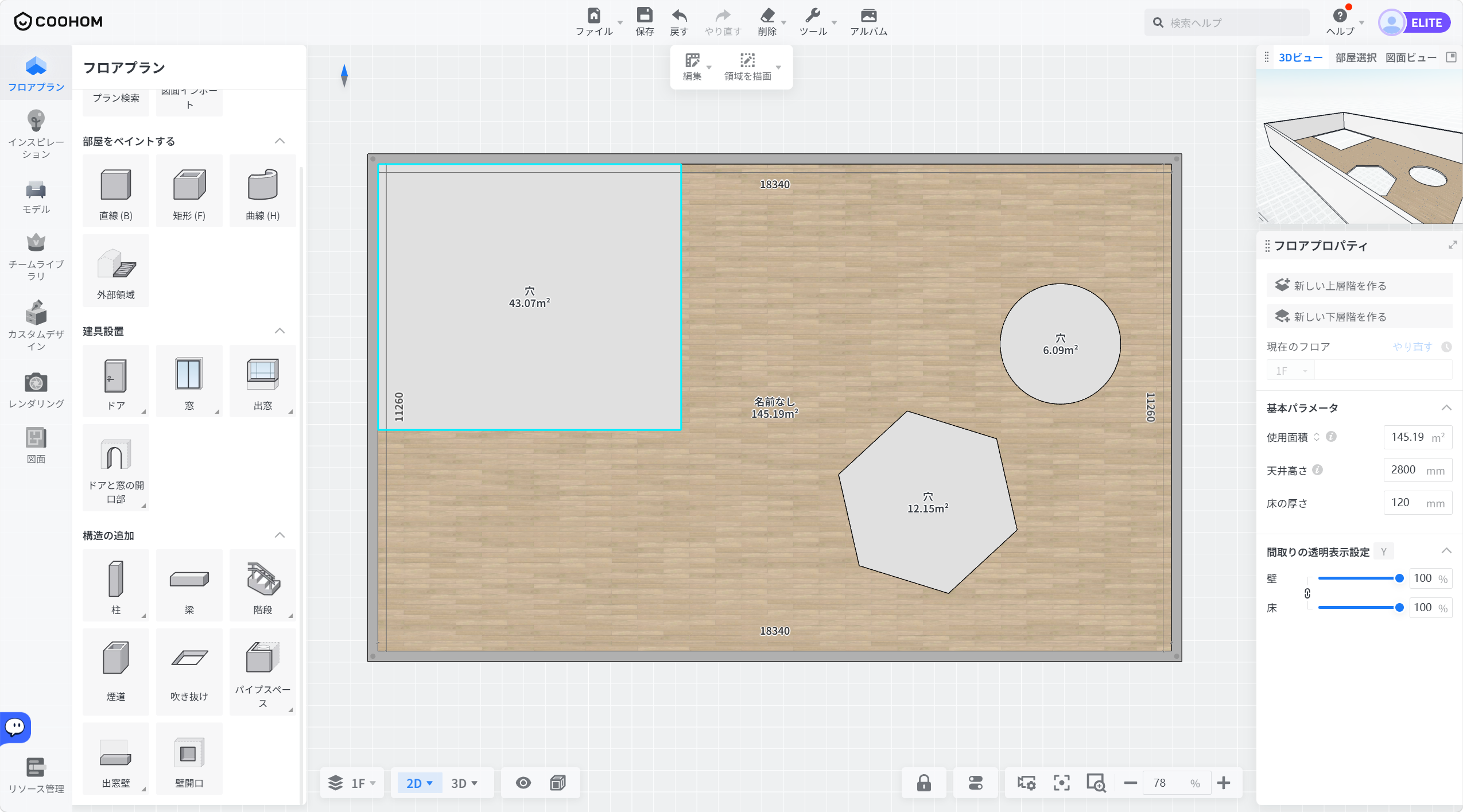

方法1: フロアプランの画面で開口部をクリックし、フローティングウィンドウで「削除」ボタンをクリックします。

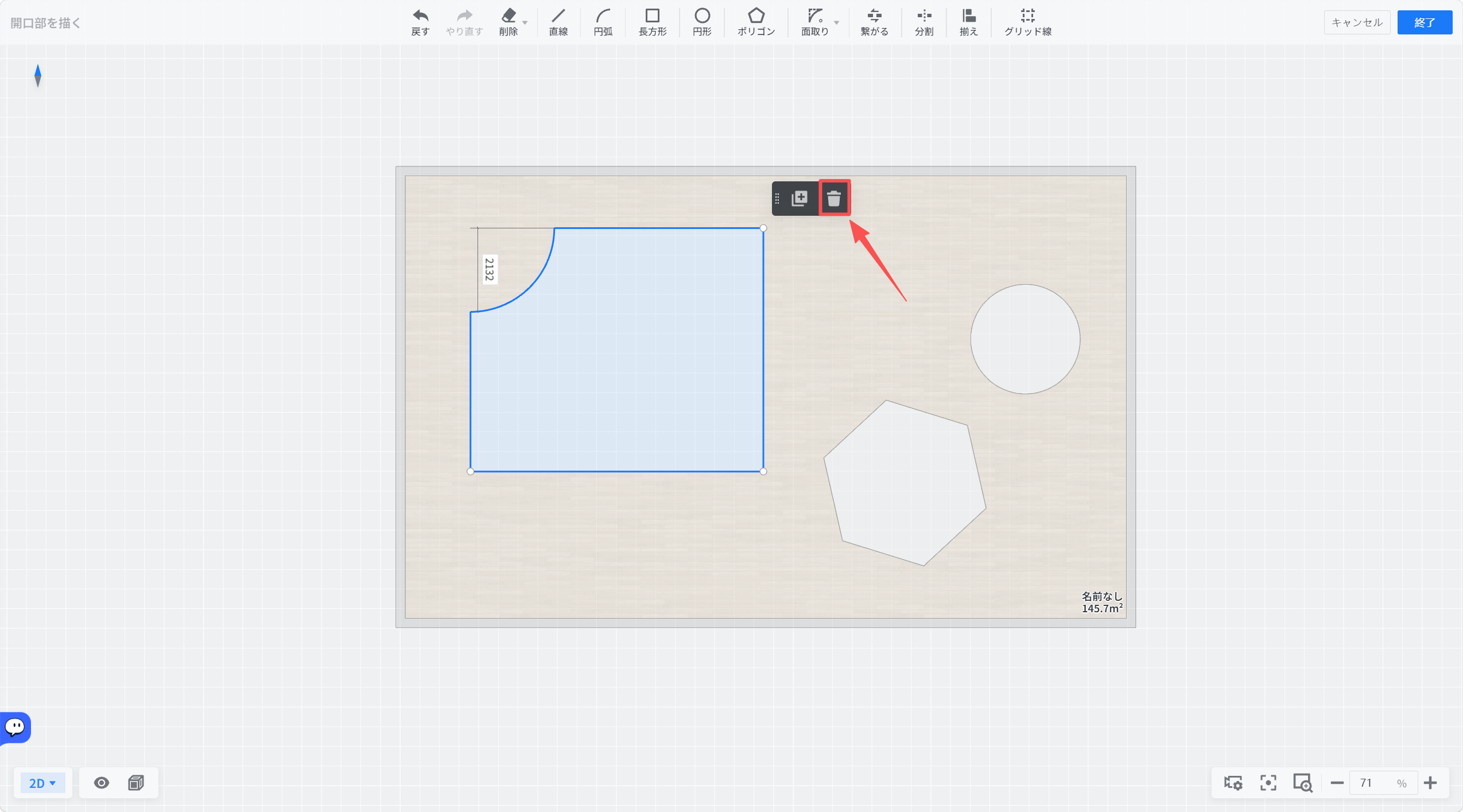

方法2: 開口部の編集画面に入り、開口部をクリックしてフローティングウィンドウで「削除」ボタンをクリックします。
1. 開口部を作成するには、輪郭が閉じている必要があります。
2. 既に作成された開口を編集する際は、閉じた輪郭を単一の状態に保ってください。
3. 整列操作中は、まず参照位置を選んでから移動する線分を選択してください。
