インテリアデザインで、手軽にプラン図を作成してみませんか。この操作ガイドでは、カラーマッチングの調整、サイズや比率の設定、注釈の追加からプラン図のダウンロードまで、プラン図を効率的に編集・出力する方法を詳しくご紹介します。
⭐本記事を読む前に、まず動画チュートリアルをご視聴いただくことをお勧めします。スムーズに使い始めることができます。
すべてのユーザー

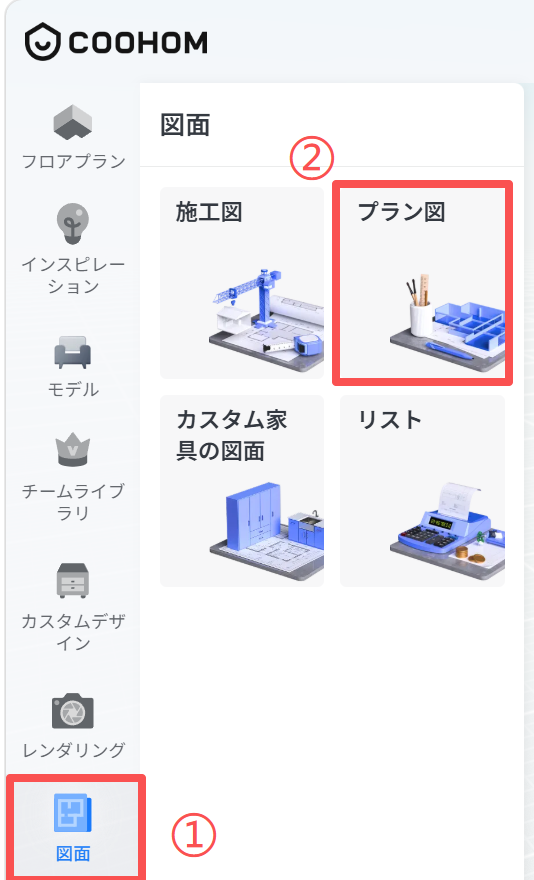

デザイン画面を開き、「図面-プラン図」をクリックします。

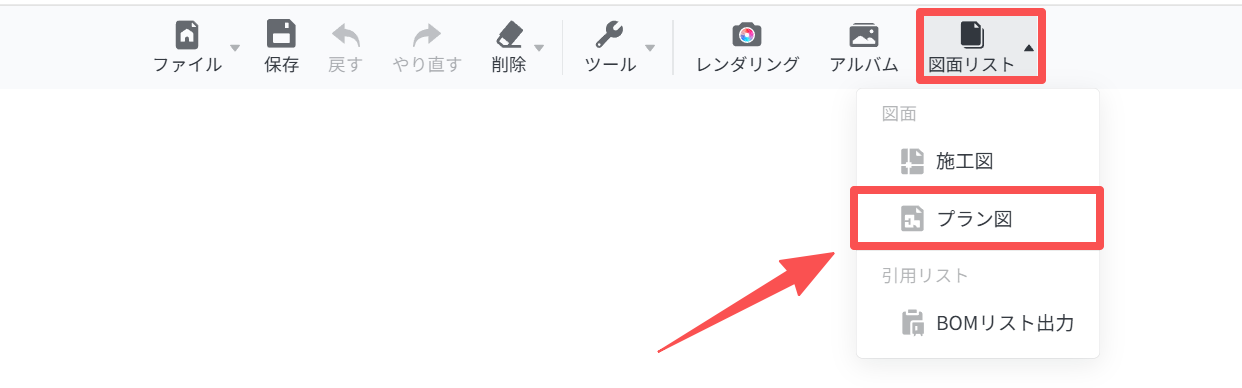

デザイン画面を開き、「図面リスト」から「プラン図」を選択します。

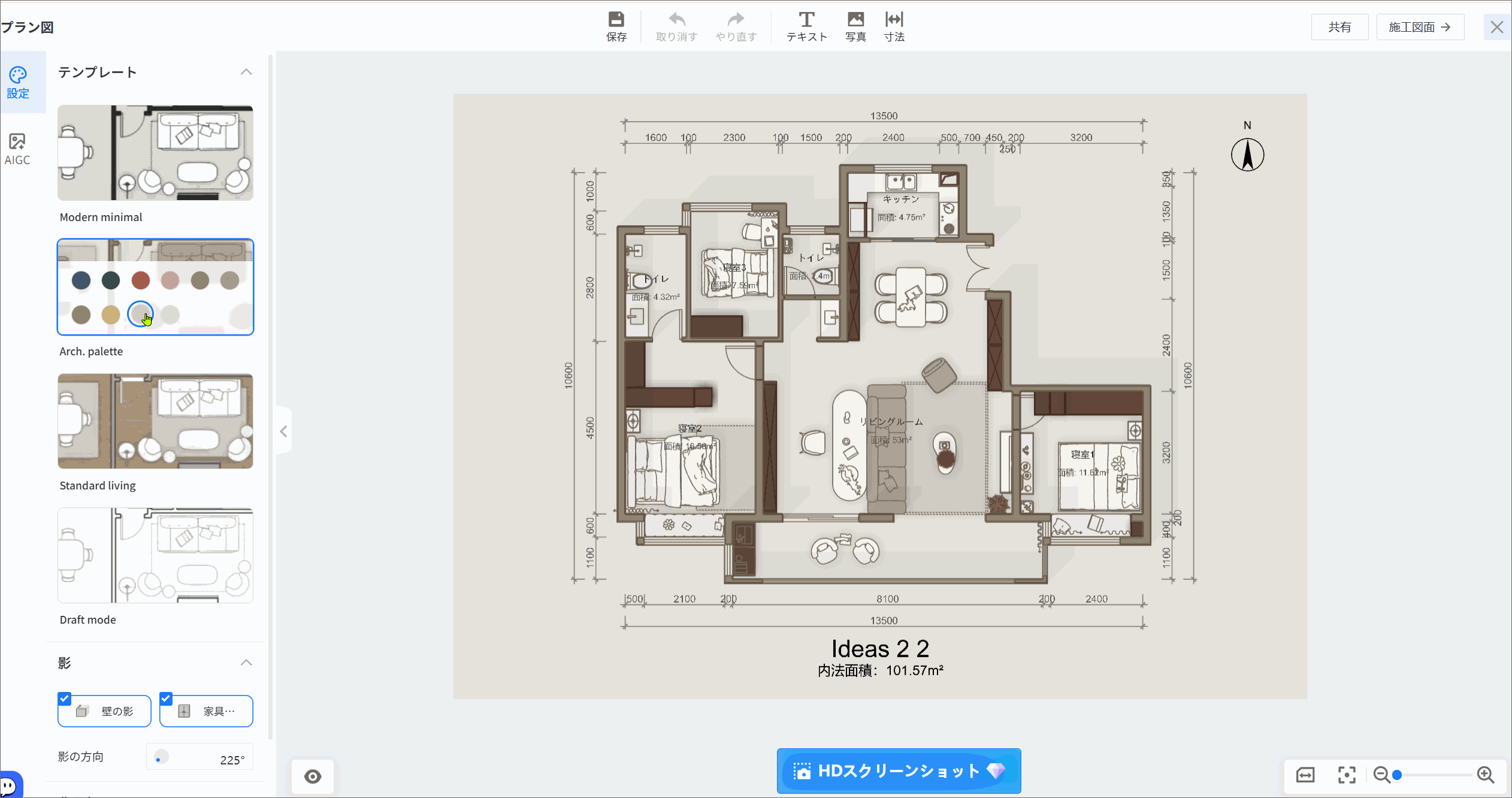

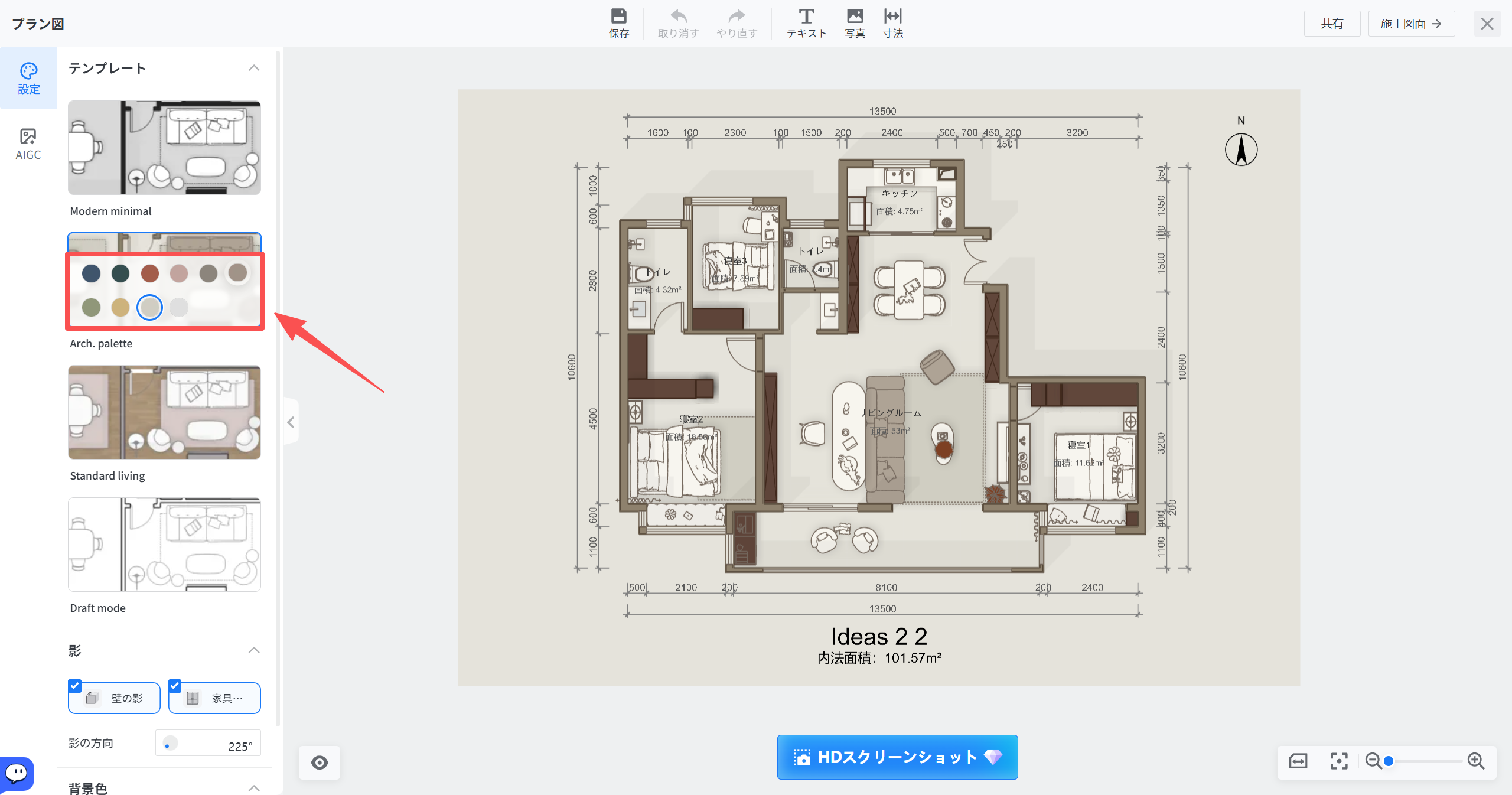

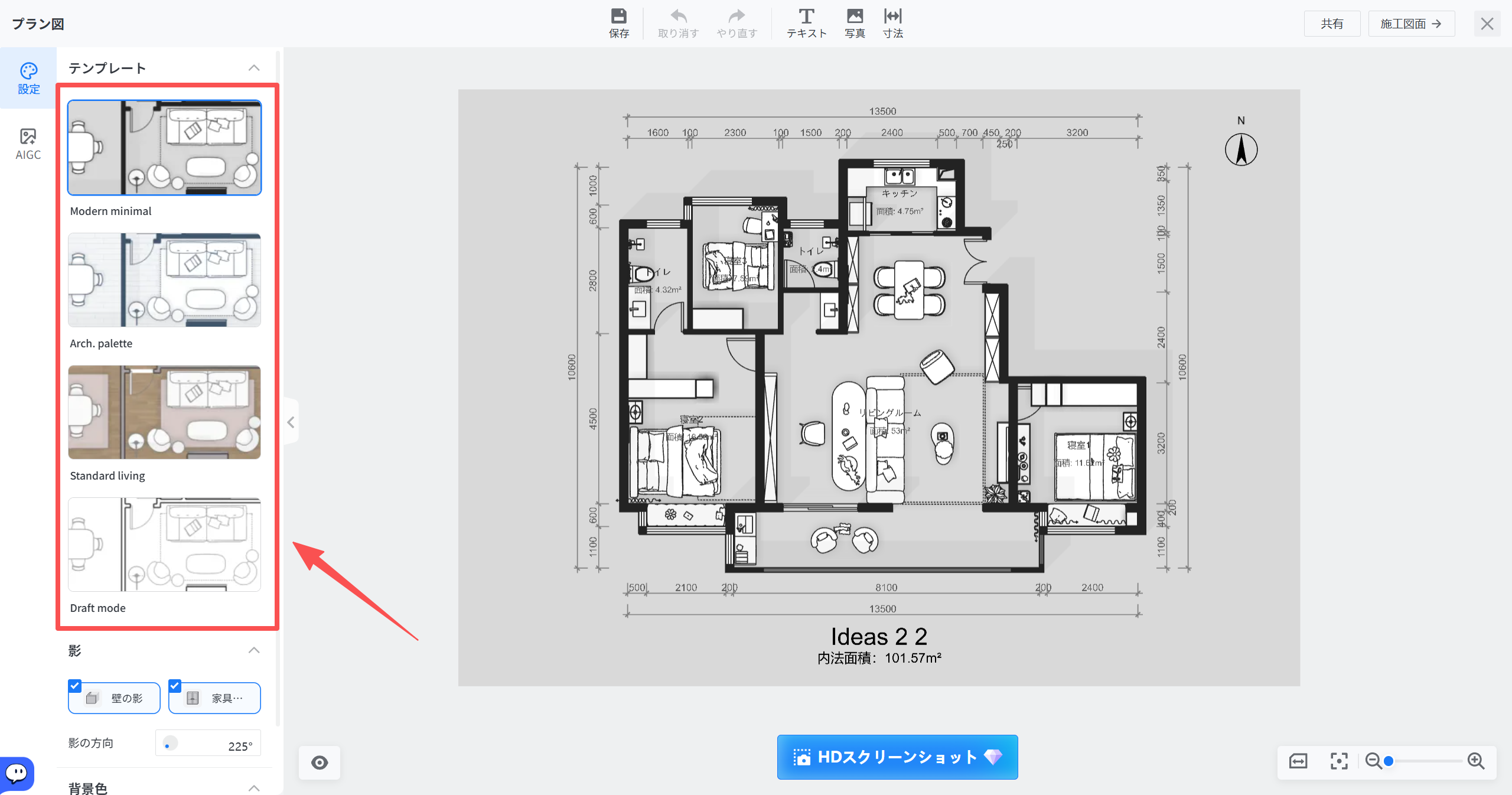

左側のパネルで、希望する「テンプレート」を選択します。
⭐※法人版では、プラン図にテンプレートを直接適用することはできませんが、平面図のスタイルや配色は変更できます。詳しい操作方法については、チュートリアルをご参照ください。 こちらをクリックして閲覧

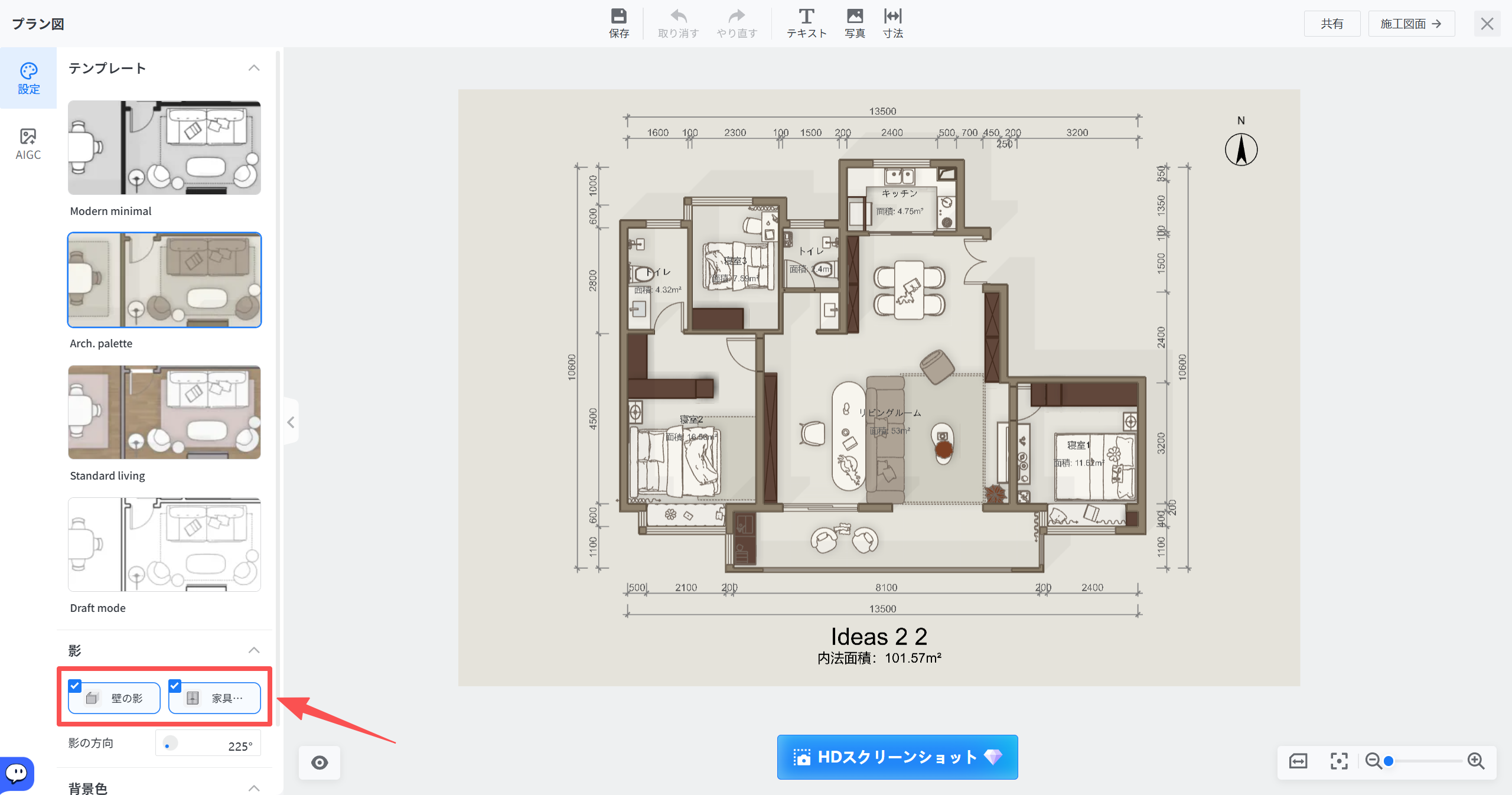

1. 左側のパネルで、「壁の影」と「家具の影」の表示を切り替えることができます。
※どちらもデフォルトで有効になっており、よりリアルな表示効果が得られます。

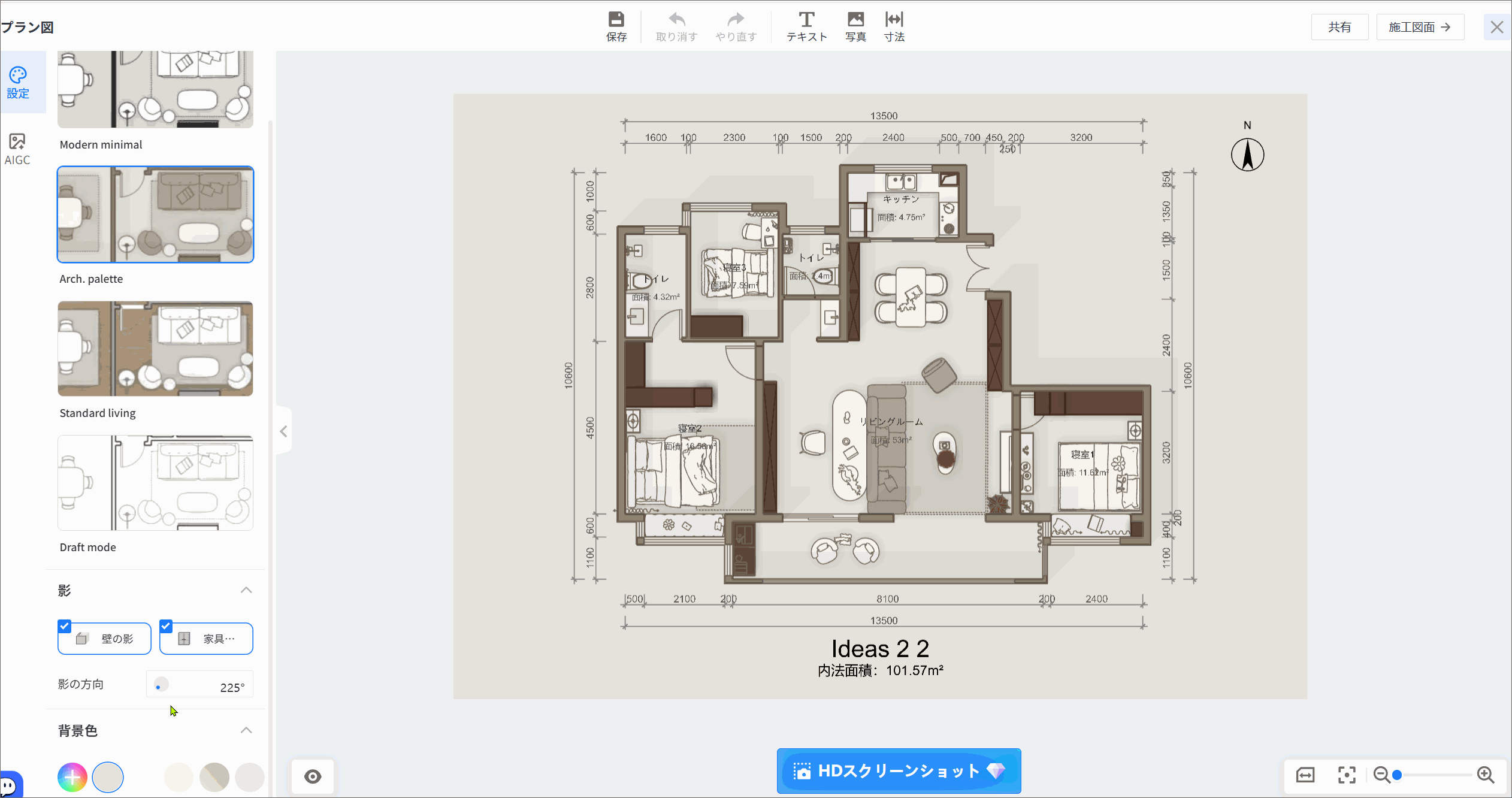

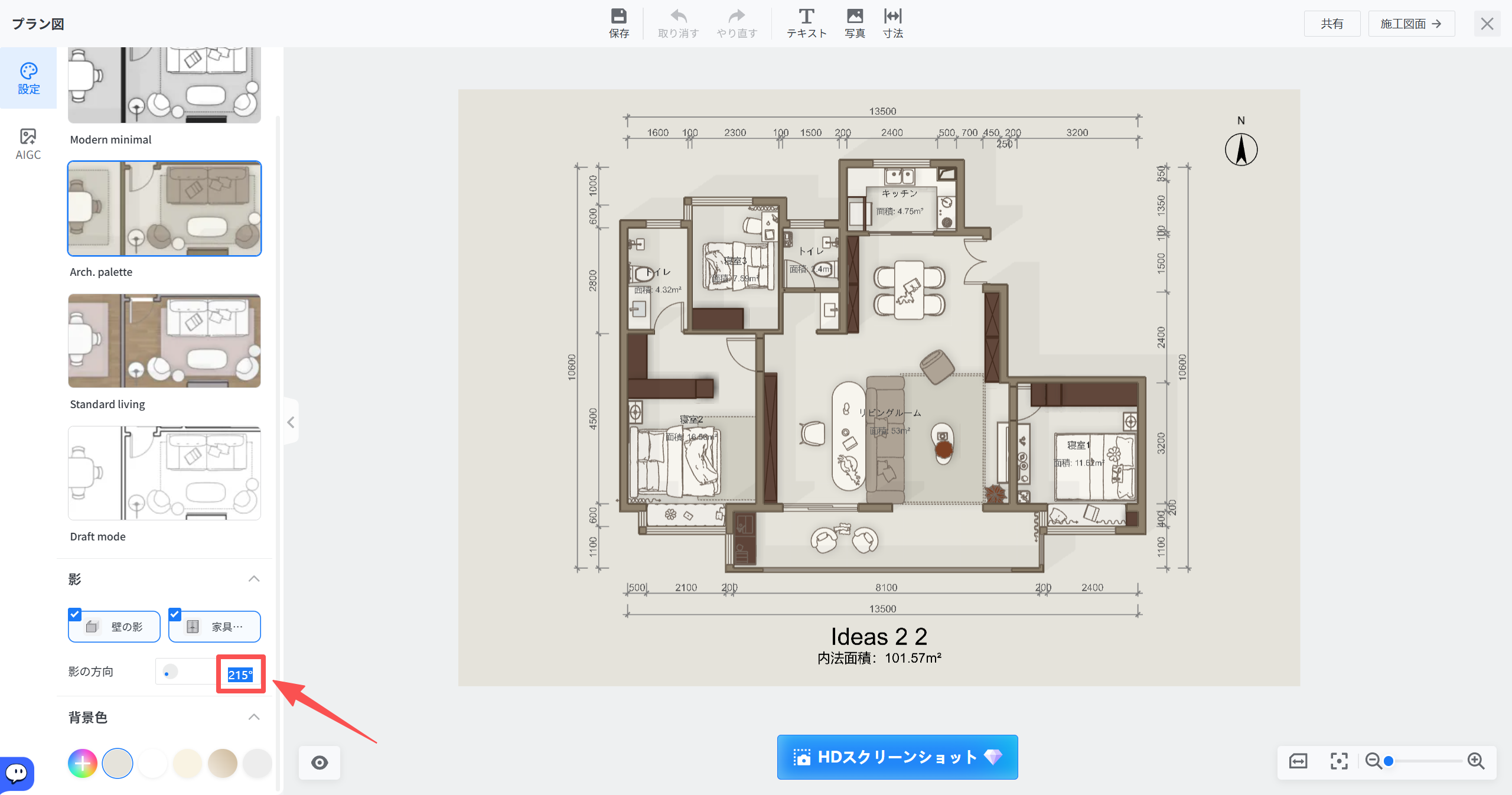

2. 方向ホイールをドラッグして、「影の方向」をお好みの角度に調整します。

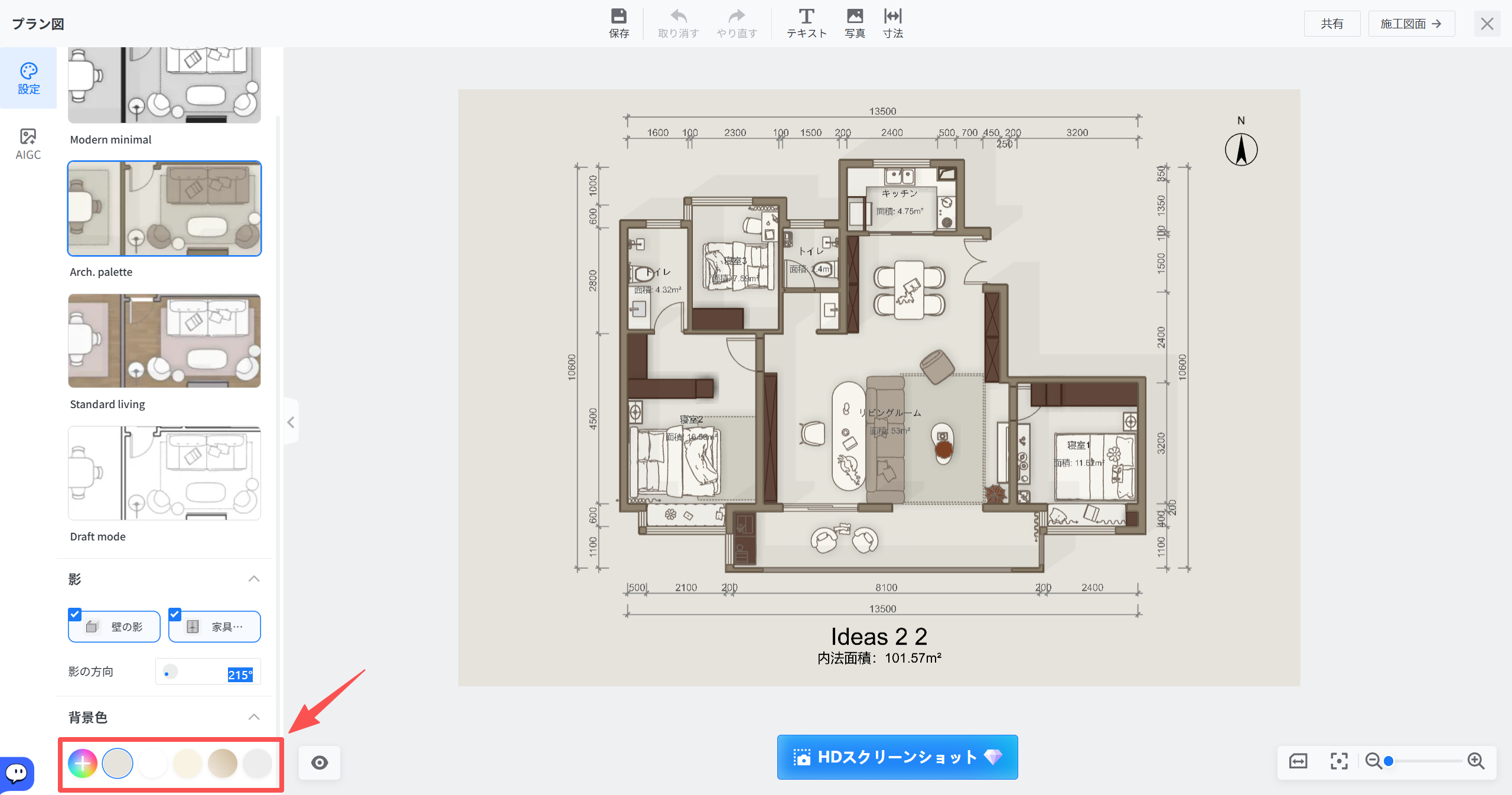

お好みに応じて「背景色」を選択します。

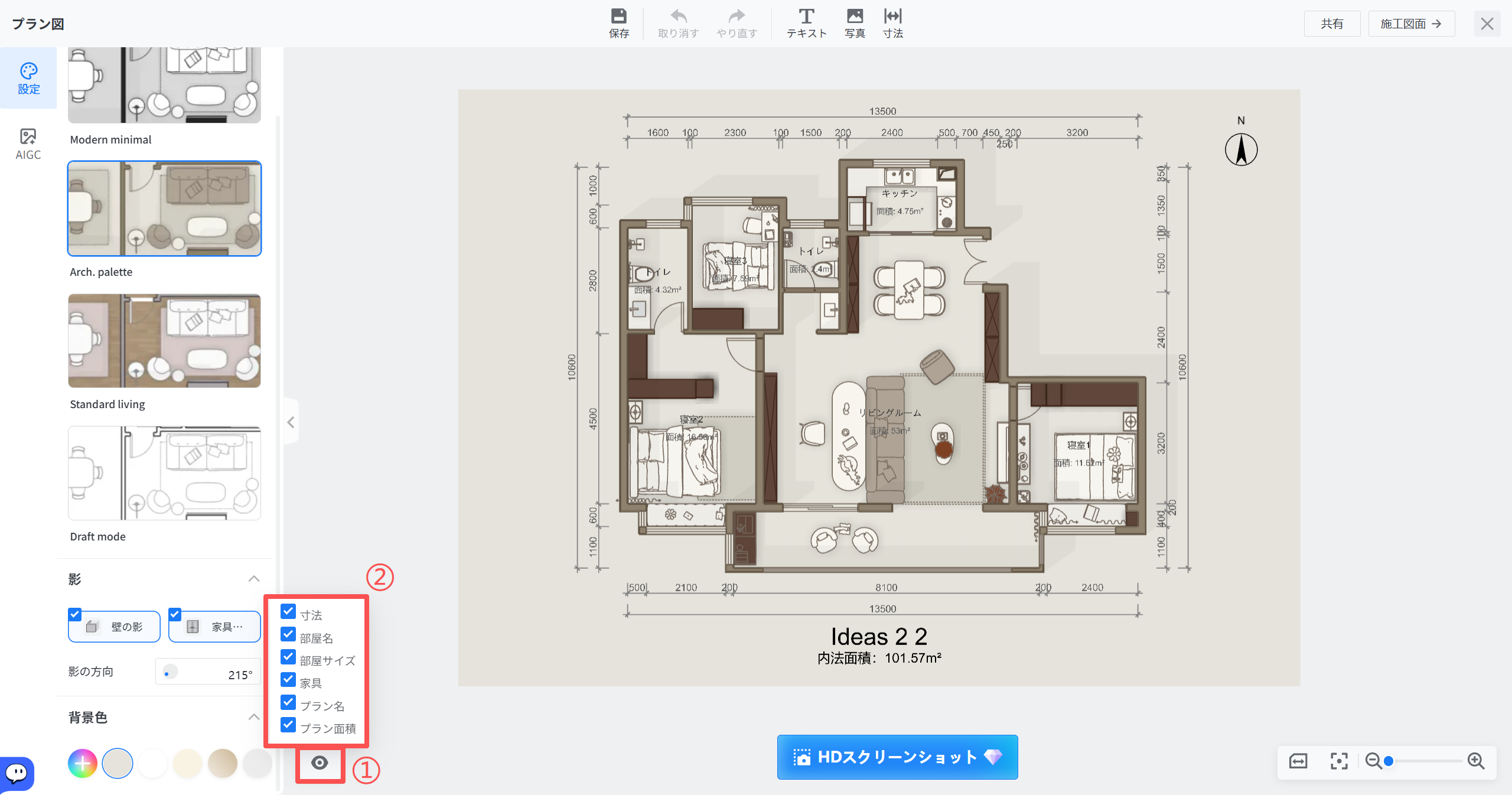

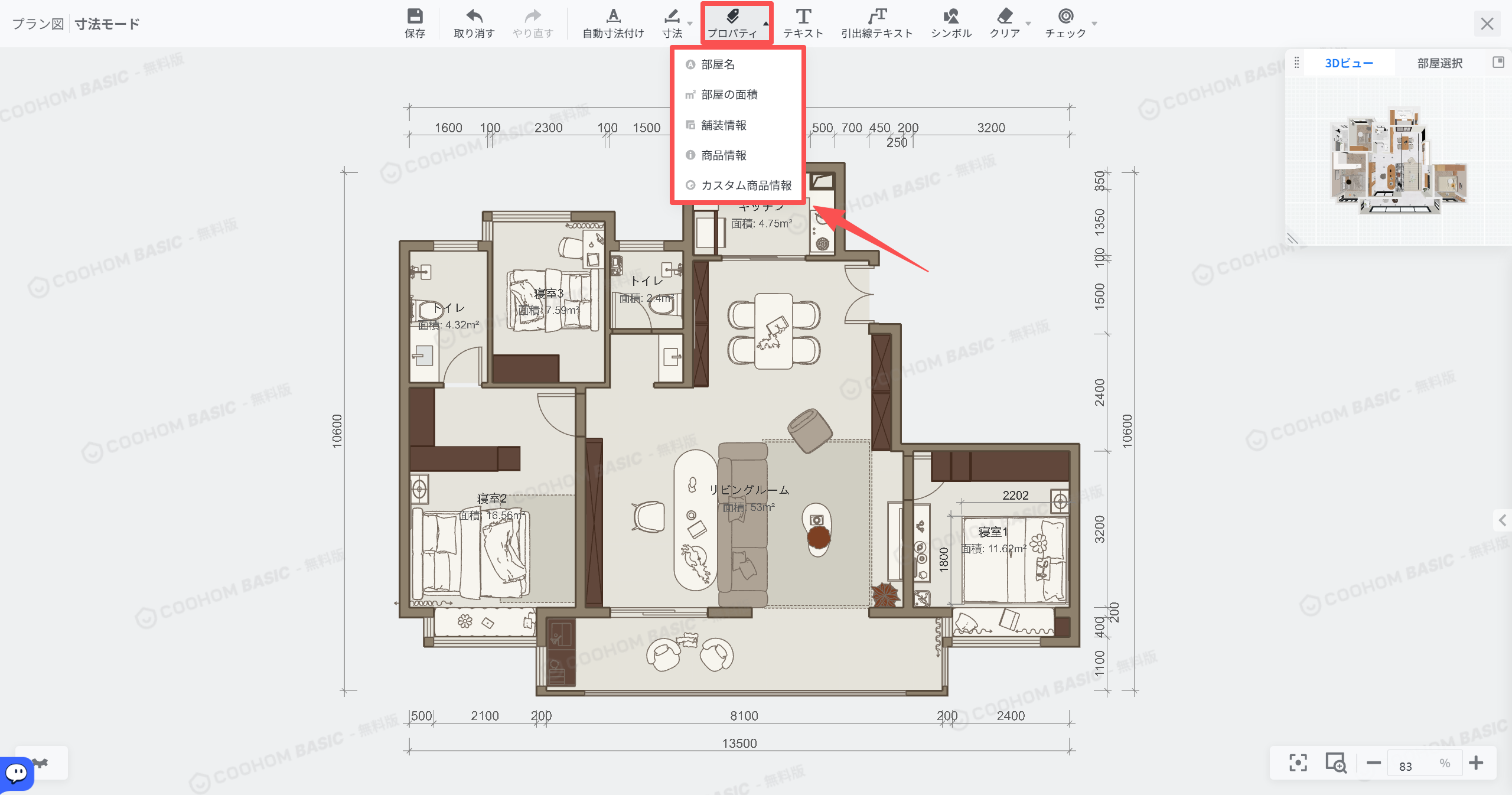

「表示/非表示」アイコンをクリックすると、必要に応じて各種デザイン情報の表示・非表示を切り替えることができます。

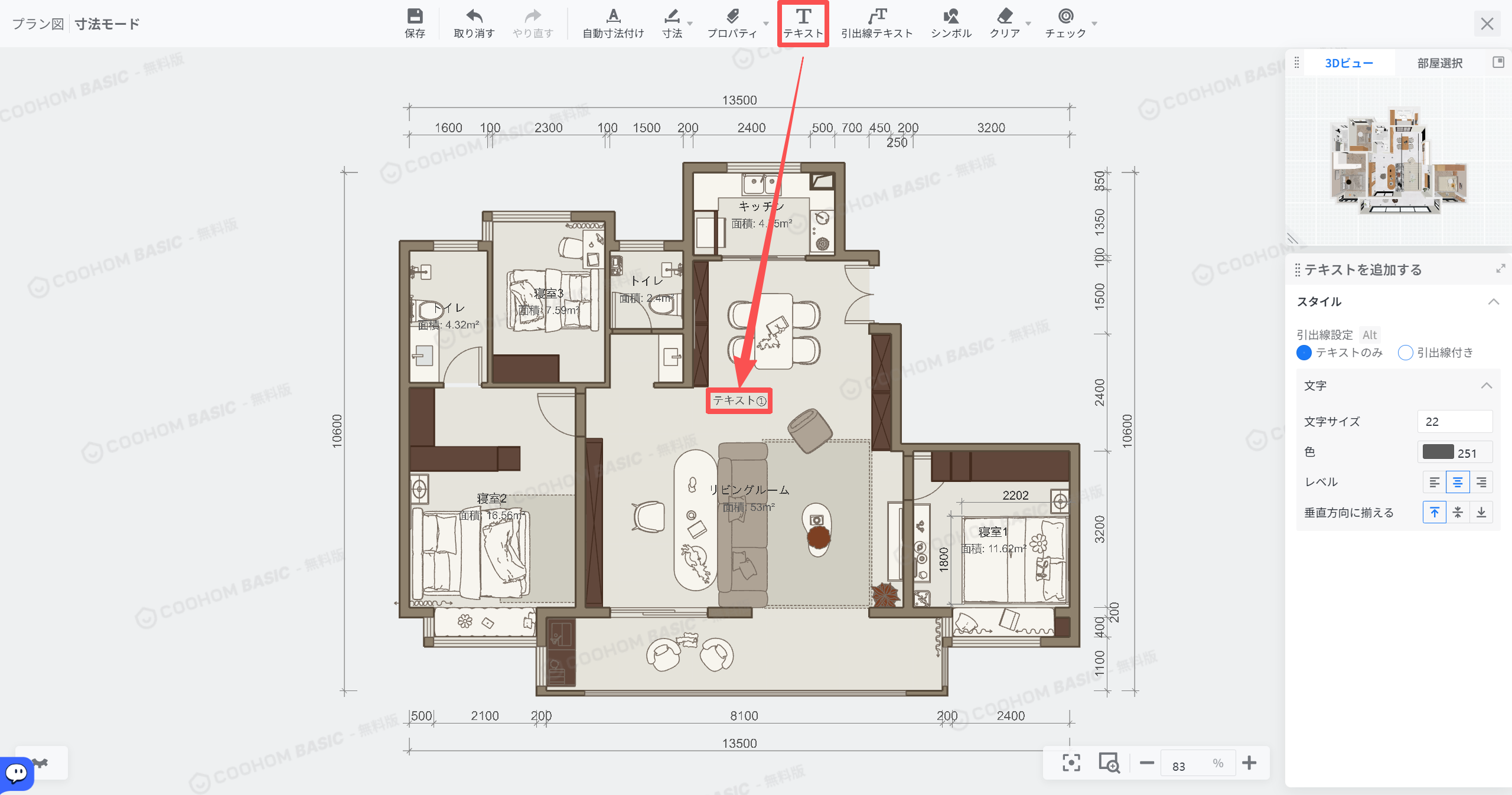

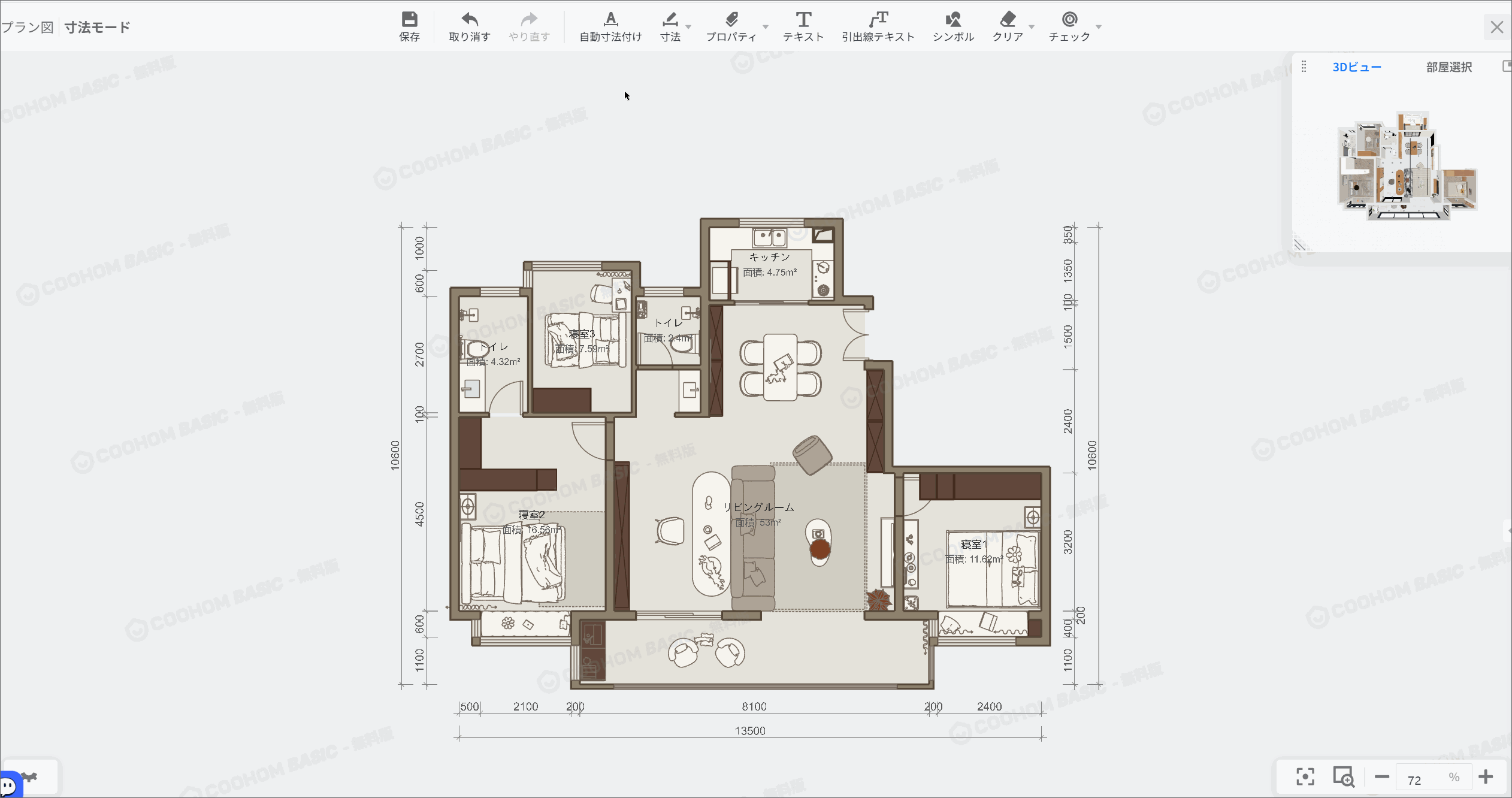

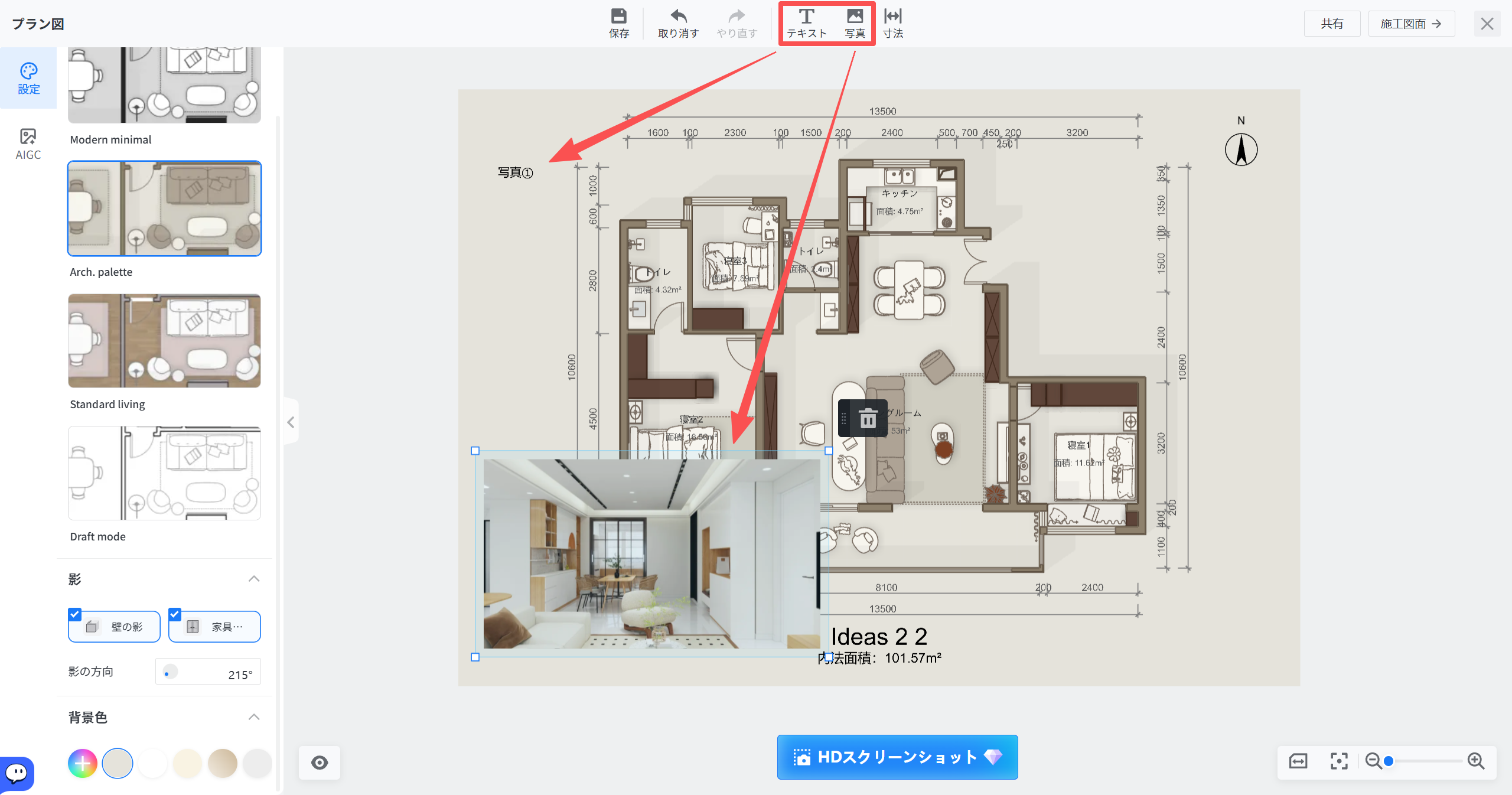

1. 上部のツールバーから、「テキスト」または「写真」を追加します。

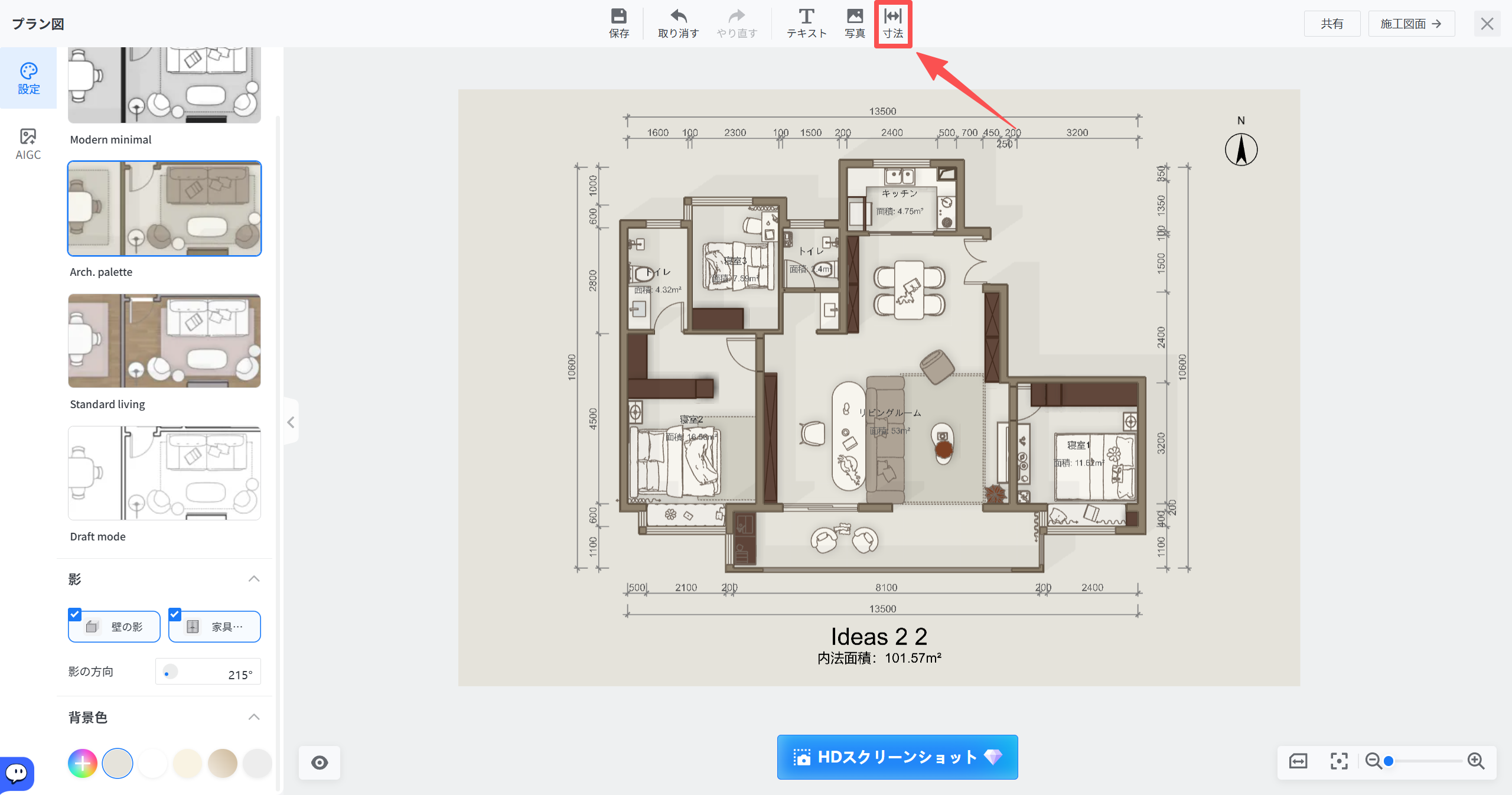

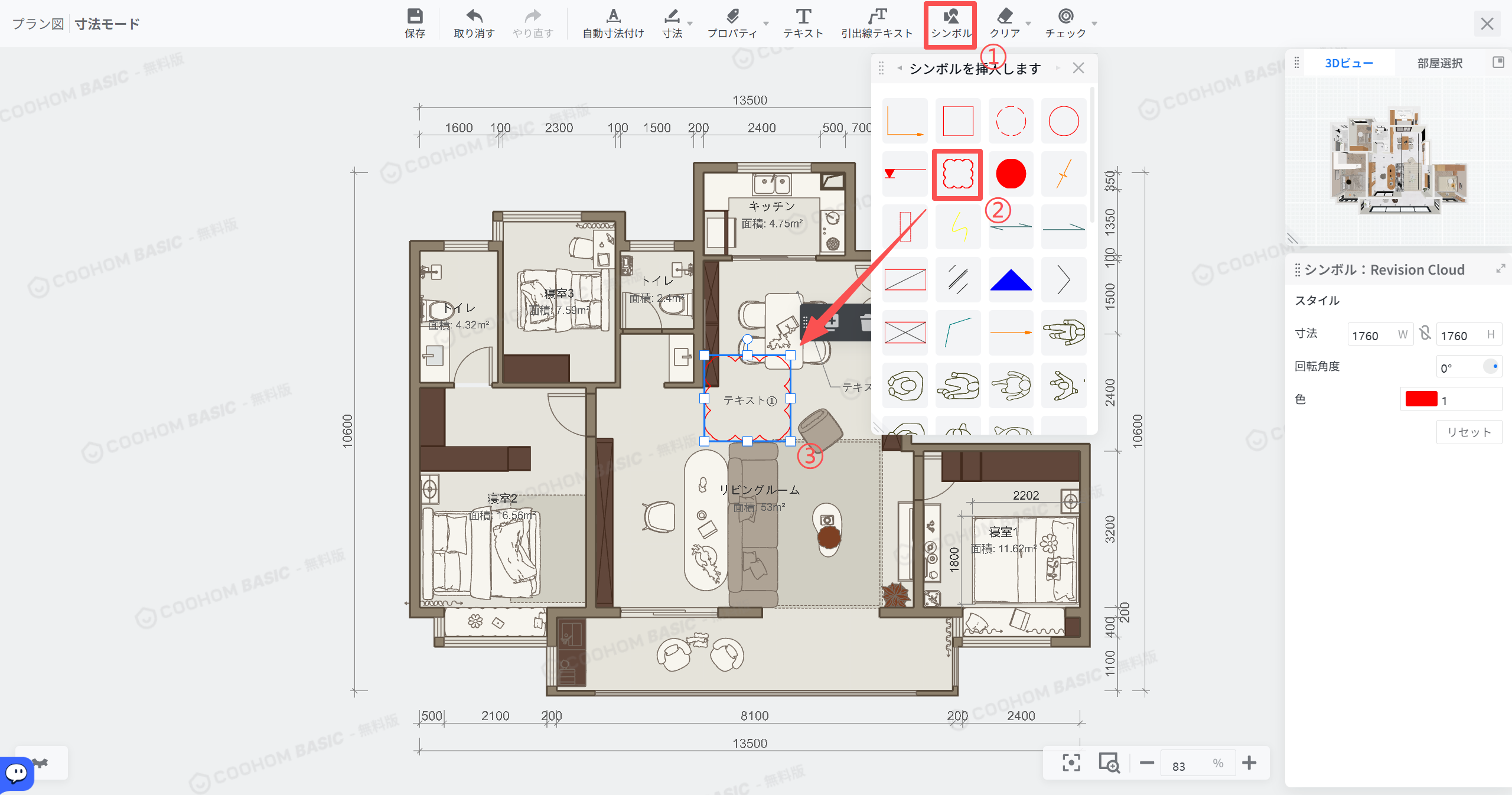

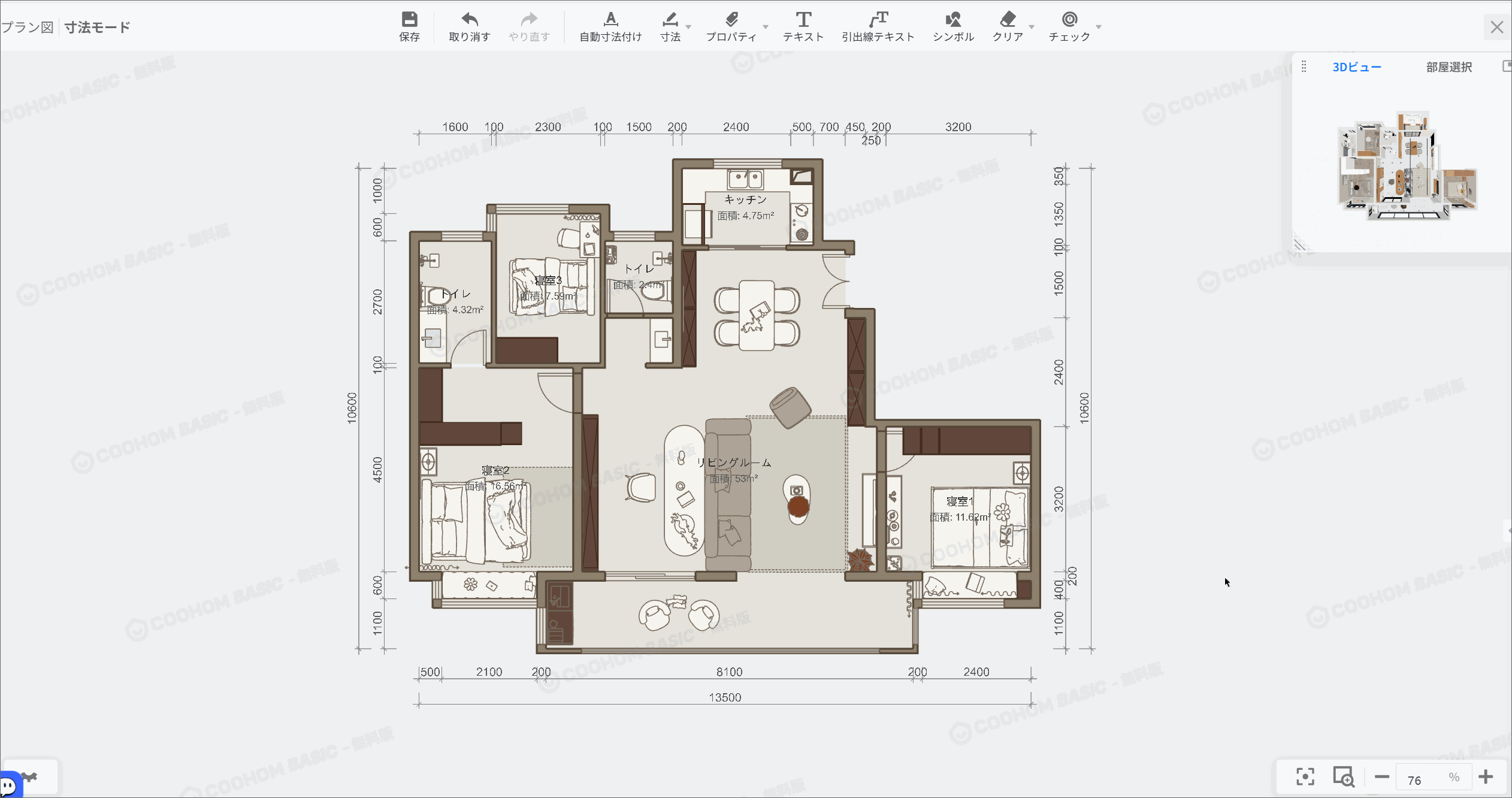

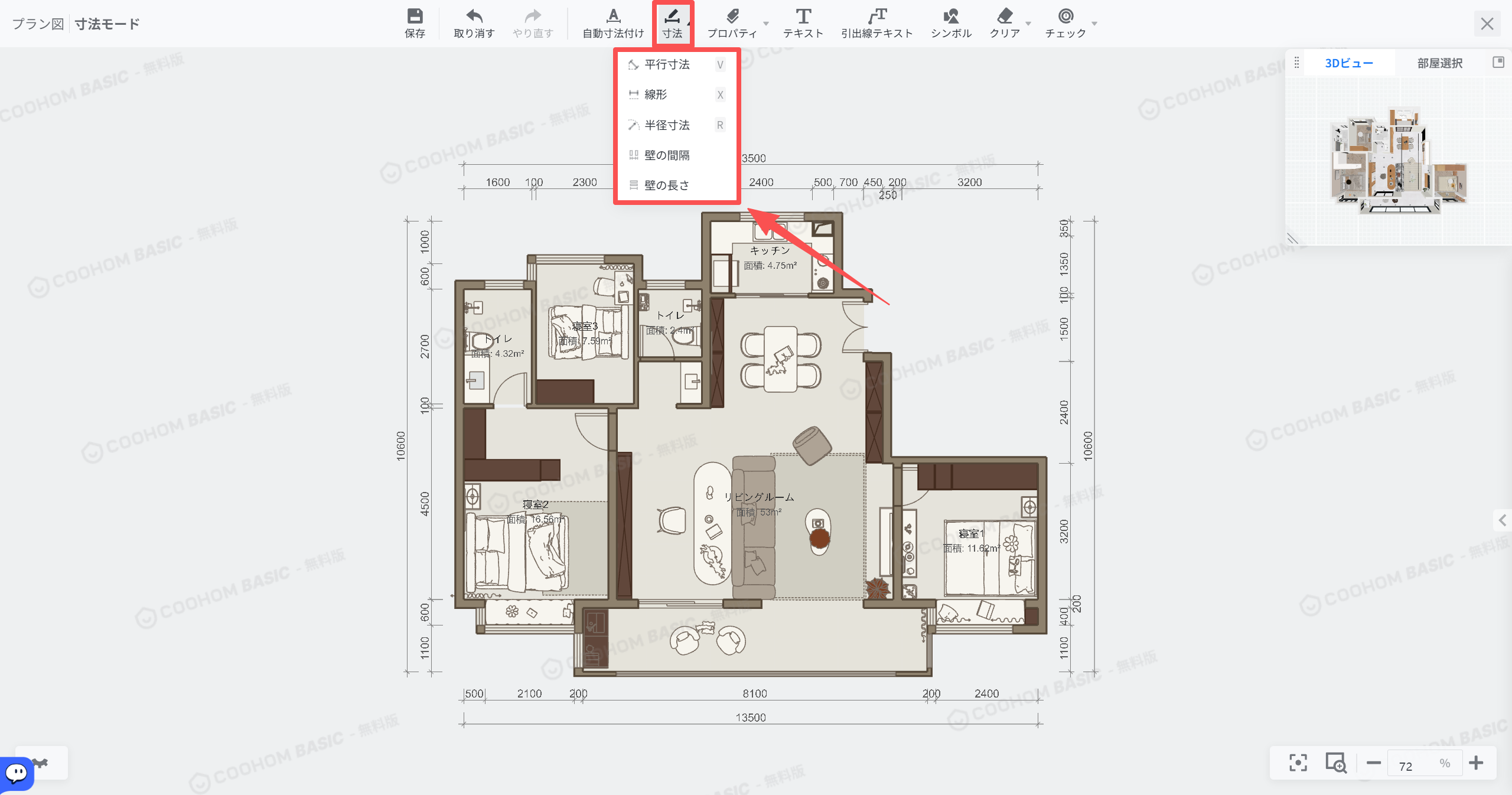

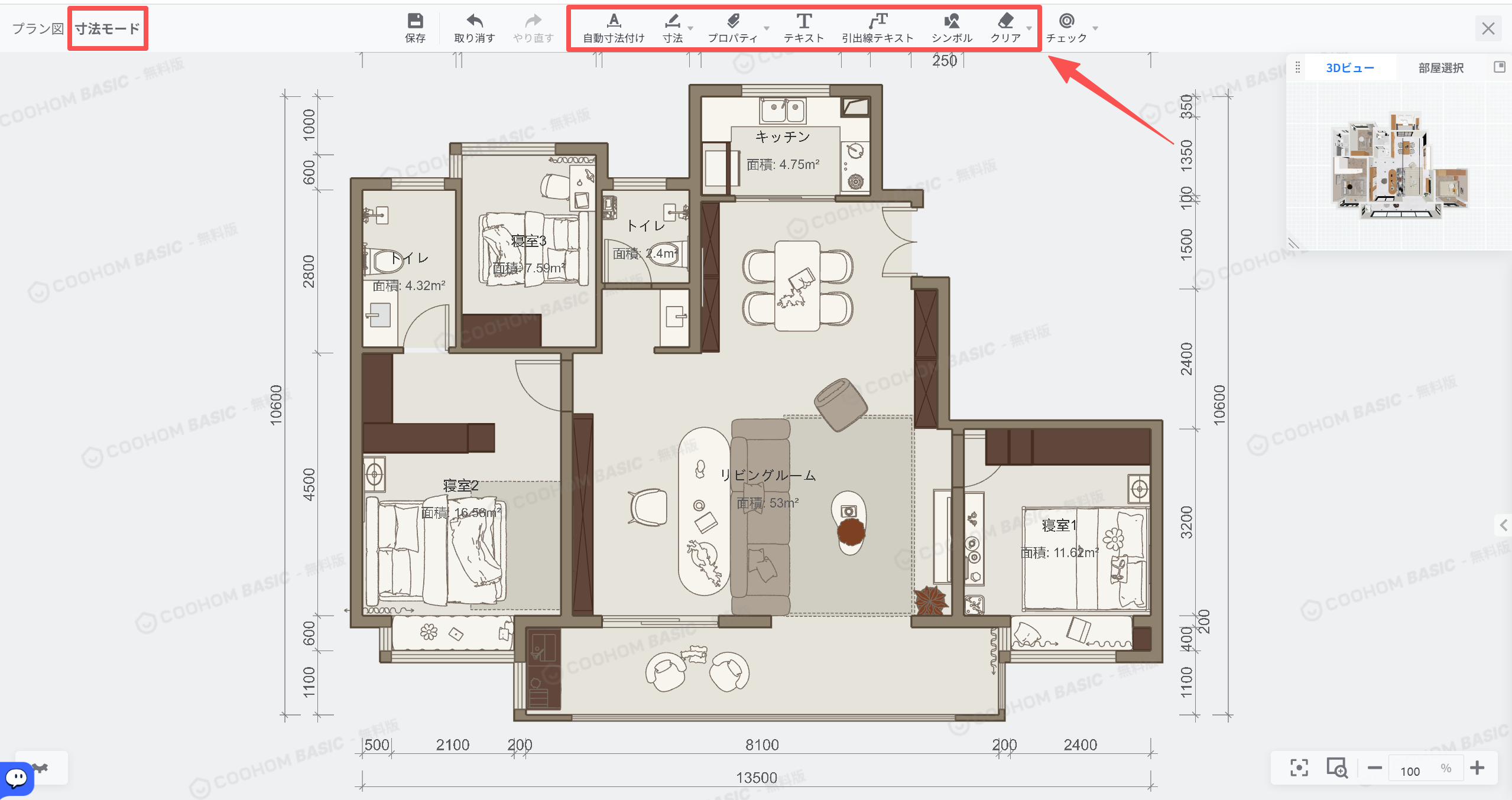

2. 「寸法」をクリックすると、寸法モードに切り替わります。上部の描画ツールを使用して、プラン図に注釈を追加できます。

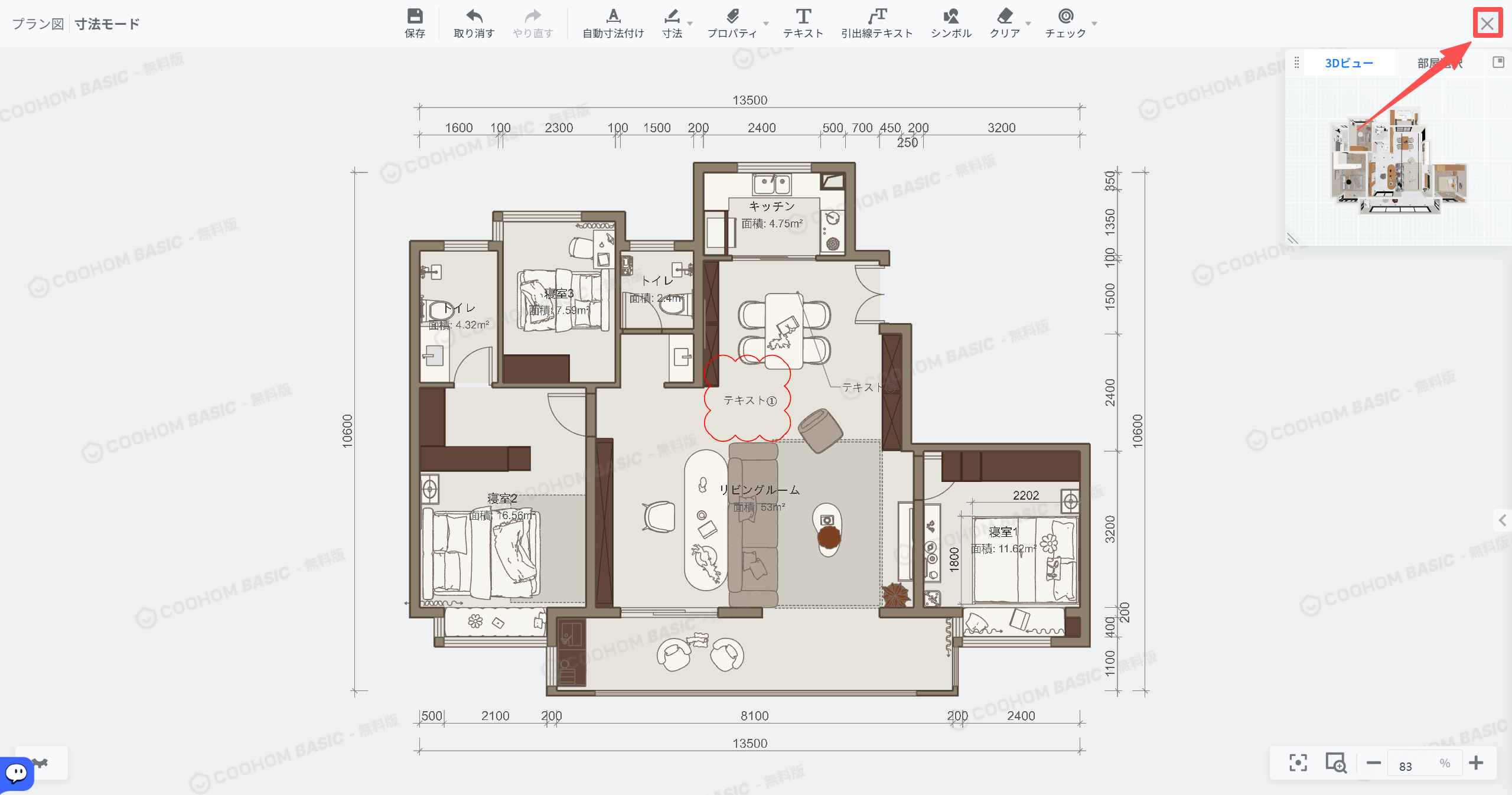

3. 作業が完了したら、右上の「×」をクリックして寸法モードを終了します。

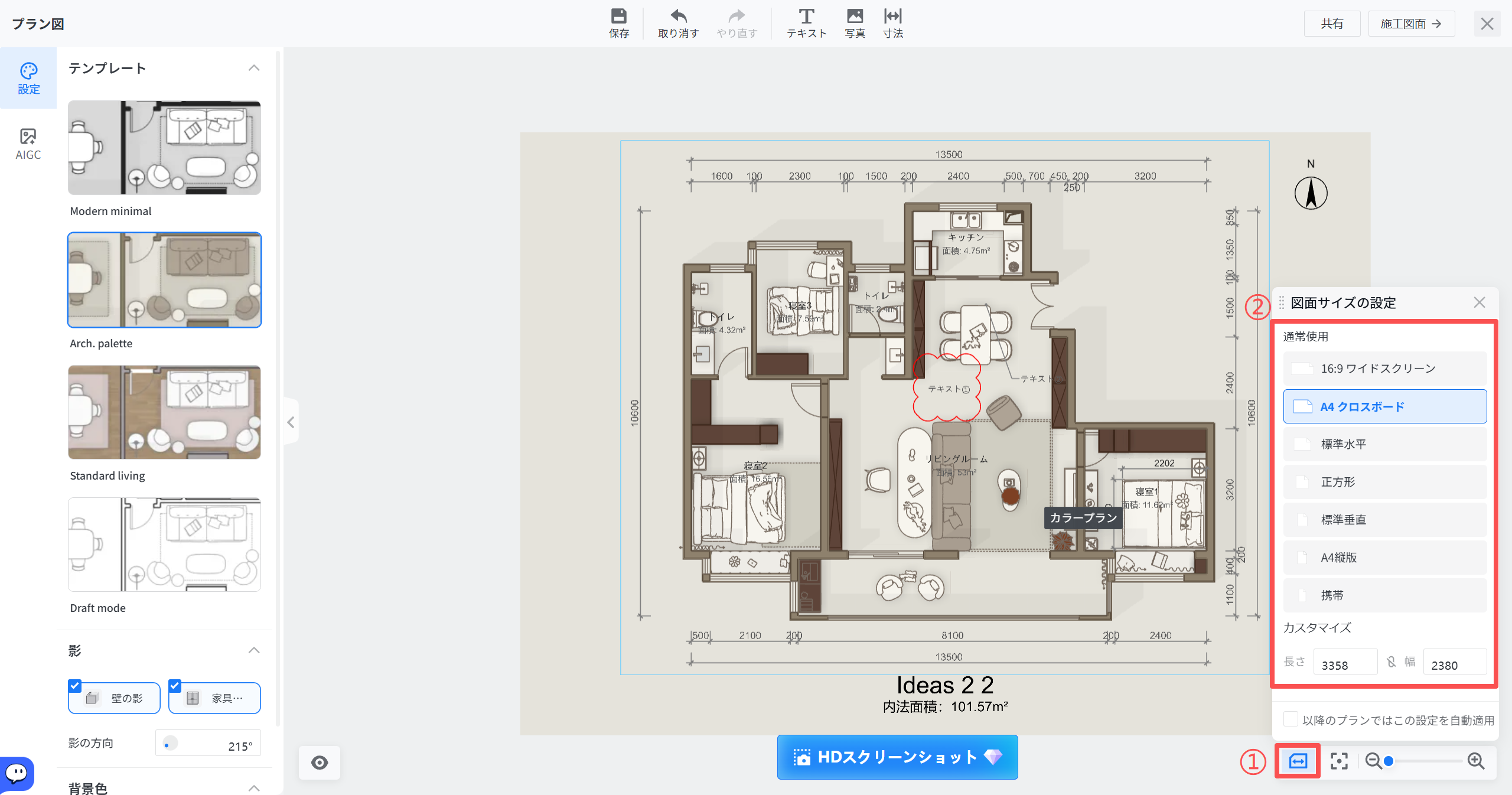

右下の「サイズを変更します」ツールを使用して、プラン図の寸法や縮尺を調整します。

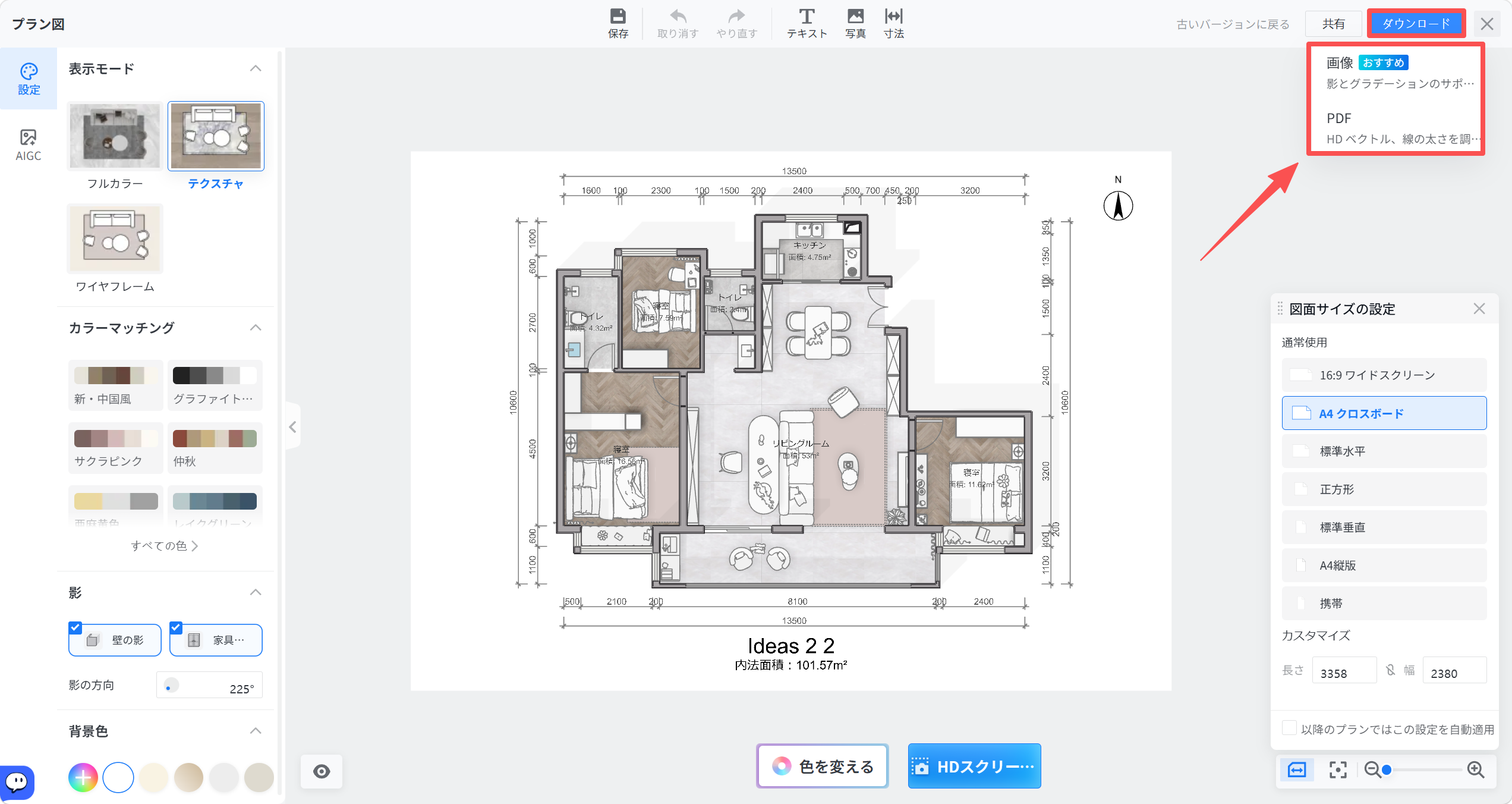

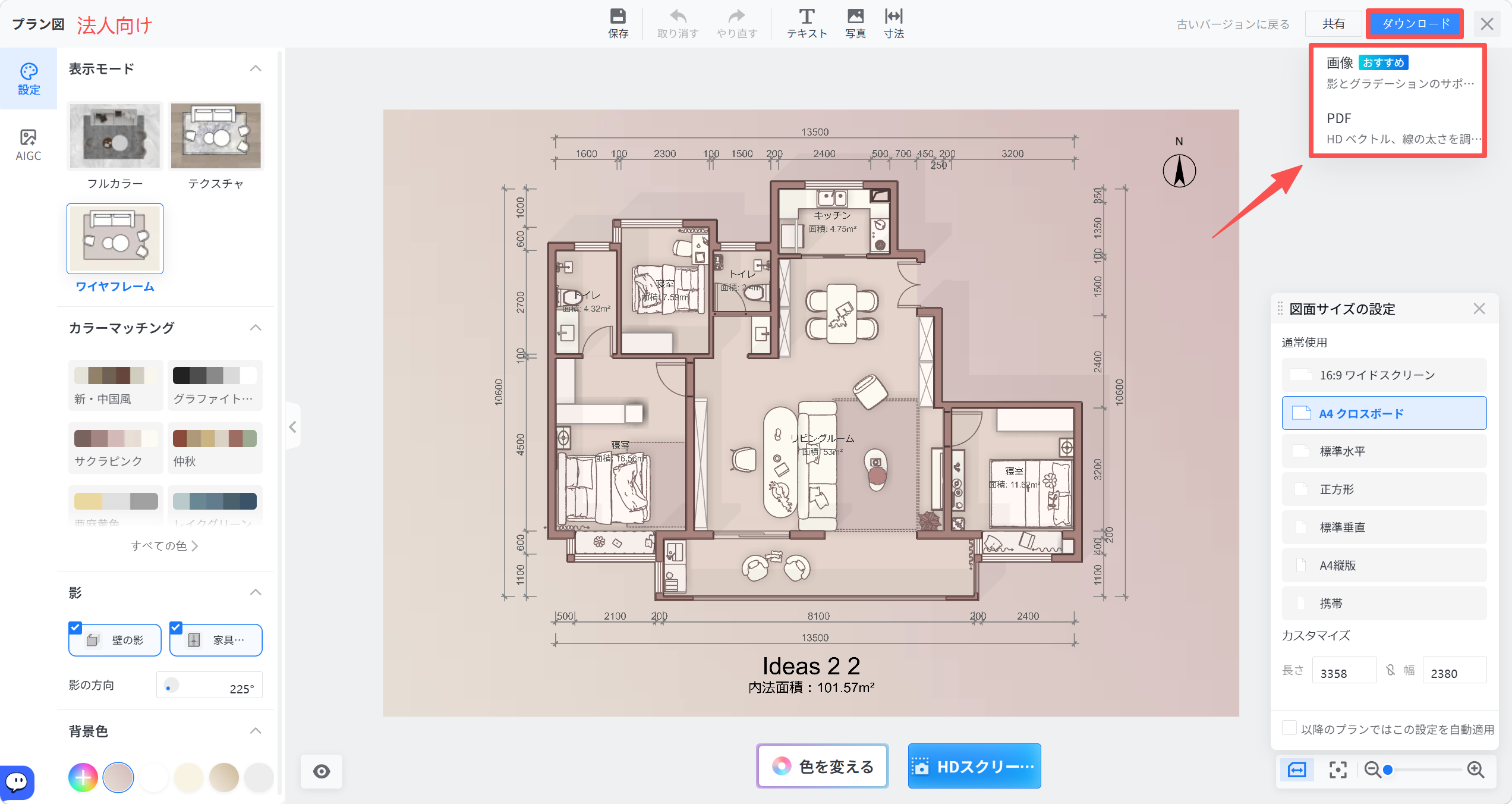

調整が完了したら、画面右上の「ダウンロード」をクリックして、プラン図を画像またはPDF形式でダウンロードできます。
※ダウンロード機能は、Eliteユーザーのみご利用いただけます。

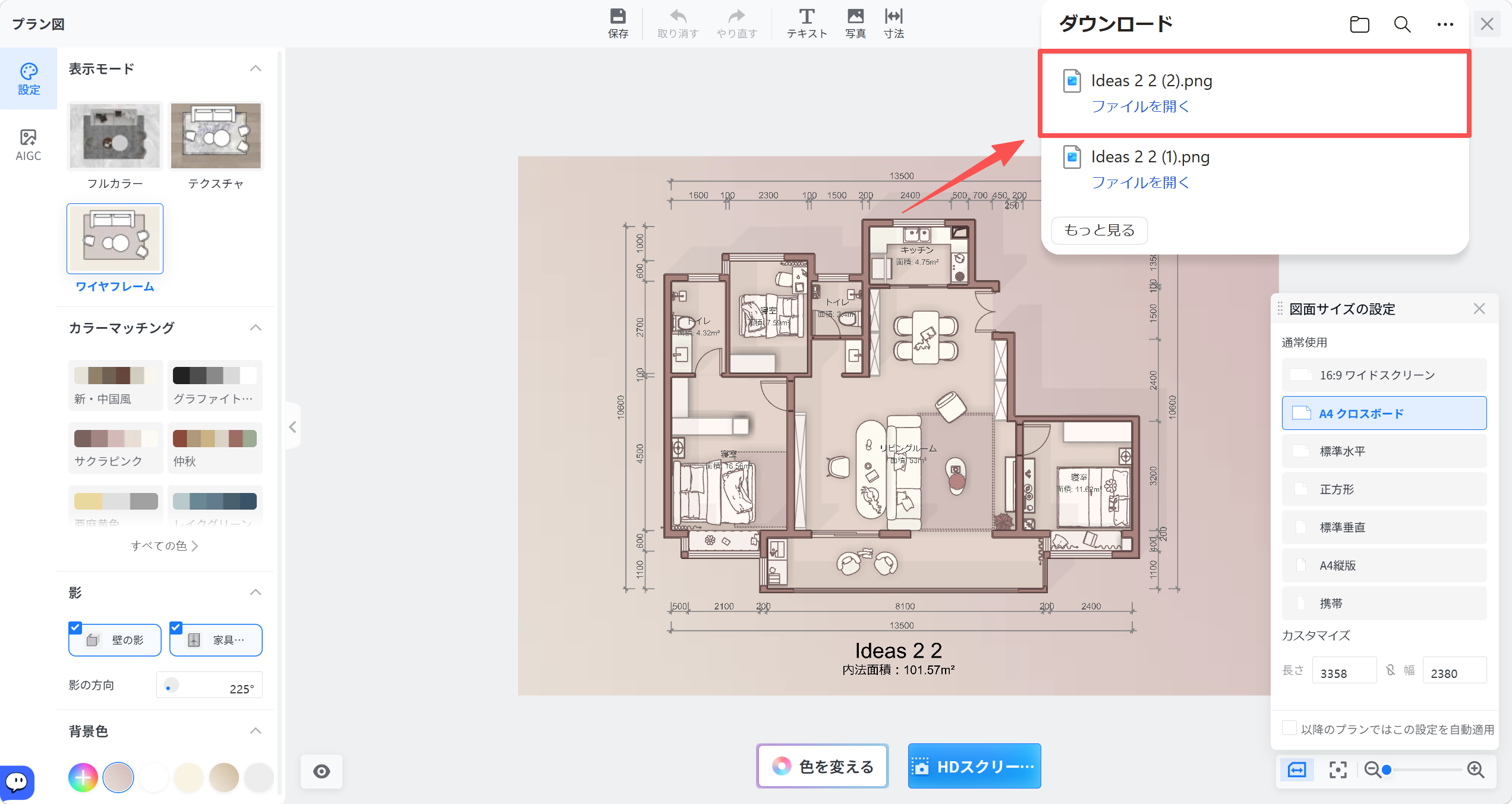

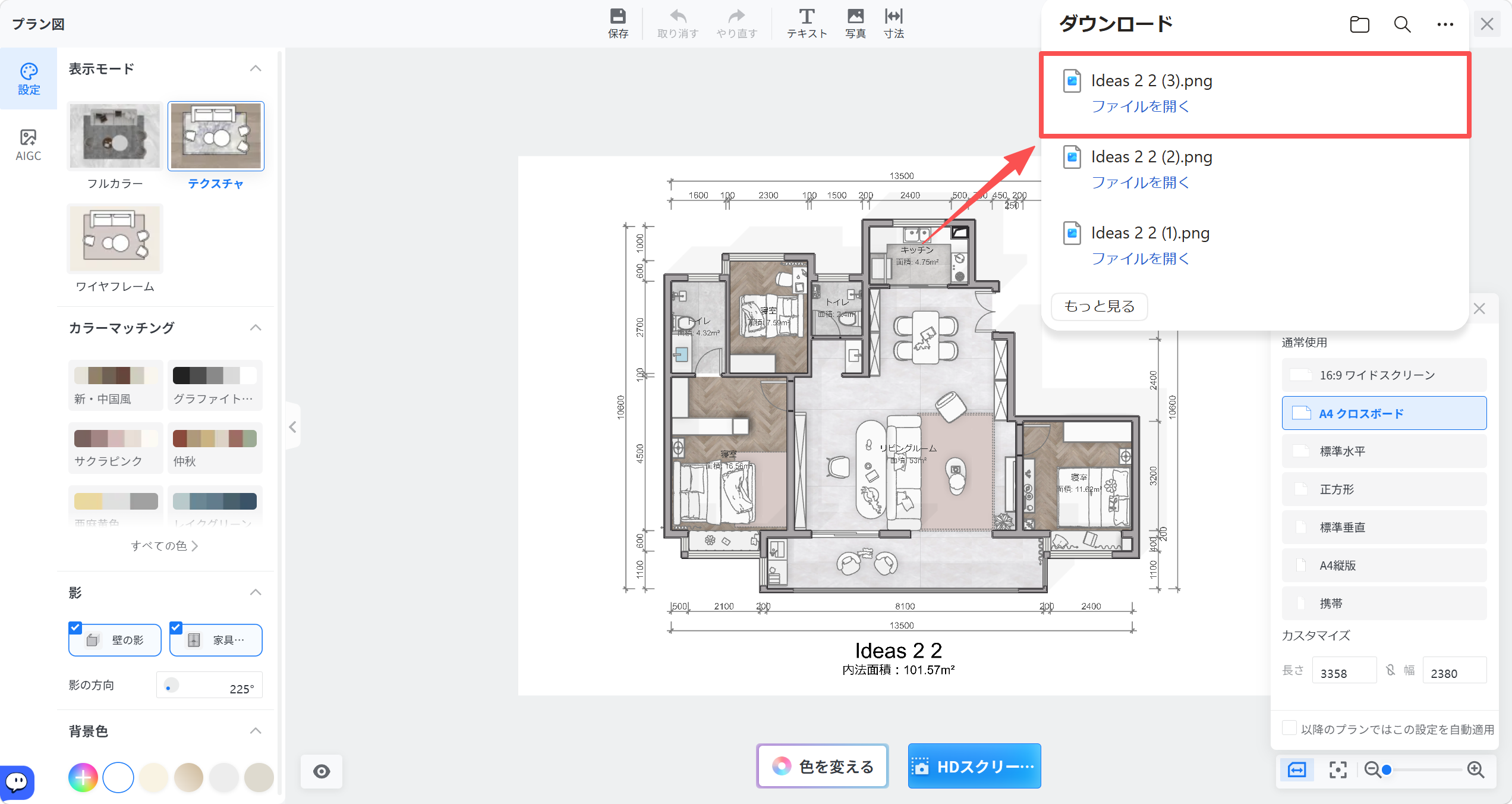

⭐※ダウンロード完了後、画面右上に表示される通知をクリックすると、ダウンロードしたファイルを確認できます。
