オフィスや商業空間などの大規模なレイアウト設計では、デスクやチェアなどの同一モデルを等間隔で配置するするケースが多くあります。近年では、照明器具を円形に配置するデザインも増えてきました。
線形配列とリング配列はモデルを行数・列数・中心点などの条件に基づいて、すばやく・正確に複製・配置することができ、設計作業の効率を大幅に向上させます。オフィスや商業空間レイアウトの制作に、ぜひご活用ください。

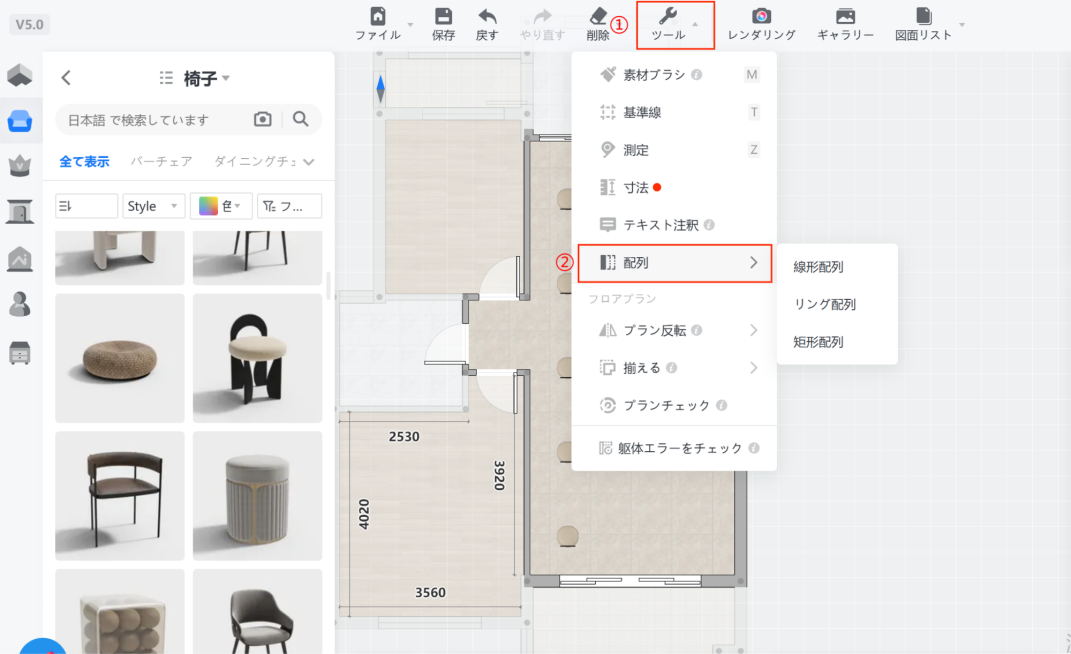

a.「ツール」ボタンをクリックして、「配列」ボタンを選択します。

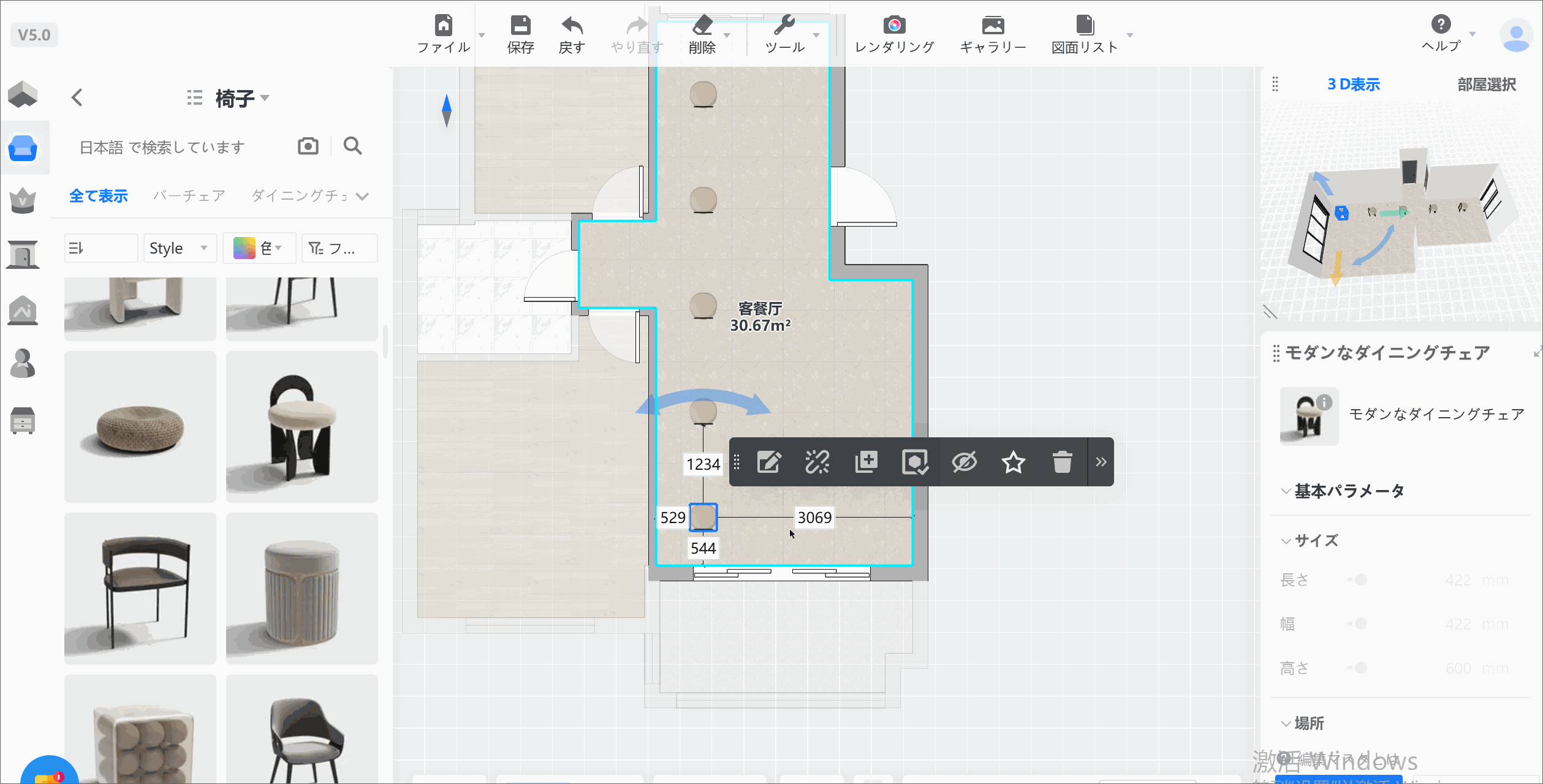

b.モデルをクリックして、ツールバーで「配列」ボタンを選択します。
a.線形パターン

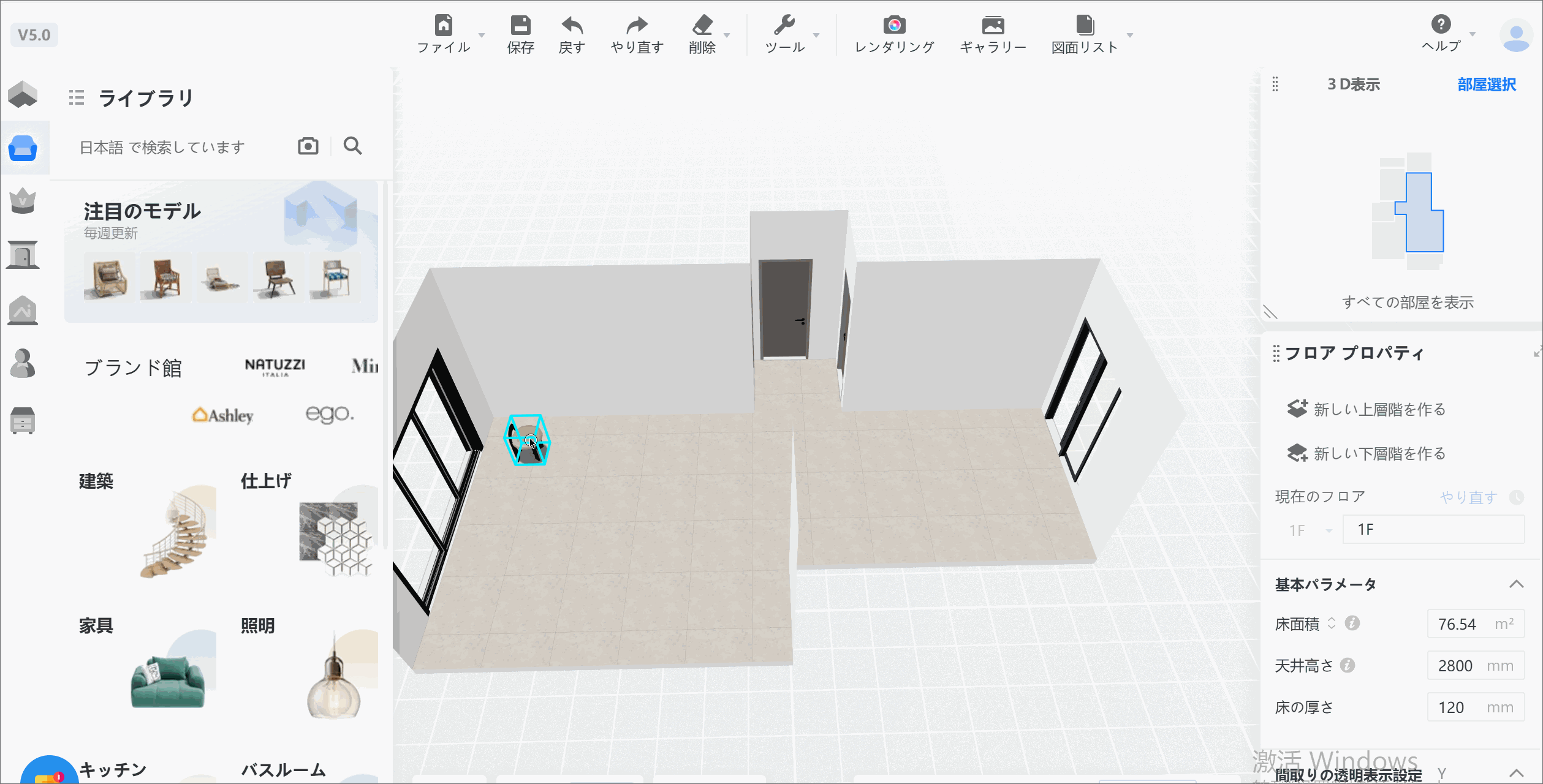

ステップ1:配列の開始点を確定します。
2D表示:モデルの四辺の任意の点を配列の開始点として選択できます。
3D表示:モデルの十二辺の任意の点を配列の開始点として選択できます。
ステップ2:配列の終点を確定します。間隔と配列プレビューを確定します。
2D表示:現在のXY平面上の任意の点を配列終点として選択できます。
3D表示:現在のXYZ平面上の任意の点を配列終点として選択できます。
ステップ3:パラメータを調整します。固定間隔または固定総長を設定できます。配列の個数をカスタマイズすることを可能にします。
b.リングアレイ

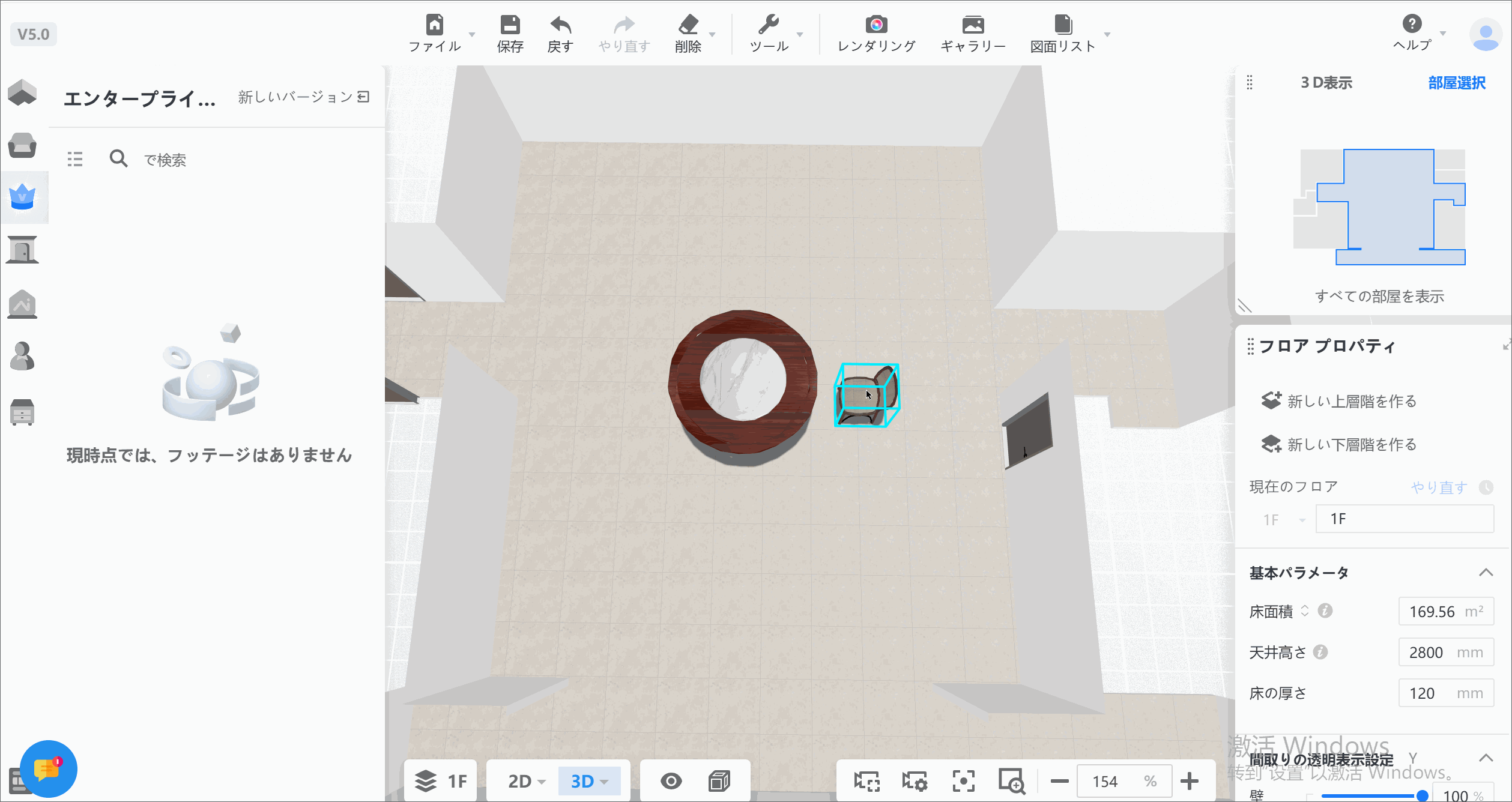

ステップ1:配列の開始点を決定します。すなわち円の中心点を設定します。
ステップ2:配列の終点を決定します。ここで、半径と角度間隔の設定、アレイのプレビューが可能です。
ステップ3:パラメータを調整します。ここで、固定間かと固定の角度の設定が可能です。Z軸の間隔、総長と配列の個数をカスタマイズできます。
