coohomでは、モデルや壁を選択すると、自動的にサイズや距離の寸法線が表示されますが、これらは一時的な表示です。
「寸法」ツールを使えば、必要な位置に寸法線を手動で追加・固定できるため、毎回測定する手間が省け、「測定」より効率的になります。また、「補助線」と組み合わせることで、より正確な配置も可能になります。

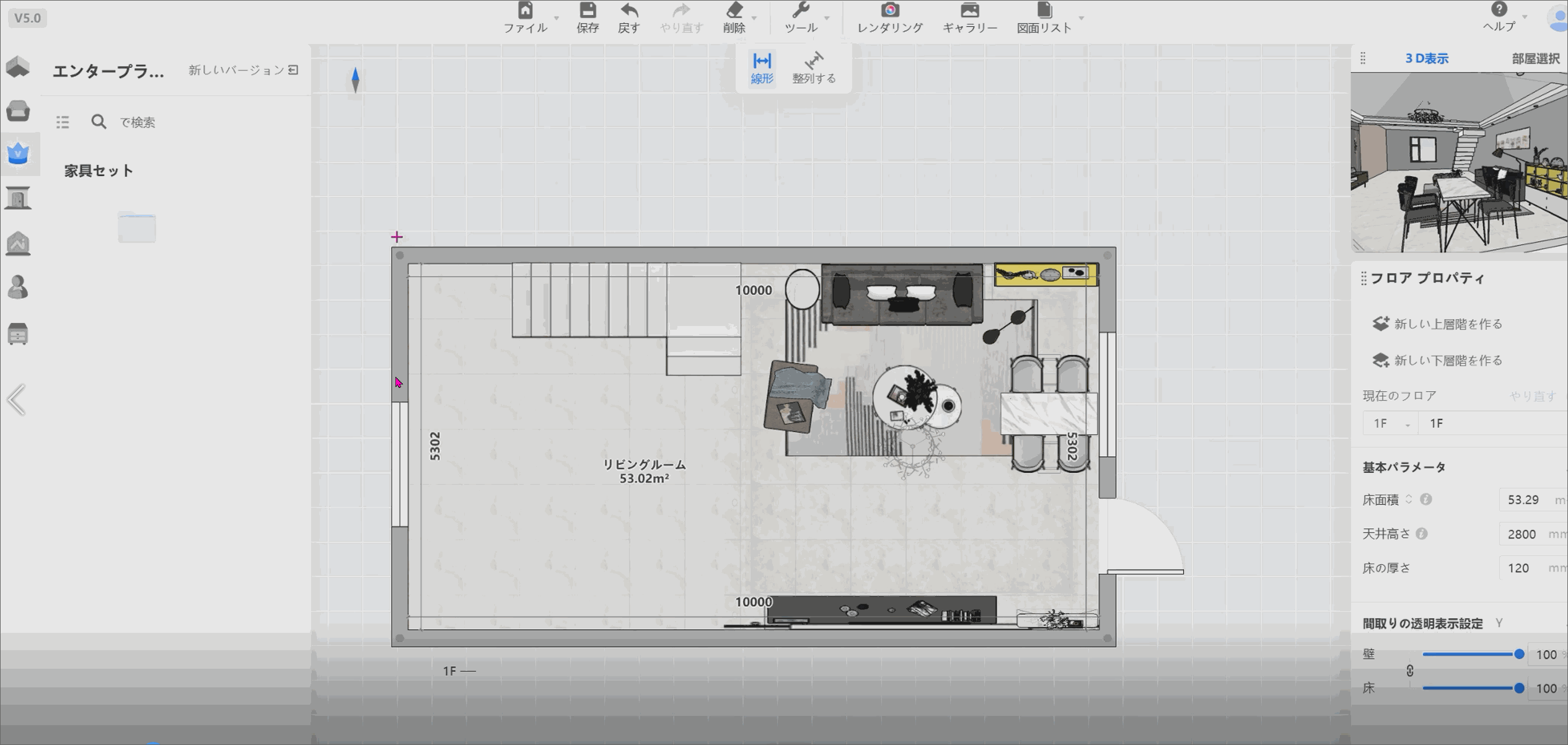

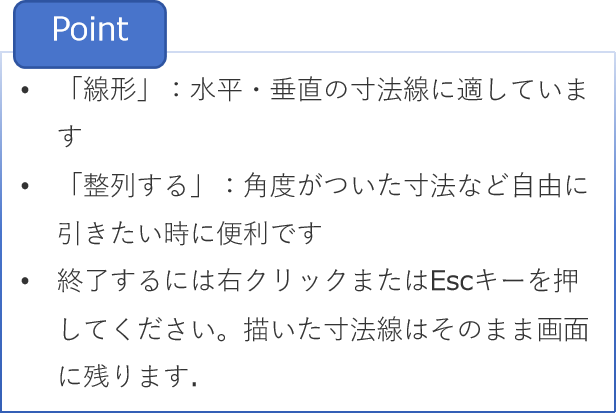

1. 画面上部の「ツール」メニューから「寸法」をクリックして、寸法モードを有効にします。2. 表示されるモードから「線形」(直線寸法)または「整列する」(任意2点間の寸法)を選びます。
3. 寸法の始点をクリック → マウスを動かして寸法線を引き出し → 終点をクリック。4. その後、マウスを上下に動かして寸法線の表示位置(高さ)を調整し、再度クリックして確定します。5. 続けて、同じライン上に寸法線をどんどん追加することもできます。
6. 描画モードがオンのままであれば、新しく寸法線を描いたり、モードを切り替えて続けて使うことができます。7. 終了するには右クリックまたはEscキーを押してください。描いた寸法線はそのまま画面に残ります。8. 寸法線を選択すると、以下の操作が可能です: - 数値を直接編集する - Deleteキーで削除する
