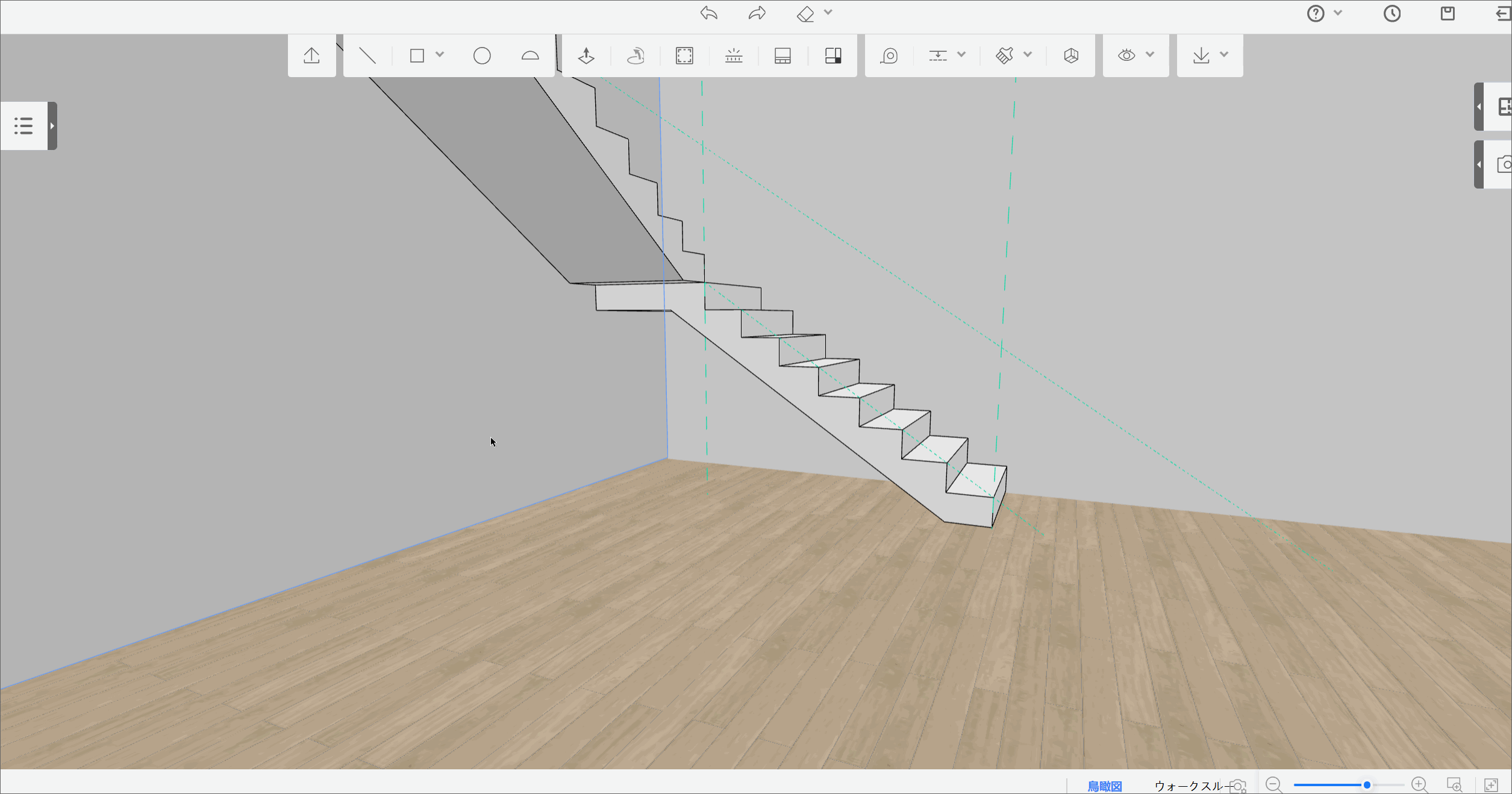

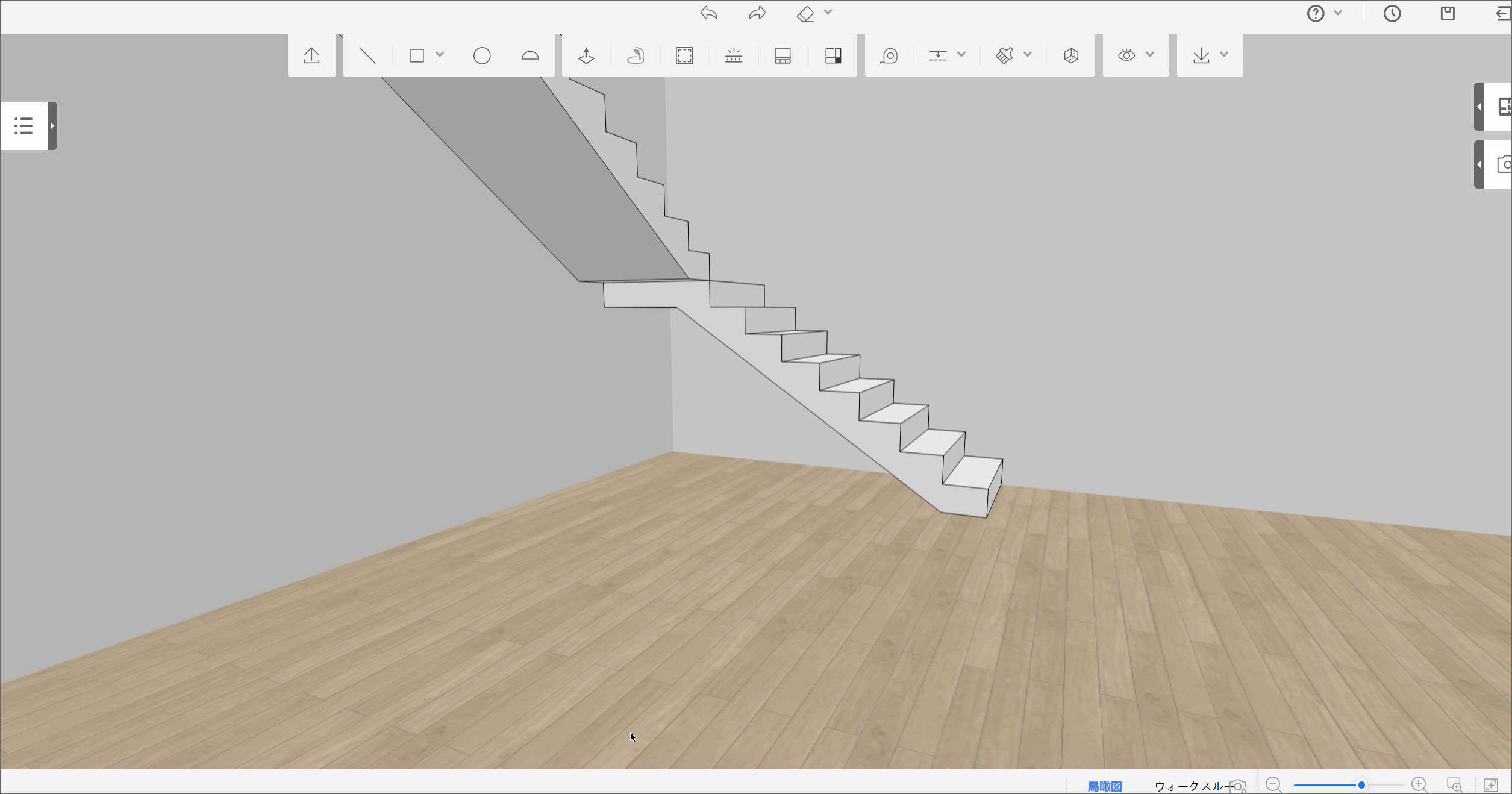

Coohomで階段を作成する手順は、大きく2つに分かれます。1つ目はステップ部分の作成、2つ目は手すりの作成です。「ガイド線」や「直線」、「プッシュ・プル」機能を使ってステップ部分を作成し、「ロフト」機能を使えば手すりの作図も可能です。本チュートリアルでは、ステップ部分を作成する2つの方法と、階段手すりの作成方法について説明します。
ステップ部分を作成する方法
方法1:「材料とコンポーネント」機能を使用する場合

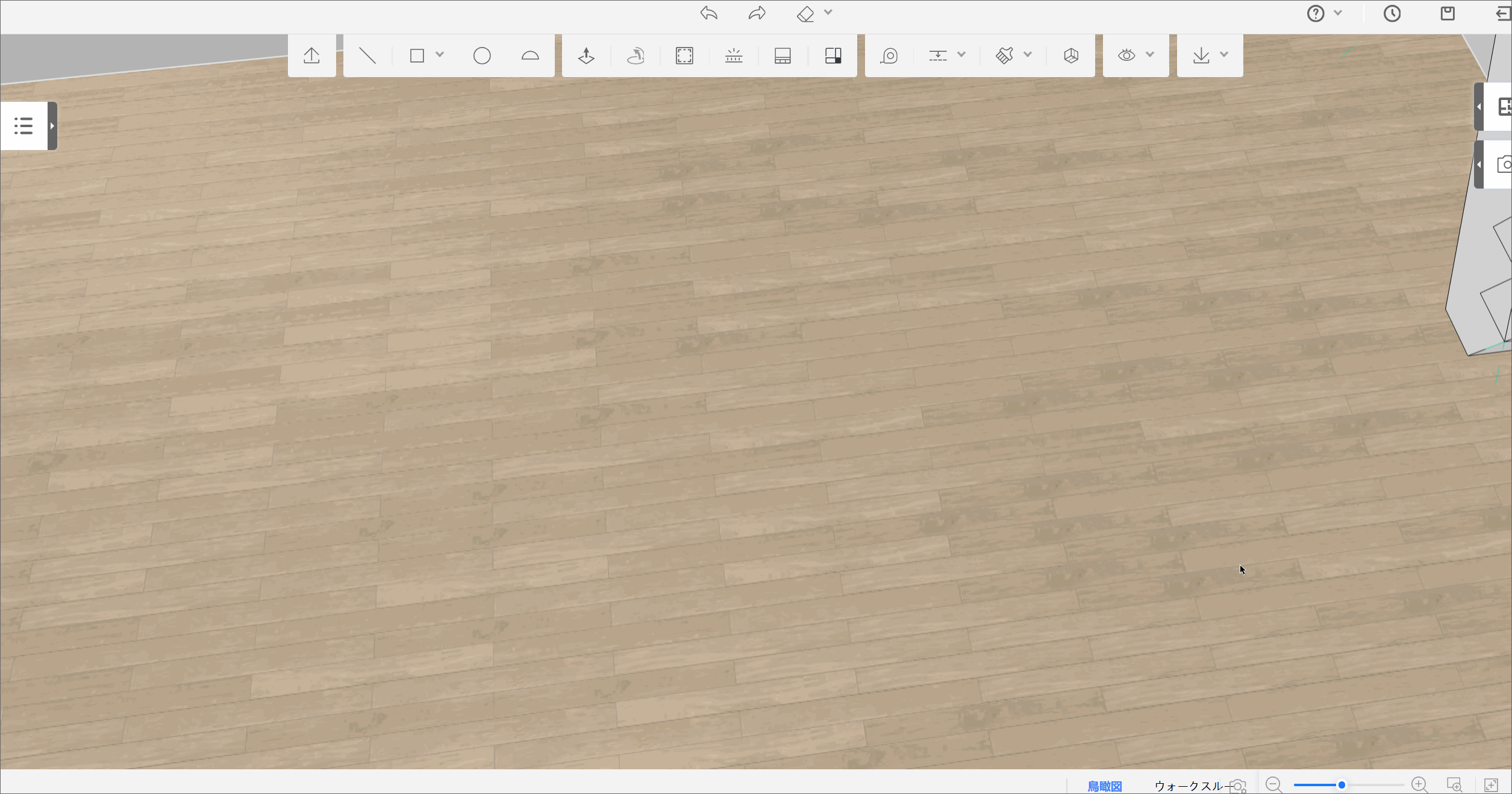

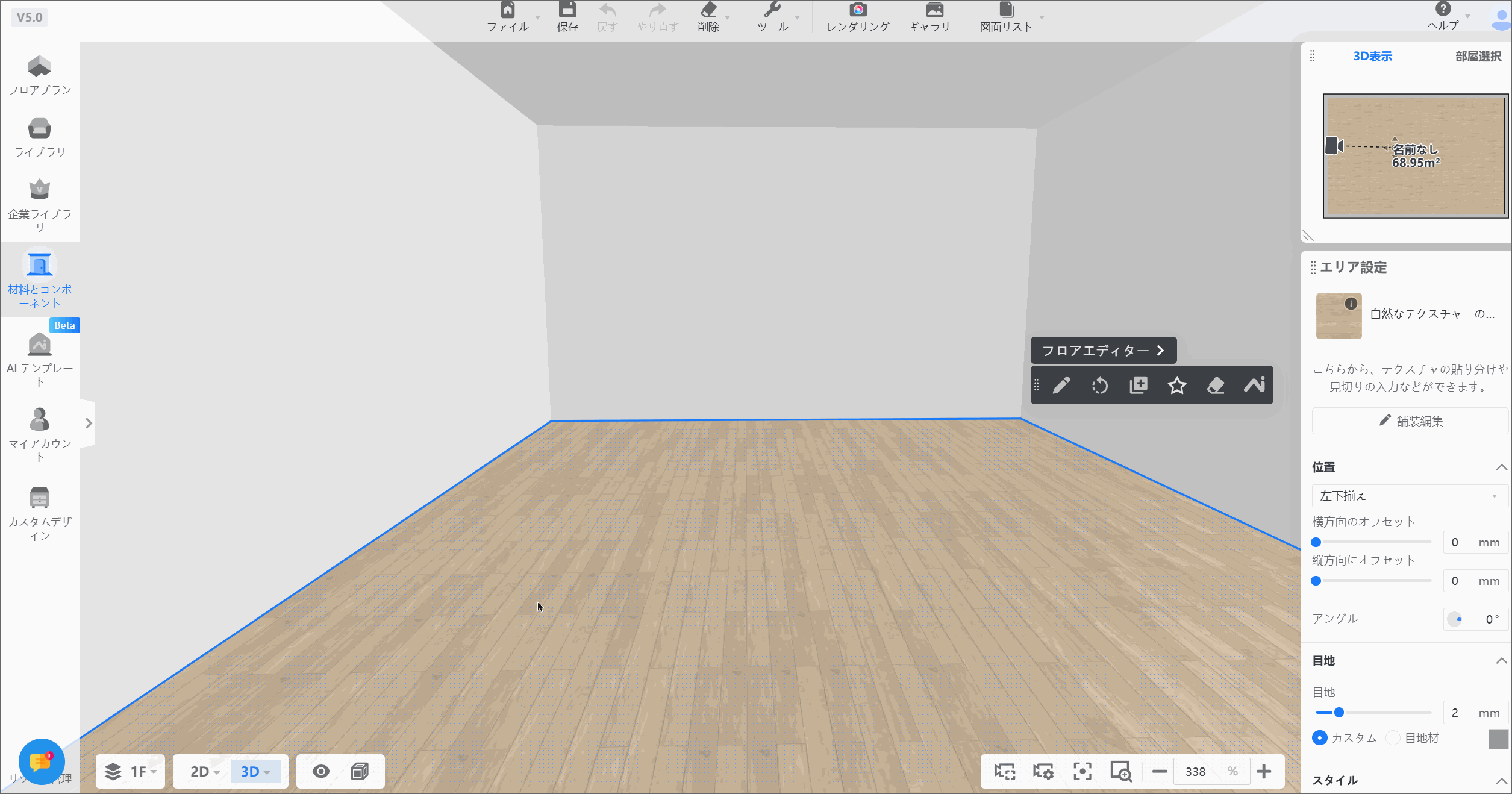

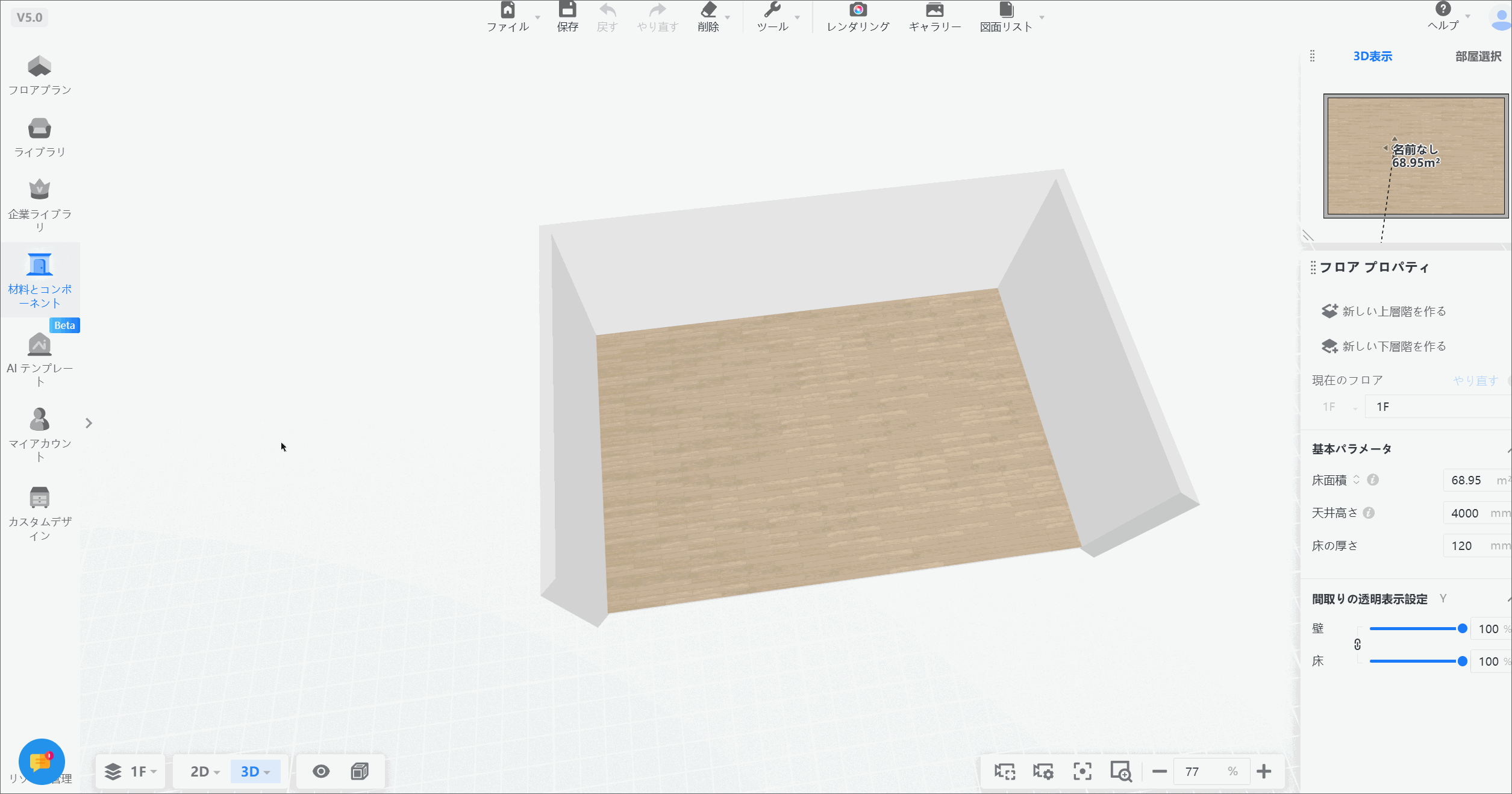

ステップ1: 左側の「材料とコンポーネント」をクリックします。

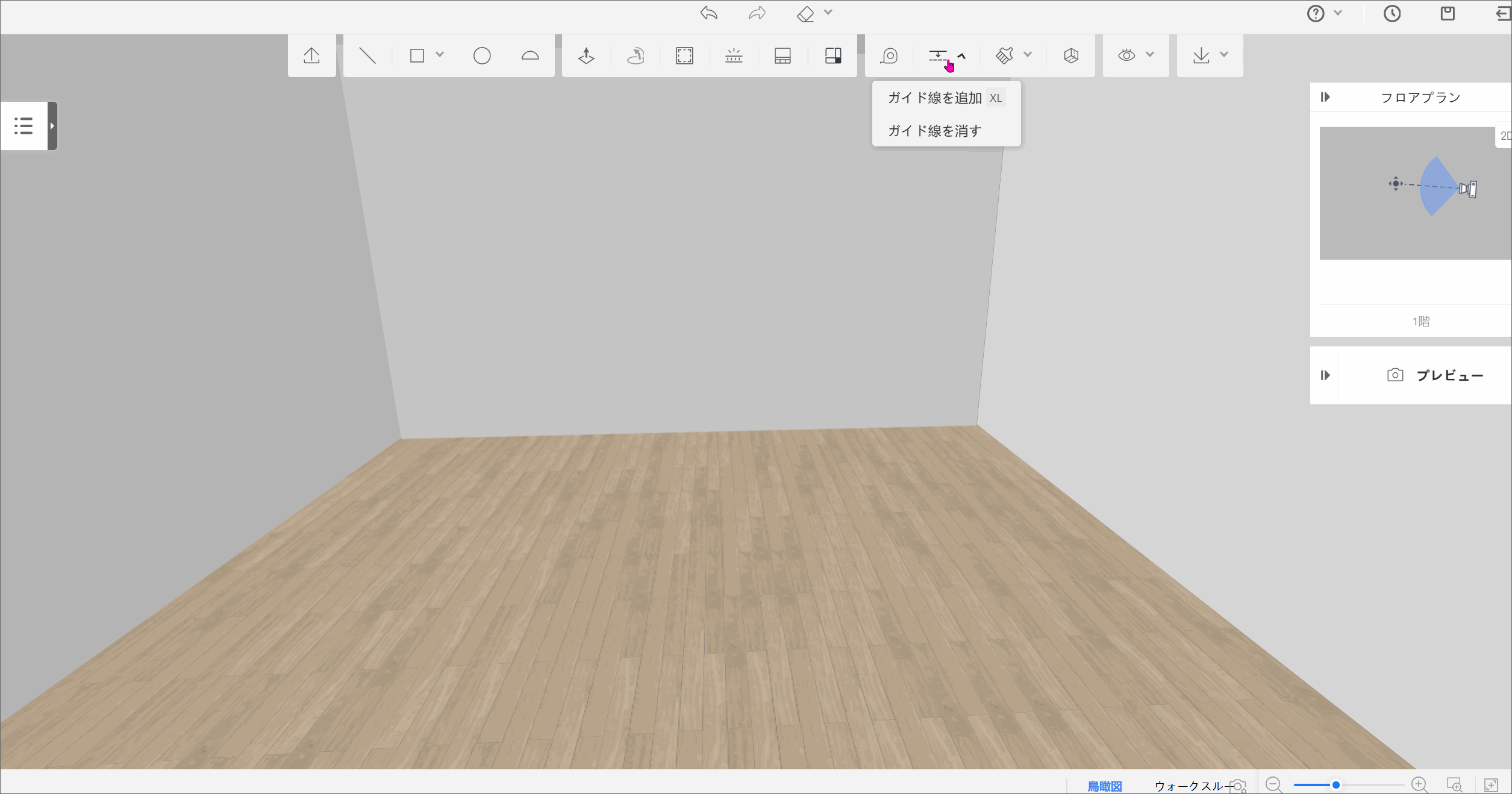

ステップ2: 上部の「ガイド線」をクリックしてガイド線を描きます。
ステップ3: 上部の「直線」をクリックし、ステップ部分の形状を描きます。
ステップ4: 再度「ガイド線」アイコンをクリックしてガイド線を引き、「直線」アイコンをクリックしてステップ部分の輪郭を作図します。
ステップ5: 不要な形状を削除し、「プッシュ・プル」アイコンをクリックします。ステップ部分の形状を選択し、「距離」に「1000」と入力します。

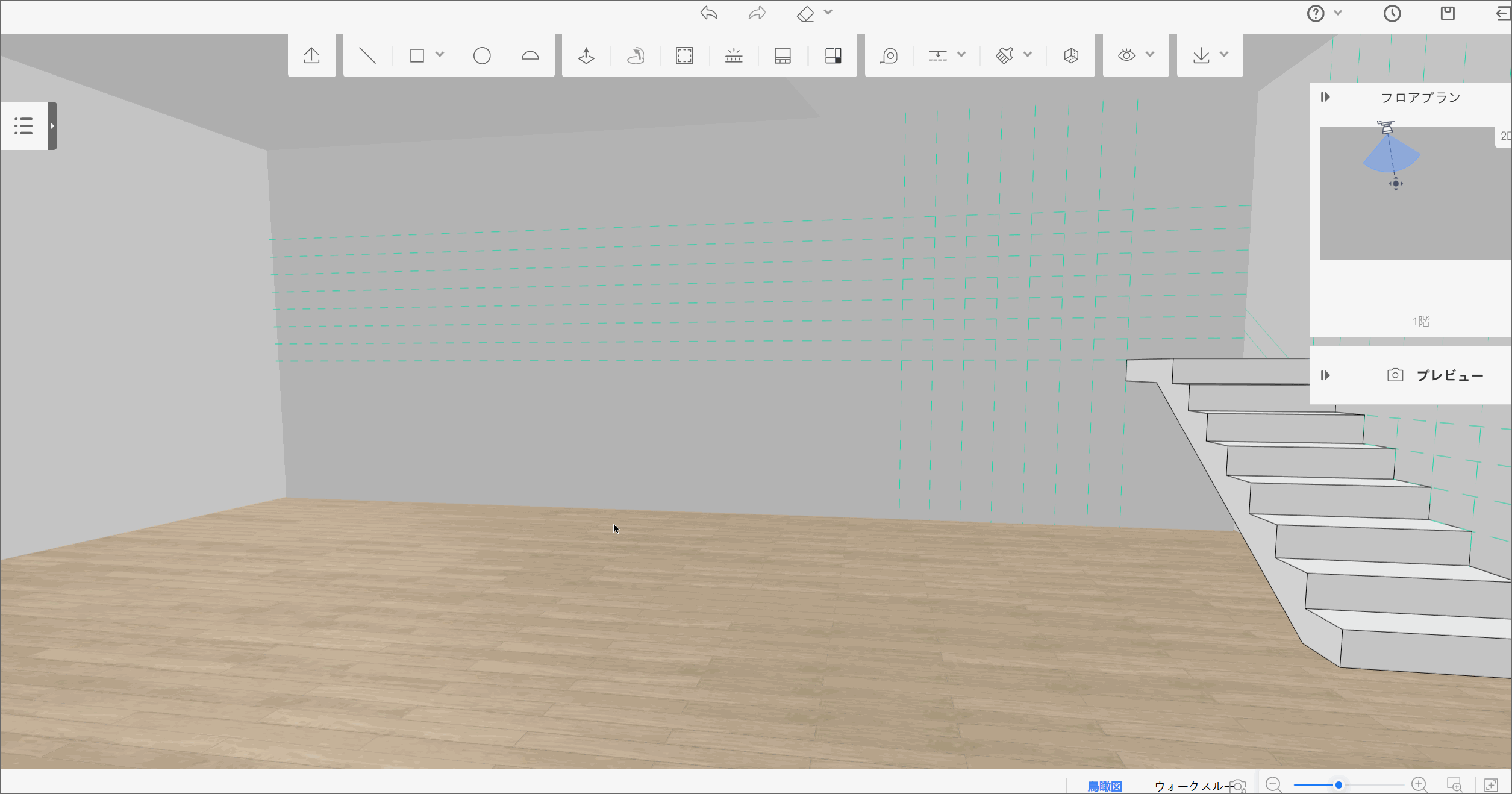

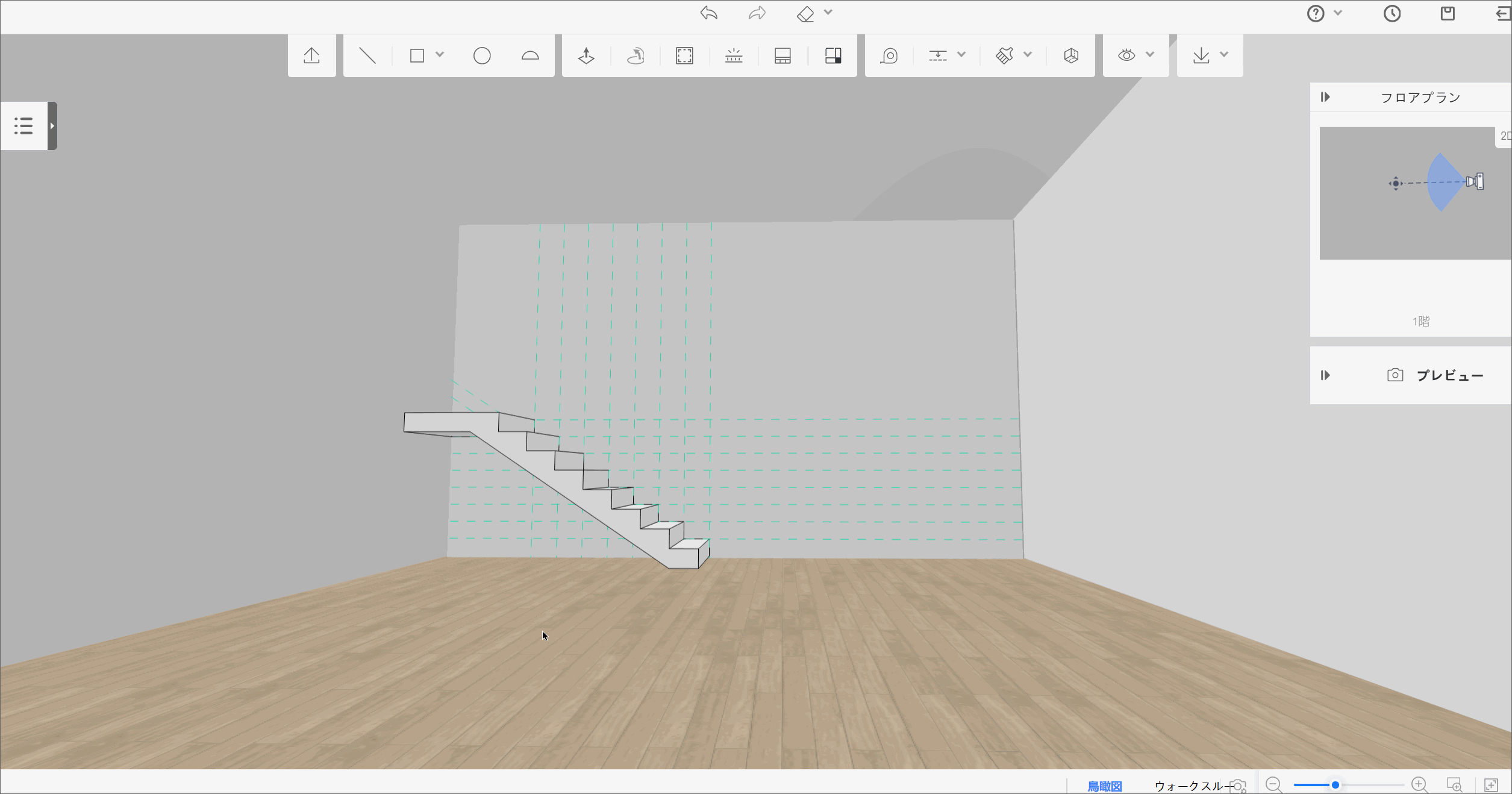

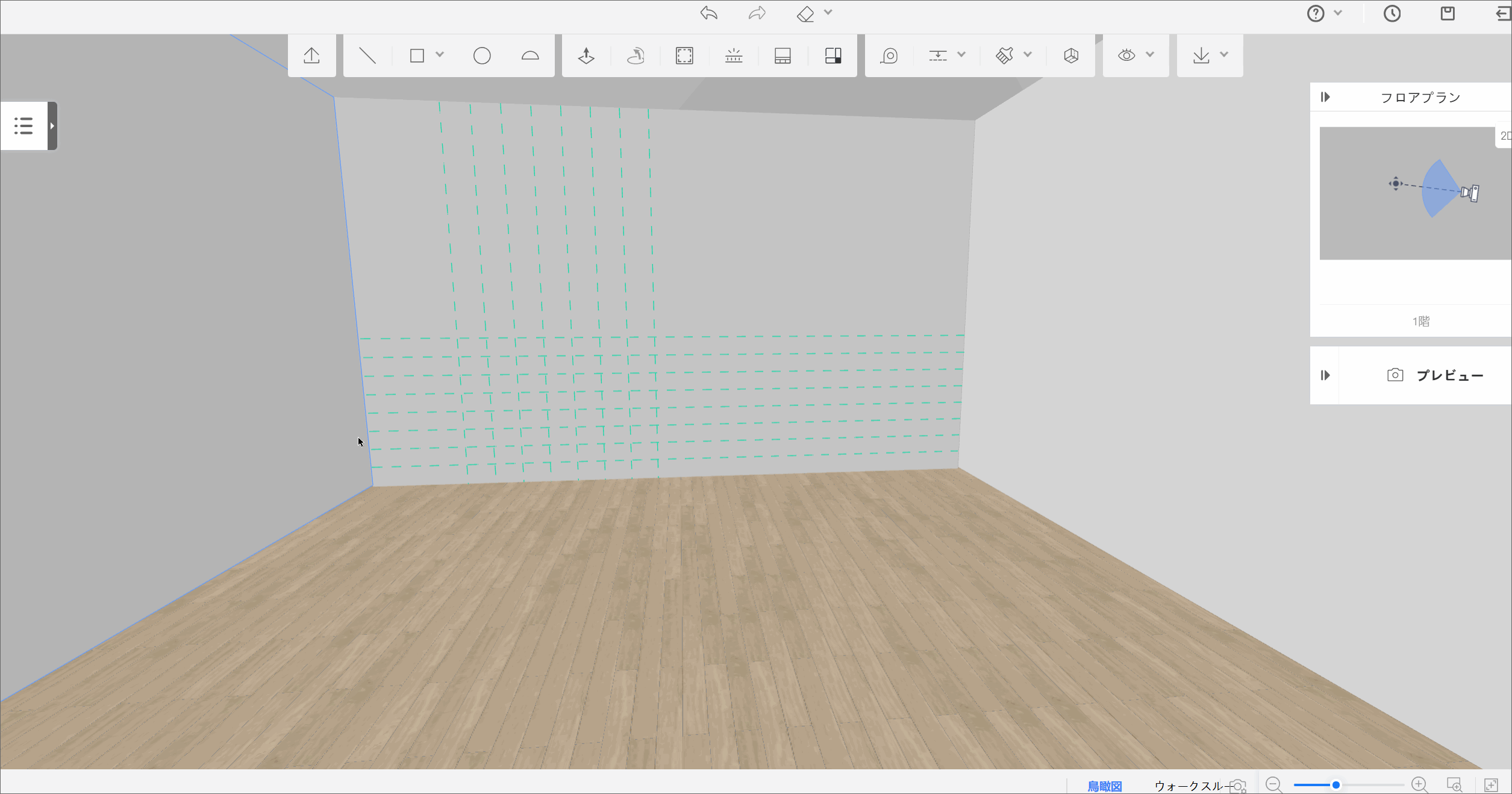

ステップ6:もう一度「ガイド線」アイコンをクリックし、横方向に200mm、縦方向に300mmのピッチで隣接する壁にガイド線を配置します。

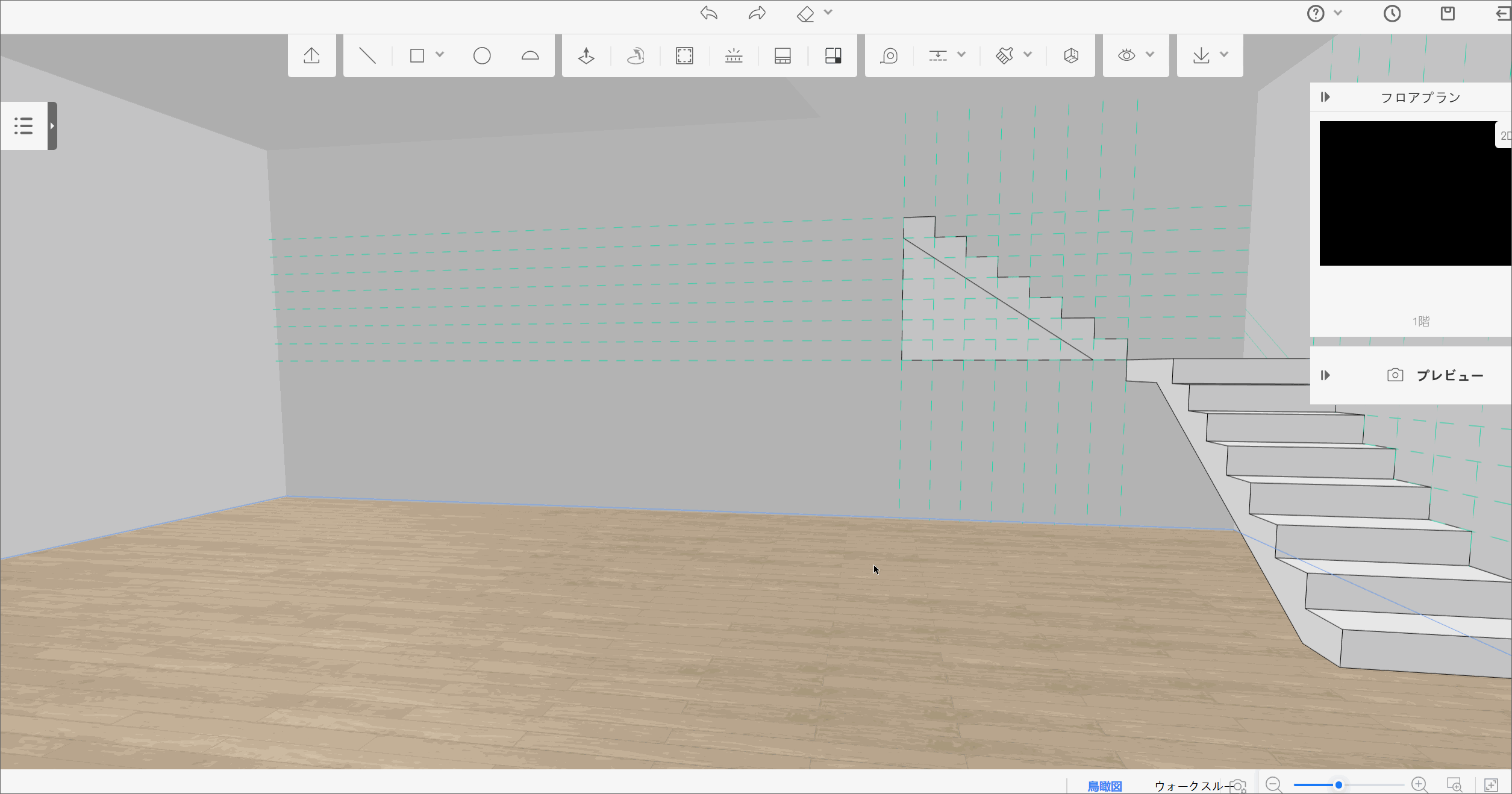

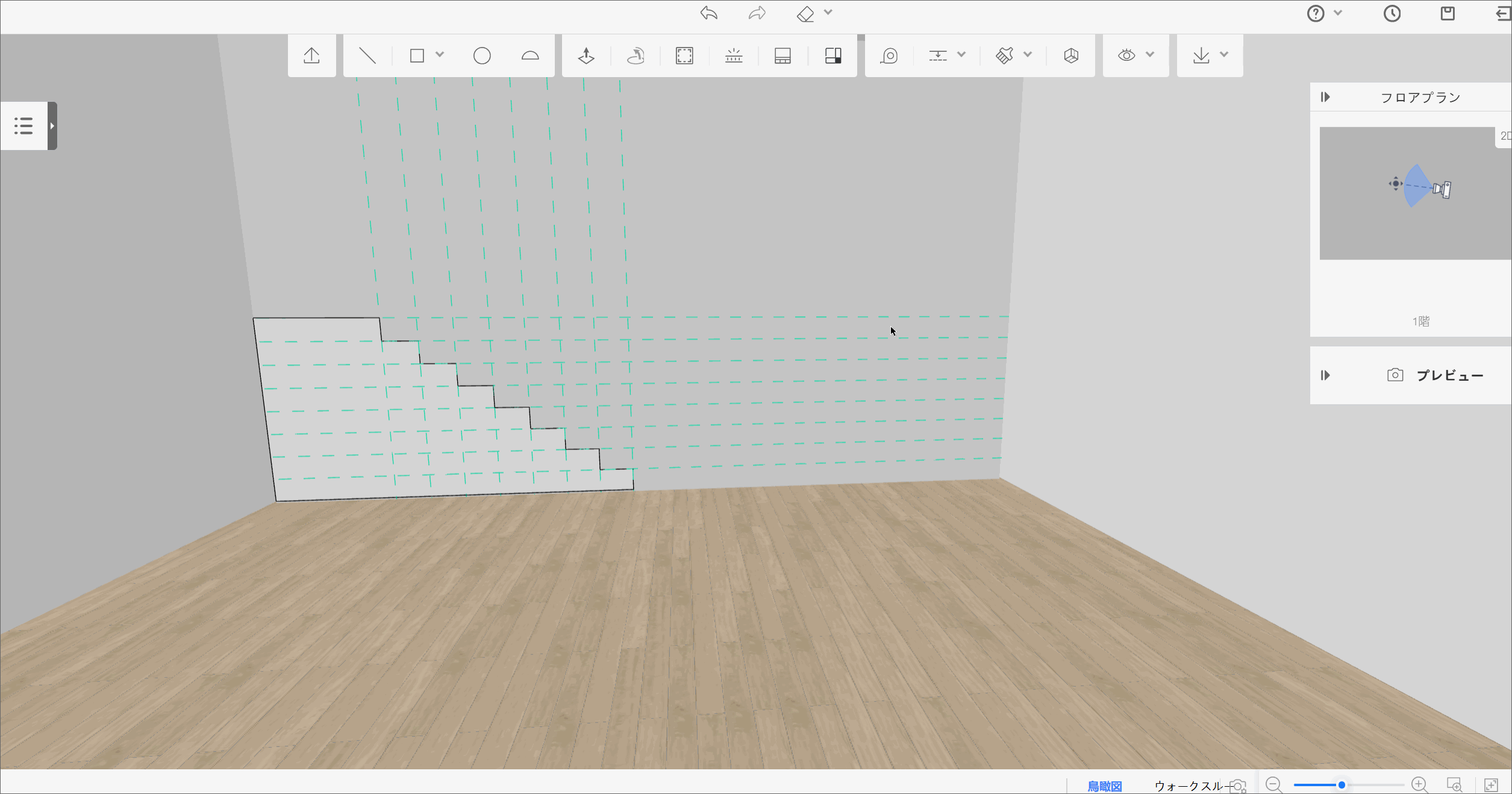

ステップ7: 「直線」アイコンをクリックしてステップ部分の形状を作図します。
ステップ8: 不要な形状を削除し、「プッシュ・プル」アイコンをクリックします。ステップ部分の形状を選択し、「距離」に「1000」と入力します。保存して終了します。
方法2:「壁の編集」機能を活用する場合

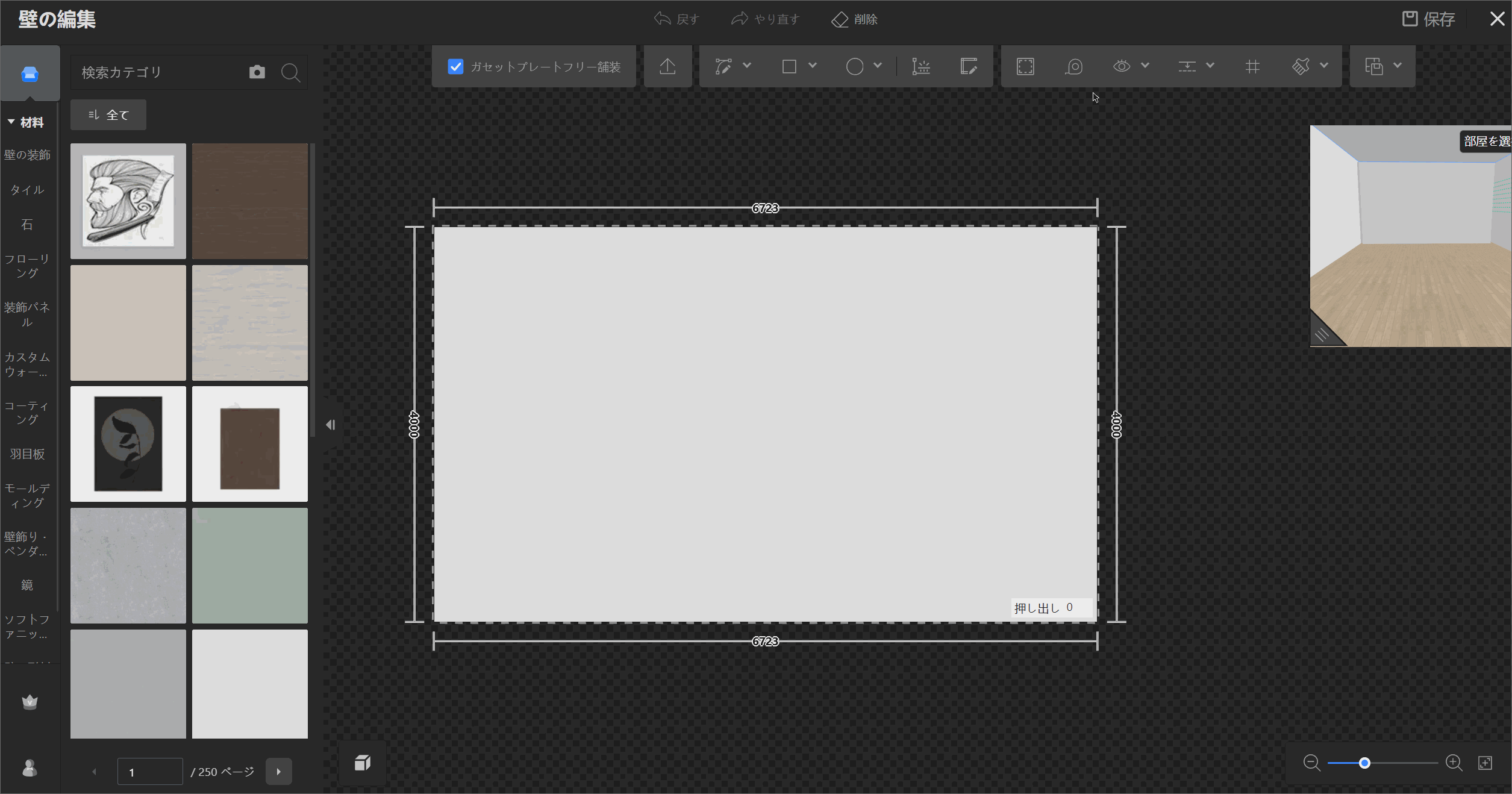

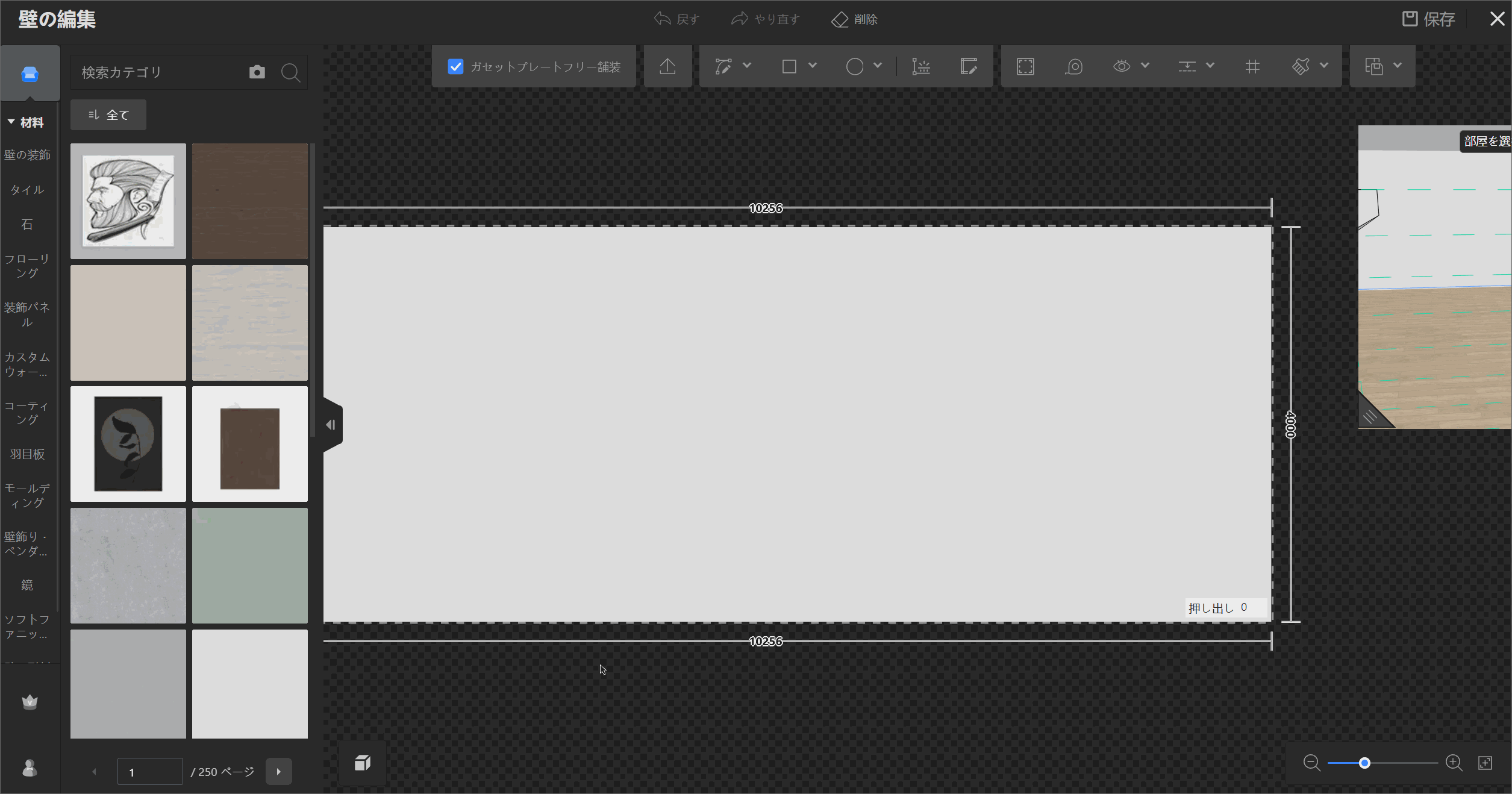

ステップ1: 「材料とコンポーネント」をクリックし、壁面を選択します。表示されたツールバーから「壁の編集」アイコンをクリックします。

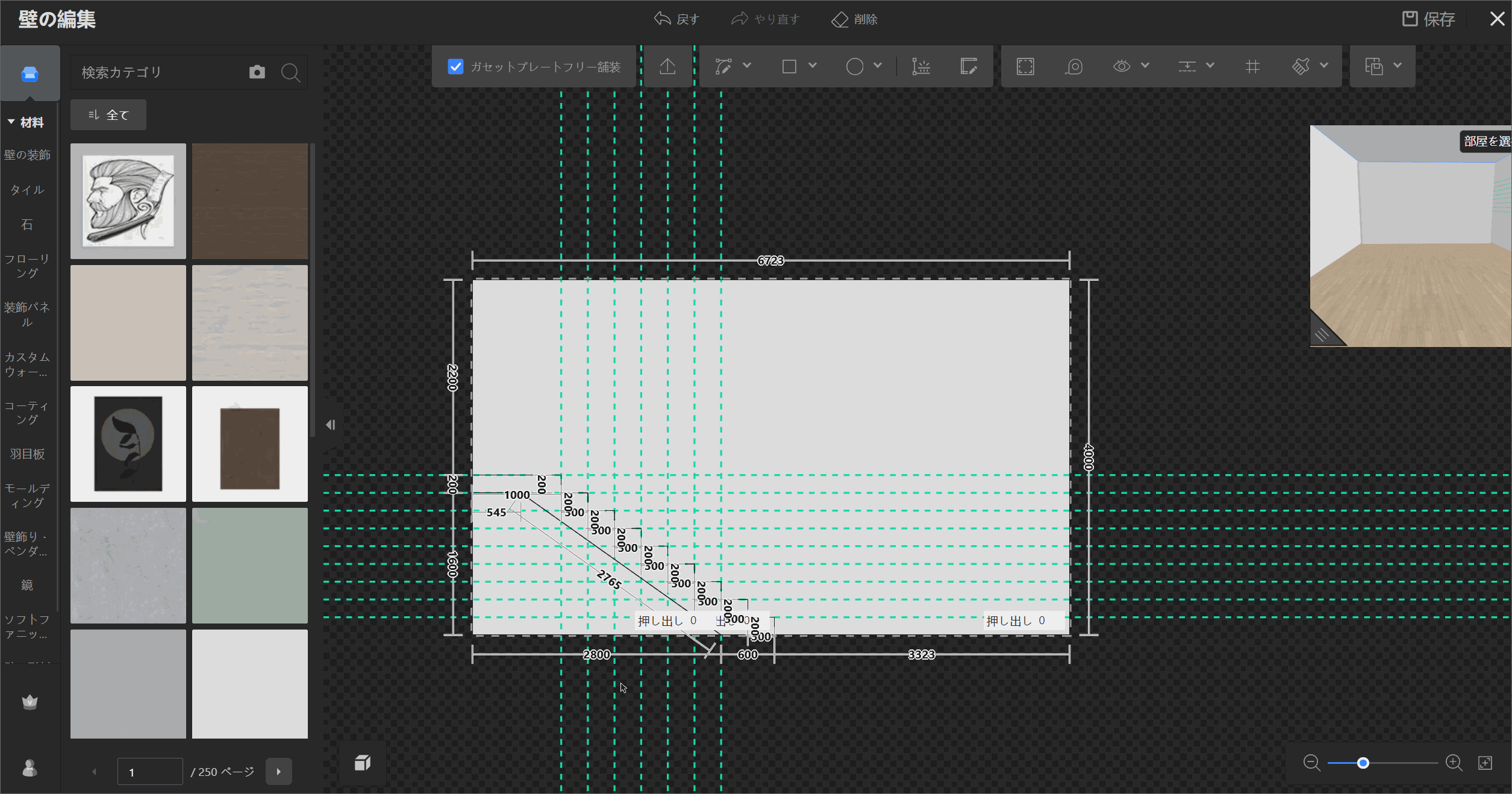

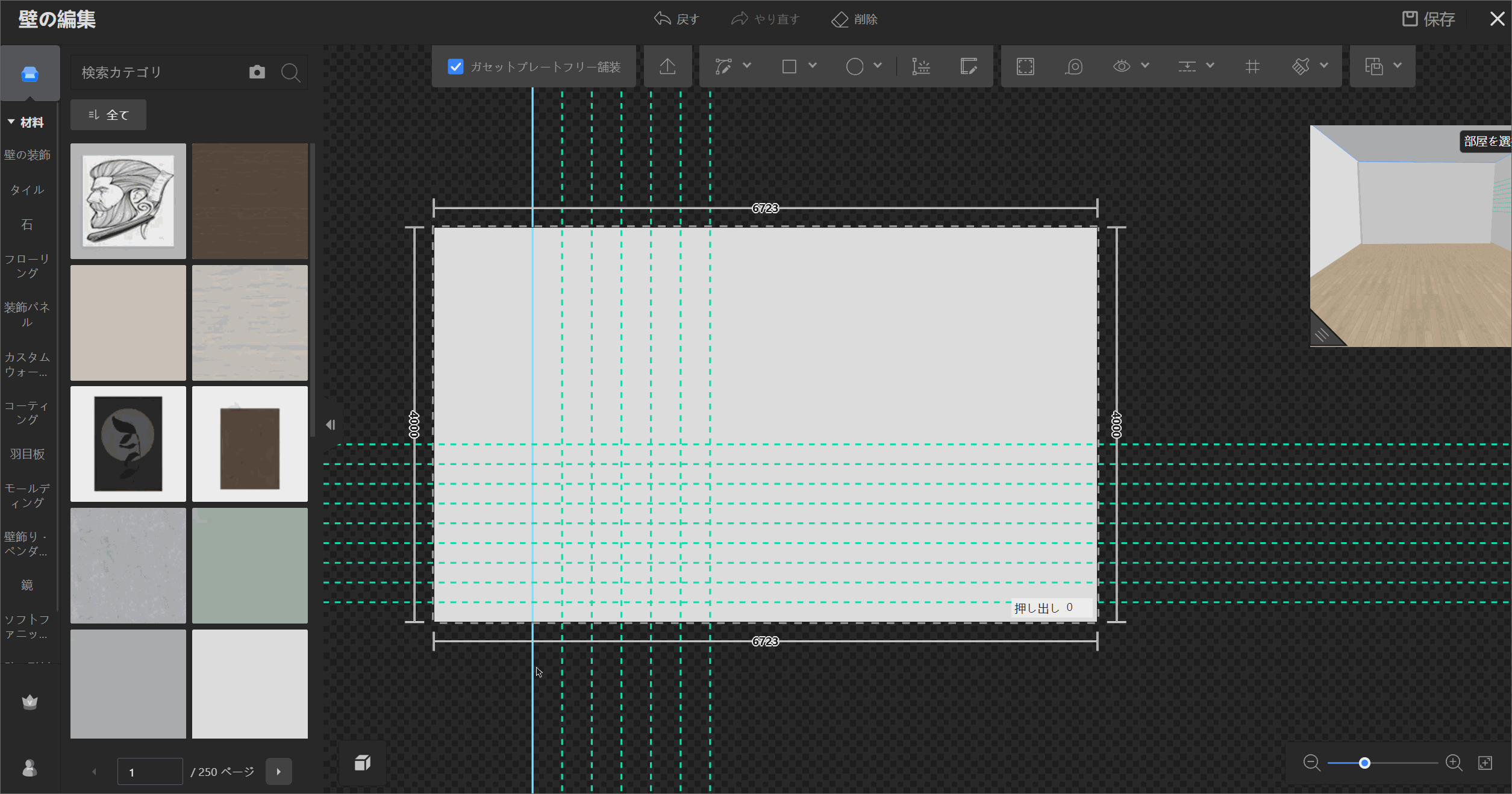

ステップ2: 上部の「ガイド線」、以下の間隔でガイド線を設定します。
ステップ3: 「直線」アイコンをクリックしてステップ部分の形状を描きます。
ステップ4: 下部の「押し出し」欄に「1000」と入力し、「保存」ボタンをクリックします。
ステップ5: 隣接する壁をクリックし、「壁の編集」アイコンをクリックします。

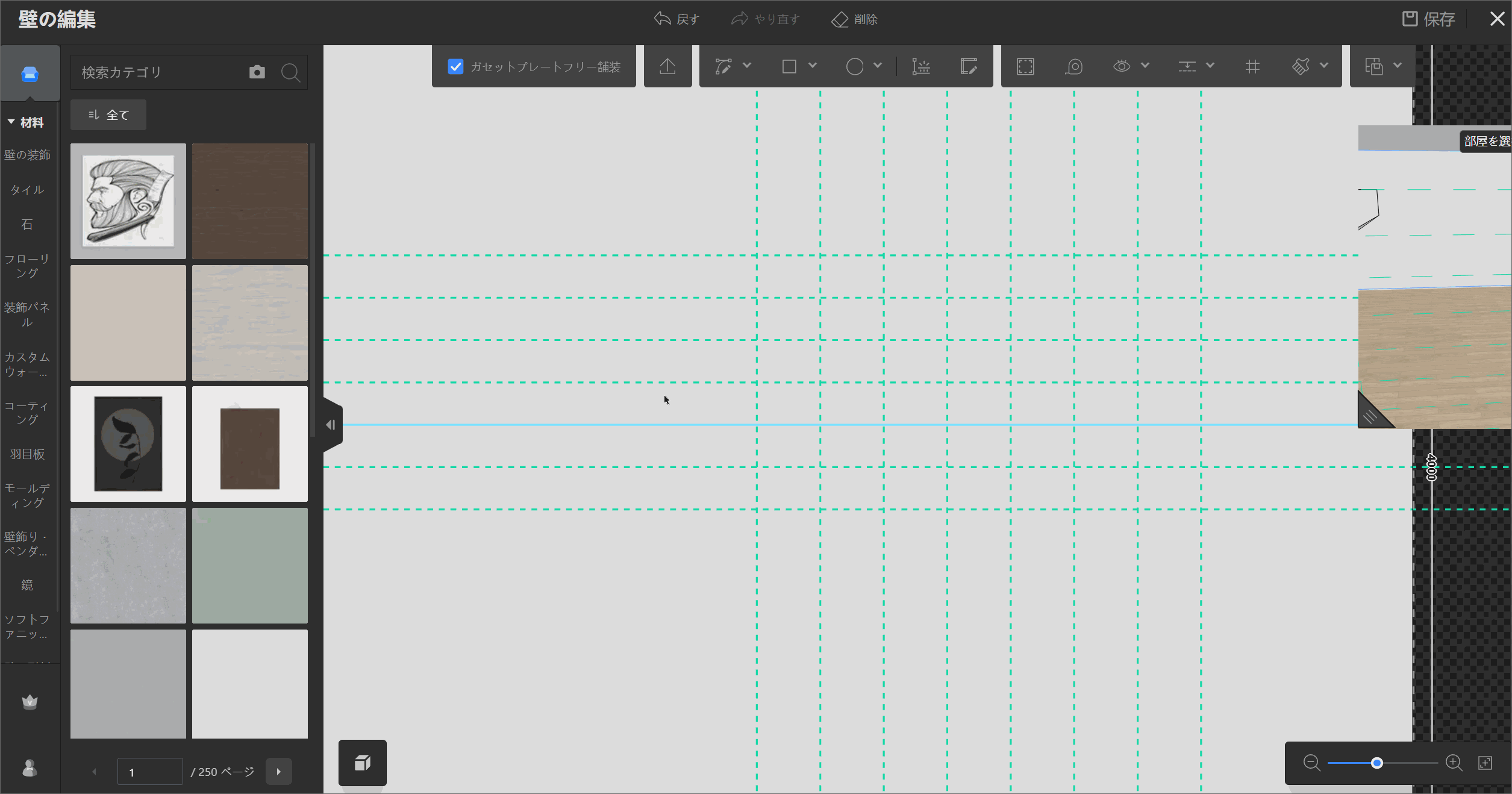

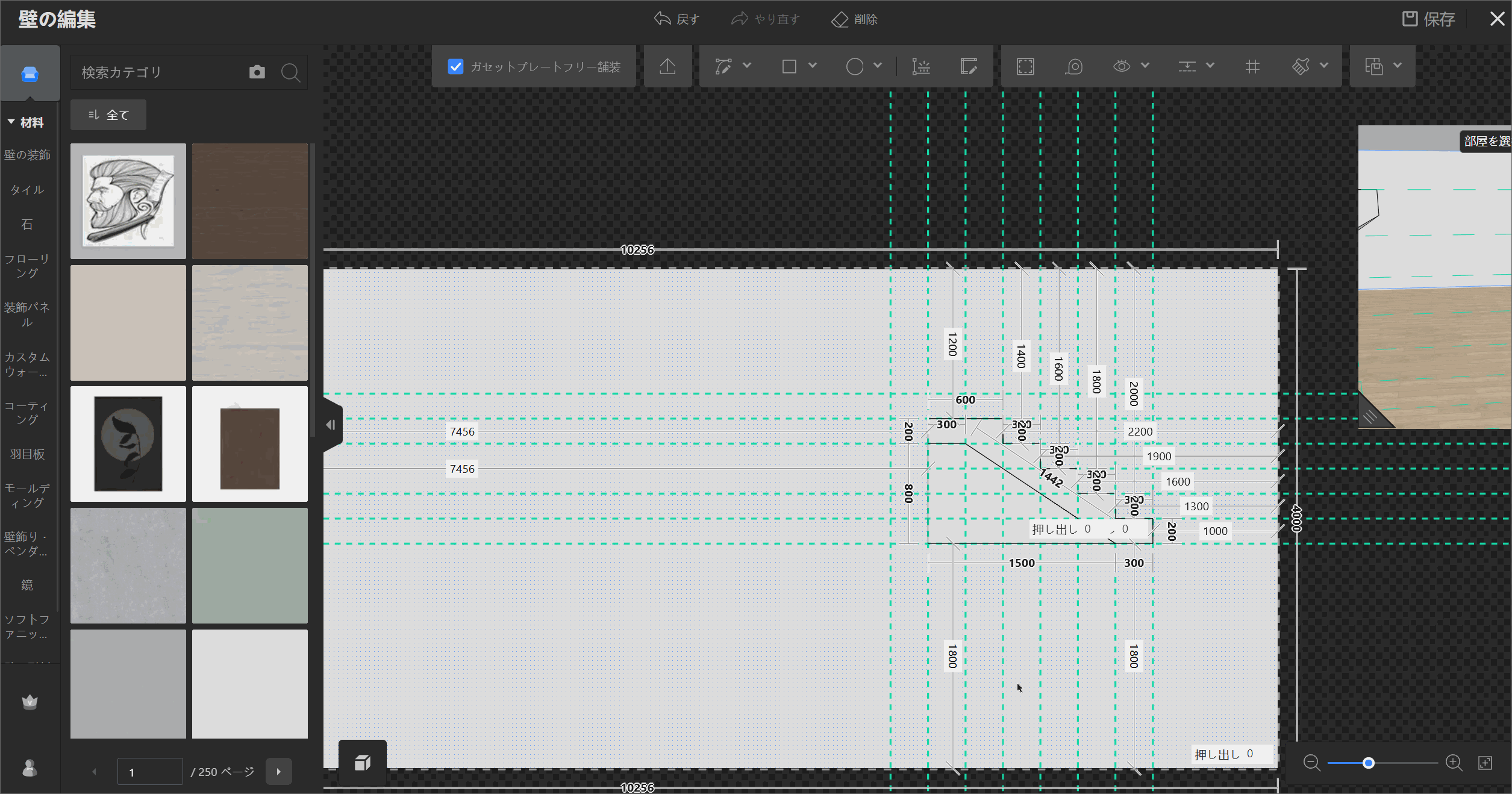

ステップ6: 「ガイド線」アイコンをクリックして、ガイド線を設定します。
ステップ8: 下部の「押し出し」欄に「1000」と入力し、保存して終了します。
手すりを作成する方法

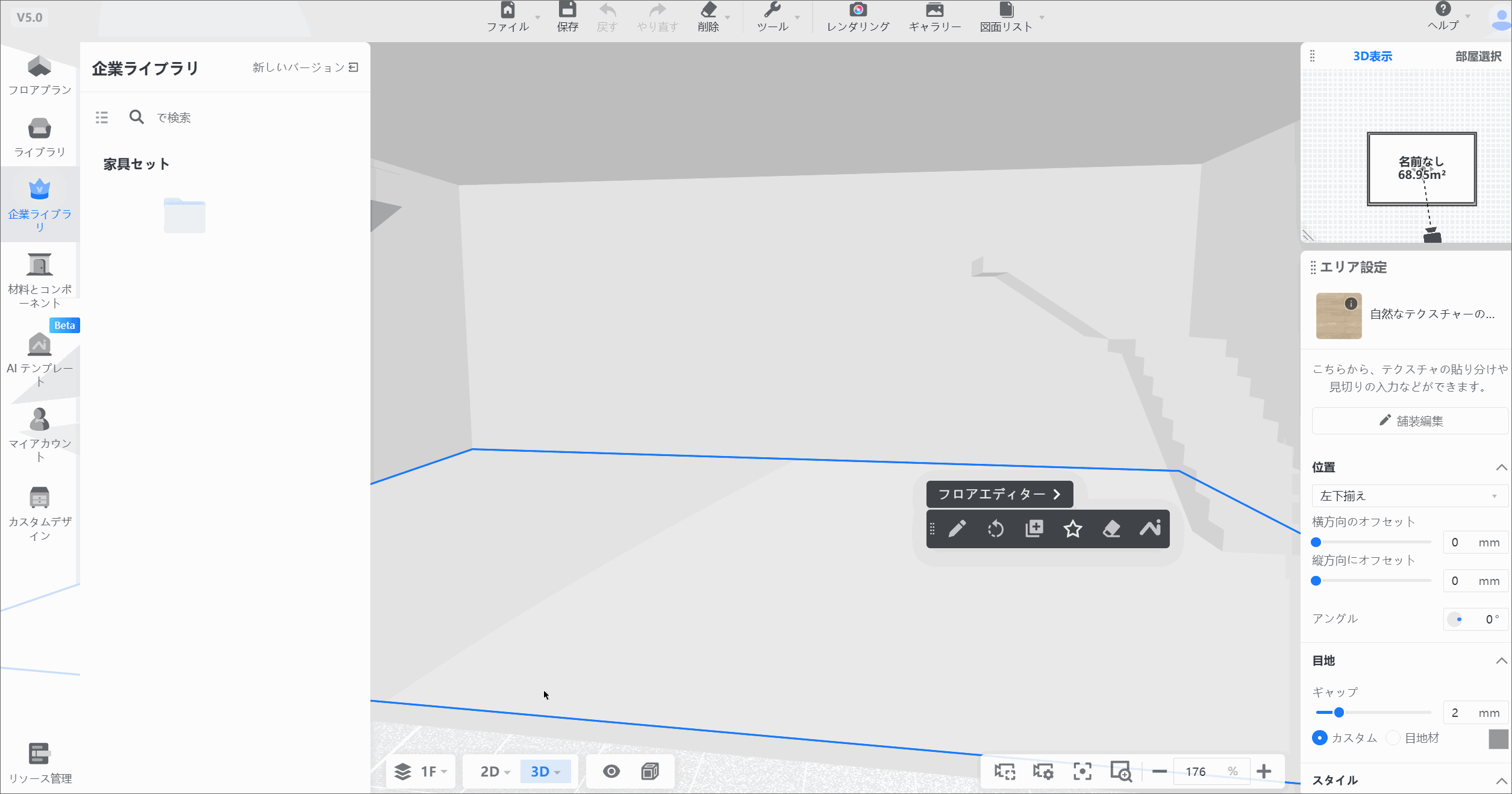

ステップ2: 上部の「ガイド線」アイコンをクリックし、手すりの位置を決めるためのガイド線を作図します。
ステップ3: 「直線」アイコンをクリックし、ガイド線の交点をつないで長方形の面を作成します。
ステップ4: 「矩形」をクリックして小さな長方形を描きます。描いた長方形を選択し、表示されるツールバーで「コピー」アイコンをクリックします。長方形の「中心点」を基準にして、 階段の下端の位置に移動します。

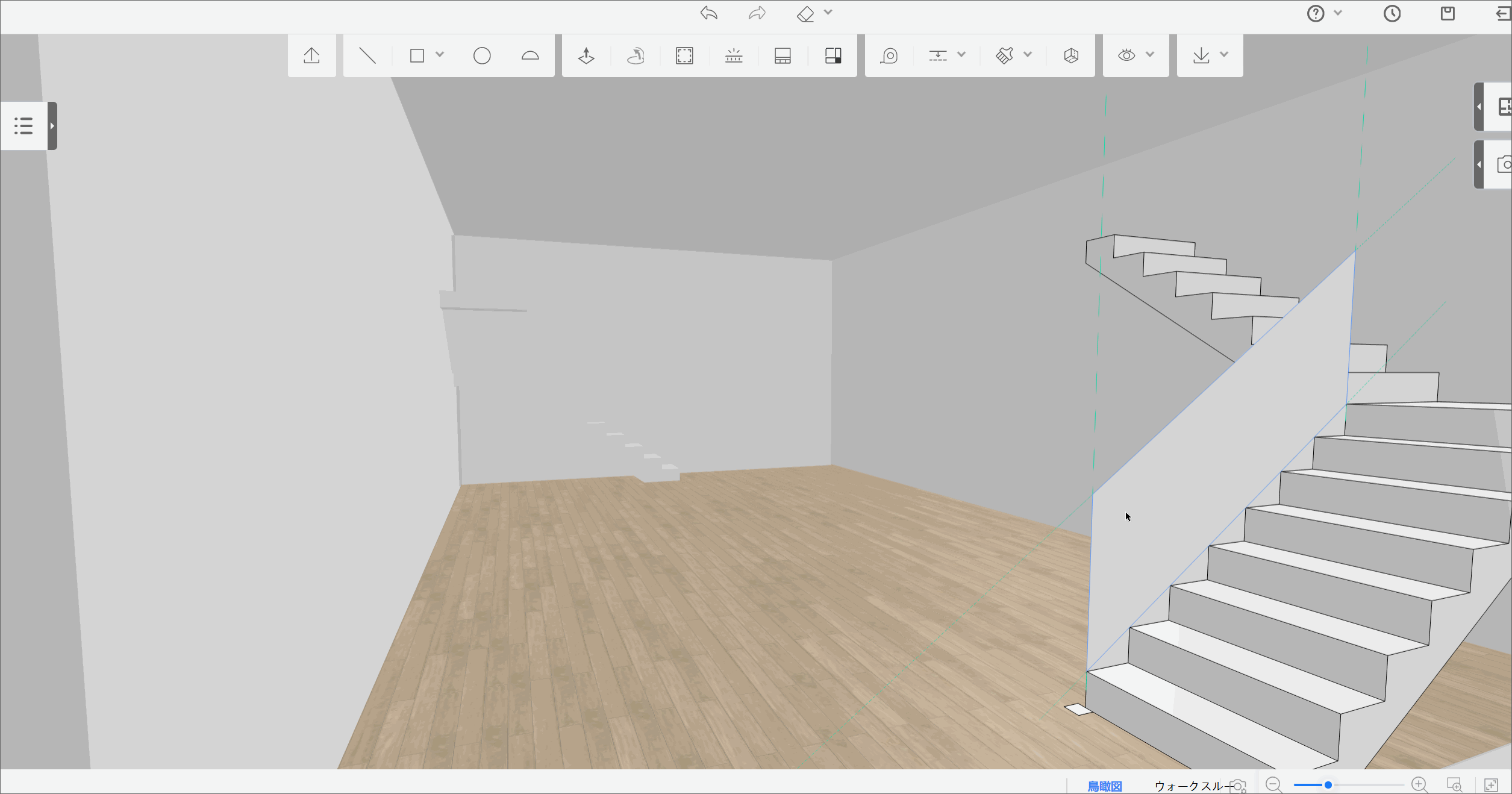

ステップ5: 不要な形状とガイド線を削除します。Shiftキーを押しながらパスを選択し、上部の「ロフト」アイコンをクリックして、先ほどの小さな長方形を選びます。
ステップ6:これで下り階段側の手すりが完成します。同様の手順を繰り返せば、上り階段側の手すりも作成できます。

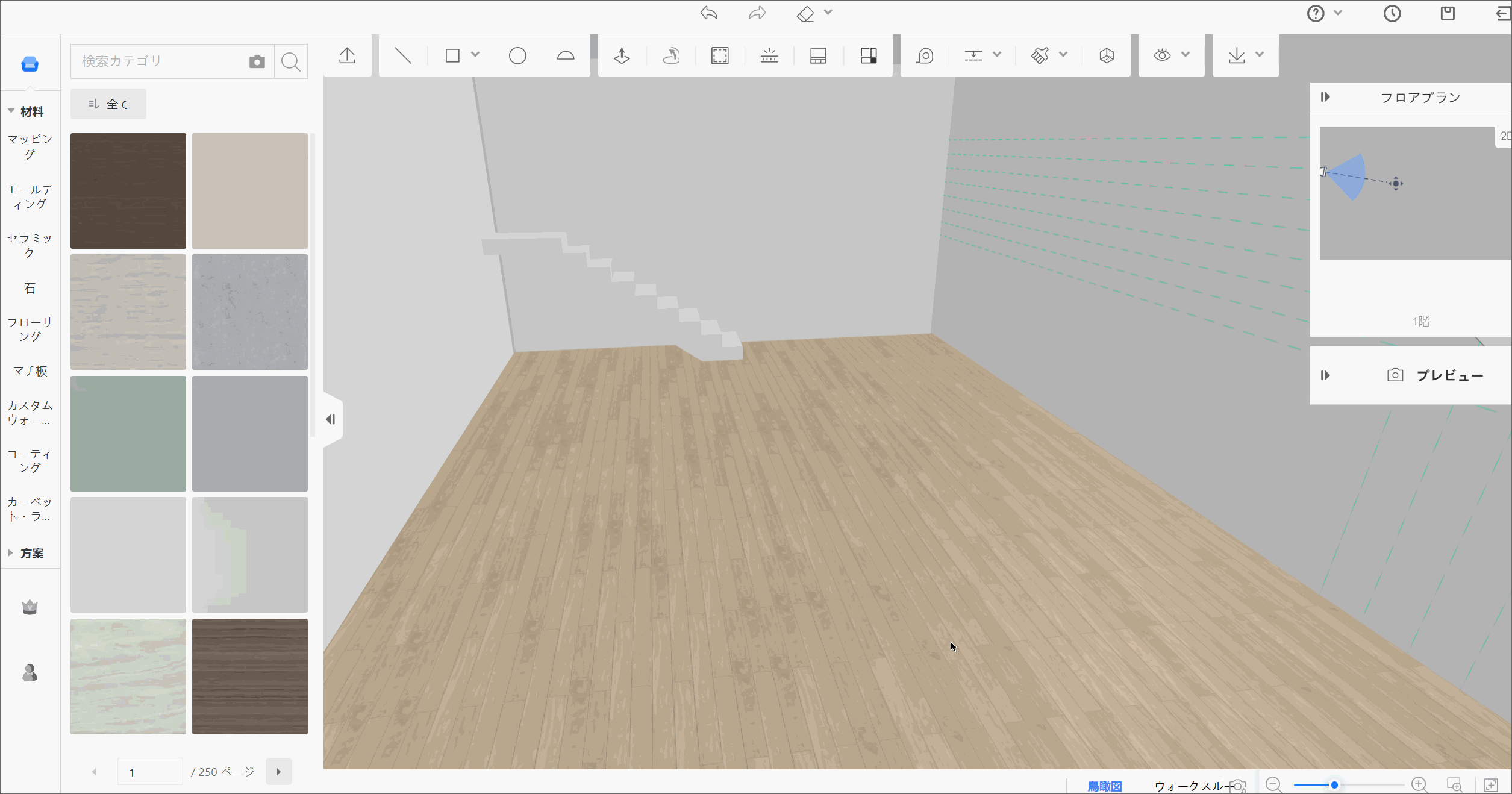

ステップ7:左側の「材料」から適切なマテリアルを選び、階段にクリックして適用します。
