この記事では、新しいプロジェクトの作成、部屋の描画からドアや窓の配置の追加まで、スムーズにツールを使い始めるための基本操作を解説します。手順に沿って進めることで、フロアプランのベースとなる枠組みを簡単に作成できるようになります。さらに、部屋を素早く作成する2つの方法、部屋の名前を効率よく付けるテクニック、柱や建具(ドア・窓)などの要素を追加して、実際の図面により近づけるコツを学ぶことができます。
⭐本記事を読む前に、まず動画チュートリアルをご視聴いただくことをお勧めします。スムーズに使い始めることができます。
すべてのユーザー

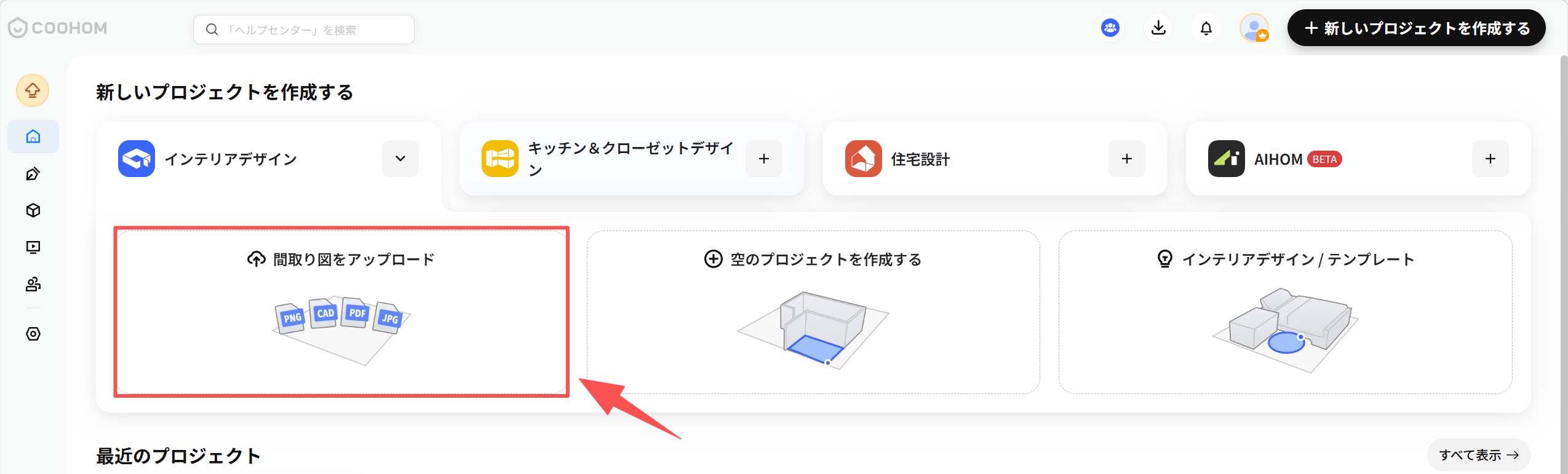

入口1: 「ワークスペース」に入り、「間取り図をアップロード」をクリックし、必要な図面を選択してインポートします。単一または複数のCADファイル、あるいは複数の図面が含まれる1つのCADファイルを選択してインポートできます。フロアプランのアップロードは、CADフロアプランファイルおよびpdf / png / jpg形式の画像のインポートをサポートしています。具体的な操作は、チュートリアルドキュメントを参照してください: チュートリアル1はこちらをクリック, チュートリアル2はこちらをクリック

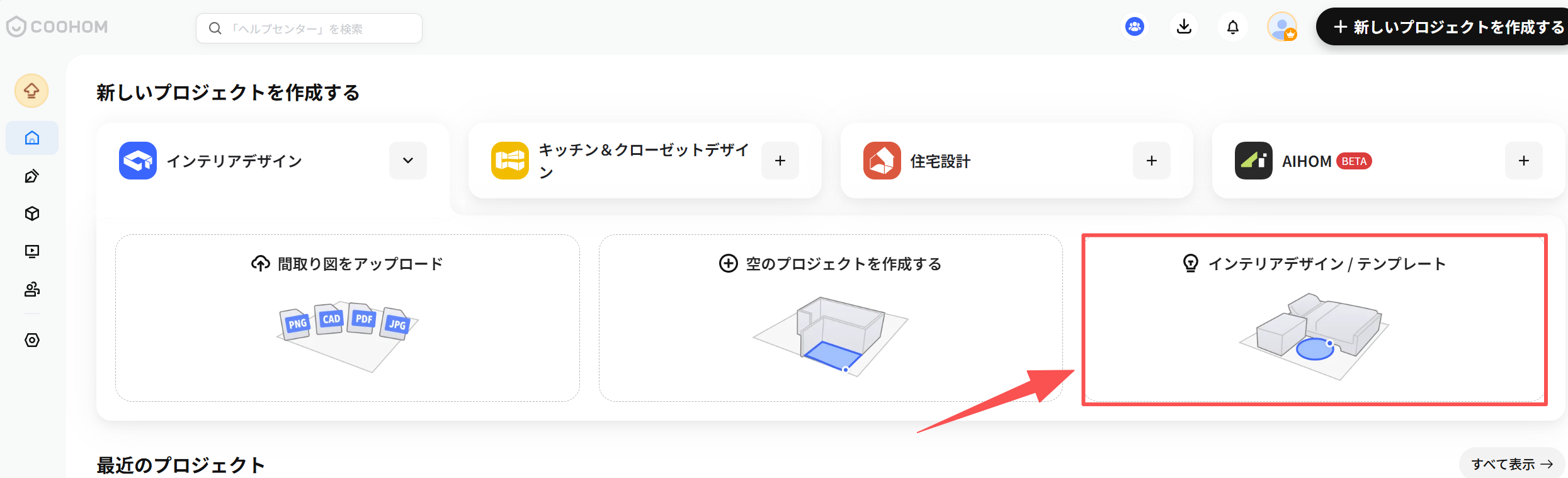

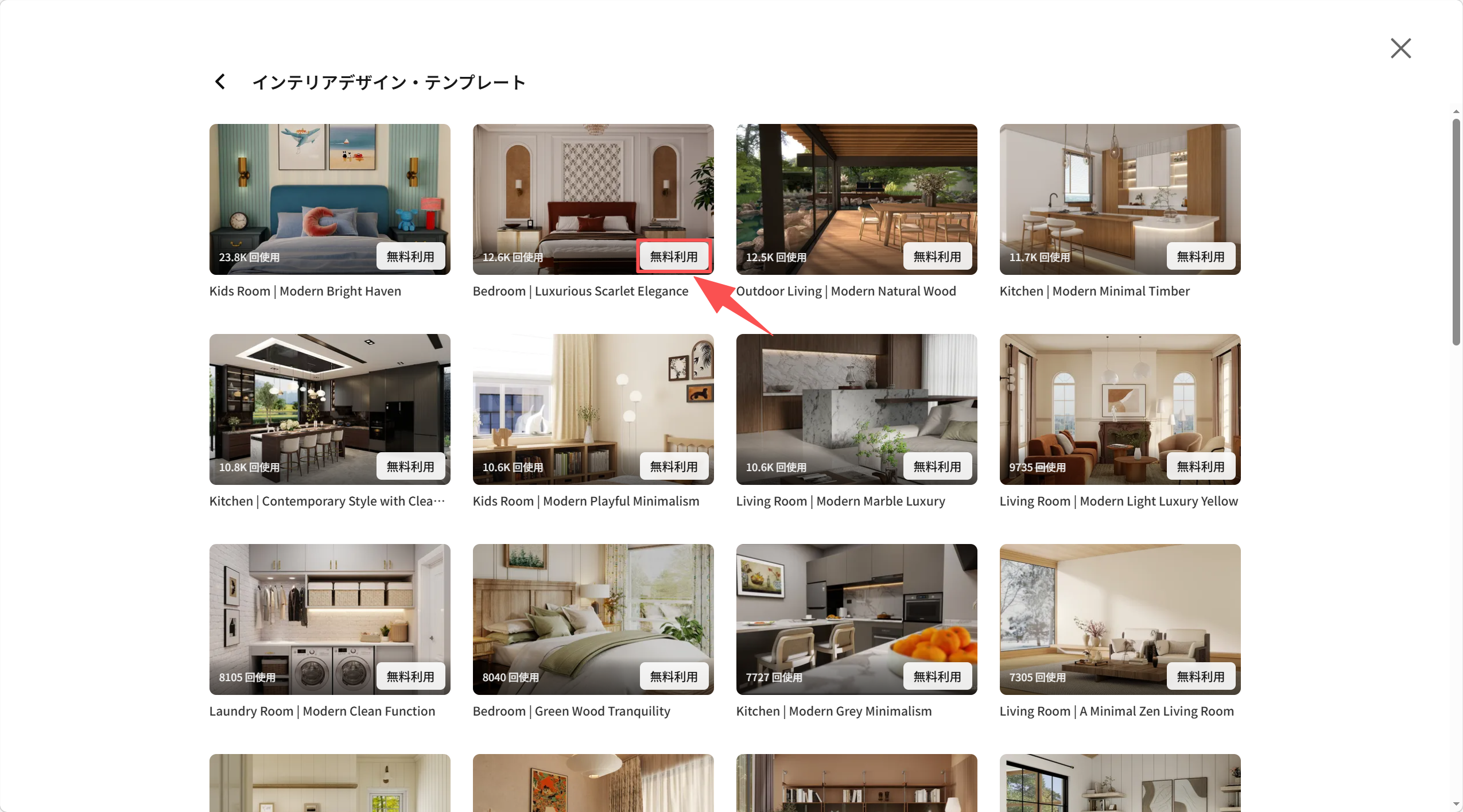

入口2: 「インテリアデザイン/テンプレート」を選択し、「無料利用」をクリックします。

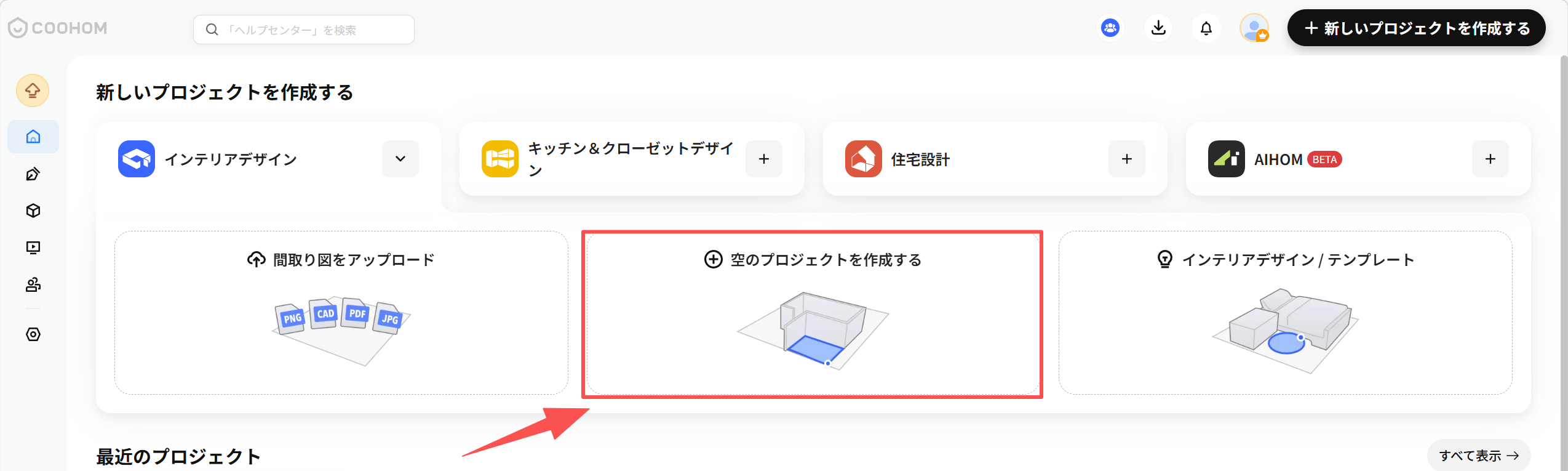

入口3: 「空のプロジェクトを作成する」を選択し、3Dデザインに入り「フロアプラン」を選択して手動で壁を描画します。

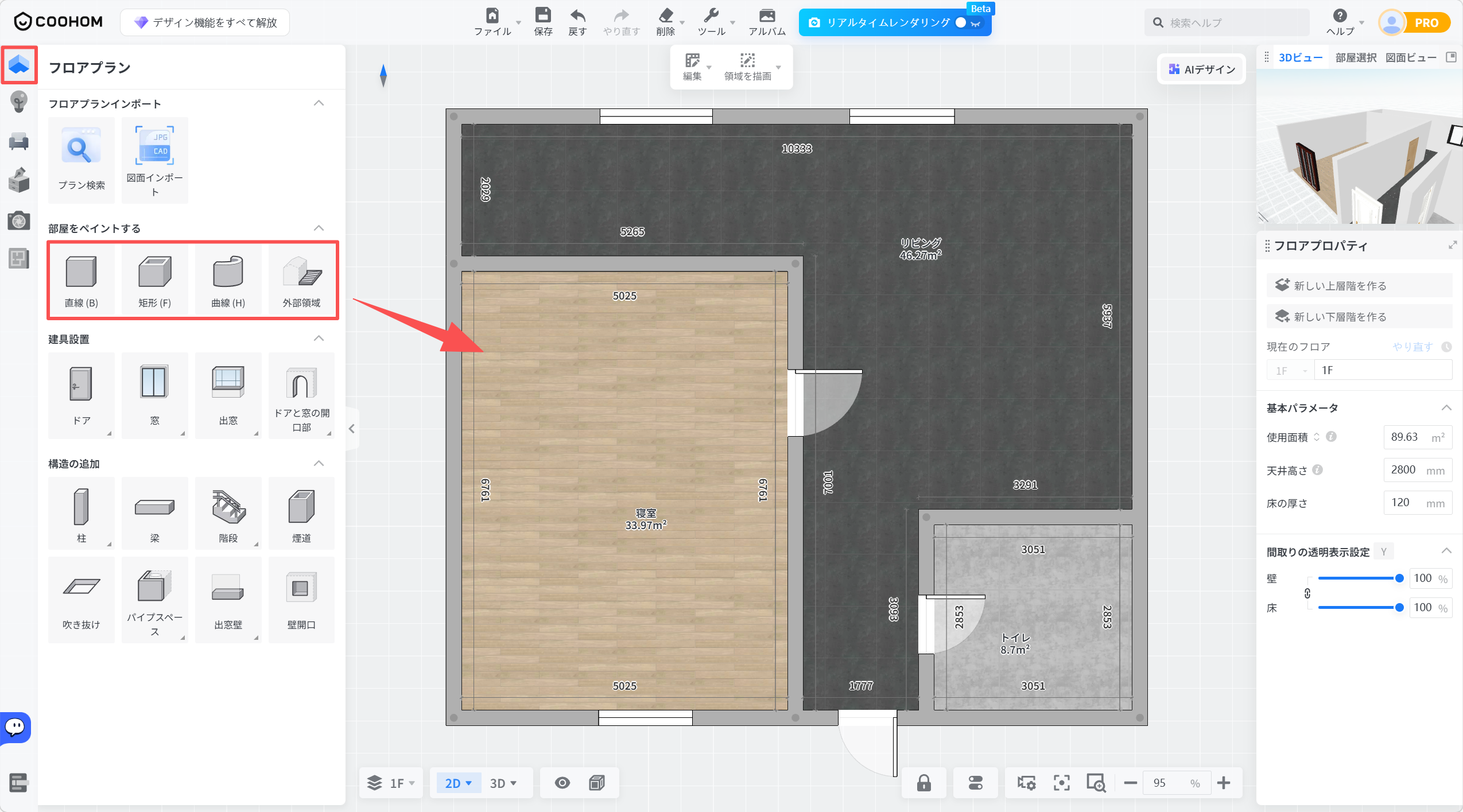

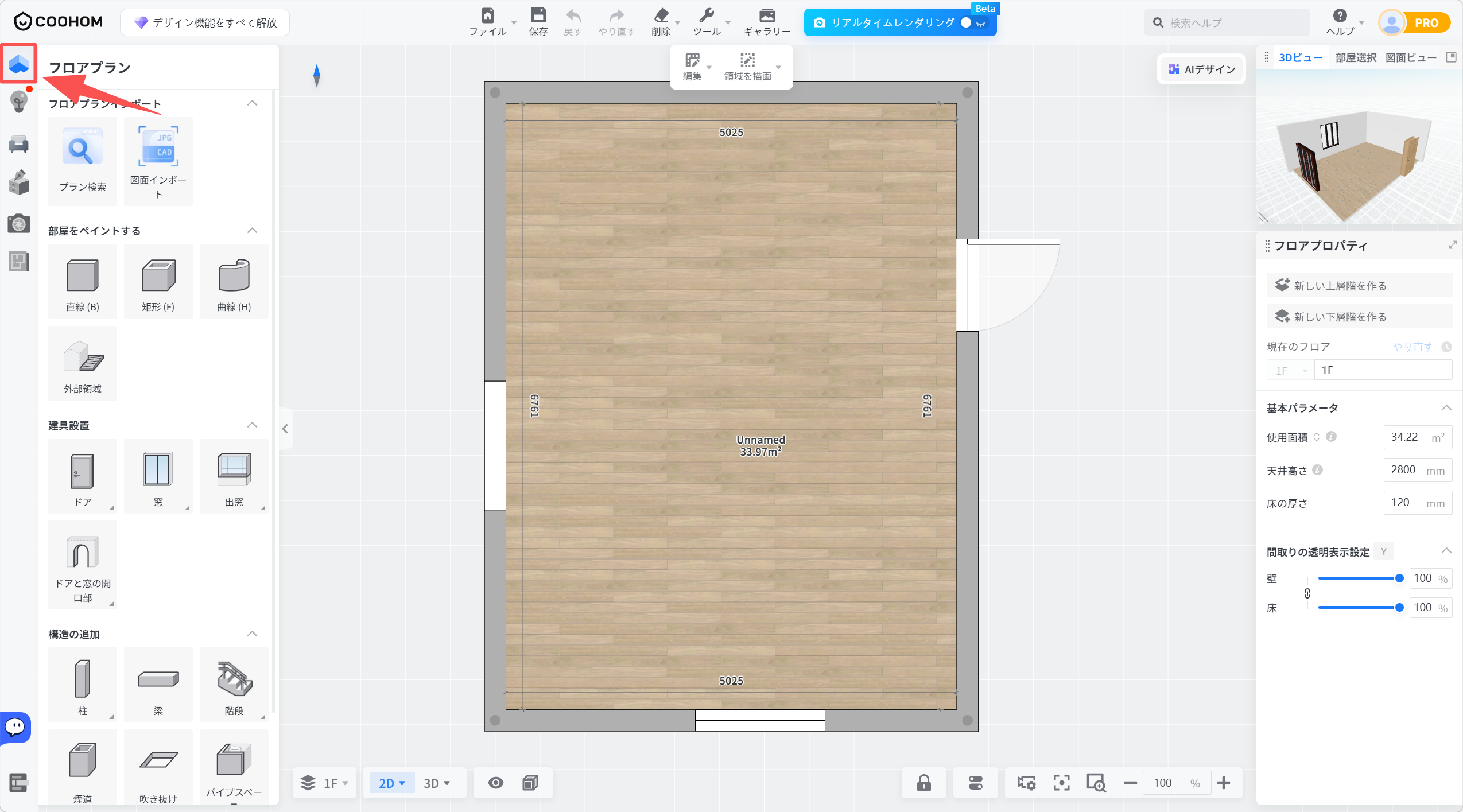

3Dデザインに入り、フロアプラン - 壁を選択し、長方形の壁で閉じた部屋を素早く描画します。壁のペイントは閉じる必要があり、部屋が生成されます。

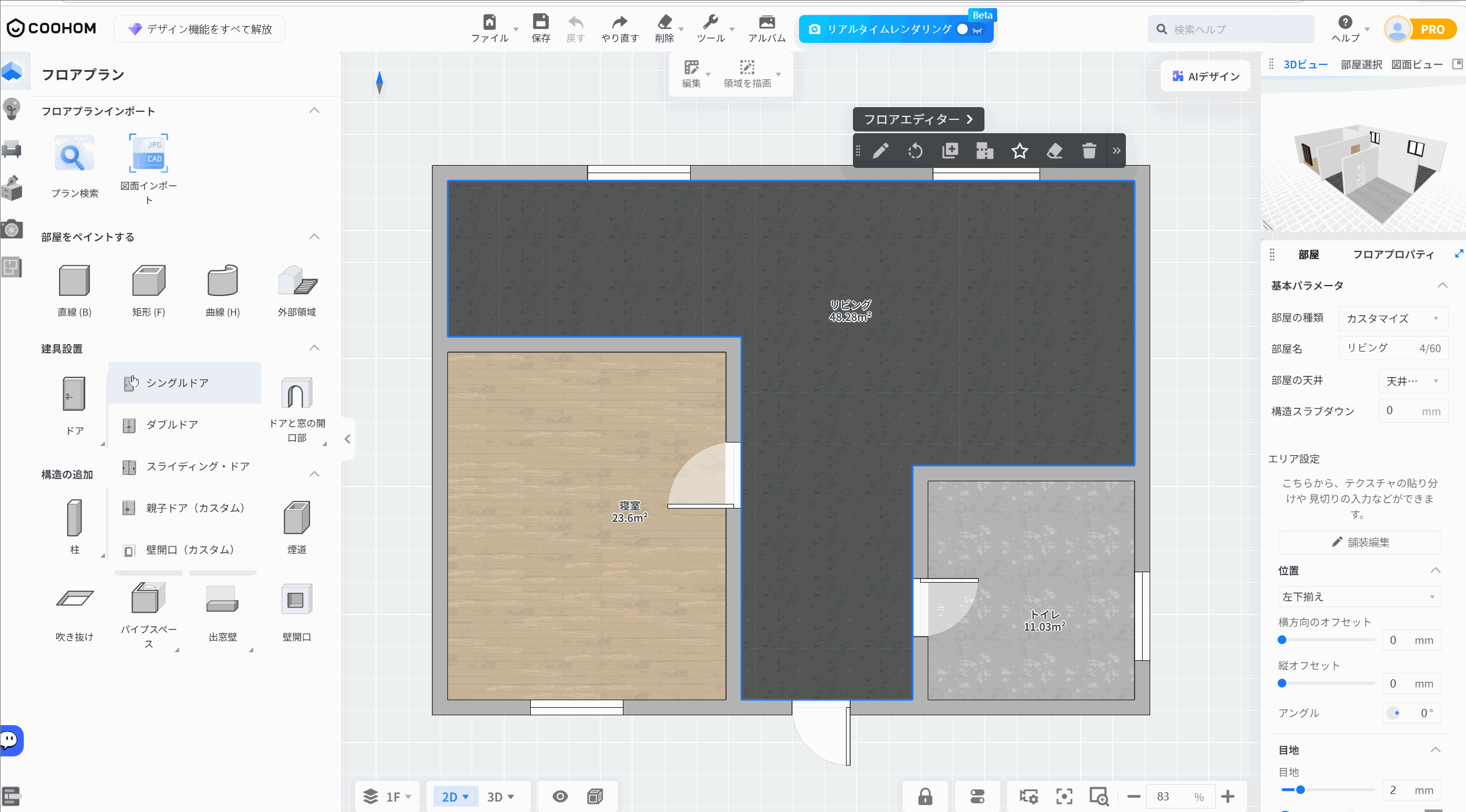

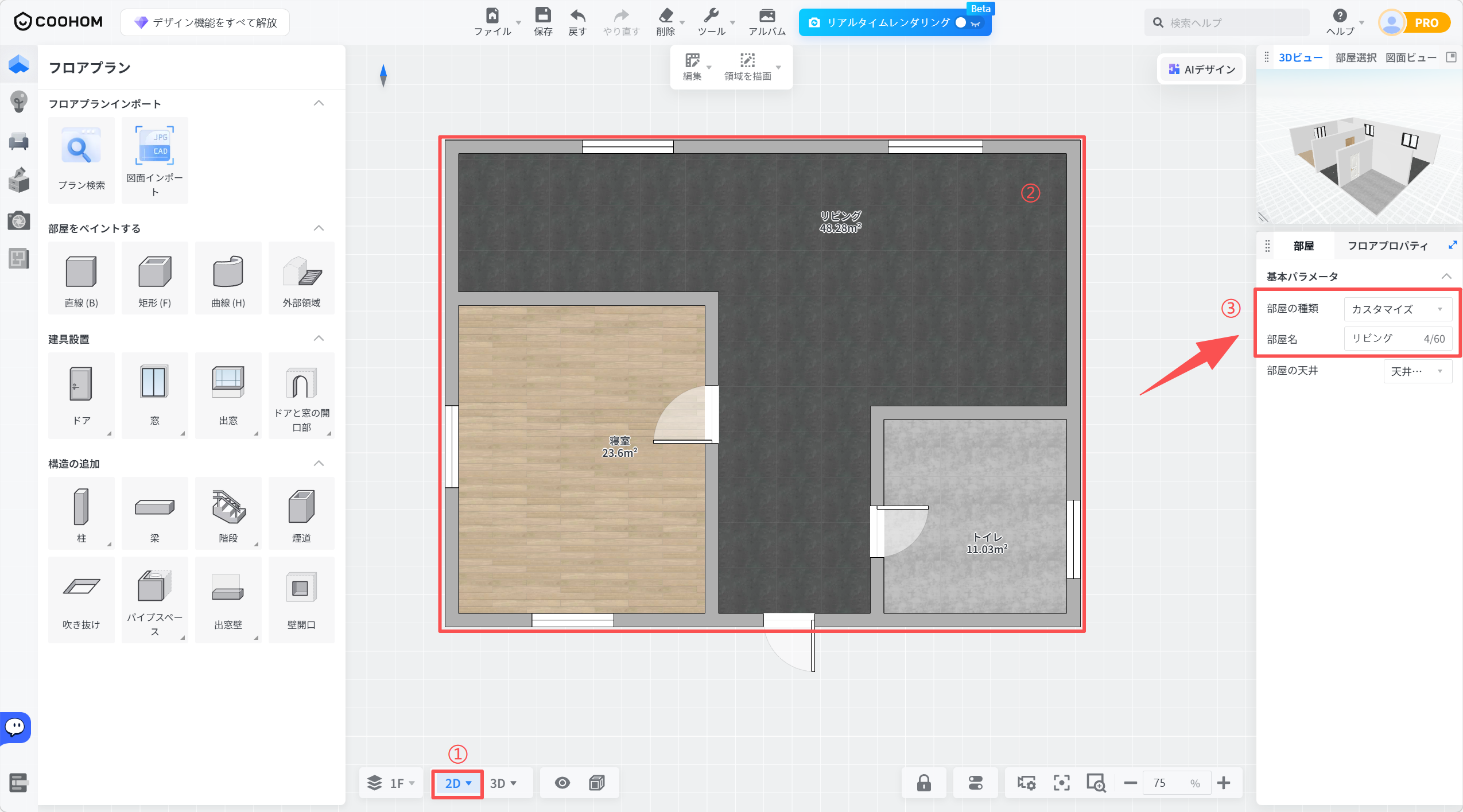

1. 2Dモードに切り替えます。
2. 部屋を選択します。
3. 右側パネルの基本パラメータで、「部屋の種類」と「部屋名」を設定します。

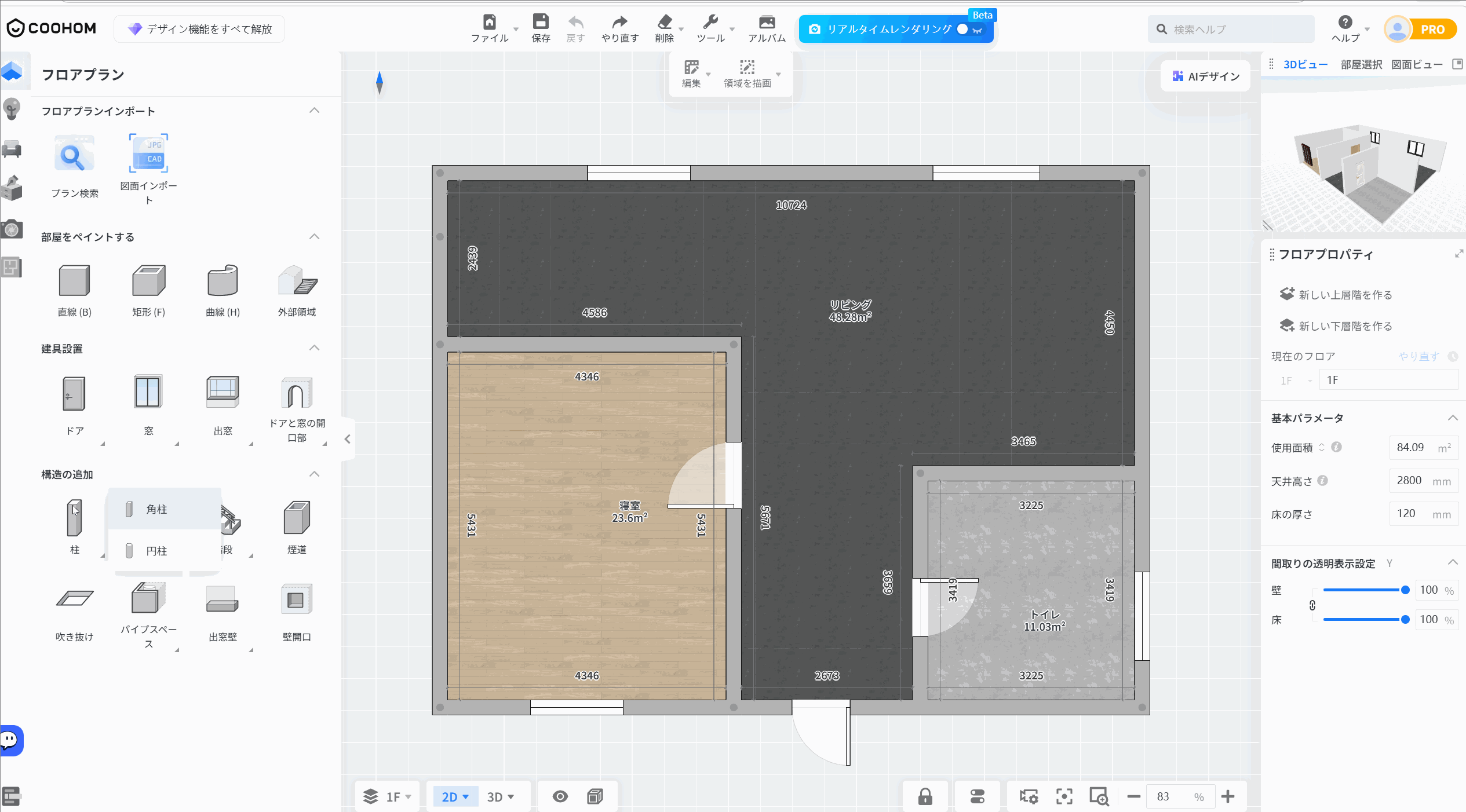

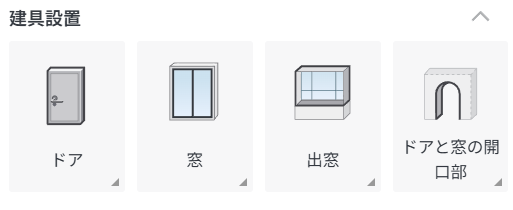

ドア/窓を選択し、ドア、窓、出窓、ドアと窓の開口部の4種類がありますので、必要に応じて選択できます。

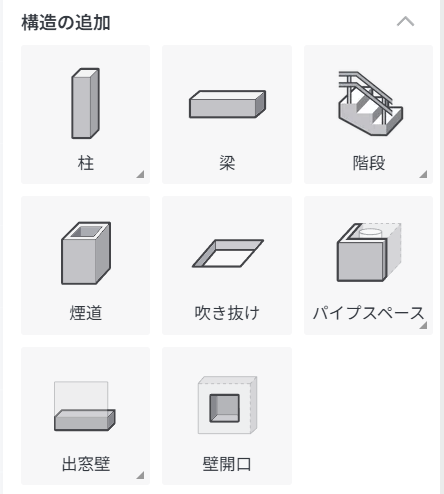

構造を選択し、柱、梁、煙道、段階、吹き抜けその他の構造から選択できます。
